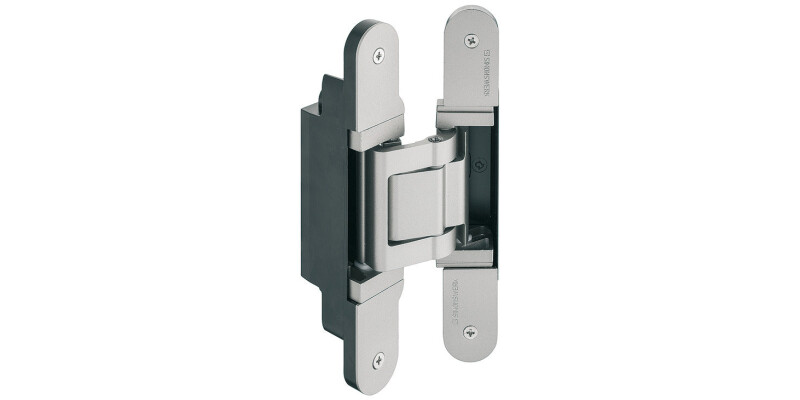

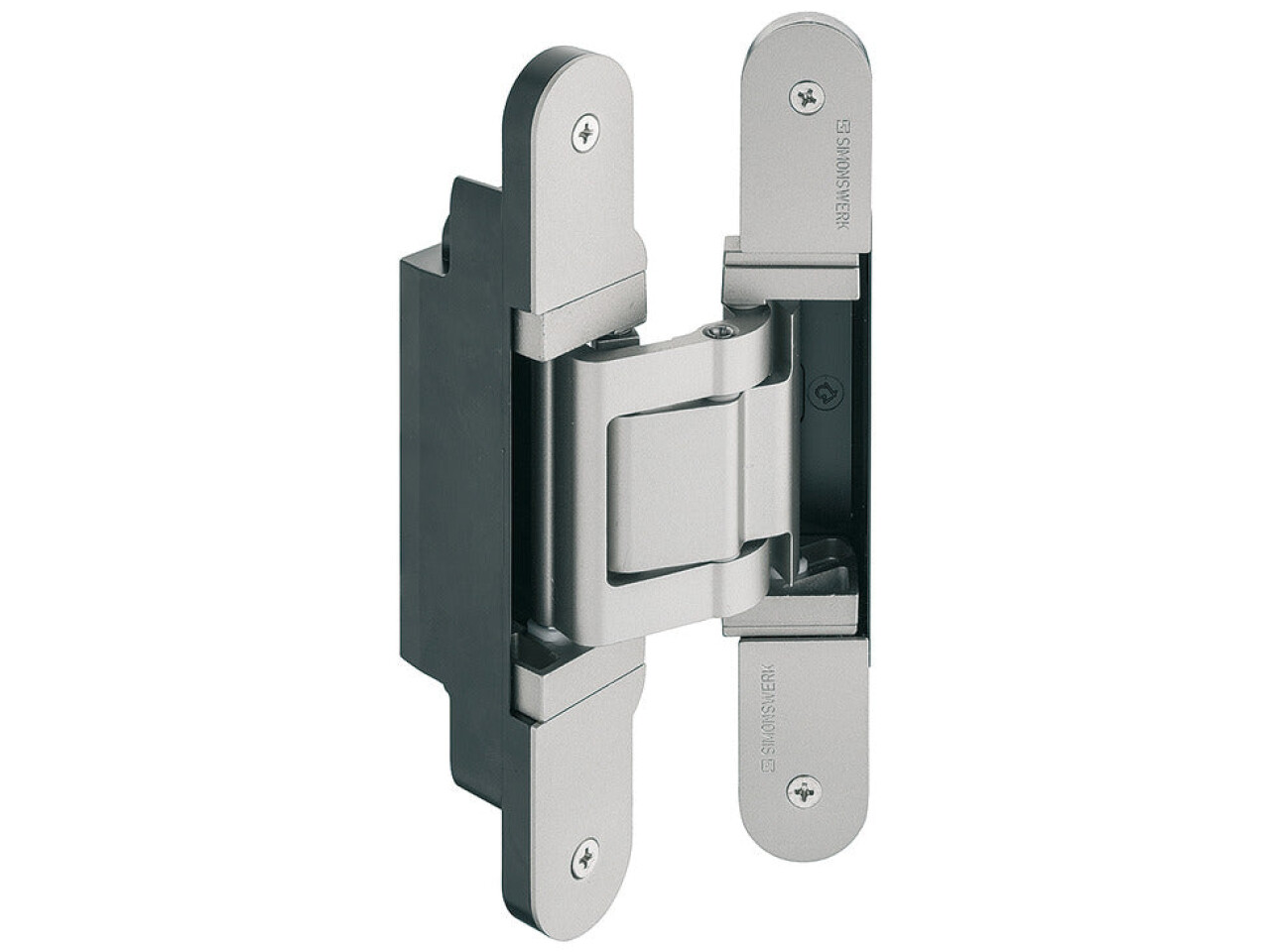

Tectus TE541 3D FVZ 180D Hinge MN
Part Number: 924.19.096
3-way continuous adjustment, Matt nickel
Price:
£210.10
Per Item
FVZ = 14 mm recessed frame facilityAllows for 14 mm cladding frame sideMaintenance free friction bearingsSuitable... Read More
Product Information
Product Details
FVZ = 14 mm recessed frame facility
Allows for 14 mm cladding frame side
Maintenance free friction bearings
Suitable for left or right hand applications
Specifications
Mounting
For DIN left and DIN right hand use
Flange shape
rounded
Flange width
28 mm
Material
Aluminium, Steel
Model
TE 541 3D FVZ
Flange height
185 mm
Model series
TECTUS TE 541 3D FVZ
Area of application
For wooden, steel or aluminium frames
For flush doors
For frame type
Steel frame, Wooden frame, Aluminium frame
Max. door weight for 2 hinges
100.00 kg
Opening angle
180.00 °
Door thickness
≥40 mm
Router bit Ø
24.00 mm
Thrust ring Ø
30.00 mm
Adjustment facility
3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Standard
Certified in compliance with EN 1935:2002
Grade
4|7|5|1|1|4|0|12
Supplied with
Fixings
