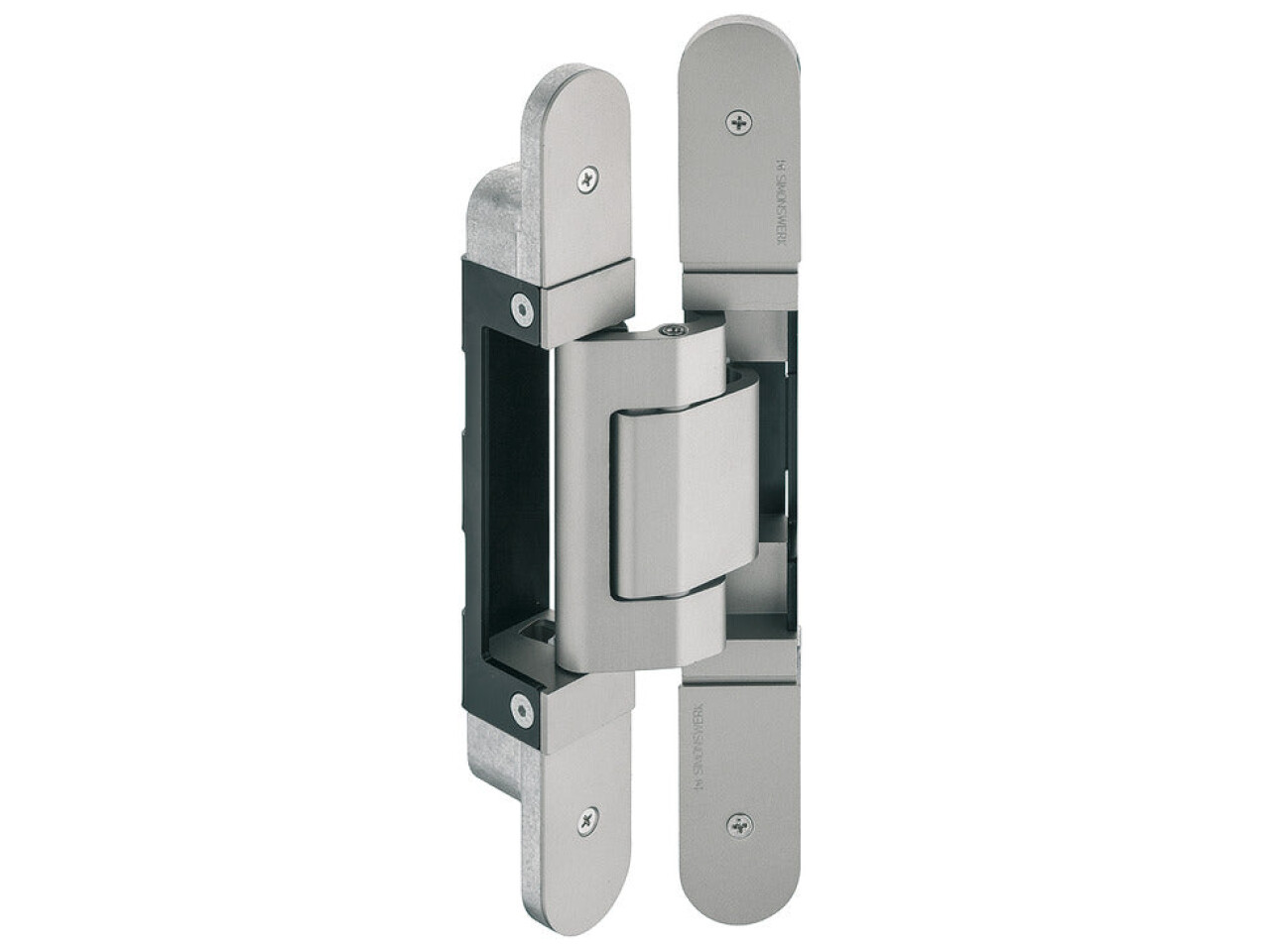

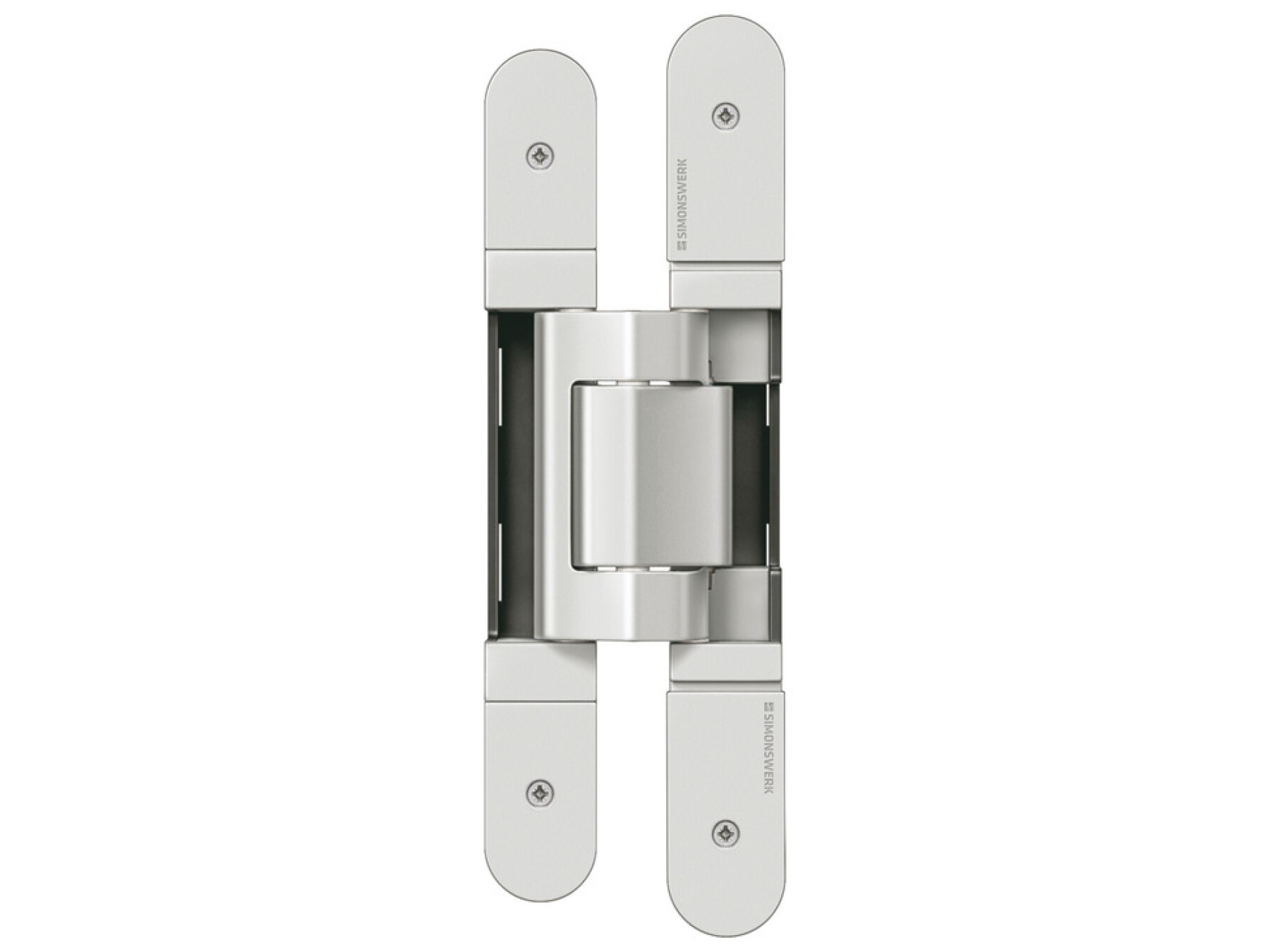

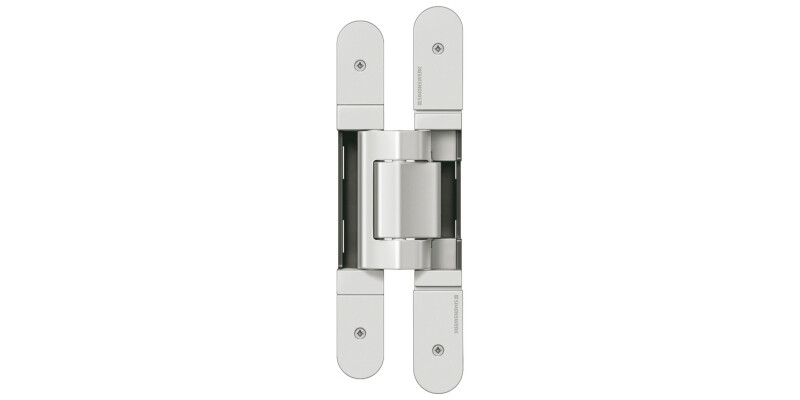

Tectus TE645 3D 180D Hinge St St Effect
Part Number: 924.19.000
3-way continuous adjustment, Stainless steel effect
Price:
£517.73
Per Item
Suitable for left or right hand applicationsMaintenance free friction bearings “Energy” version also... Read More
Product Information
Product Details
Suitable for left or right hand applications
Maintenance free friction bearings
“Energy” version also available (optional), For permanent and invisible energy transmission from the door frame to the door leaf
Specifications
Mounting
For DIN left and DIN right hand use

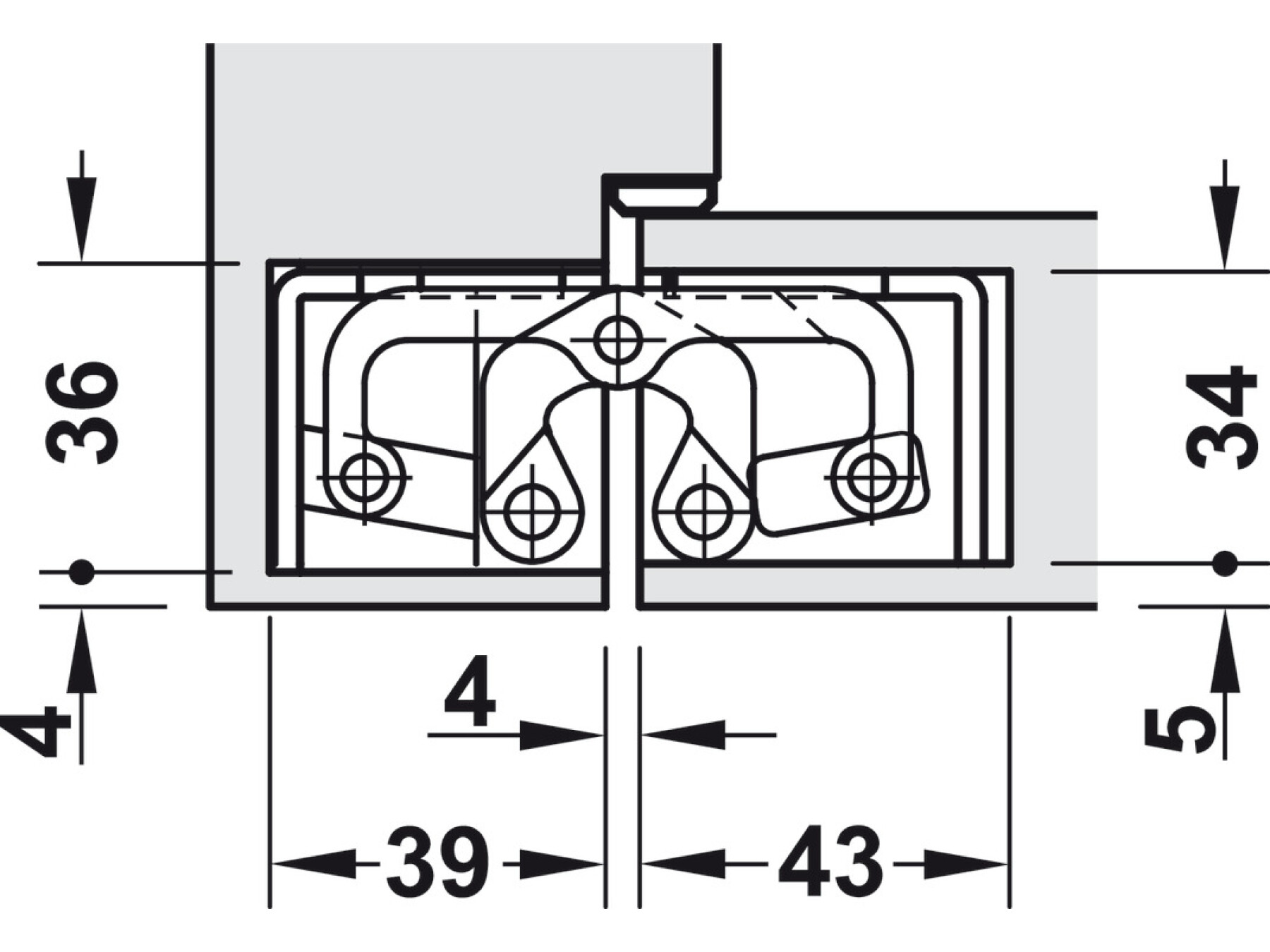

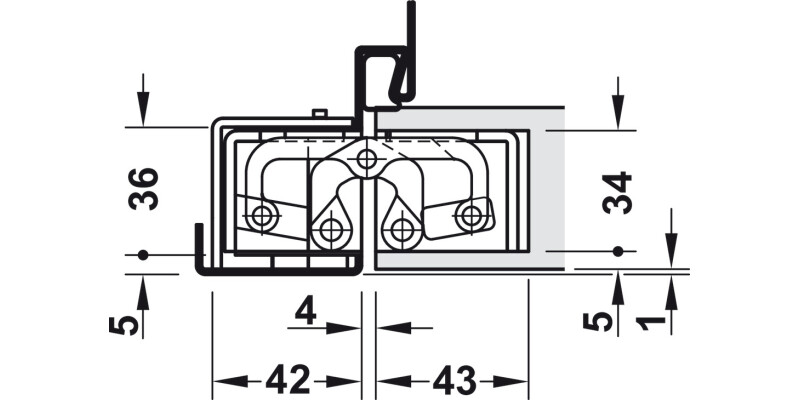

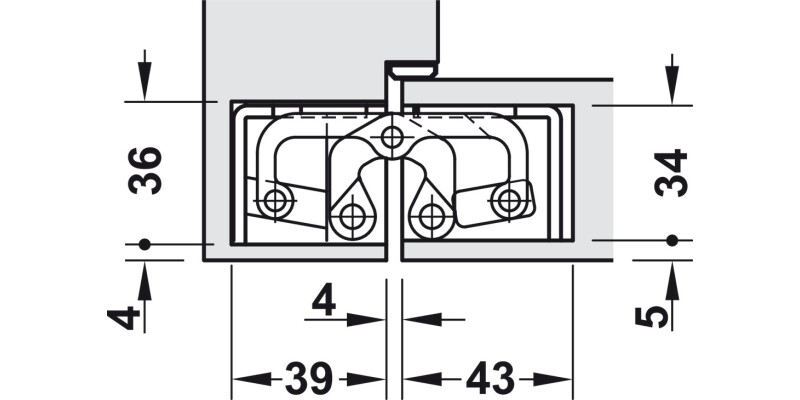

Flange shape
rounded
Flange width
36 mm / 34 mm
Material
Aluminium, Steel
Model
TE 645 3D

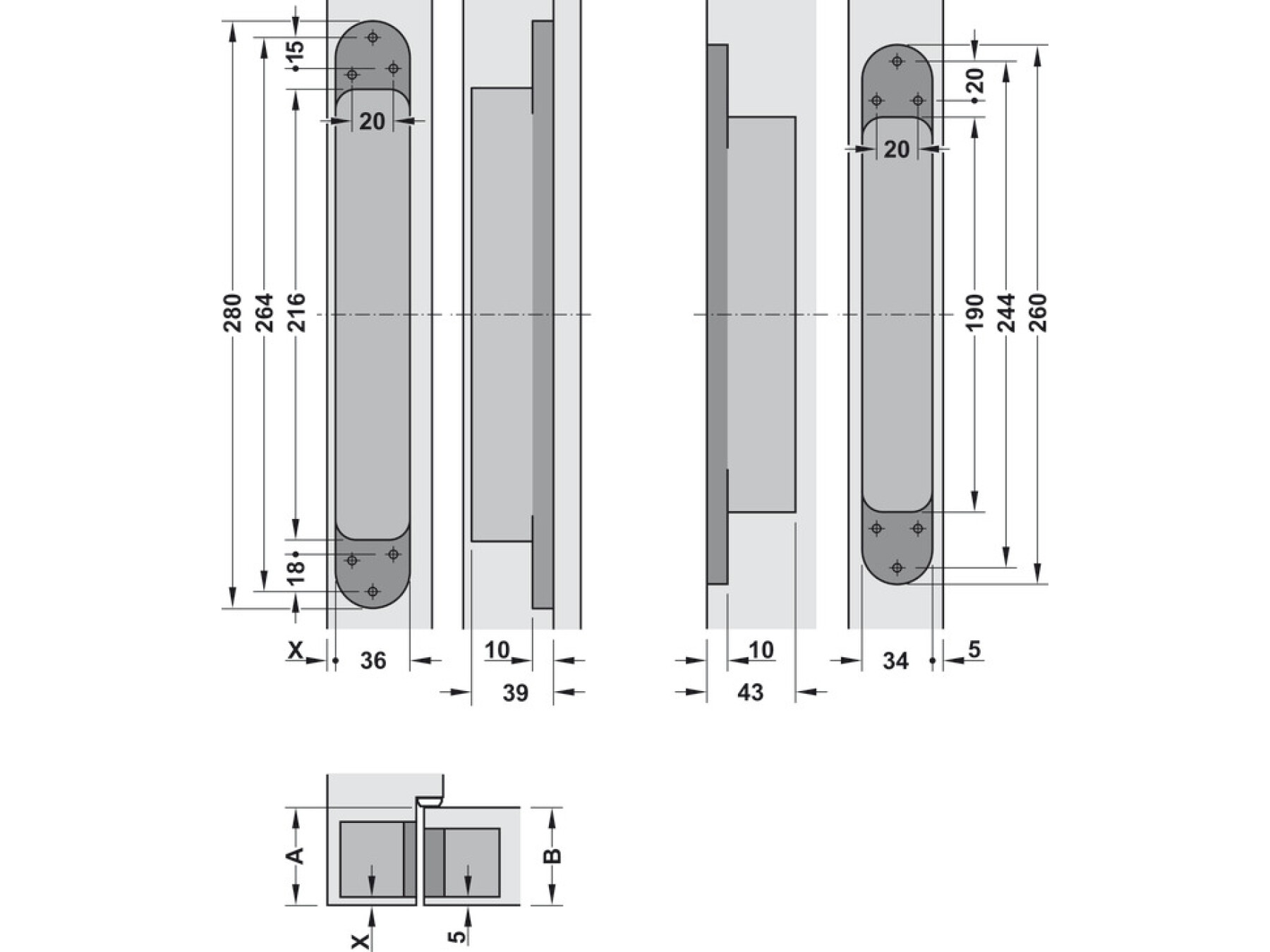

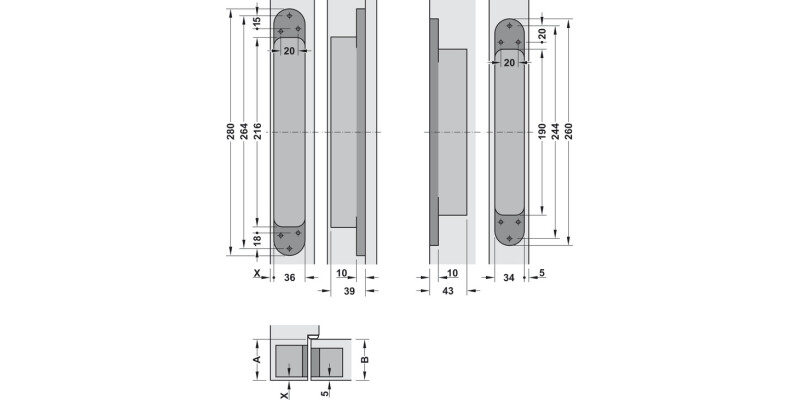

Flange height
280 mm / 260 mm
Model series
TECTUS TE 645 3D
Area of application
For wooden, steel or aluminium frames
For flush doors
For frame type
Steel frame, Wooden frame, Aluminium frame
Max. door weight for 2 hinges
300.00 kg
Opening angle
180.00 °
Door thickness
≥40 mm
Router bit Ø
24.00 mm
Thrust ring Ø
30.00 mm
Adjustment facility
3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Standard
Certified in compliance with EN 1935:2002
Grade
