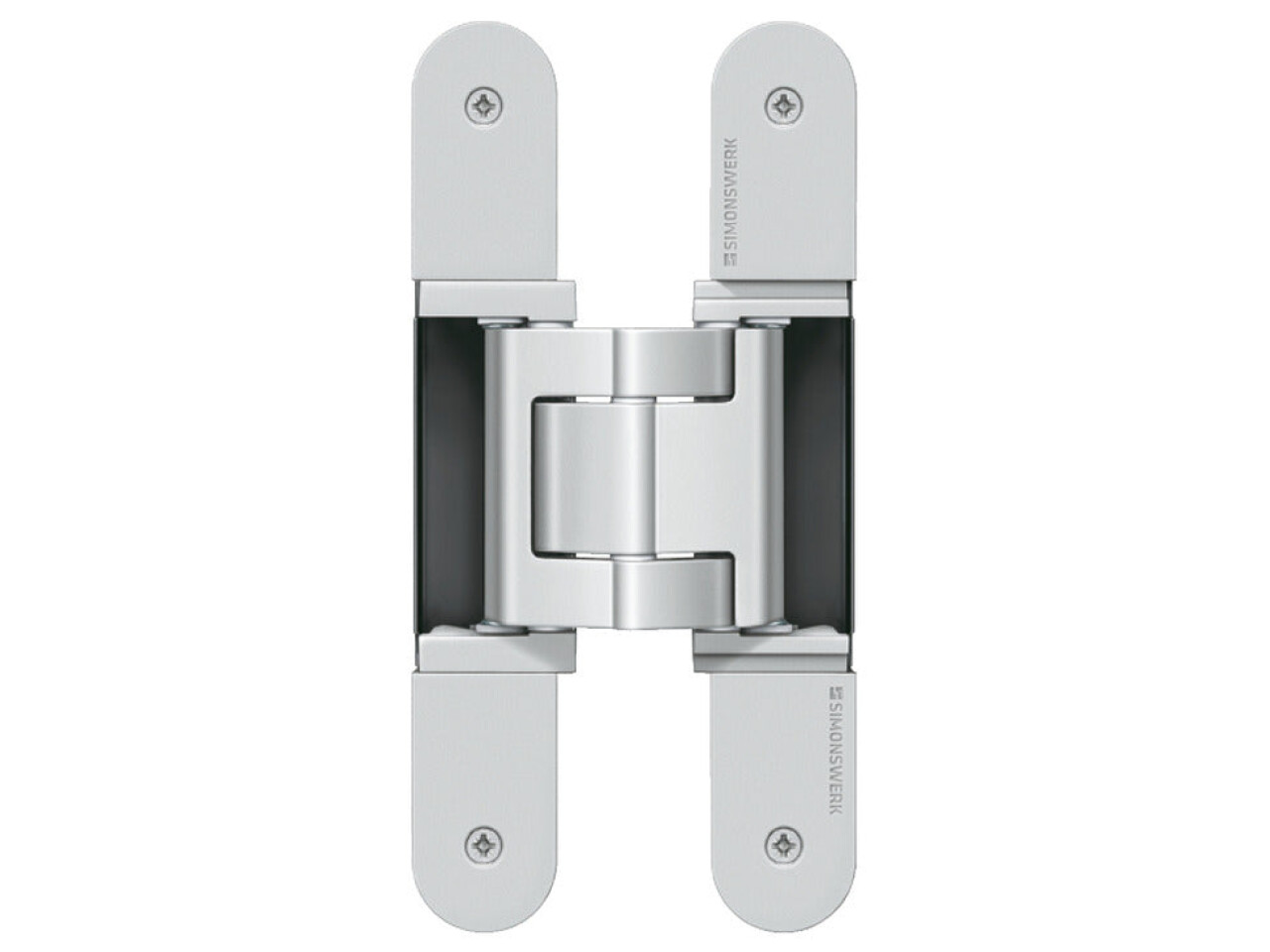

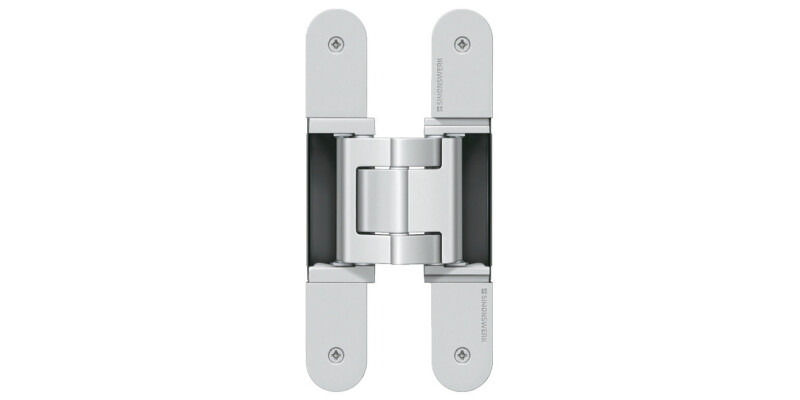

Tectus TE540 3D A8 180D Energy Hinge MN
Part Number: 924.17.746
3-way continuous adjustment, Matt nickel
Price:
£537.31
Per Item
With permanent energy transferMaintenance free friction bearingsSuitable for left or right hand applicationsMax.... Read More
Product Information
Product Details
With permanent energy transfer
Maintenance free friction bearings
Suitable for left or right hand applications
Max. door weight adjusted 100 kg
FD30 fire rated when installed with intumescent kit 924.19.132
Specifications
Material
Aluminium, Steel, Zinc, Die-cast
Area of application
For wooden, steel or aluminium frames
For flush doors
Opening angle
180.00 °
Door thickness
≥40 mm
Adjustment facility
3-way continuous adjustment: Vertical: ± 3 mm, Horizontal: ± 3 mm, Depth: ± 1.0 mm
Supplied with
Fixings
