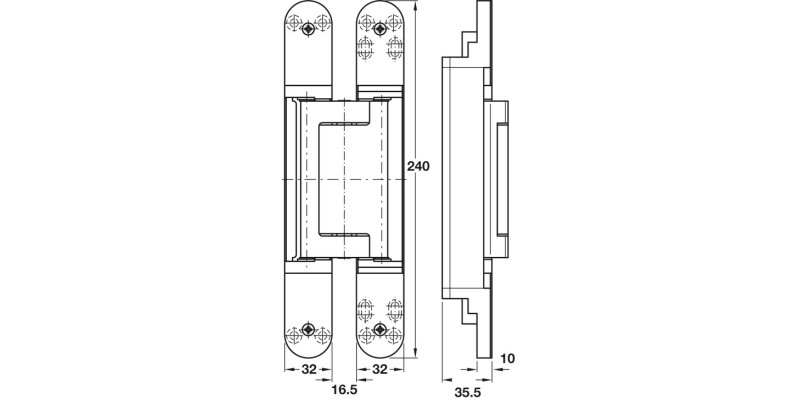

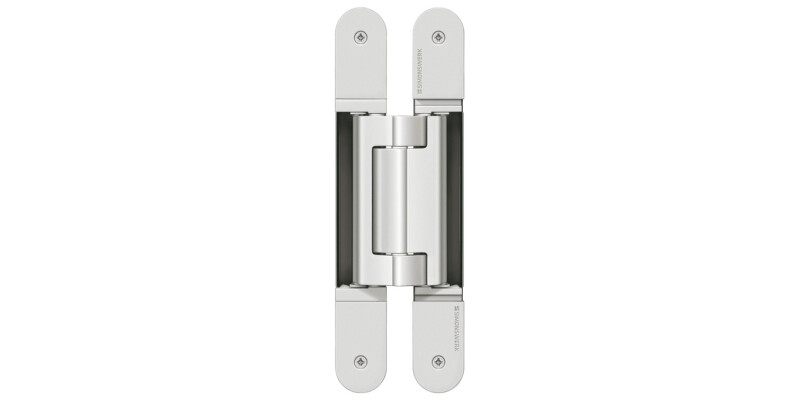

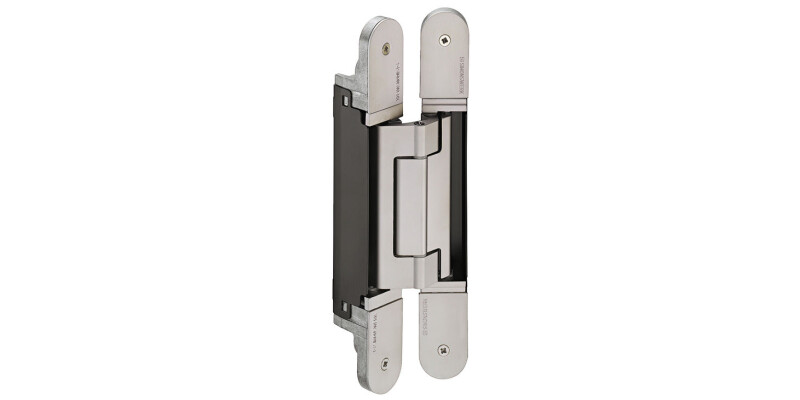

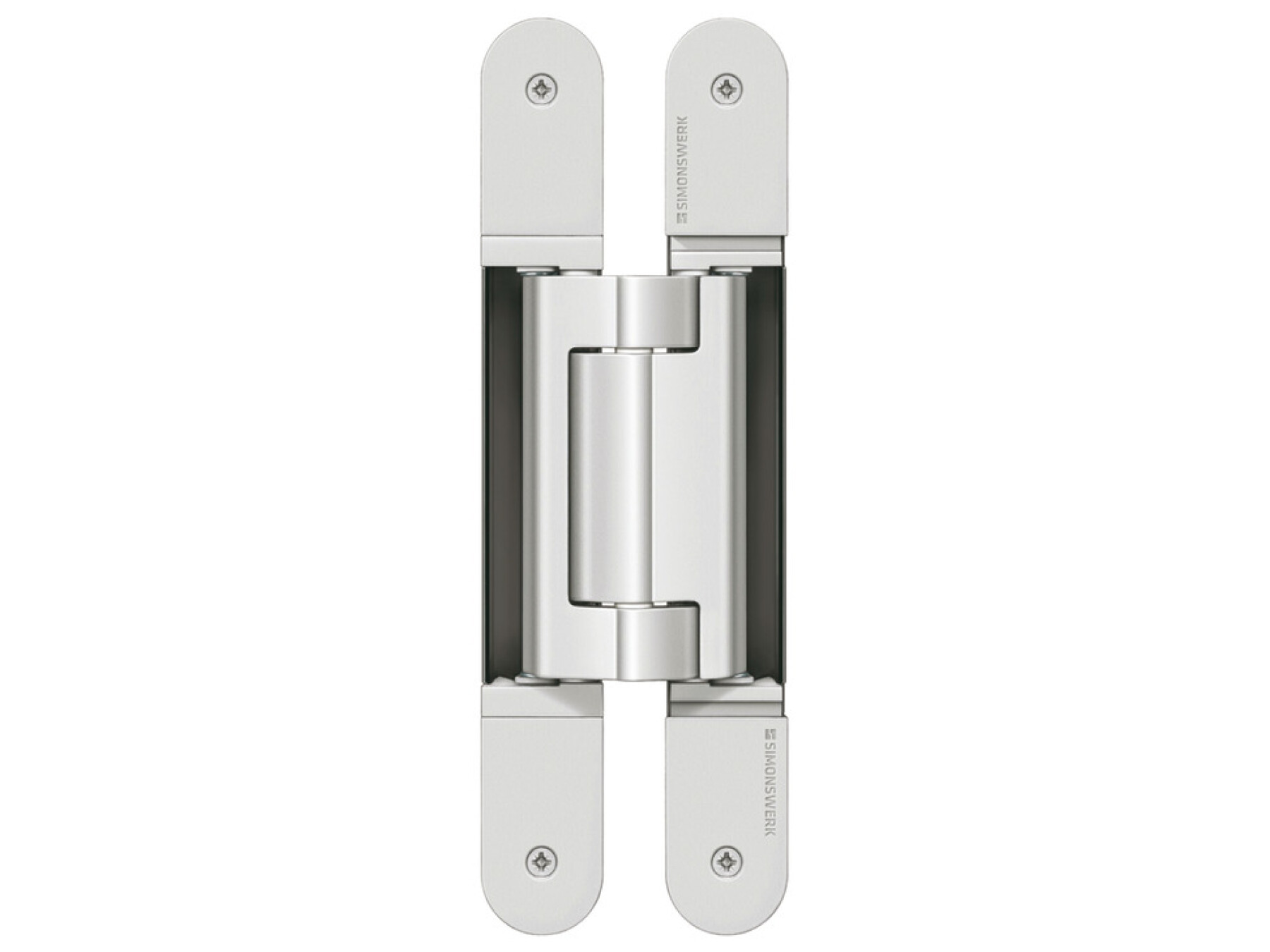

Tectus TE640 3D 180D Hinge BM
Part Number: 924.17.450
3-way continuous adjustment, Bronze metallic
Price:
£305.86
Per Item
Suitable for left or right hand applicationsMaintenance free friction bearings"Energy" version for... Read More
Product Information
Product Details
Suitable for left or right hand applications
Maintenance free friction bearings
"Energy" version for permanent and invisible energy transmission from the door frame to the door leaf optionally available.
Specifications
Mounting
For DIN left and DIN right hand use
Flange shape
rounded
Flange width
32 mm
Material
Aluminium, Steel
Model
TE 640 3D
Flange height
240 mm
Model series
TECTUS TE 640 3D
Area of application
For wooden, steel or aluminium frames
For flush doors

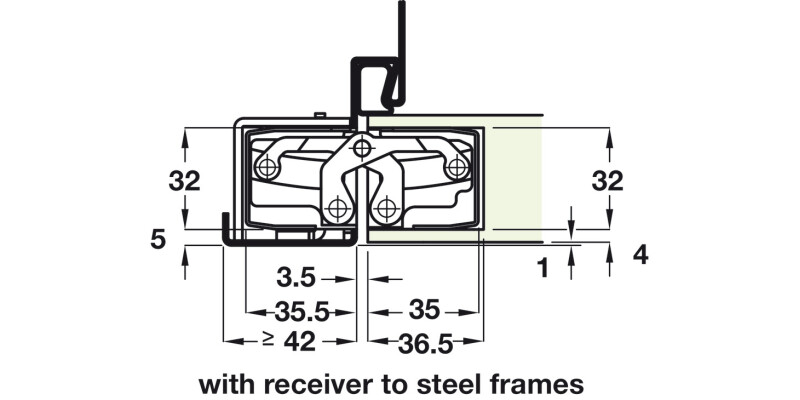

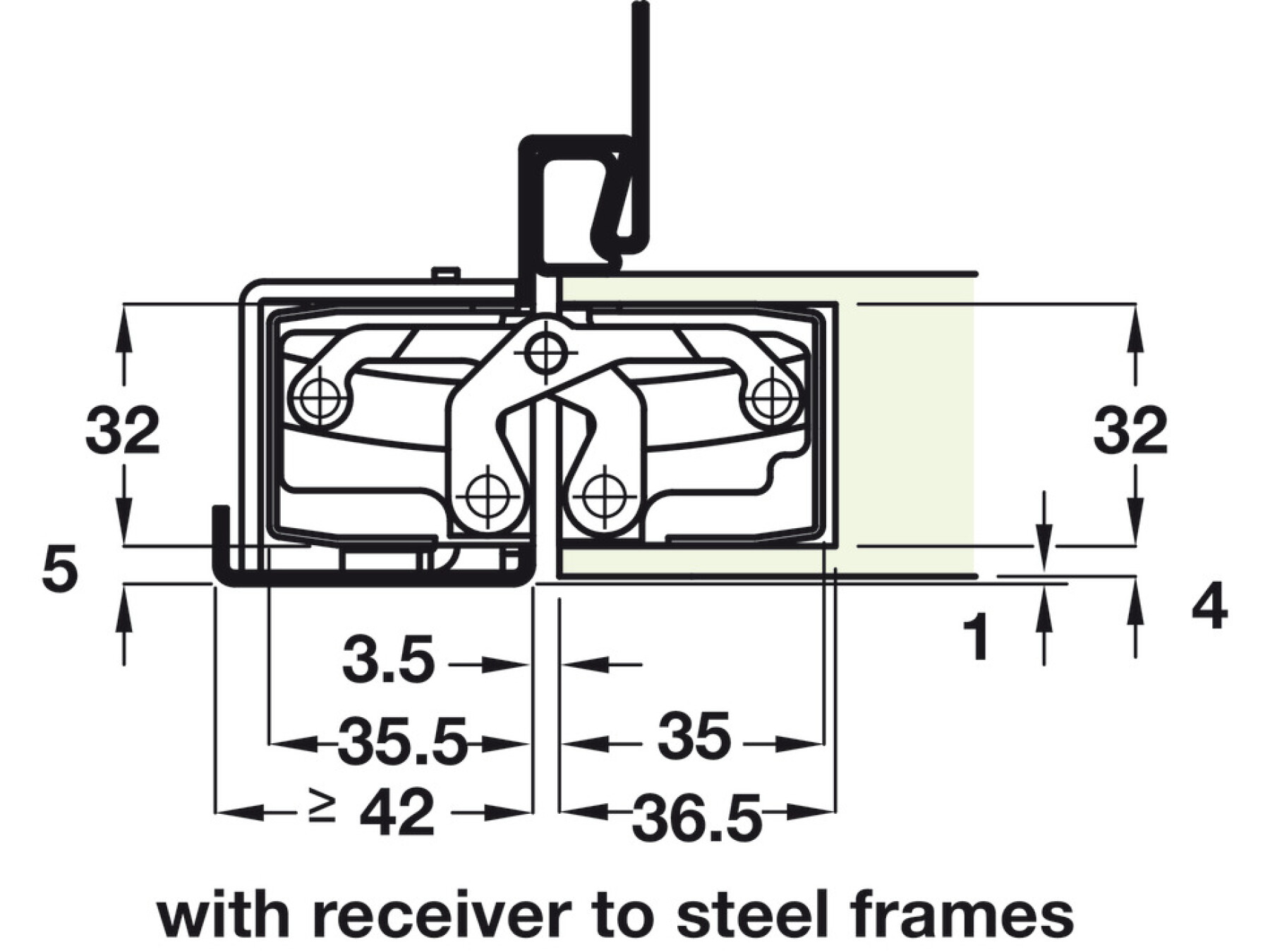

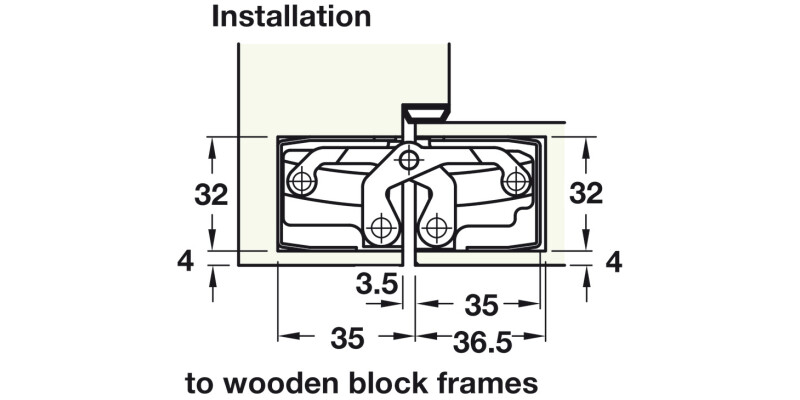

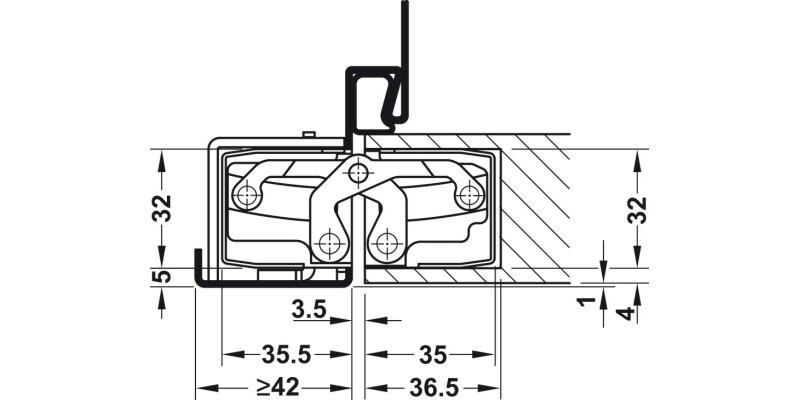

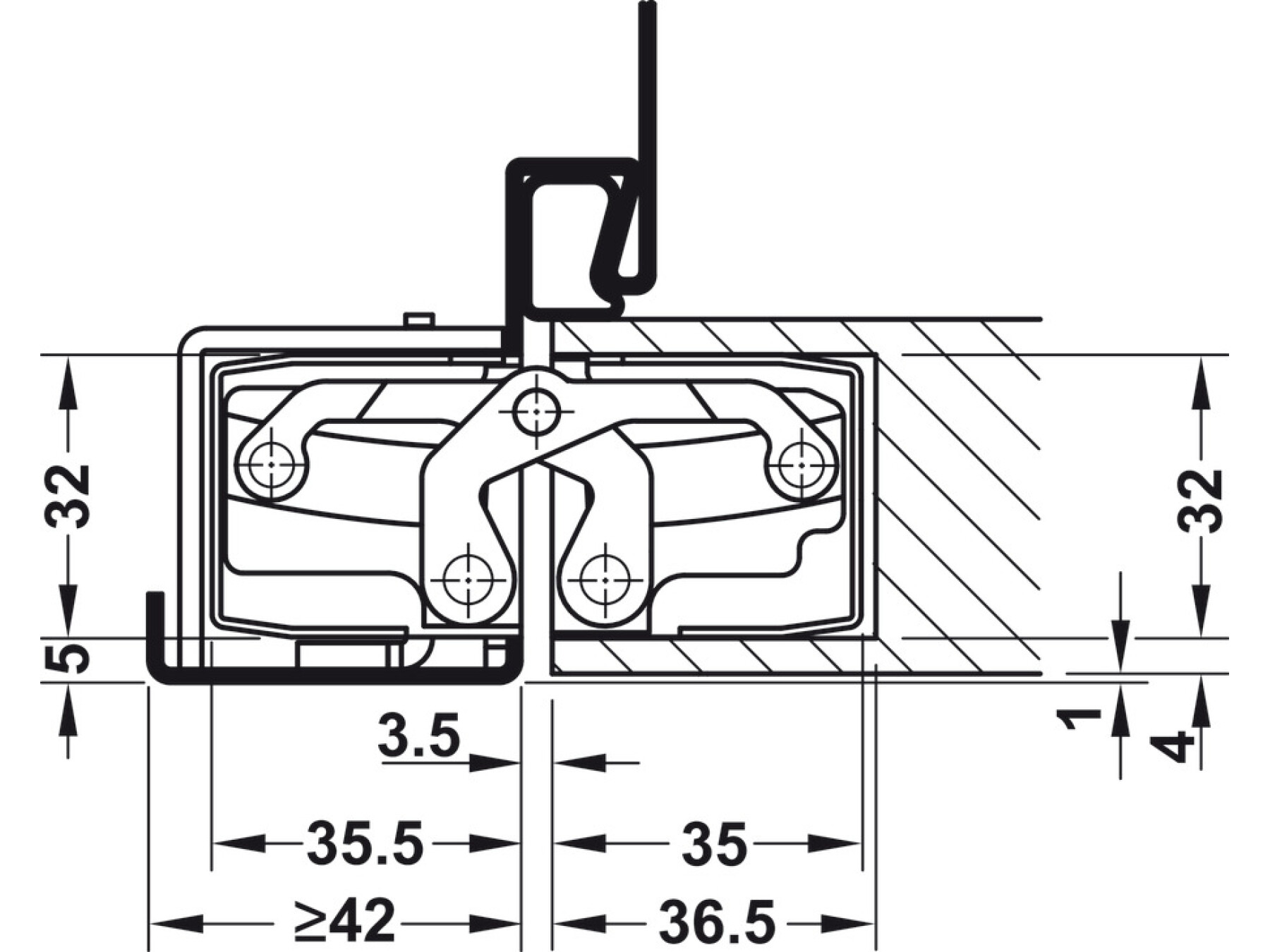

For frame type

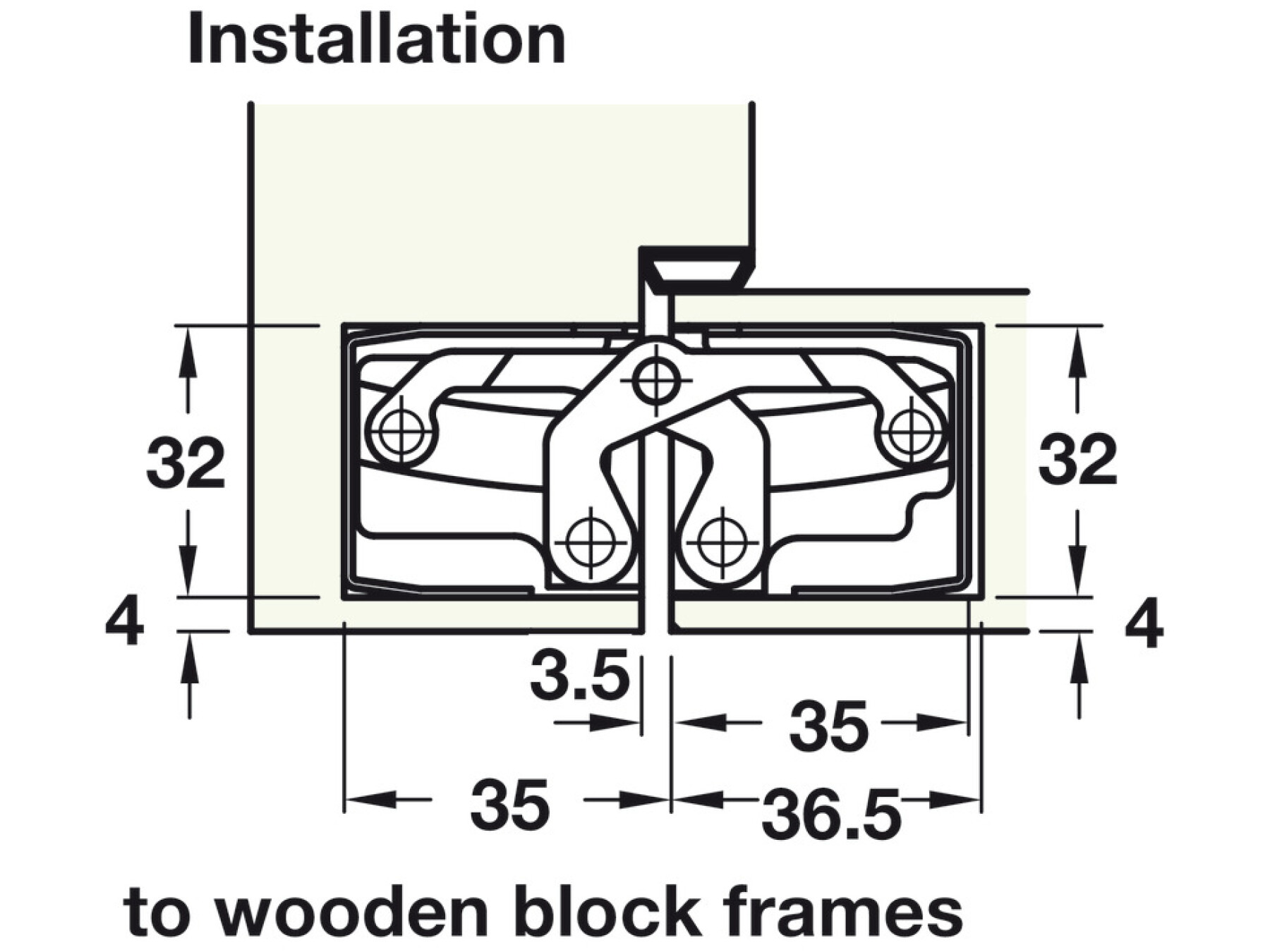

Steel frame, Wooden frame, Aluminium frame
Max. door weight for 2 hinges
200.00 kg
Opening angle
180.00 °
Door thickness
≥40 mm

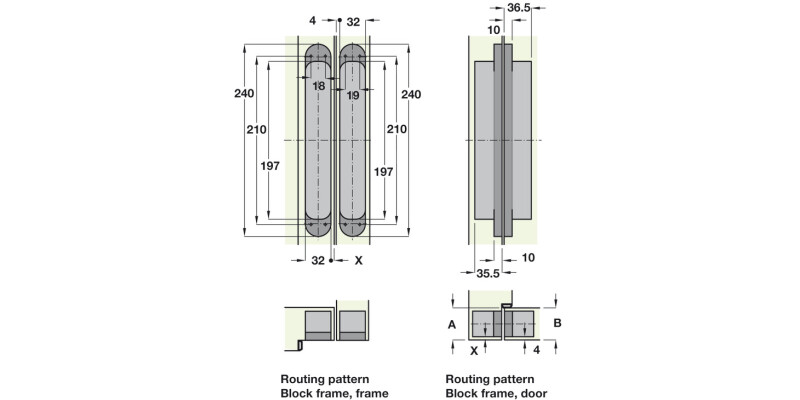

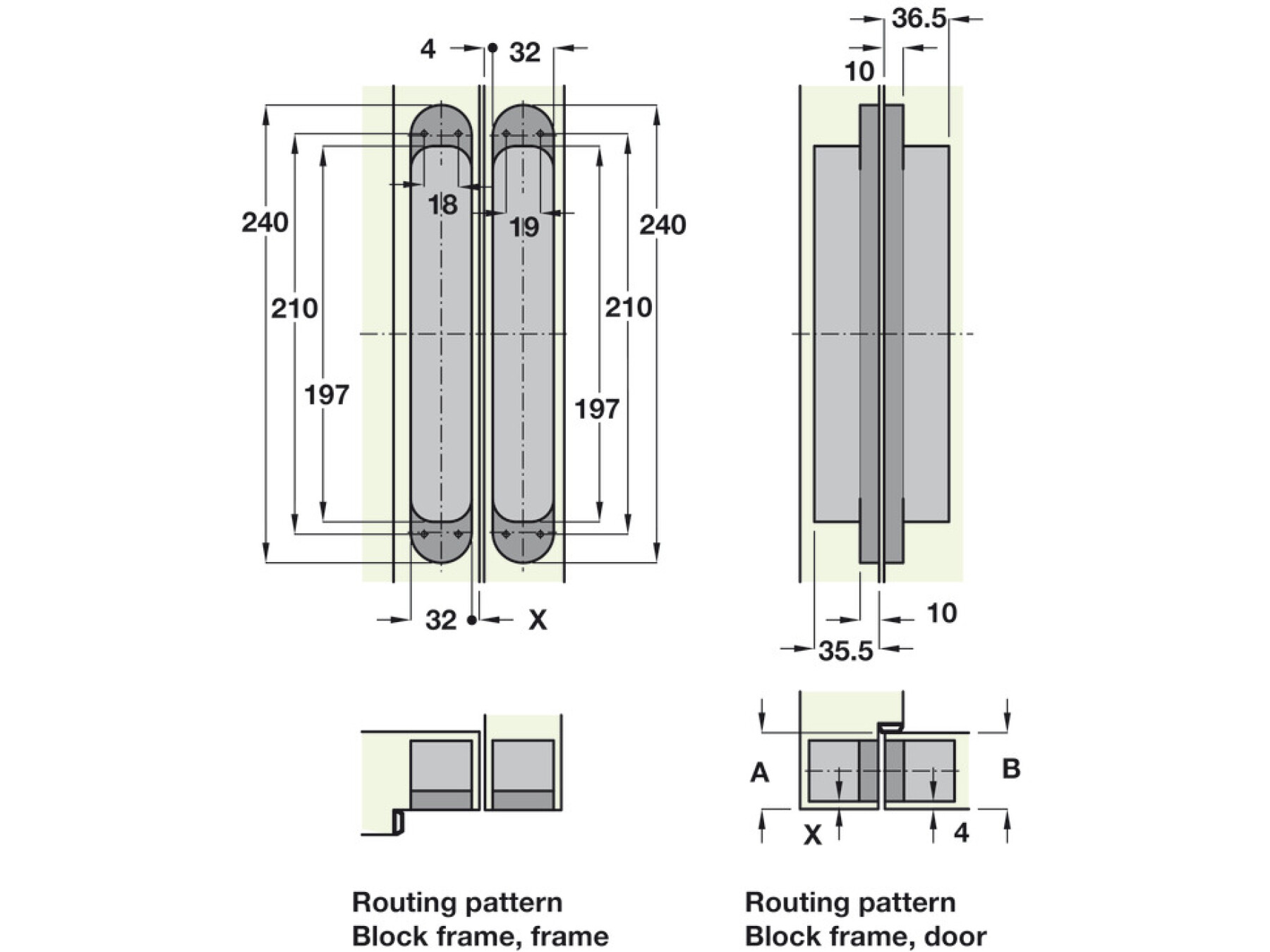

Router bit Ø
24.00 mm
Thrust ring Ø
30.00 mm
Adjustment facility
3D, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Supplied with
Fixing screws
