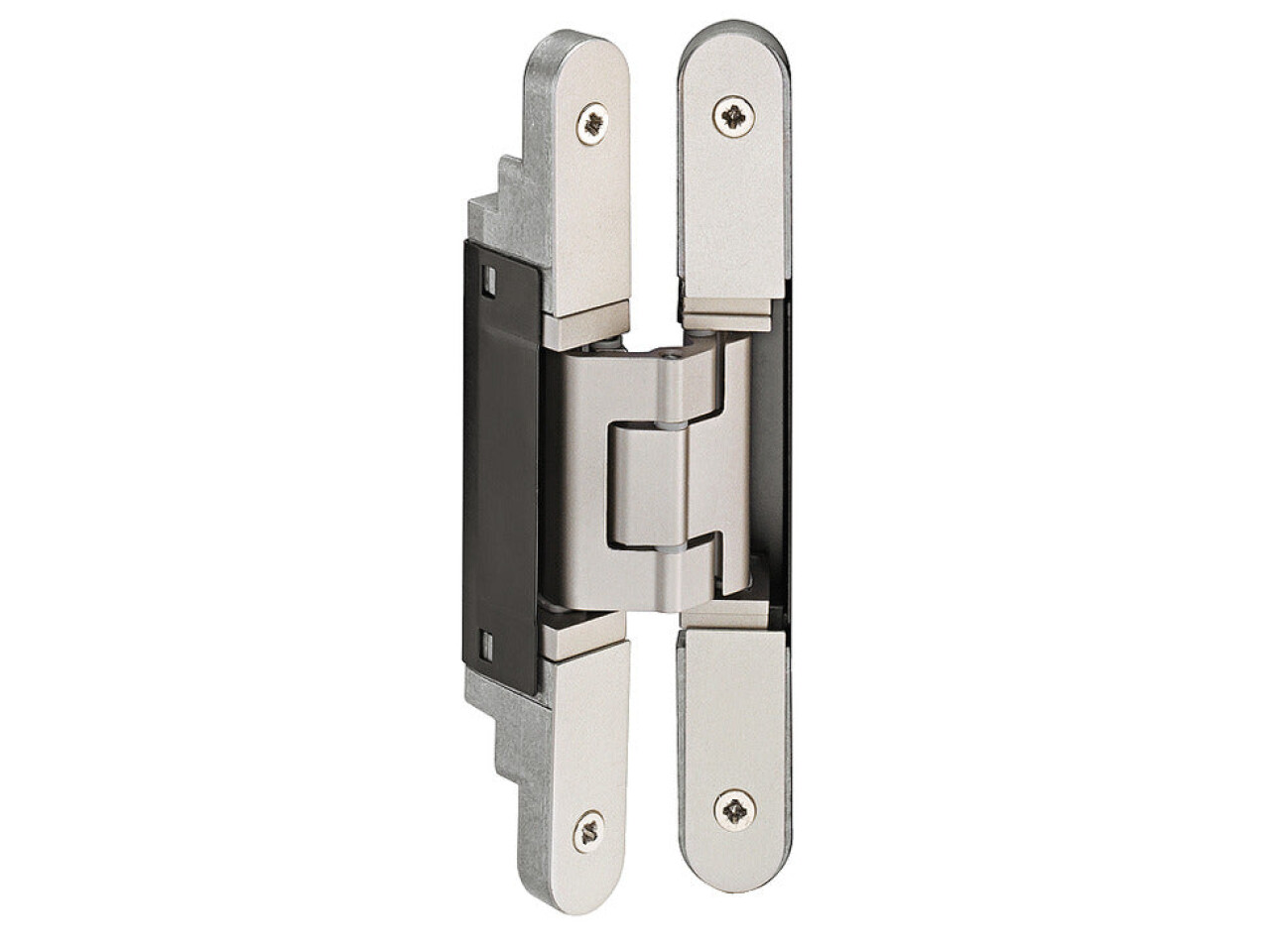

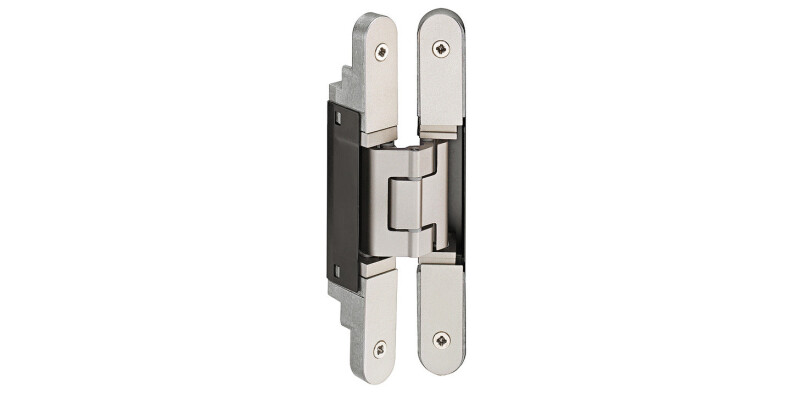

Tectus TE240 3D 180D Hinge MN (f2)
Part Number: 924.17.022
3-way continuous adjustment, Matt nickel (f2) powder coated
Price:
£97.51
Per Item
Maintenance-free slide bearings Order reference “Energy” version for permanent and invisible... Read More
Product Information
Product Details
Maintenance-free slide bearings
Order reference
“Energy” version for permanent and invisible energy transmission from the door frame to the door leaf optionally available
"Energy" version for permanent energy transmission from the door frame to the door leaf optionally available. Additional cable transition not required.
Specifications
Mounting
For DIN left and DIN right hand use

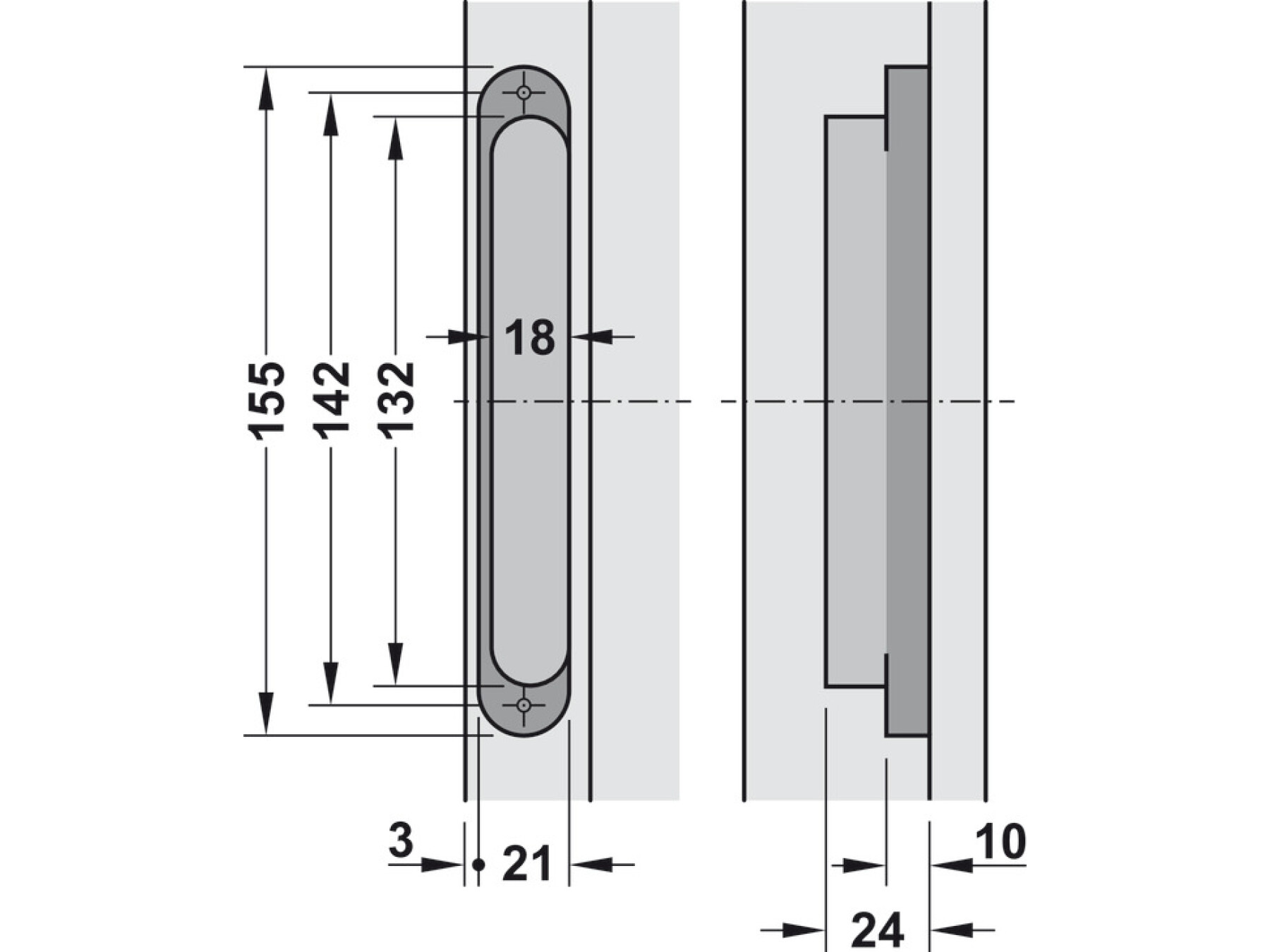

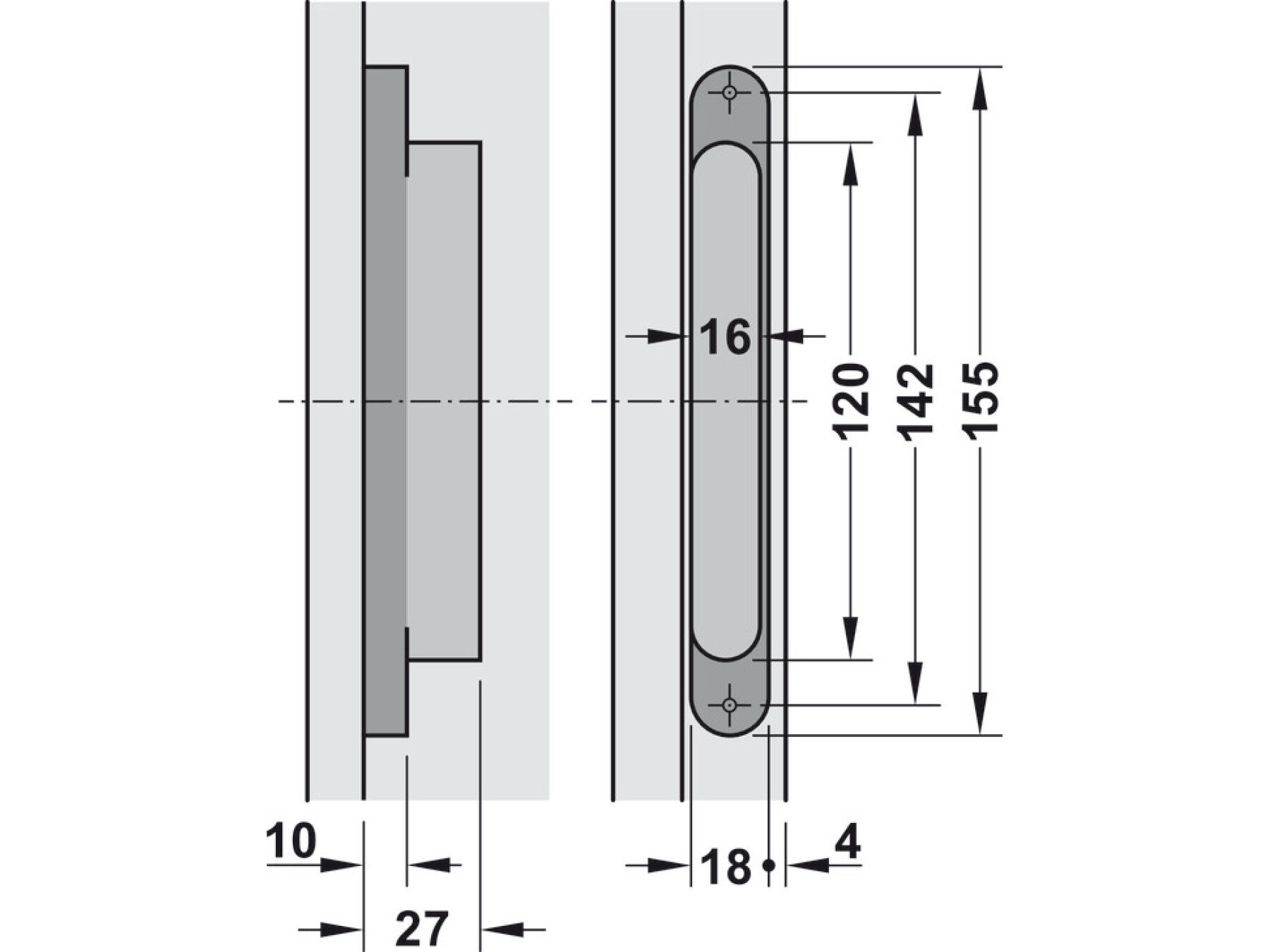

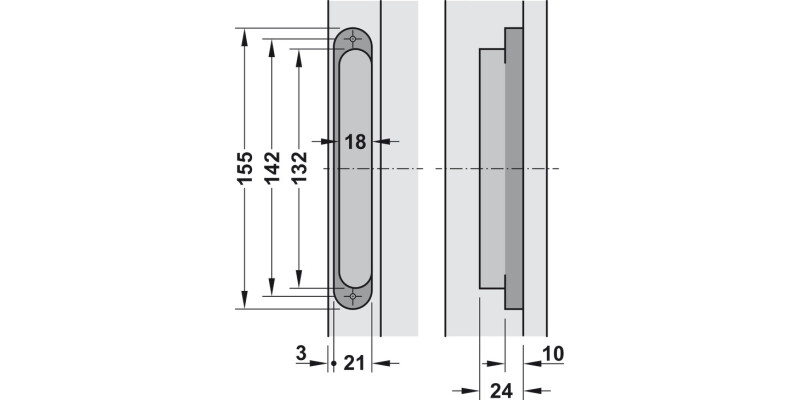

Flange shape
rounded
Flange width
21 mm / 18 mm
Material
Aluminium, Steel
Flange height
155 mm
Model series
TECTUS TE 240 3D N
Area of application
For wooden, steel or aluminium frames
For flush doors
For frame type
Steel frame, Wooden frame, Aluminium frame
Max. door weight for 2 hinges
60.00 kg
Opening angle
180.00 °

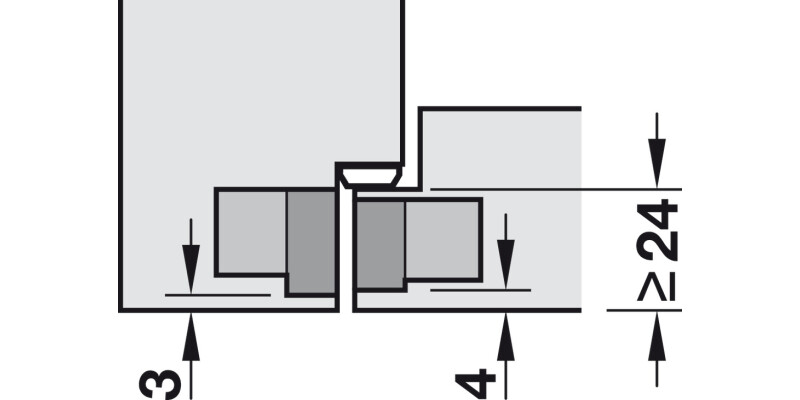

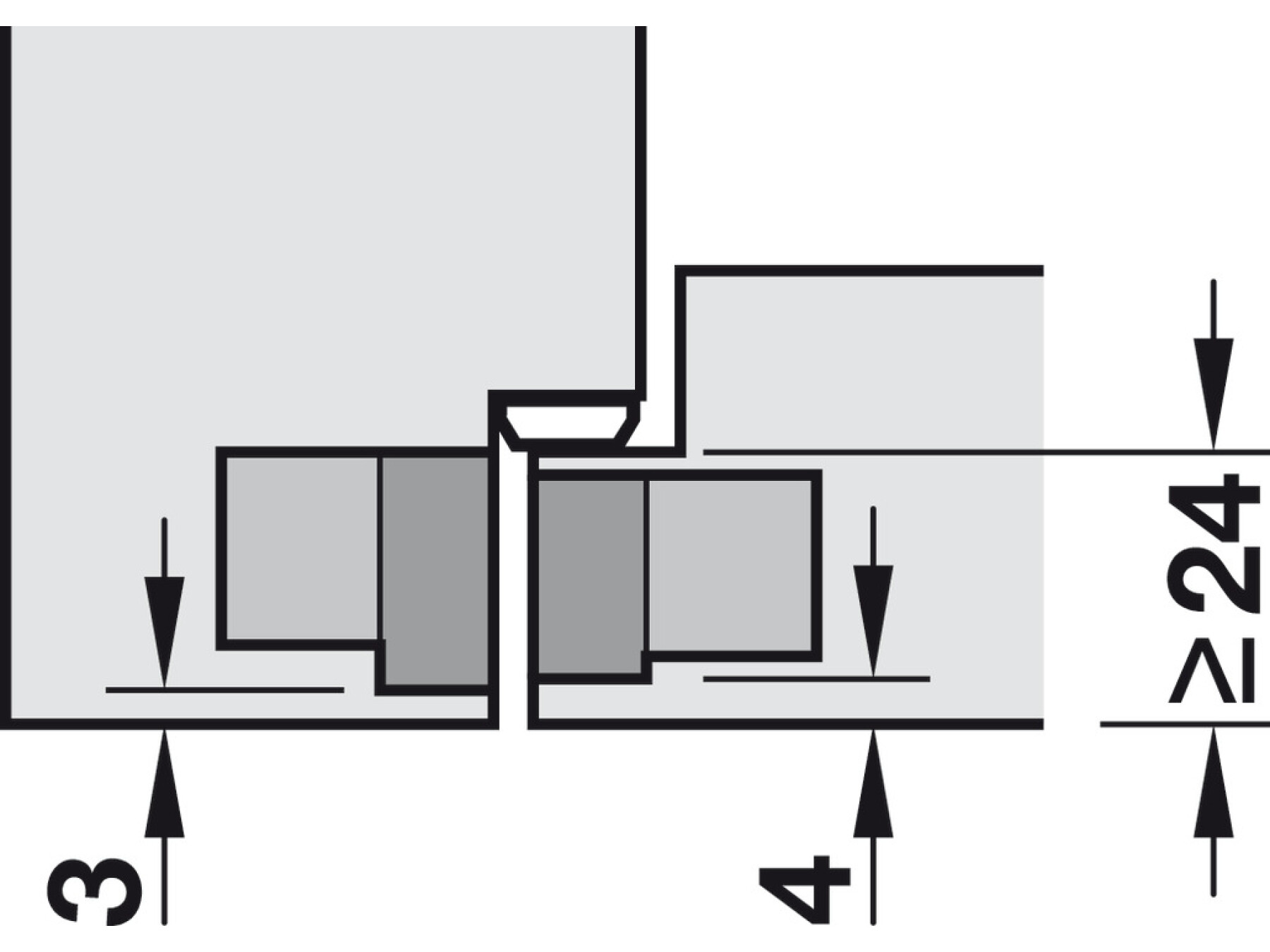

Door thickness
≥25 mm
Router bit Ø
16.00 mm
Thrust ring Ø
30.00 mm
Bearing type
Friction bearing, maintenance-free
Adjustment facility

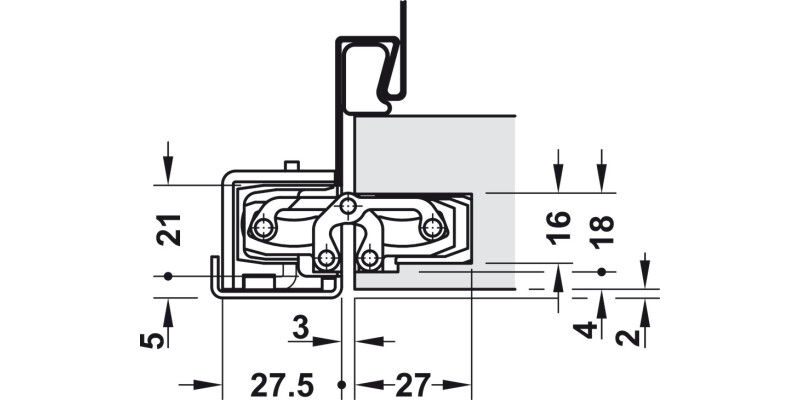

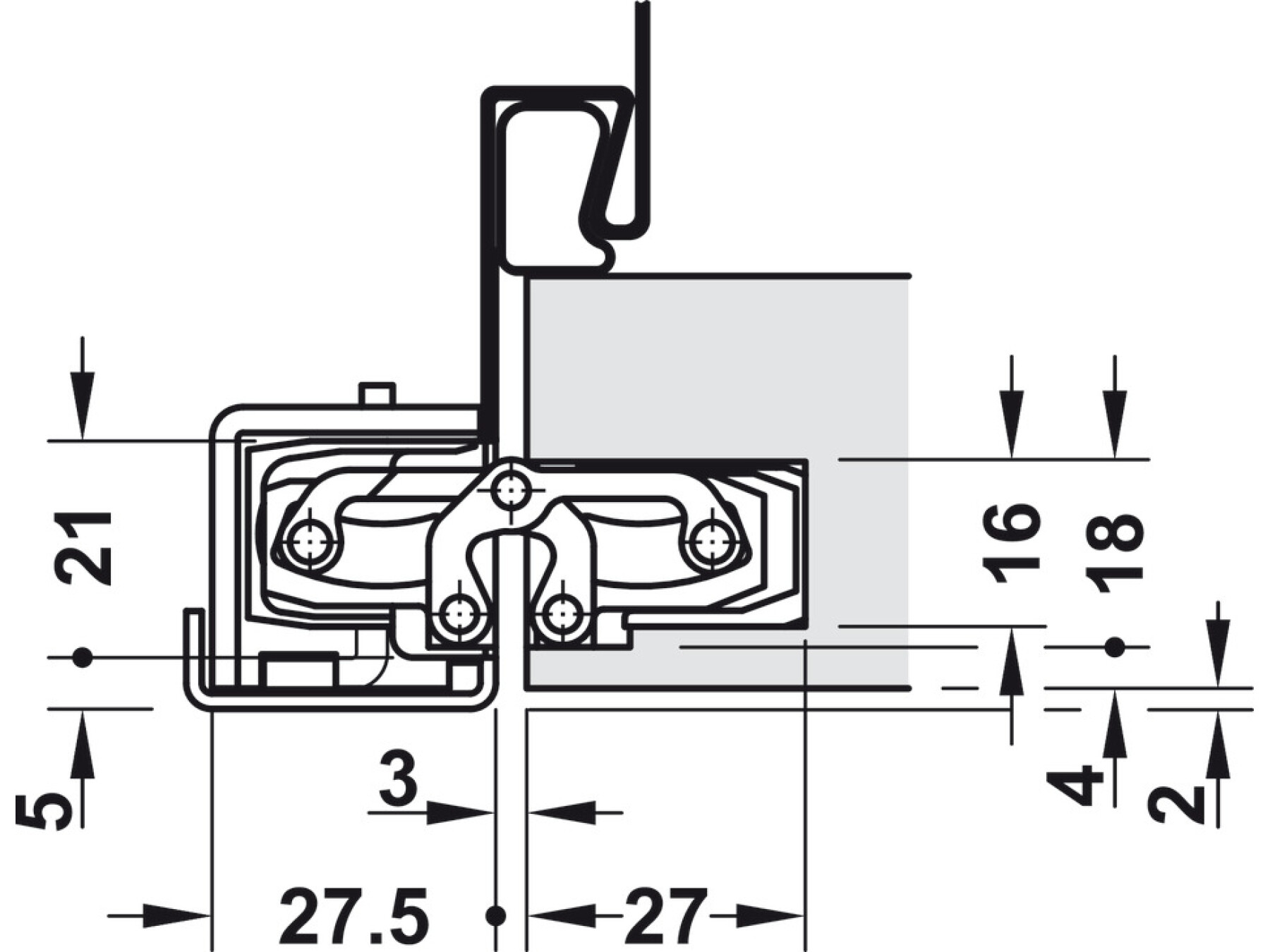

3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1.5 mm
Standard
Certified in compliance with EN 1935:2002
Grade
3|7|3|1|1|4|0|10
