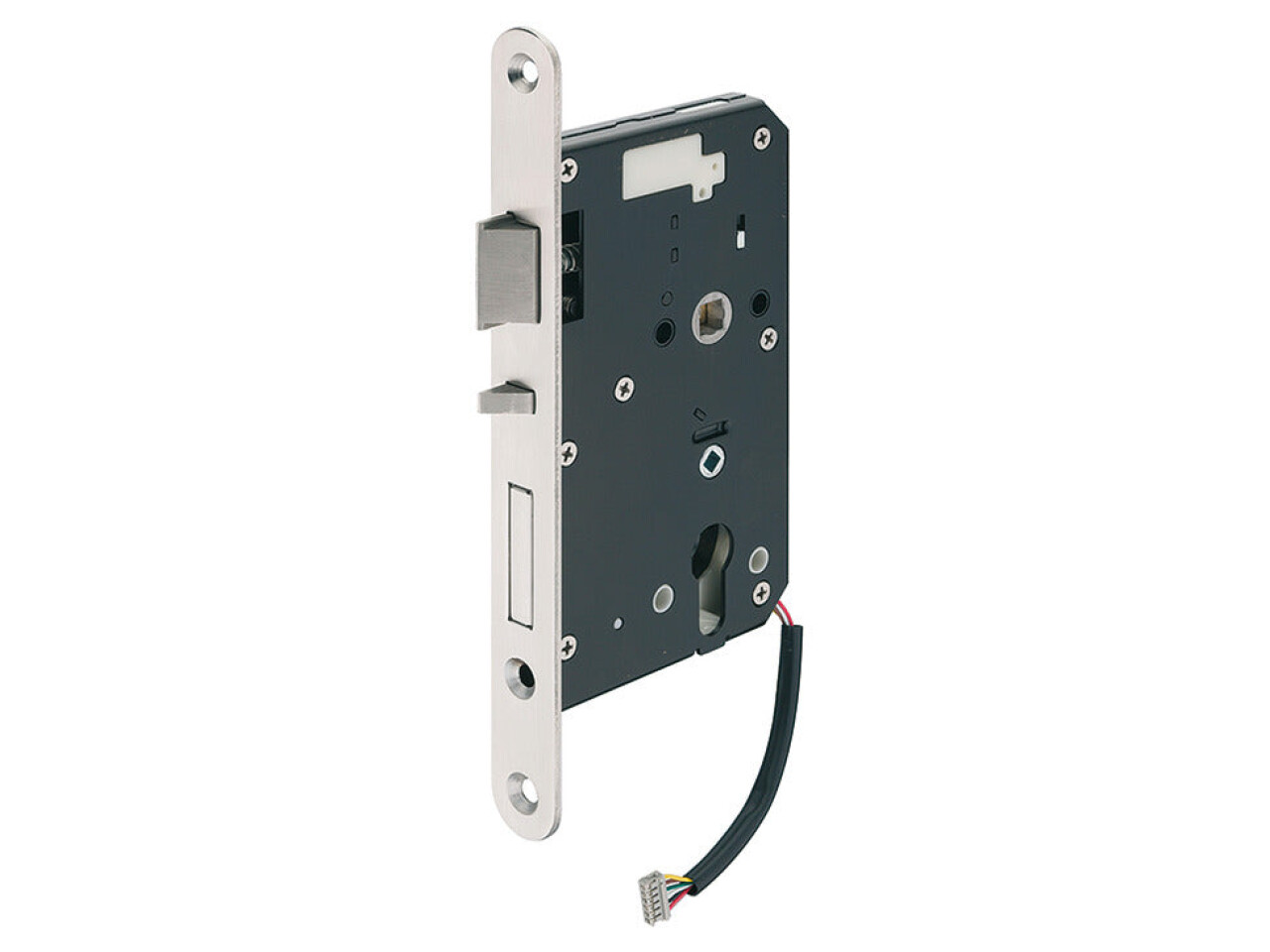

Dialock DT700/710 Mortice DL Out SSBlk
Operating principle Determination of the comfort functionThe door can opened inwards or outwards, irrespective of... Read More
Product Details
Operating principle
Determination of the comfort function
The door can opened inwards or outwards, irrespective of the mounting side.
The side with the comfort function is marked with a label.
Emergency opening function
The emergency opening function is monitored. (Feedback)
Opening the door from the outside: the deadbolt and the latchbolt are retracted with the profile cylinder (change).
Opening the door from the inside: the deadbolt and the latchbolt are retracted by operating the lever handle.
Version
Functionality
Order reference
For help, advice and ordering of our full range of Dialock access control systems please get in touch with our Project team, 0800 171 2907 or
Supplied with
1x Mortice lock
1x Forend screw 70 mm (not suitable for backset 55 mm; screw must
be installed)
1x Forend round, satin stainless steel or polished brass coloured,
3x Fixing screws

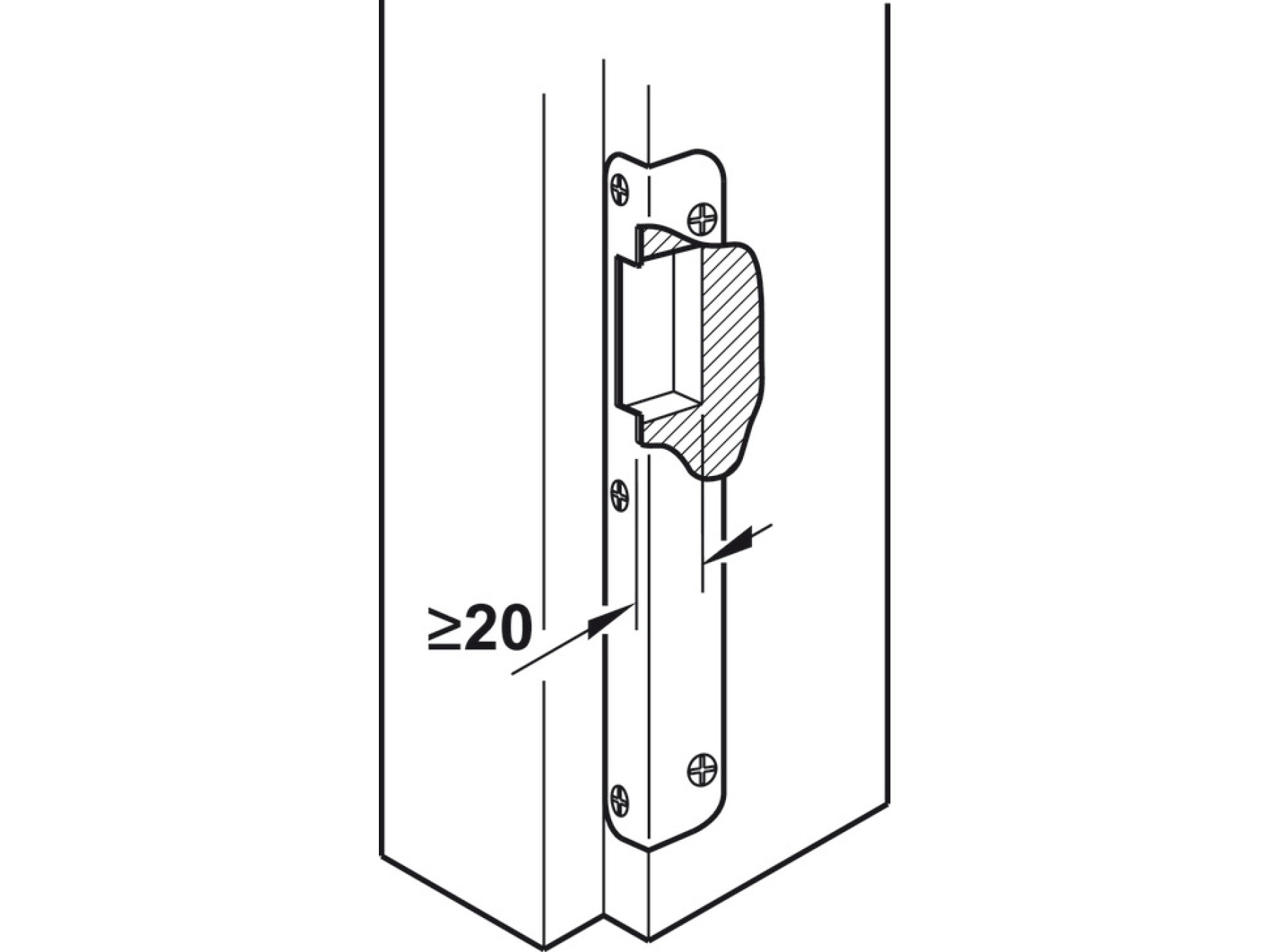

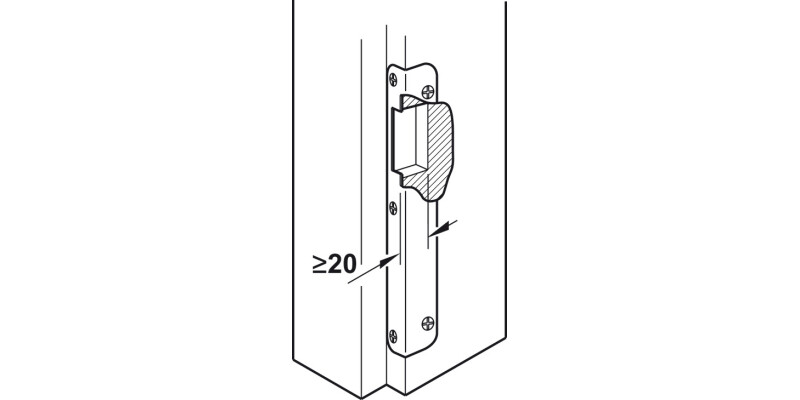

1x Flanged striking plate, satin stainless steel
The mortice locks listed here can be used in conjunction with the adapter cable only for DG2.
Profile cylinder required for emergency opening.

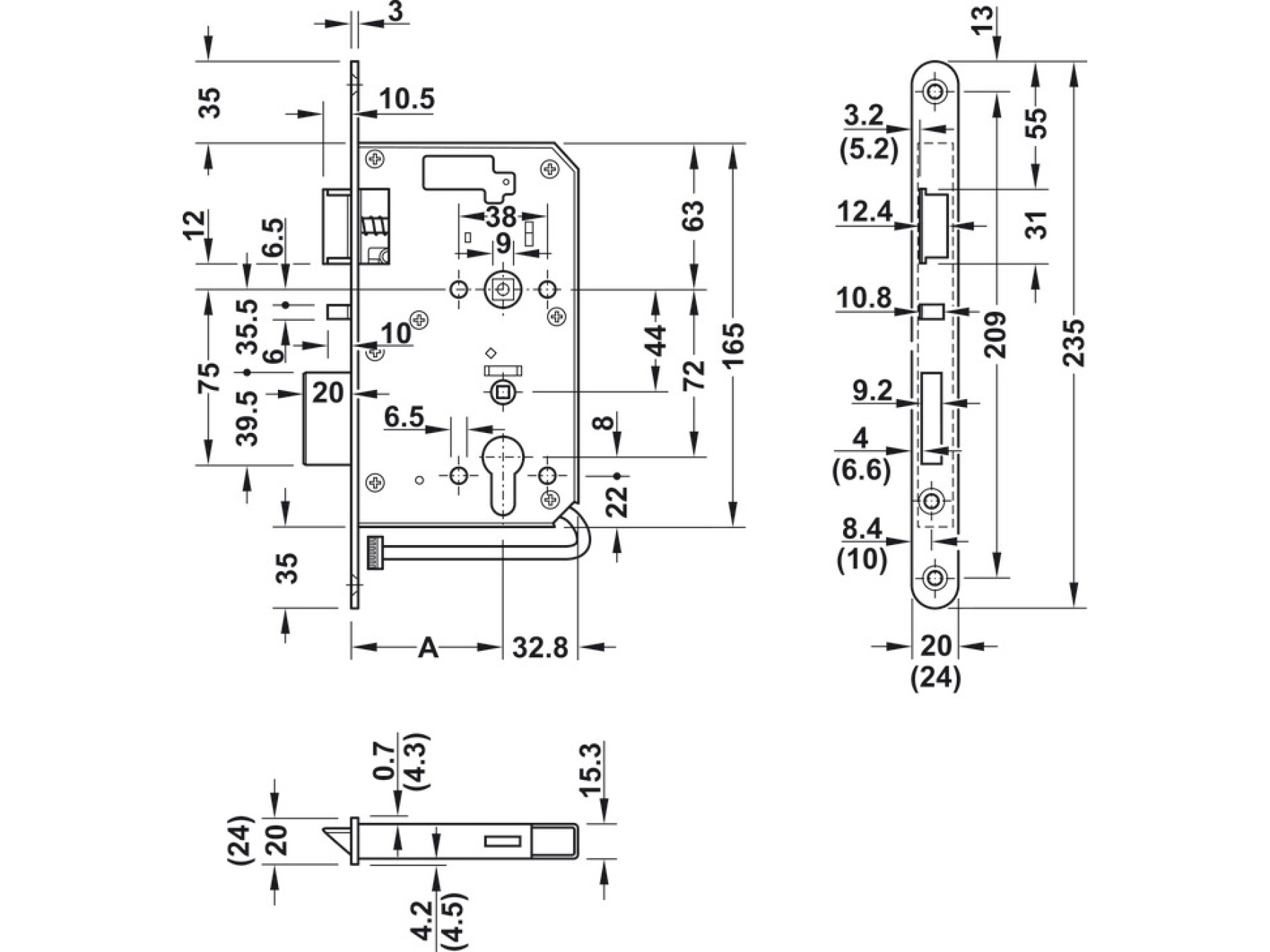

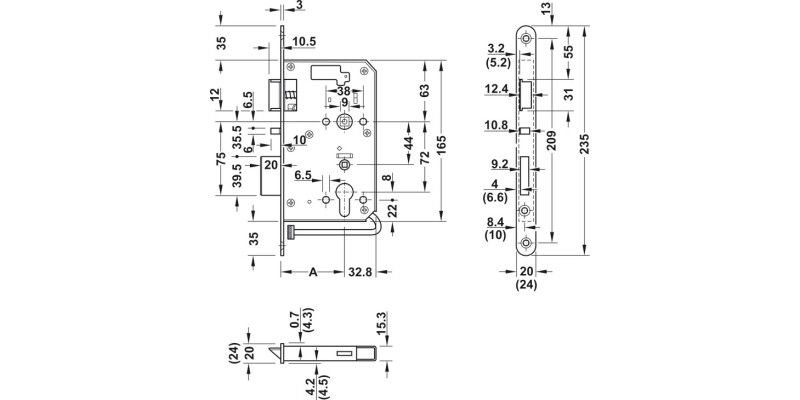

Specifications
Forend width
Forend design
Door construction
Forend Type
For door type
Material
Forend: Stainless steel
Latchbolt and lock case: Steel
Lever follower: Malleable cast
