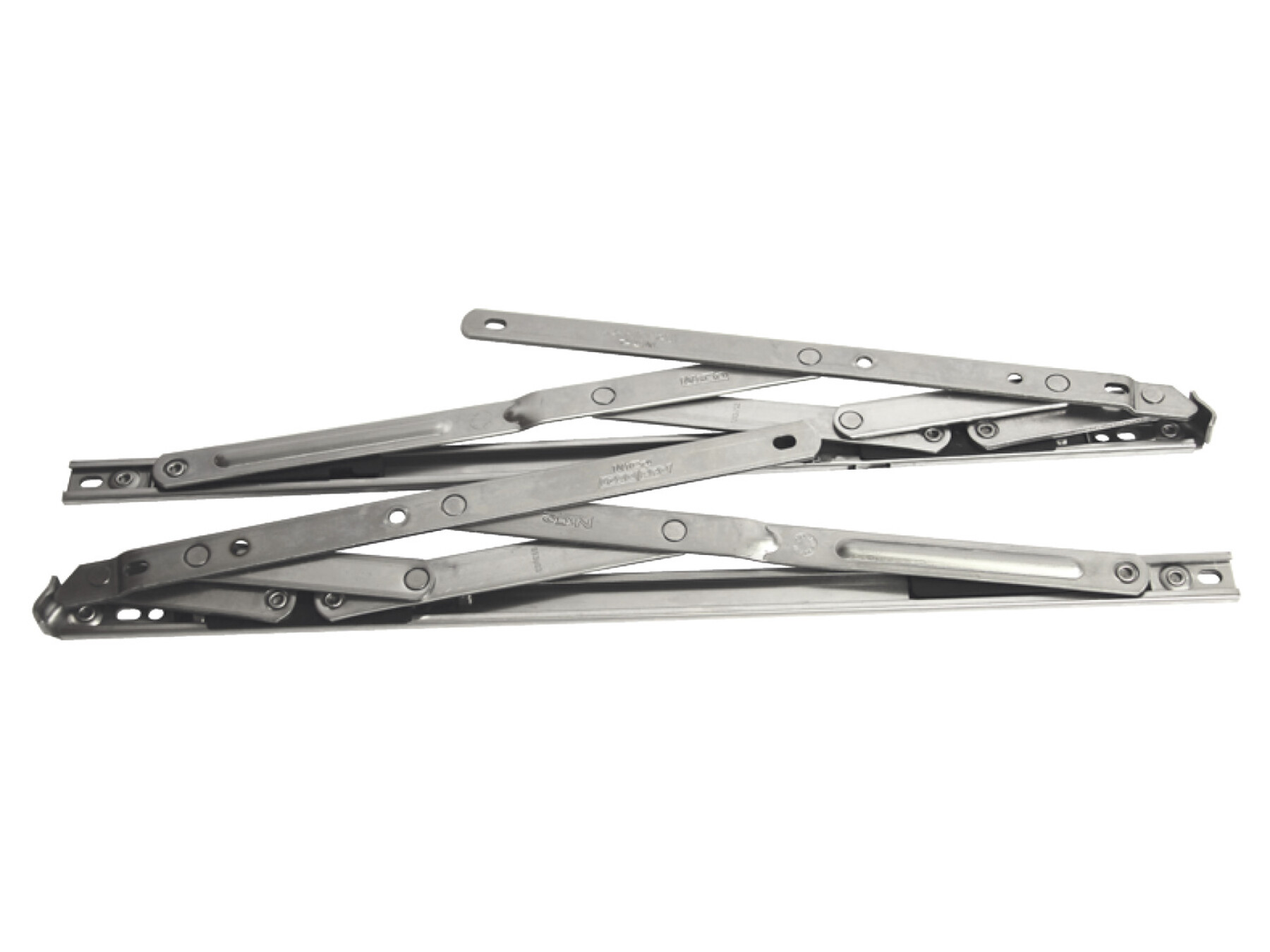

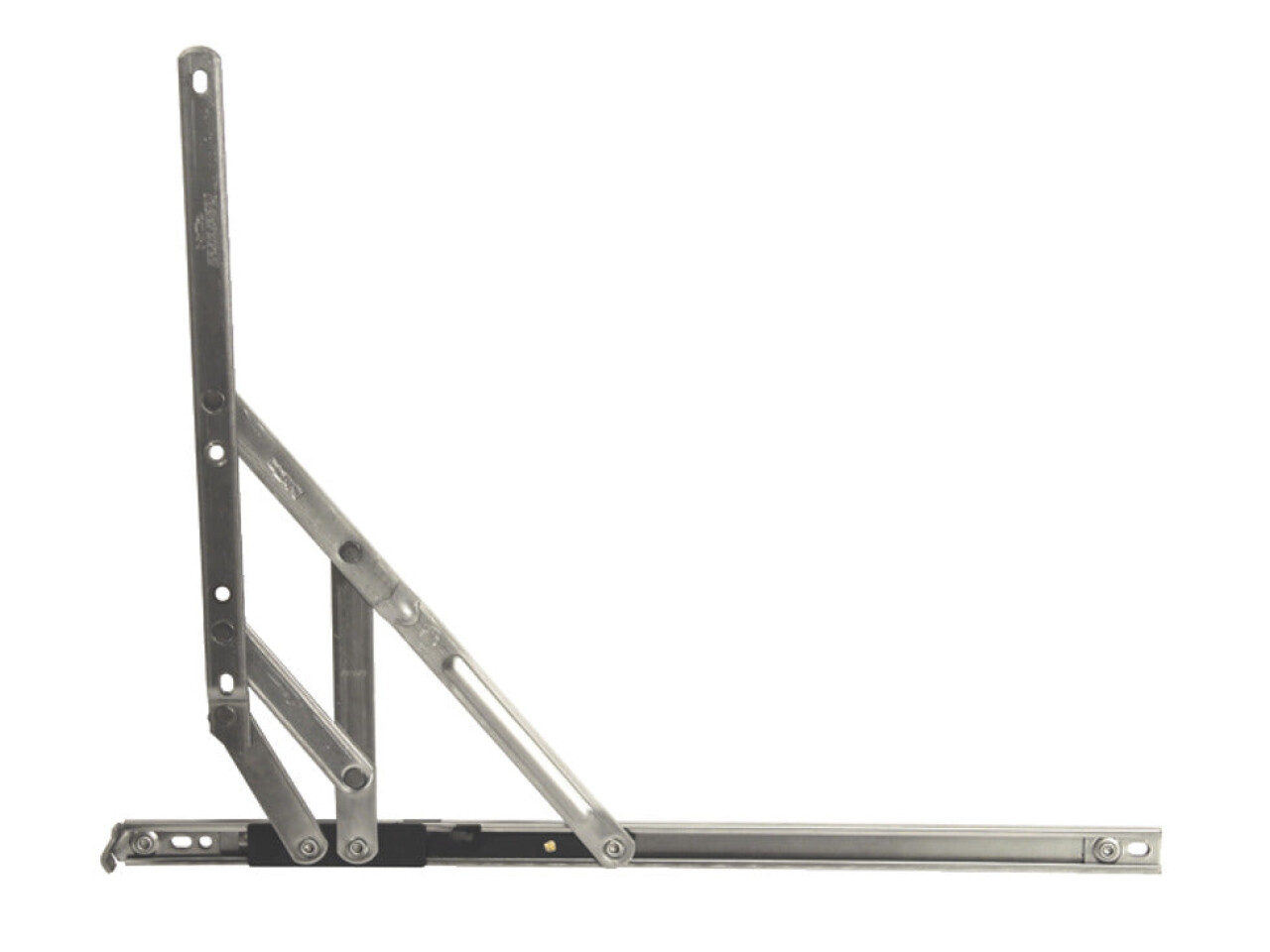

Loadpro Egress/Easy Clean Friction Hinge

UnhandedAllows specifies and fabricators to conform to BS 5588 Part 1:1990 and current UK building regulationsHinge quickly provides the minimum required opening of 550 mm wide x 850 mm high with simple one-handed operation in accordance with BS 5588Easy clean is operated by the simple action of opening the vent to its fullest extent at 90°, releases both top and bottom catches. In this position the window is safe, and can be eased along the track to facilitate cleaning the outside faceWhile cleaning, the hinge remains safe and stable due to a design feature that locks the two sliding mechanismsAn integral riser pad makes closing much easierPlease see cat. page for additional technical info.

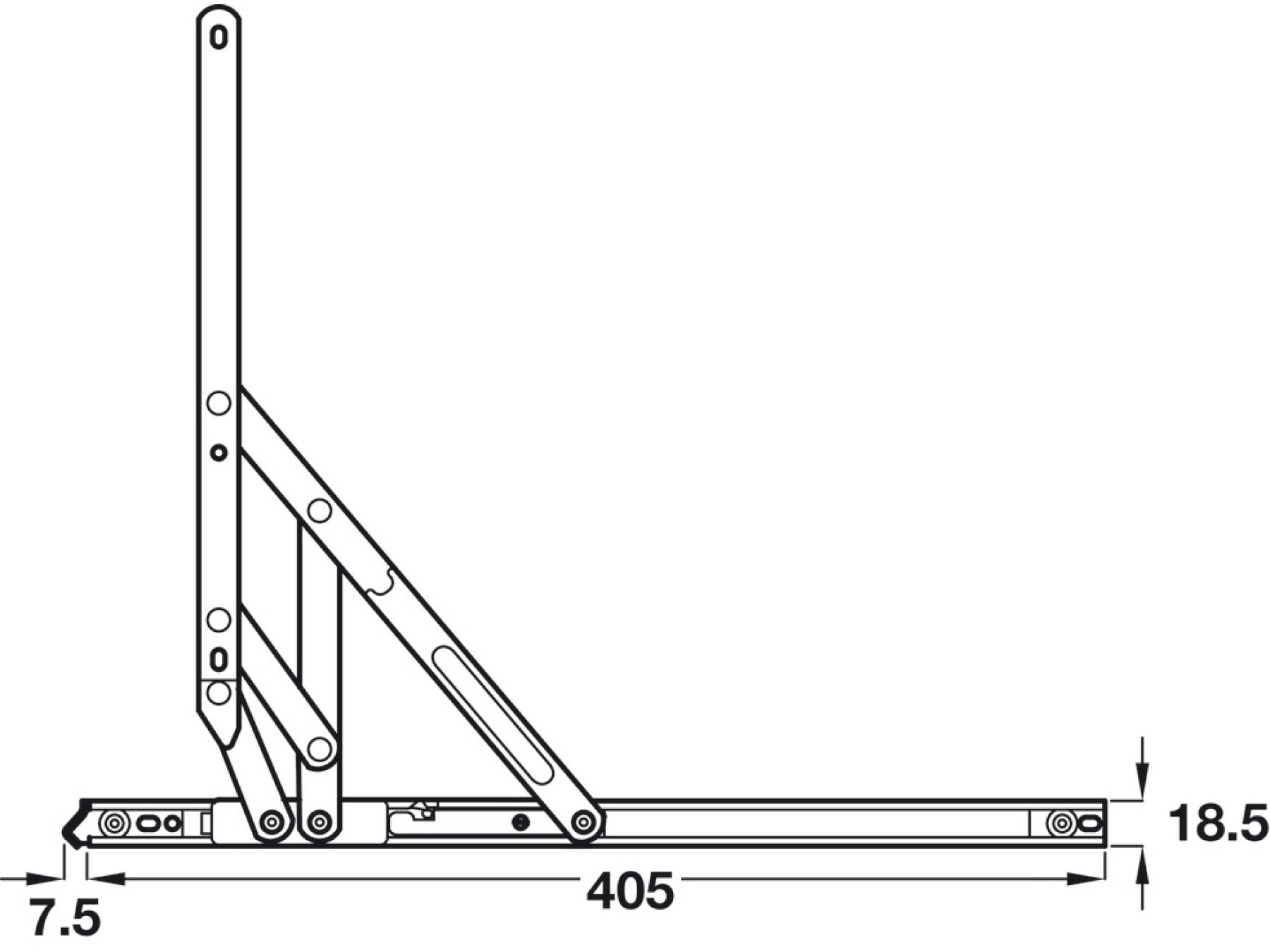

• Length: 406 mm
• Opening angle: 90 ¬¨¬®‚Äö√†√ª
• Suitable for: Side hung windows
• Material: Stay parts: Ferritic stainless steel grade 430Friction slide: Glass- filled nylonAdjustment screws: Brass
• Supplied with: Window labels providing operating instructions
