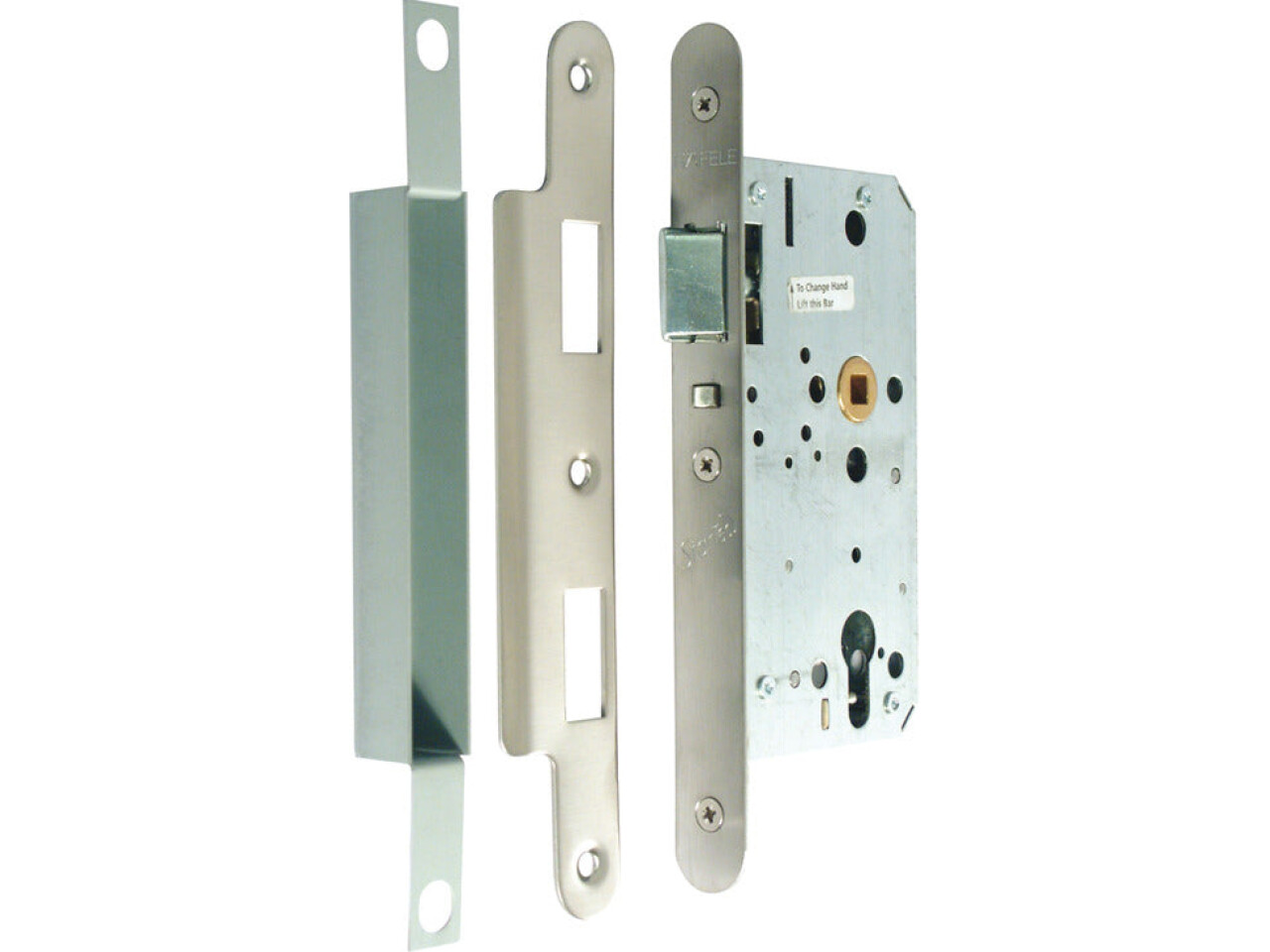

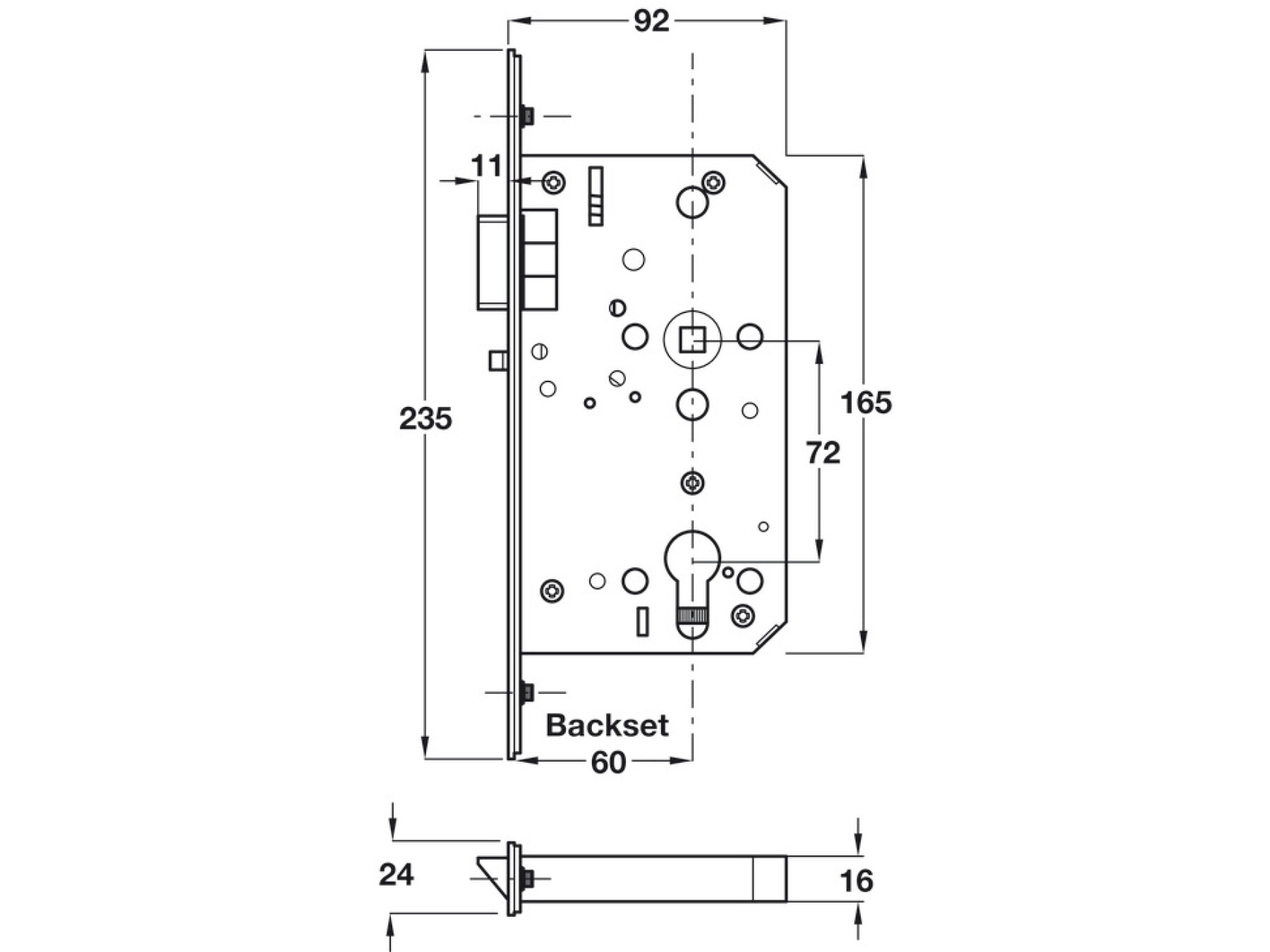

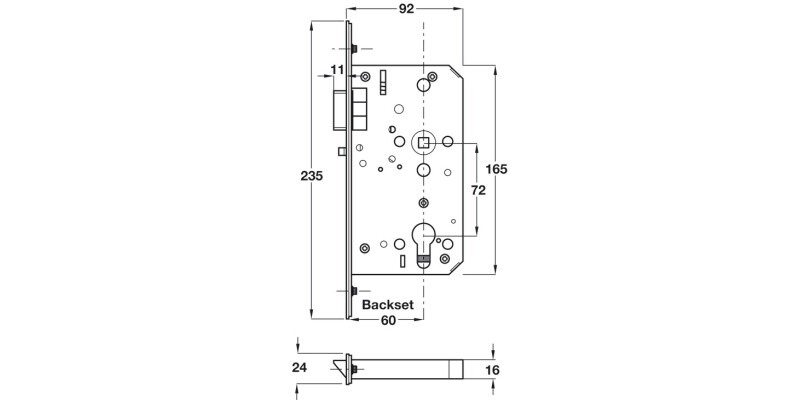

Startec Mort Cyl Nightlatch 60/92mm SSS
Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1Latchbolt operated by... Read More
Product Details
Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1
Latchbolt operated by lever handle inside and cylinder outside or by cylinder and thumbturn only
Case: Galvanized, 16 mm wide
Forend: Radius, 2 piece

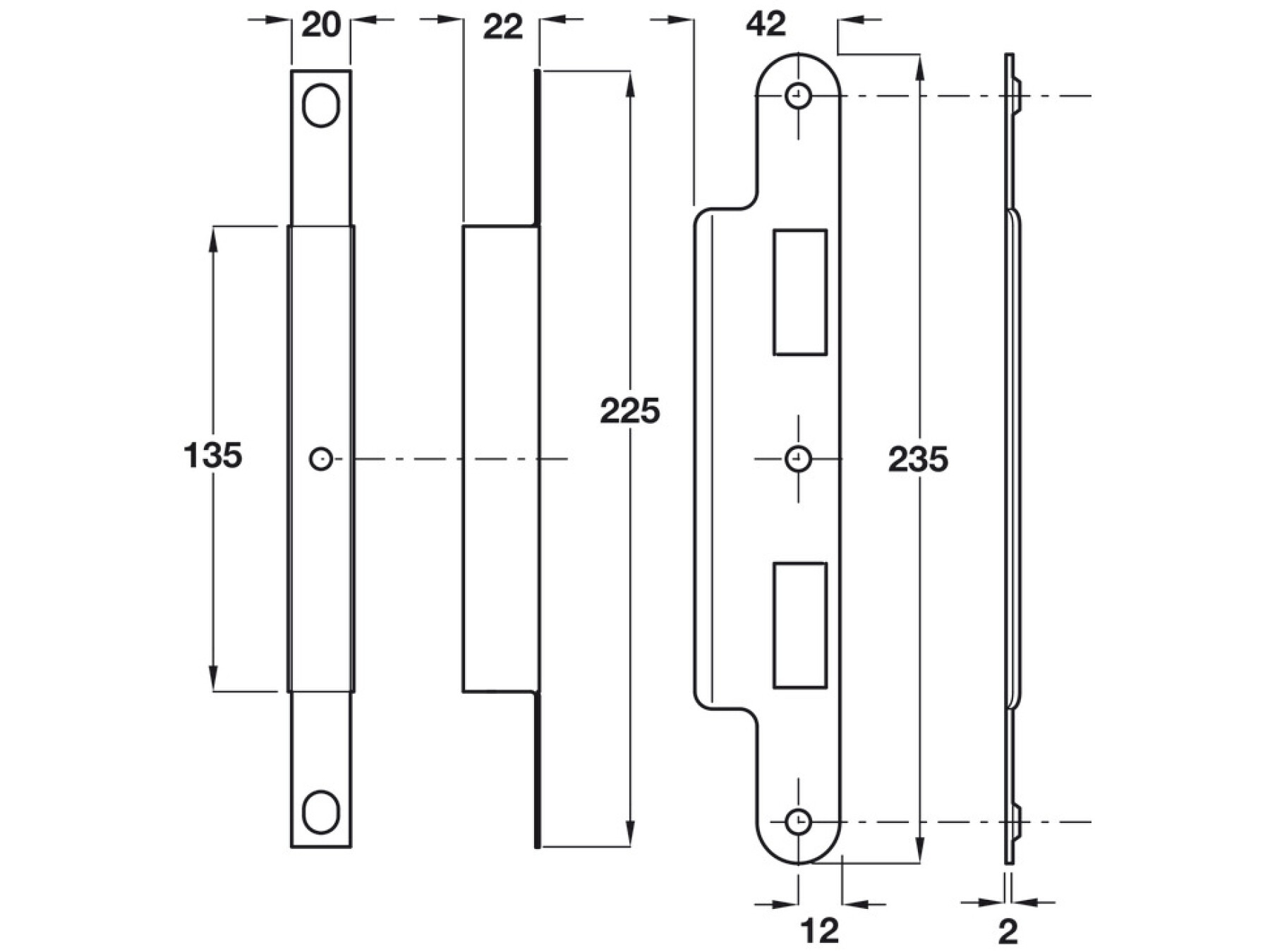

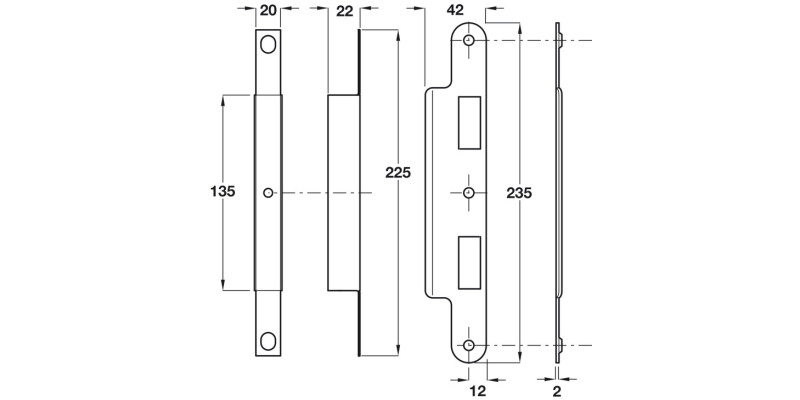

Strike plate: Radius. Box included
Latchbolt: Bright zinc plated. Easily reversible. Anti-thrust deadlocks latchbolt
Follower: 8 mm. Hold-tite spindle spring. For use with unsprung furniture
Holed for bolt through furniture at 38 mm centres
Only requires a lever depression of approx. 25° to fully retract latchbolt
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Where a fire rating is shown for a product this would only have been achieved by use of intumescent seals. When fitting any ironmongery to a door please ensure the correct intumescent product is used
Specifications
Forend Type
Material
Case: Steel
Forend and strike plate: Stainless steel or brass
Latchbolt: Solid brass
Follower: Brass
Colour/finish
Satin stainless steel
Hafele Lifetime Guarantee
Order reference
Order cylinders and half spindle separately
Supplied with
Strike plate
Fixings
