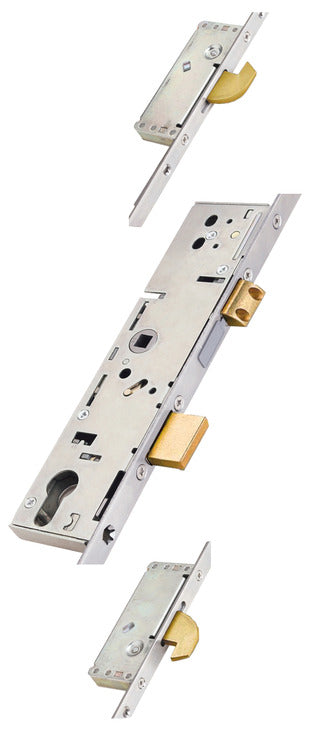

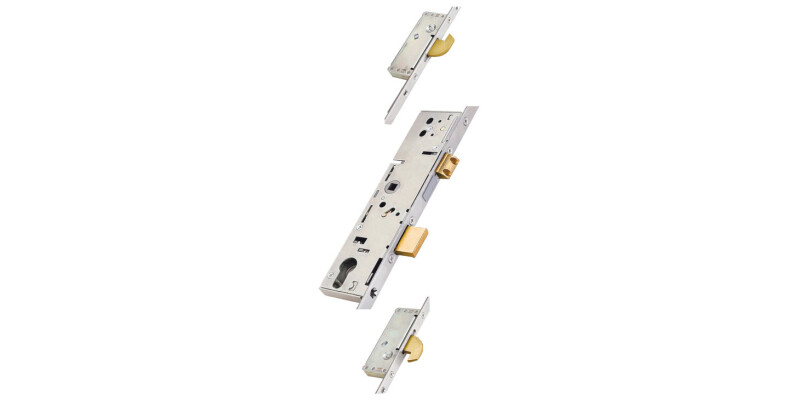

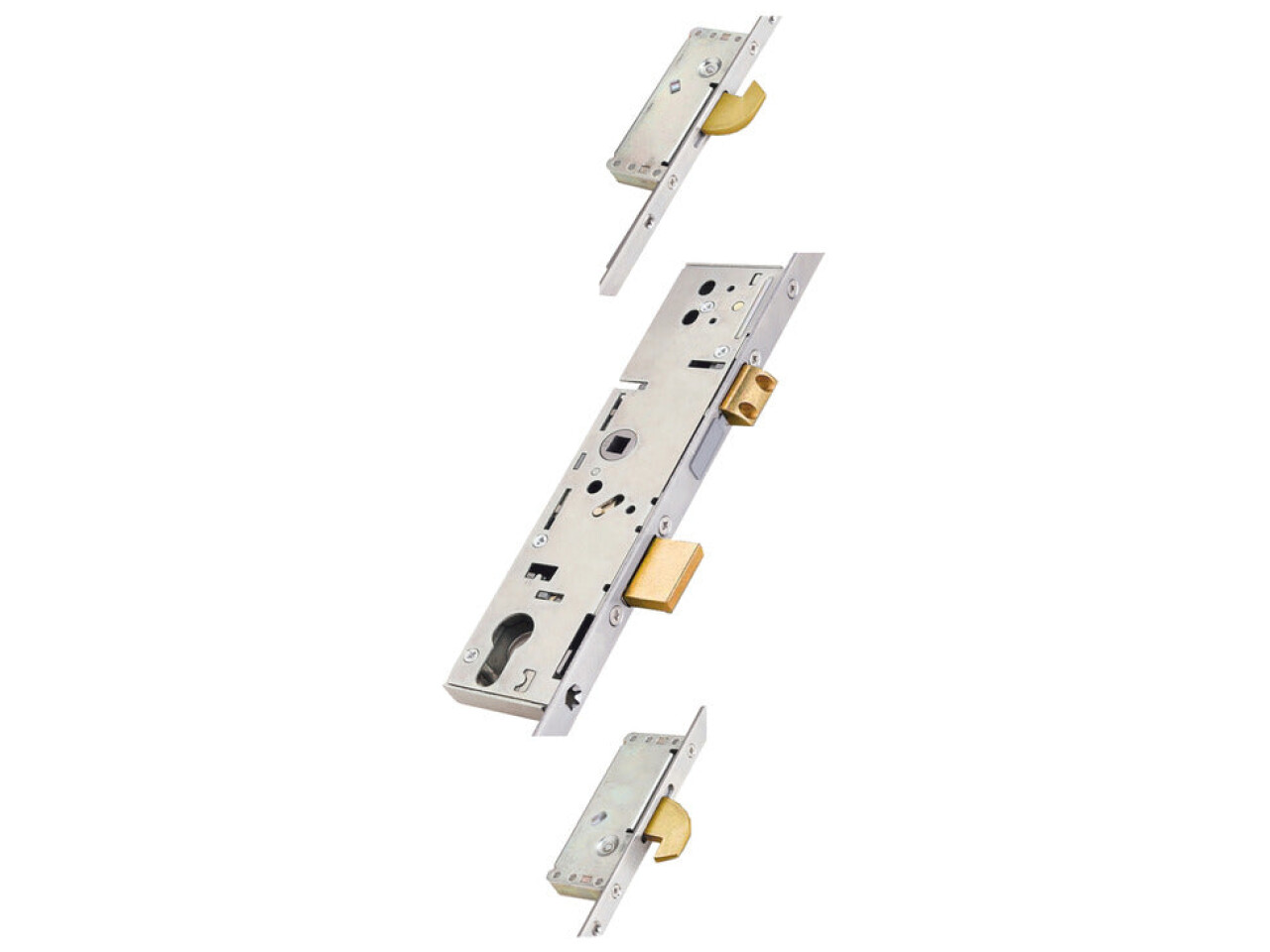

Multipoint 3 Mort Lock 45mm 2250x20mm
Part Number: 911.50.785
Backset 45 mm, 2250 x 20 mm
Price:
£26.69
Per Item
Operation: Latchbolt operated by lever handles. Deadbolt and hooks operated by lifting lever and the deadlocking... Read More
Product Information
Product Details
Operation: Latchbolt operated by lever handles. Deadbolt and hooks operated by lifting lever and the deadlocking by cylinder
Front plate: Square, 1 piece, 2100/2250 mm x 16/20 mm wide
Latchbolt: Reversible
Accepts most europrofile cylinders
Designed to meet the requirements of PAS 23 and PAS 24
Licensed by Secured by Design
10 year guarantee
Order reference
Optional shoot bolt engagement for additional security available, Cat. No. 911.50.797
Order cylinders and keeps separately
Fixings not included, please order Hospa ⌀ 4.0 countersunk screws separately
All moving parts should be lightly lubricated using a light non-acidic mineral oil (e.g. "3 in 1"), twice per year and surface cleaned with a soft damp cloth. The product may need to be adjusted and fixings tightened to ensure a satisfactory operation
Specifications
Material
Cases and front plates: Steel
Latchbolt, deadbolt, hookbolts and follower: Brass
Colour/finish
