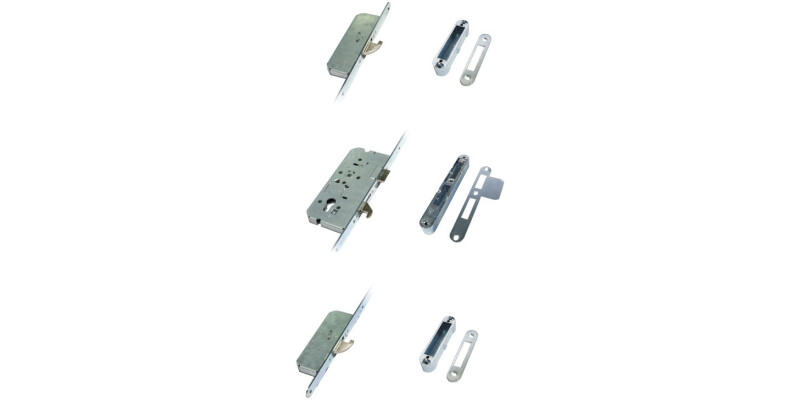

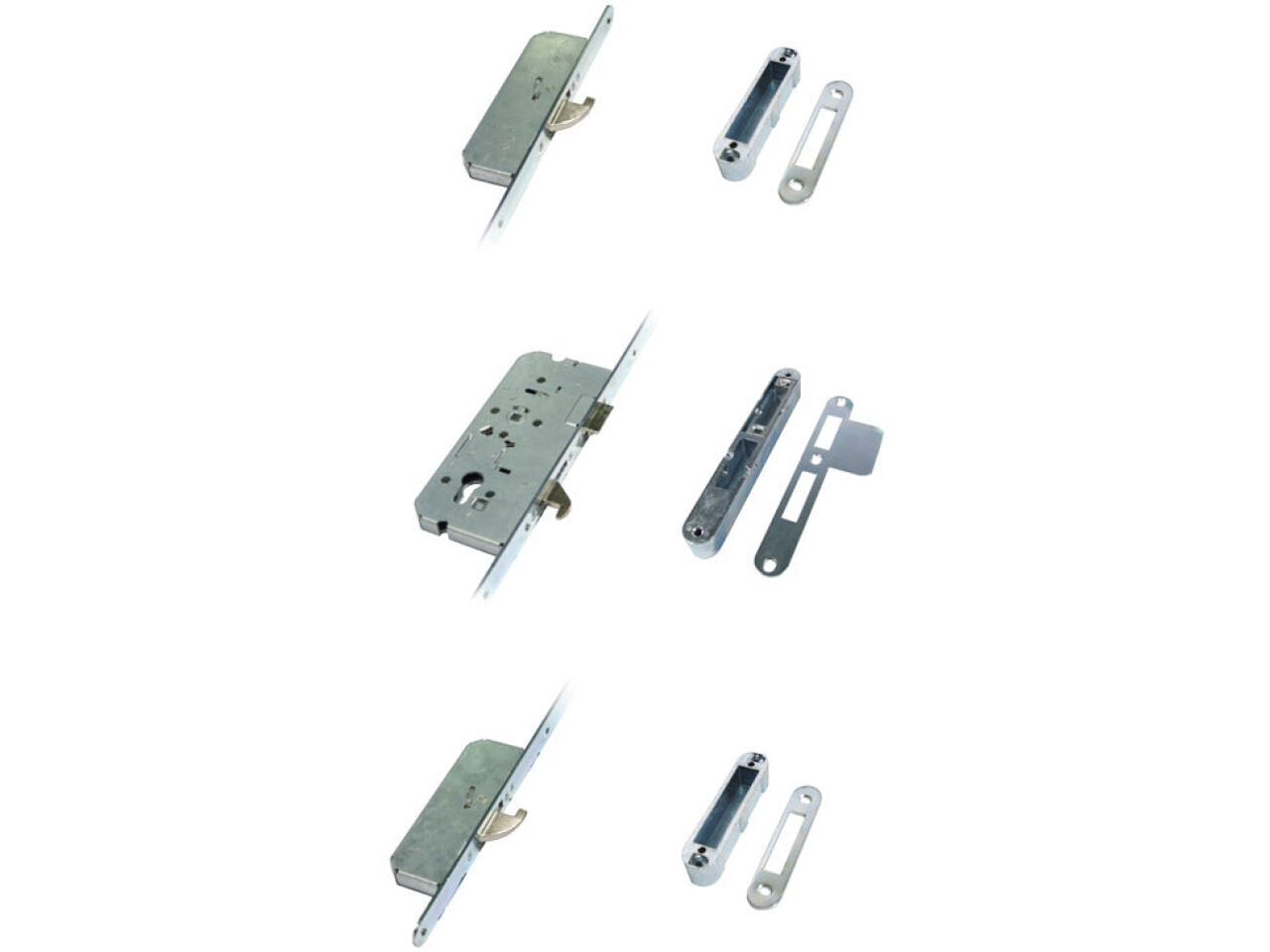

Multipoint Mortice Cyl 3 Lock 12mm Hook
Part Number: 911.50.060
Version A: Gear operated lock - 12 mm hook
Price:
£242.76
Per Item
Version A: Gear operated lock. Latch bolt operated by lever handles. All other bolts wound out when the cylinder... Read More
Product Information
Product Details
Version A: Gear operated lock. Latch bolt operated by lever handles. All other bolts wound out when the cylinder is turned. 12 mm hook throw
Version B: Lever operated lock. Latch bolt operated by lever handles. All other bolts are thrown when the lever handle is lifted. Bolts are then deadlocked when the cylinder key is turned. 14 mm hook throw
Cases: Zinc passivated

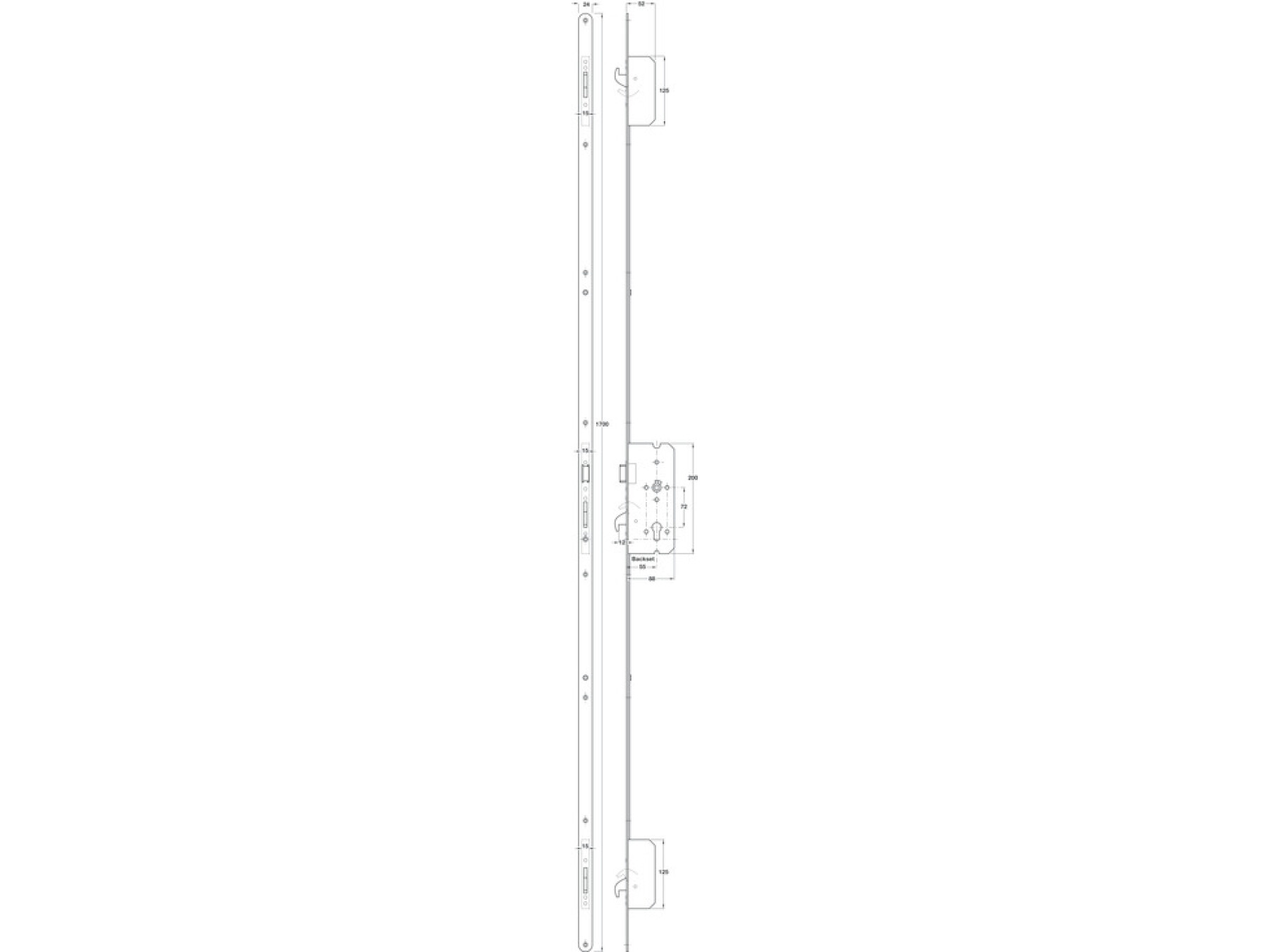

Front plate: Radius, 1 piece, zinc plated

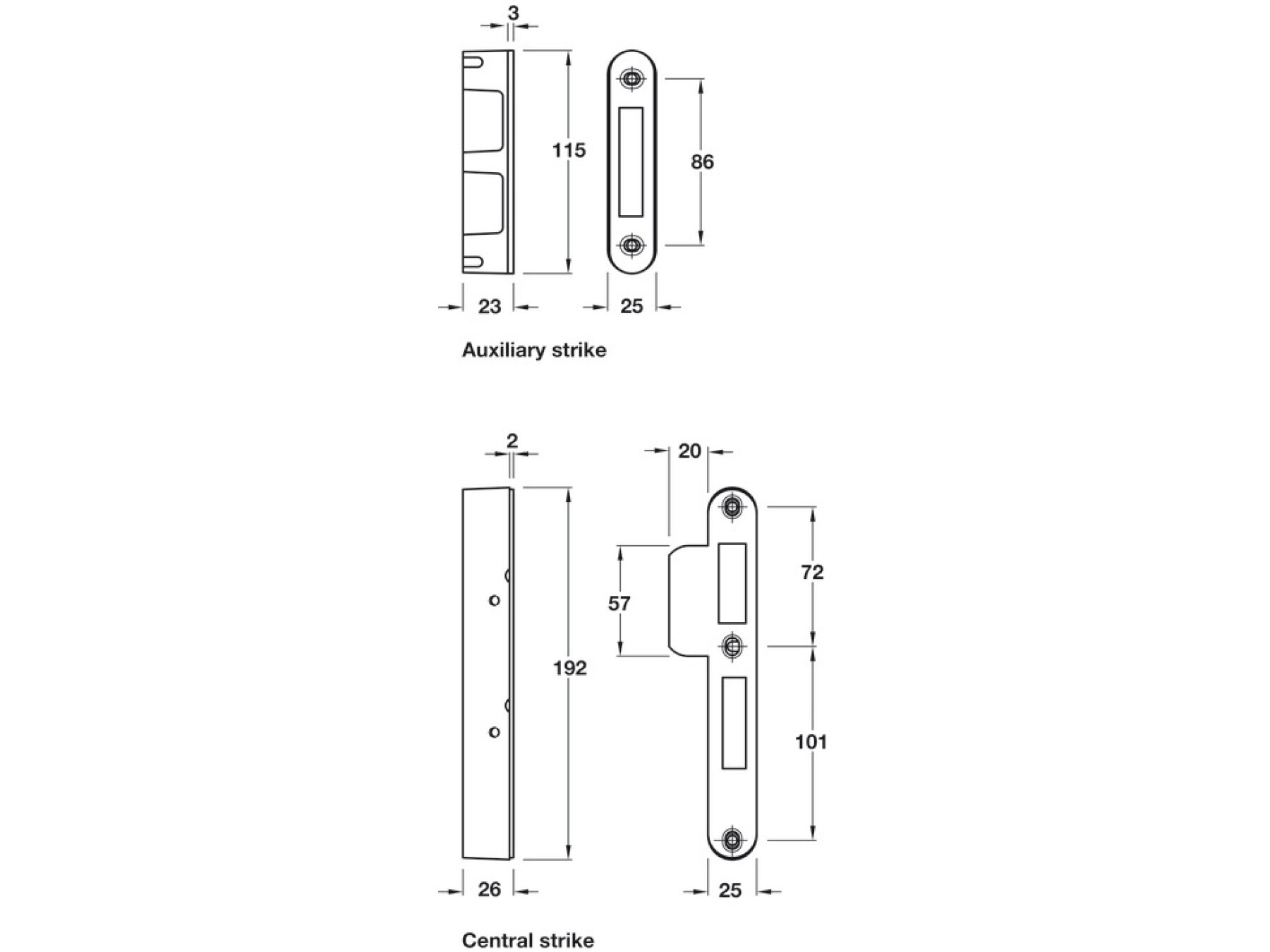

Strike plate: Radius box. 1x central strike, 2x auxiliary strikes included. Zinc plated
Latchbolt: Zinc plated. Reversible
Hookbolts: Zinc plated
Followe : 8 mm. For use with unsprung furniture
Holed for bolt through furniture
Order reference
Order cylinder separately
Fixing screws are not included, please order Hospa ⌀ 4.0 countersunk screws separately
| Technical data | ||
|---|---|---|
| Type of locking | PC | PC |
| Deadbolt throw dim. | 14 mm | |
| Lever follower | 8 mm | 8 mm |
Specifications
Type of locking
PC
Forend Type
56.00 mm
Forend width
25.00 mm
Lever follower
8.00 mm
Material
Cases, front plate, strike plate, latchbolt, hookbolts and follower: Steel
Prepared for
Profile cylinder
Colour/finish
Deadbolt version
Hook deadbolt
