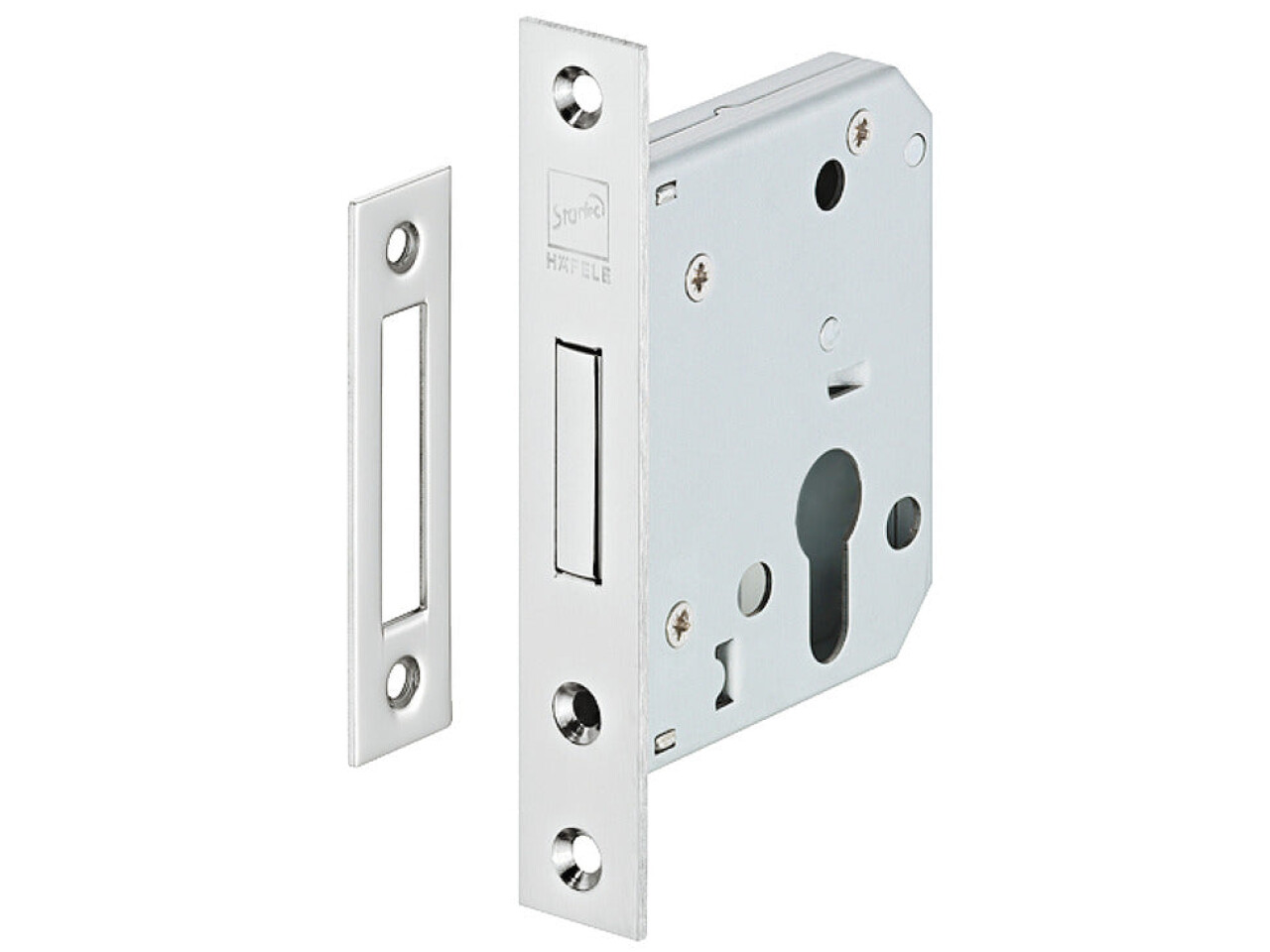

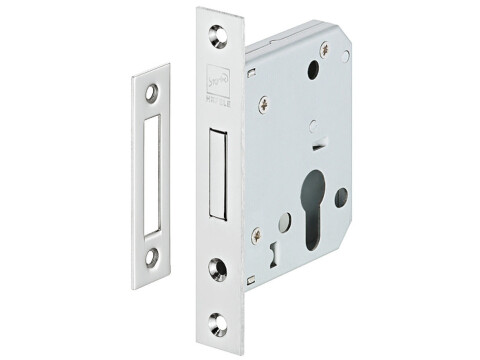

Startec DIN Mort Cyl Ddlock 55/84mm SSS

Part Number: 911.22.490
Backset 55 mm, case size 84 mm, satin
Price:
£9.58
Per Item
VAT excluded

Deadbolt operated by cylinderForend: SquareStrike plate: Square, flatDeadbolt: 20 mm throw Warranty/Guarantee... Read More

Product Information

Product Details

Deadbolt operated by cylinder
Forend: Square
Strike plate: Square, flat
Deadbolt: 20 mm throw

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

Technical data
Type of locking PC
Deadbolt throw 2 turns
Deadbolt throw dim. 10 mm

Approved CF 5395 Certifire
Suitable for use in FD30/60 & 90 minute timber fire doors when fitted with a fire protection intumescent kit. These cylinder locks have been tested on a min. 44 mm thick timber door for 30 mins fire resistance or min. 54 mm thick doors for 60 mins fire resistance
Tested in accordance with BS EN 12209

Specifications

Type of locking

PC

Forend Type

55.00 mm

Forend design

Flat forend edged

Forend width

24.00 mm

Door construction

Unrebated

Mounting

DIN left/right (reversible)

Material

Case: Steel
Forend and strike plate: Stainless steel
Deadbolt: Stainless steel

Latchbolt version

Without latch

For door type

Hinged doors

Version

Strike plate with bolt pocket

Lock actuation

Key operated

Colour/finish

Satin

Forend length

138.00 mm

Deadbolt version

Standard deadbolt

Standard

Certified in compliance with EN 12209: 2003

Classification in compliance with EN 12209

3|X|8|1|0|G|3|B|0|0|0

Hafele Lifetime Guarantee

10 years

Order reference

Cylinder not included, please order separately

Supplied with

Fixings
