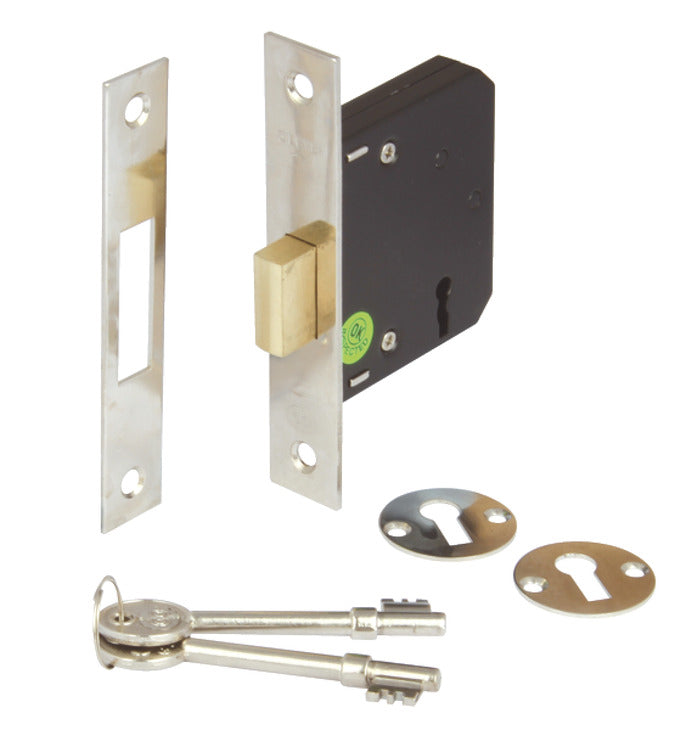

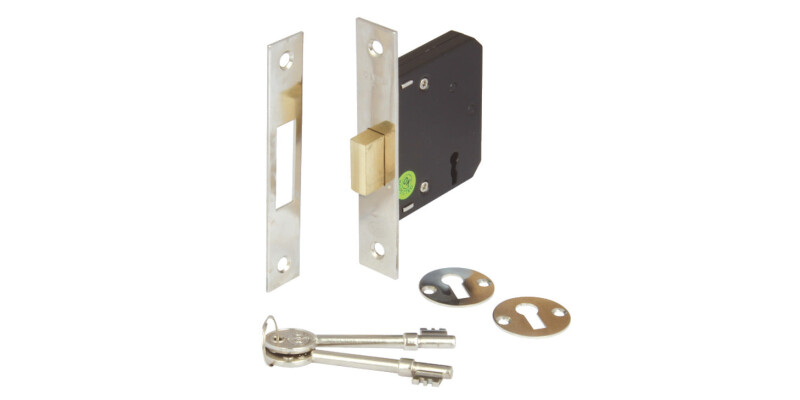

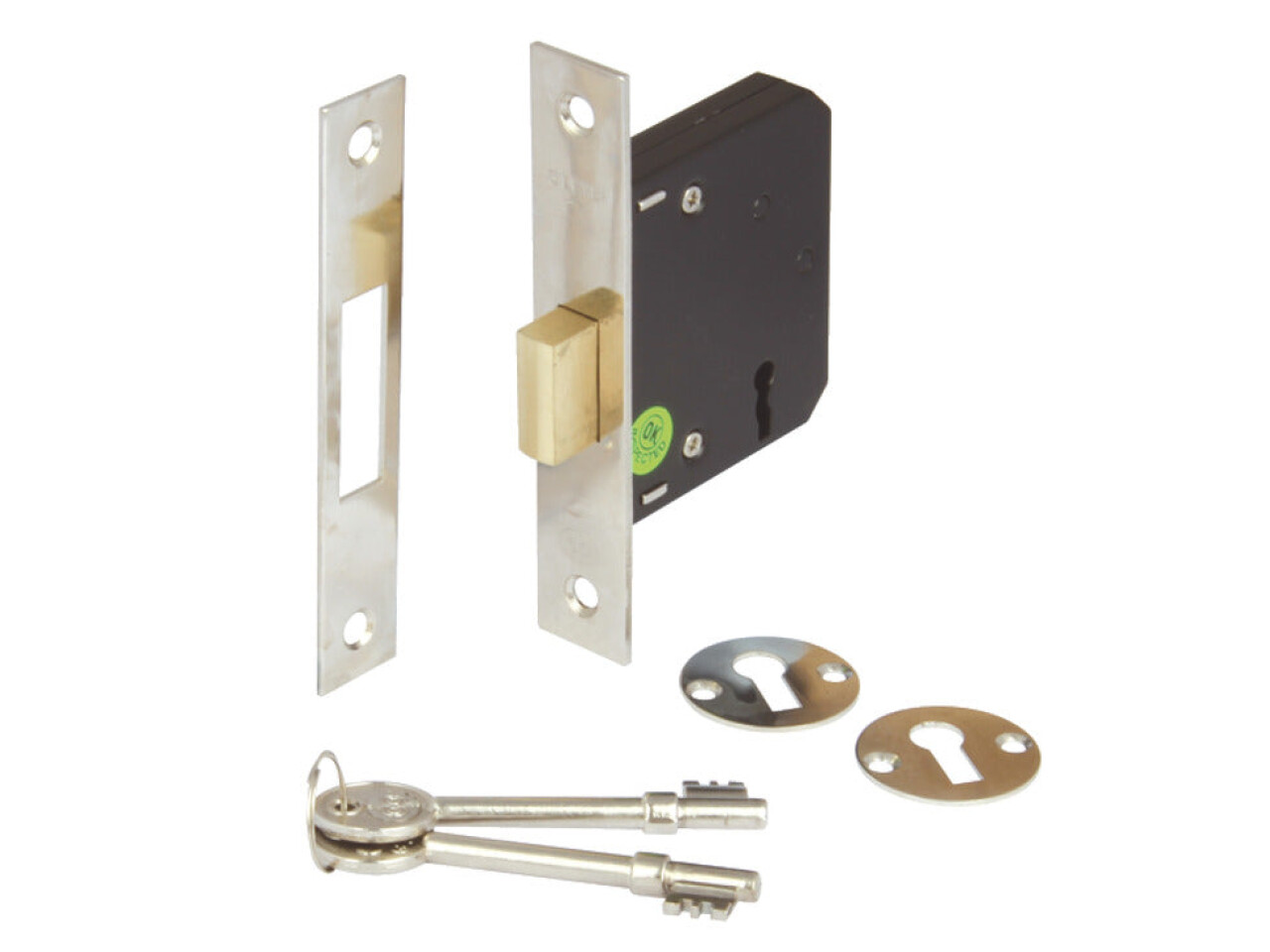

Deadlock+Keys 3 Lvr Mortice 47/66mm NP
Part Number: 911.22.421
Backset 45 mm, case size 65 mm, nickel plated
Price:
£6.12
Per Item
Operation: Deadbolt by keyForend: SquareStrike plate: SquareDeadbolt: 13 mm throw Technical data Type of... Read More
Product Information
Product Details
Operation: Deadbolt by key
Forend: Square
Strike plate: Square
Deadbolt: 13 mm throw

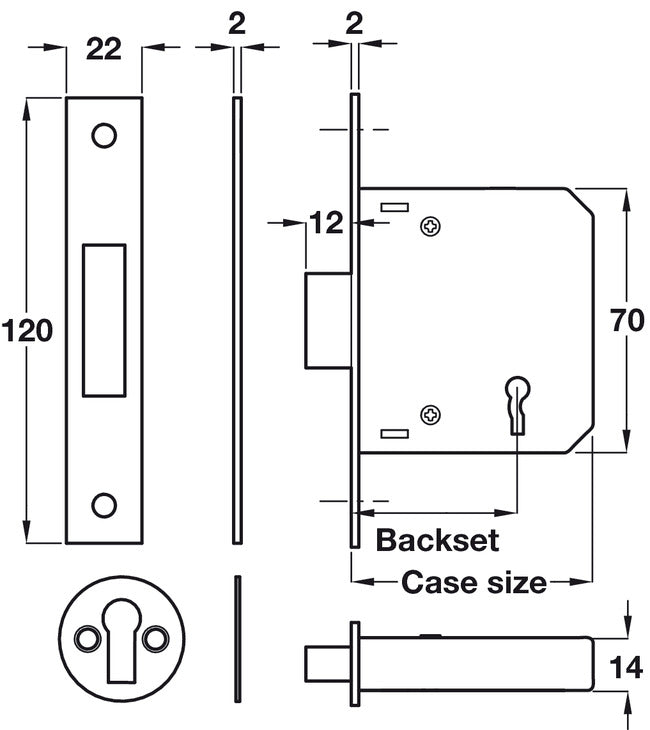

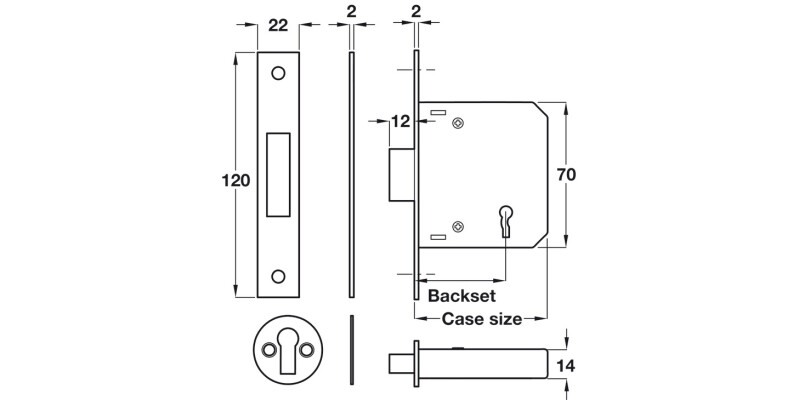

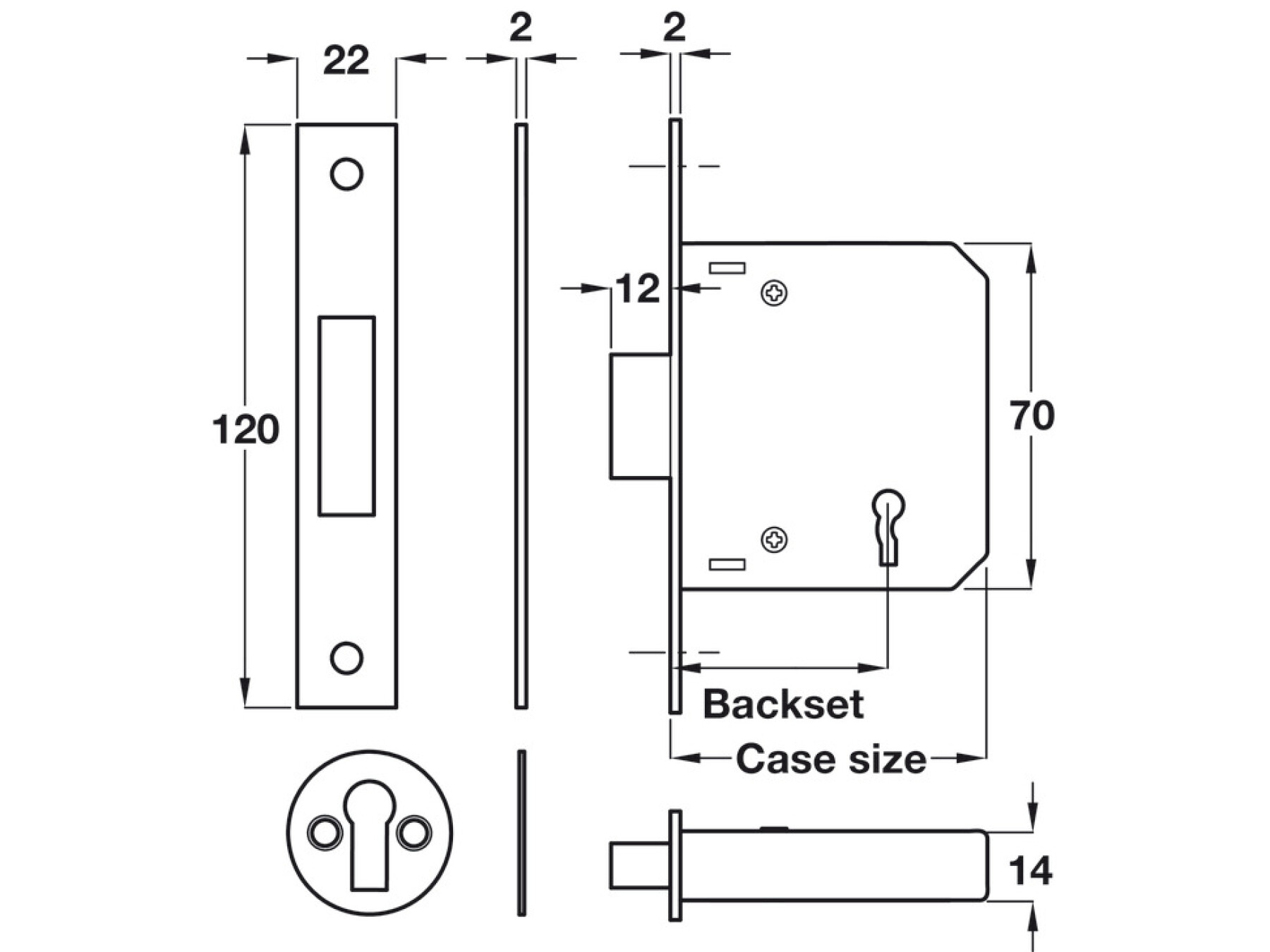

| Technical data | |
|---|---|
| Type of locking | CB |
| Deadbolt throw dim. | 13 mm |
±3 mm tolerance on dimensions
Specifications
Type of locking
CB
Forend Type
45.00 mm
Forend design
Flat forend edged
Forend width
22.00 mm
Material
Case: Epoxy powder coated steel
Forend and strike plate: Steel
Deadbolt: Brass
Latchbolt version
Without latch
Application
Residential areas
For door type
Interior door
Lock actuation
Key operated
Colour/finish
Nickel plated
Forend length
120.00 mm
Deadbolt version
Standard deadbolt
Supplied with
2 keys
2 plain escutcheons
Fixings
