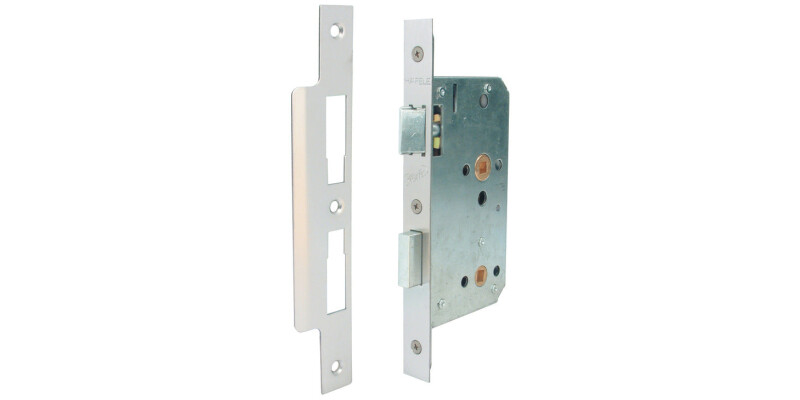

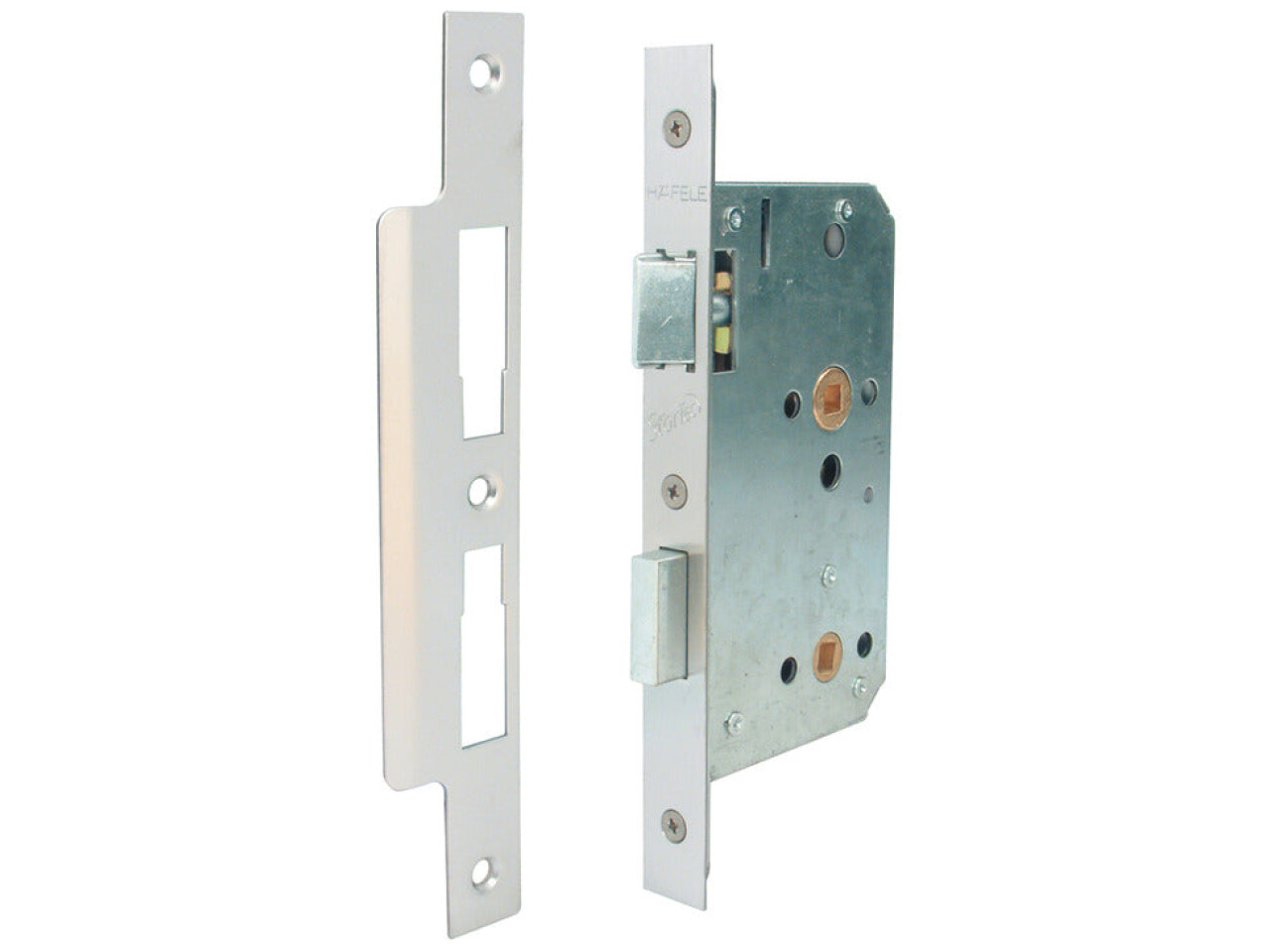

Startec Mortice Bathlock Sqr 60/92mm SSS
Part Number: 911.07.070

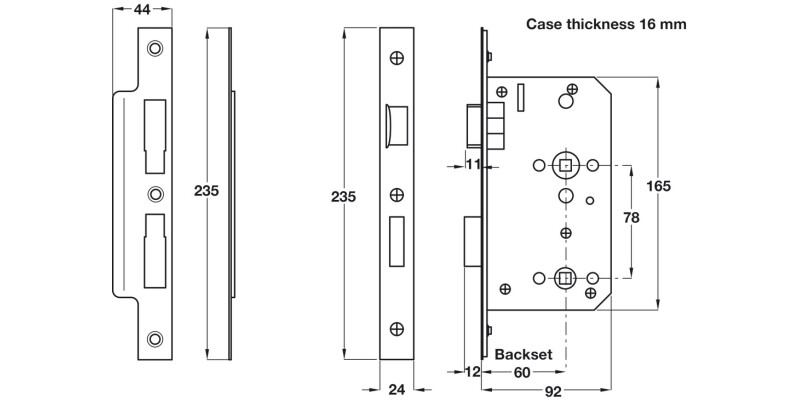

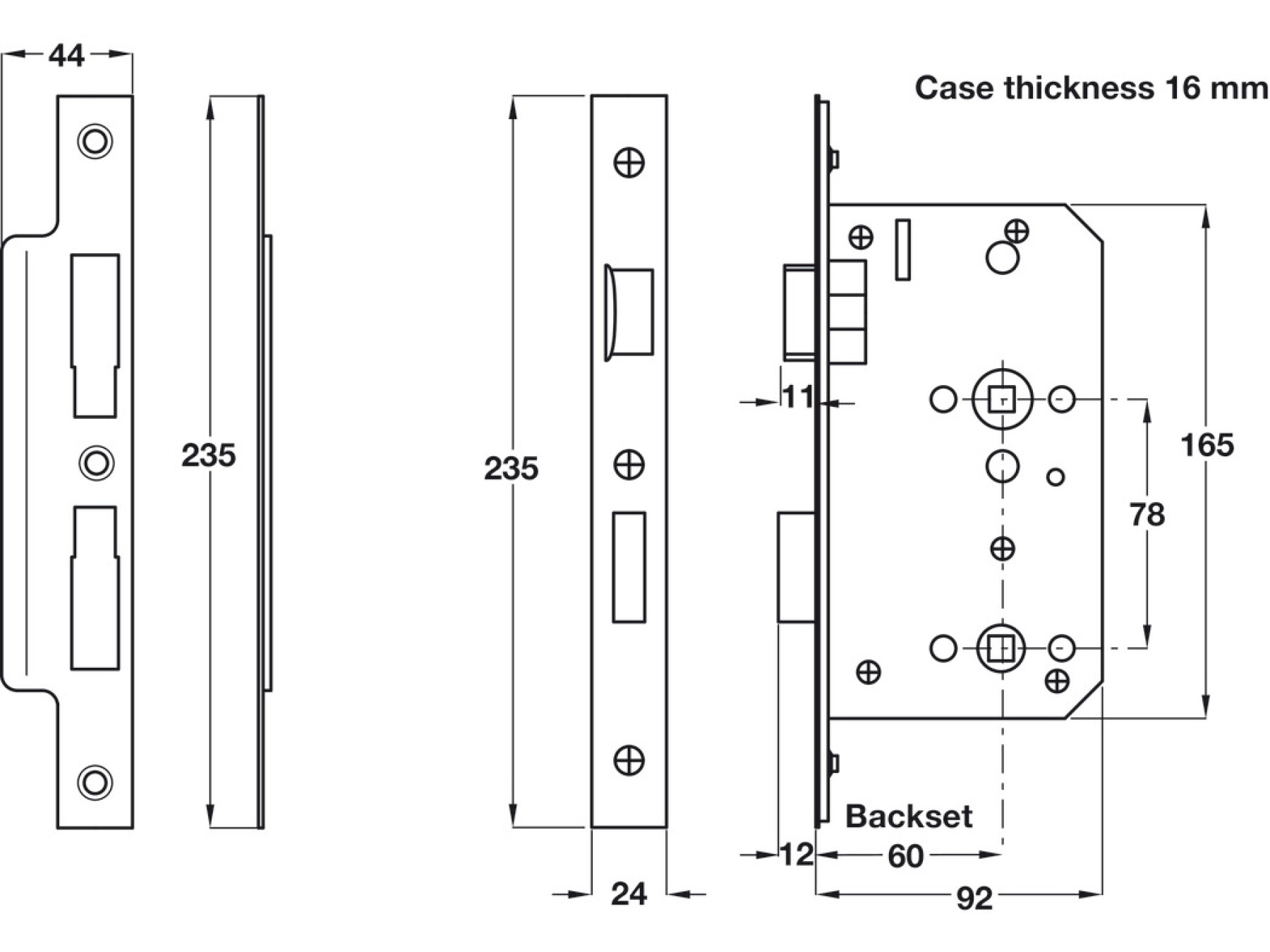

Backset 60 mm, case size 92 mm, satin stainless steel
Price:
£43.54
Per Item
Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1Latchbolt operated by... Read More
Product Information
Product Details
Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1
Latchbolt operated by lever handles. Deadbolt operated by turn/emergency release
Case: Galvanized, 16 mm wide
Forend: Square, 2 piece
Strike plate: Square, flat
Latchbolt: Bright zinc plated. Easily reversible
Deadbolt: Bright zinc plated. 12 mm throw
Followers: Both 8 mm. Latch for use with sprung furniture. 5-8 mm adaptor included
Holed for bolt through furniture at 38 mm centres, top and bottom
Only requires a lever depression of approx. 25° to fully retract latchbolt
Material
Case: Steel
Forend and strike plate: Stainless steel
Latchbolt and deadbolt: Solid brass
Follower: Brass
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Type of locking | WC/Bathroom |
| Distance | 78 mm |
| Deadbolt throw dim. | 12 mm |
| Lever follower | 8 mm |
| Deadbolt follower | 8 mm |
| Functionality | With emergency opening function |
Where a fire rating is shown for a product this would only have been achieved by use of intumescent seals. When fitting any ironmongery to a door please ensure the correct intumescent product is used
Specifications
Type of locking
WC/Bathroom
Distance
78.00 mm
Forend Type
60.00 mm
Forend design
Flat forend edged
Forend width
24.00 mm
Lever follower
8.00 mm
Latchbolt version
Standard latch
For door type
Bathroom/WC doors, Fire resistant doors
For door material
Wood
Functionality
With emergency opening function
Colour/finish
Satin stainless steel
Forend length
235.00 mm
Deadbolt version
Standard deadbolt
Hafele Lifetime Guarantee
10 years
Supplied with
Strike plate
5-8 mm adaptor
Fixings
