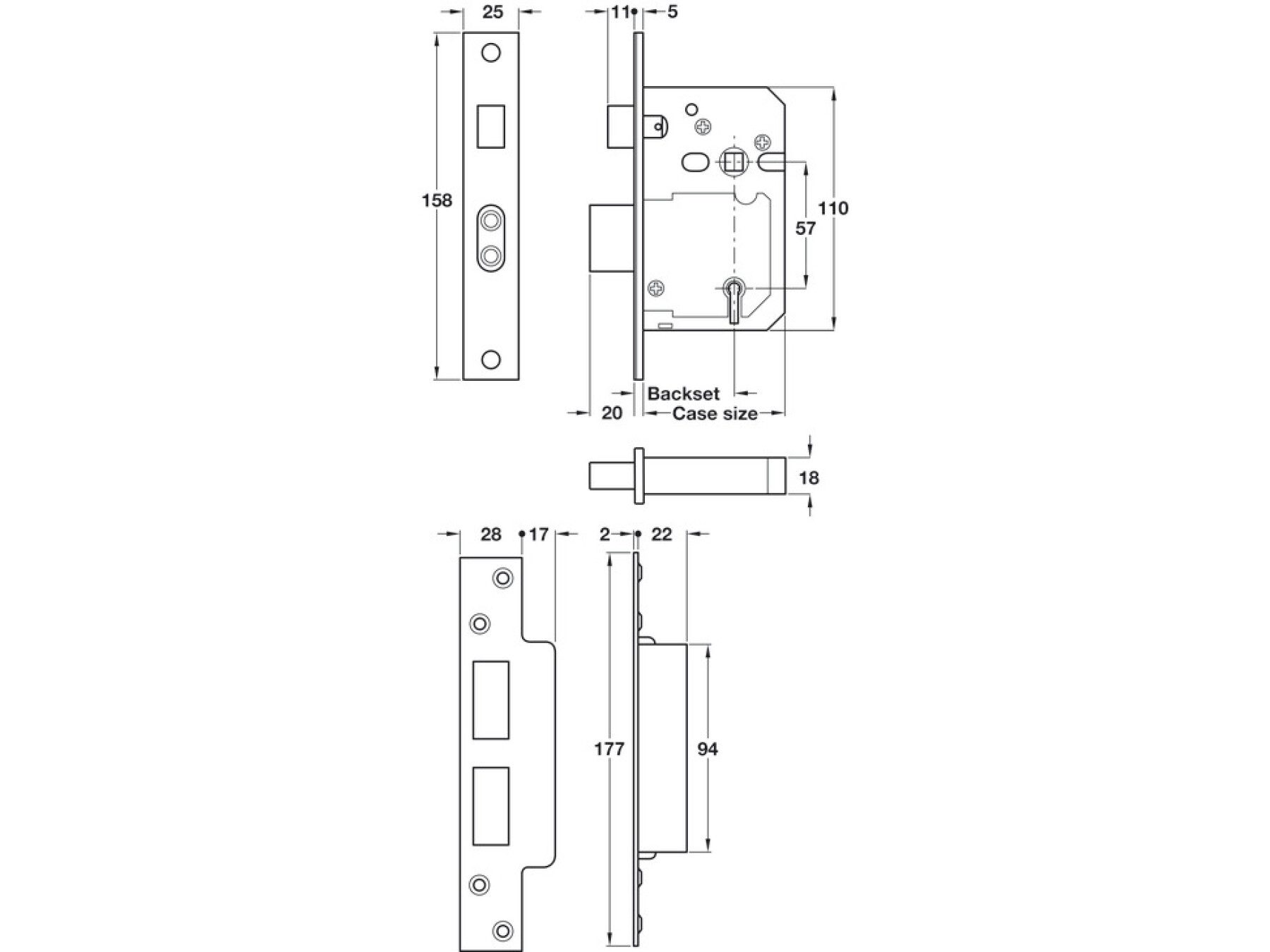

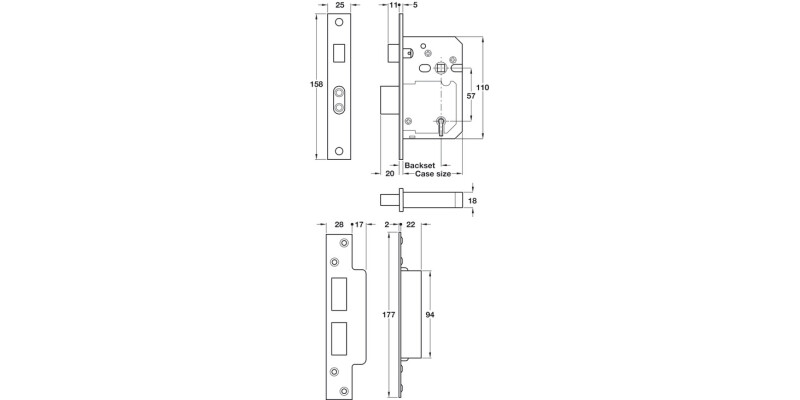

5 Lvr Mortice Sashlock 57/76mm SSS Dif
Part Number: 911.06.152
Keyed to differ, backset 57 mm, case size 76 mm, satin stainless steel
Price:
£26.84
Per Item
Conforms to BS 3621: 2007Latchbolt operated by lever handles. Deadbolt operated by keyCase: With hardened steel... Read More
Product Information
Product Details
Conforms to BS 3621: 2007
Latchbolt operated by lever handles. Deadbolt operated by key
Case: With hardened steel anti-drill plates, epoxy coated, 18 mm wide
Forend: Square, 2 piece
Strike plate: Square box striker
Latchbolt: Reversible
Deadbolt: With hardened steel rollers, 20 mm throw
Follower: 8 mm. For use with sprung furniture
Can be keyed alike with 5 lever security deadlocks
Differs: 1,200 differs
Keys: 2 included
Holed for bolt through furniture at 38 mm centres
10 year guarantee
| Technical data | |
|---|---|
| Type of locking | PC |
| Deadbolt throw dim. | 20 mm |
| Lever follower | 8 mm |
Specifications
Type of locking
PC
Forend design
Flat forend edged
Forend width
25.00 mm
Lever follower
8.00 mm
Material
Case: Steel
Forend: Stainless steel or brass
Latchbolt, deadbolt and follower: Brass
Latchbolt version
Standard latch
Prepared for
Profile cylinder
Closure type
Keyed to differ
Colour/finish
Satin stainless steel
Forend length
158.00 mm
Deadbolt version
Standard deadbolt
Supplied with
2 keys
Fixings
