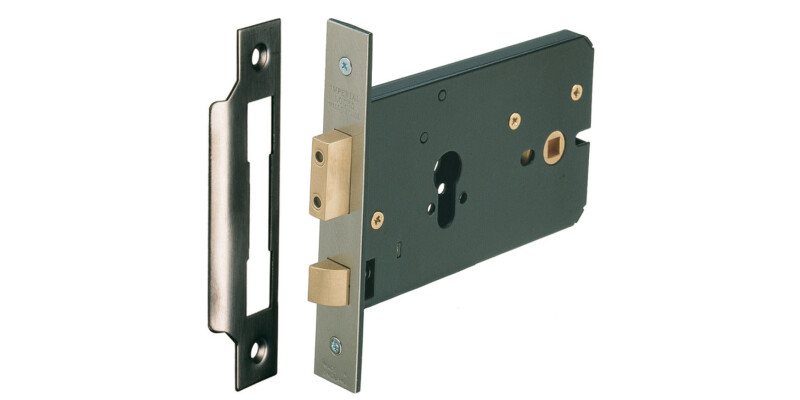

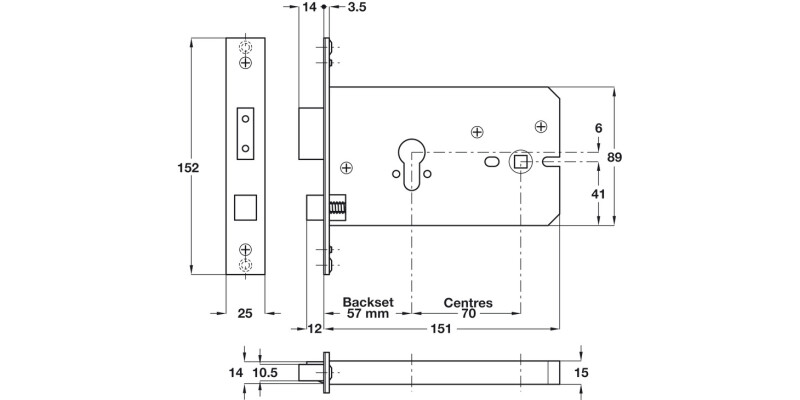

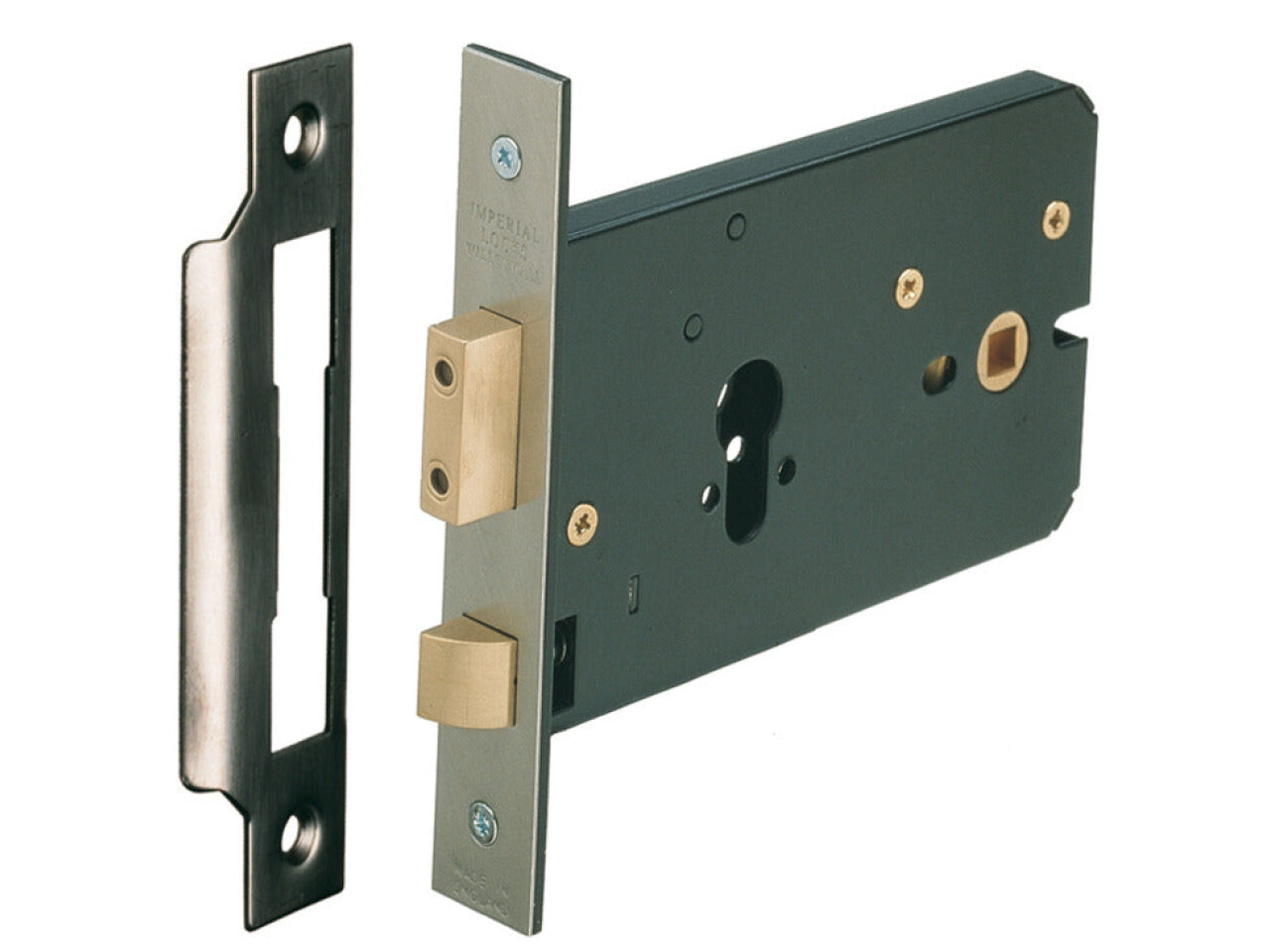

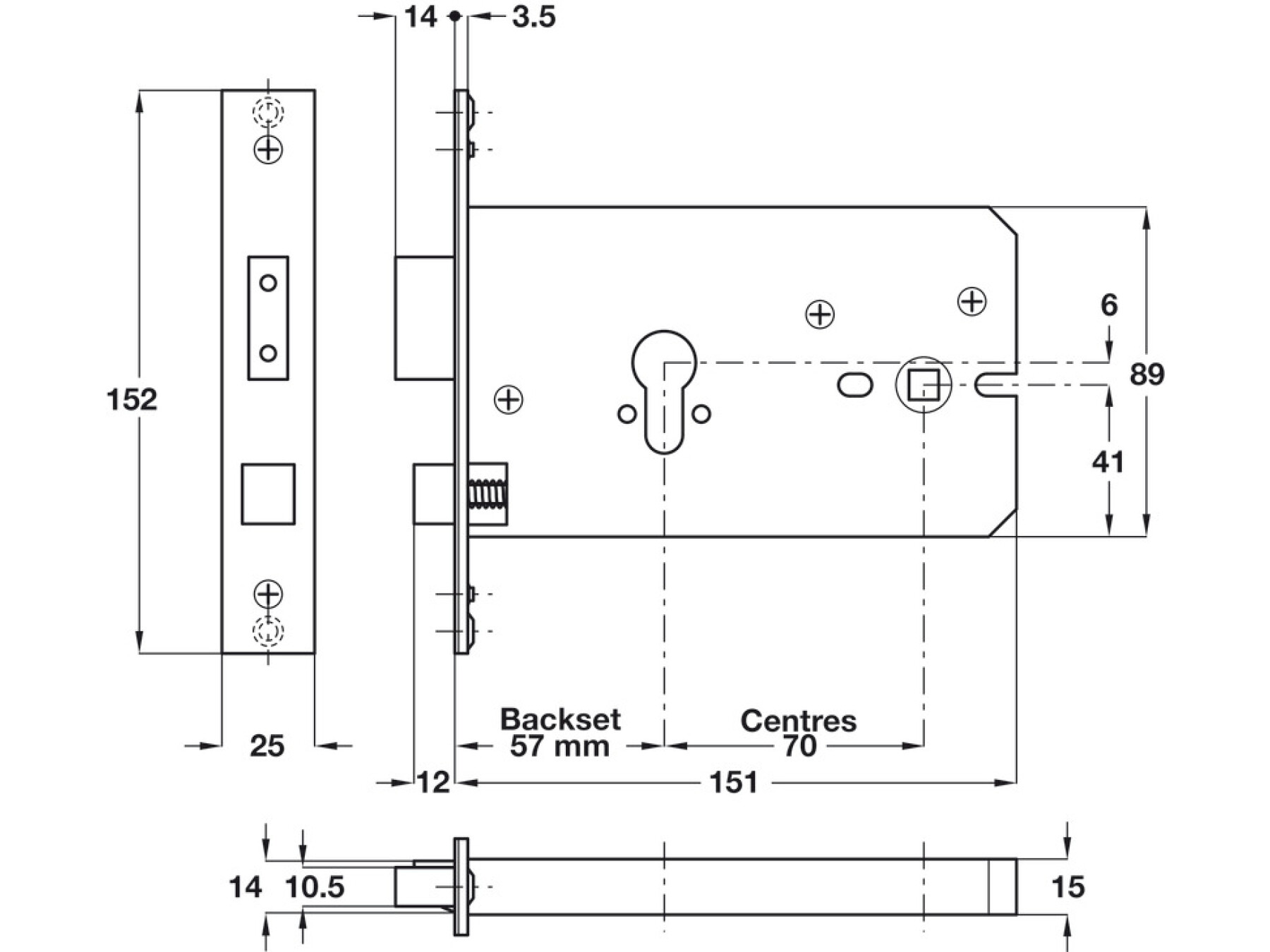

Horiz Mortice Cyl Sashlock 57/151mm SS
Part Number: 911.03.292
Backset 57 mm, case size 151 mm, stainless steel
Price:
£58.03
Per Item
Latchbolt operated by knobs. Deadbolt operated by cylinderCase: Epoxy powder coated, 15 mm wideForend: Square. 2... Read More
Product Information
Product Details
Latchbolt operated by knobs. Deadbolt operated by cylinder
Case: Epoxy powder coated, 15 mm wide
Forend: Square. 2 piece

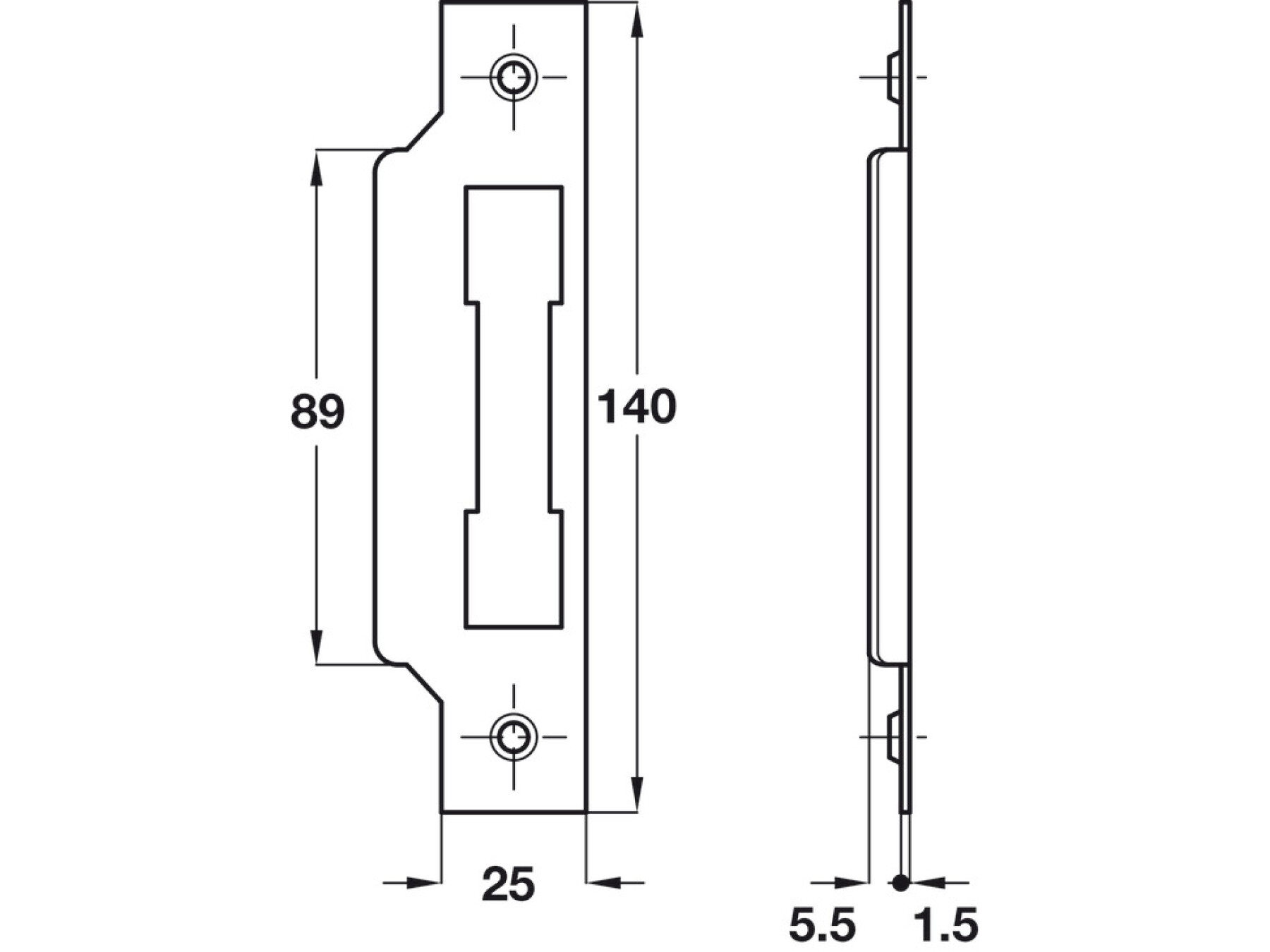

Strike plate: Square, flat
Latchbolt: Reversible
Follower: 8 mm, two way action. For use with unsprung furniture
Cylinder: Profile, all types
Holed for bolt through furniture at 38 mm centres
70 mm centres
| Technical data | |
|---|---|
| Type of locking | PC |
| Deadbolt throw dim. | 14 mm |
| Lever follower | 8 mm |
Specifications
Type of locking
PC
Forend Type
57.00 mm
2. Backset
127.00 mm
Forend design
Flat forend edged
Forend width
25.00 mm
Lever follower
8.00 mm
Material
Case: Steel
Forend and strike plate: Stainless steel or brass
Latchbolt, deadbolt and follower: Brass
Latchbolt version
Standard latch
Prepared for
Profile cylinder
Colour/finish
Stainless steel
Forend length
152.00 mm
Deadbolt version
Standard deadbolt
Supplied with
Strike plate
Fixings
