Part No: 932.10.131
Cover Plt for TS 500 NV Floor Spring SB
£72.62
(excl. VAT)

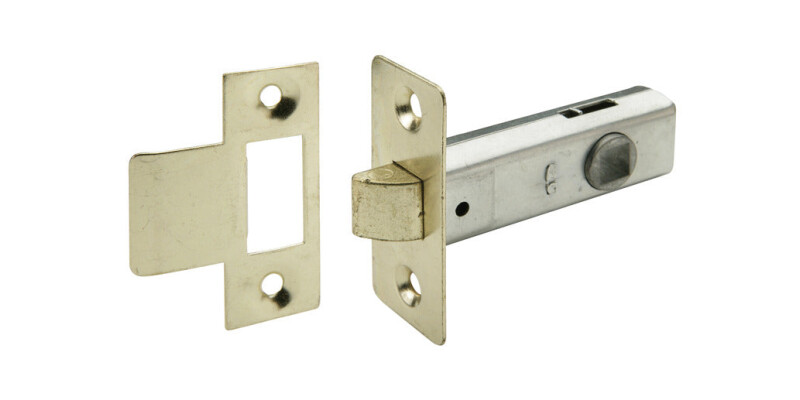

Economy Tubular Mortice Latch 44/64mm NP
Part Number: 911.03.194

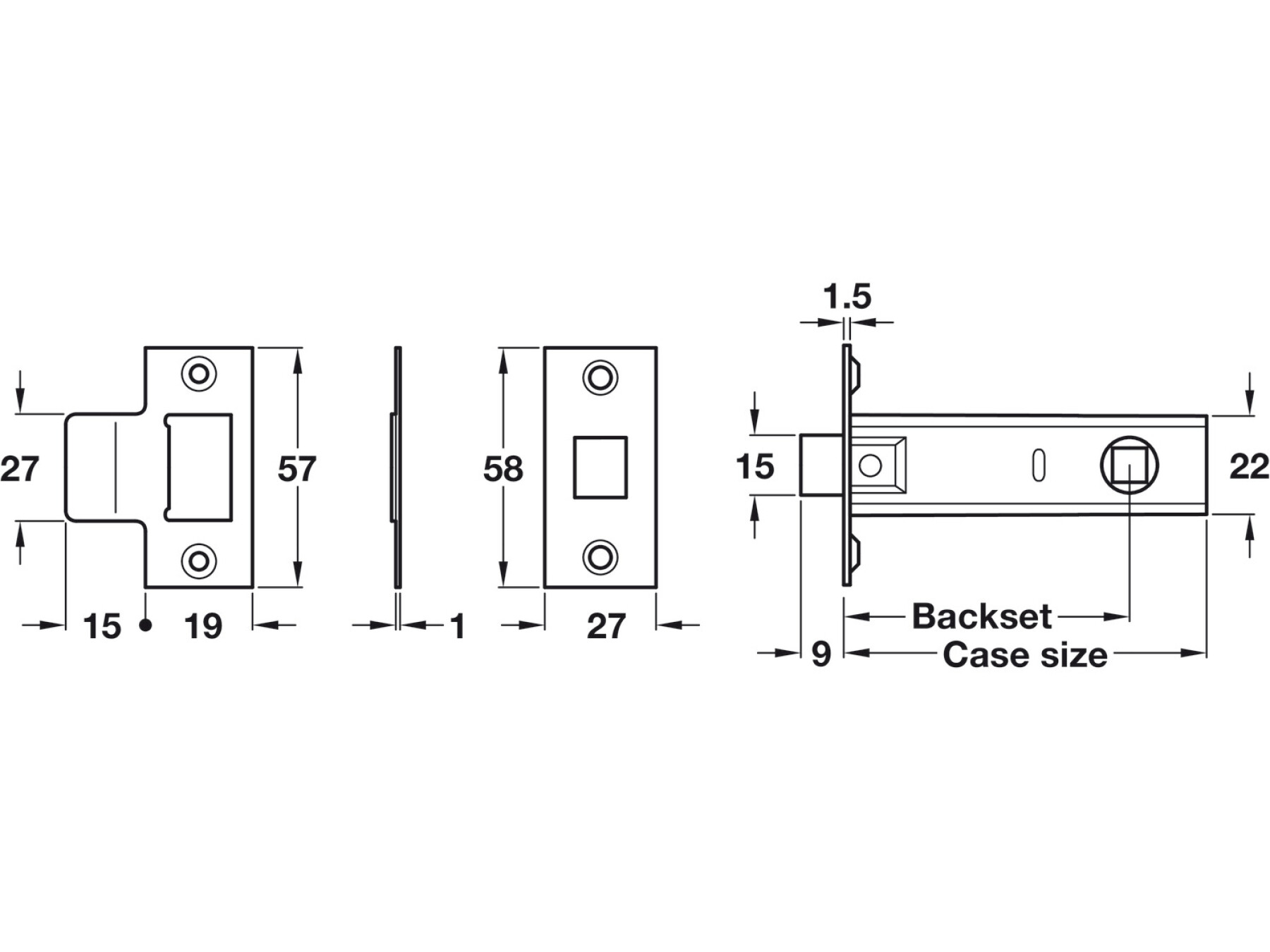

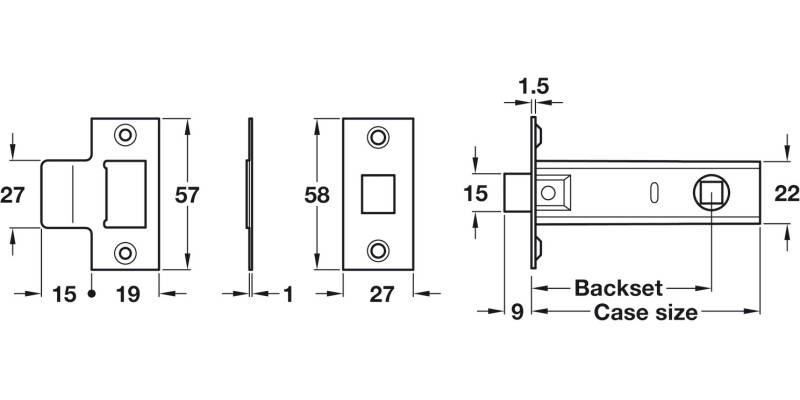

Backset 44 mm, case size 64 mm, nickel-plated
Price:
£1.45
Per Item
Operation: Latchbolt operated by lever handlesForend: SquareStrike plate: Square, flatFollower: 8 mm, for use... Read More
Product Information
Product Details
Operation: Latchbolt operated by lever handles
Forend: Square
Strike plate: Square, flat
Follower: 8 mm, for use with sprung furniture
| Technical data | |
|---|---|
| Lever follower | 8 mm |
±3 mm tolerance on dimensions
Specifications
Forend design
Flat forend edged
Forend width
27.00 mm
Lever follower
8.00 mm
Material
Case: Steel
Forend: Steel
Strike plate: Steel
Latchbolt: Brass plated
Follower: Zinc alloy
Latchbolt version
Standard latch
Lock actuation
Lever handle activated
Colour/finish
Nickel plated
Forend length
58.00 mm
Deadbolt version
Without deadbolt
Supplied with
Strike plate
Fixings
