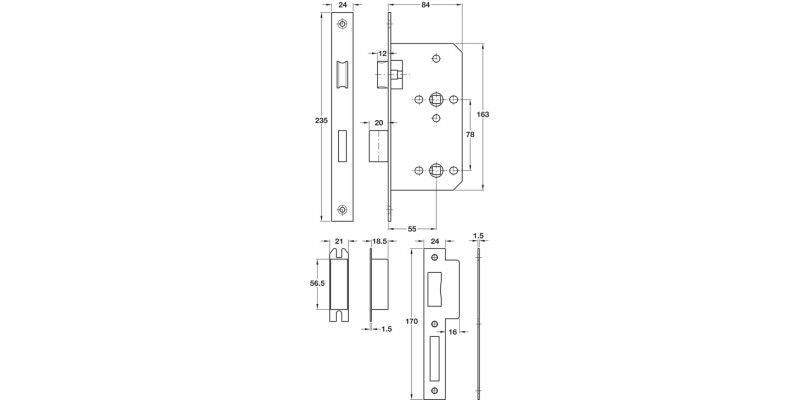

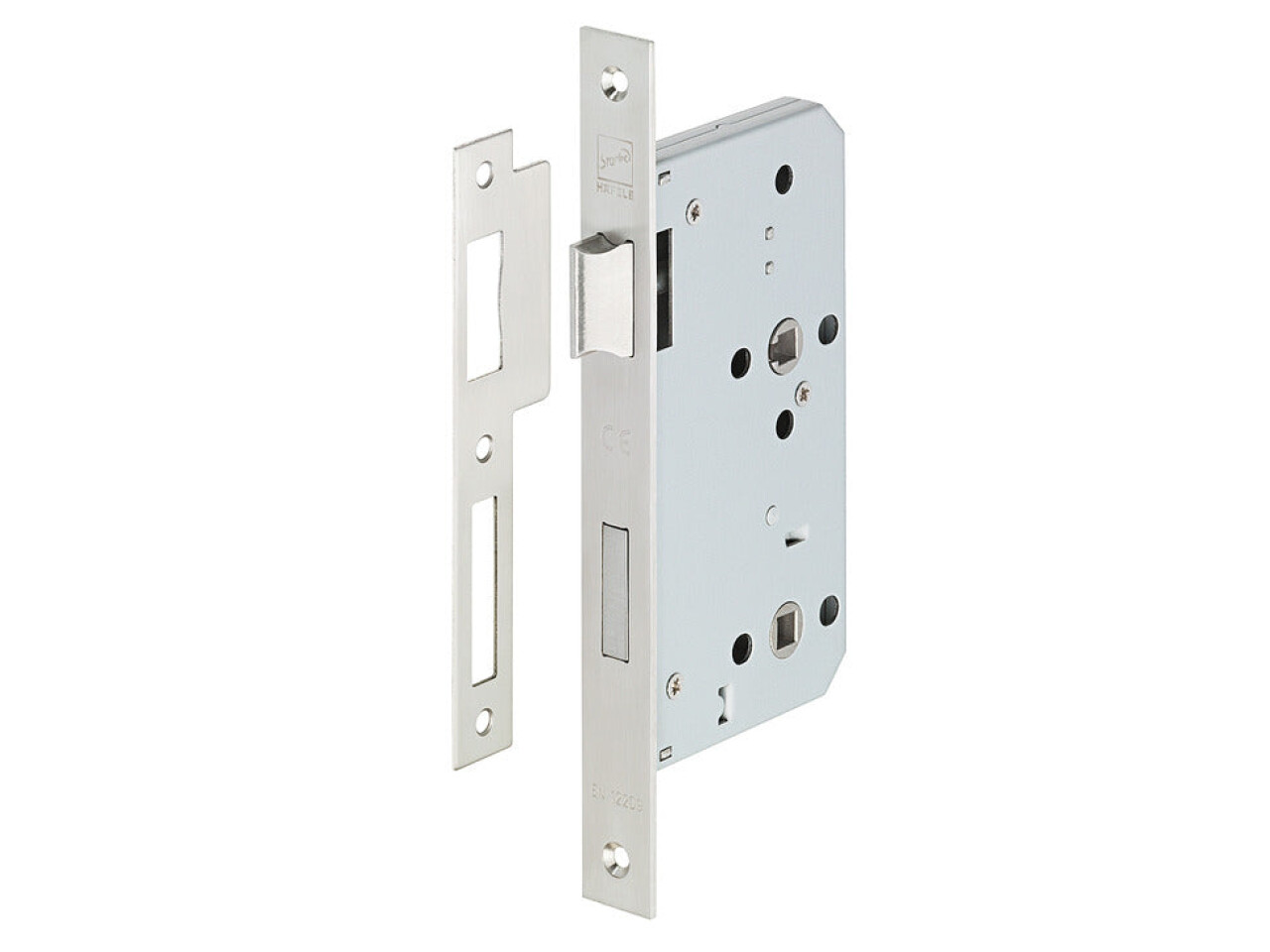

Startec Mortice Bathlock Sqr 55/84mm SSS
Latchbolt operated by lever handles, deadbolt operated by turn/emergency releaseCertified in compliance with EN... Read More
Product Details
Latchbolt operated by lever handles, deadbolt operated by turn/emergency release
Certified in compliance with EN 12209:2003

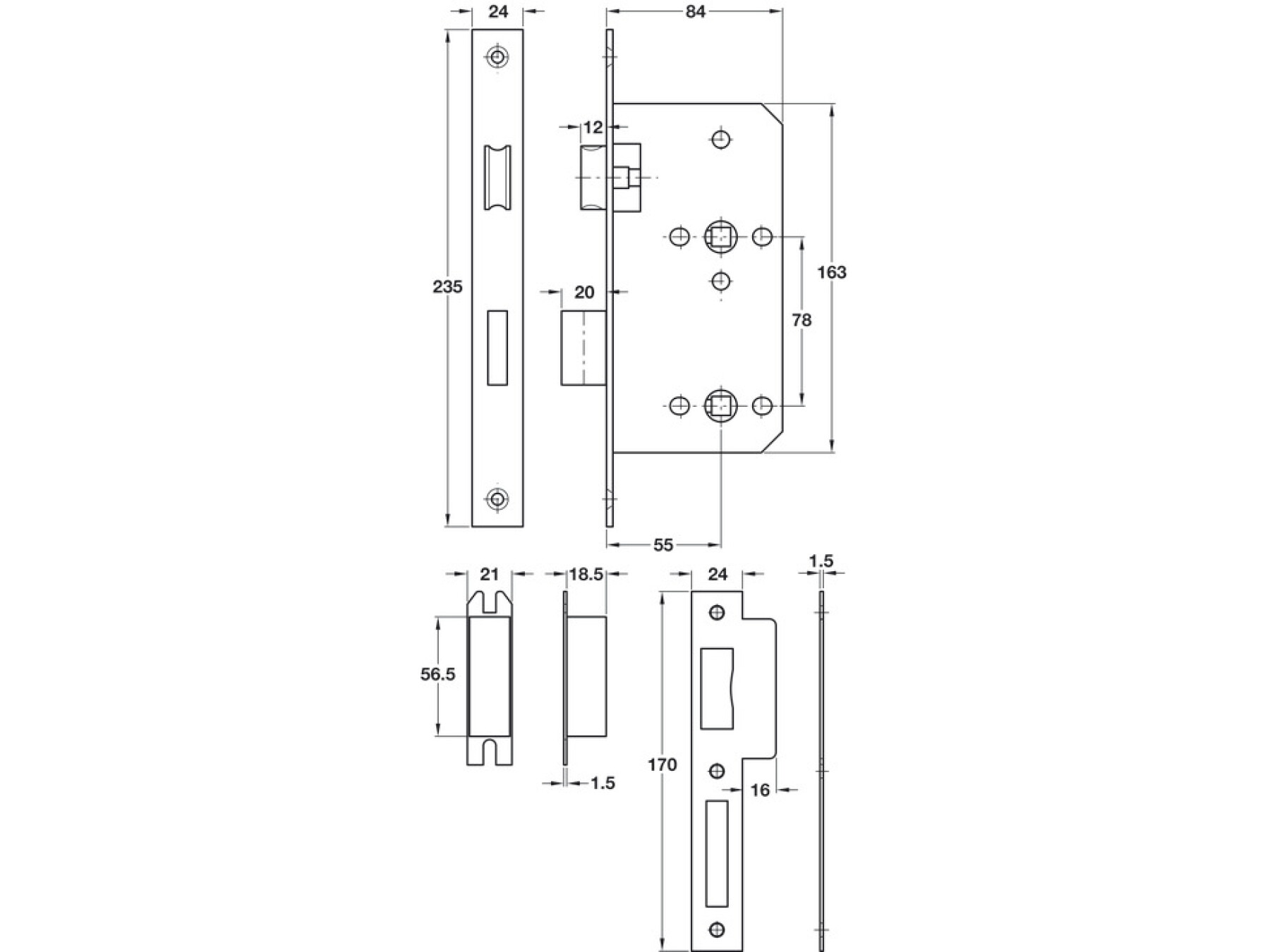

Case: Steel, 15 mm wide

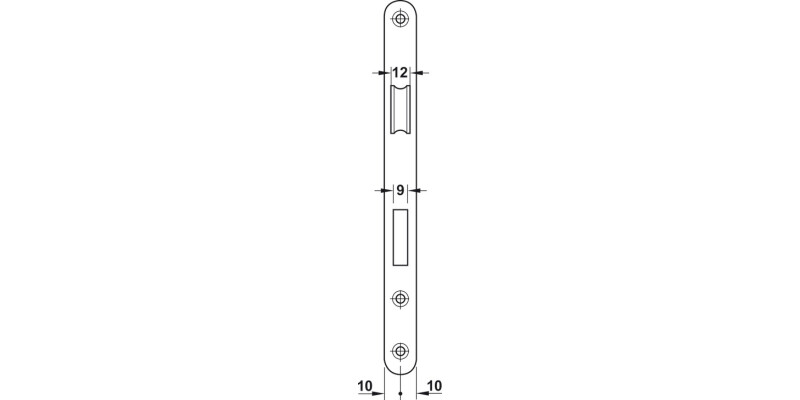

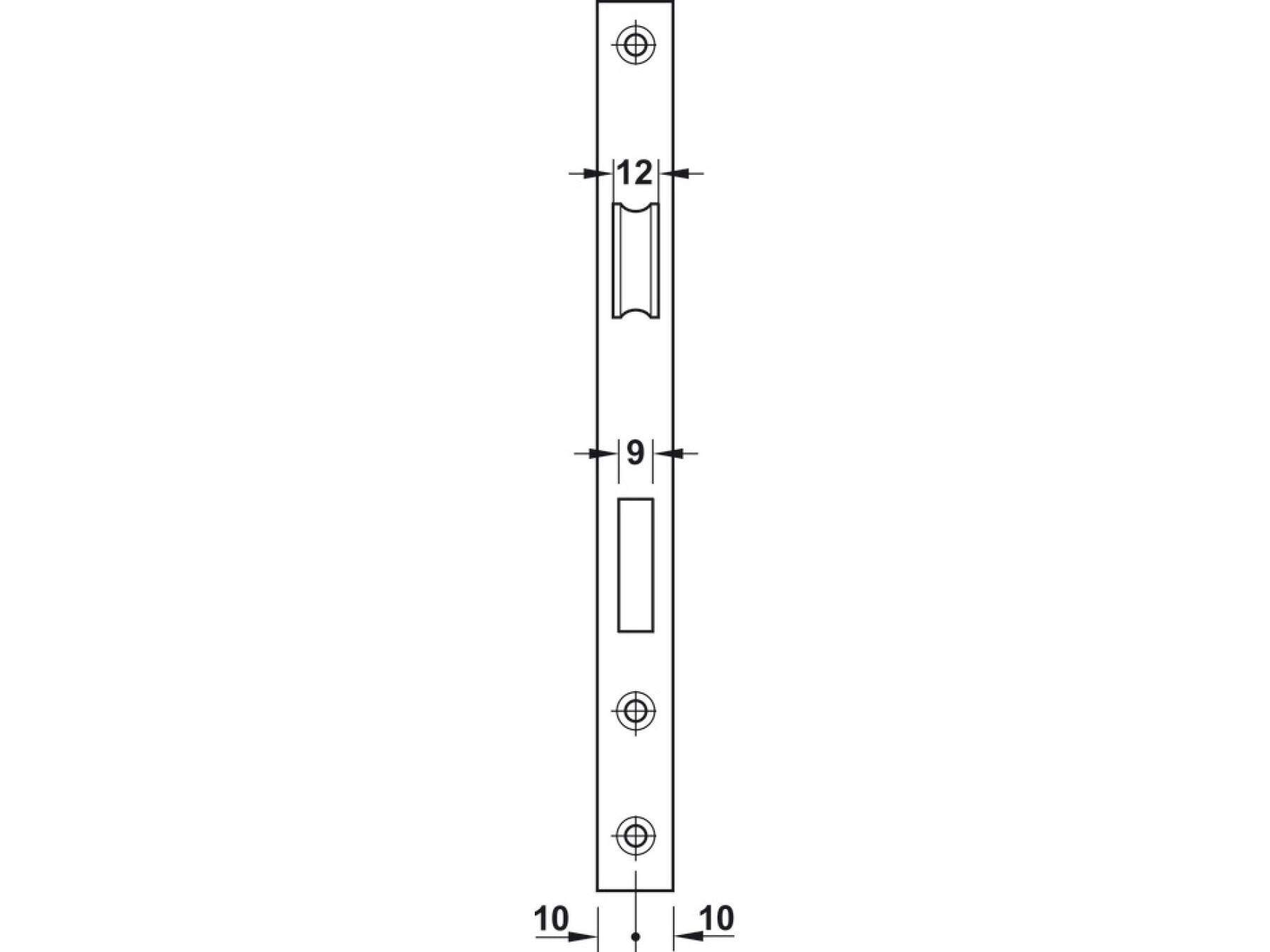

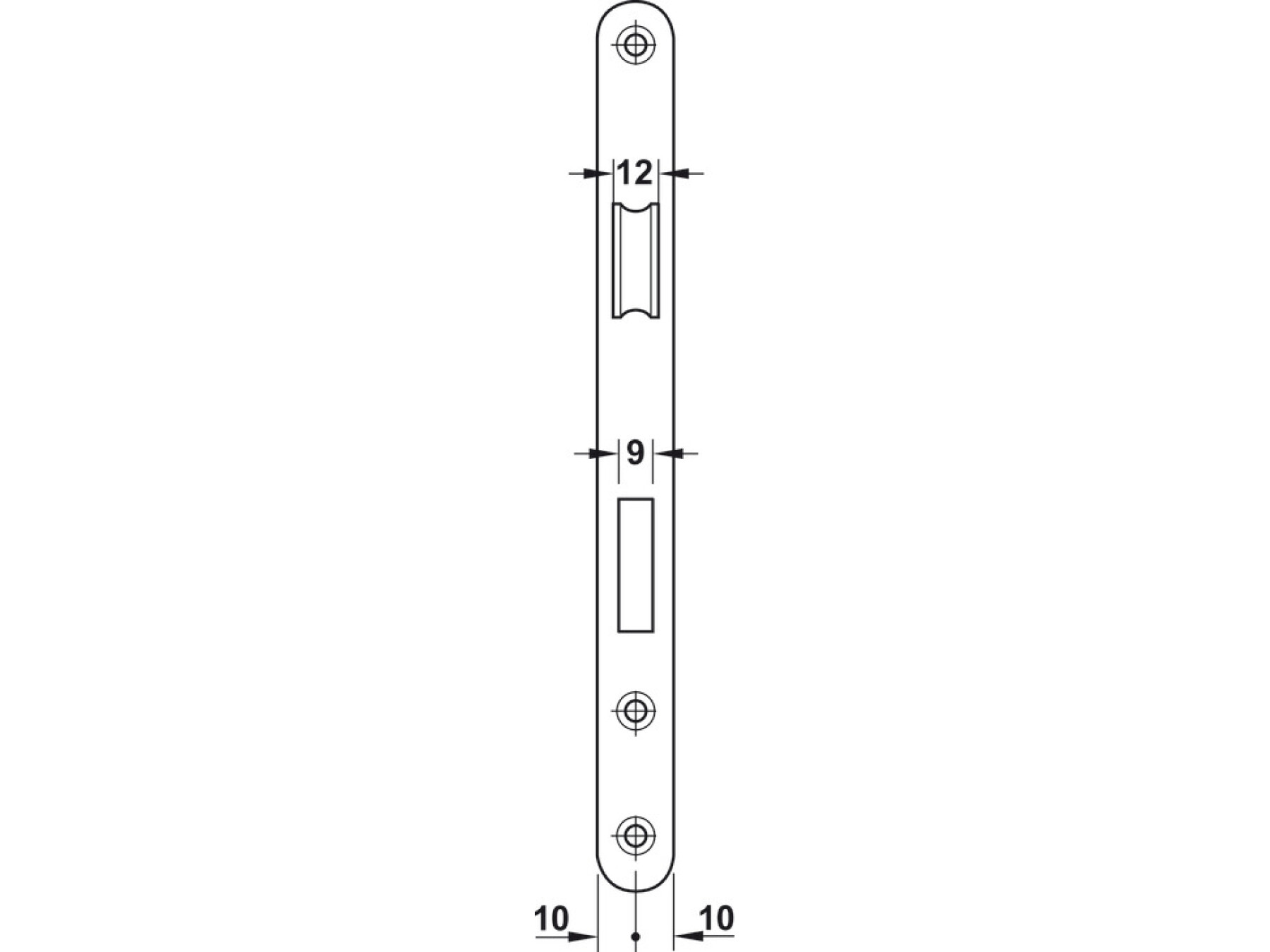

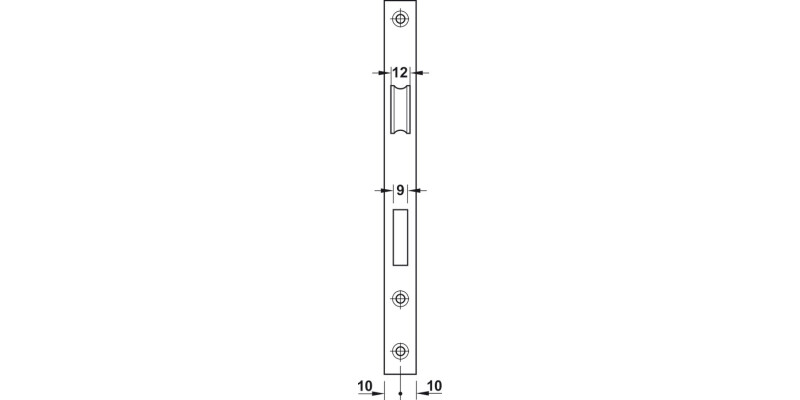

Forend: Square or radius. Stainless steel, 24 mm wide

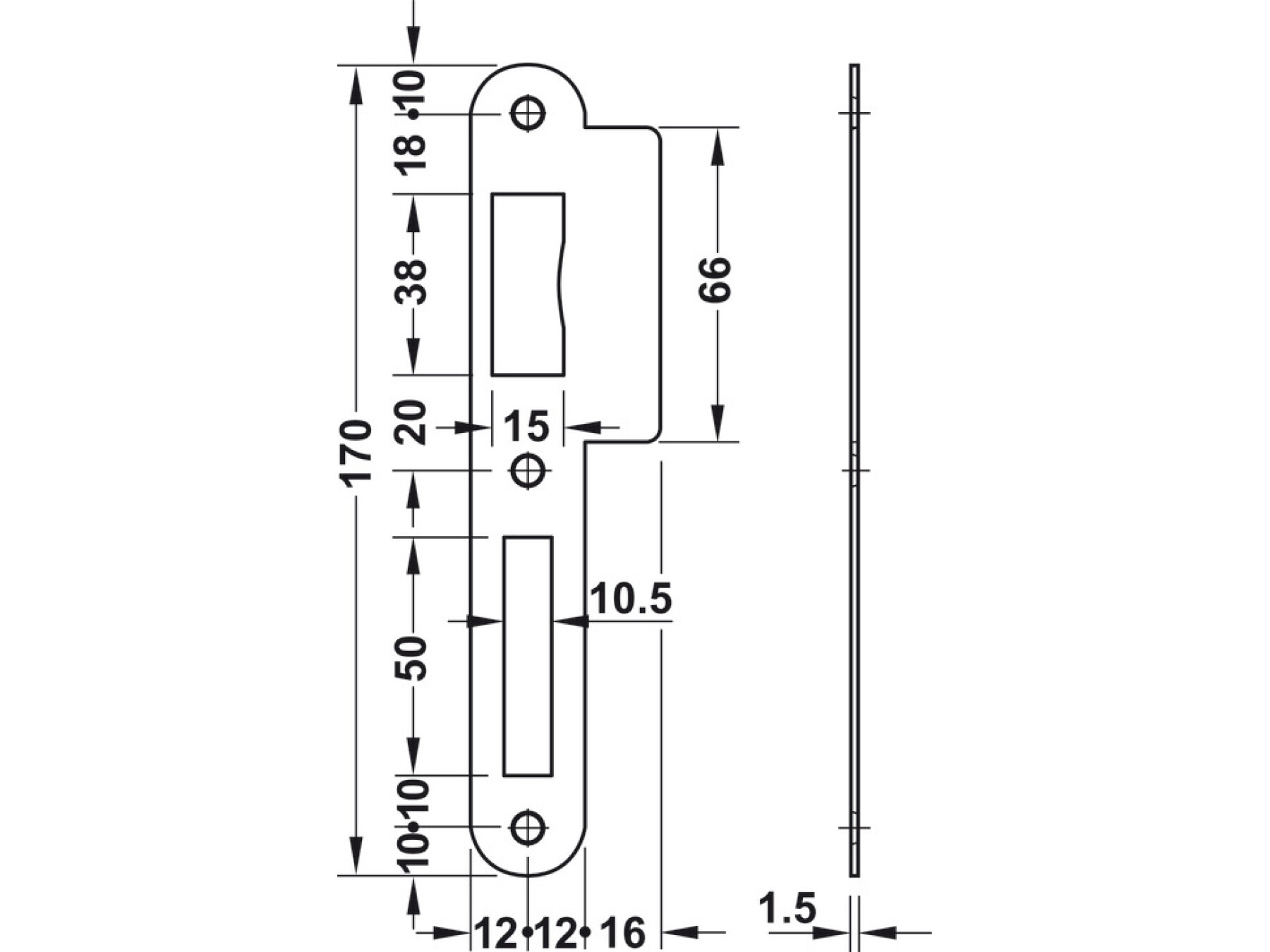

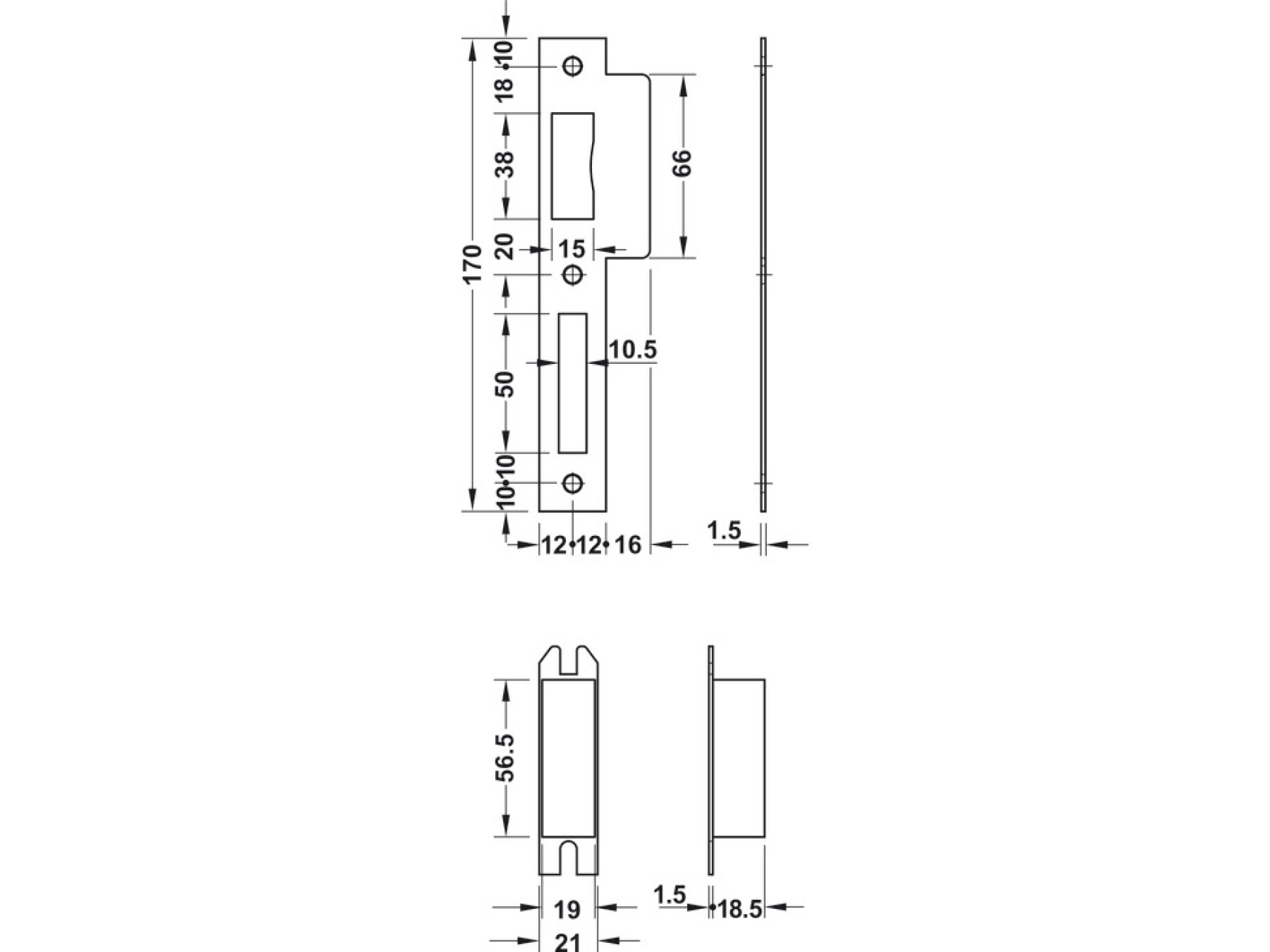

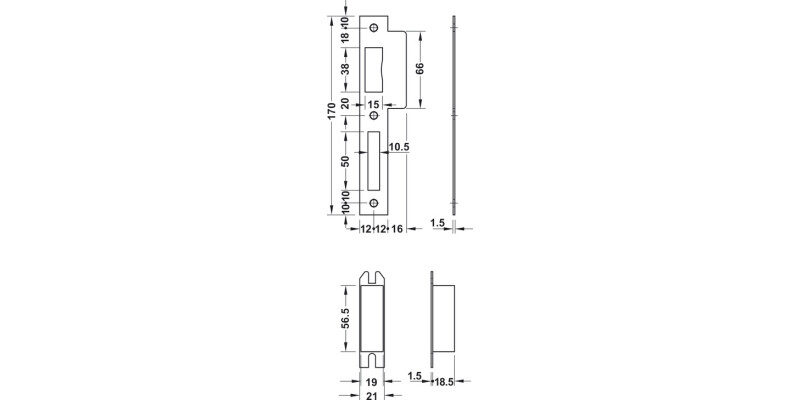

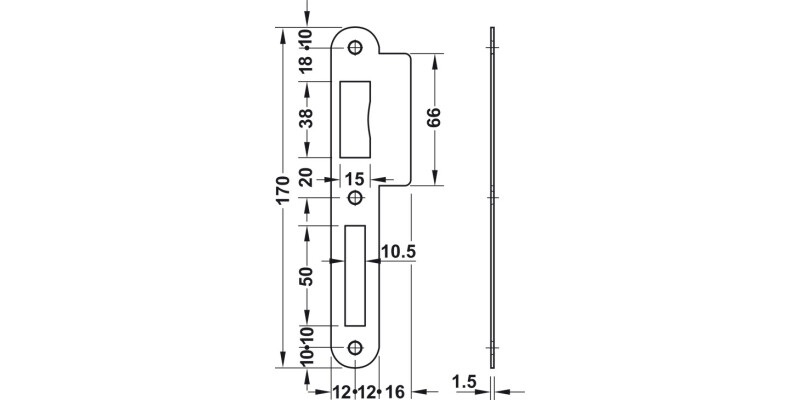

Strike plate: Square, flat. Included. Stainless steel.
Followers: 8 mm for latch and 8 mm for deadbolt. For use with sprung or unsprung furniture, 8 mm turn
DIN left and DIN right, reversible
Holed for bolt through furniture at 38 mm centres

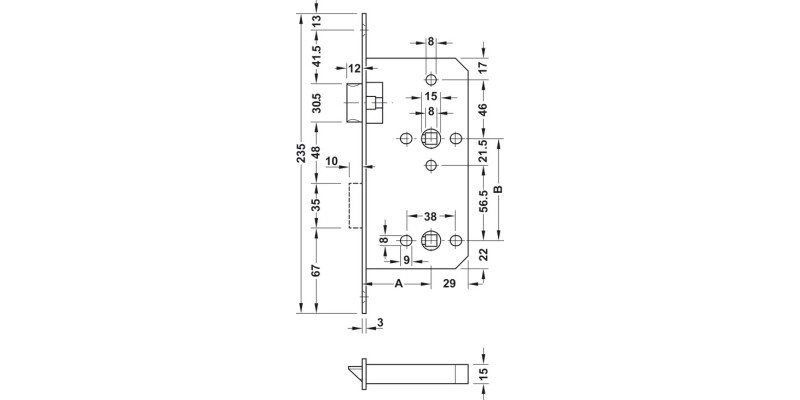

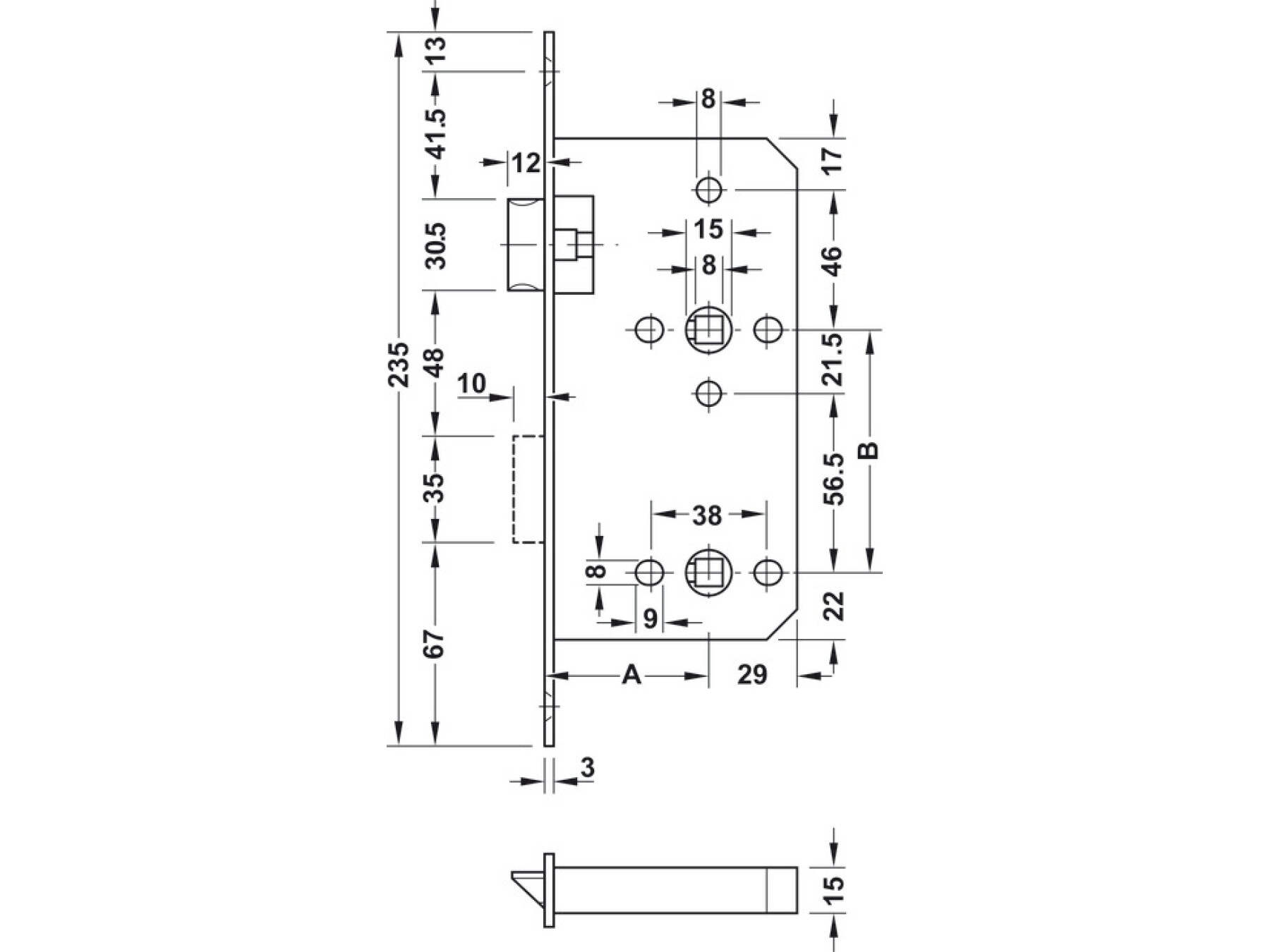

78 mm lock centres
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Type of locking | WC/Bathroom |
| Distance | 78 mm |
| Deadbolt throw | 1 turn |
| Deadbolt throw dim. | 10 mm |
| Lever follower | 8 mm |
| Deadbolt follower | 8 mm |
Specifications
Type of locking
Distance
Forend Type
Forend width
Door construction
Lever follower
Mounting
Material
Stainless steel
Latchbolt version
For door type
Version
Colour/finish
Matt brushed
Forend length
Deadbolt version
Standard
Classification in compliance with EN 12209
Hafele Lifetime Guarantee
Supplied with
Strike plate: Square, flat
Fixings
