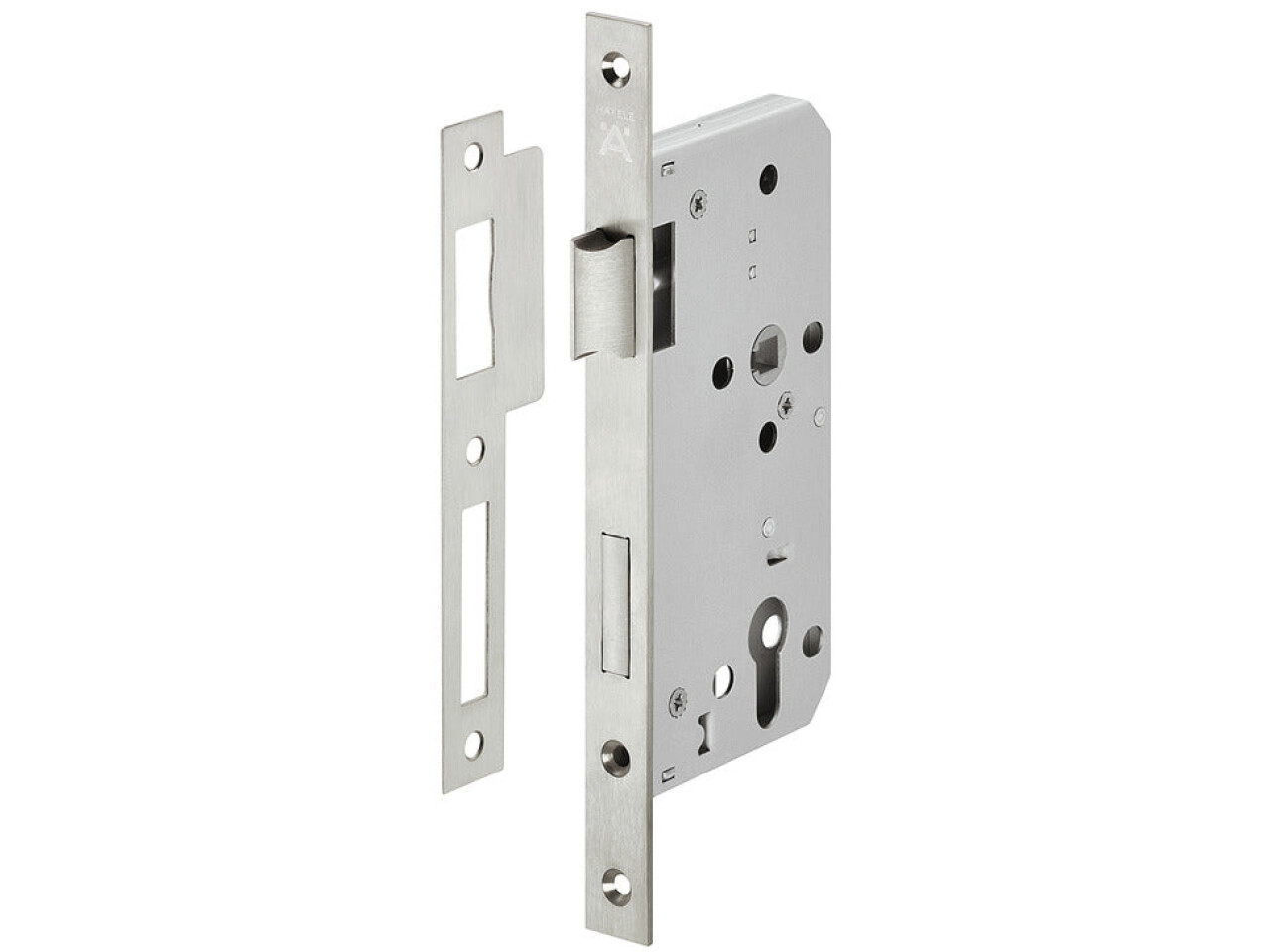

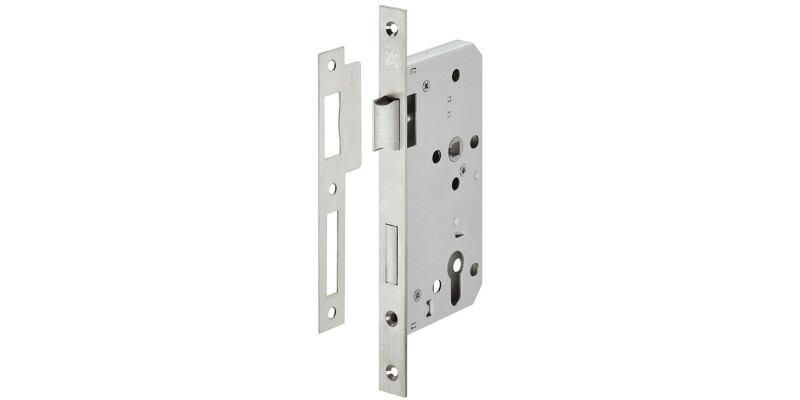

Startec Mort P.Cyl Lock Sqr 55/84mm SSS
Part Number: 911.02.145

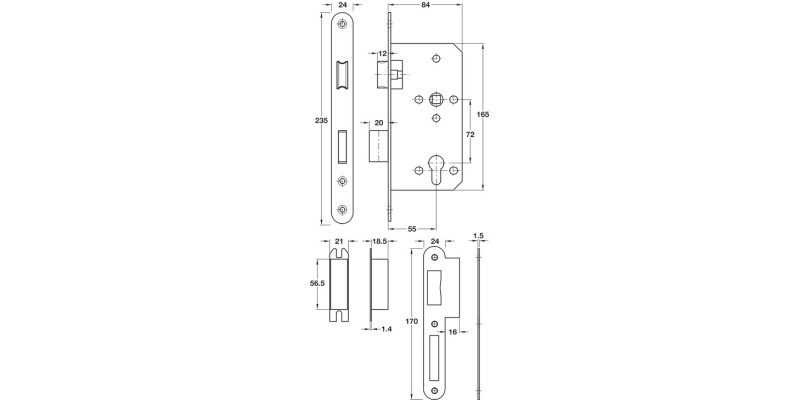

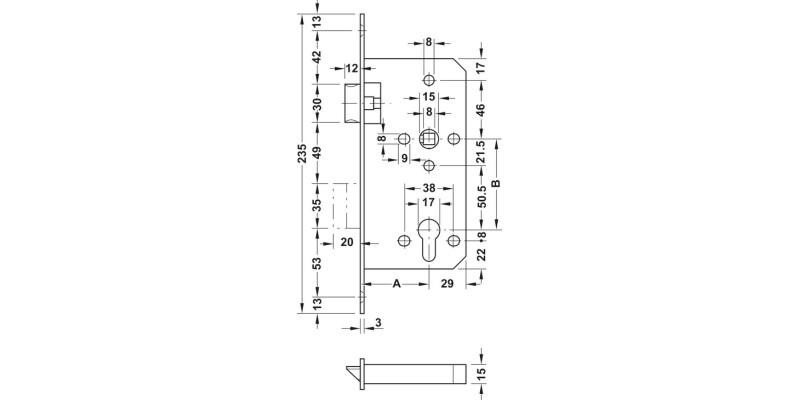

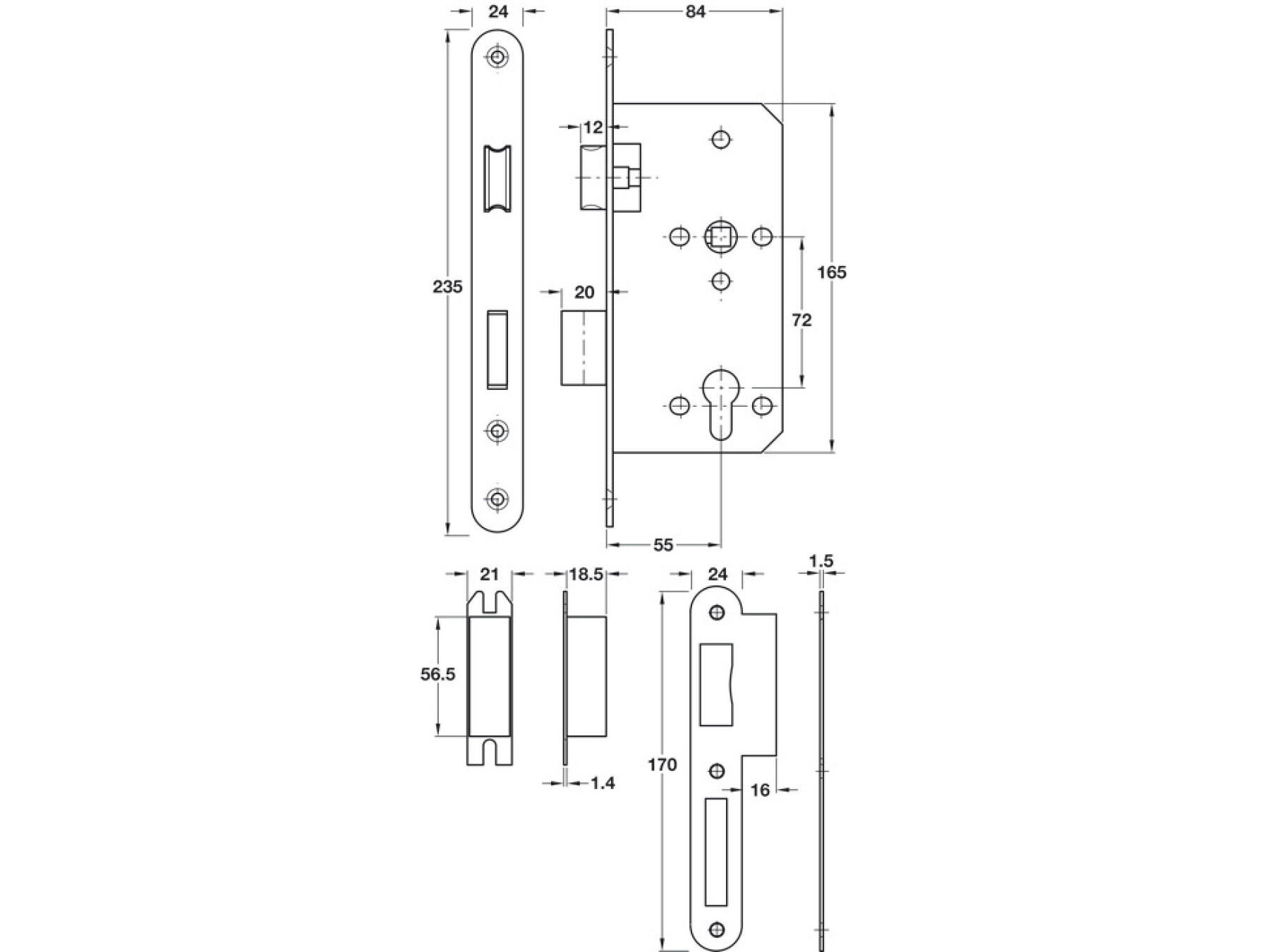

For fire resistant/smoke control doors, Backset 55 mm, case size 84 mm, square forend, satin
Price:
£16.45
Per Item
Latchbolt operated by lever handles, deadbolt operated by cylinderCase: Steel, 15 mm wideForend: Square or... Read More
Product Information
Product Details
Latchbolt operated by lever handles, deadbolt operated by cylinder
Case: Steel, 15 mm wide

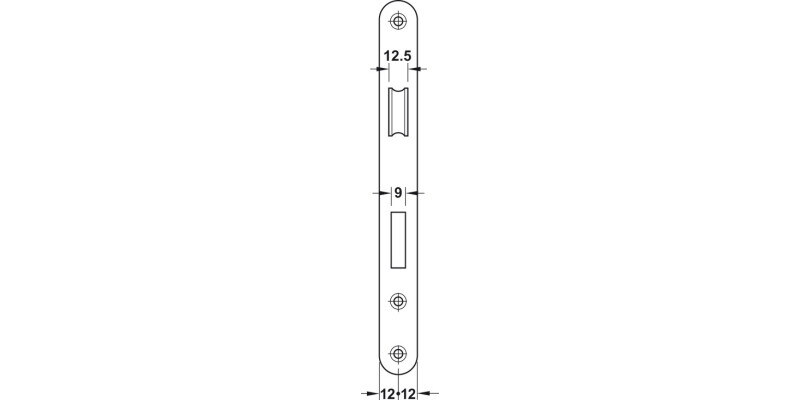

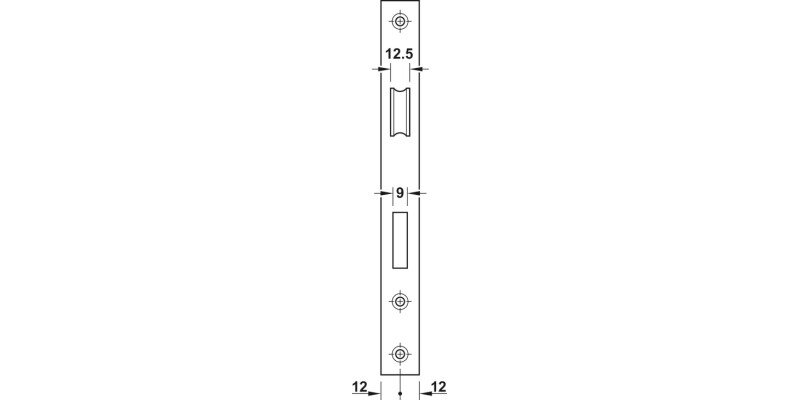

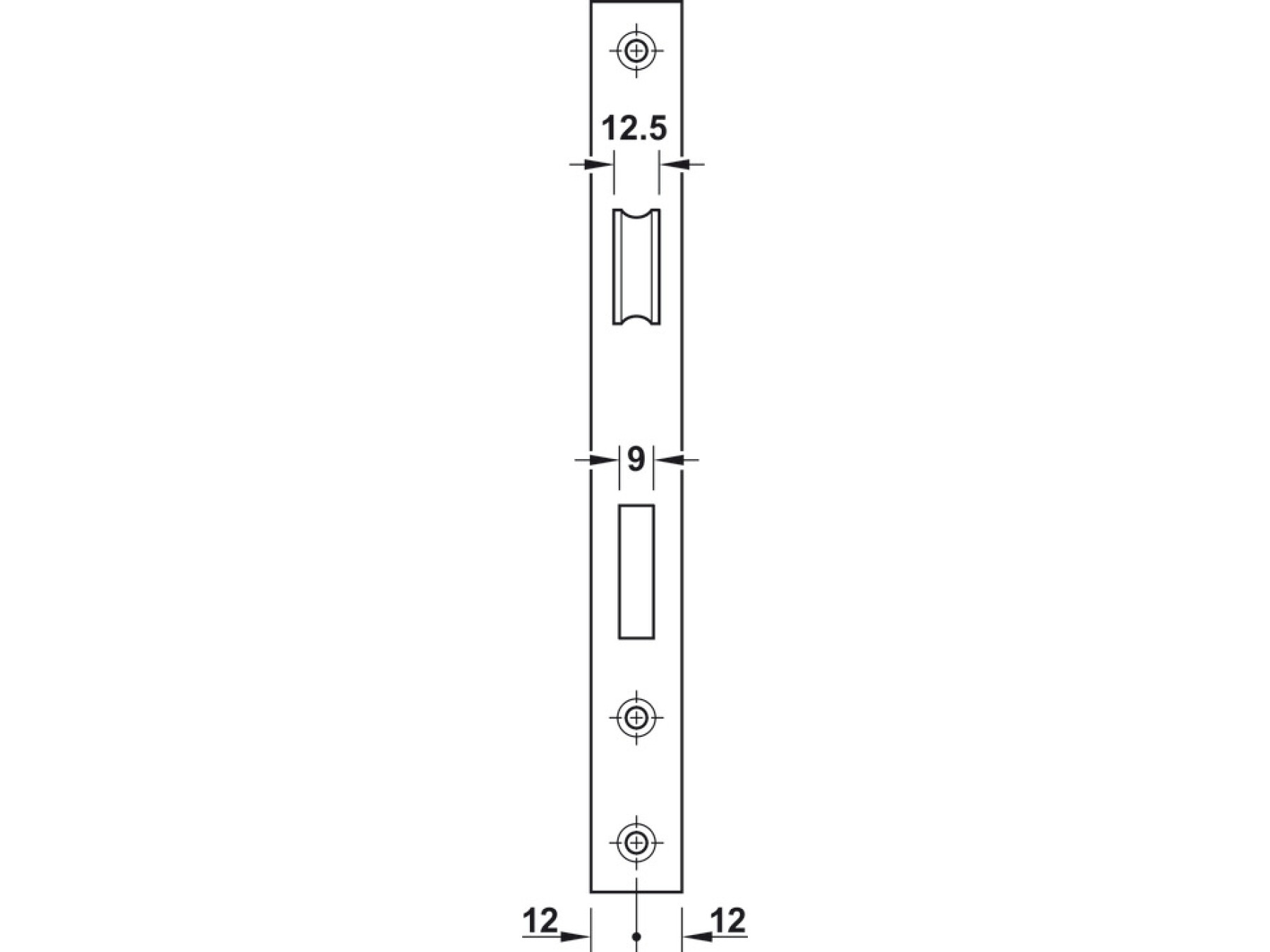

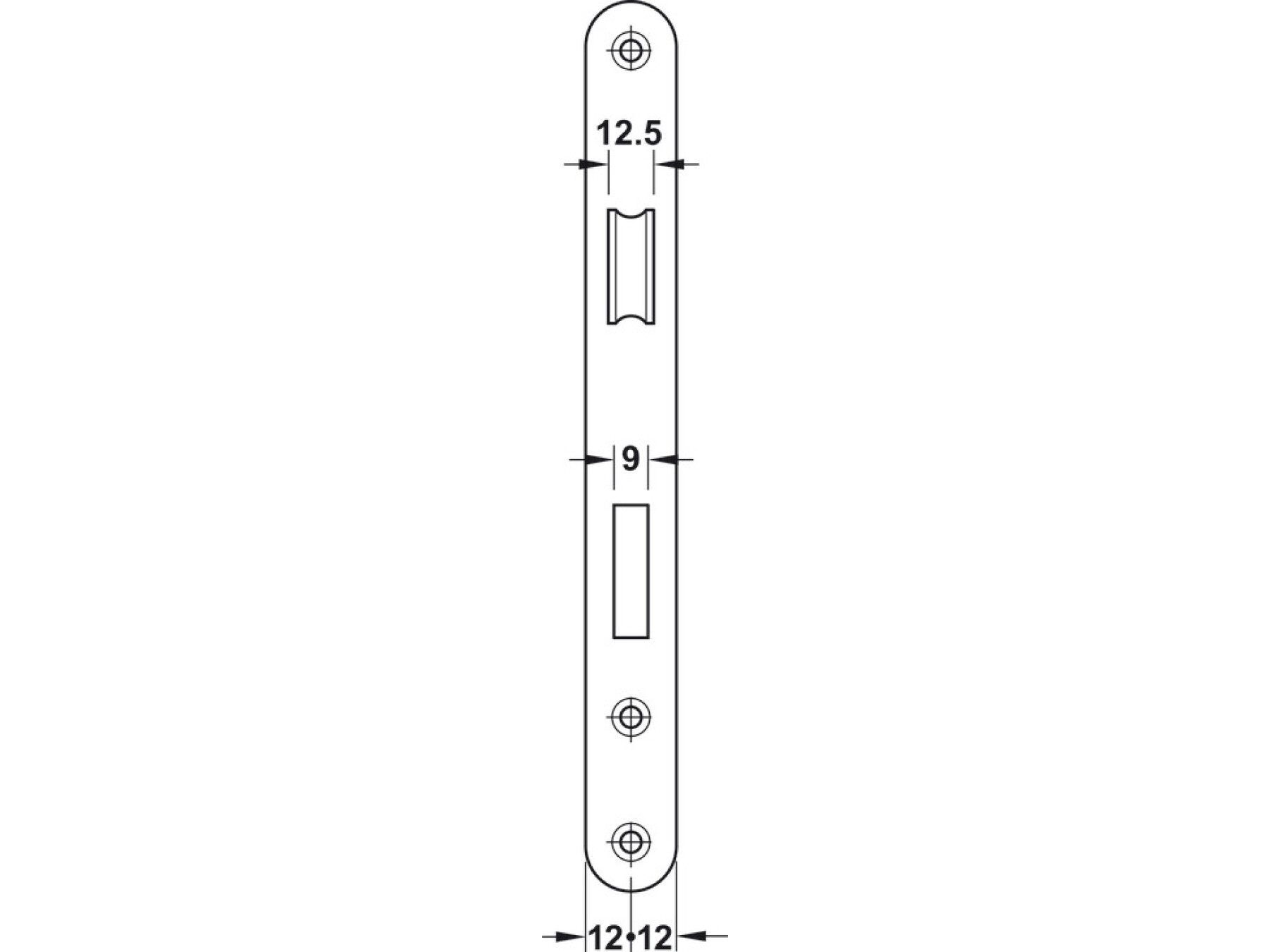

Forend: Square or radius. Stainless steel, 24 mm wide

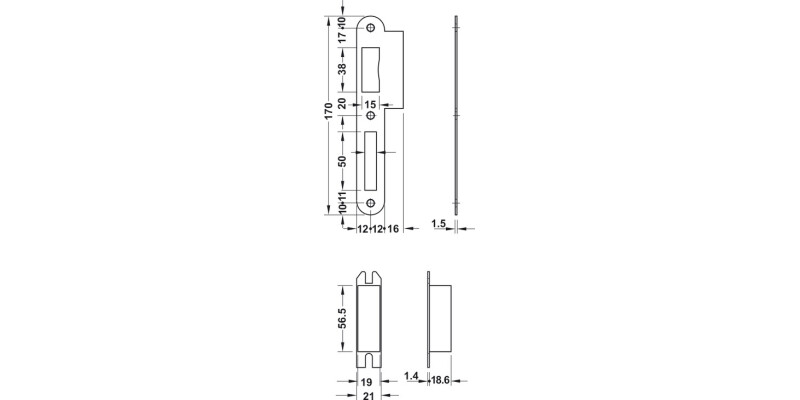

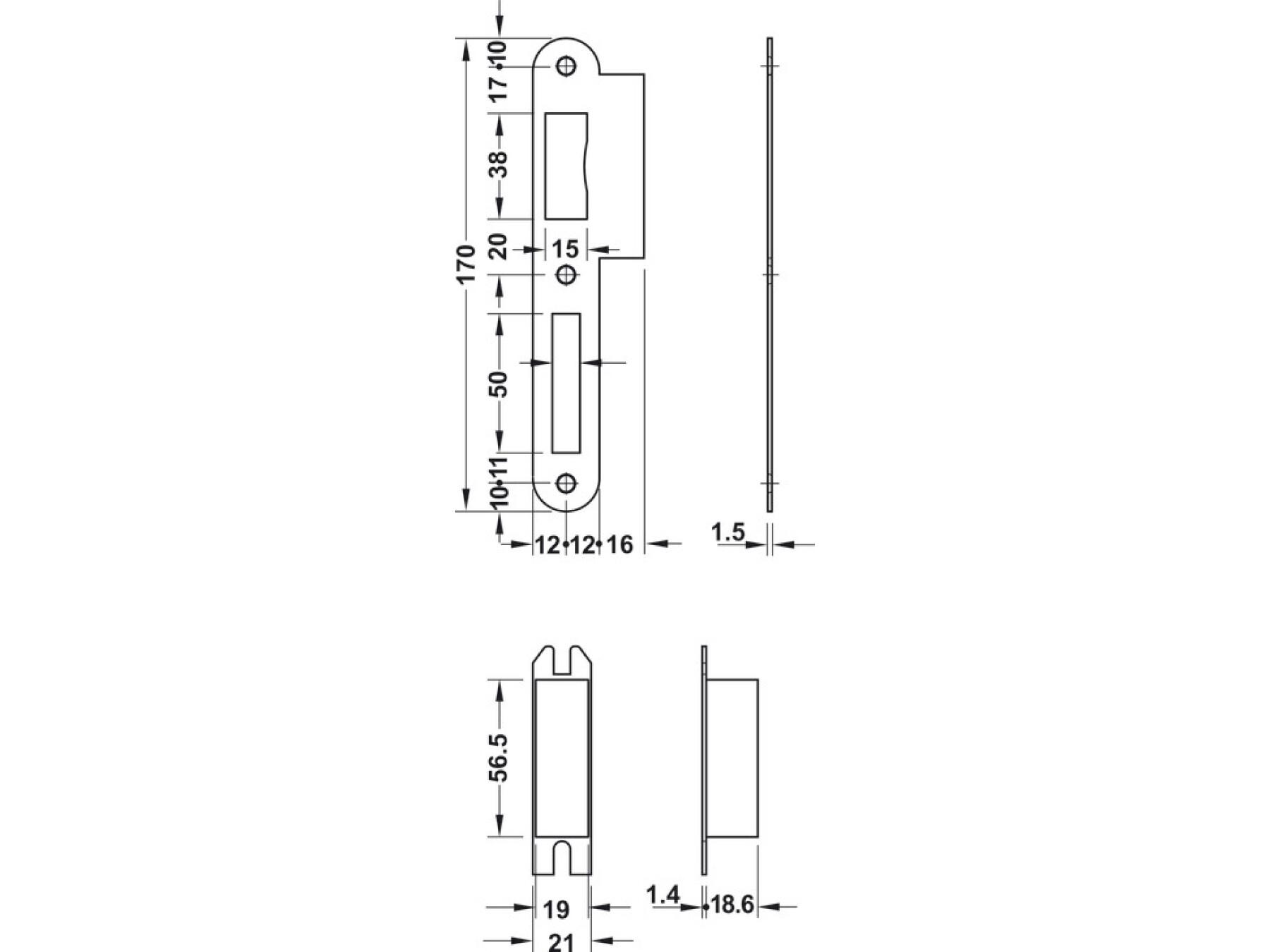

Strike plate: Square, flat. Included. Stainless steel
Latchbolt follower: 8 mm. For use with sprung or unsprung furniture
Deadbolt follower: Euro profile cylinder
DIN left and DIN right, reversible
Holed for bolt through furniture at 38 mm centres
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|

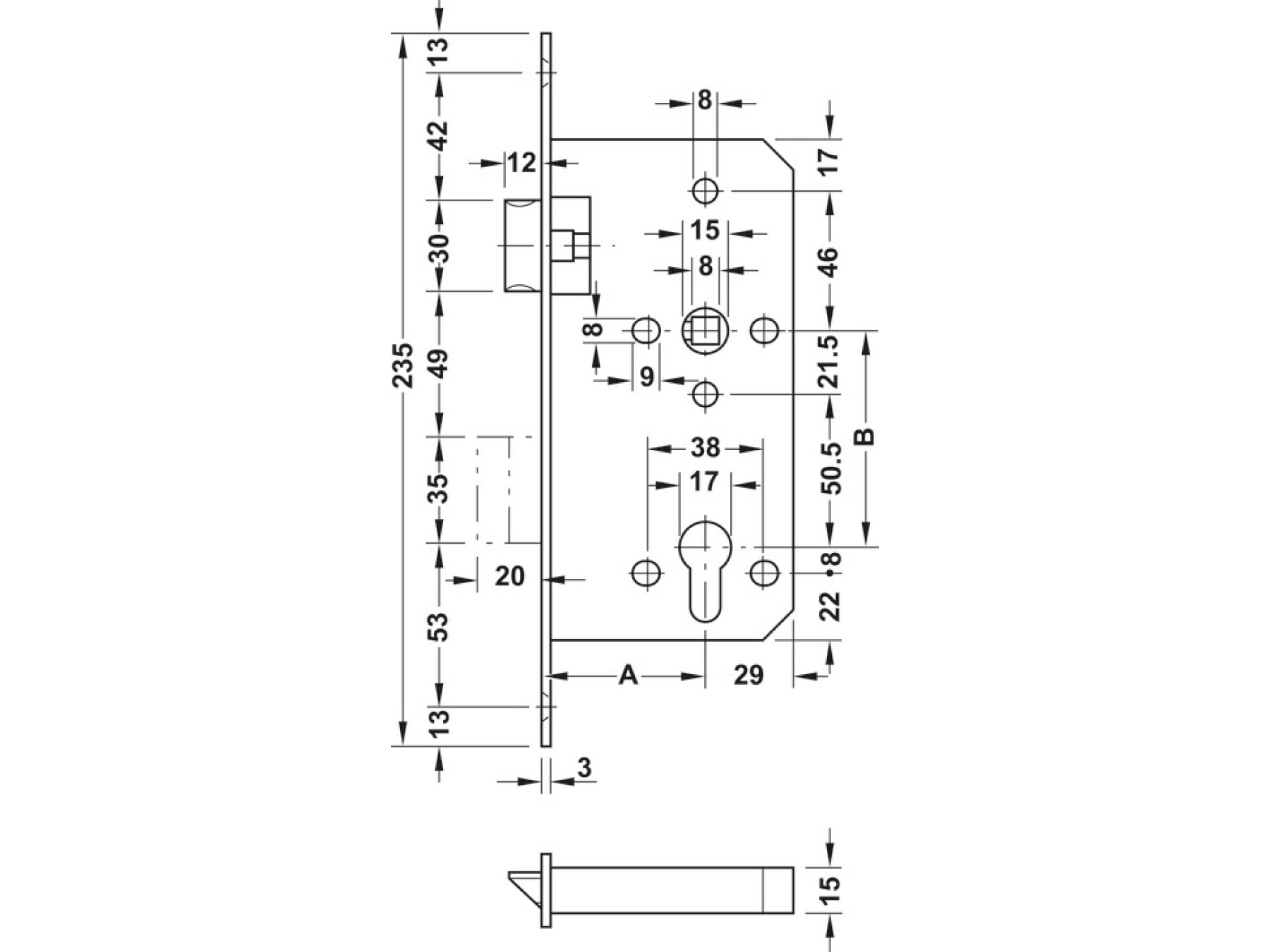

| Distance | 72 mm |
| Deadbolt throw | 2 turns |
Specifications
Distance
72.00 mm
Forend Type
Forend width
24.00 mm
Door construction
Unrebated
Mounting
DIN left/right (reversible)
Material
Stainless steel
For door type
Revolving door, Fire resistant and smoke control doors
Version
Strike plate with bolt pocket
Colour/finish
Matt brushed
Standard
Certified in compliance with EN 12209: 2003
Classification in compliance with EN 12209
3|S|8|1|0|F|2|B|C|2|0
Order reference
Cylinder not included, please order separately
Supplied with
Strike plate: Square, flat
Fixings
