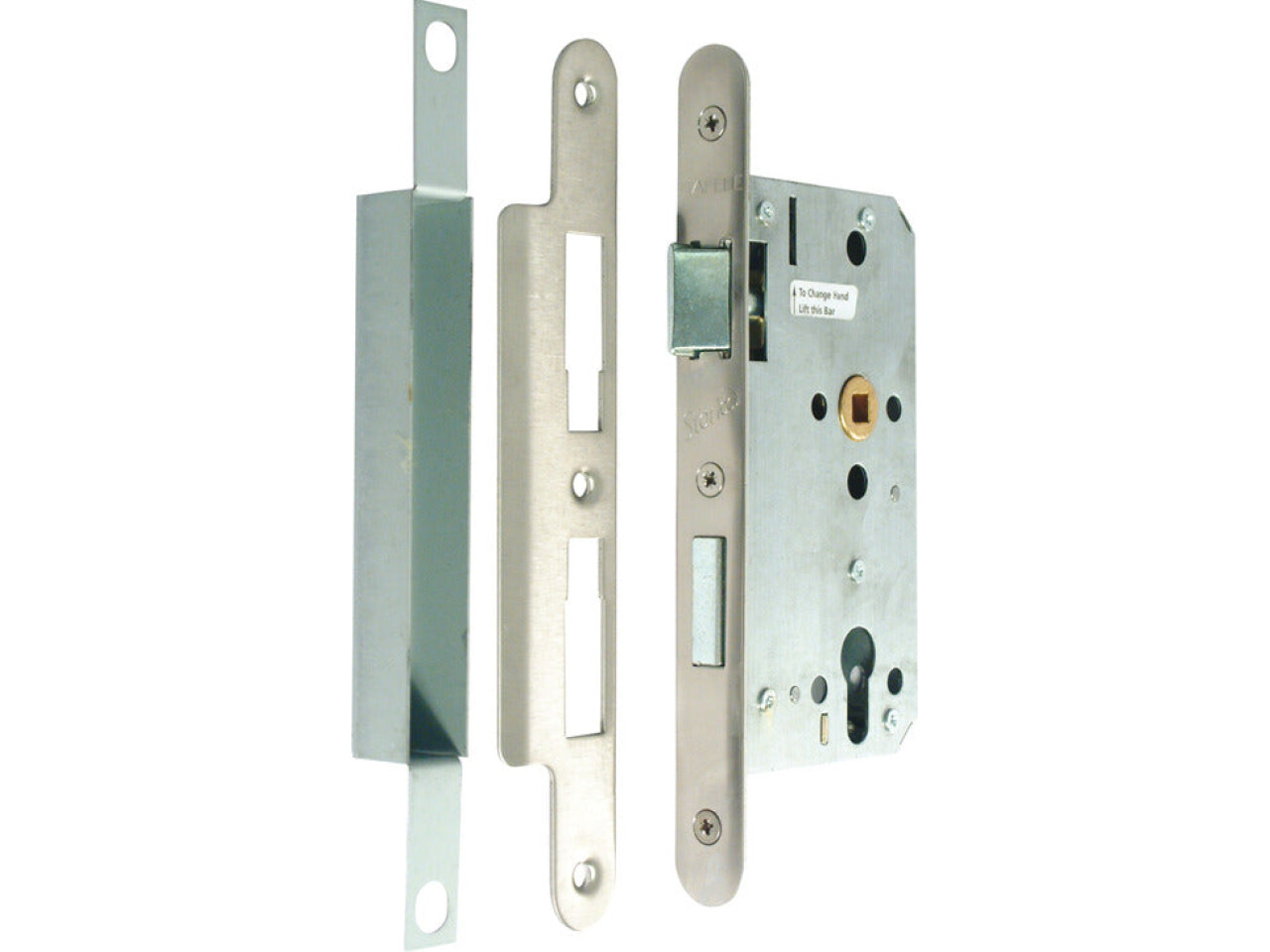

Startec Mort Cyl Sashlock 60/92mm SSS
Part Number: 911.01.065
Backset 60 mm, case size 92 mm, satin stainless steel
Price:
£43.97
Per Item
Conforms to BS EN 12209Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN... Read More
Product Information
Product Details
Conforms to BS EN 12209
Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1
Latchbolt operated by lever handles. Deadbolt operated by cylinder
Case: Galvanized, 16 mm wide
Forend: Radius, 2 piece

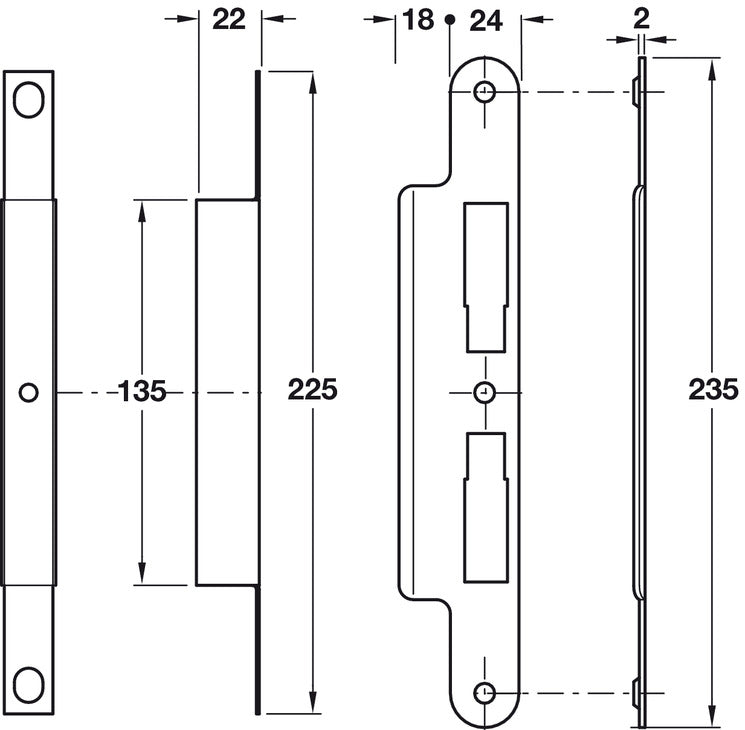

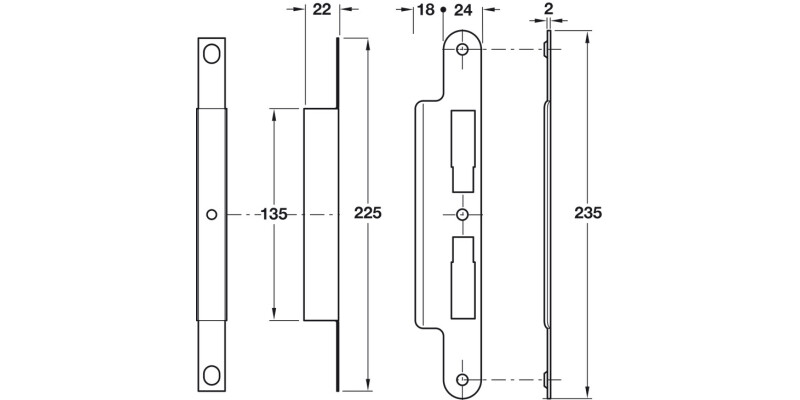

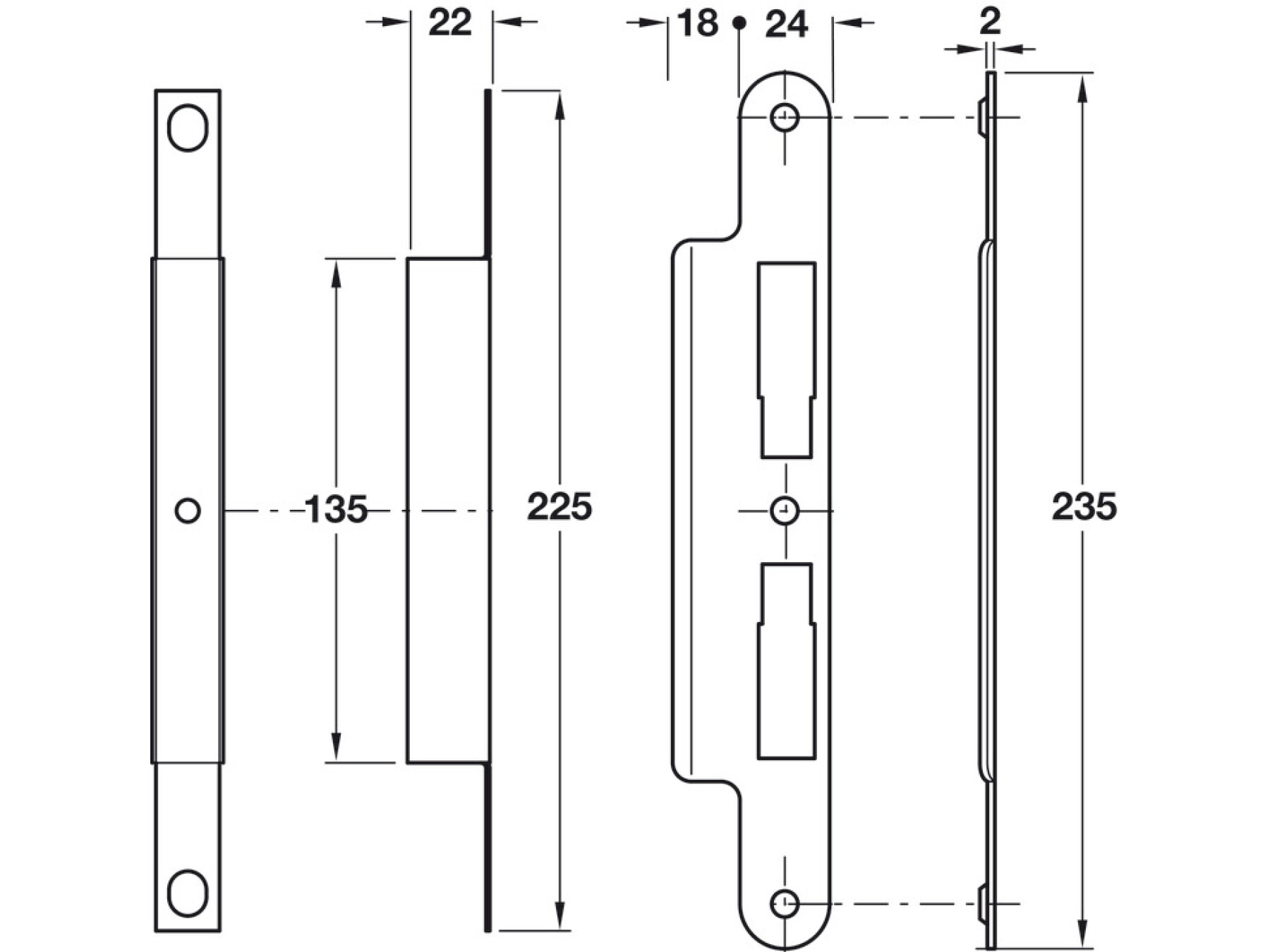

Strike plate: Radius. Box included
Latchbolt: Bright zinc plated. Easily reversible
Deadbolt: Bright zinc plated. 20 mm throw
Follower: 8 mm. Hold-tite spindle spring. For use with unsprung furniture
Holed for bolt through furniture at 38 mm centres
Only requires a lever depression of approx. 25° to fully retract latchbolt
Material
Case: Steel
Forend and strike plate: Stainless steel
Latchbolt and deadbolt: Solid brass
Follower: Brass
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
| Technical data | |
|---|---|
| Type of locking | PC |
| Distance | 72 mm |
| Deadbolt throw dim. | 20 mm |
| Lever follower | 8 mm |
Where a fire rating is shown for a product this would only have been achieved by use of intumescent seals. When fitting any ironmongery to a door please ensure the correct intumescent product is used
Specifications
Type of locking
PC
Distance
72.00 mm
Forend Type
60.00 mm
Forend design
Flat forend rounded
Forend width
24.00 mm
Lever follower
8.00 mm
Latchbolt version
Standard latch
For door material
Wood
Version
Back lining for strike plate
Prepared for
Profile cylinder
Colour/finish
Satin stainless steel
Forend length
235.00 mm
Deadbolt version
Standard deadbolt
Classification in compliance with EN 12209
3|X|8|1|0|G|1|B|A|3|0
Fire resistance category
FD60
Hafele Lifetime Guarantee
10 years
Order reference
Order cylinder separately
Supplied with
Strike plate
Fixings
