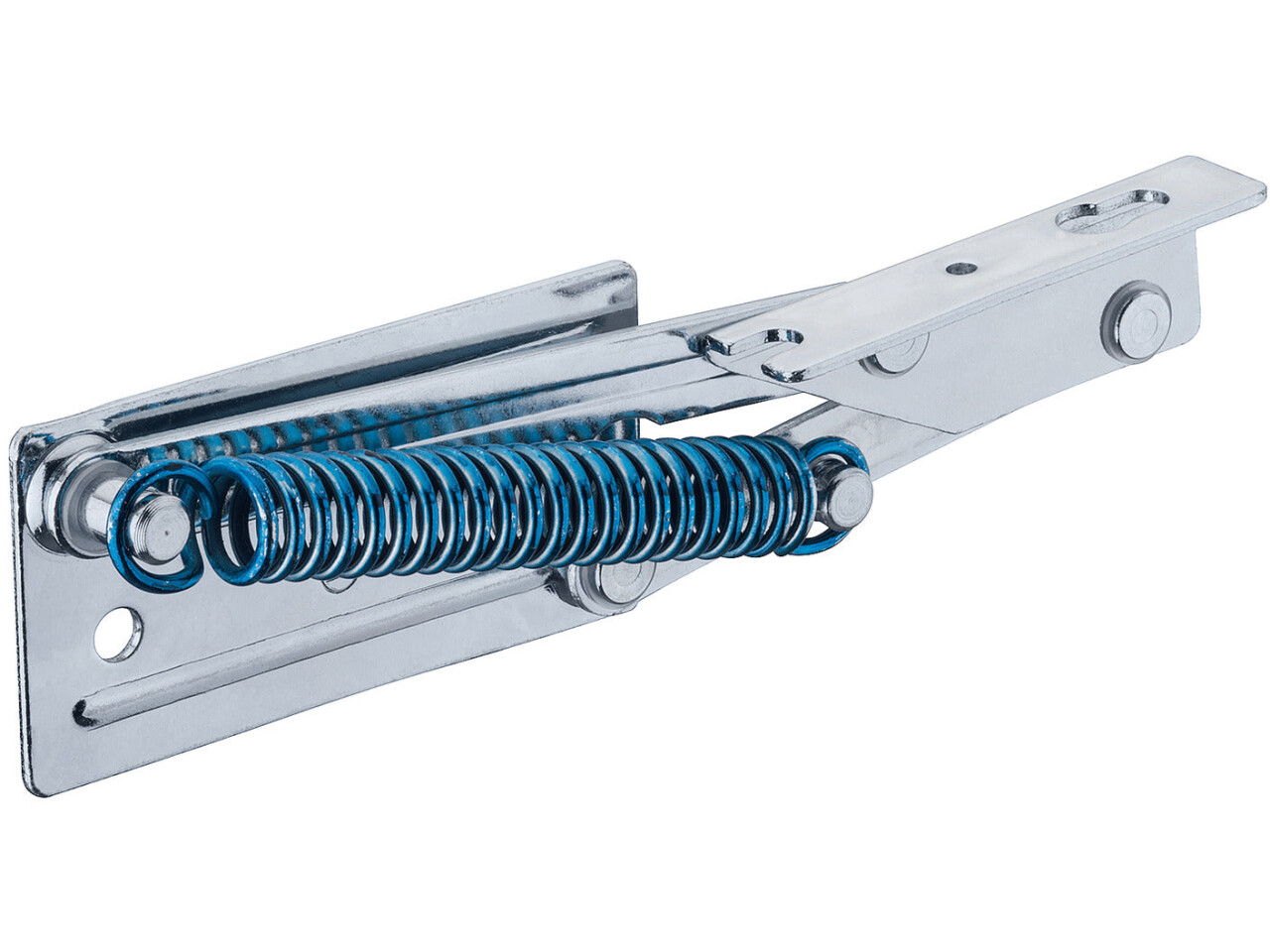

Bench Seat Hinge Spr 12kg Blue Zinc Galv
Part Number: 643.01.525
Opening angle 95º, Suitable for panel weight up to 12 kg, blue zinc galvanized spring
Price:
£14.71
Per Item
The spring counter balances the weight of the seat top to assist openingSpring on both sides No separate hinge... Read More
Product Information
Product Details

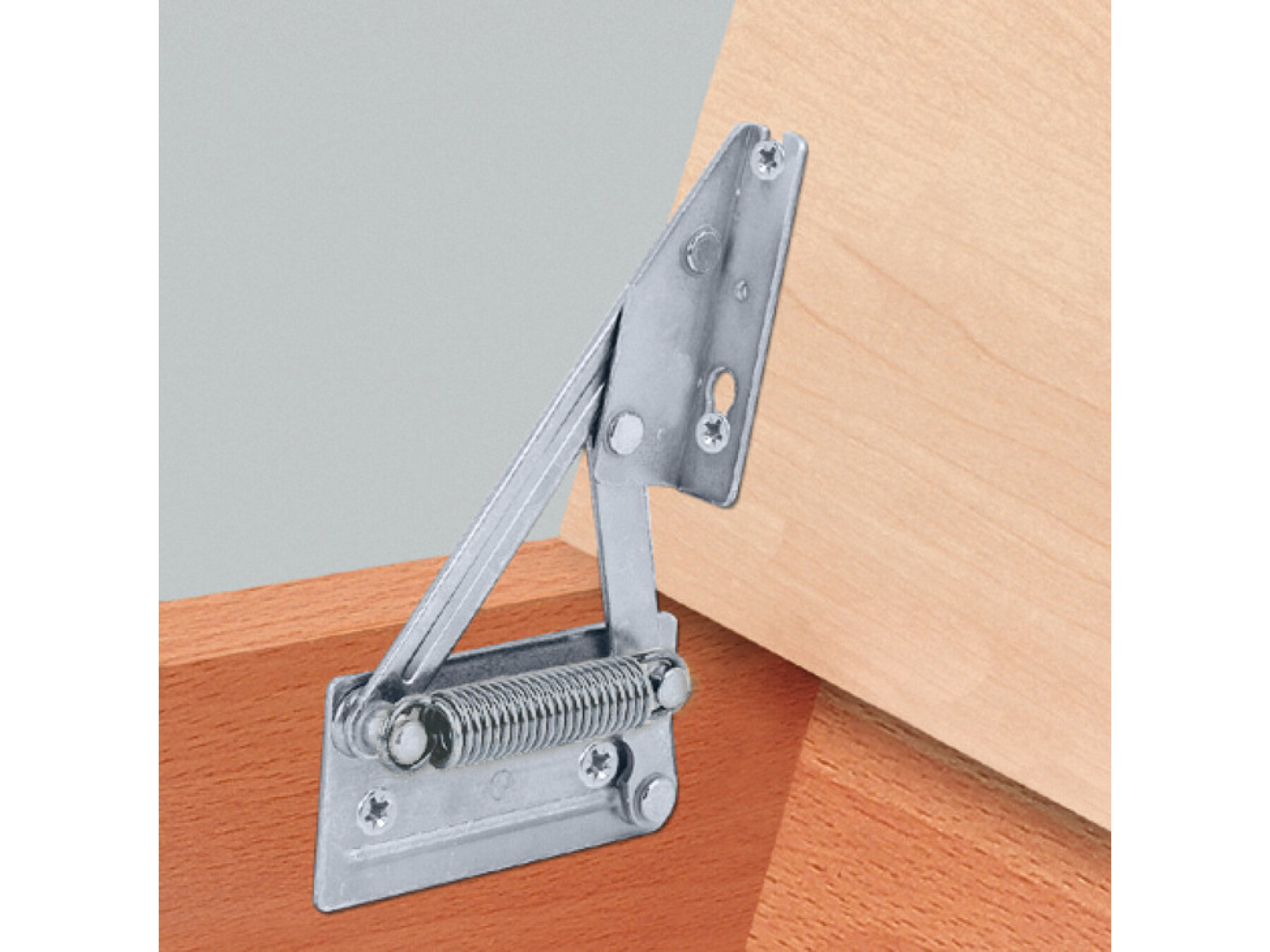

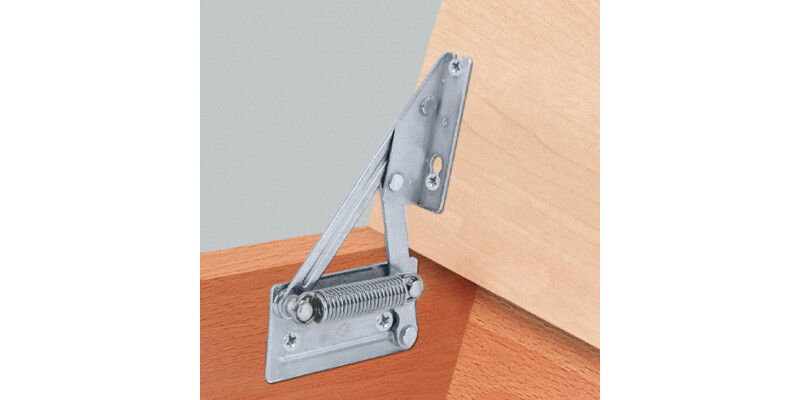

The spring counter balances the weight of the seat top to assist opening
Spring on both sides
No separate hinge connection required
1 piece = 1 pair

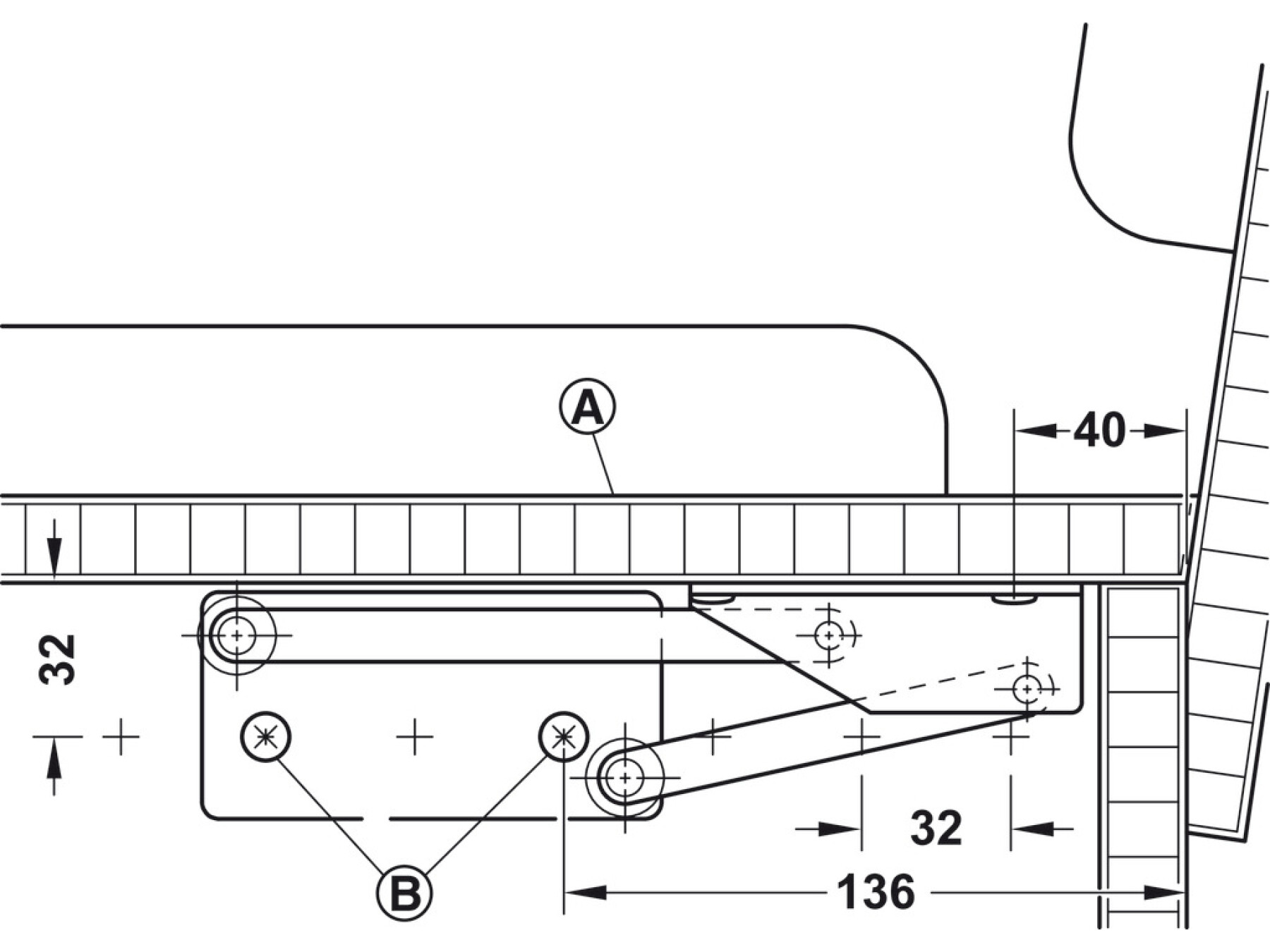

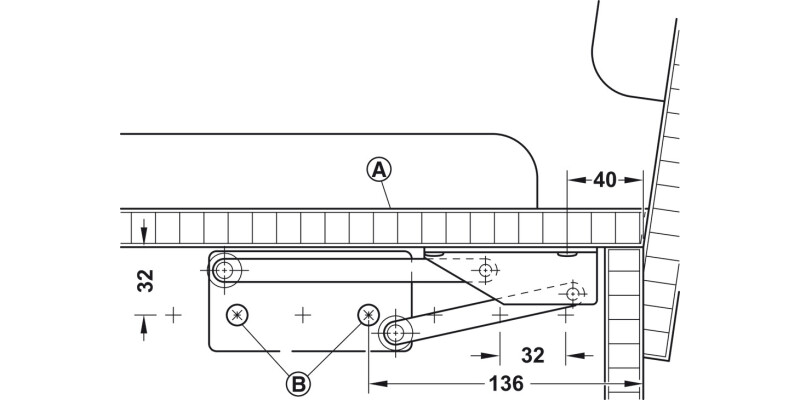

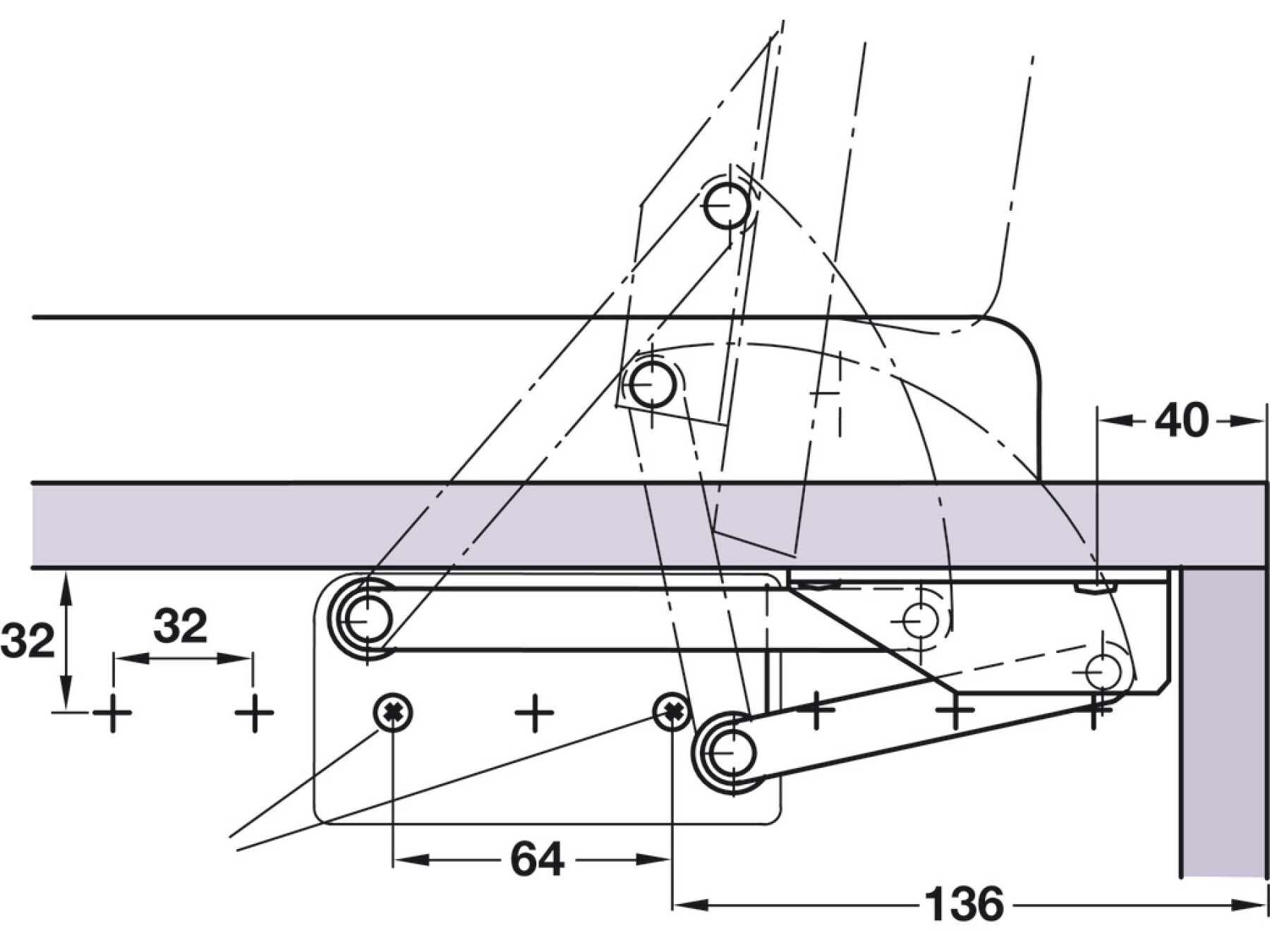

Large pivoting distance to the front (110 mm) allows seat panels to be raised, even with thick upholstery.
A gap between the seat panel and the backrest is not required.
The springs for a panel weight of 8 kg or 12 kg provide an optimum counterbalancing mechanism and make opening easy.
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Version
With spring
Opening angle
95.00 °
Area of application
For seat tops weighing 8 kg or 12 kg max
Material
Steel
Order reference
Fixings not included, order Varianta Ø 5 cylindrical head screws separately
