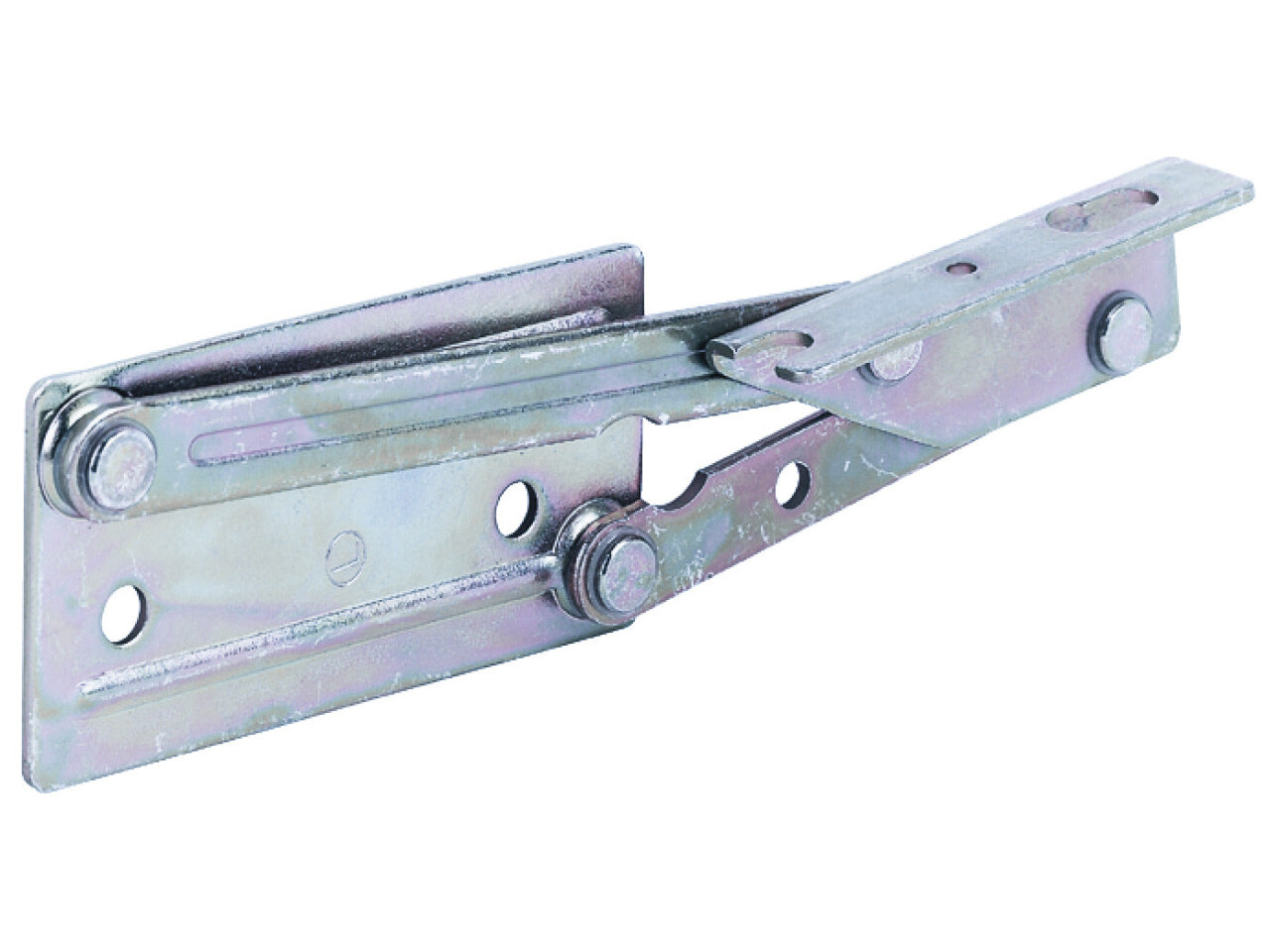

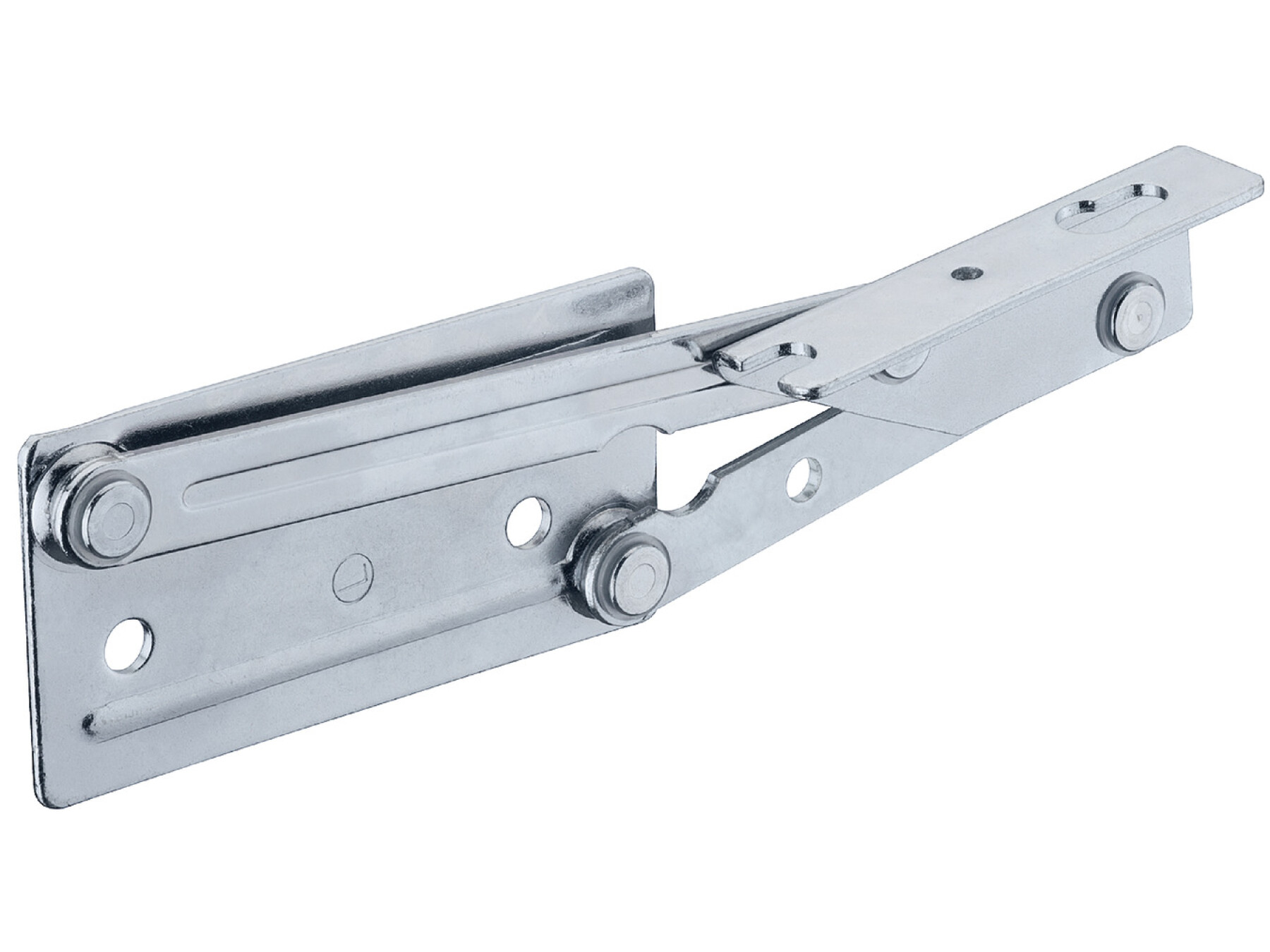

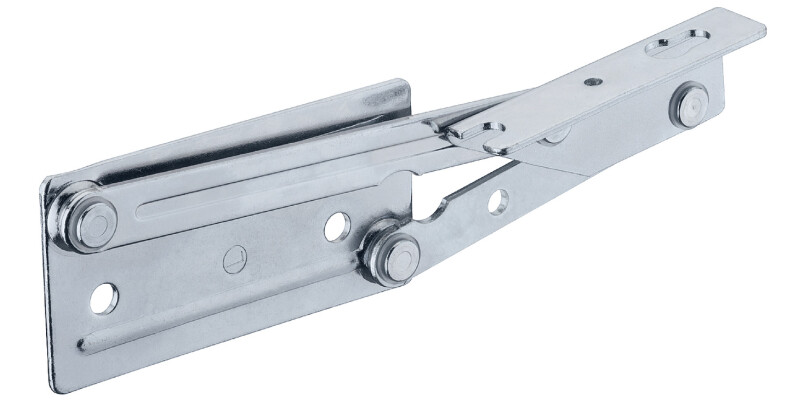

Bench Seat Hinge St Blue Zinc Galv
Part Number: 643.01.500
For lightweight seat panels, Blue galvanized steel
Price:
£8.45
Per Item
no separate hinge connection requiredlarge swivel range to the front (110 mm) for raising seat panels even with... Read More
Product Information
Product Details
no separate hinge connection required

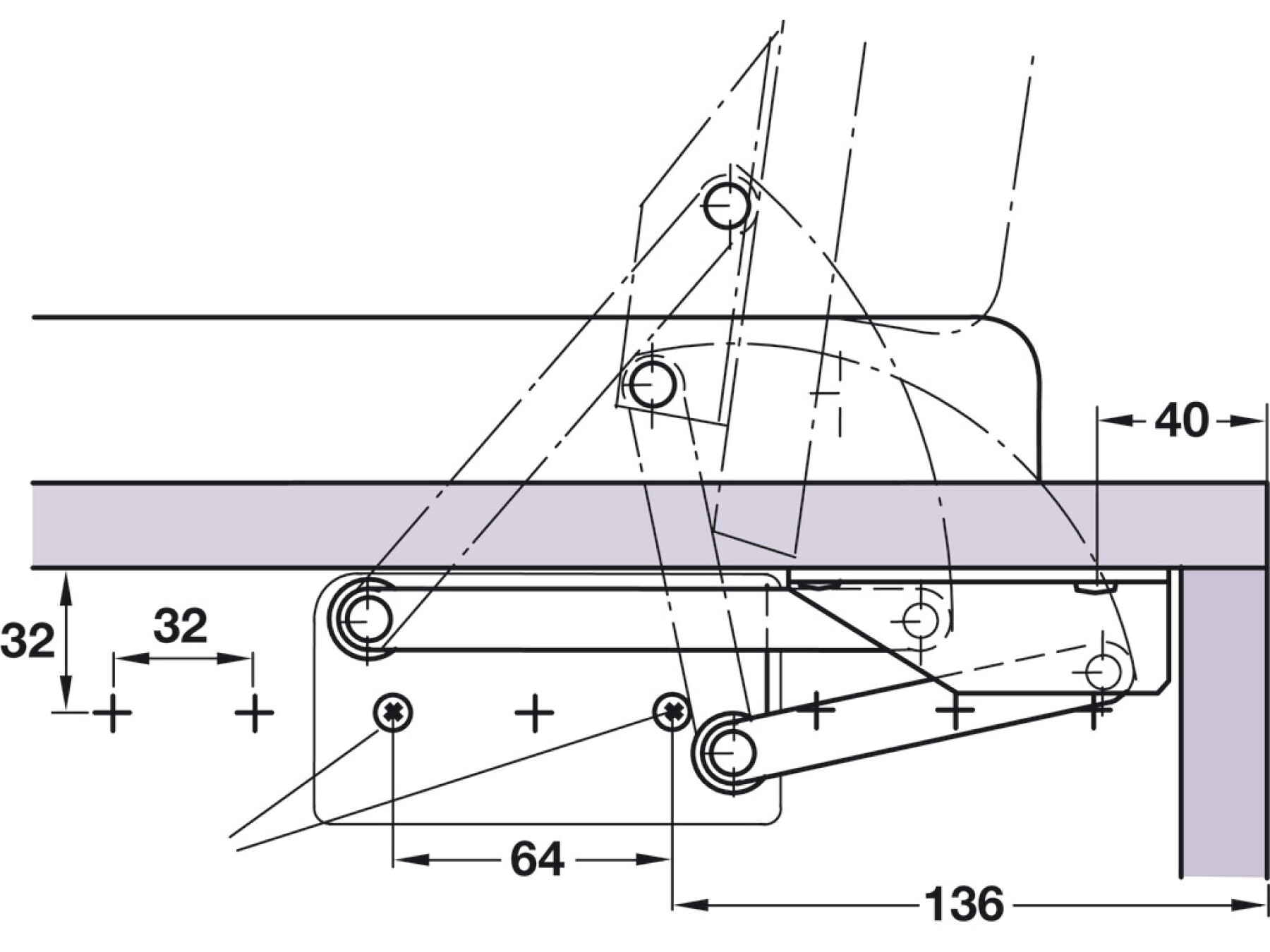

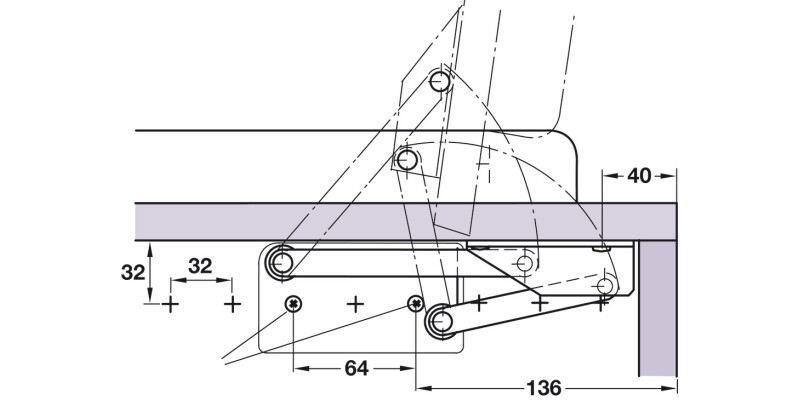

large swivel range to the front (110 mm) for raising seat panels even with thick upholstery
Gap between seat panel and backrest can be omitted
No separate hinge connection required
Large swivel travel towards the front (110 mm) allows the seat panels to be raised even with heavy upholstery.
A gap between the seat panel and the backrest is not required.

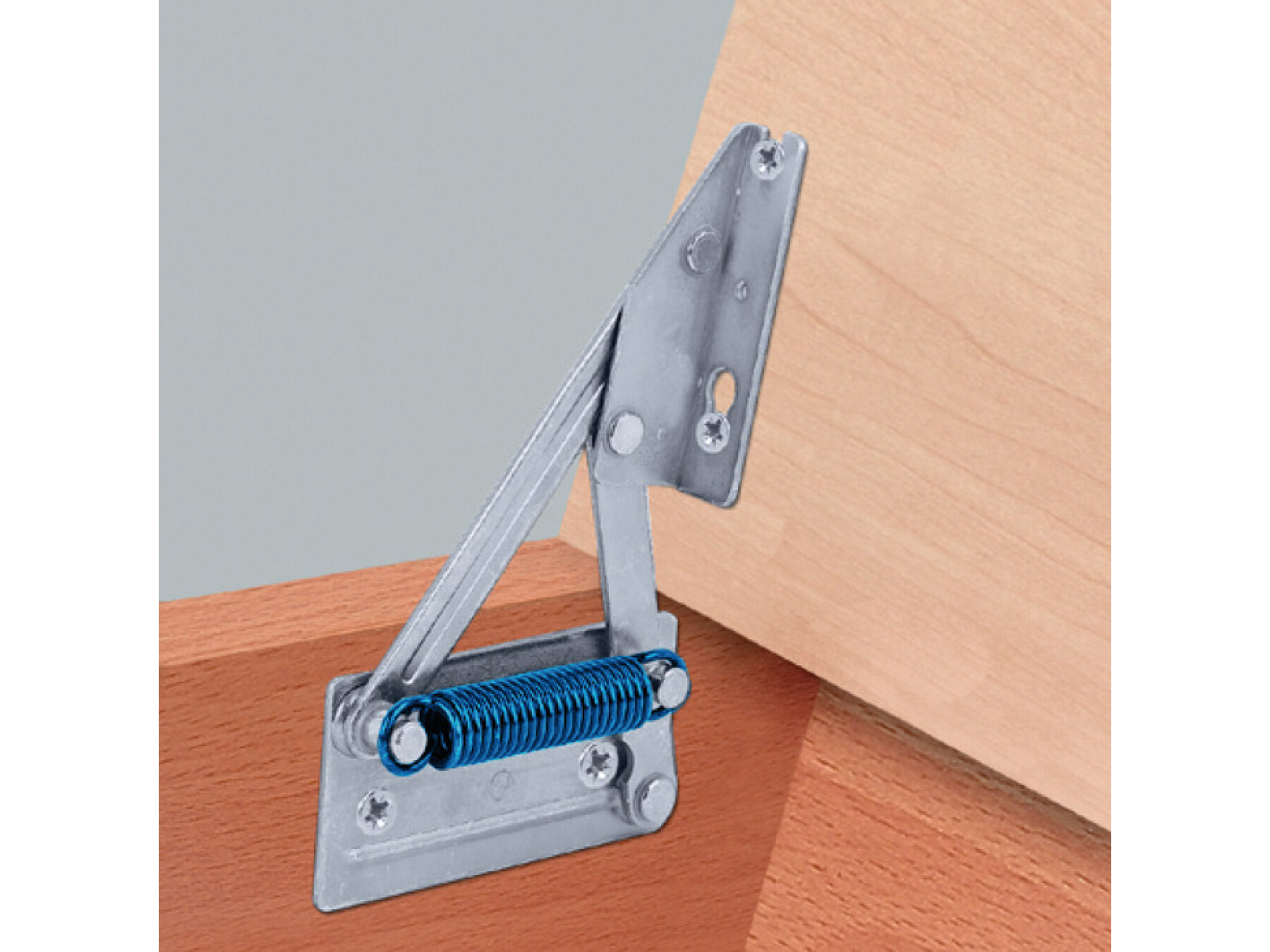

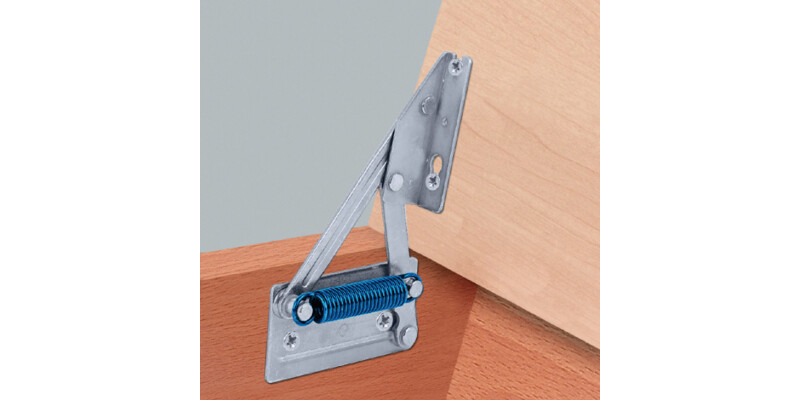

The springs for a panel weight of 8 kg or 12 kg provide an optimum counterbalancing mechanism and make opening easy.
Specifications
Version
Without spring
Opening angle
95.00 °
Area of application
Joint designed for safe lift-up of seat panel
Material
Steel
Order reference
Order Varianta Ø 5 mm cylindrical head screws separately
