Part No: 670.04.012
D100mm Castor Swivel w Brake PL St St
£31.80
(excl. VAT)

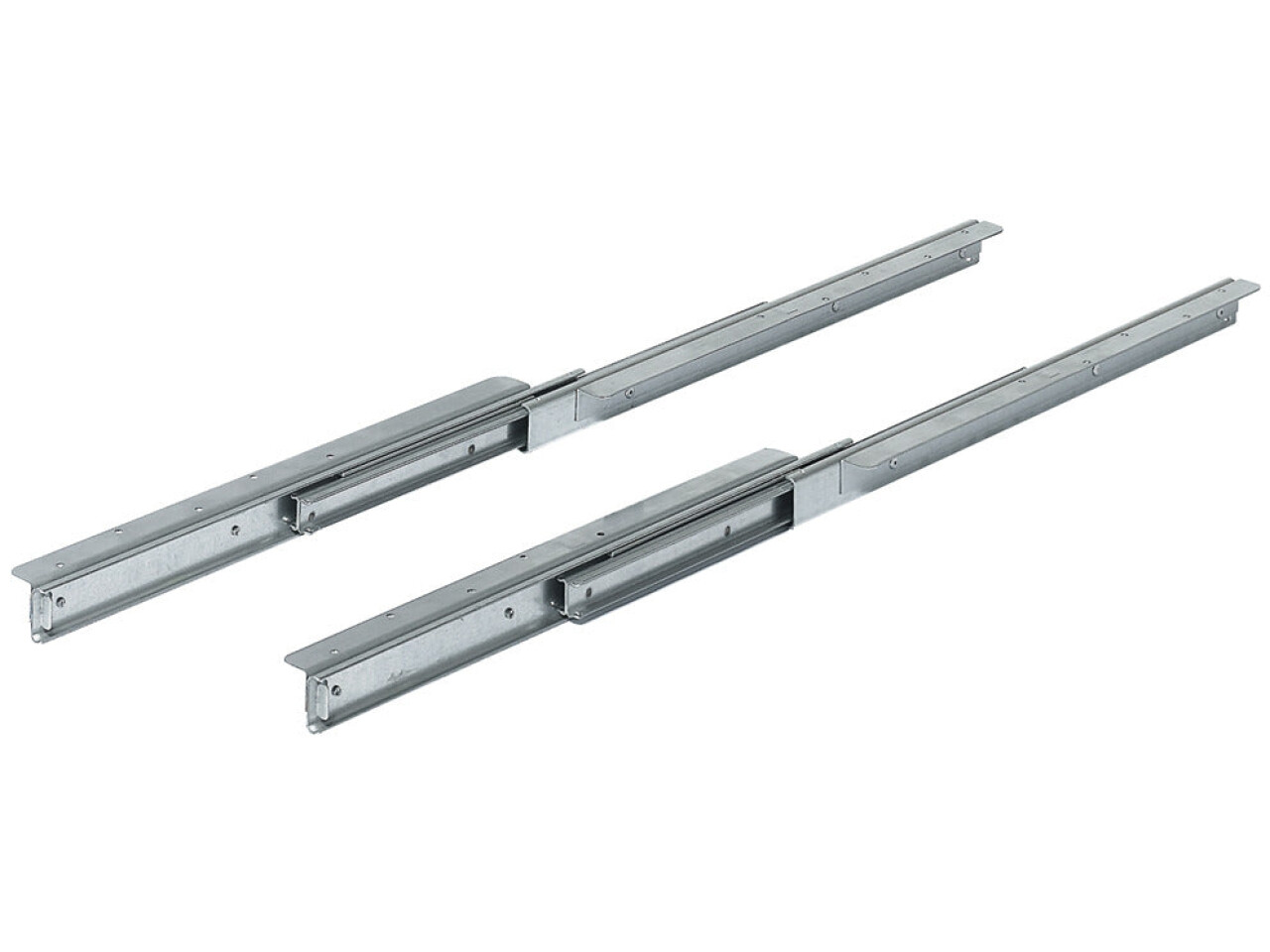

Extend Table Runners 90kg 520mm St Galv
Part Number: 642.69.205

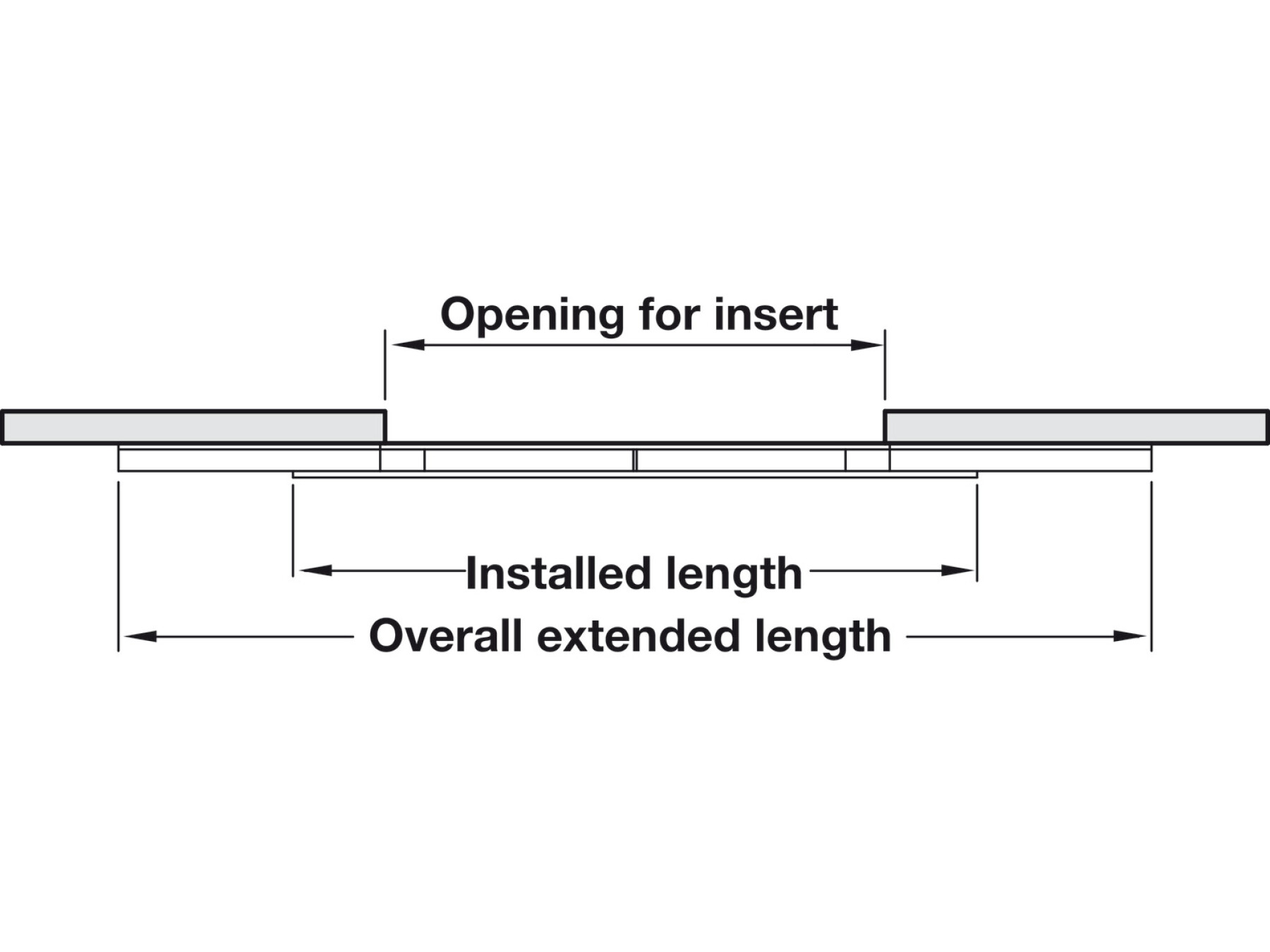

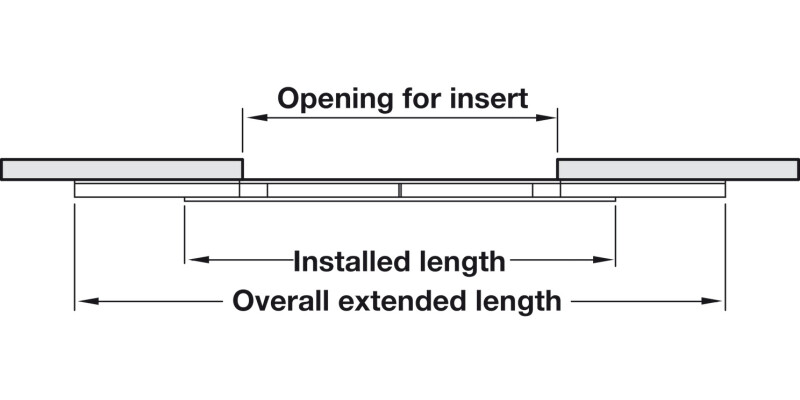

For one extension leaf, Installation length 250 mm, overall extended length 1160 mm, opening for extension leaf 640 mm
Price:
£88.38
Per Item
For 2 people more at the table Installation note Note on choice of pull out table fittingInstallation length of... Read More
Product Information
Product Details
For 2 people more at the table
Installation note
Note on choice of pull out table fitting

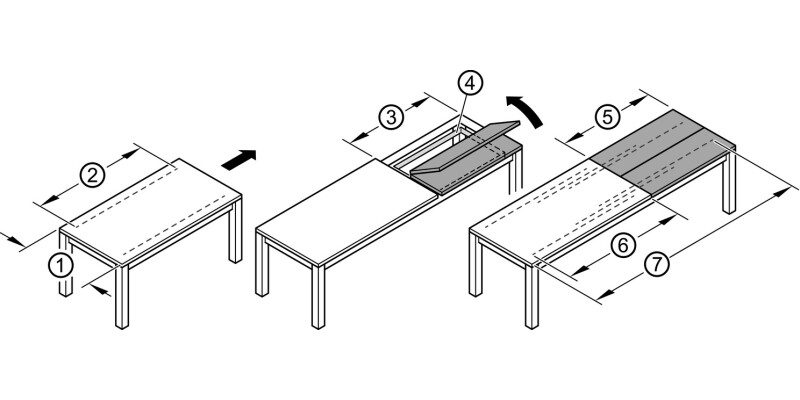

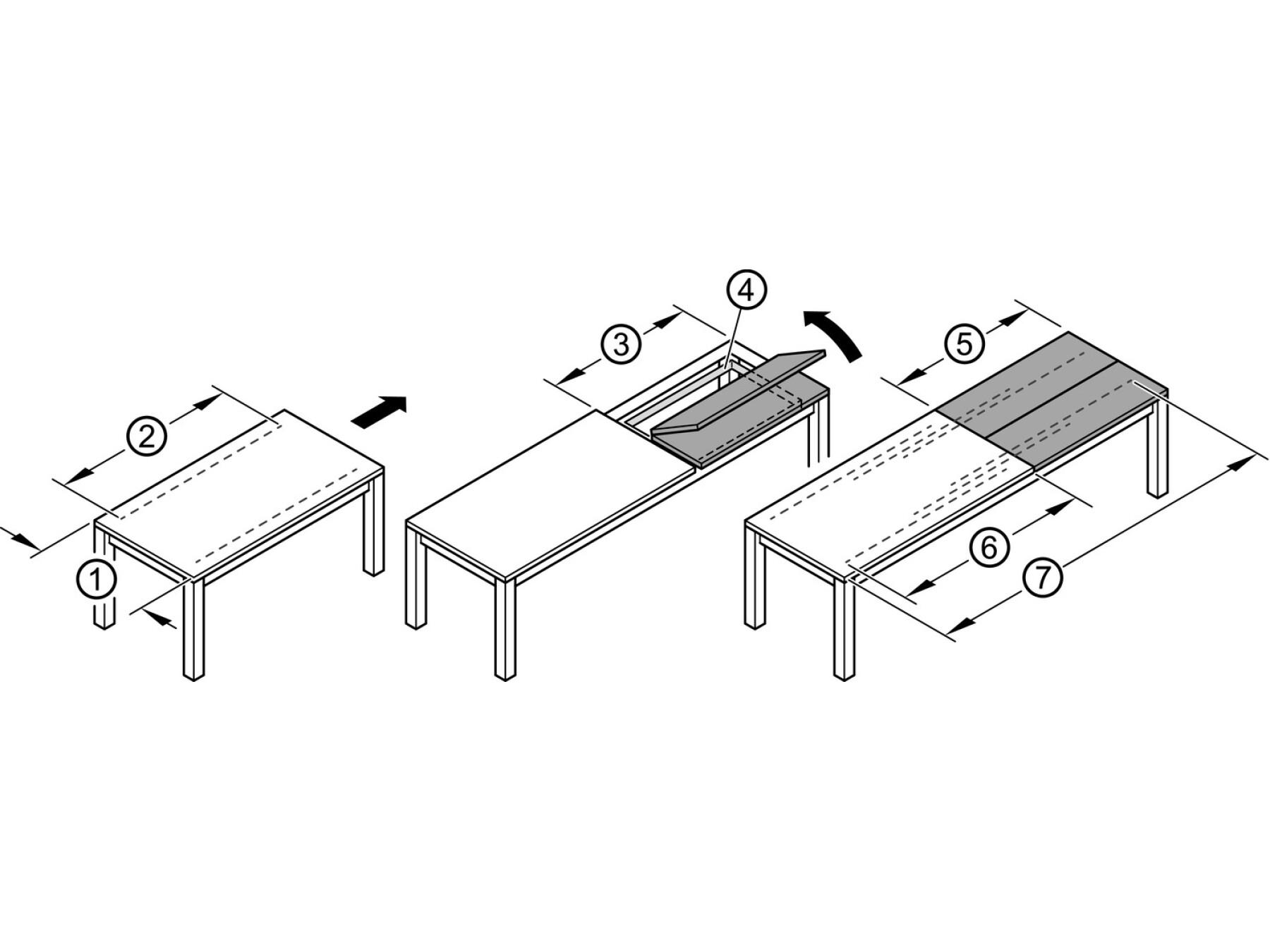

Installation length of pull out table fitting = approx. length of frame/base or approx. 2/3 of table diameter or table length without extension leaves
Choice of pull out table fitting:
Installation length of pull out table fitting = approx. length of frame/base or approx. 2/3 of table Ø or table length without extension leaves
Specifications
Product category
Table Runners
Load bearing capacity
90.00 kg
Installation length
520.00 mm
Colour/finish
Galvanized
Area of application
For tables without frames
For one extension leaf
Version
Opening for extension leaf: 640 mm
Material
Steel
Table movement
For 1 extension leaf
Order reference
Order Hospa Ø 4.5 pan head screws separately
