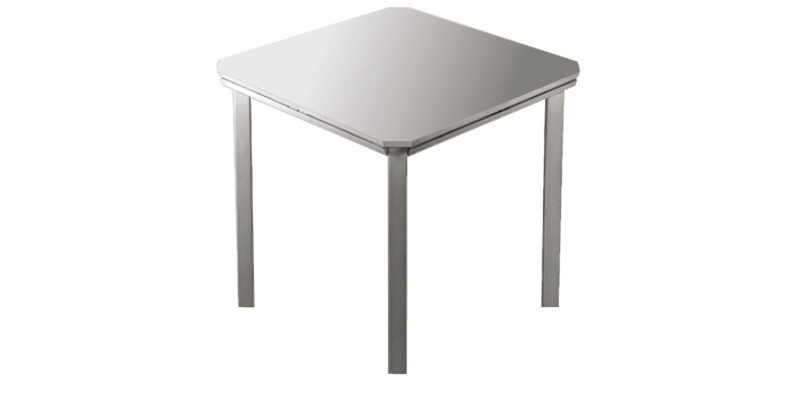

TKB Drop Leaf Table Fitting 20kg
Part Number: 642.40.008
Silver anodised aluminium
Price:
£55.26
Per Item
Example measurements:Drop leaf depth approx. 250 mmOne fitting has to be installed at intervals of 600 mm... Read More
Product Information
Product Details

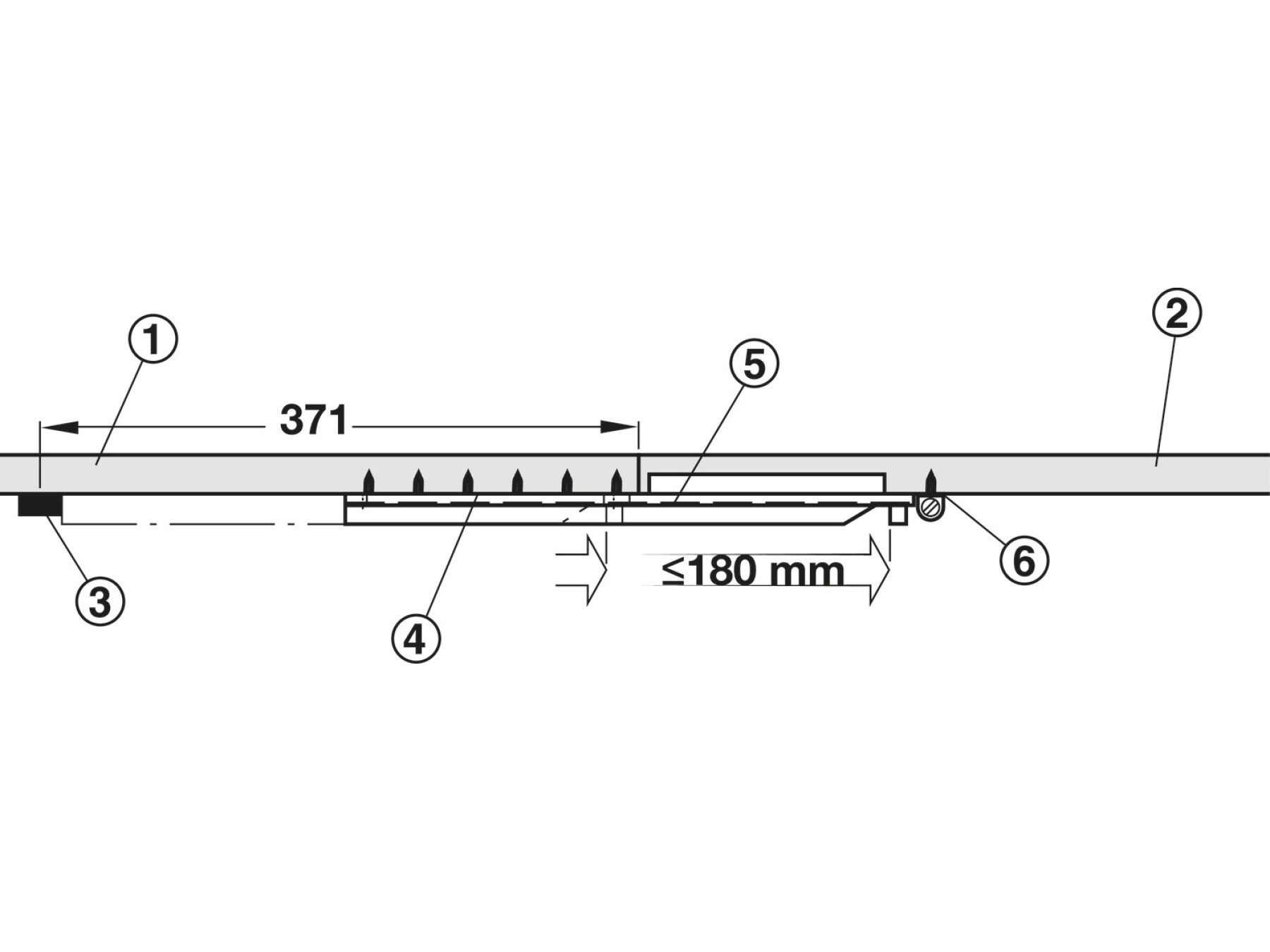

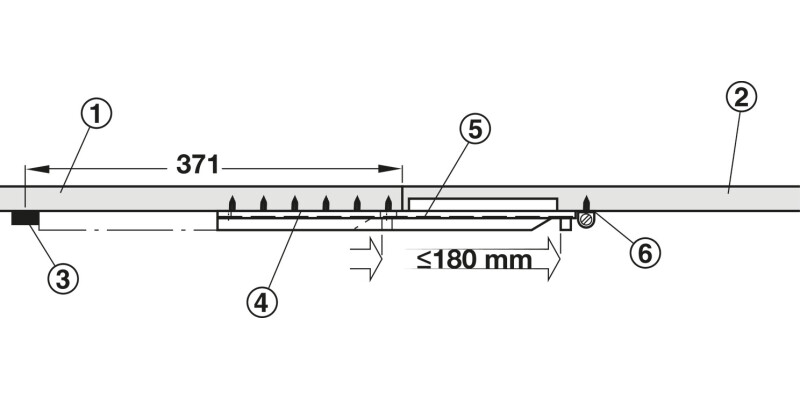

Example measurements:

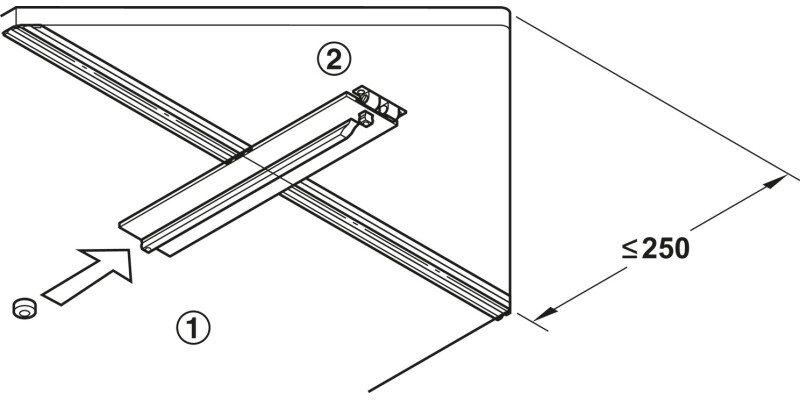

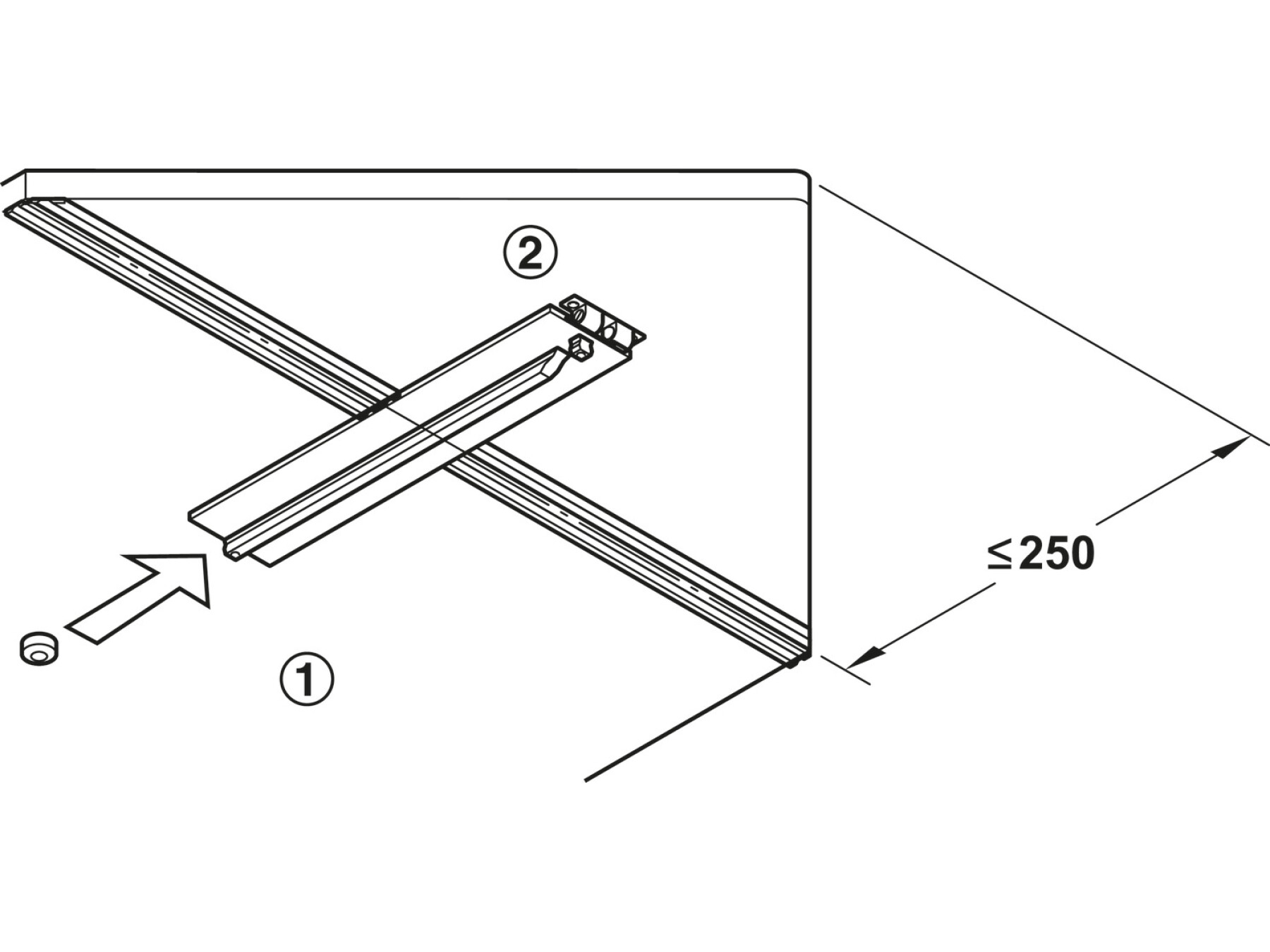

Drop leaf depth approx. 250 mm
One fitting has to be installed at intervals of 600 mm width
Maximum load carrying capacity 20 kg

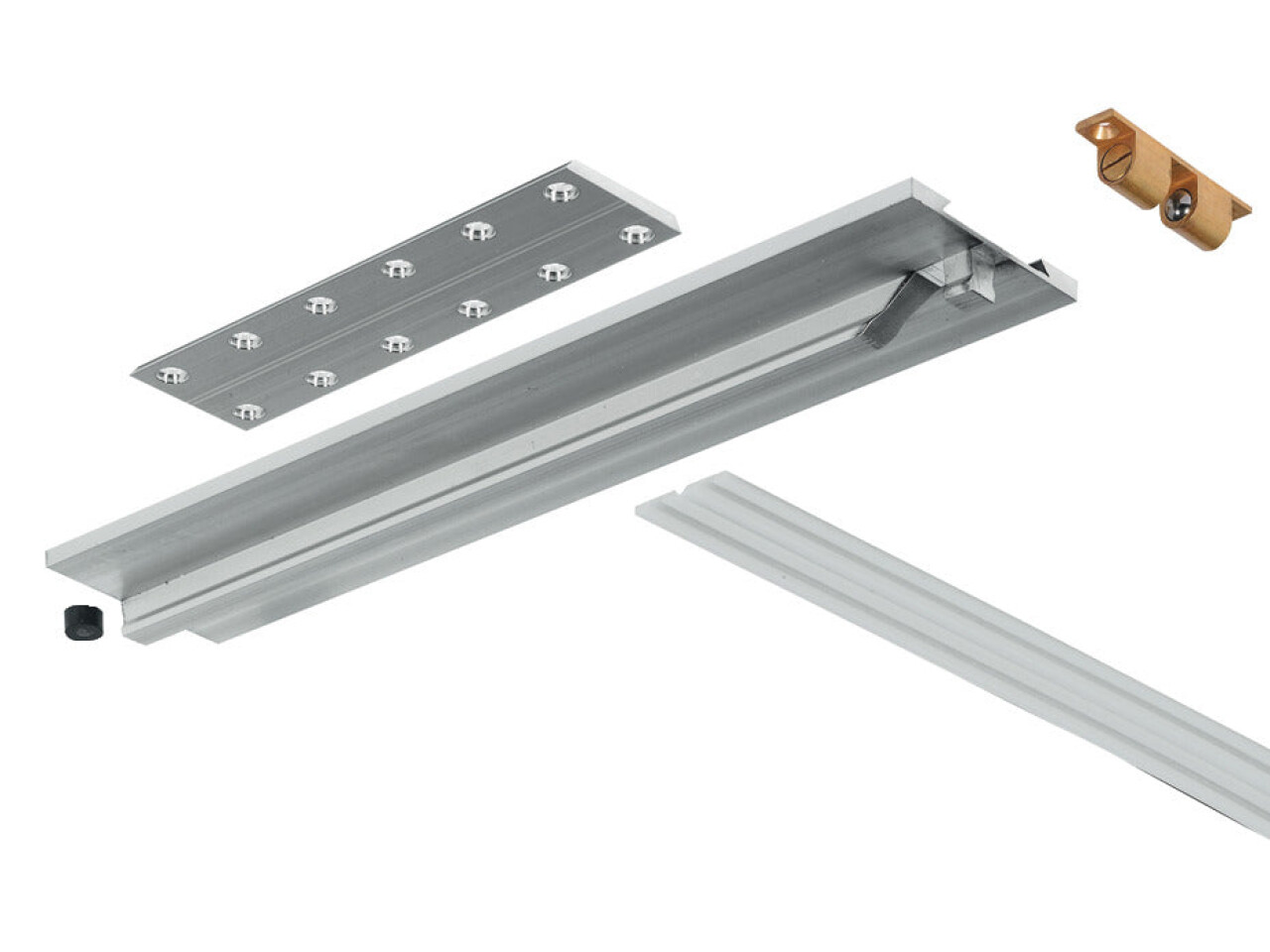

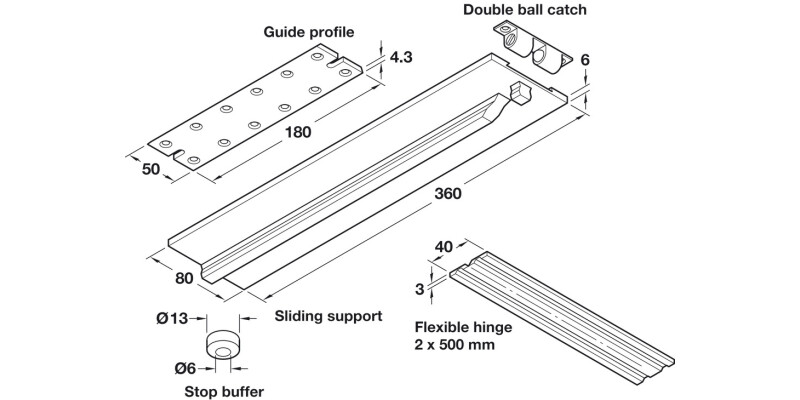

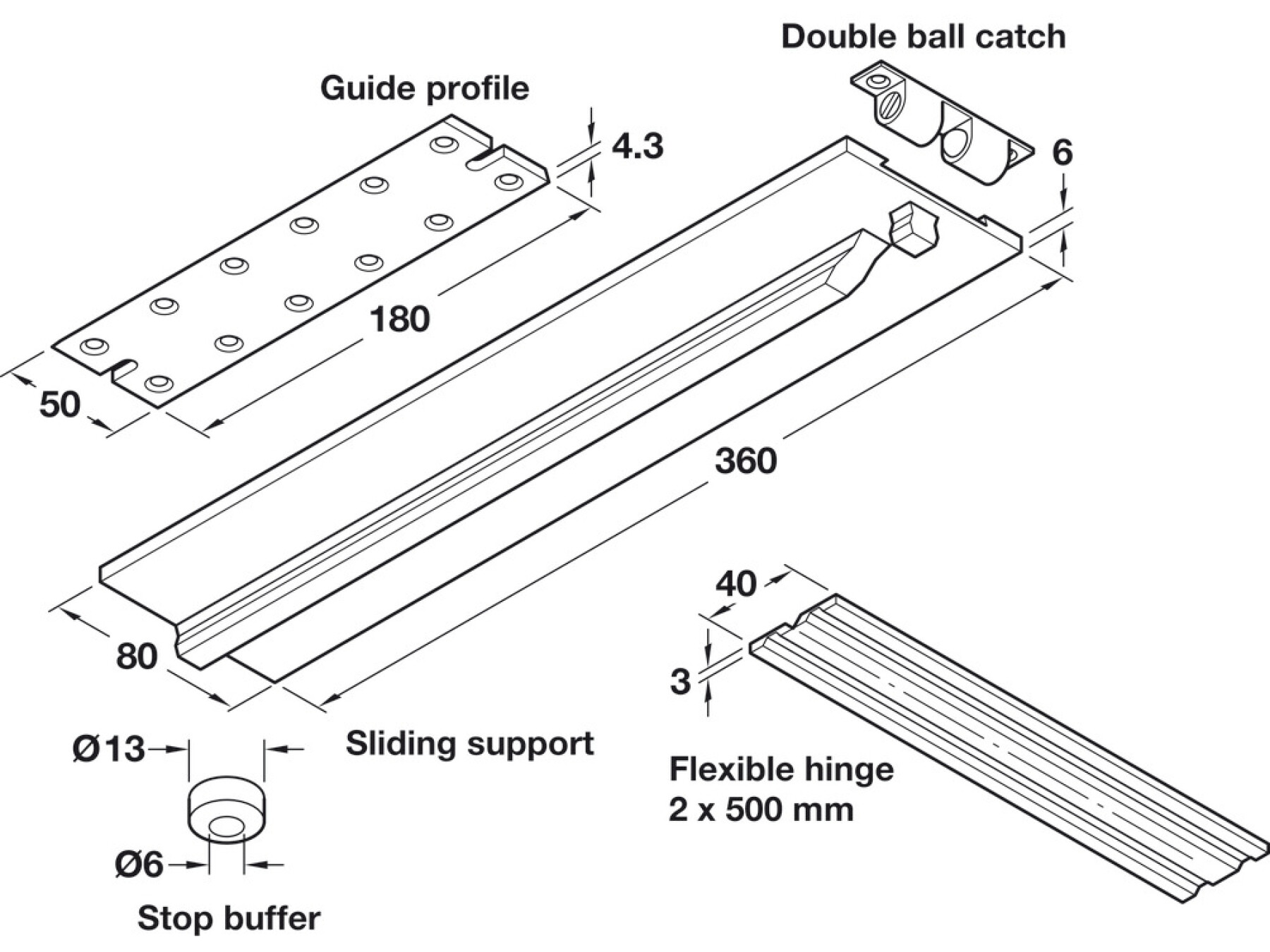

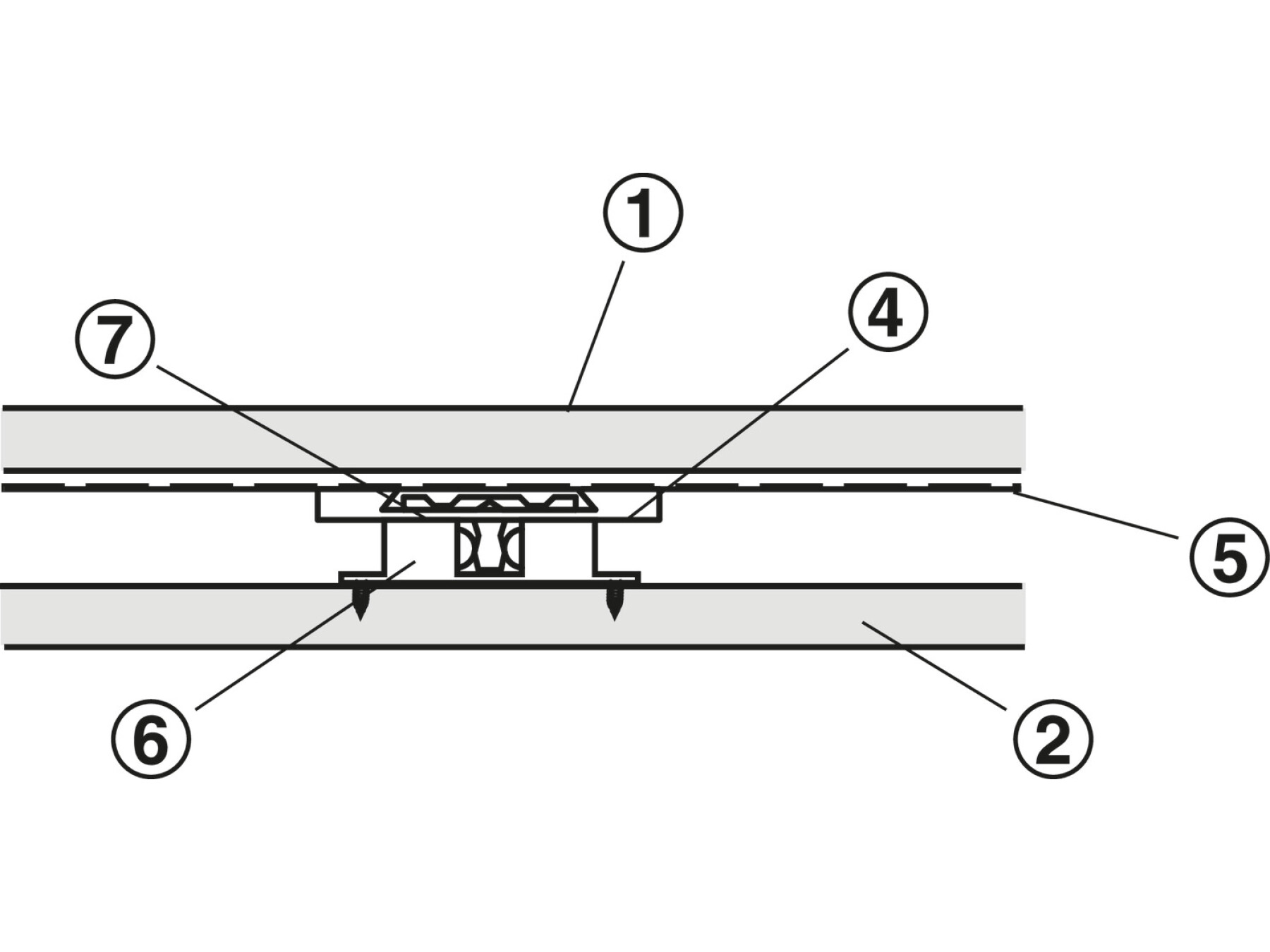

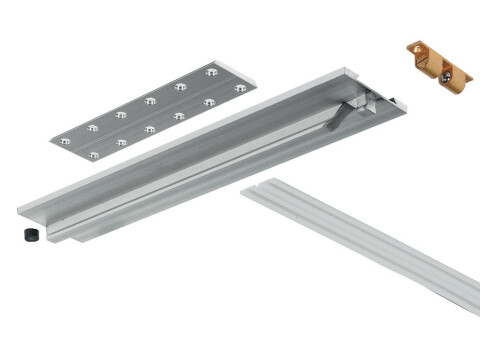

Supplied with
1x TKB drop leaf table fitting

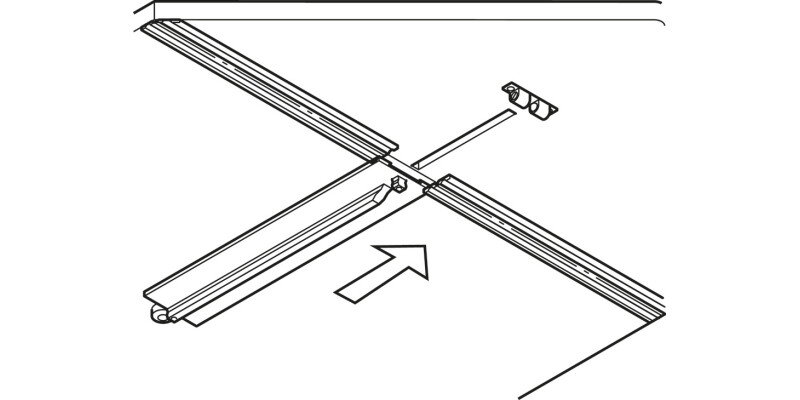

1x Sliding support, 360 mm long, silver anodised aluminium

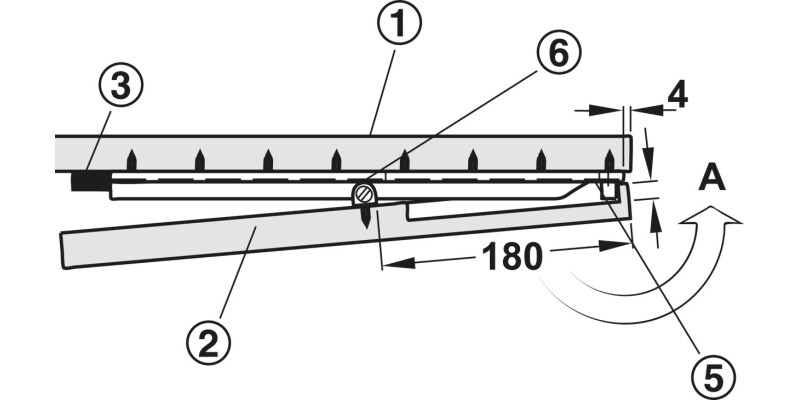

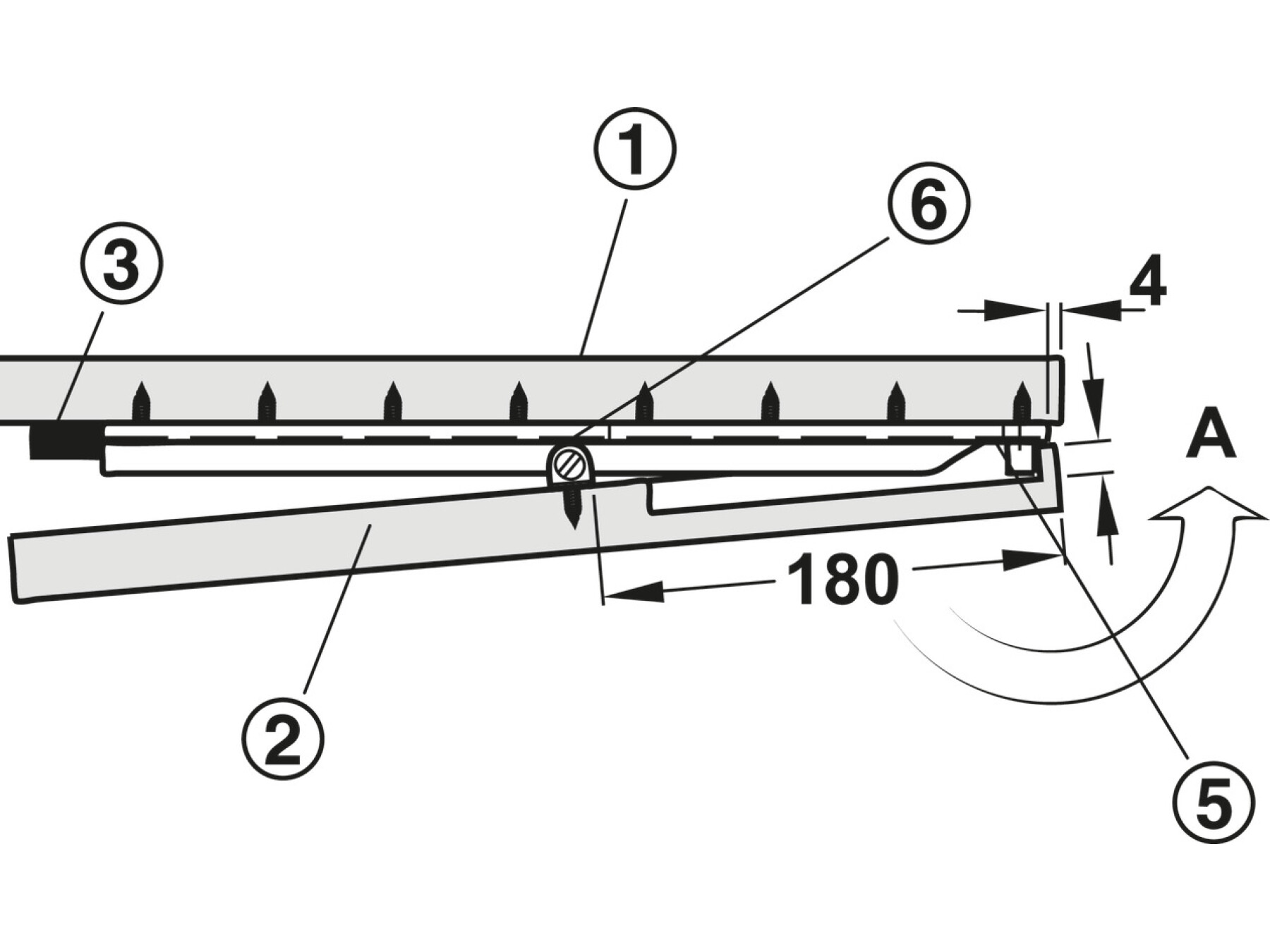

1x Guide profile, 180 mm long, silver anodised aluminium
2x Flexible hinges, each 500 mm long, clear plastic
1x Double ball catch, bright brass
1x Stop buffer, rubber
Reference values
Depth approx. 250 mm
Use one fitting for each approx. 600 mm of width
Load approx. 20 kg
Specifications
Area of application

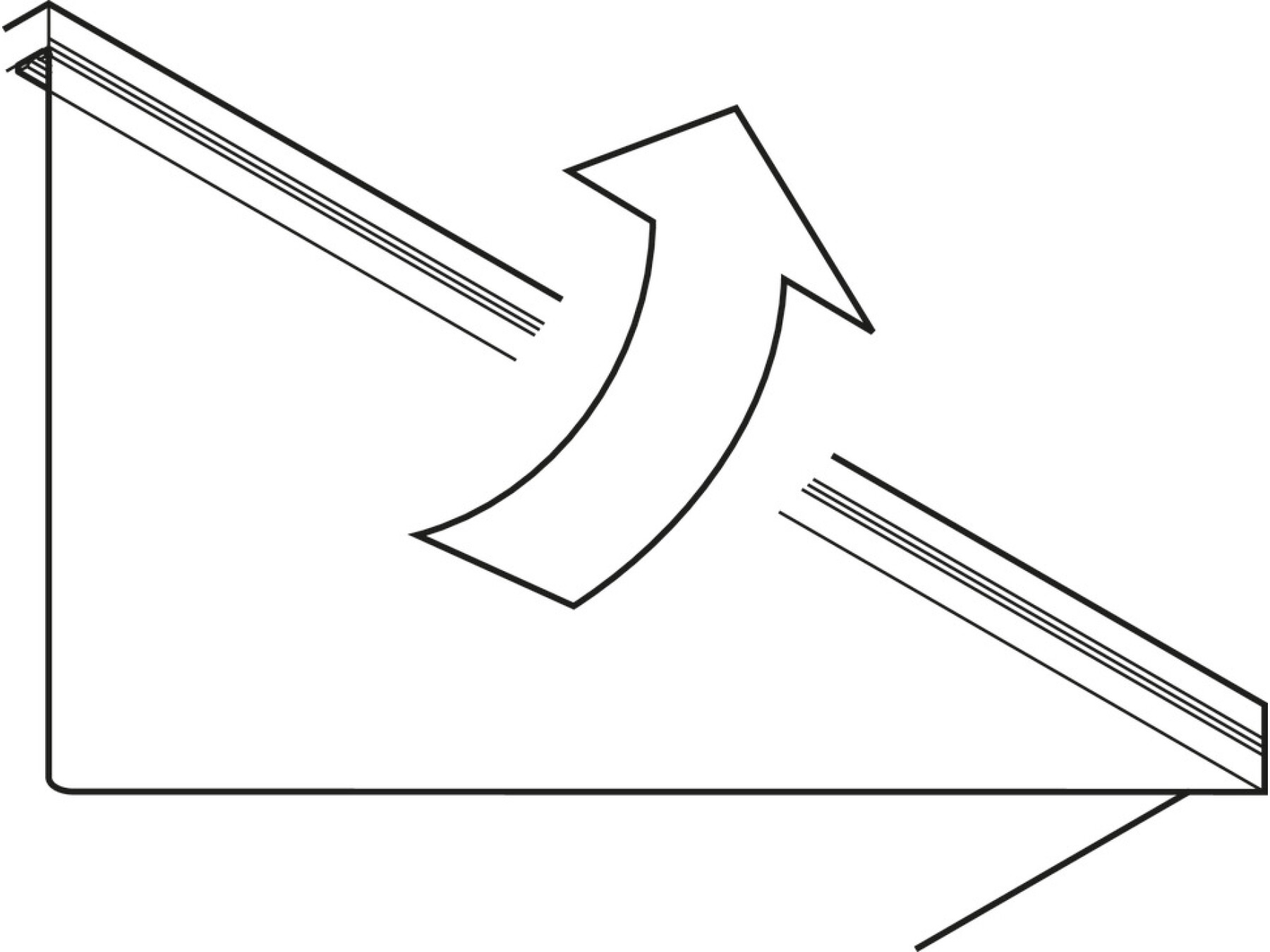

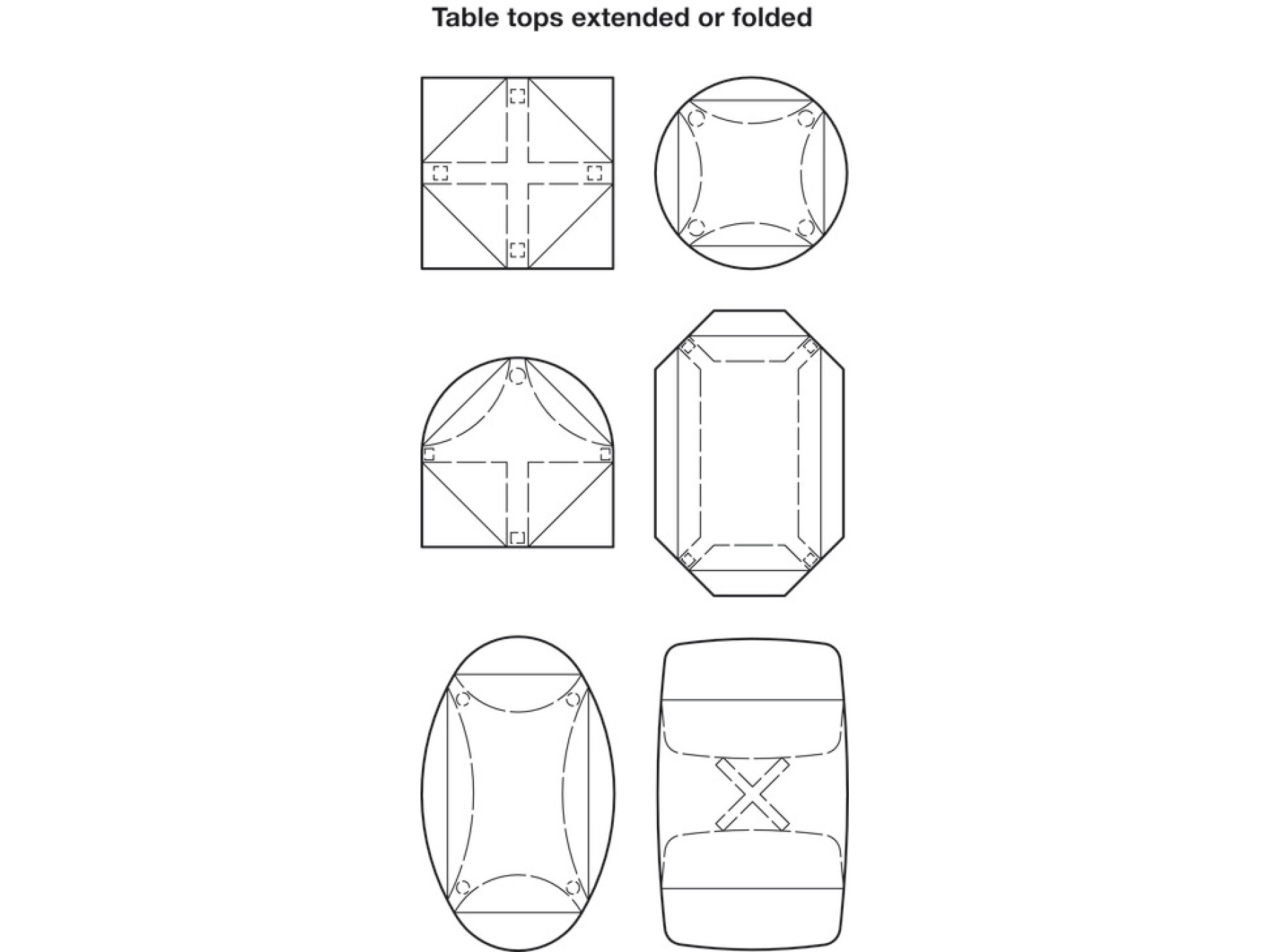

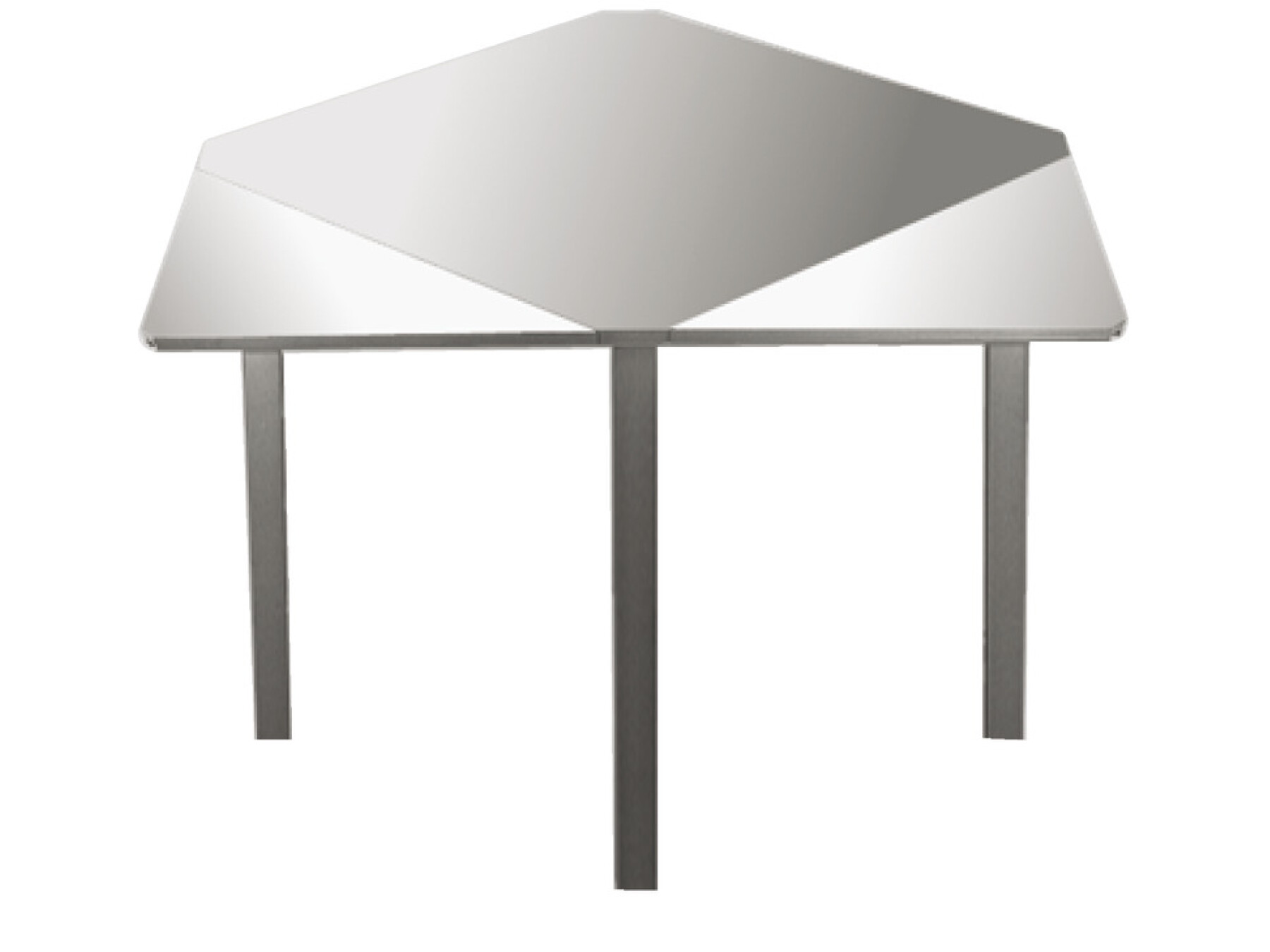

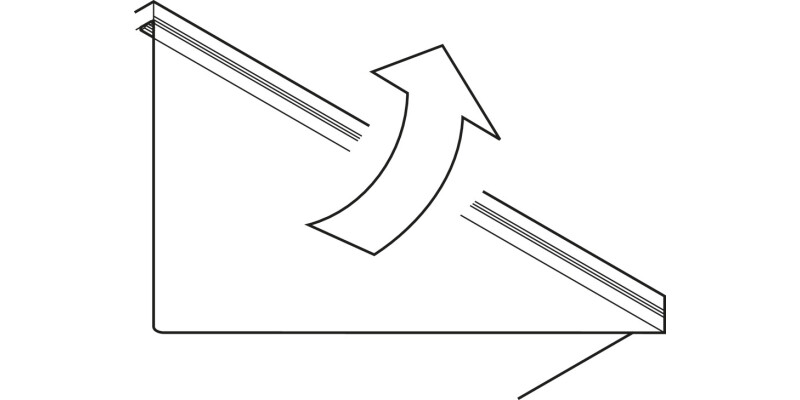

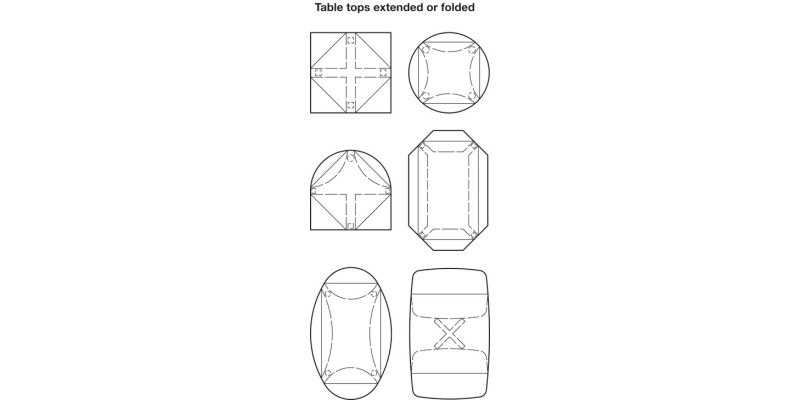

For extending the table top by folding out
Material
Aluminium
Load bearing capacity
15.00 kg
Load bearing capacity information
Approx.
Order reference
Order Hospa Ø 4.5 pan head screws separately
