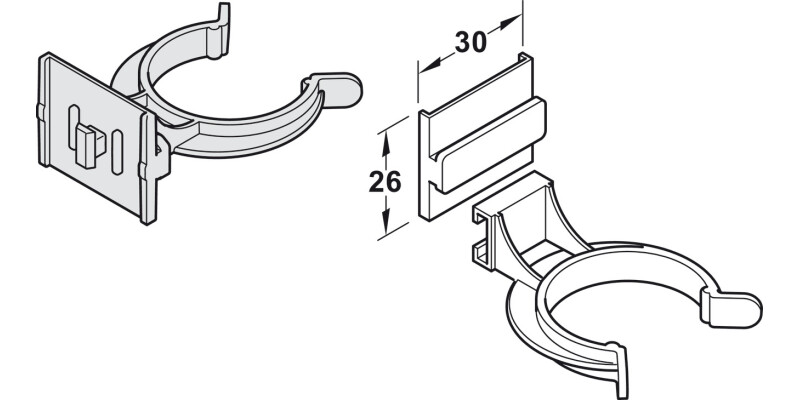

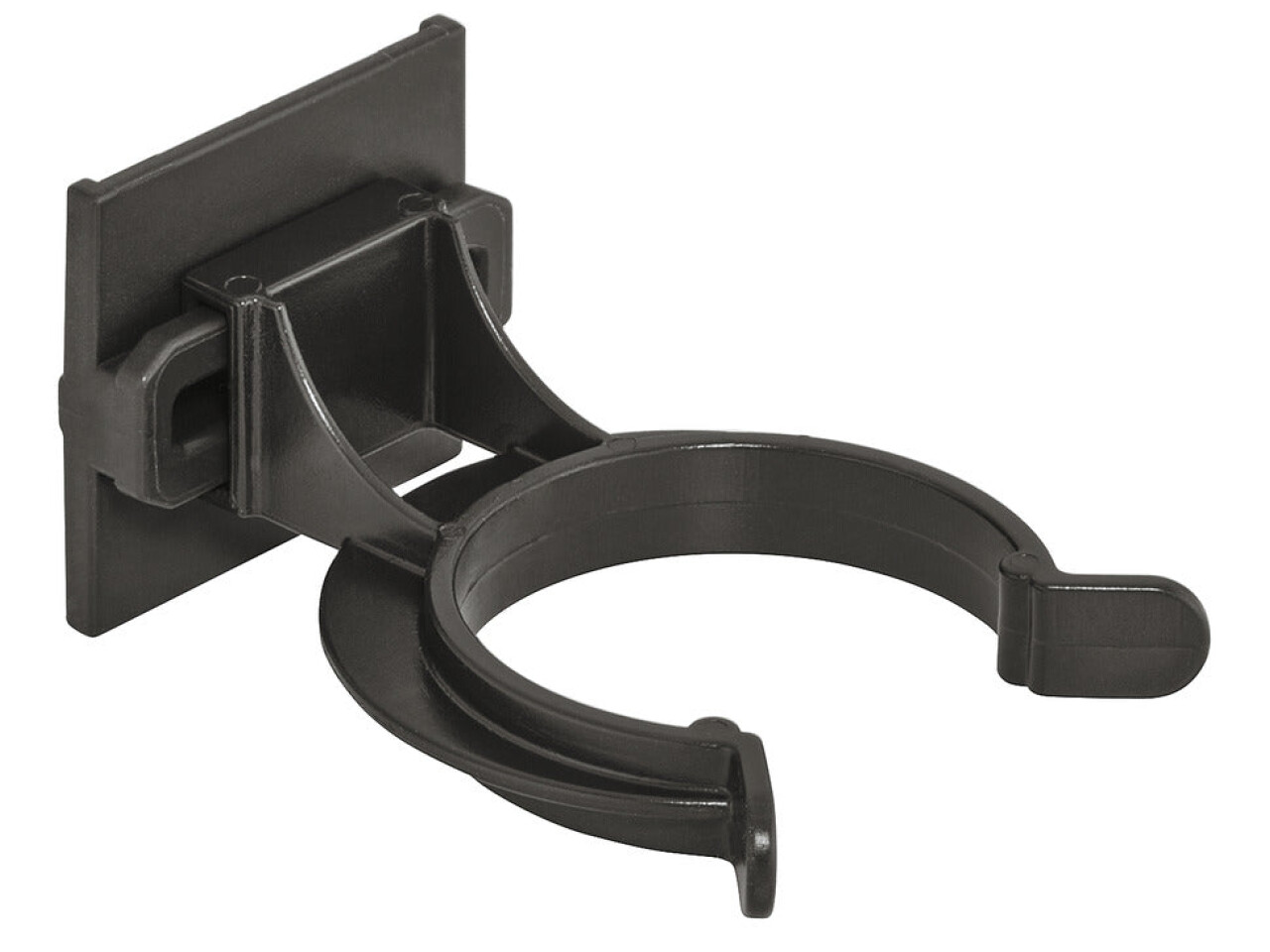

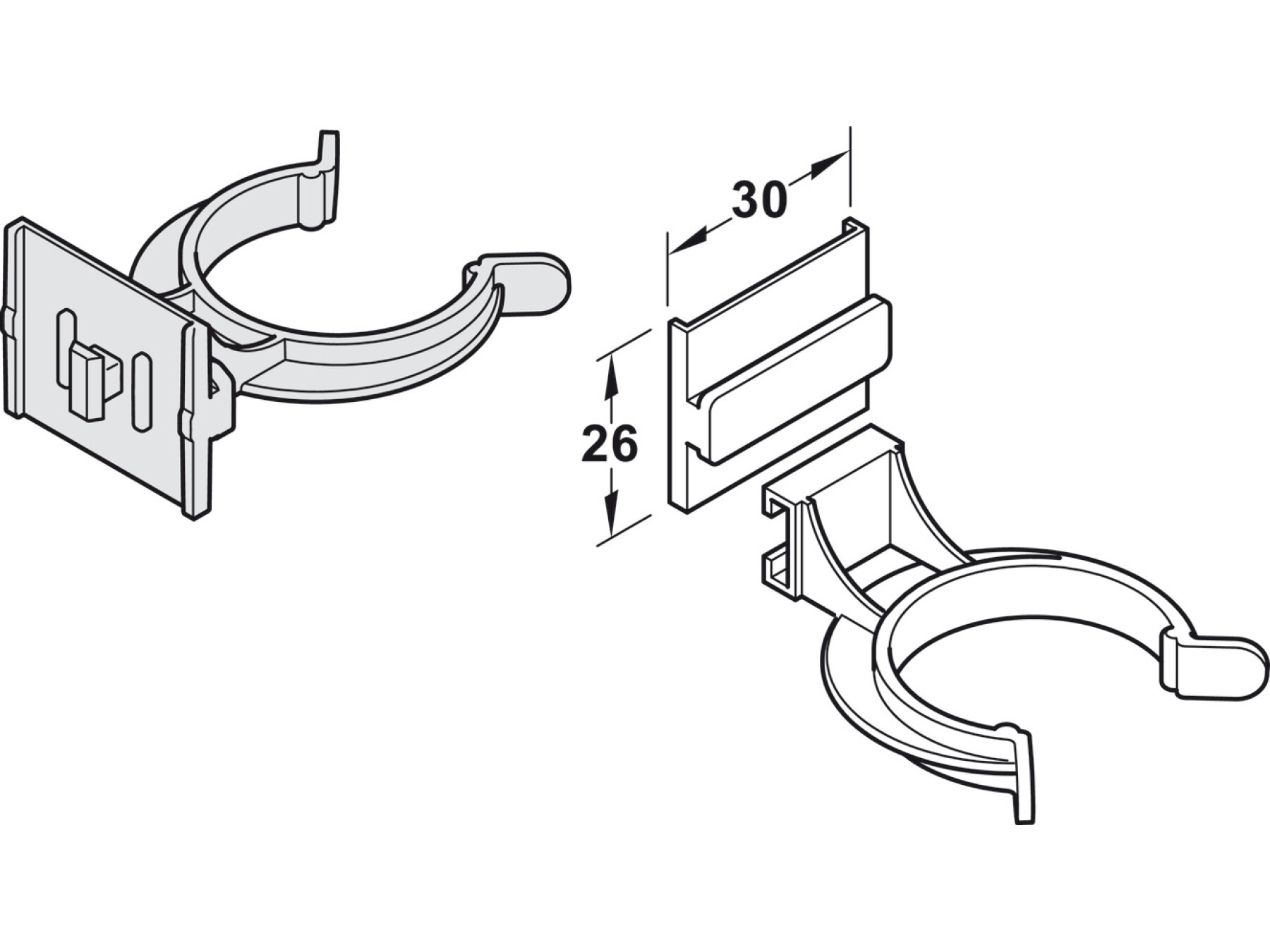

AXILO 78 Plinth Clip SlideOn Fit Plastic
Part Number: 637.38.354
With panel holder, Slide on
Price:
£30.50
Per 100 Pack
The Häfele Axilo 78™ system is easy, convenient and efficient. Compromising 6 unique components -... Read More
Product Information
Product Details
The Häfele Axilo 78™ system is easy, convenient and efficient. Compromising 6 unique components - the top section, the shaft and foot section, the plinth panel clip, the plinth panel holder, the adjusting tool and finally the extension tool. The system is a specially designed plinth fitting and adjustment tool to enable perfect alignment of cabinetry. Not only saving you time but most importantly allowing you to work without awkward postures; no more bending, crawling or stretching required to get to the back of the cabinets. Using the 6 components, the arm which serves as an extension tool can be used from any angle to slot into the bottom of the specially designed foot section so it can be adjusted higher or lower as required. Please watch the video linked to the left for a demonstration.
Order reference
Please note: for the Axilo™ system you will need to order top section, foot and shaft section, plinth clip and the adjusting tool separately
Please order Ø 3.5 mm Hospa countersunk screws separately
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
For use from installation height 80 mm
For slide on fitting version we advise a trial installatin as may not suit all types of plinth panels
Specifications
Area of application

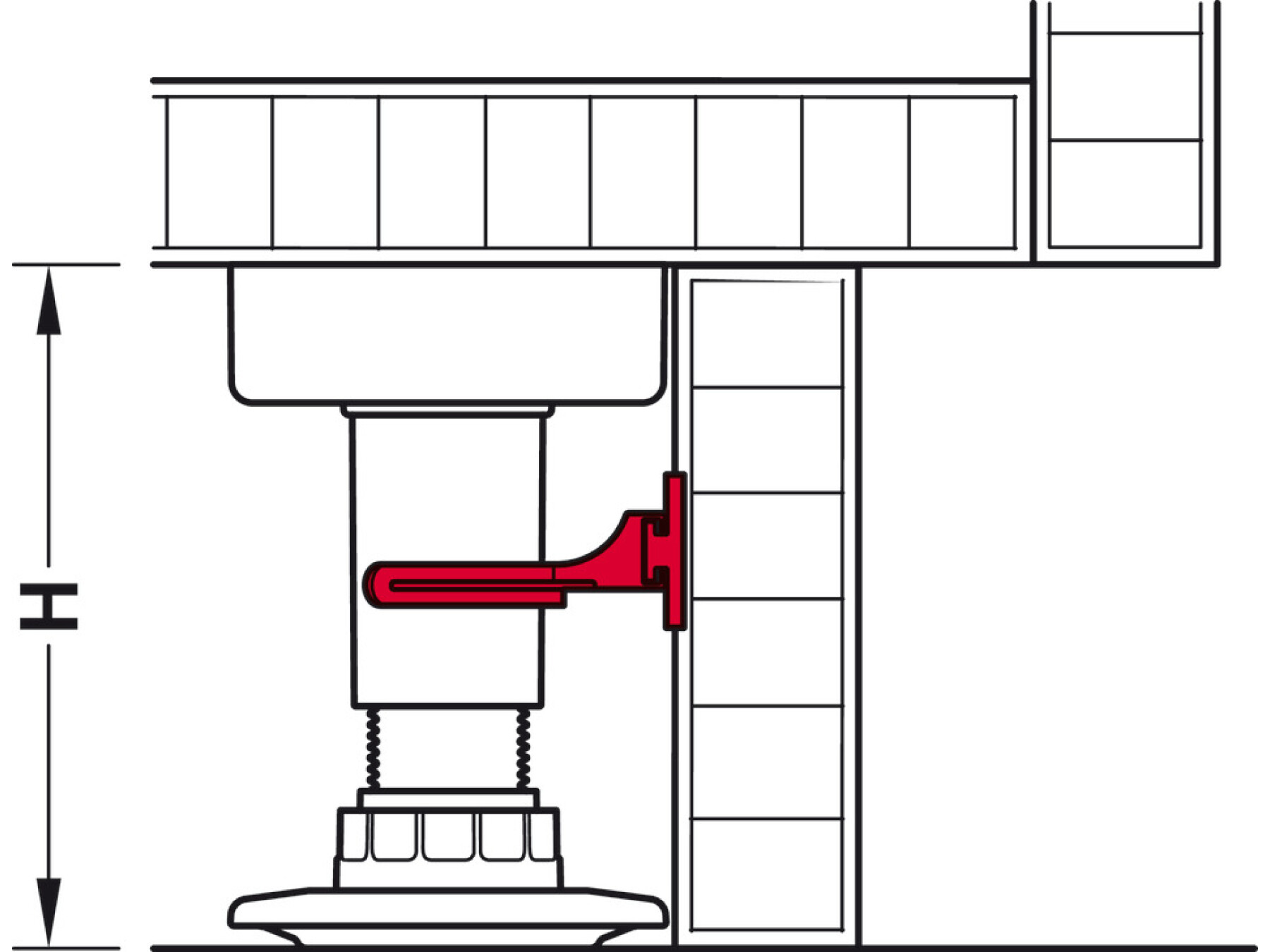

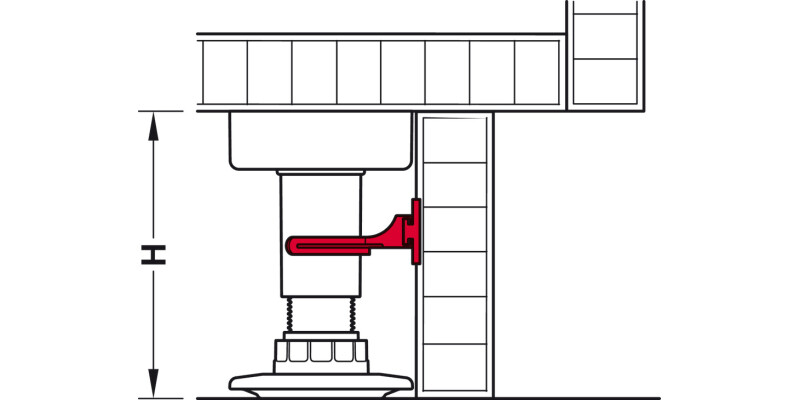

for fixing the plinth panel, usable from installation height H = 80 mm
Suitable for
Plastic or aluminum plinths
Version
with panel holder for accommodating the clip
Material
Plastic
Colour/finish
Black
Hafele Lifetime Guarantee
7 years
