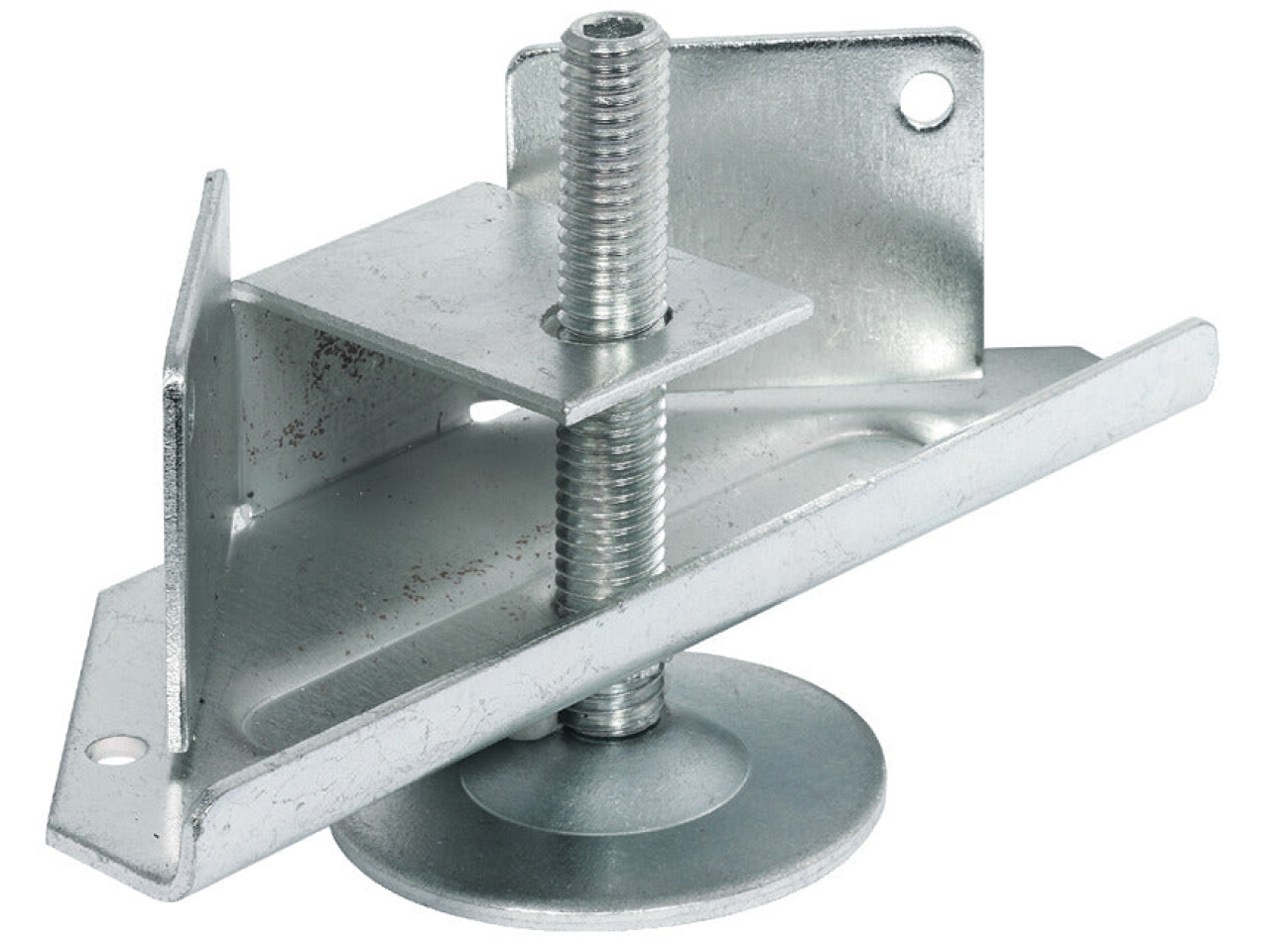

Plinth Adj w Brkt M10 150kg Galv St
Part Number: 637.23.900
For insertion in a groove and screw fixed, Load capacity 150 kg
Price:
£4.98
Per Item
For cabinet plinth
Product Information
Product Details
For cabinet plinth
Specifications
Load bearing capacity
150.00 kg
Version

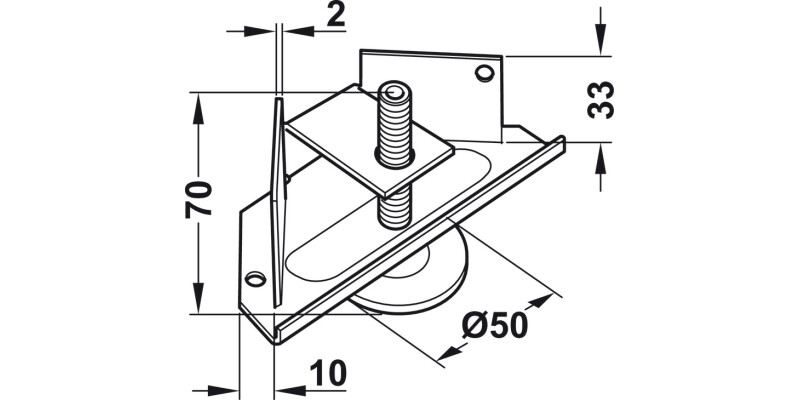

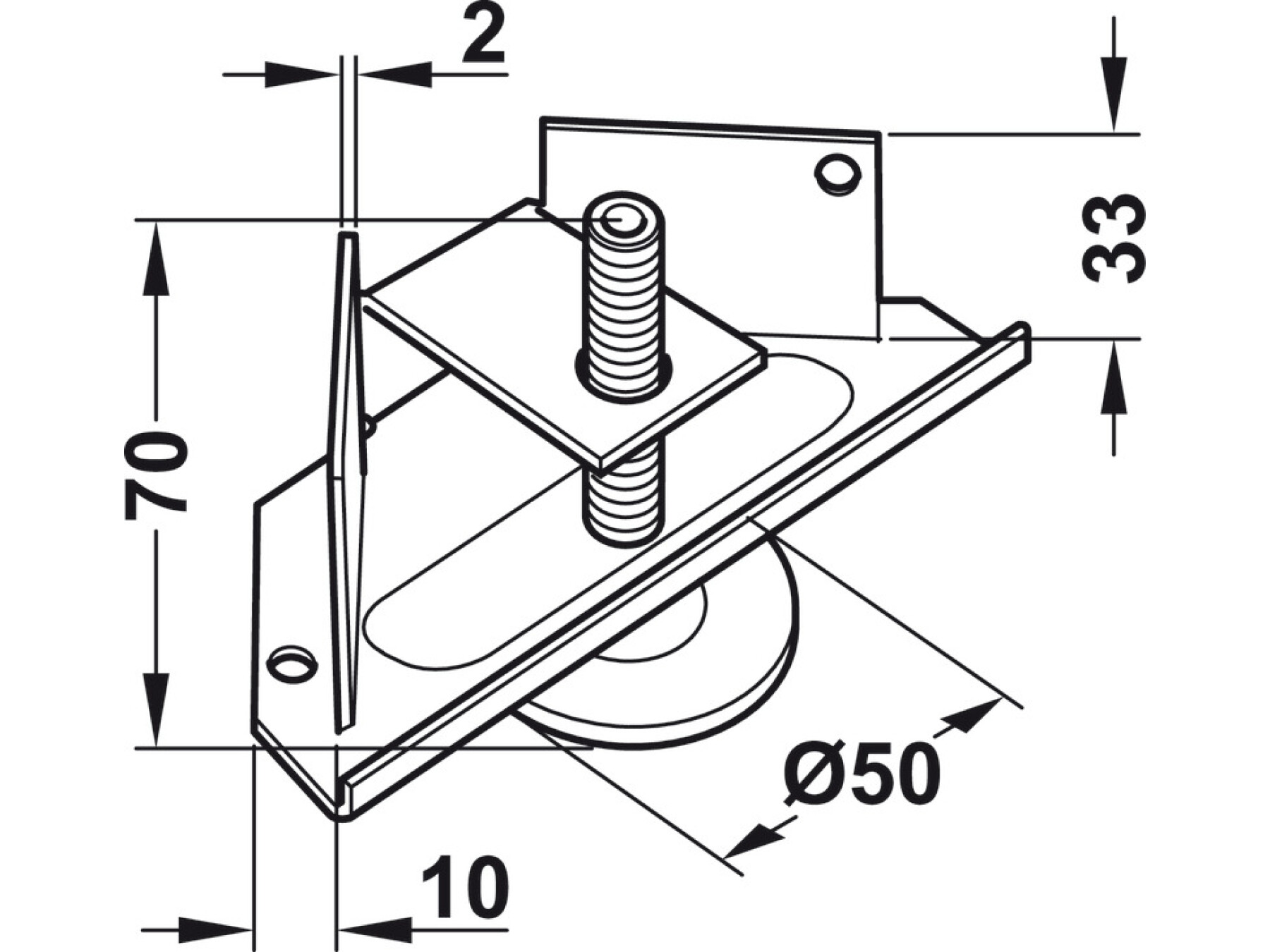

with supporting bracket,
with swivelling base plate,
with threaded spindle M10 x 70 mm
Material
Steel
Colour/finish
Galvanized
Adjustment facility

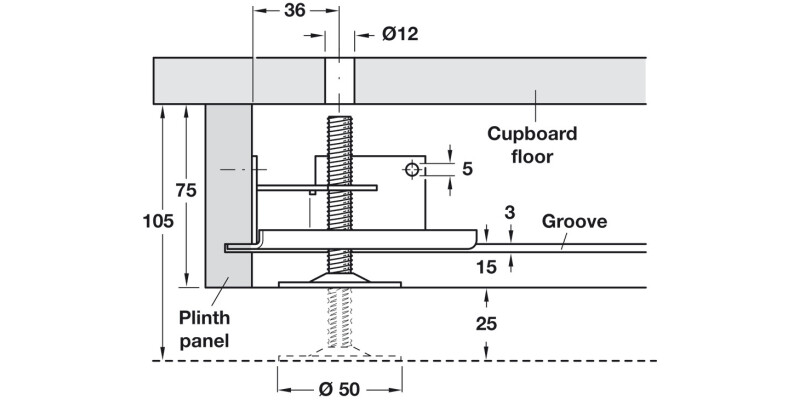

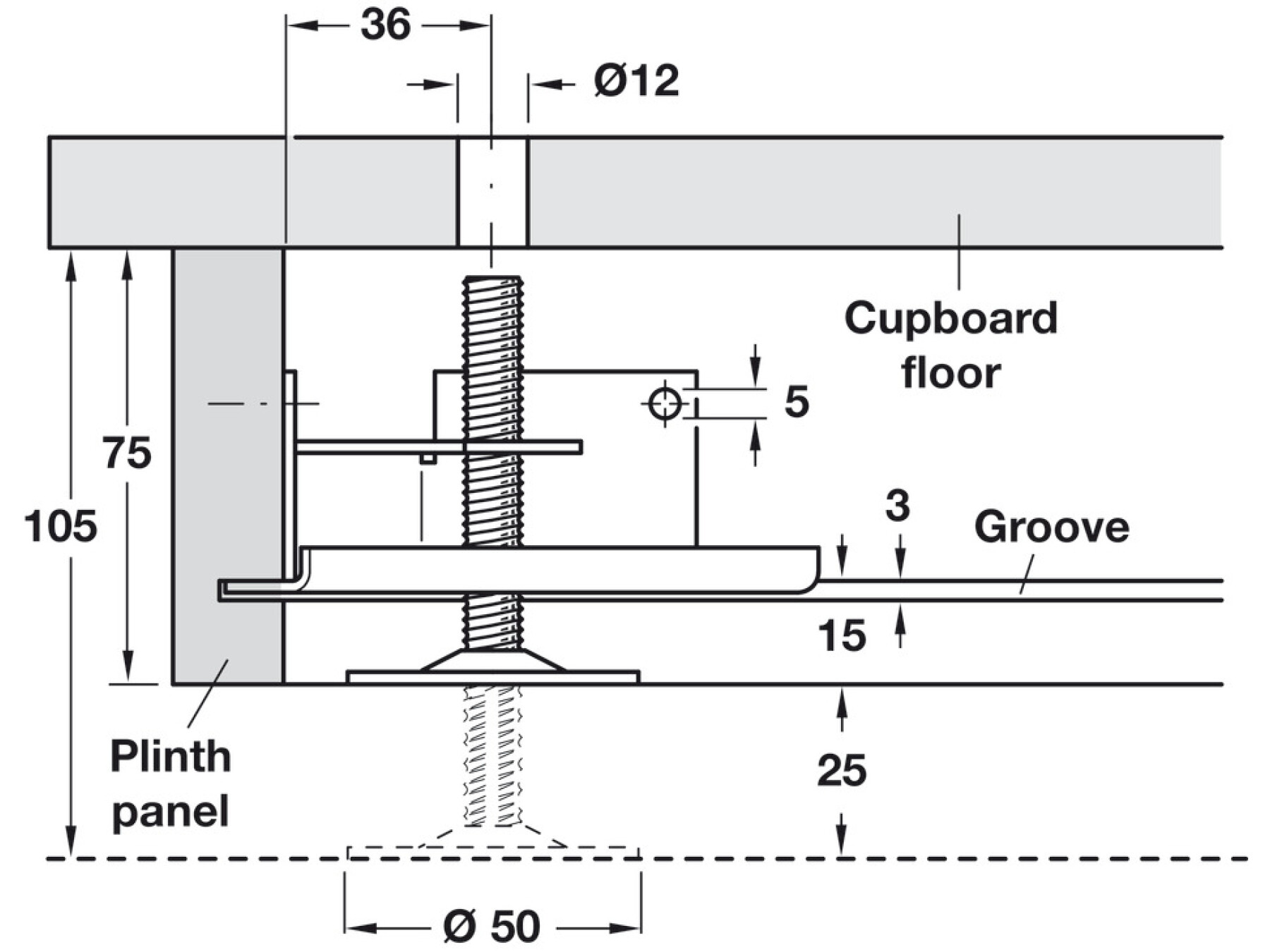

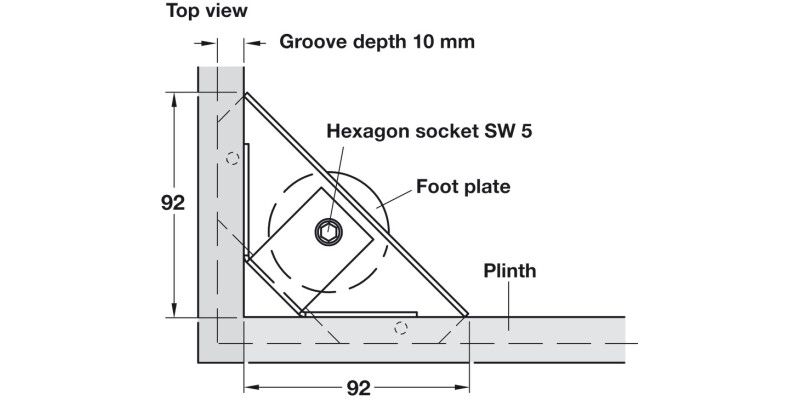

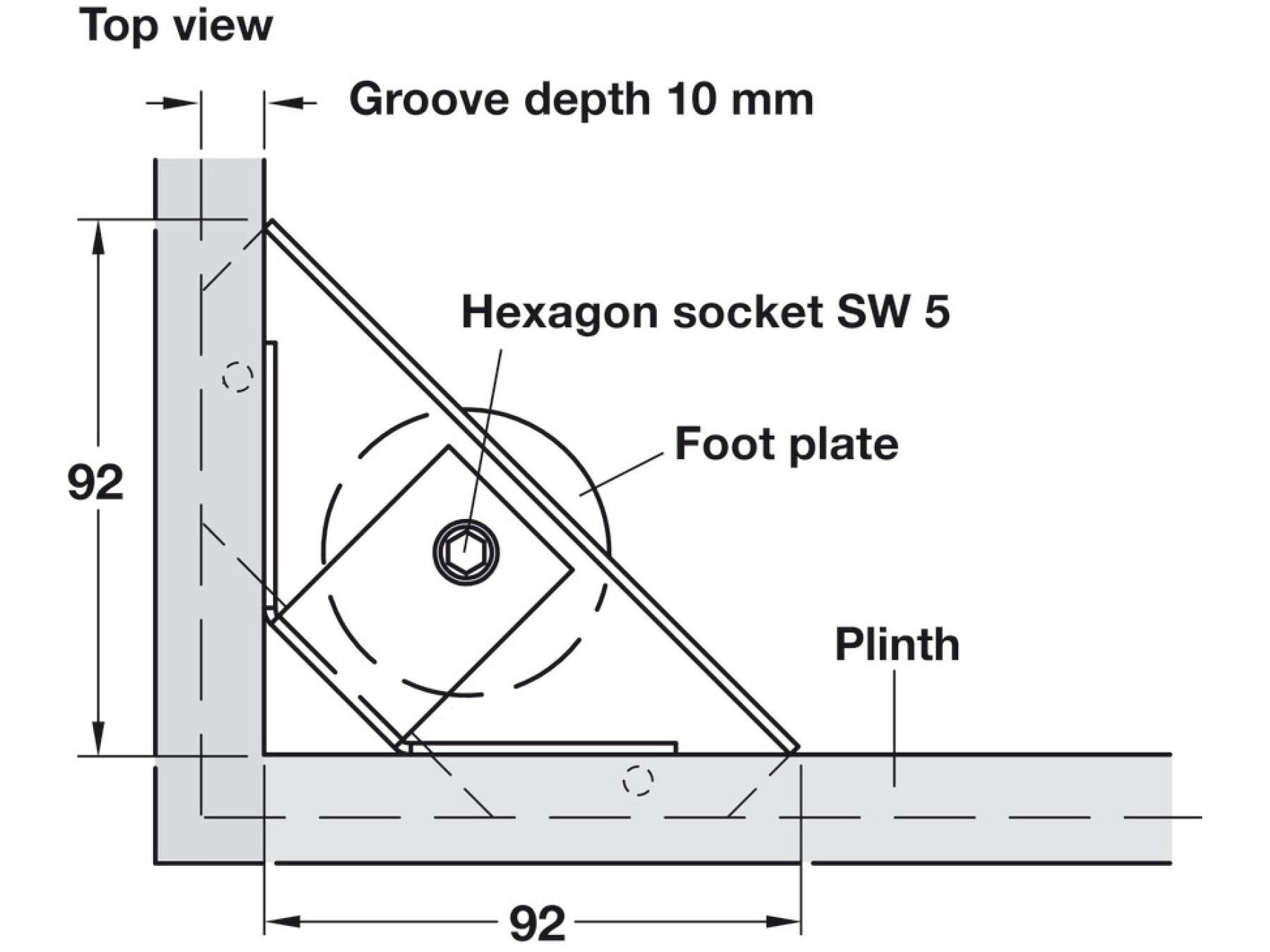

Adjustable from above through Ø 12 mm aperture in the cupboard floor
Drive
Hexagon socket SW5 at top
Installation

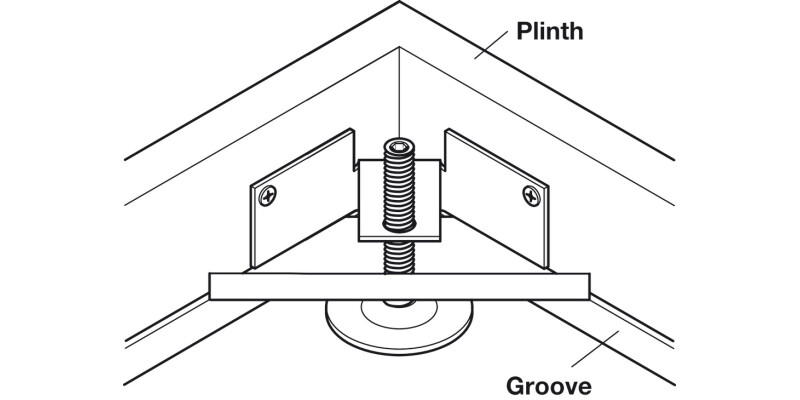

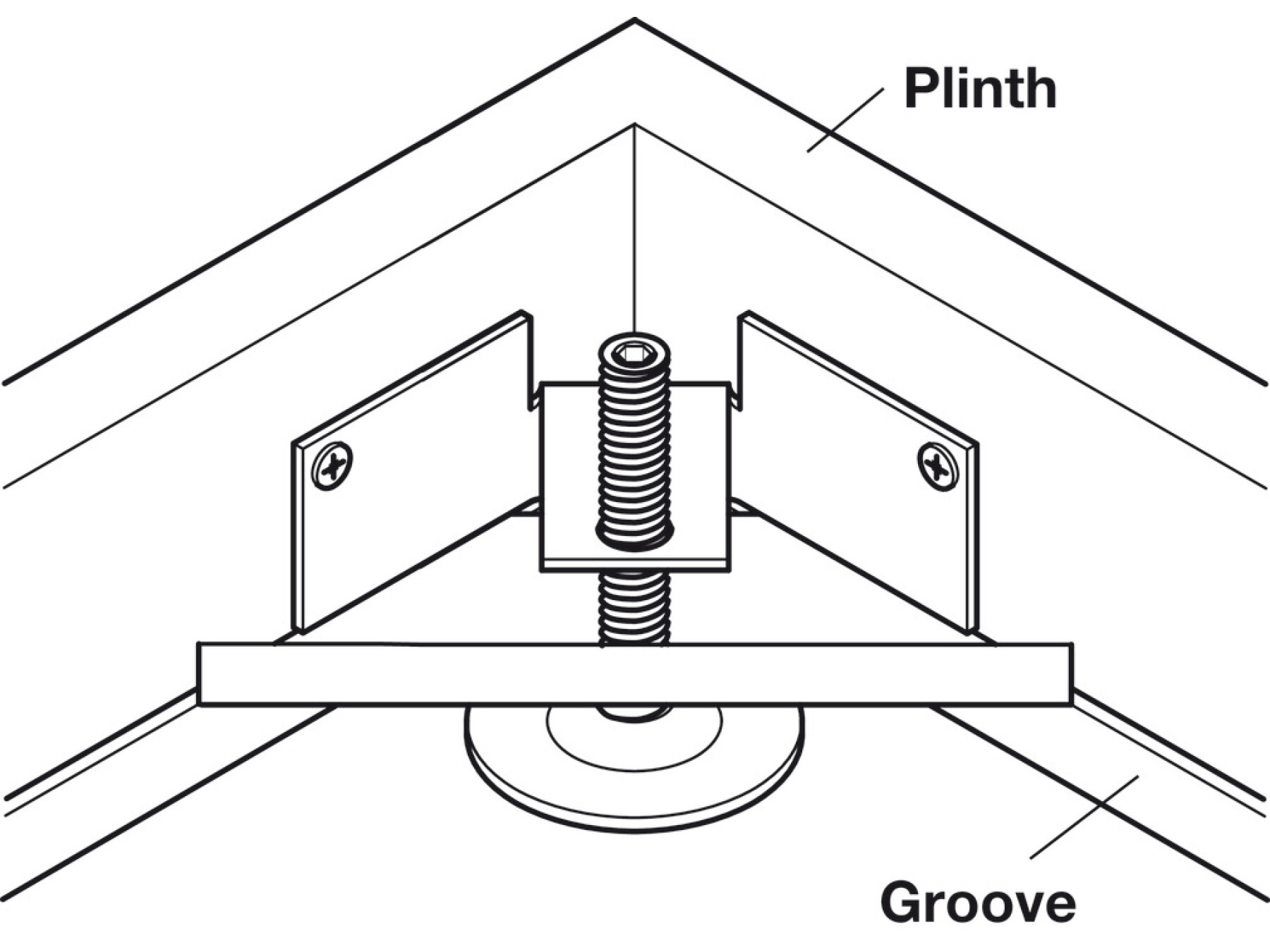

For insertion in a groove and screw fixed
Order reference
Order Hospa Ø 4.5 pan head screws separately
