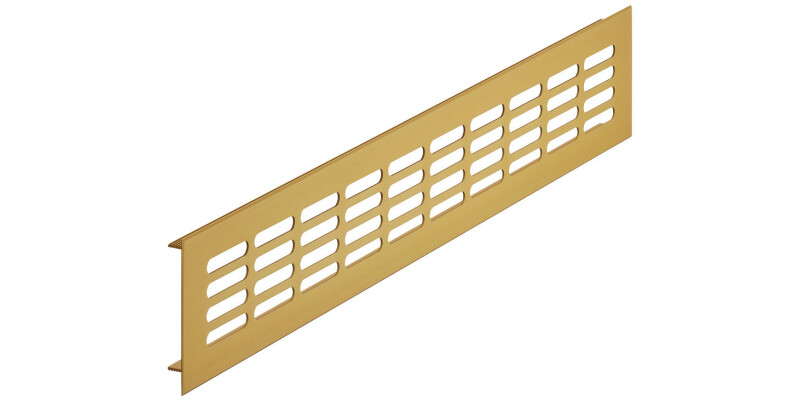

Vent Grille RM 400x80mm Alu Gold
Part Number: 575.20.823
With 40 x 7.5 mm Oval Slots Arranged in Parallel, Ventilation area 95 cm2, length 400 mm, flange length 378 mm, gold F3
Price:
£10.51
Per Item
Technical data Dim. (L x W) 250 x 80 mm 300 x 80 mm 400 x 80 mm 500 x 80 mm 1000 x 80 mm 2000 x... Read More
Product Information
Product Details
| Technical data | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

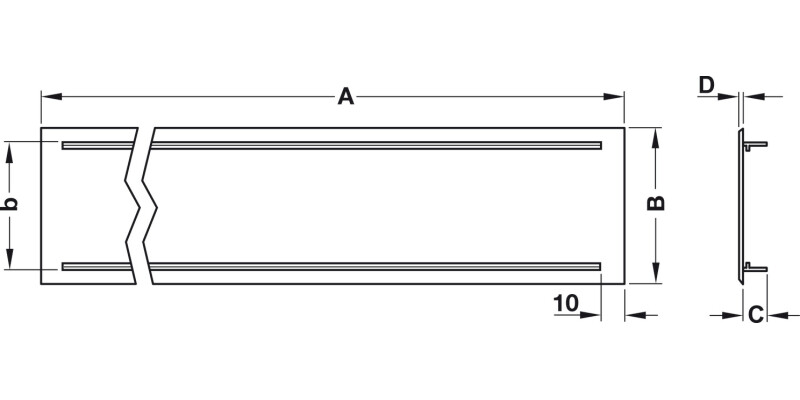

| Dim. (L x W) | 250 x 80 mm | 300 x 80 mm | 400 x 80 mm | 500 x 80 mm | 1000 x 80 mm | 2000 x 80 mm | 3000 x 80 mm | 250 x 80 mm | 300 x 80 mm | 400 x 80 mm | 500 x 80 mm | 1000 x 80 mm | 2000 x 80 mm | 3000 x 80 mm | 700 x 80 mm |
| Apertures (L x W) | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm | 40 x 7.5 mm |

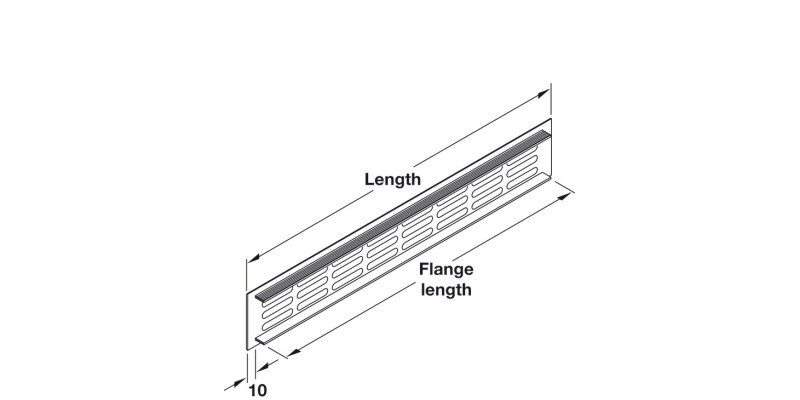

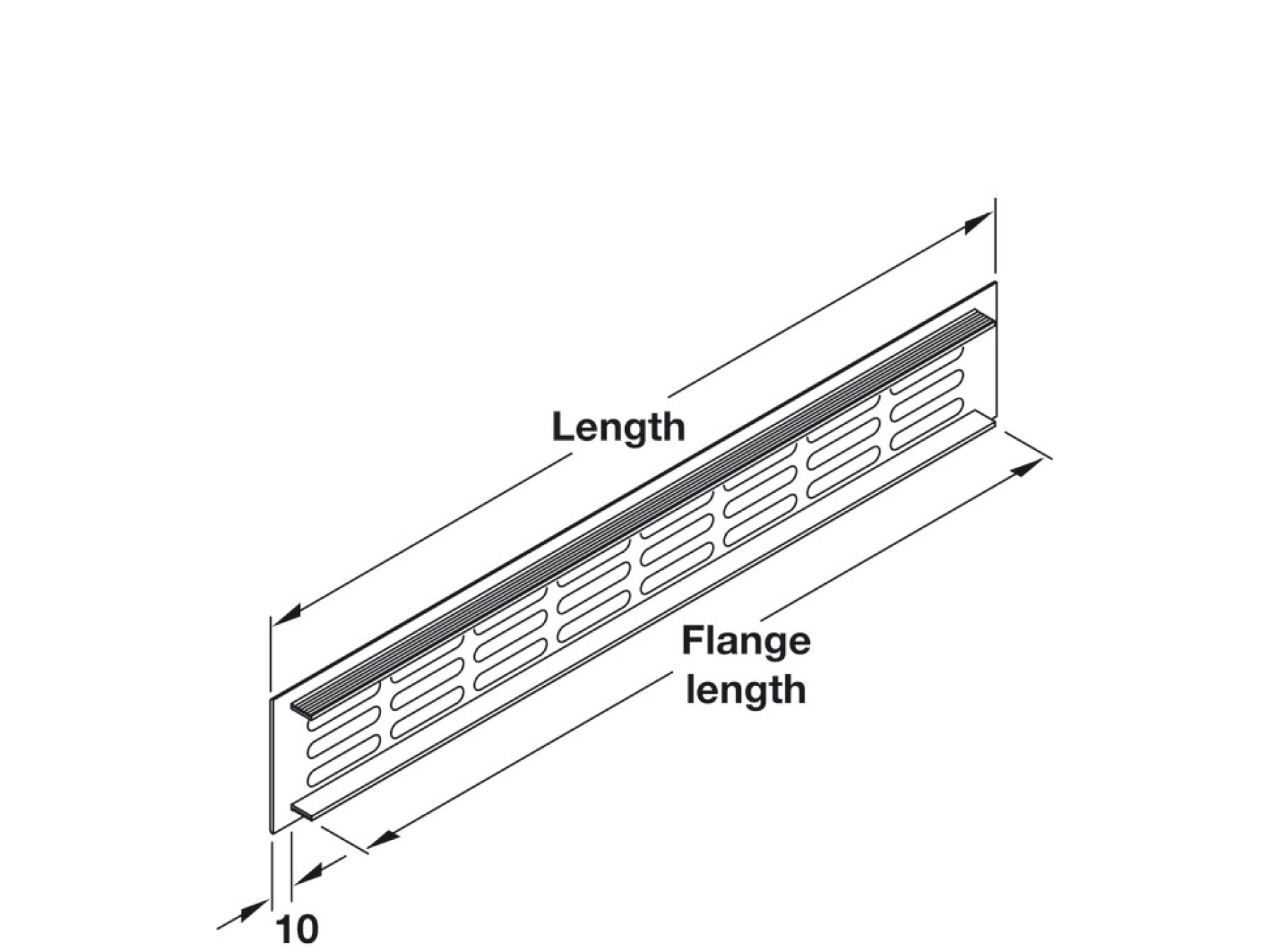

| Flange length | 228 mm | 278 mm | 378 mm | 478 mm | 978 mm | 2,000 mm | 3,000 mm | 3,000 mm | |||||||
| Flange width | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Ventilation Area | 60 cm² | 71 cm² | 95 cm² | 118 cm² | 245 cm² | 490 cm² | 735 cm² | 60 cm² | 71 cm² | 95 cm² | 118 cm² | 245 cm² | 490 cm² | 60 cm² | |
| Thickness | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
Specifications
Material
Aluminium
Thickness
1.50 mm
Version
Long edges bevelled
Installation
For recess mounting.
Ribbed flanges for press fitting.
Order reference
