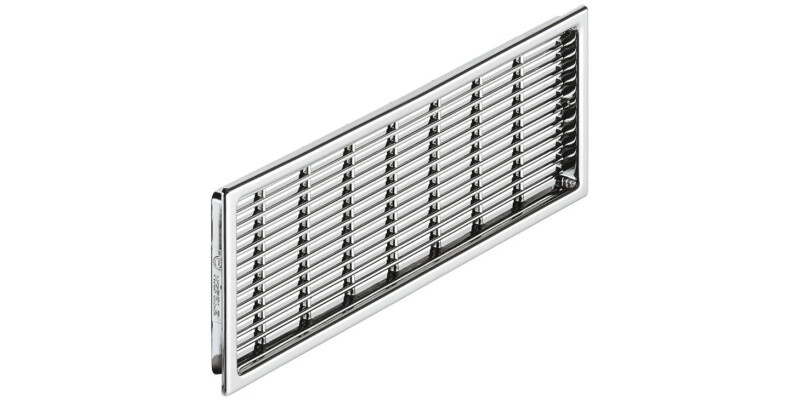

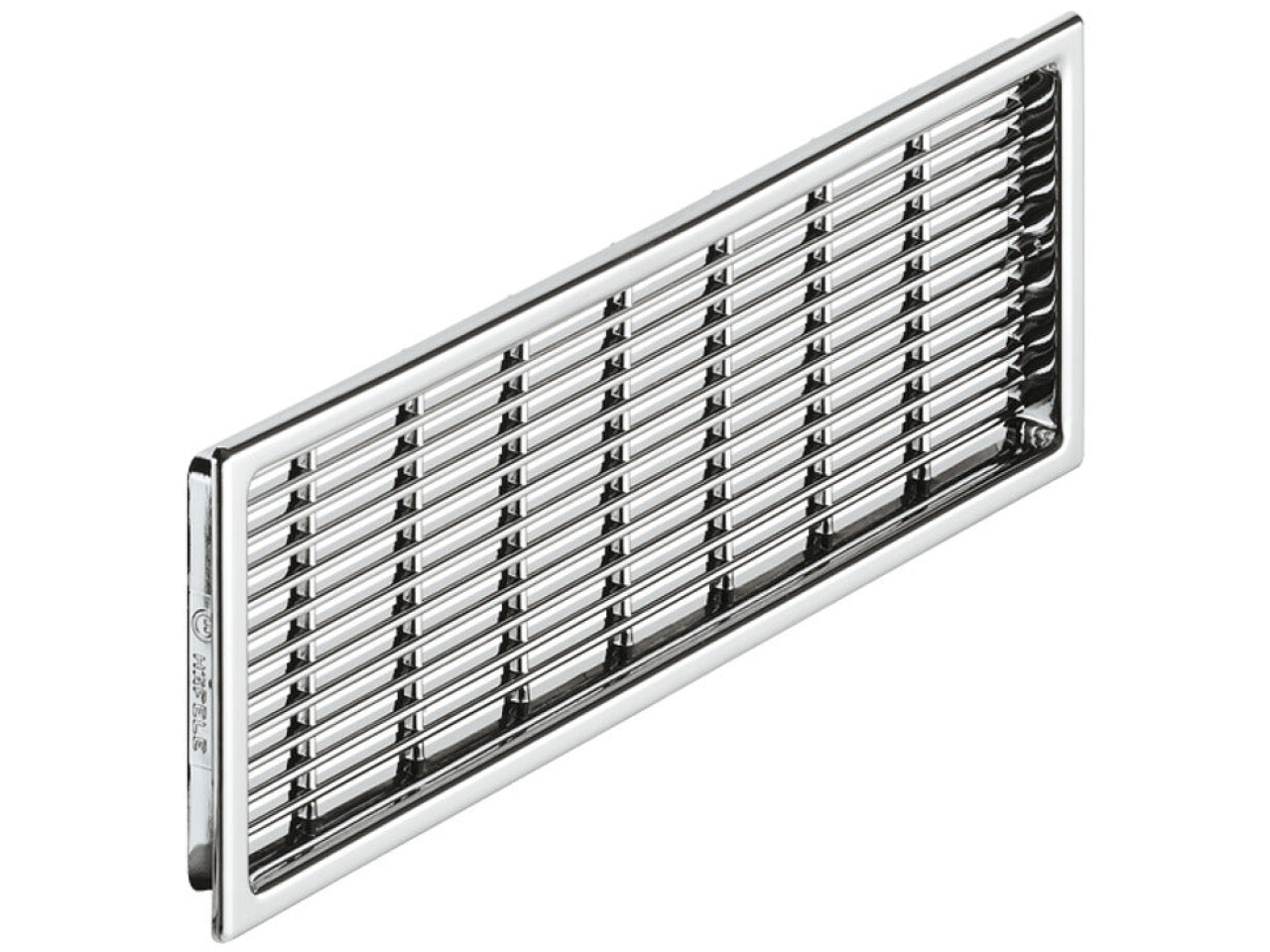

Vent Grille RM 170x42mm Pl Chrome
Part Number: 571.54.220

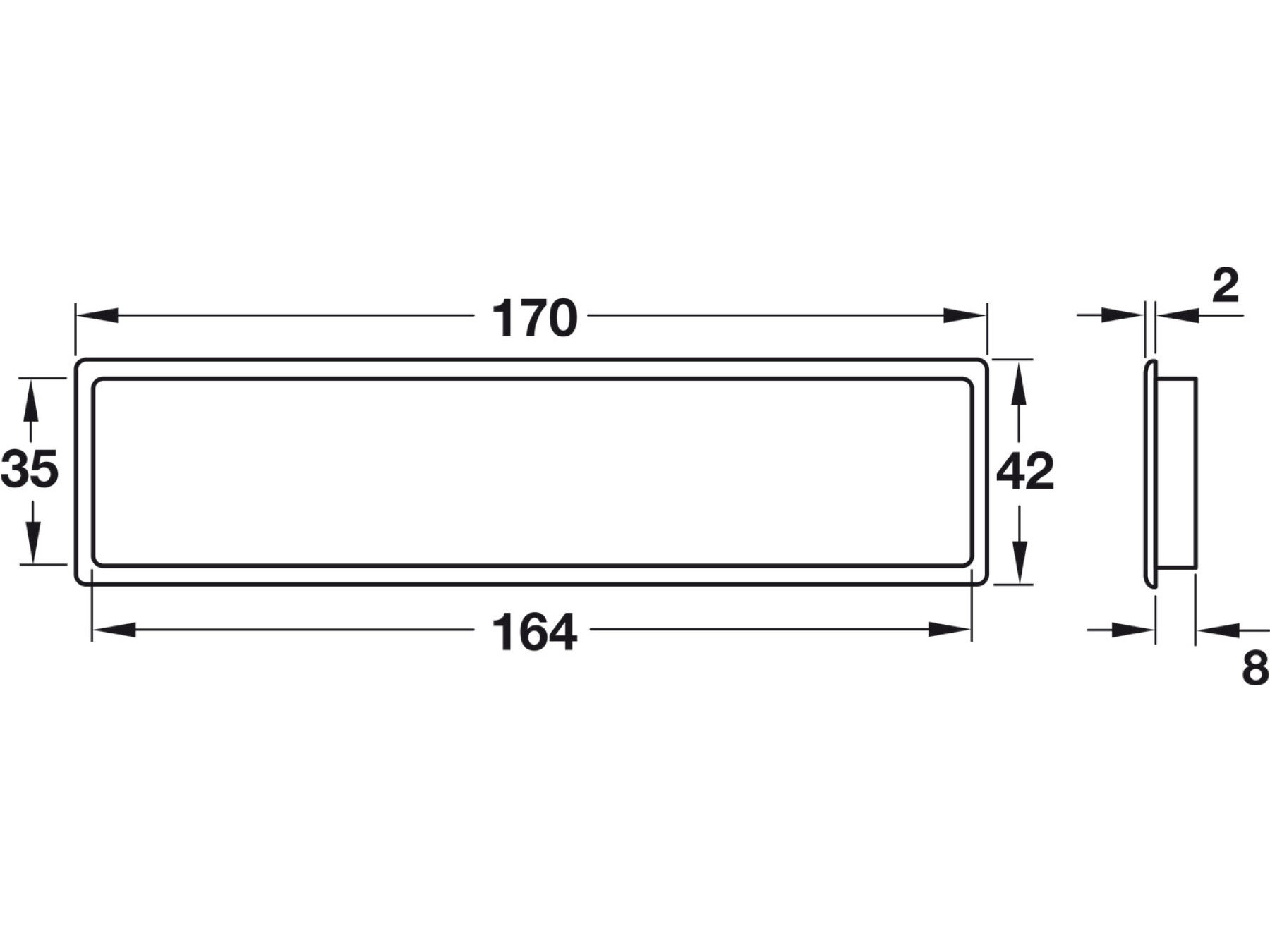

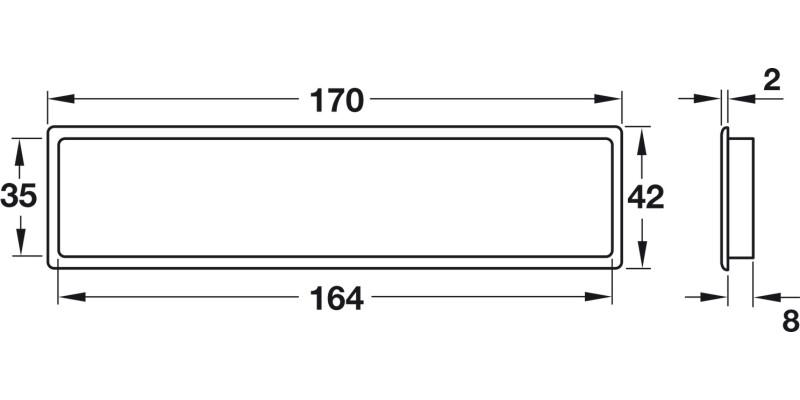

Straight-edged, Ventilation area 23.04 cm2, length 170 mm, recessed length 164 mm, height 42 mm, recessed height 35 mm, chrome plated
Price:
£4.41
Per Item
Technical data Dim. (L x W) 170 x 42 mm 220 x 57 mm 230 x 68 mm Cut-out (L x W) 164 x 35 mm 215 x 51 mm... Read More
Product Information
Product Details
| Technical data | |||
|---|---|---|---|
| Dim. (L x W) | 170 x 42 mm | 220 x 57 mm | 230 x 68 mm |
| Cut-out (L x W) | 164 x 35 mm | 215 x 51 mm | 220 x 61 mm |
| Apertures (L x W) | 20 x 4 mm | 27 x 4.5 mm | 27 x 4.5 mm |
| Ventilation Area | 23.4 cm² | 34.5 cm² | 42.2 cm² |
| Thickness | 2 mm | 2 mm | 2 mm |
Specifications
Material
Plastic
Thickness
2.00 mm
Colour/finish
chrome plated
Version
With flanged rim
Installation
For recess mounting
