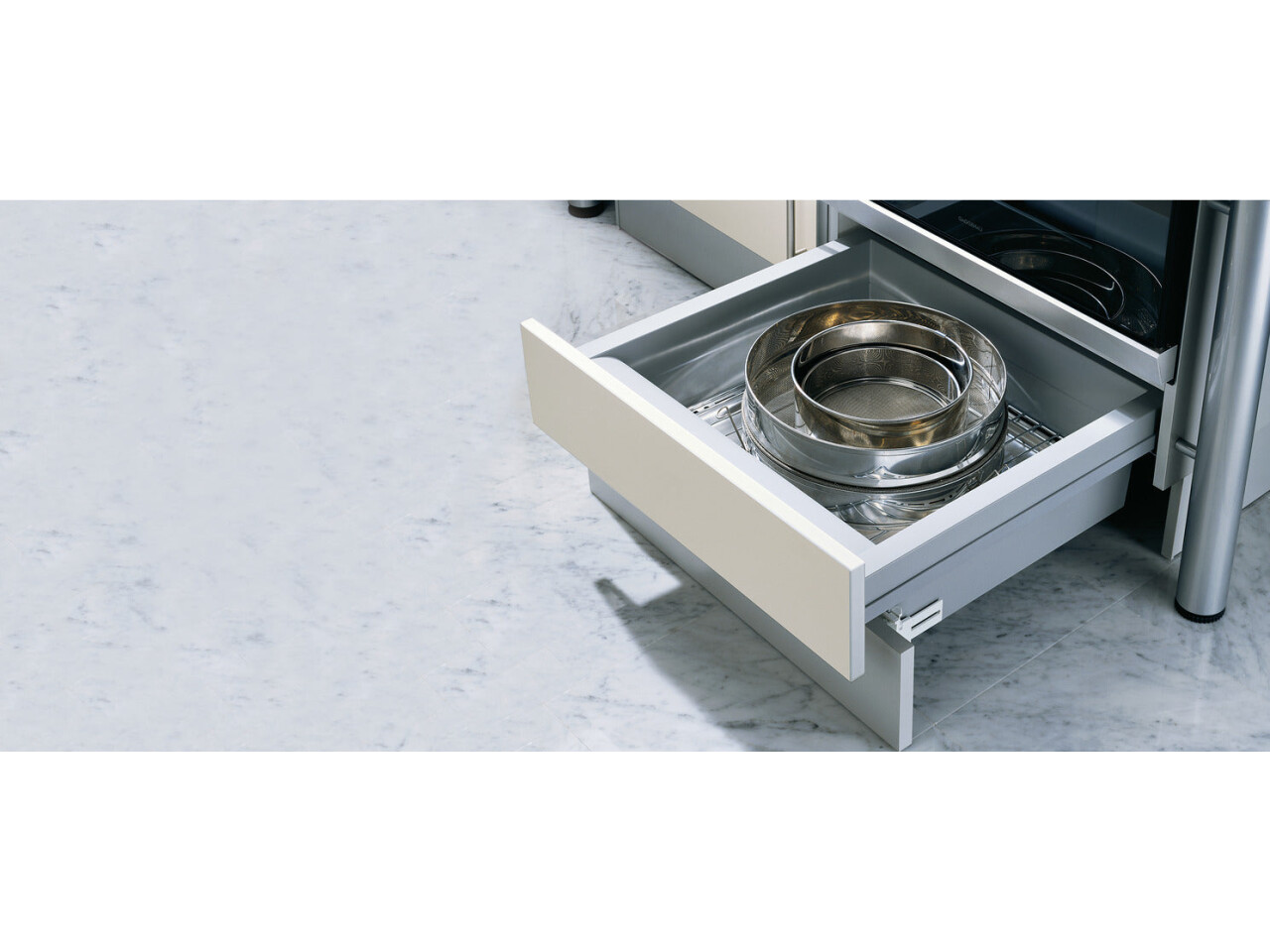

Under Oven Drawer Set for 600mm Drawer
Fits beneath a single built-under oven, utilising the bottom of the cabinet and the plinthRunners are completely... Read More
Product Details
Fits beneath a single built-under oven, utilising the bottom of the cabinet and the plinth
Runners are completely concealed beneath the drawer base and cannot be seen when fully extended
Runners are for 19 mm board thickness, plastic spacers arae included for other board thicknesses
Supplied with

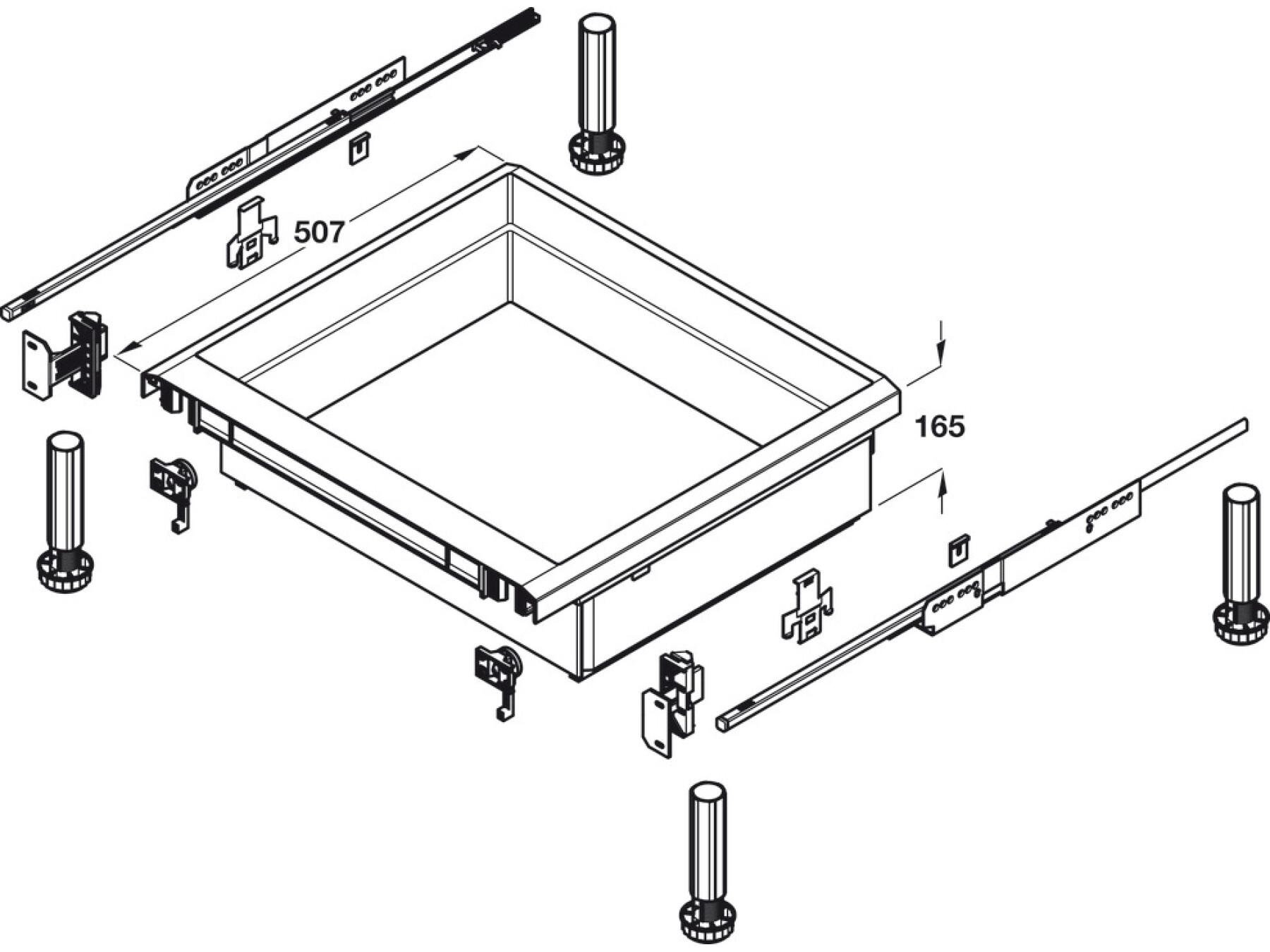

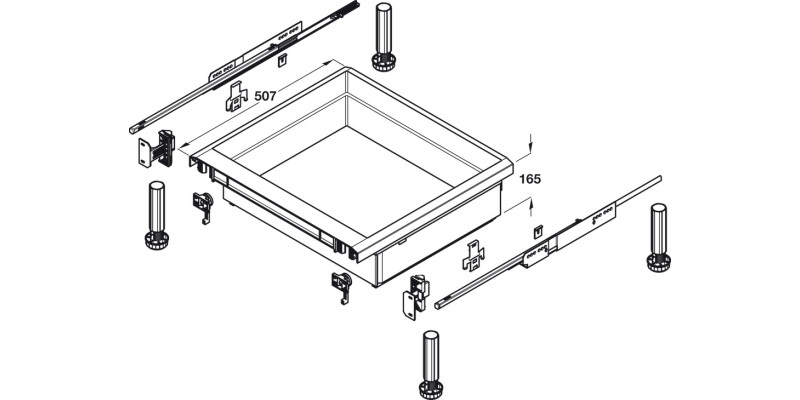

Set includes:
1x Drawer, aluminium/grey coloured plastic, designed to accept 8 mm chipboard base if required
1x Pair Dynamic runners, galvanized steel, full extension, soft closing runners, load capacity 30 kg

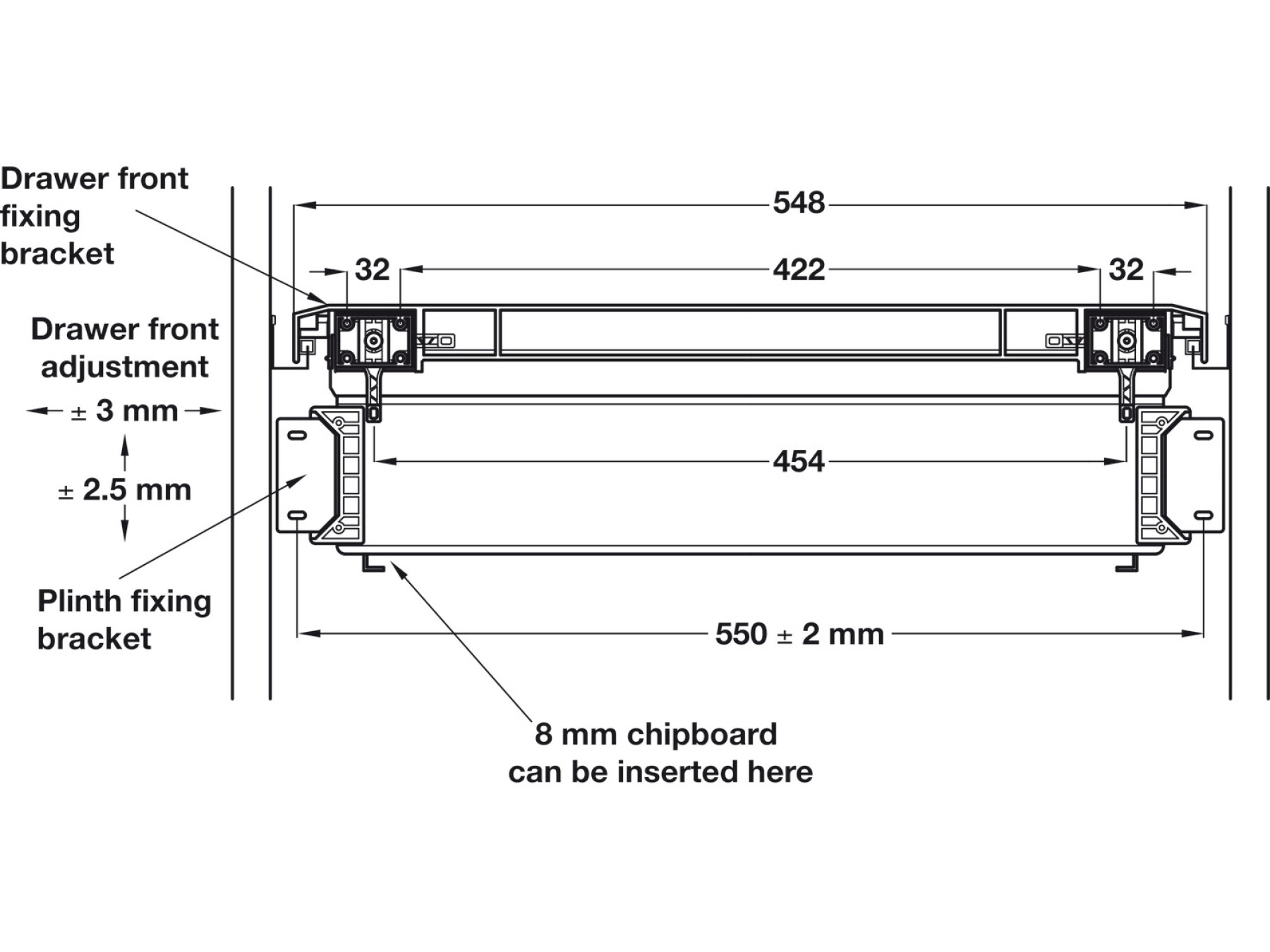

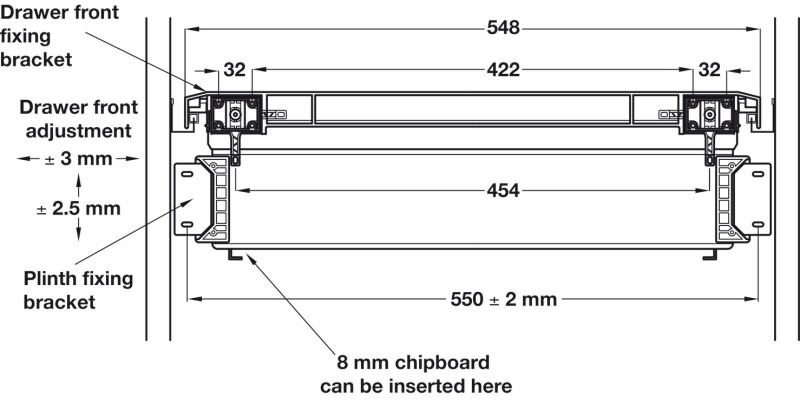

2x Drawer front fixing brackets, white plastic, screw fixed to drawer front and locked in place by turning lever
2x Plinth fixing brackets, white plastic. To be fitted within drawer side either in 15/16 or 18/19 mm position
Spacers, white plastic, 2 each 1 and 3 mm thickness included for use with runners where board thicknesses are other than 19 mm
4x Plinth feet, includes adaptors to fit underneath the cabinet sides
Specifications
For cabinet width
Colour/finish
Aluminium/grey
Material
Moulded plastic
