Part No: 283.33.501
Con Shelf Support 22mm Screw Wood/Wall
£1.56
(excl. VAT)
NovaPro Scala AsD Drawer+Rail 90/900mm Stn
Part Number: 554.32.509
For cabinet width 900 mm, stone
Price:
£49.44
Per Item
Pre-assembled drawers with 90 mm high drawer sides with rectangular gallery rails, for use as a pan drawerWith... Read More
Product Information
Product Details

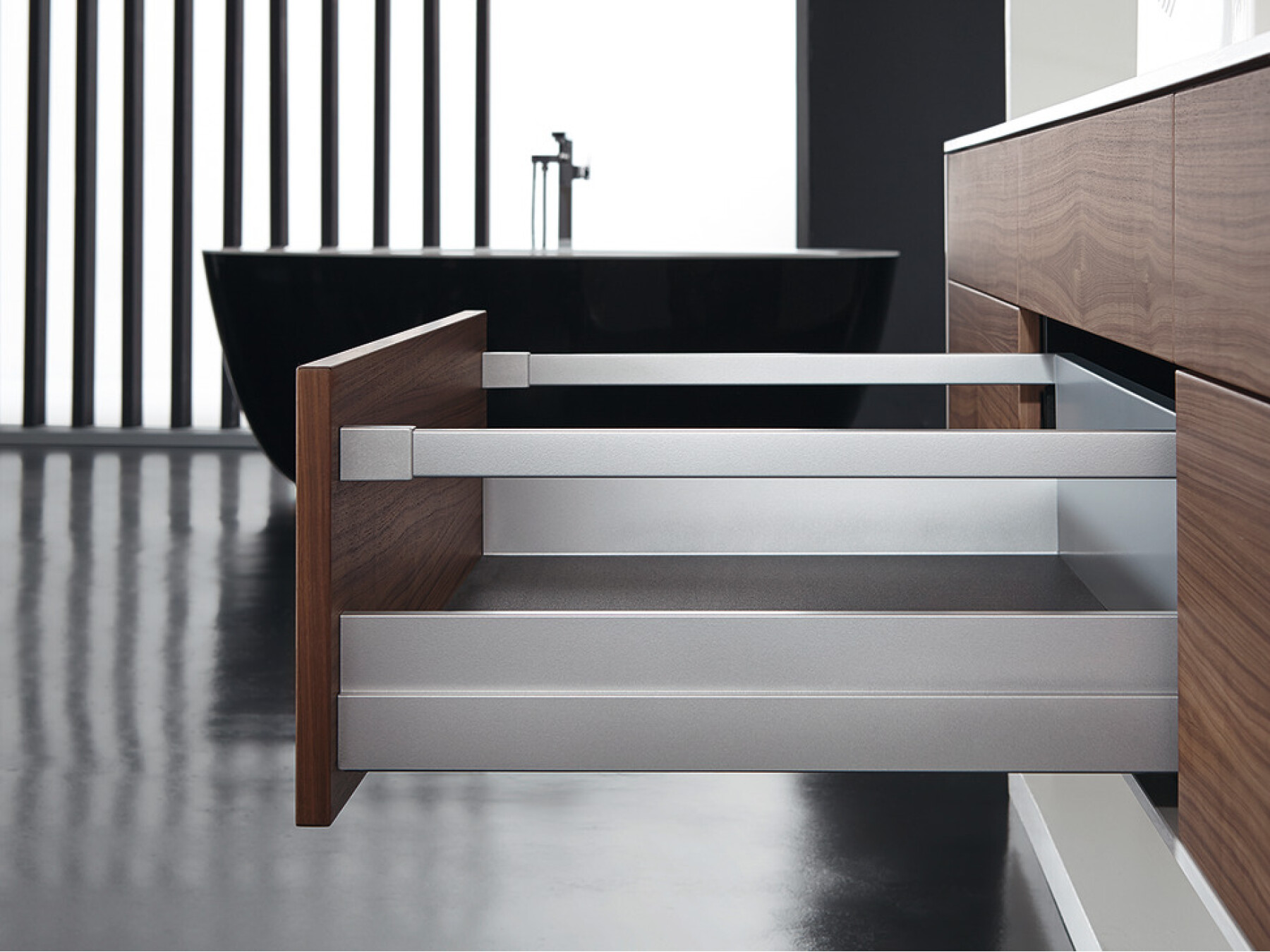

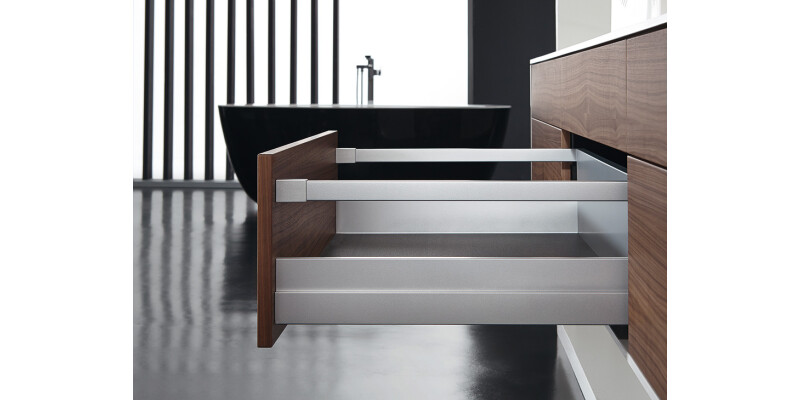

Pre-assembled drawers with 90 mm high drawer sides with rectangular gallery rails, for use as a pan drawer
With integrated liquid Soft-close®
Fully synchronised runner technology without midway knock
Integrated height and side adjustment
Drawer front (not included) can be fitted and removed without tools
Width of bottom and back panel is the same
Optimal use of storage space due to straight inside narrow surfaces and narrow construction
High gloss hygienic finish sides due to paint and lacquer
Order reference
Drawer front supplied by customer
Tipmatic touch to open sets 551.91.182 or 551.91.183 to be ordered separately
Supplied with
Pre-assembled drawer includes:
1 pair Full extension drawer runners, 450 mm length
1 pair Drawer sides, 90 mm height
1 Drawer base, MFC chipboard, 16 mm thick
1 Steel drawer back
1 set Rectangular railing
1 set Fixing screws and front fixings

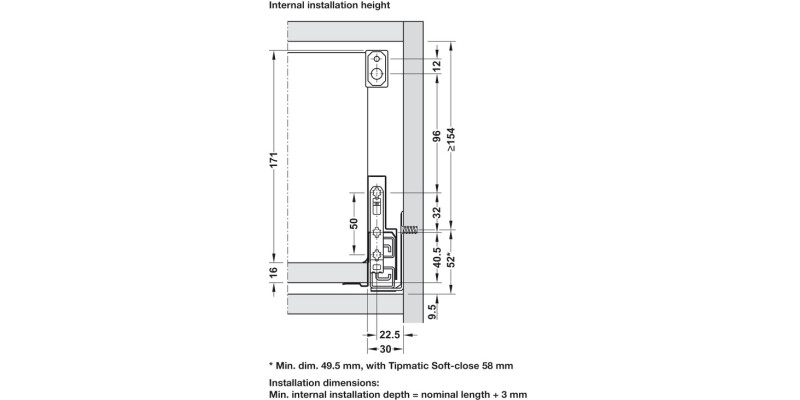

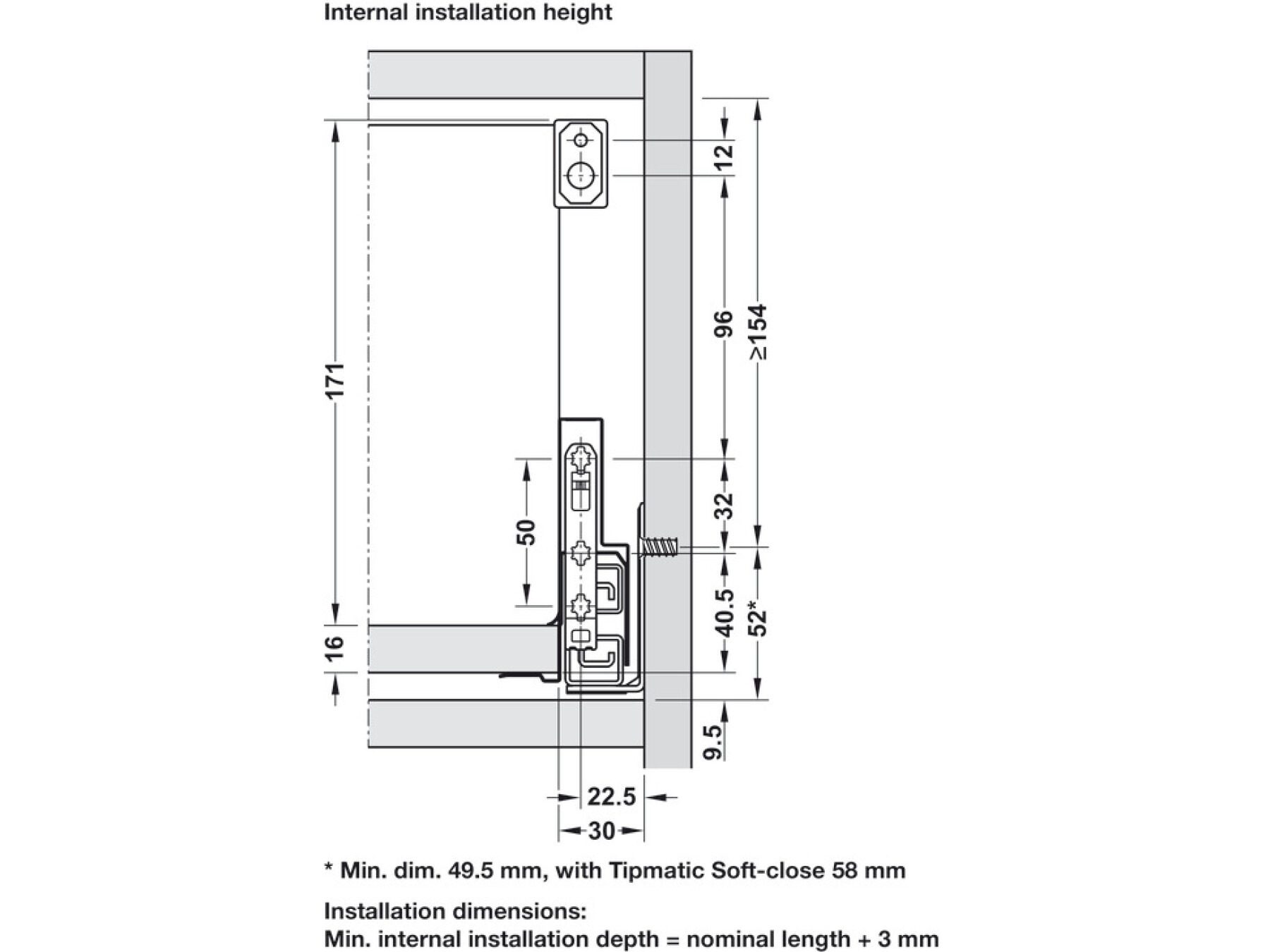

Installation instructions
Specifications
Drawer side height
90.00 mm
Model series
Nova Pro Scala
Load bearing capacity
40.00 kg
