Sensomatic Sgl Drawer Electric Open Sys Set
Single set includes all components necessary for installationIdeal for heavy pan drawers and waste bin drawersThe... Read More
Product Details
Single set includes all components necessary for installation
Ideal for heavy pan drawers and waste bin drawers

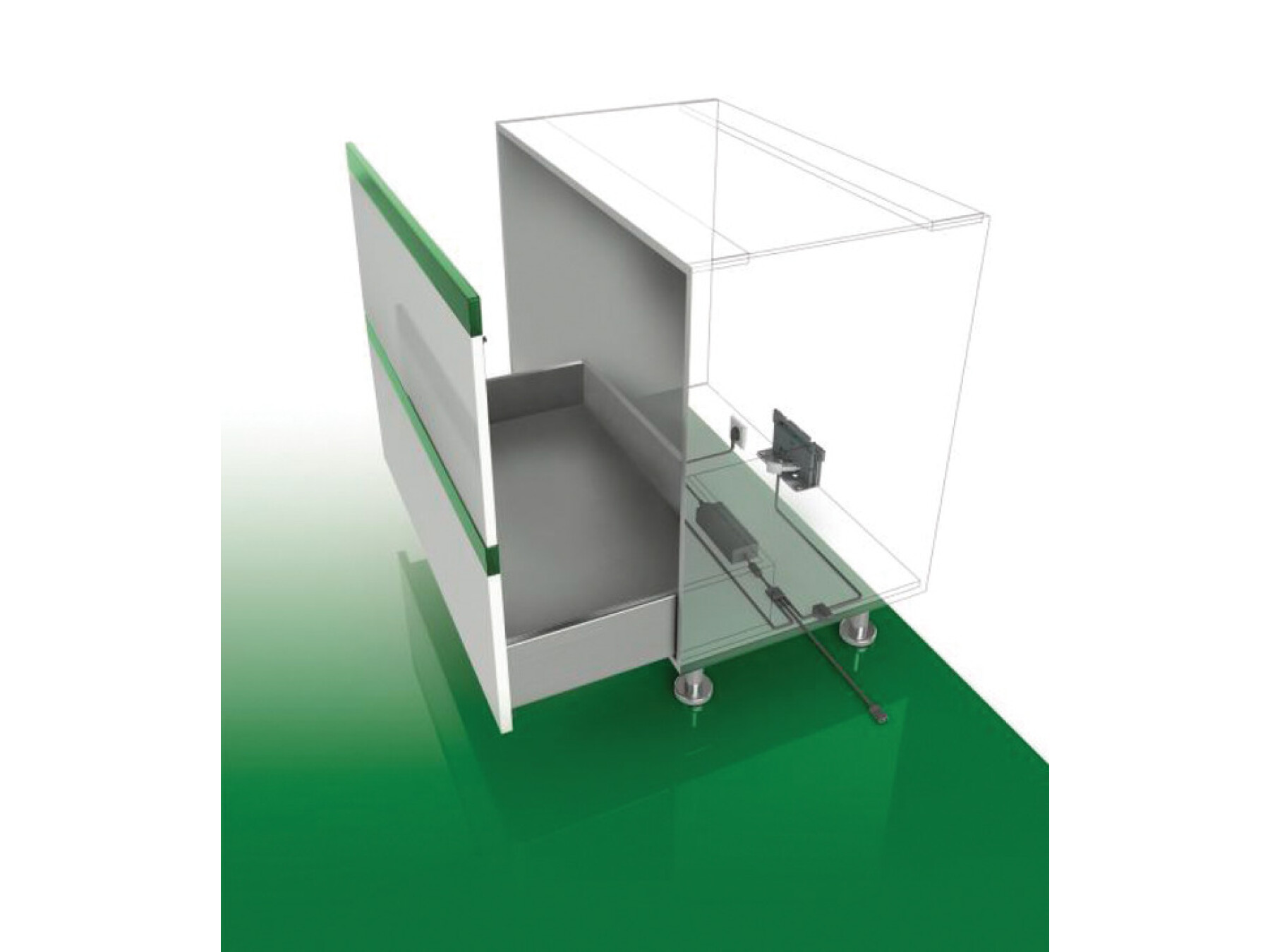

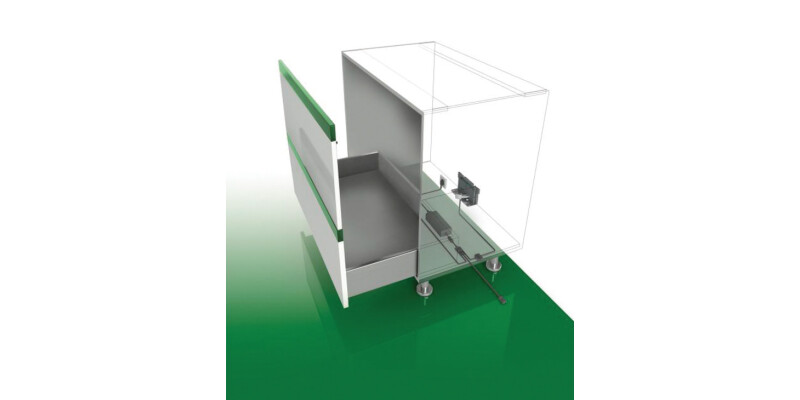

The electro mechanical opening system is triggered by a light touch anywhere on the surface of the front which causes drawers to glide evenly and smoothly
Available for use with Dynapro dynamic runners or Nova Pro drawer systems
Easy to fit
Simple plug and play wiring
Small installation depth
Please see catalogue for additional installation information
Supplied with

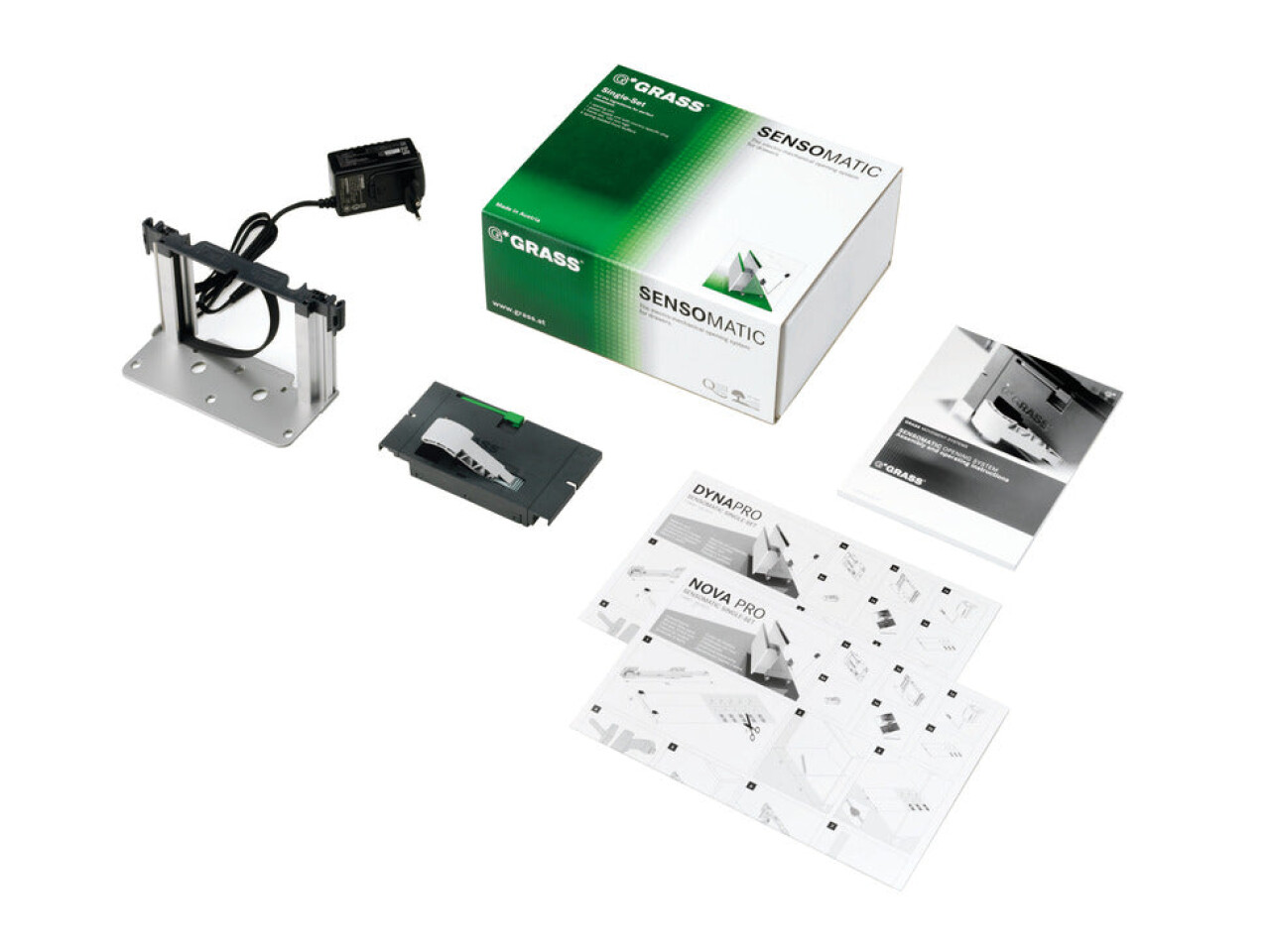

Set consists of:
1x Opening unit, for either Dynapro or Nova Pro drawer systems, grey plastic
1x Frame set, for 1 drawer installation
1x Power supply, input 100-240V, 50-60 HZ, output 24V DC, max. 120W, black plastic, with mains cable, 2000 mm lead length, black
4x Door buffers, spring loaded, Ø 5 mm, with 3 mm front gap, grey plastic with spring mechanism
1x Fitting instructions
Specifications
Product category
Suitable for
One drawer up to 1200 mm wide
Material
Installation note
Frame set must be fixed securely
