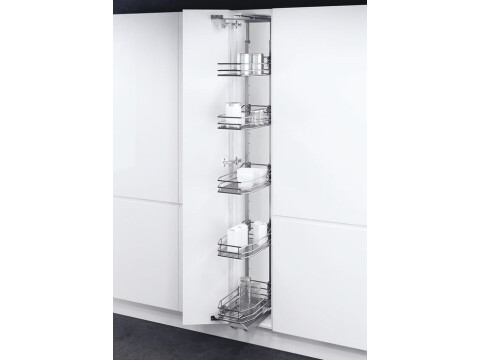

Swing Out Larder Unit, For Cabinet Width 300-400 mm, Classic Linear Chrome Baske

Product Details

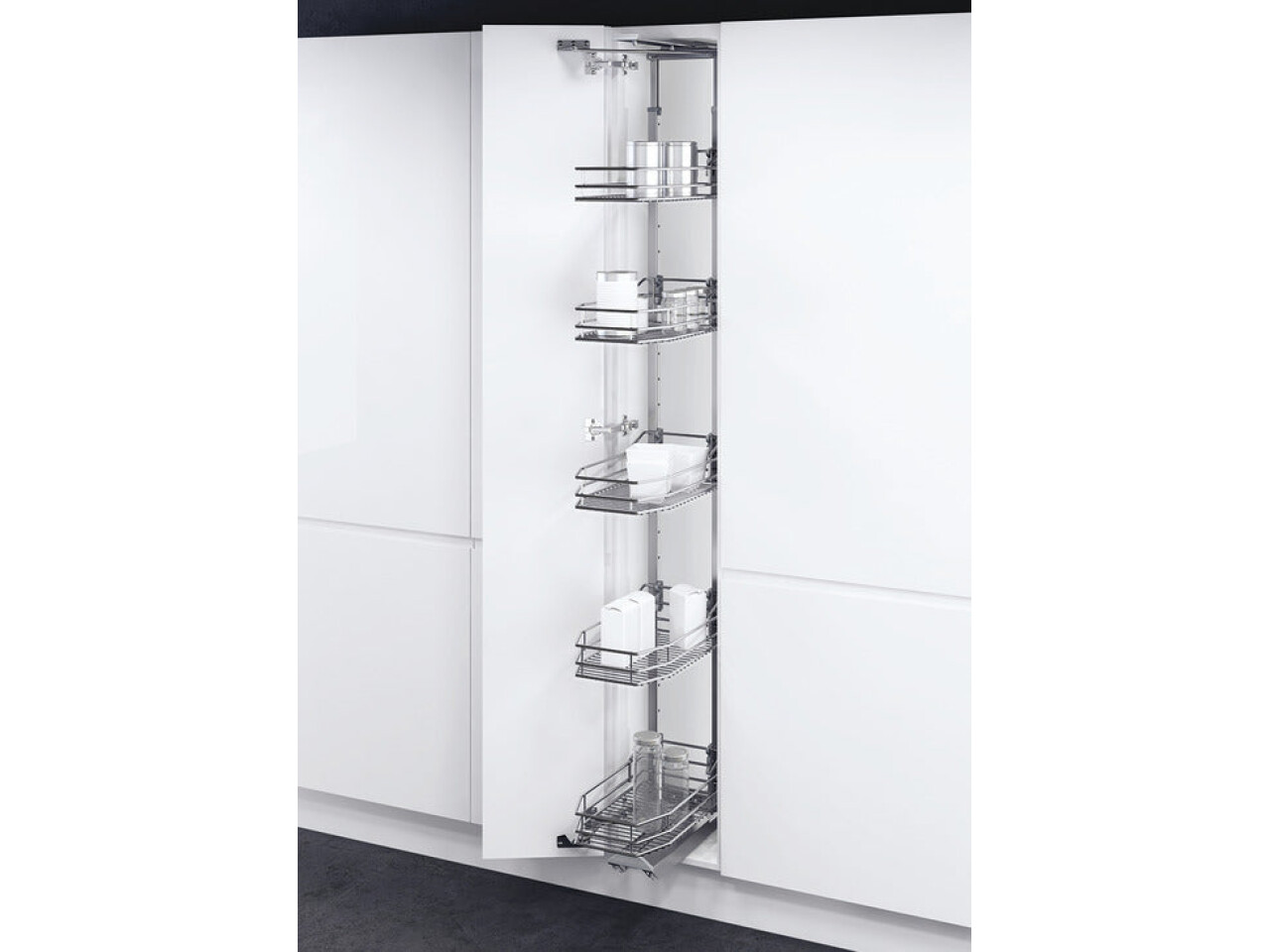

How does the centre mounting tall larder system work?

This unit is centre mounted, meaning it is designed to sit neatly within your cabinet width of 300 mm, with the pull out mechanism holding 5 chrome baskets. It is height adjustable from 1700 mm to 1950 mm, so it can be configured to suit different installation heights.

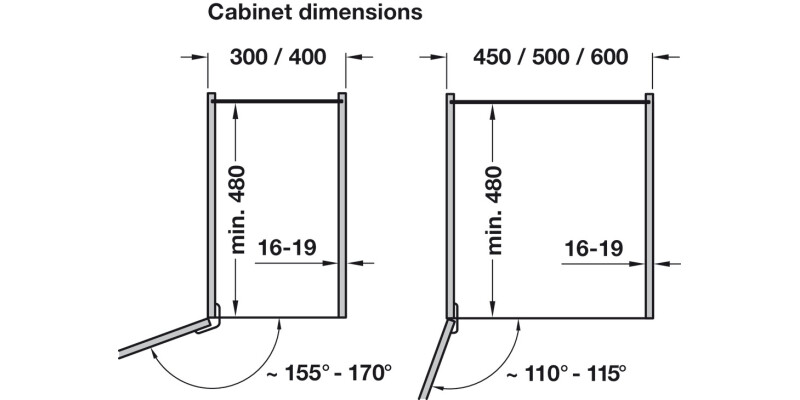

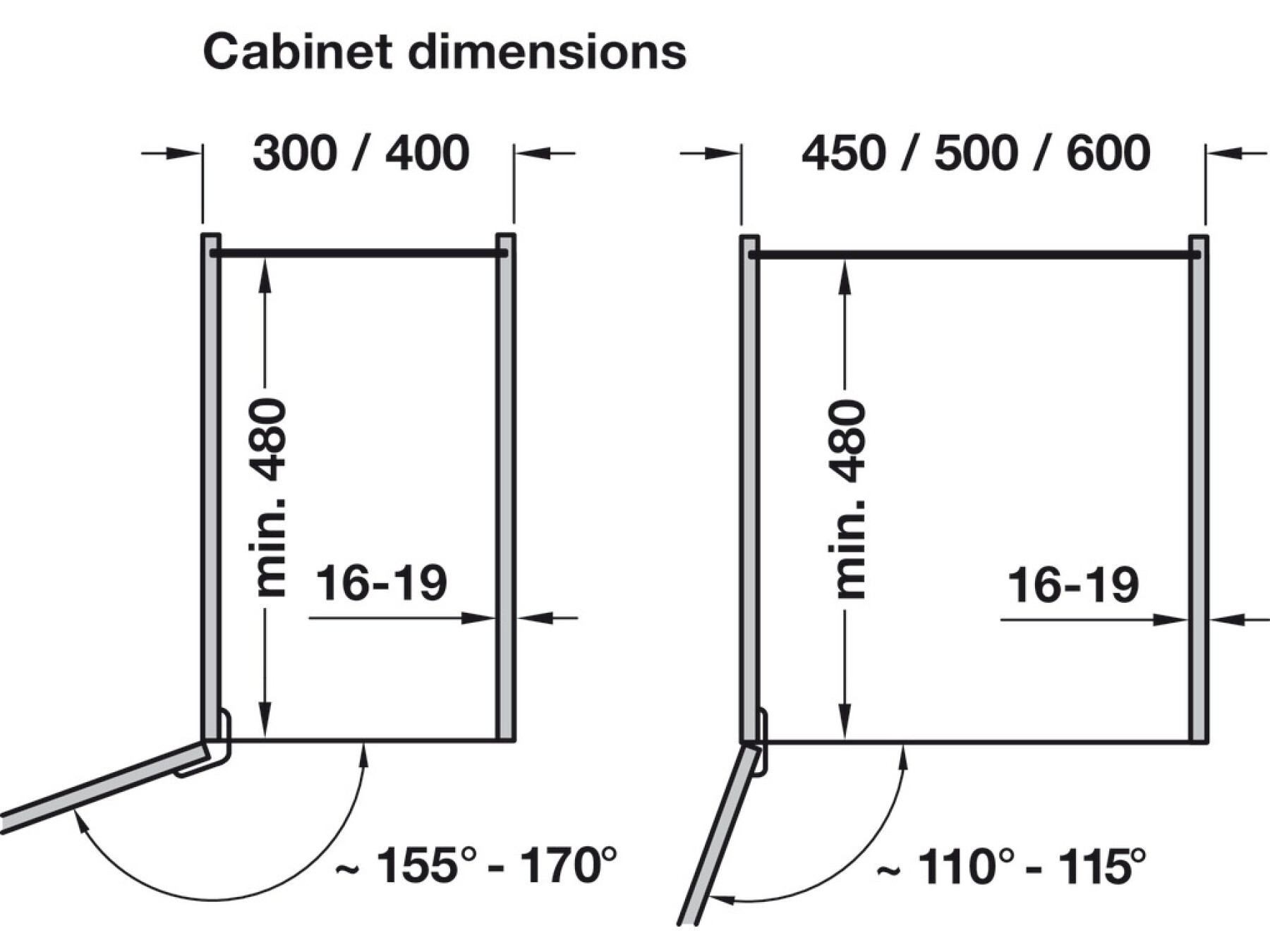

Will it fit my cabinet and what cabinet depth is required?

It is designed for a 300 mm cabinet width and a basket width of 230 mm. For performance and proper movement, you should have an internal cabinet depth of at least 480 mm.

What load can each basket and the overall unit handle?

The total load capacity is 75 kg, with 15 kg per basket. This makes it suitable for everyday kitchen storage such as cans, jars, and small household items, while keeping loads evenly distributed across the baskets.

Is this suitable for installation behind a hinged door?

Yes. This tall unit is intended for installation behind hinged doors and is supplied as a swing out larder style system, so the door can open while the baskets glide out on the runner system.

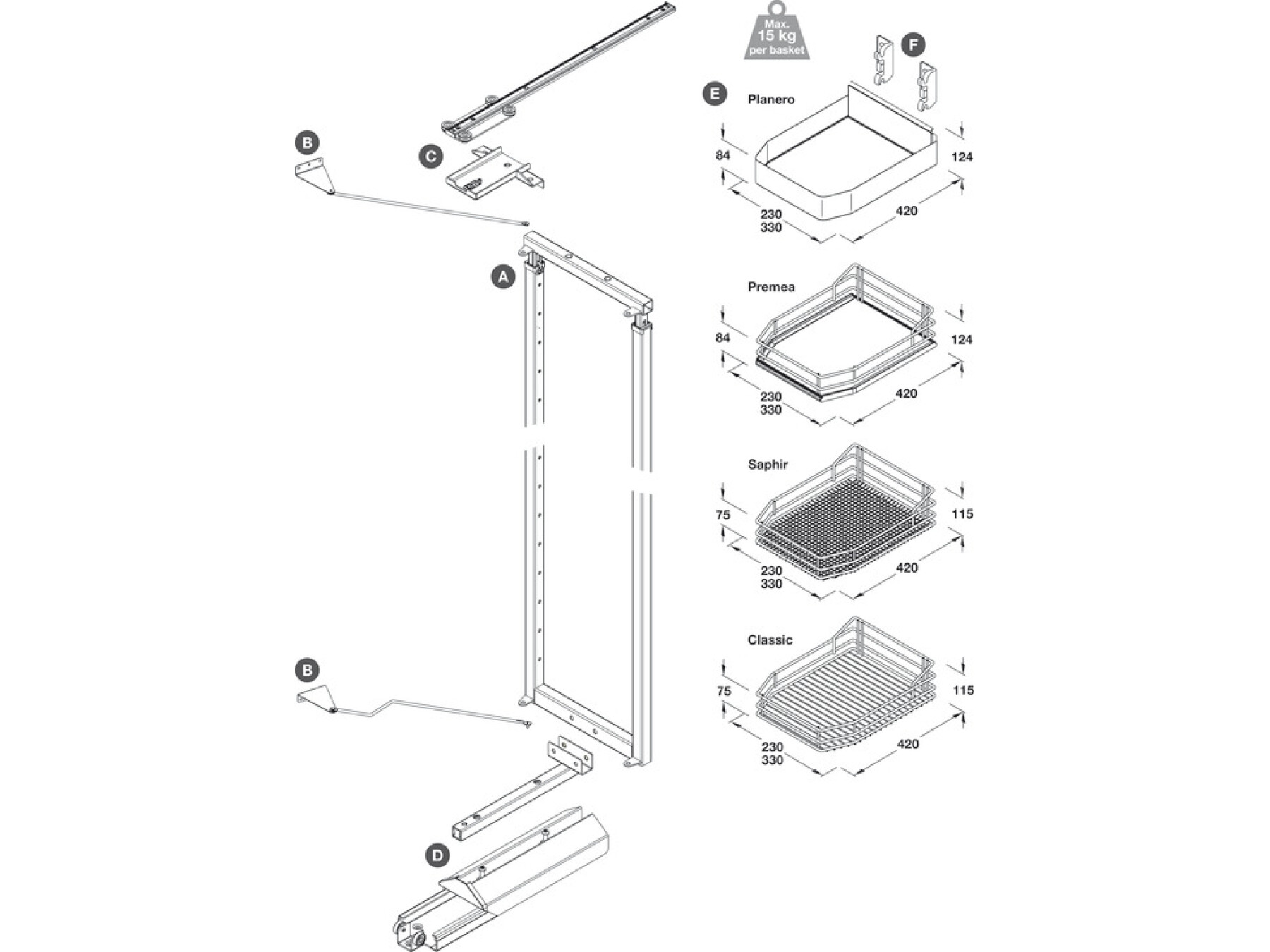

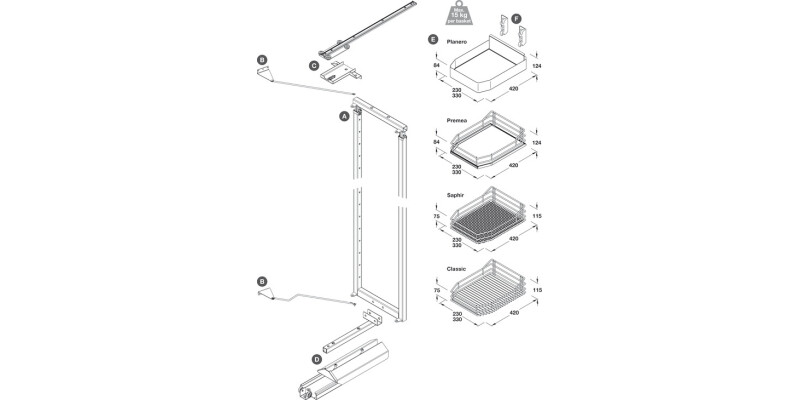

What is included in the box, and do I need extra parts?

The unit is supplied with a frame set, runner set, and basket set, plus fixings. However, recommended hinges are not included, so you will need to select suitable hinges for your door style.

What hinge types are recommended, and is soft closing possible?

Wide angle 160º hinges are recommended for correct door operation. If you want soft closing, you will need to use hinges with a damper, as soft close performance depends on the hinge set you choose.

How do I confirm the height range during planning?

Installed height should be set between 1700 mm and 1950 mm. Because it is height adjustable, you can align the unit to your existing cabinet and floor to underside of worktop or header space, helping you avoid misalignment issues at installation.

How long is the warranty for this tall larder unit?

It comes with a 10 year warranty. This long coverage period is helpful for long term kitchen planning when you want storage that stays dependable day after day.
