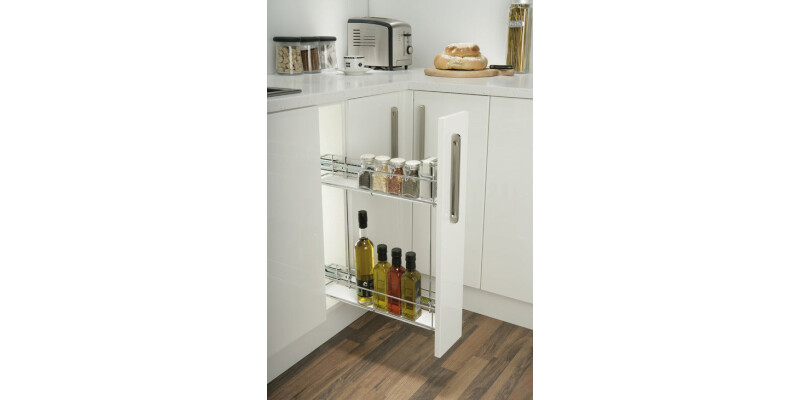

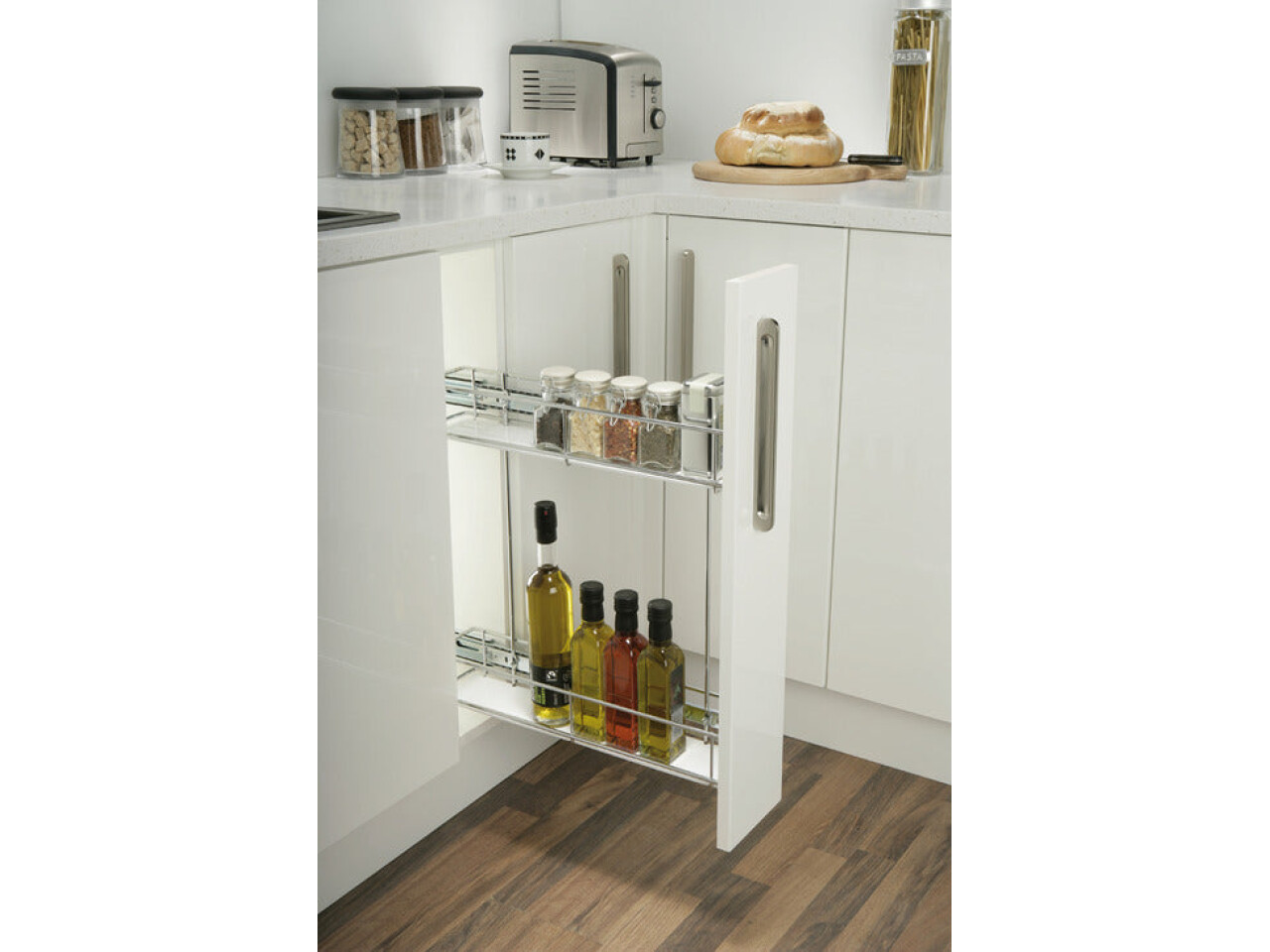

PO Baskets 2-Tier 150mm RH SC Chrome
Part Number: 545.25.200
Art. no. 545.25.200
Price:
£66.98
Per Item
Manufactured in the U.K. Supplied with 1x Hanging frame, right handed2x Storage baskets2x Ball bearing runners... Read More
Product Information
Product Details
Manufactured in the U.K.
Supplied with
1x Hanging frame, right handed
2x Storage baskets
2x Ball bearing runners with integrated soft close mechanism
2x Door brackets
Fixings
Base inserts shown in photo are not included
Specifications
For cabinet width
≥150 mm
Colour/finish
Storage baskets, hanging frame and door brackets: Chrome plated
Runners: Galvanized
Mounting
Side mounting
Version
Side mounting
Single extension
Linear wire baskets
Soft closing
Area of application
Base unit for door front fixing
Type of pull out
Single extension
Load bearing capacity
10.00 kg
Installation Height
477.00 mm
Installation depth
481.00 mm
Material
Steel
Installation
Screw fixing
Soft closing mechanism
Yes
Suitable for
Narrow unit storage
Features
Linear wire baskets
Order reference
Order inserts separately, white or black acrylic
