Counterbalancing Mechanism St/Pl
Part Number: 442.09.903
Holds shutter in position, Maximum shutter travel 1.6 m
Price:
£42.39
Per Item
Plastic fittings and tracks to create tambour doors, with stainless steel top trimFor cabinet door requirements... Read More
Product Information
Product Details

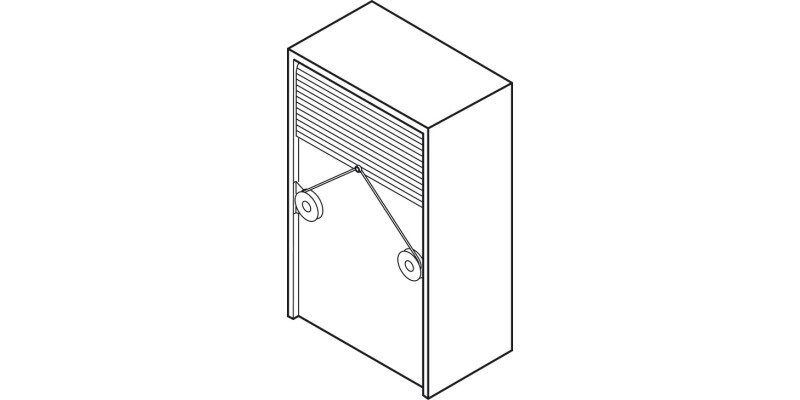

Plastic fittings and tracks to create tambour doors, with stainless steel top trim
For cabinet door requirements where space is at a minimum
The door shutter folds away neatly and is concealed when open
Maximum height 1.2 m
If height is over 1000 mm then width must be no more than 600 mm
If width is over 800 mm then height must be no more than 600 mm
Please also use adhesive tape at 200 mm centres for added strength
Installation note

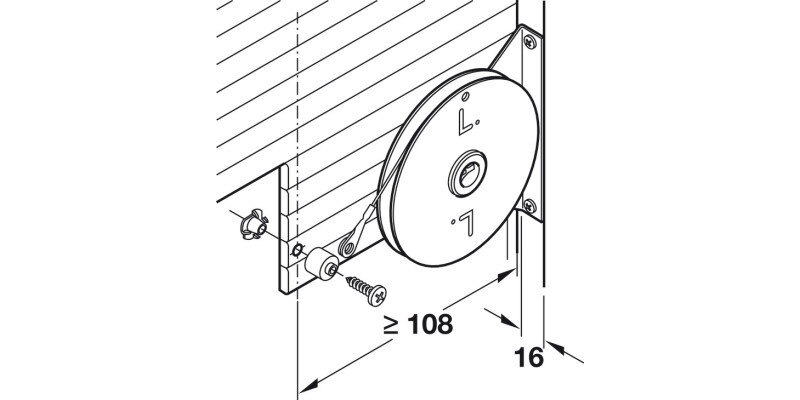

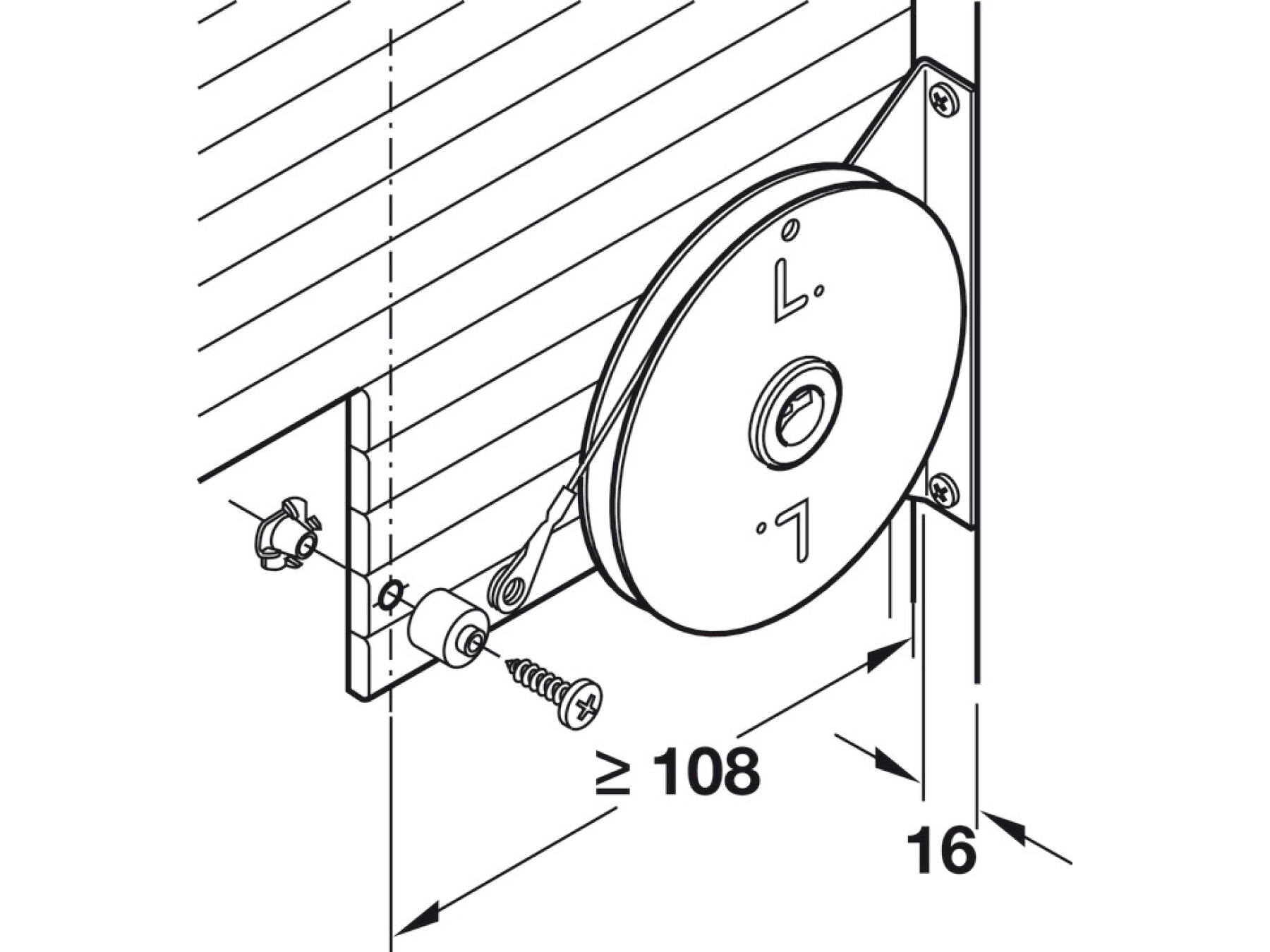

The mounting position depends on the size of the roller shutter.
Please follow the installation instructions.
The cables must be installed in the centre of the lower edge of the tambour door.
Supplied with

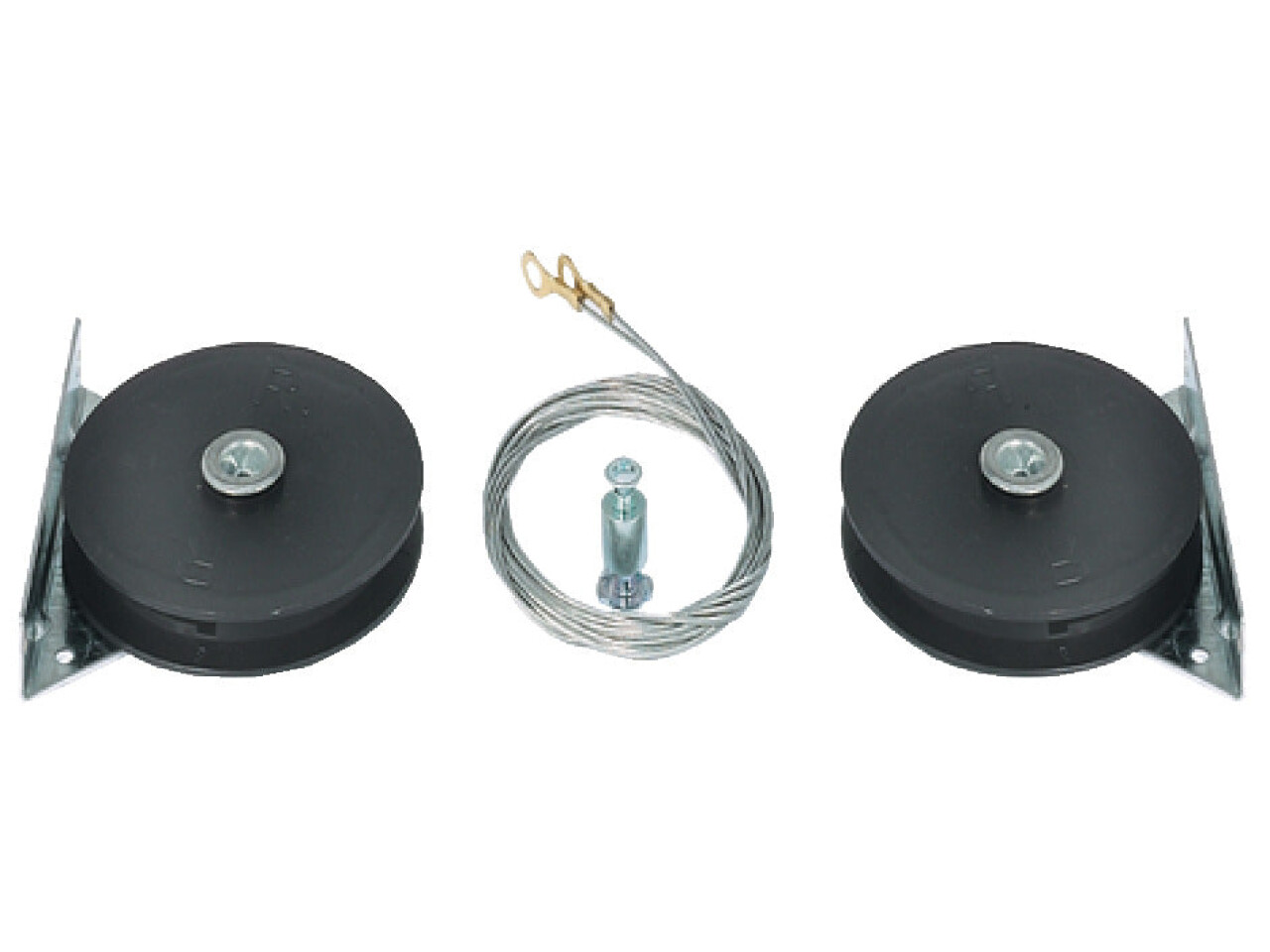

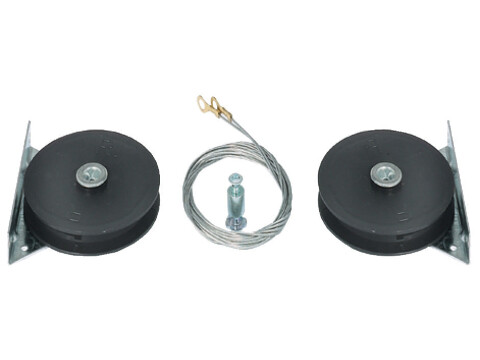

Comprises

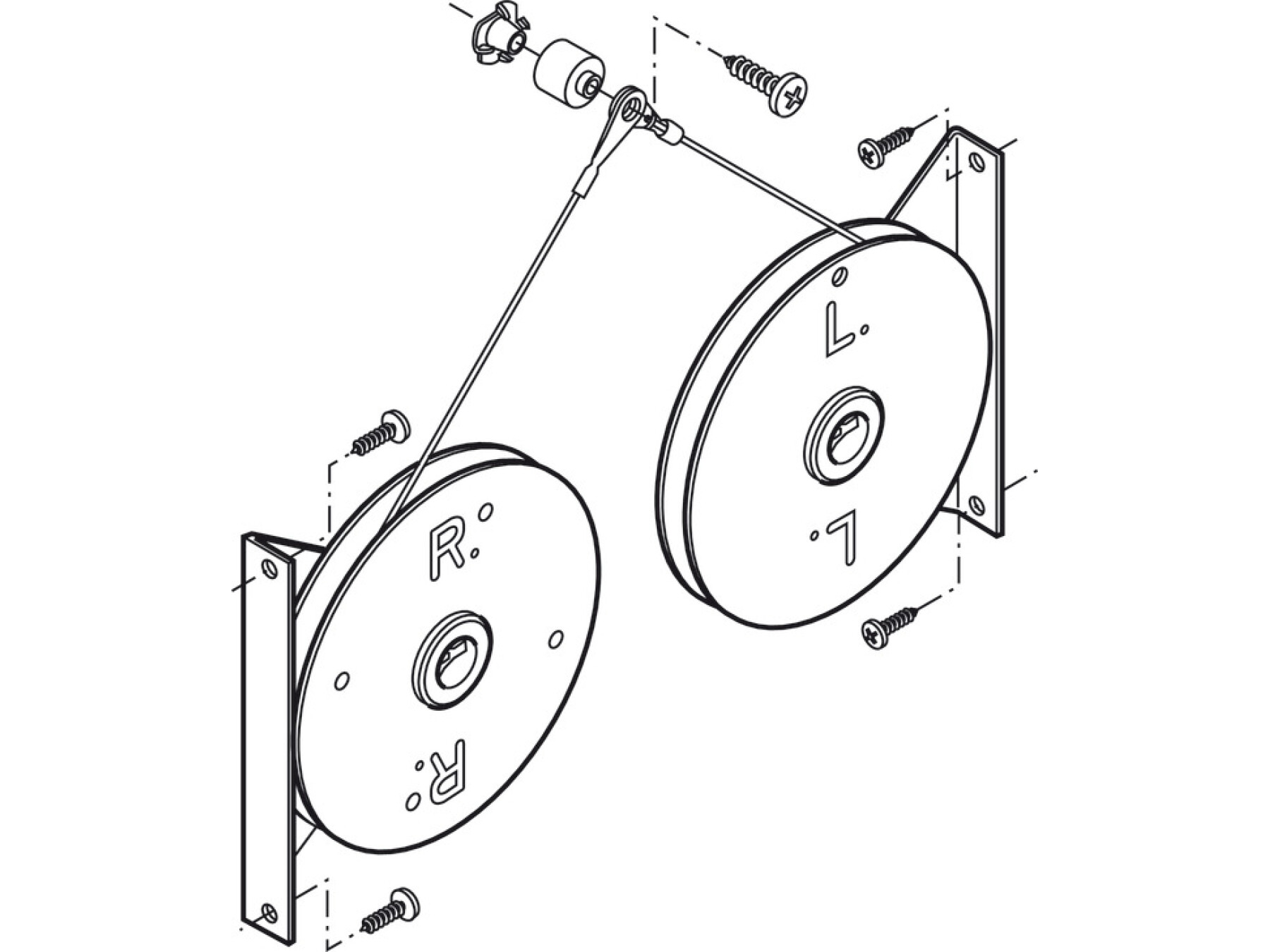

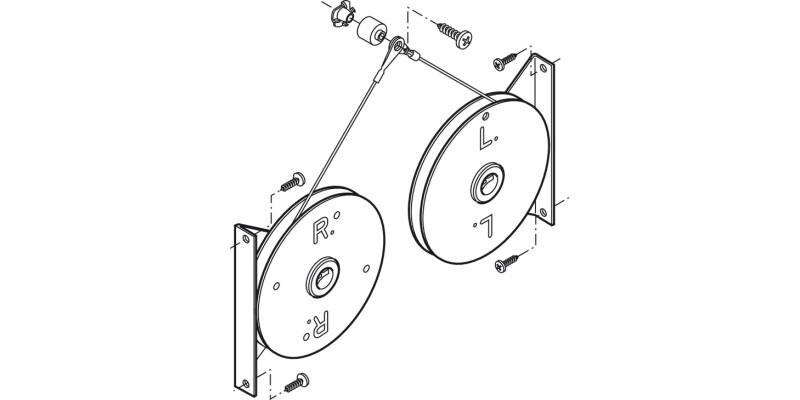

1 x Pair counterbalancing drums
2 x Steel cables, each 1.6 m long with fastening eyes
1 x Kit of fastening materials
1 x Mounting instructions leaflet
The mounting position depends on the size of the roller shutter.
Please follow the installation instructions.
The cables must be installed in the centre of the lower edge of the tambour door.
Specifications
For roller shutter weight
≤6 kg
Cable length
1,600.00 mm
Area of application
Roller shutter doors
For roller shutter width
216 – 1,000 mm
For roller shutter length
≤1,800 mm
Material
Fitting and cable: Steel, drums with spring: Plastic
Colour/finish
Fitting: Galvanized, drums: Black
Order reference
Tracks and fittings to be ordered separately
