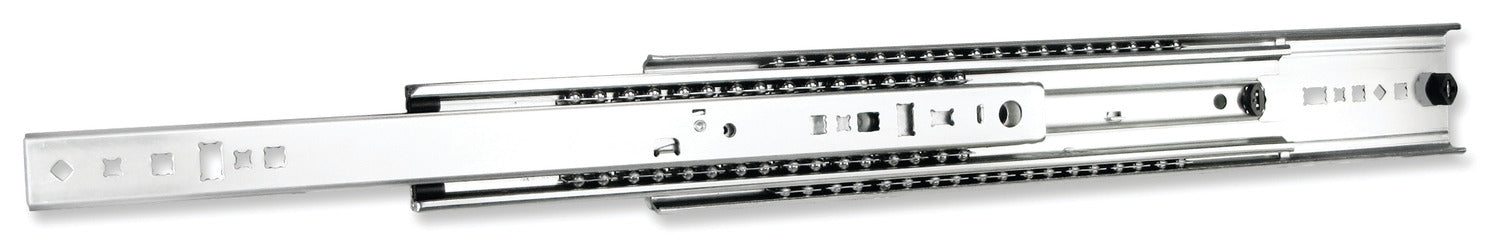

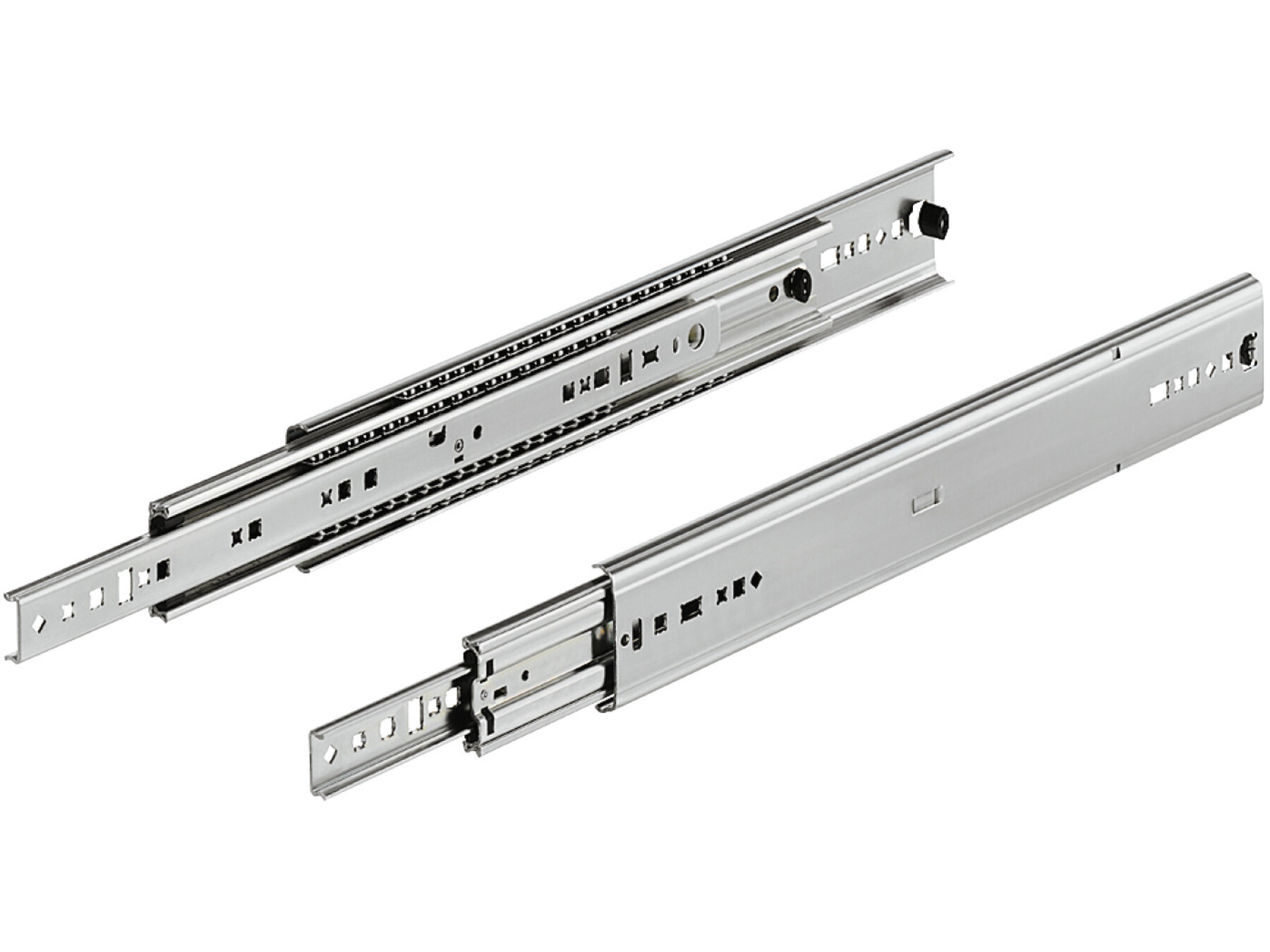

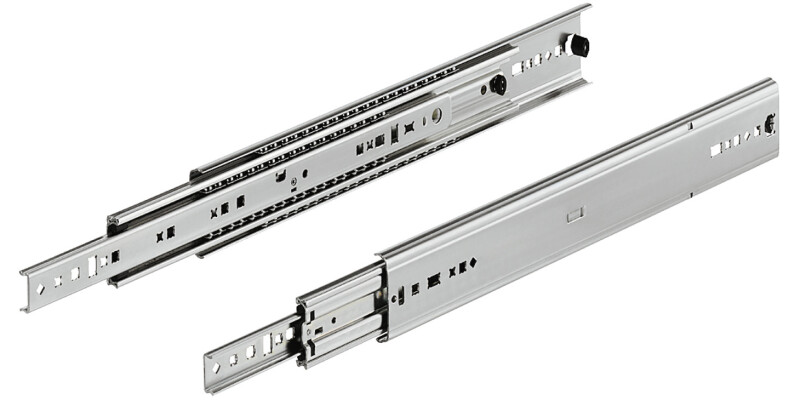

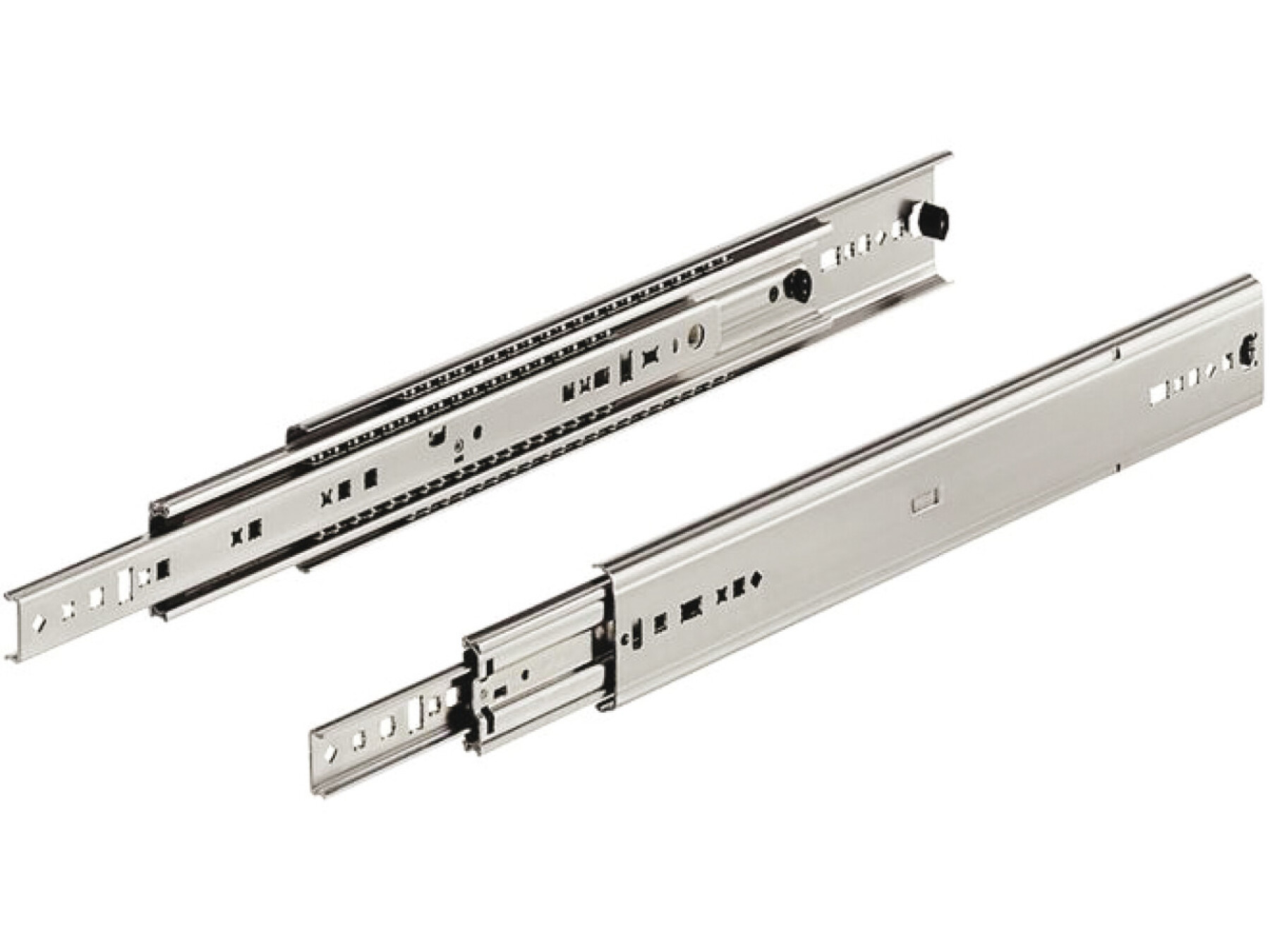

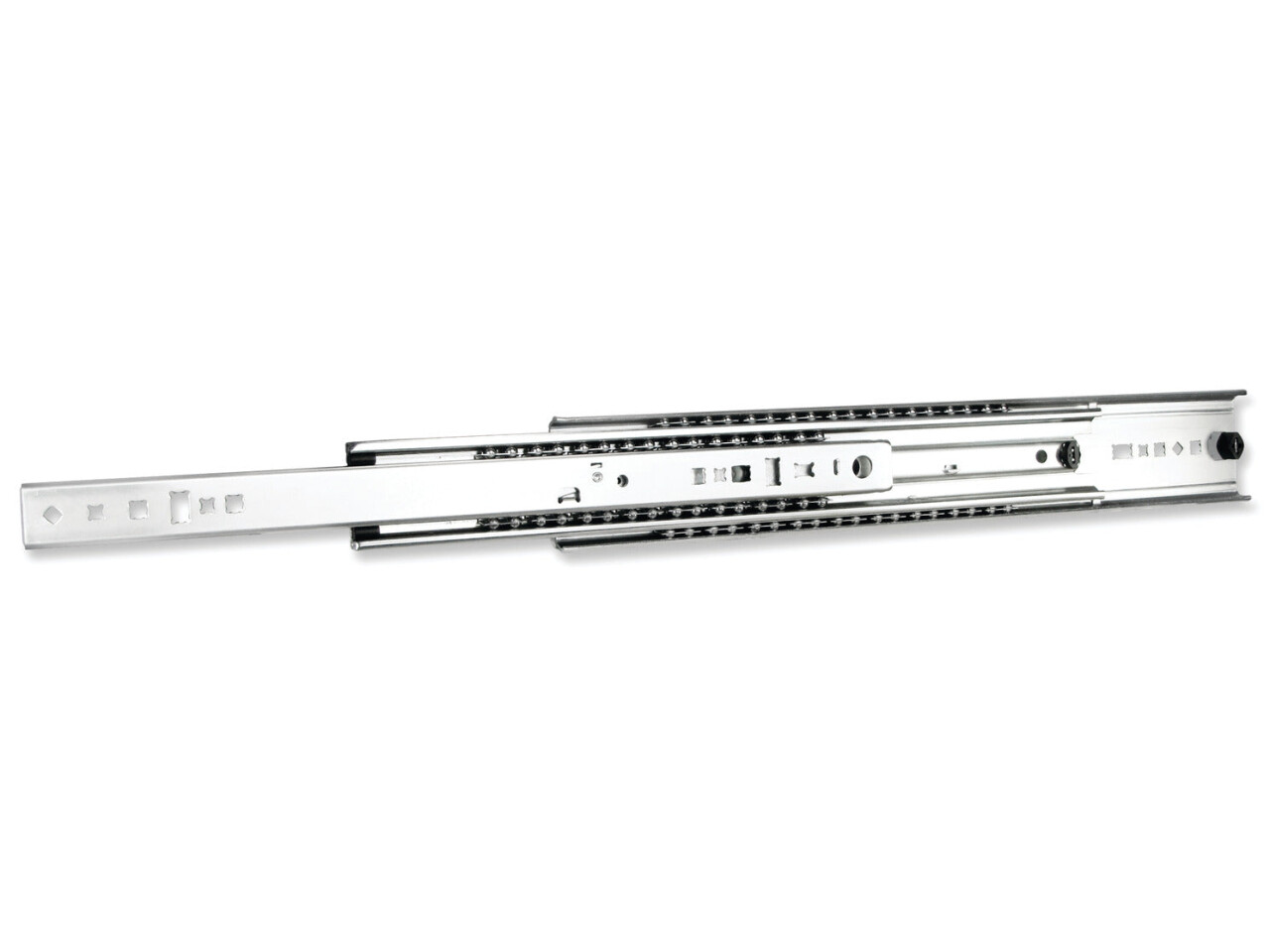

7957 BB Drawer RunnerFull 150kg 407mm St Galv
Part Number: 432.48.841
Installed length 407 mm, load capacity 150 kg
Price:
£68.52
Per Item
Flat mounting the runner under the drawer will reduce the weight capacity to 25% Order reference Mounting... Read More
Product Information
Product Details

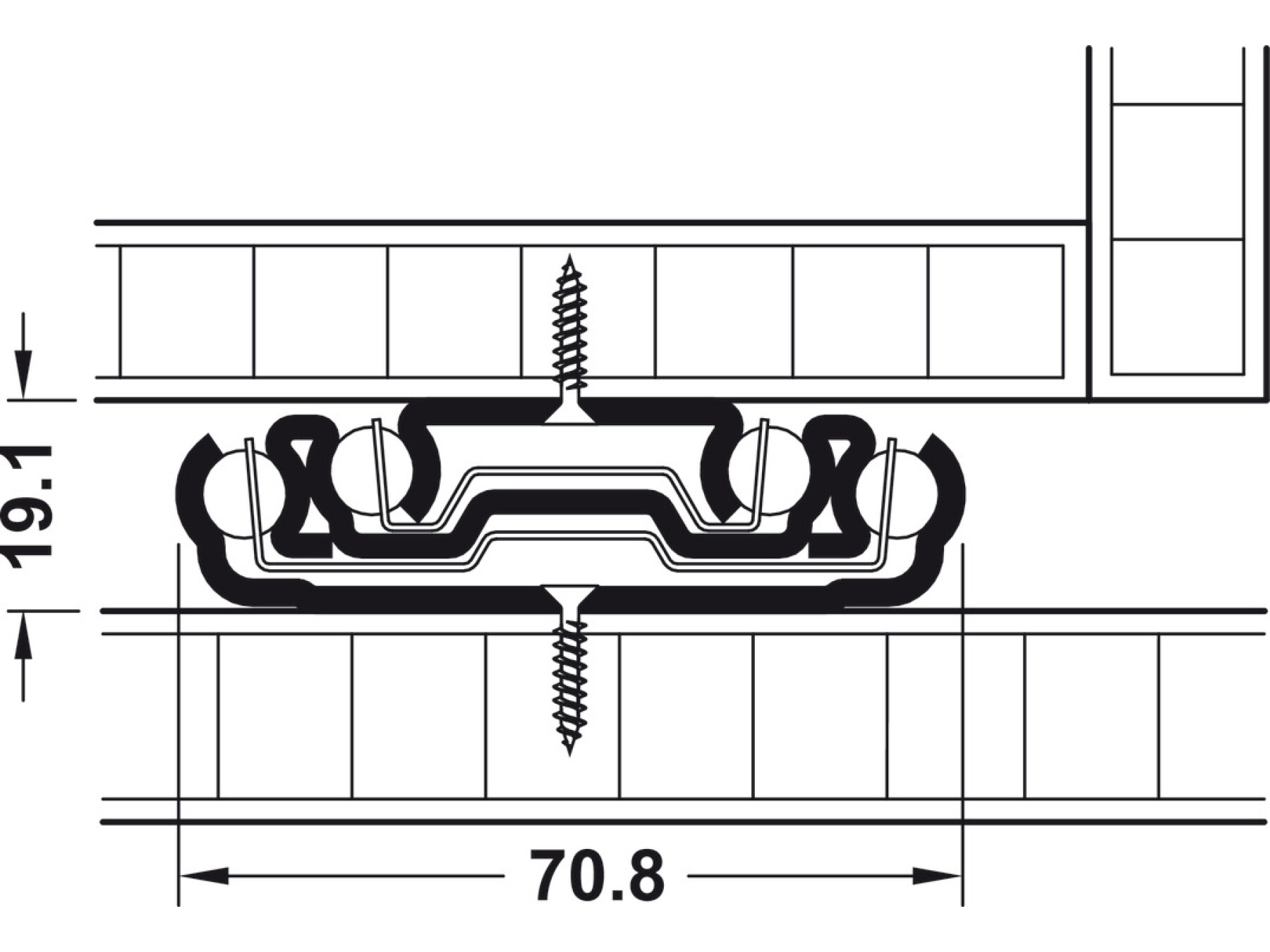

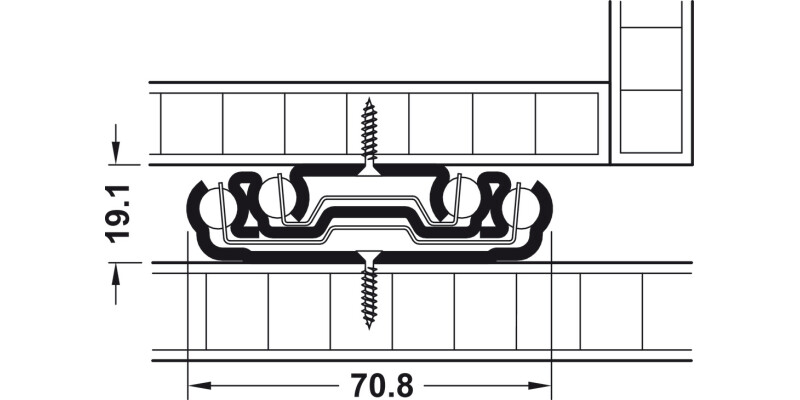

Flat mounting the runner under the drawer will reduce the weight capacity to 25%
Order reference
Mounting brackets available, please order separately
Order Varianta Ø 5 and Hospa Ø 5.0 countersunk screws separately
Weight limit per pair based on length, weight limits reduce by 75% if flat mounted
We recommend that a centrally positioned pull handle is used on wide drawers
Specifications
Mounting

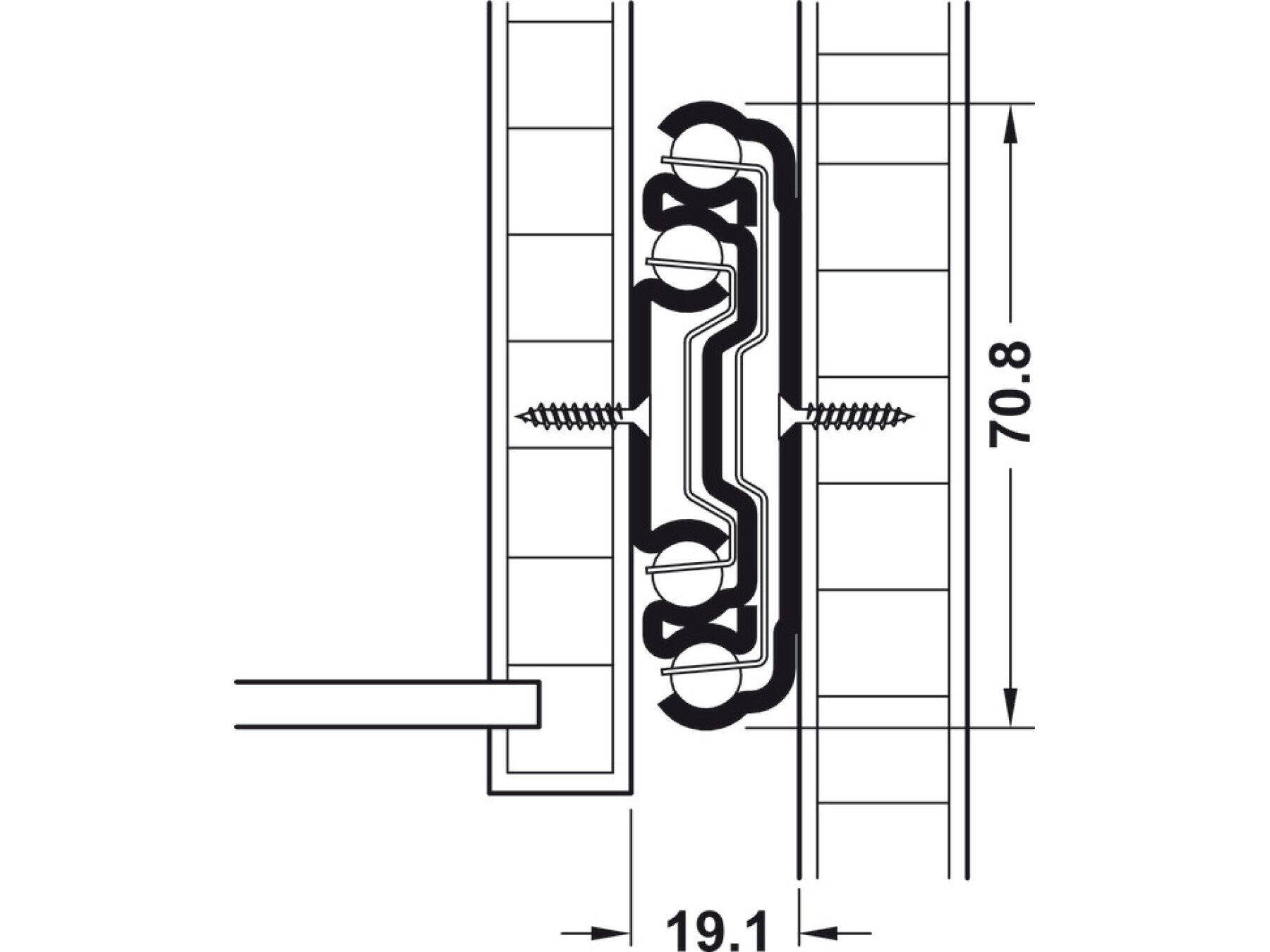

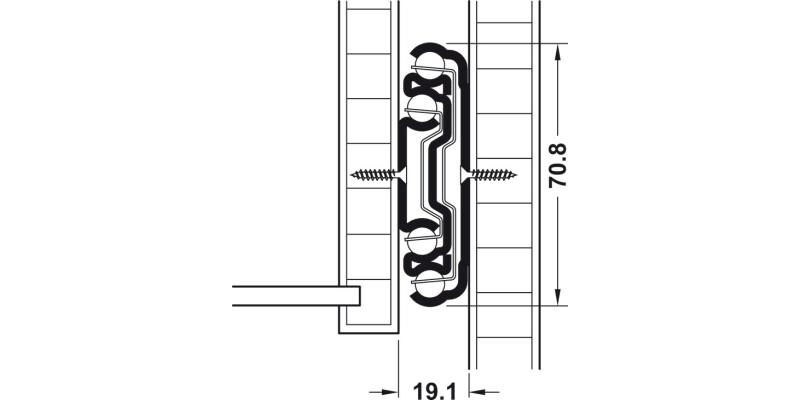

Can be used on both sides
Version

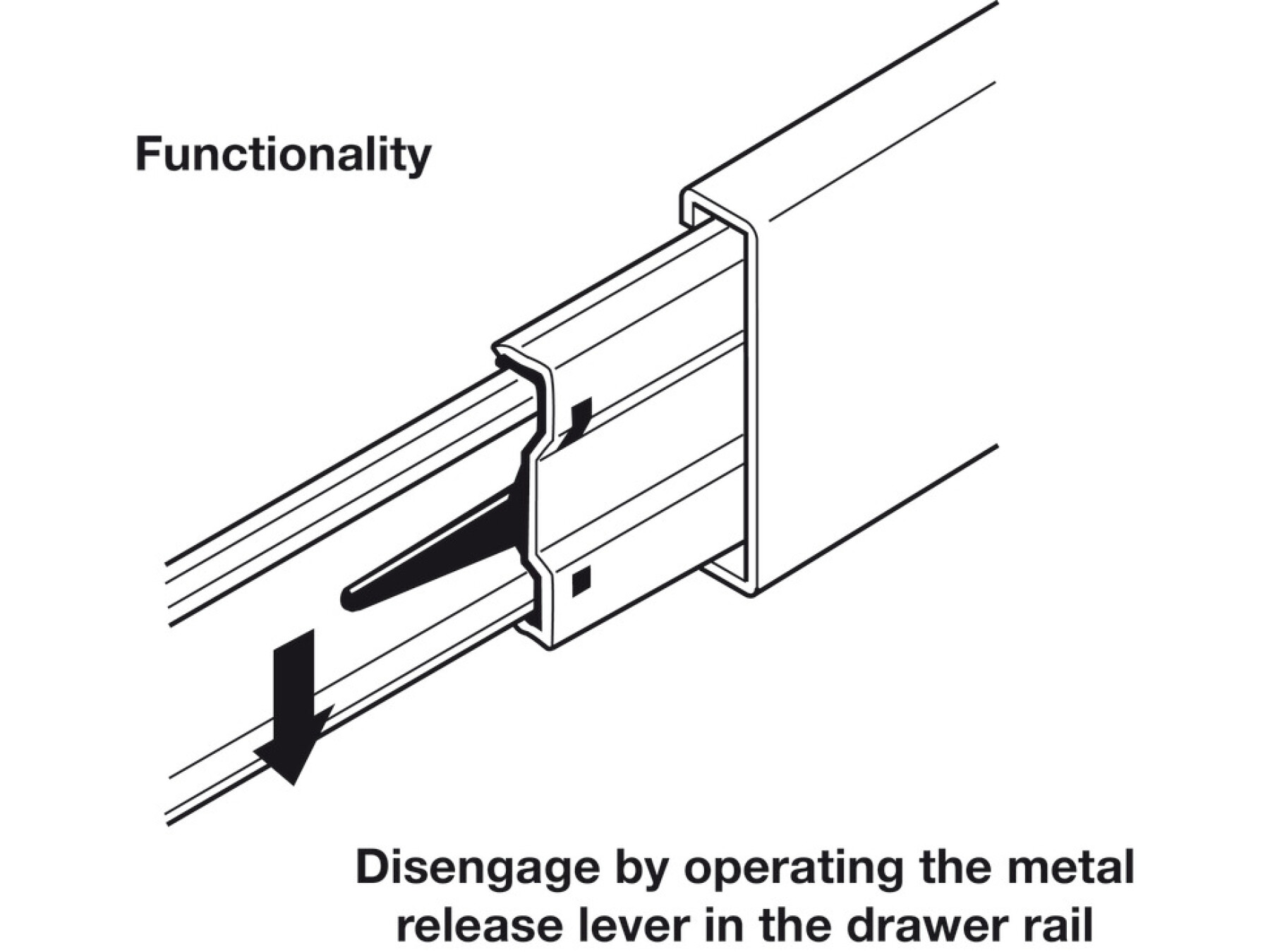

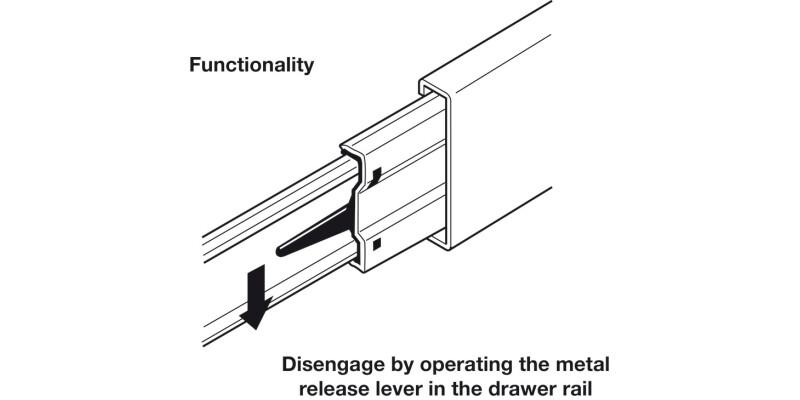

Can be removed using release lever
Bridged ball retainer prevents retainer migration
Colour/finish
Zinc plated, Galvanized
Model
7957
Type of pull out
Full extension
Area of application
For right and left hand use
For drawers up to 1,000 mm wide
Drawer removal
With release lever
Material
Steel
Installation

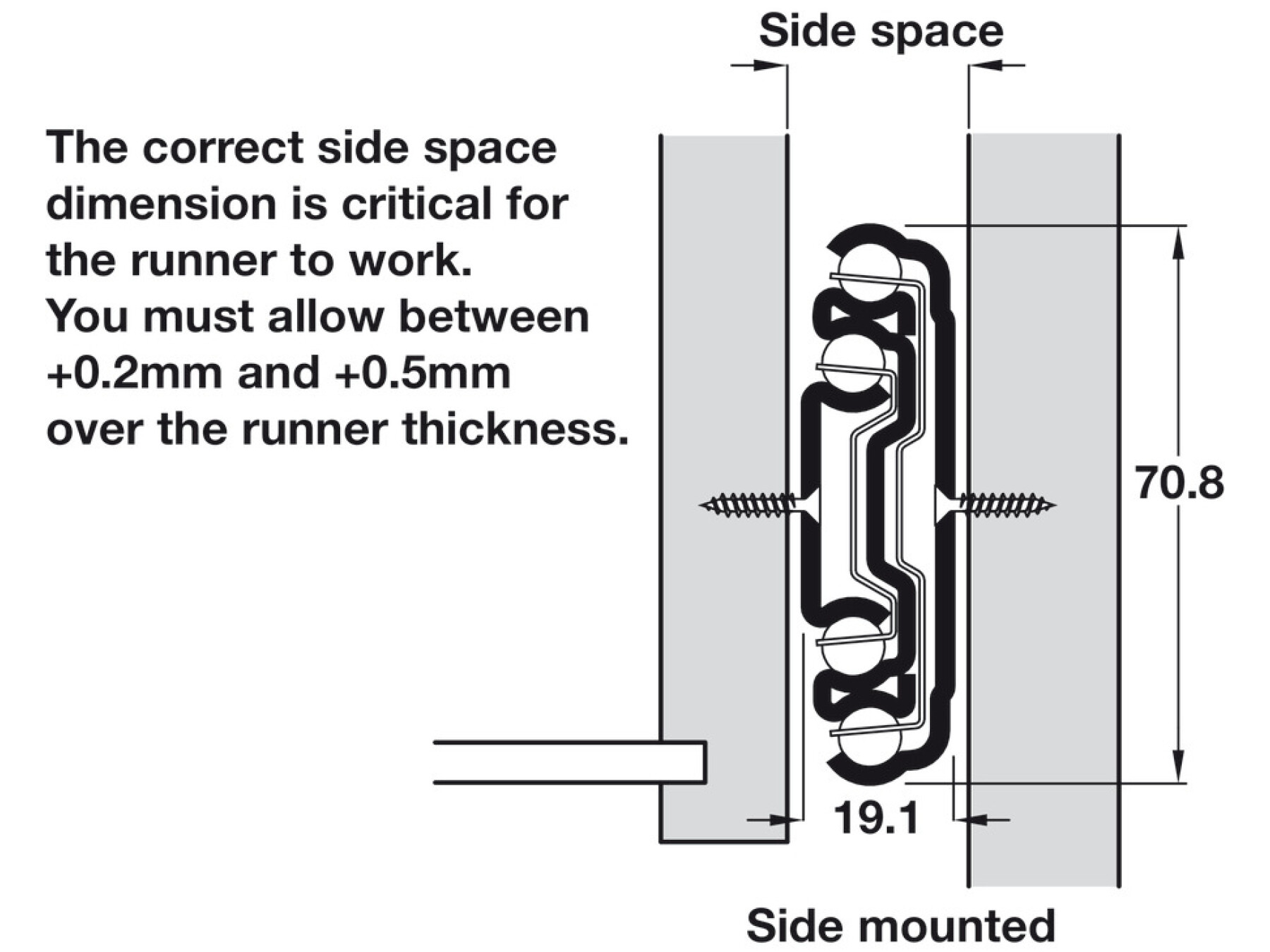

For screw fixing to cabinet, drawer or shelf, side or base mounted using brackets
