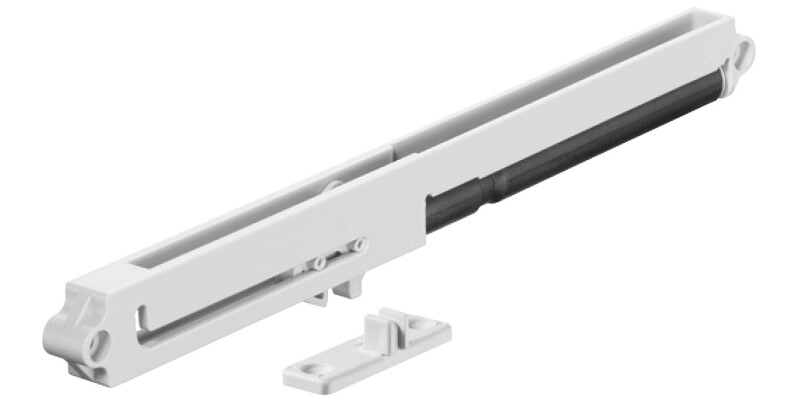

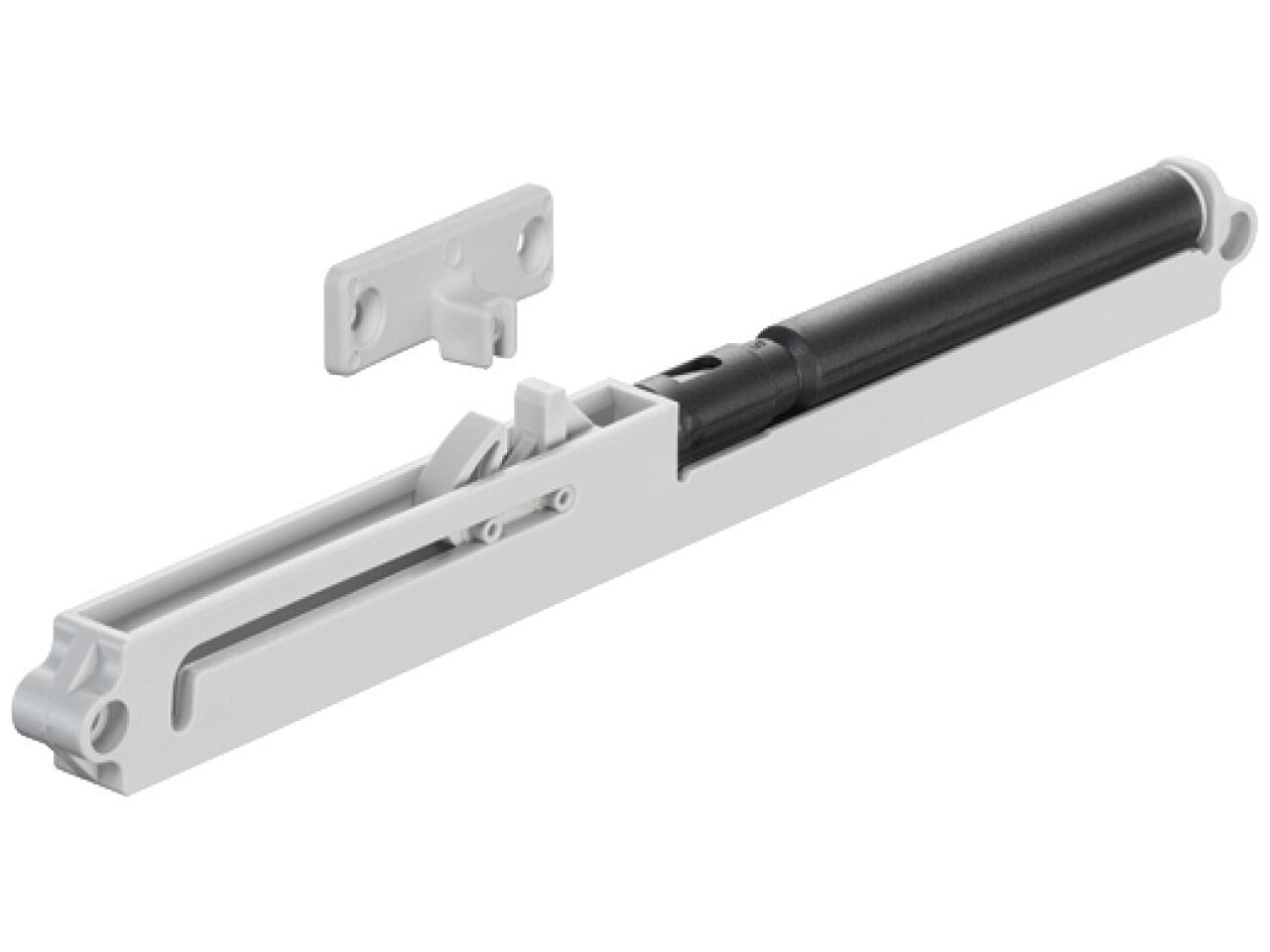

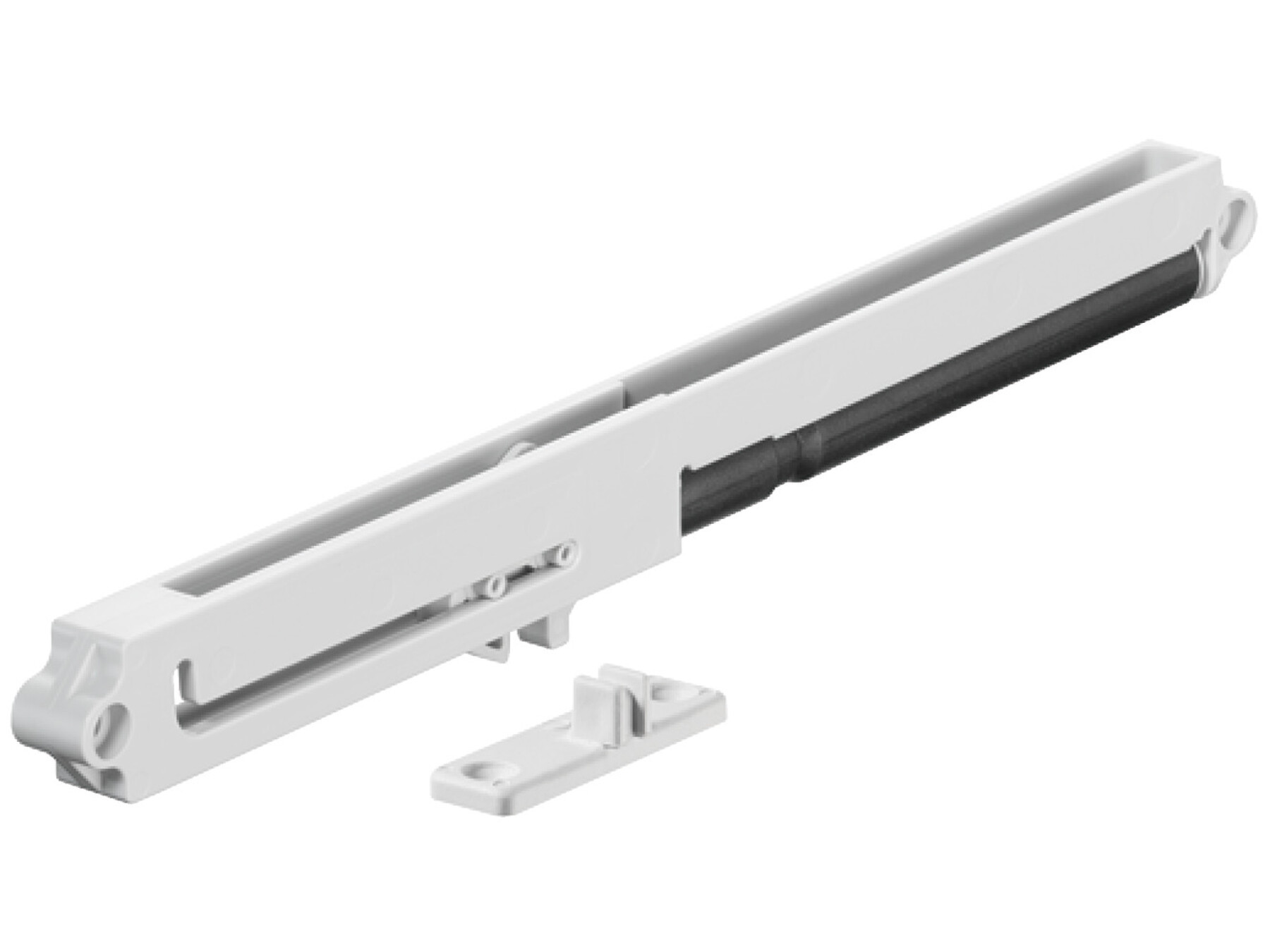

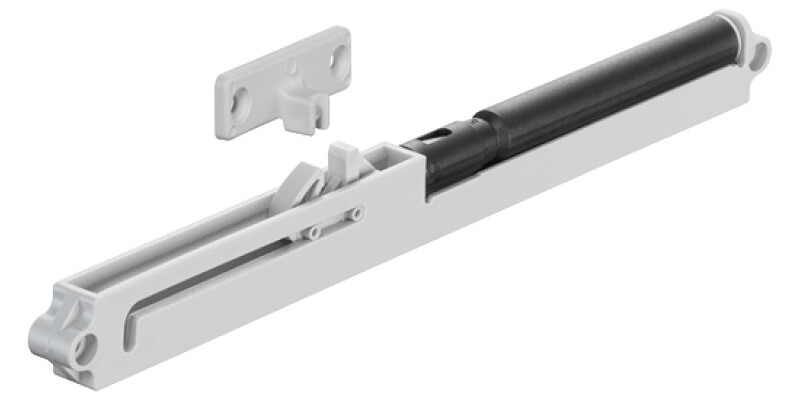

Smuso Soft/Self Close Mech-Wood Gry/Blk
Part Number: 432.13.507
For use on drawer runners, with follower for wooden drawers
Price:
£2.73
Per Item
Area of application For use on roller runners, ball bearing runners without retainer retention or groove... Read More
Product Information
Product Details
Area of application
For use on roller runners, ball bearing runners without retainer retention or groove mounted runners
Note on load bearing capacity
Load bearing capacity: useful load of 25 kg with one-sided installation
Load bearing capacity: useful load of 50 kg with two-sided installation

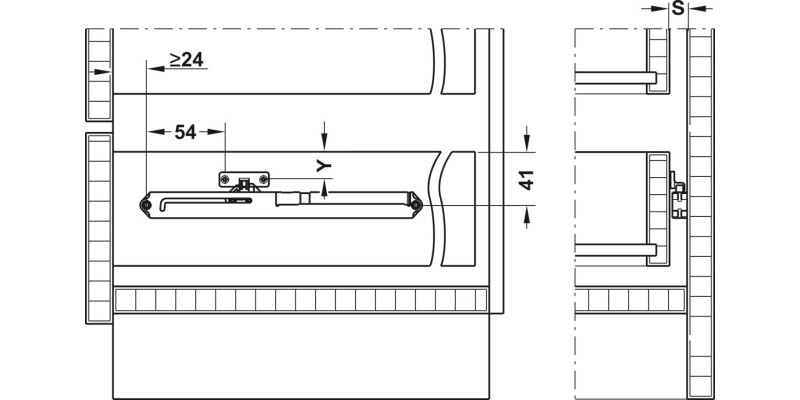

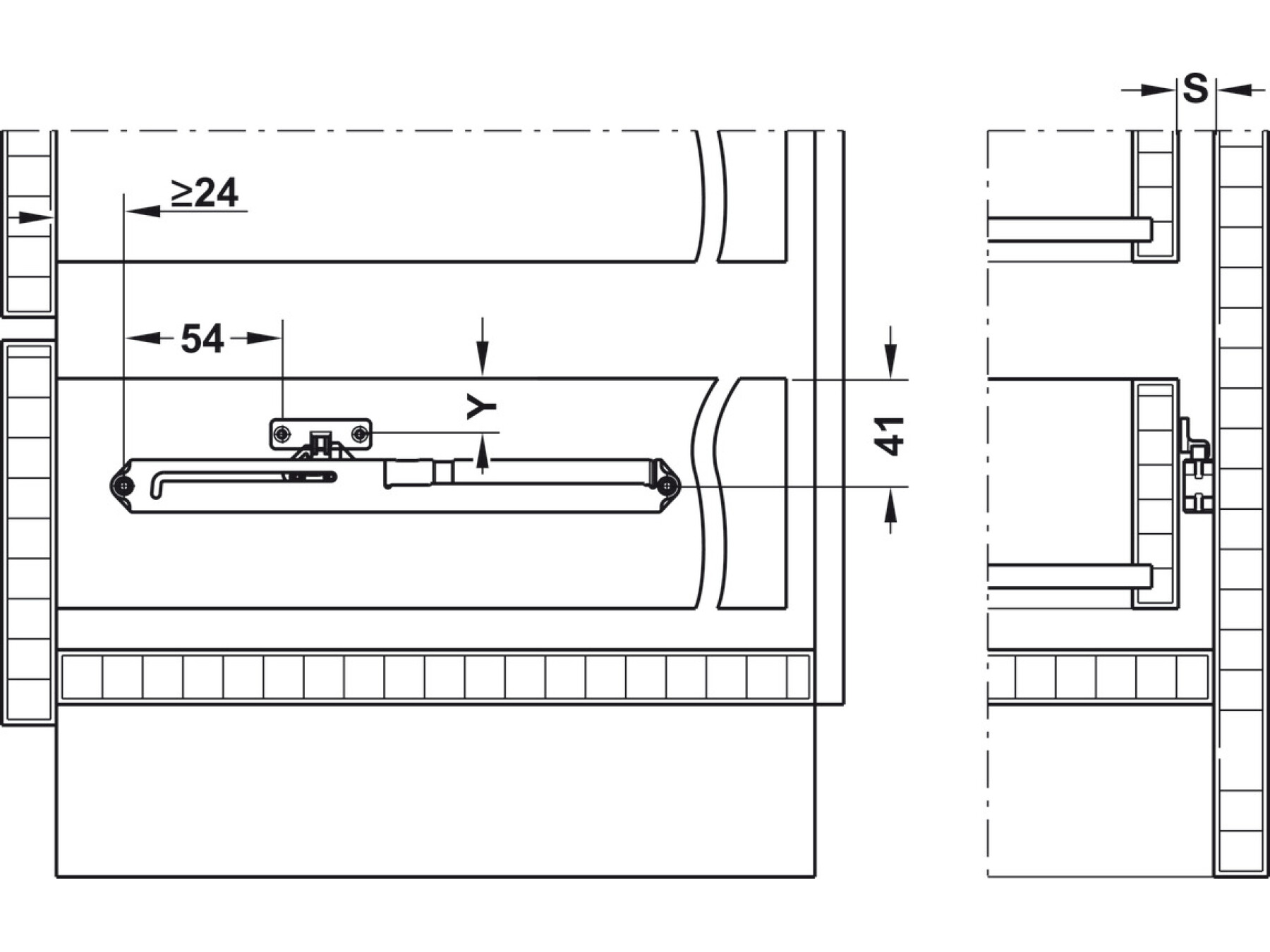

Installation
On one or both sides
Soft and self closing mechanism for screw fixing to cabinet side panel

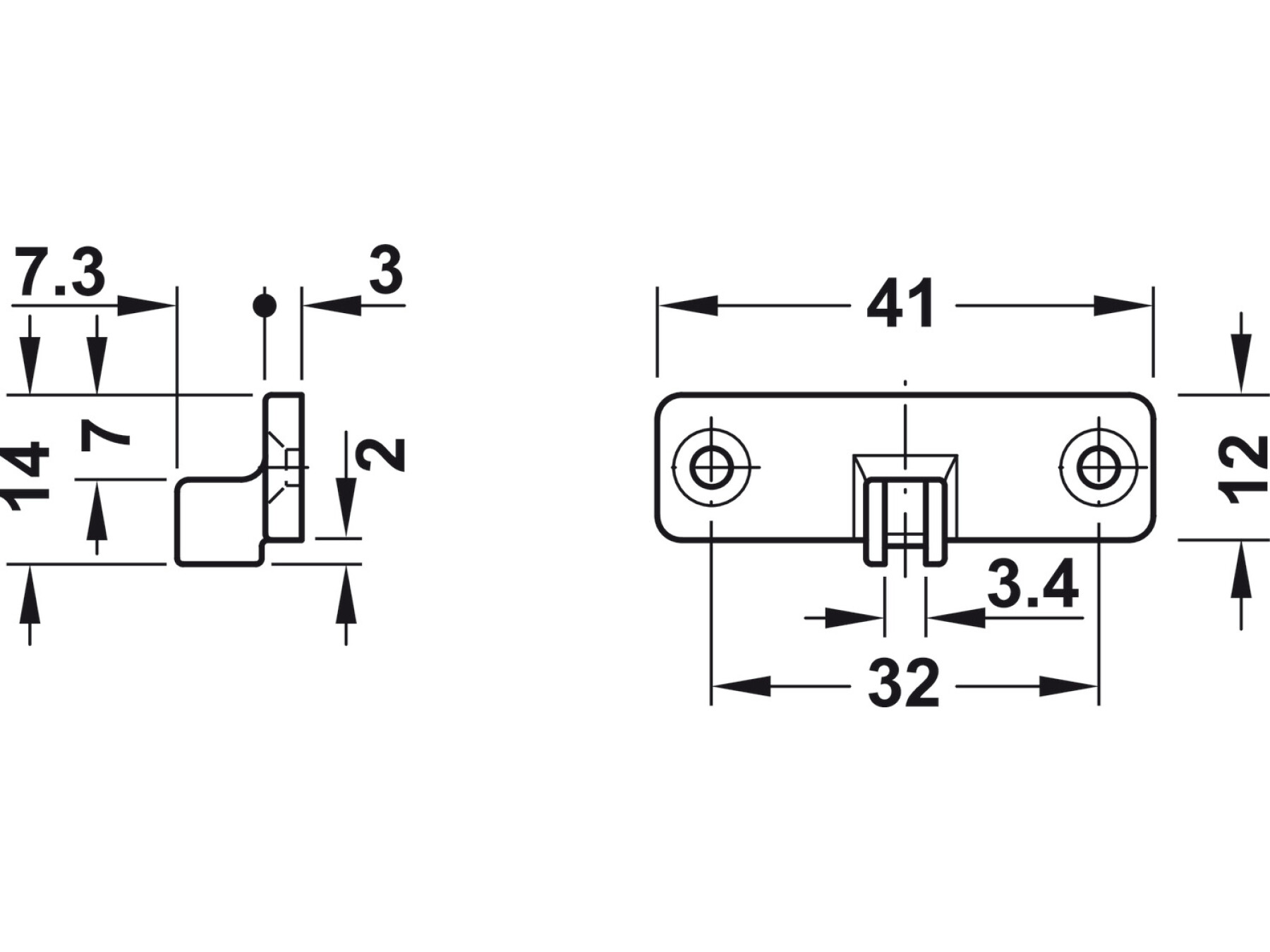

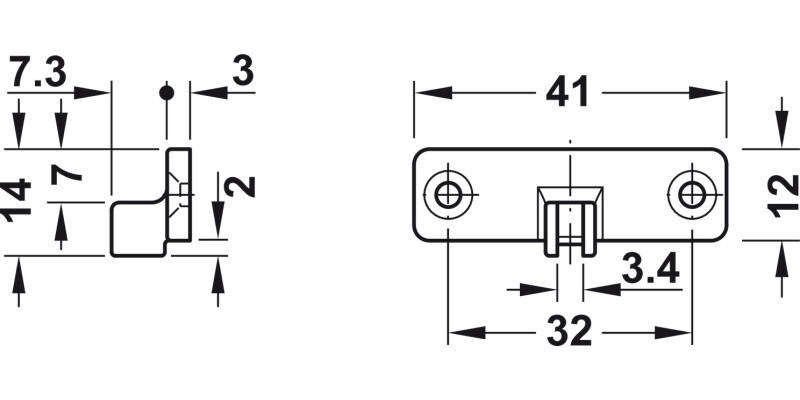

Follower for screw fixing to drawer side
The installation on one side or both sides is determined by the installation situation (width, depth, running properties and load bearing capacity of the runners)
Always use 2 soft closing mechanisms for drawers wider than 400 mm or if the drawer’s depth exceeds its width
Specifications
Material
Plastic
Colour/finish
Light grey and black
Load bearing capacity
50.00 kg
Installation note
Order reference
Order Hospa Ø 3.0 countersunk and Ø 3.0 pan head screws separately
Supplied with

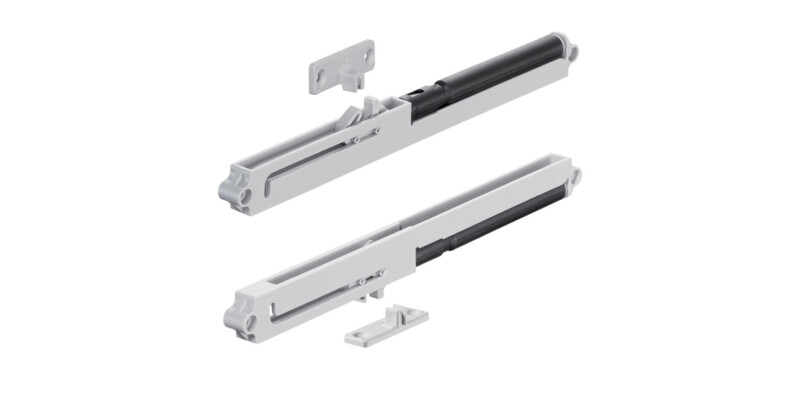

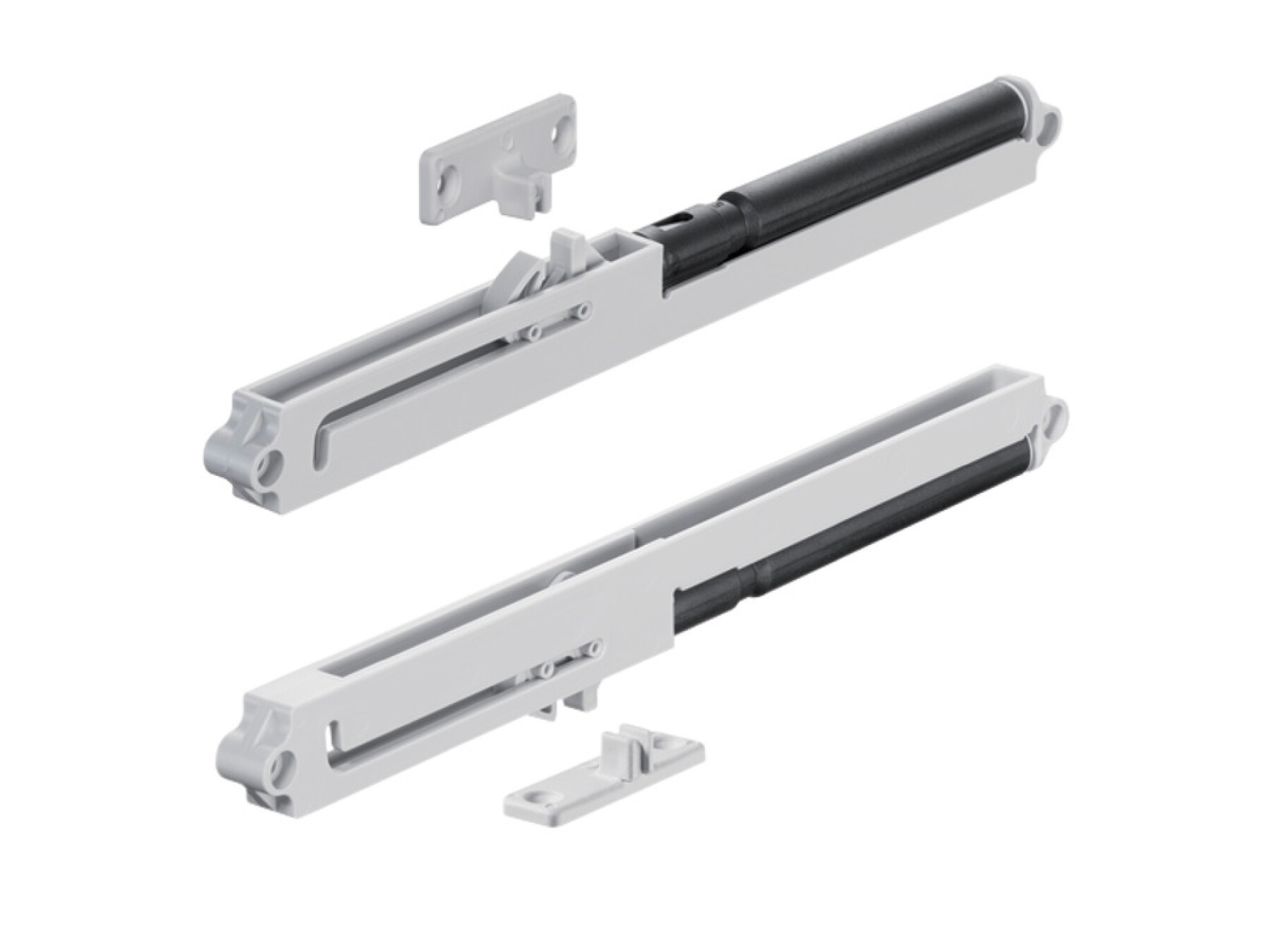

1x Soft and self closing mechanism
1x Follower
1x Set of installation instructions
