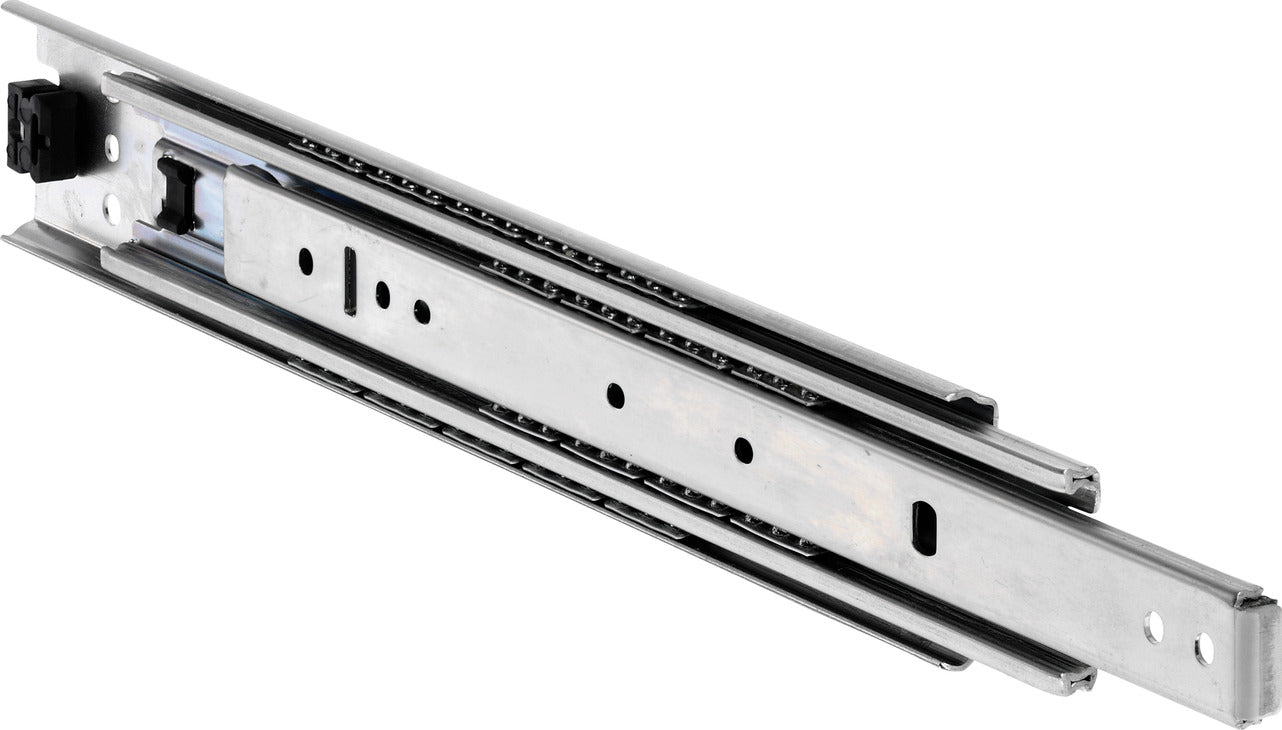

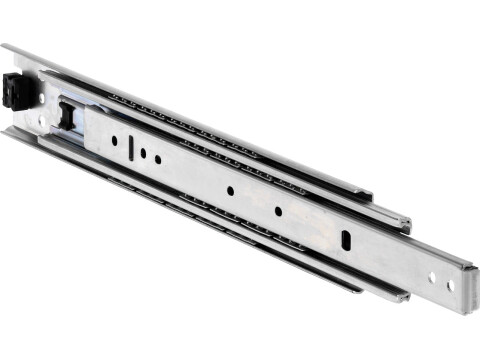

3301 BB Drawer Runner MD Full 67kg 356mm BZP
Part Number: 422.96.935
Installed length 356 mm, load capacity 67 kg
Price:
£470.43
Per 10 Pack
Hold-in feature holds the drawer inWeights limit per pair based on length, weight limits reduce by 75% if flat mounted
Product Information
Product Details
Hold-in feature holds the drawer in
Weights limit per pair based on length, weight limits reduce by 75% if flat mounted
Specifications

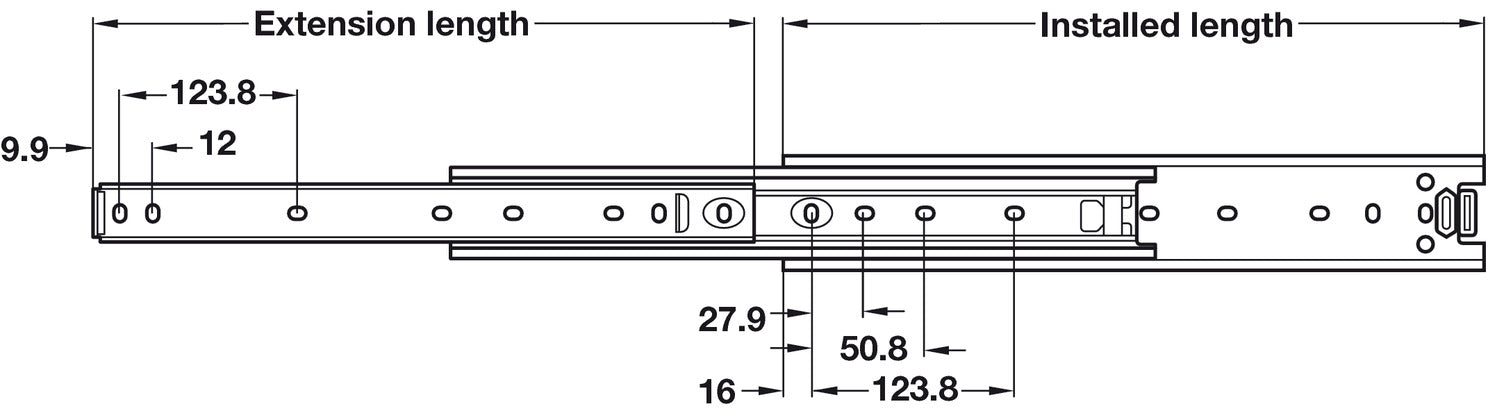

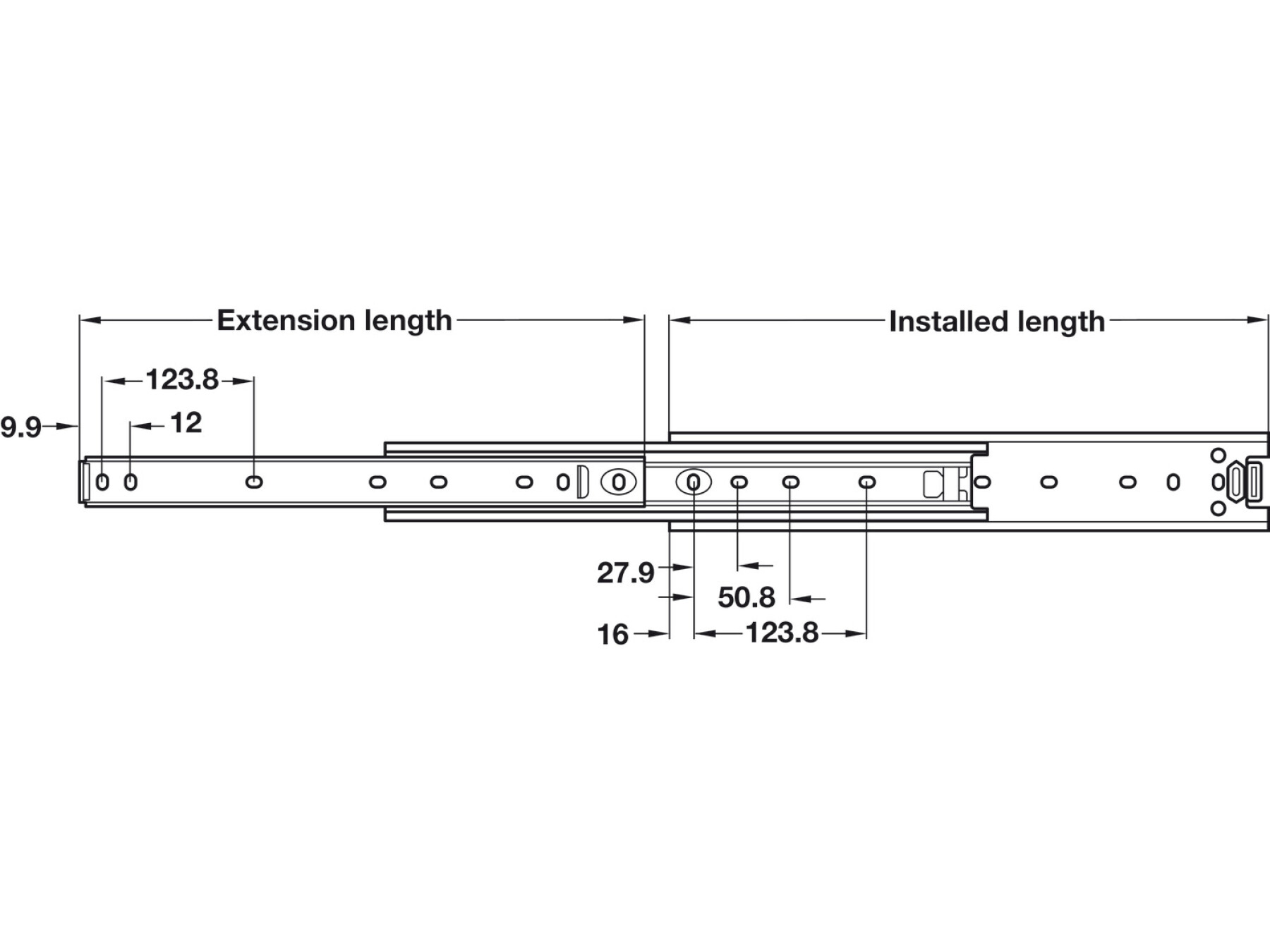

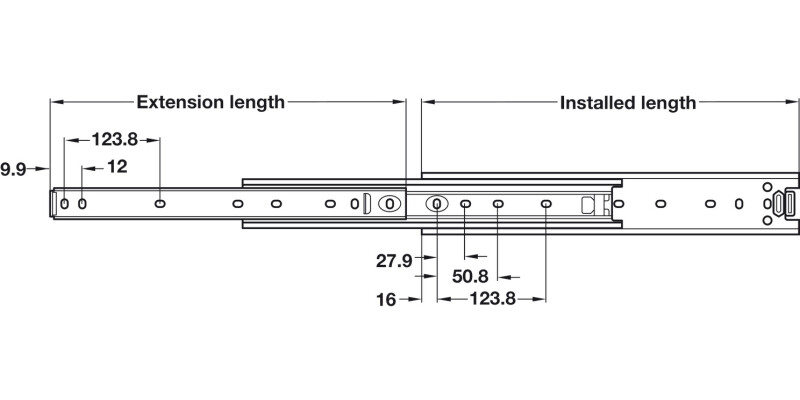

Installation length
356.00 mm
Extension length
381.00 mm
Load bearing capacity
67.00 kg
Colour/finish
Bright zinc plated
Model
3301
Type of pull out
Full extension
Area of application
Ideal for 19" racks and enclosures
Holding function
Hold-in
Drawer removal
without release lever
Material
Steel
Bearing
Ball bearing
Width
212.80 mm

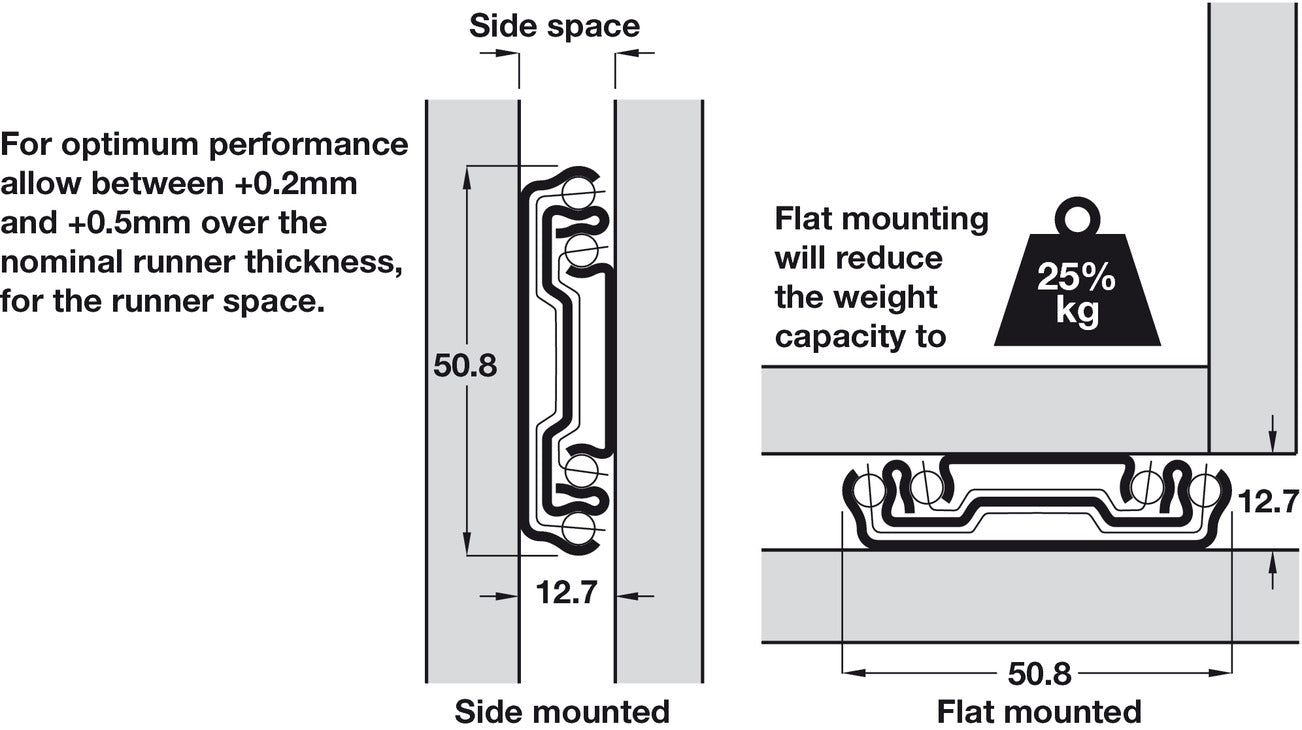

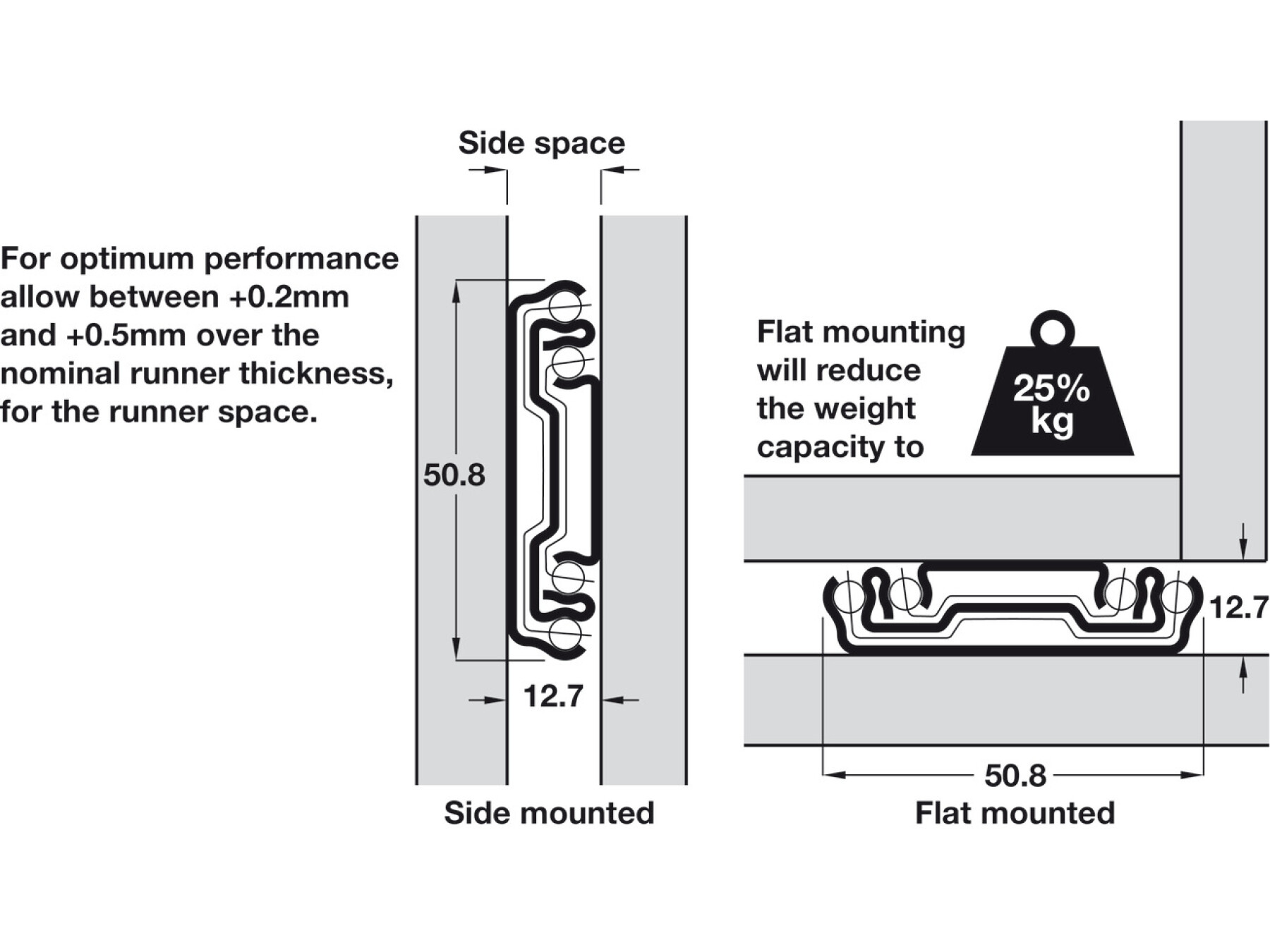

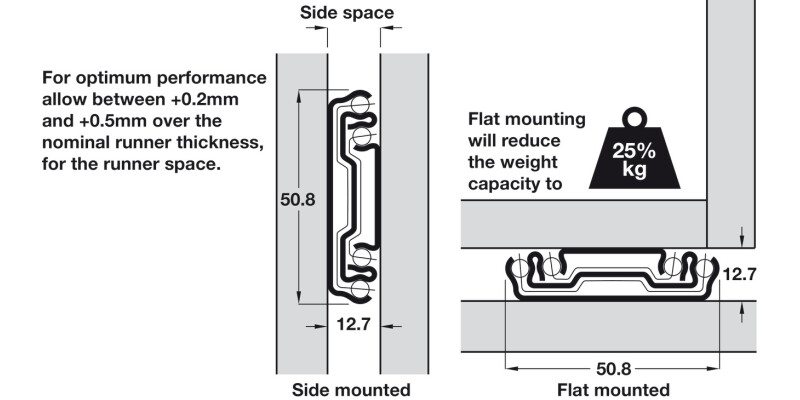

Installation
Side or flat mounted
Installation width 12.7 mm
Supplied with
Fixings
