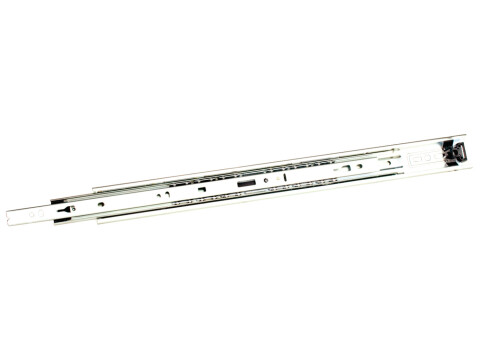

3732 BB Drawer Runner Full 40kg 600mm BZP
Part Number: 422.88.961

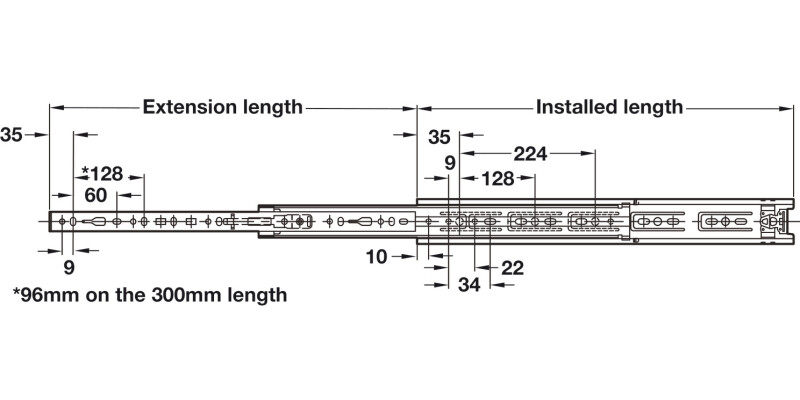

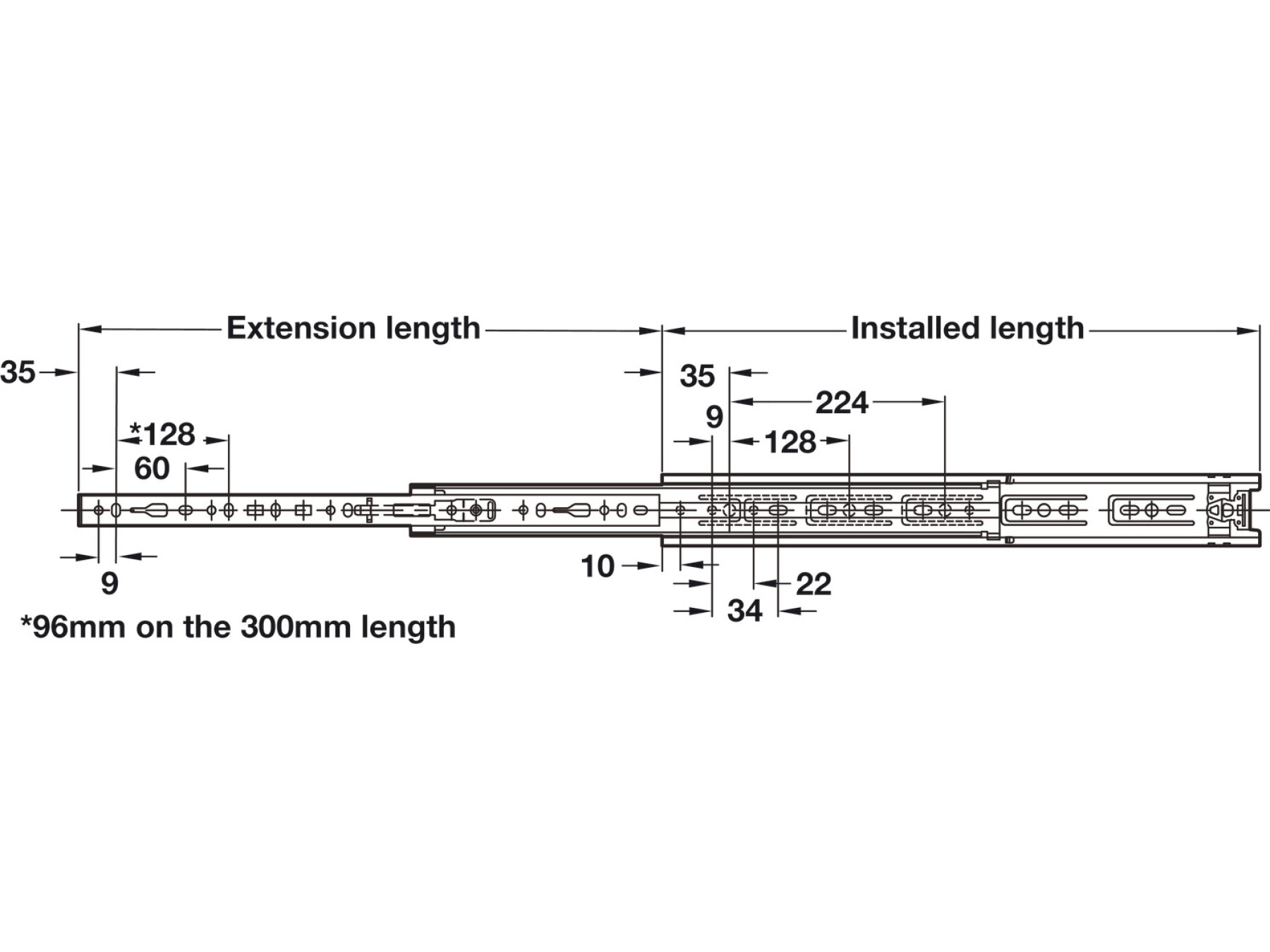

Installed length 600 mm, extension length 610 mm
Price:
£260.67
Per 10 Pack
12.7 mm slide thickness (14 mm with mounting bracket)Front disconnect (by depressing lever) for drawer... Read More
Product Information
Product Details

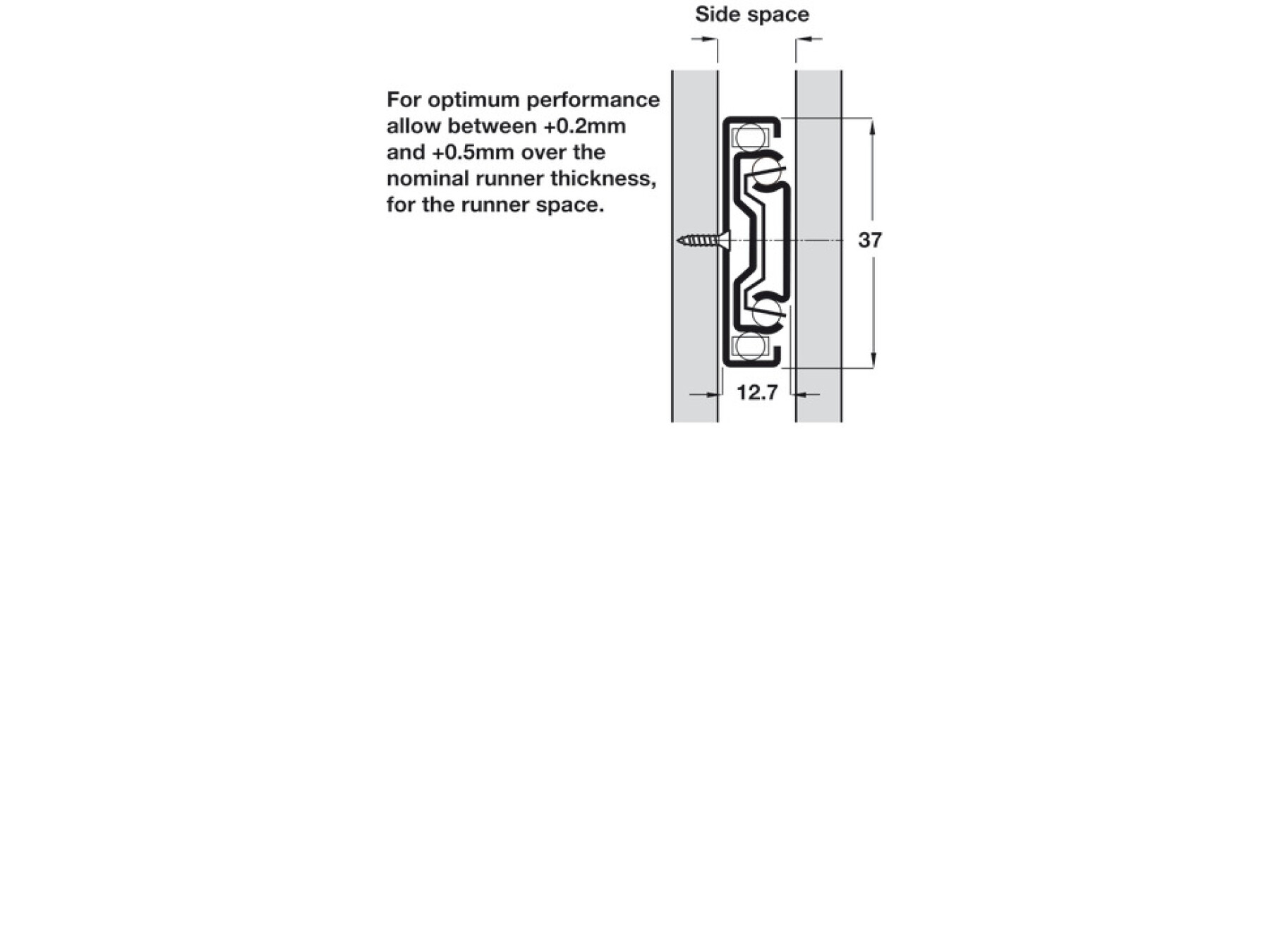

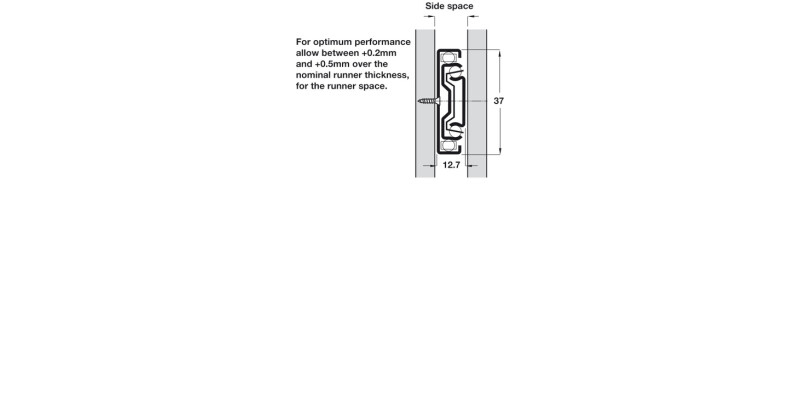

12.7 mm slide thickness (14 mm with mounting bracket)
Front disconnect (by depressing lever) for drawer removal
Hold-in feature holds the closed drawer in
Order reference
Optional brackets available, for bottom or shelf mounting
Order Varianta Ø 5 cylindrical and Hospa Ø 4.0 pan head screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Specifications
Installation length
600.00 mm
Extension length
610.00 mm
Load bearing capacity
45.00 kg
Colour/finish
Bright zinc plated
Model
CB3732
Type of pull out
Full extension
Holding function
Hold-in
Drawer removal
With release lever
Material
Steel
Bearing
Ball bearing
Installation
Side mounting, or with bracket bottom/shelf mounting
