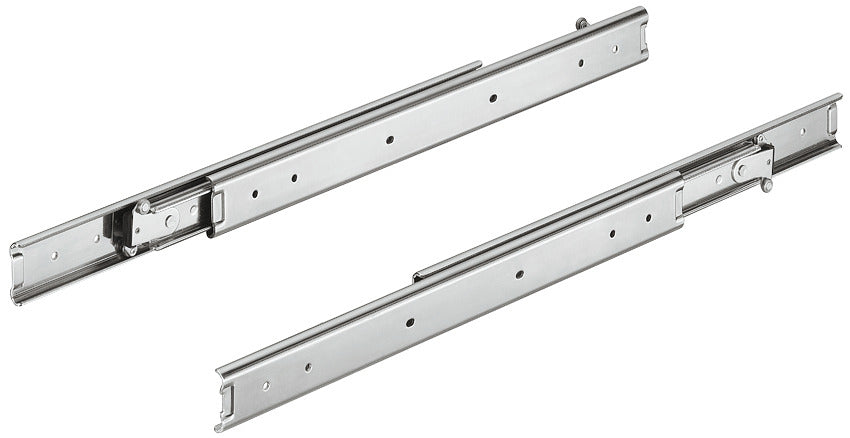

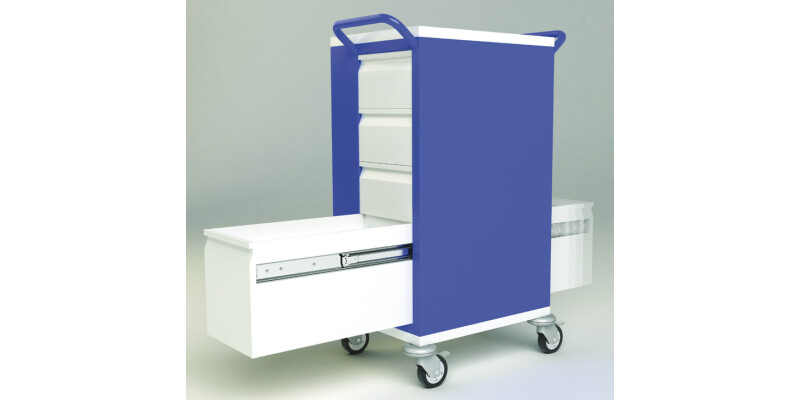

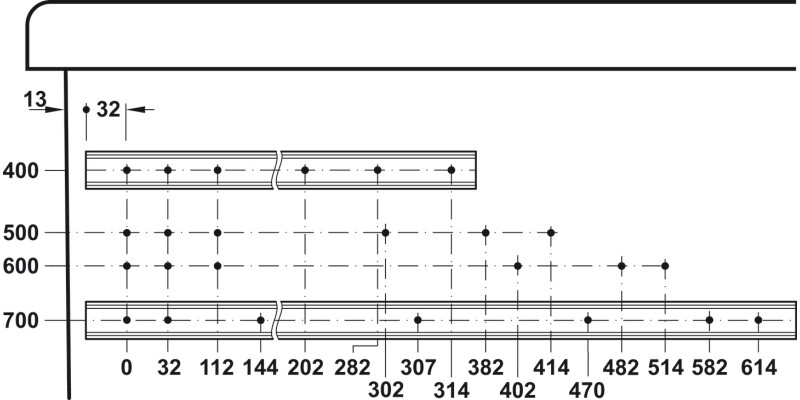

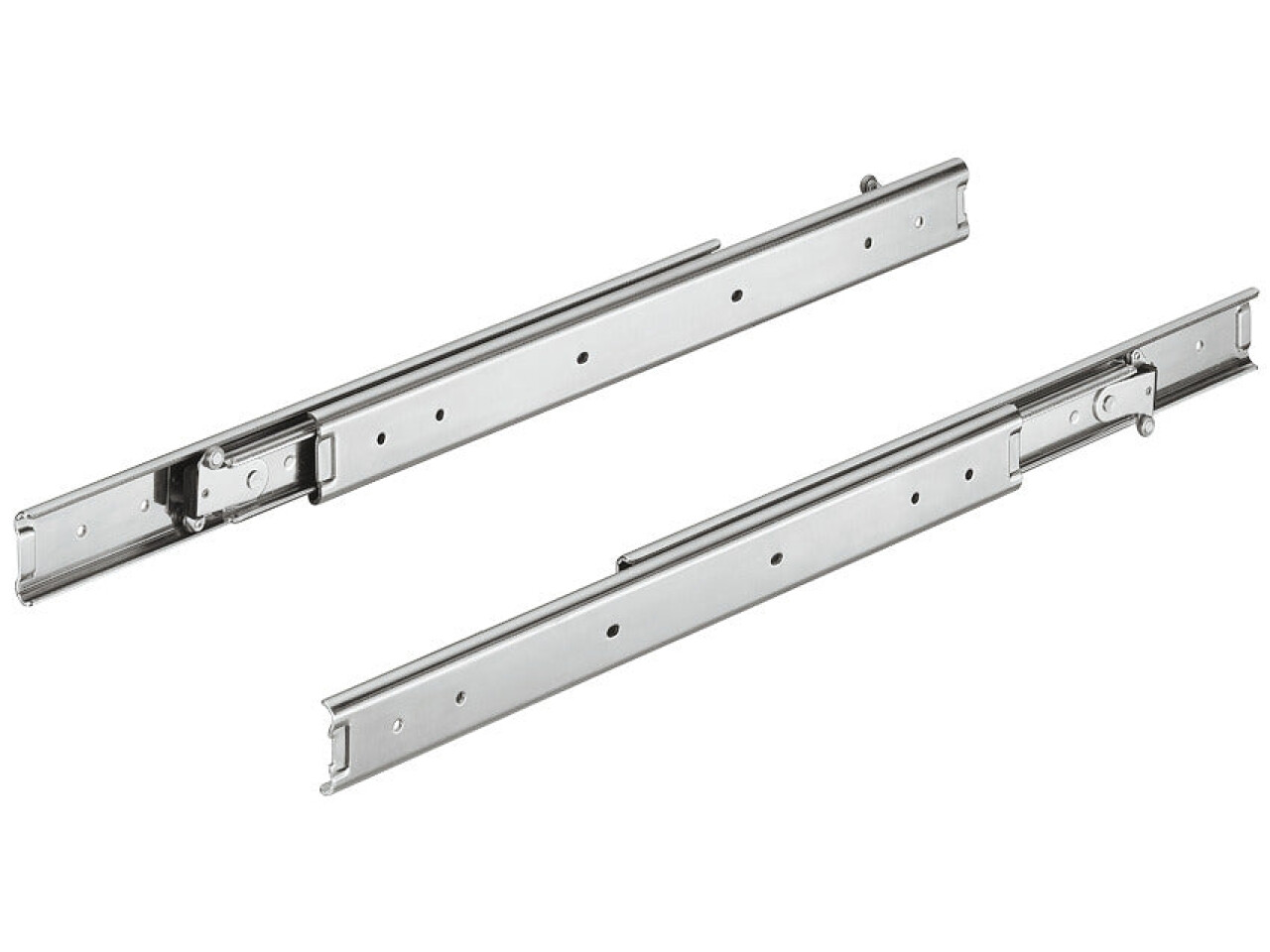

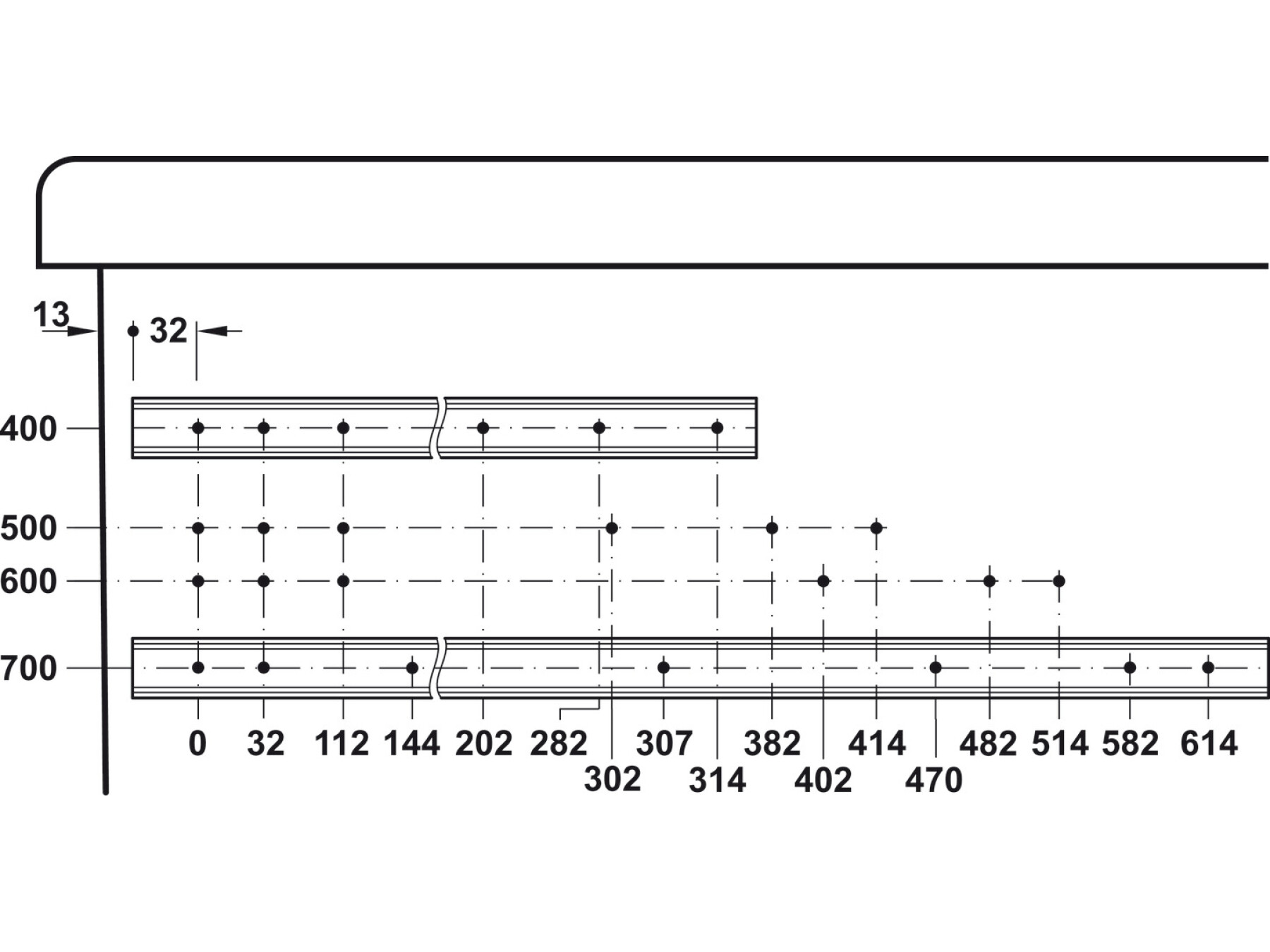

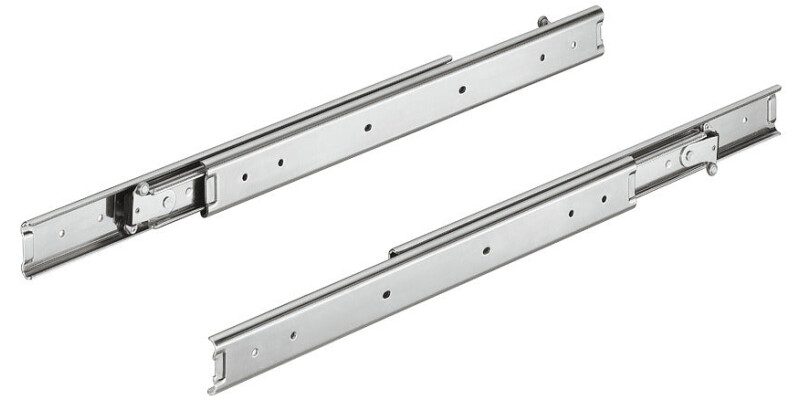

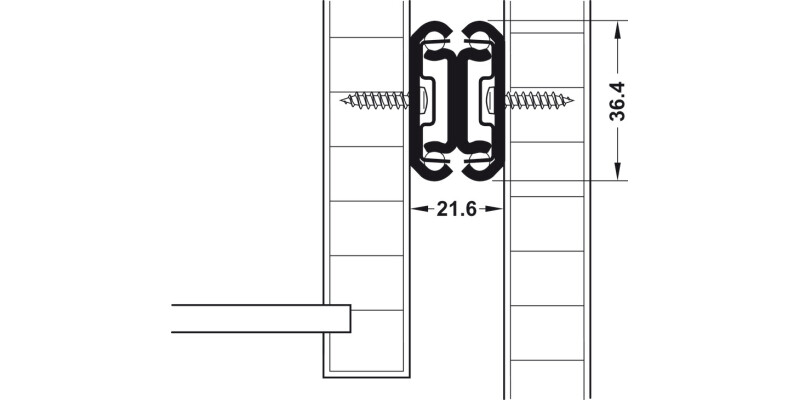

3630 BB Drawer Runner 2Way Full 40kg 400mm BZP
Part Number: 422.84.940
Two way travel, Installed length 400 mm, load capacity 40 kg, bright zinc plated
Price:
£127.64
Per Item
Two way travel Tested to 80,000 cyclesTwo-sided access with continuous frontsLocks in the centreFront panels... Read More
Product Information
Product Details

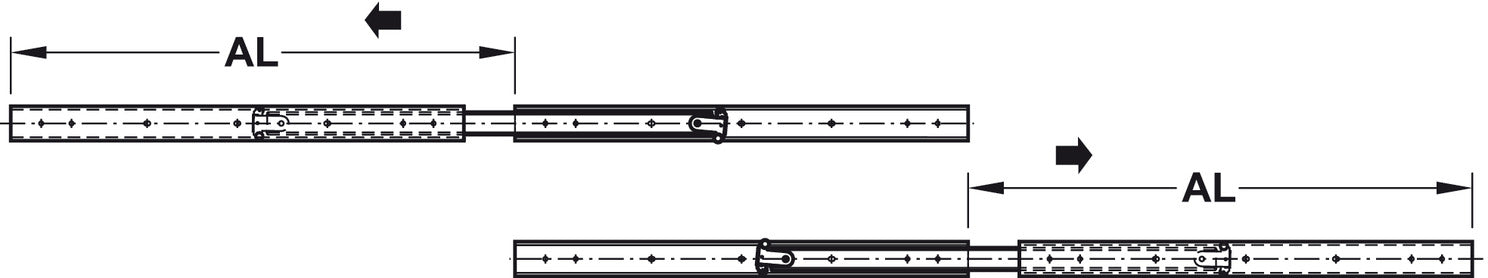

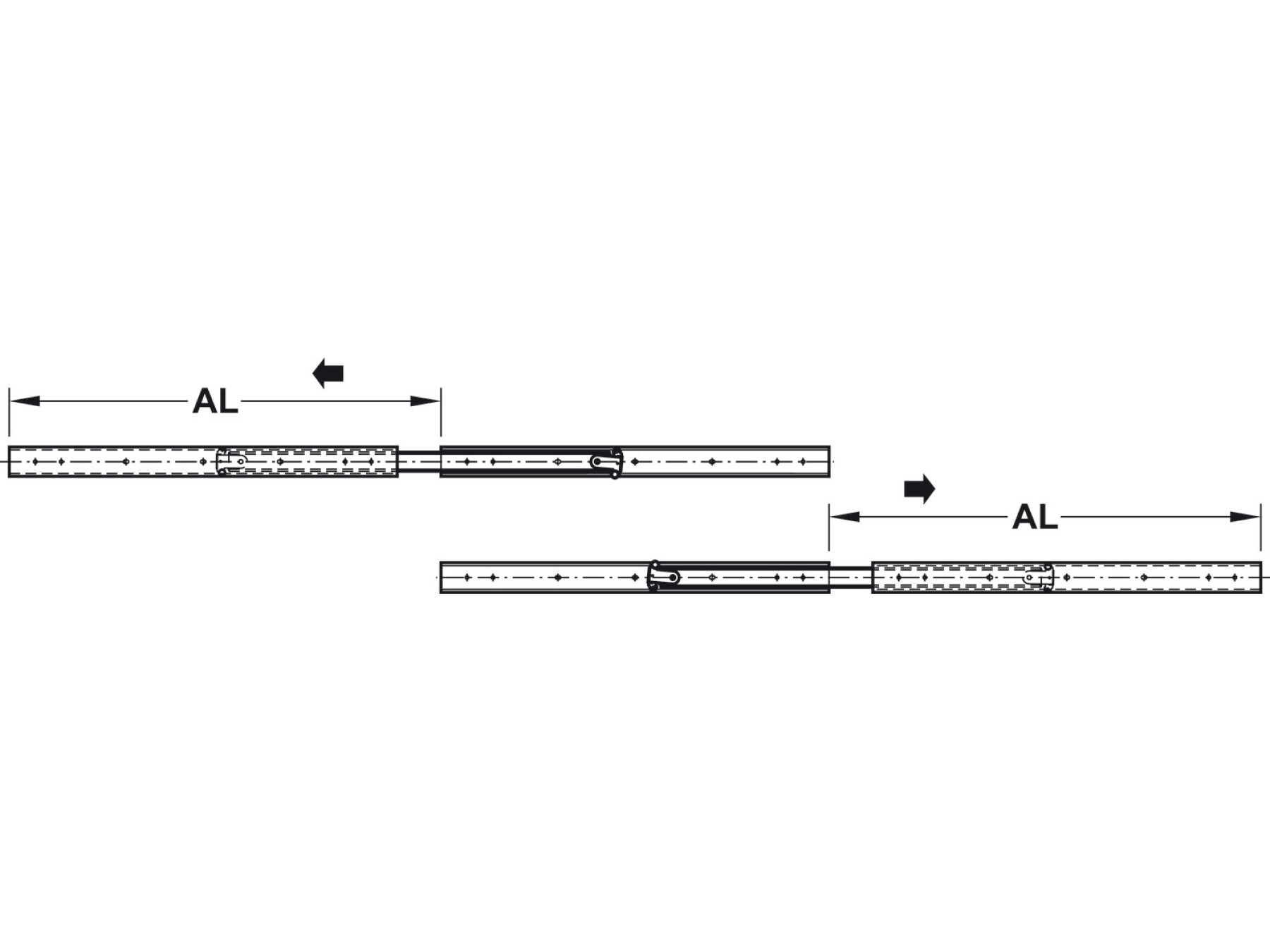

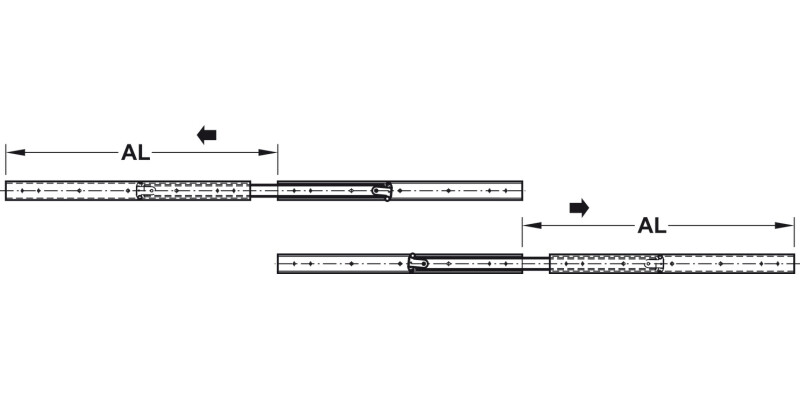

Two way travel
Tested to 80,000 cycles
Two-sided access with continuous fronts
Locks in the centre
Front panels must be notched for two-way travel drawers with continuous front panels.
Specifications
Version
Hold-in (at centre)
Model
3630, two-way travel
Type of pull out
Full extension
Area of application

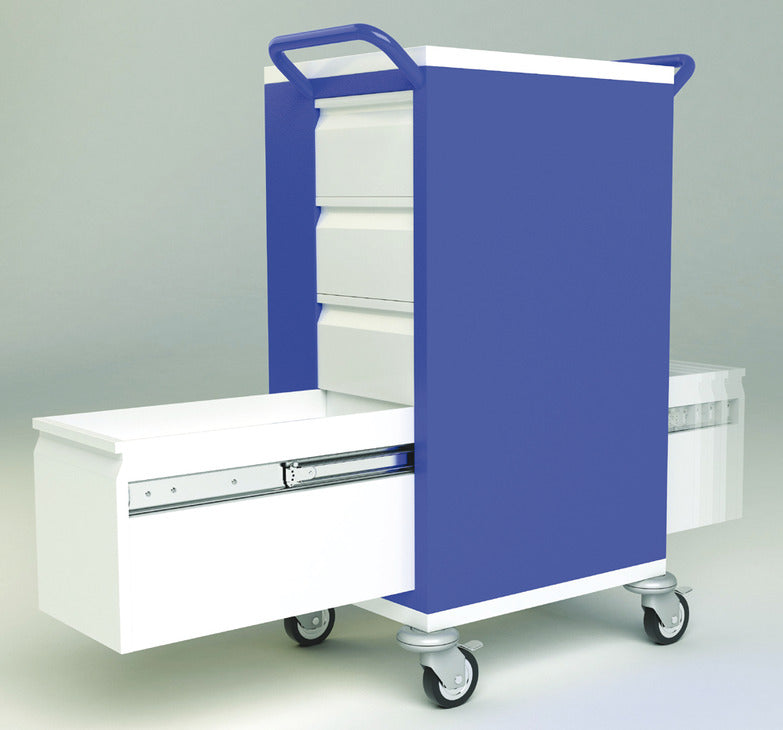

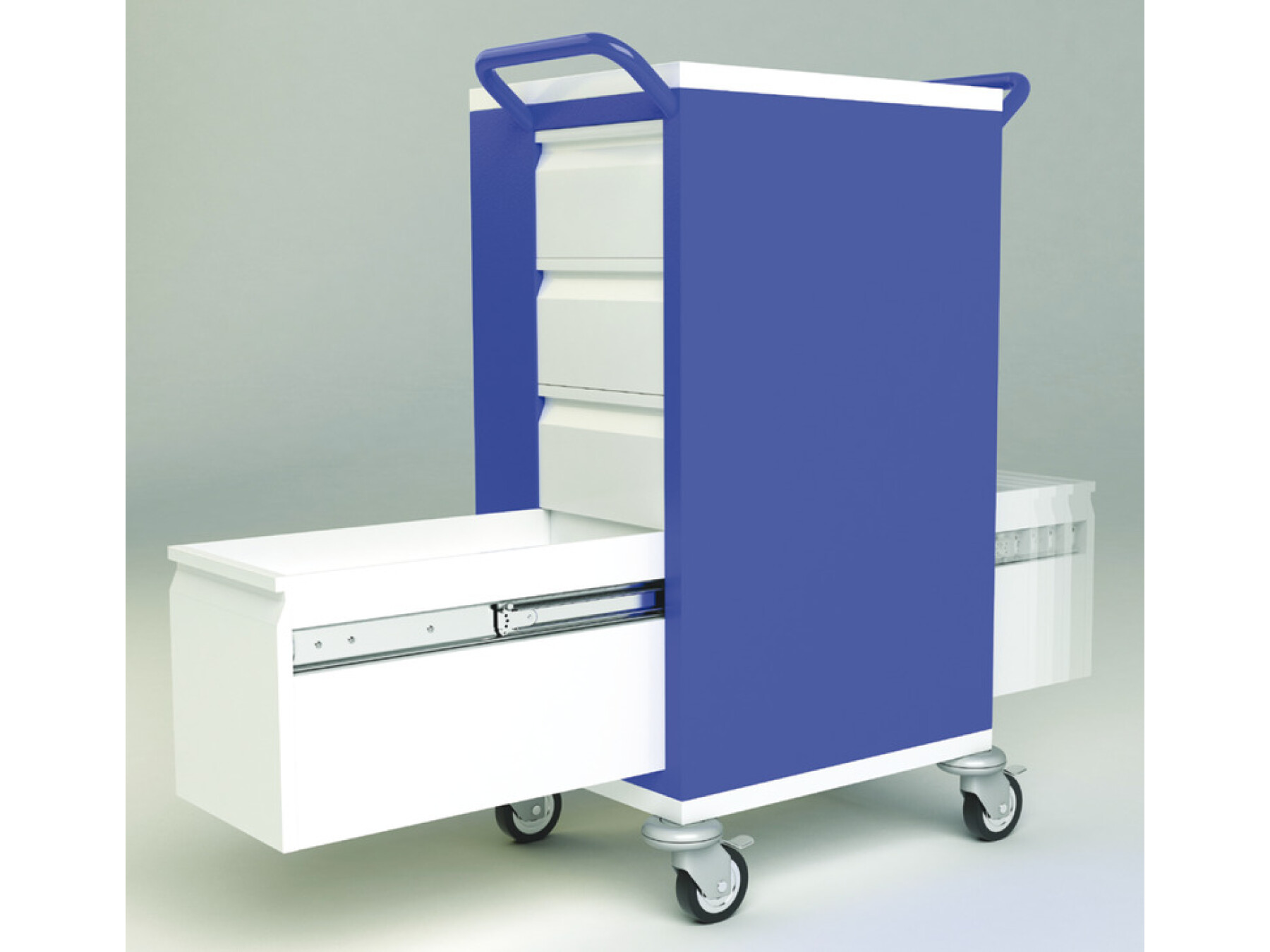

Use for pull through drawers when access is required from both sides of unit
Holding function
Hold-in
Drawer removal
without release lever
Material
Steel

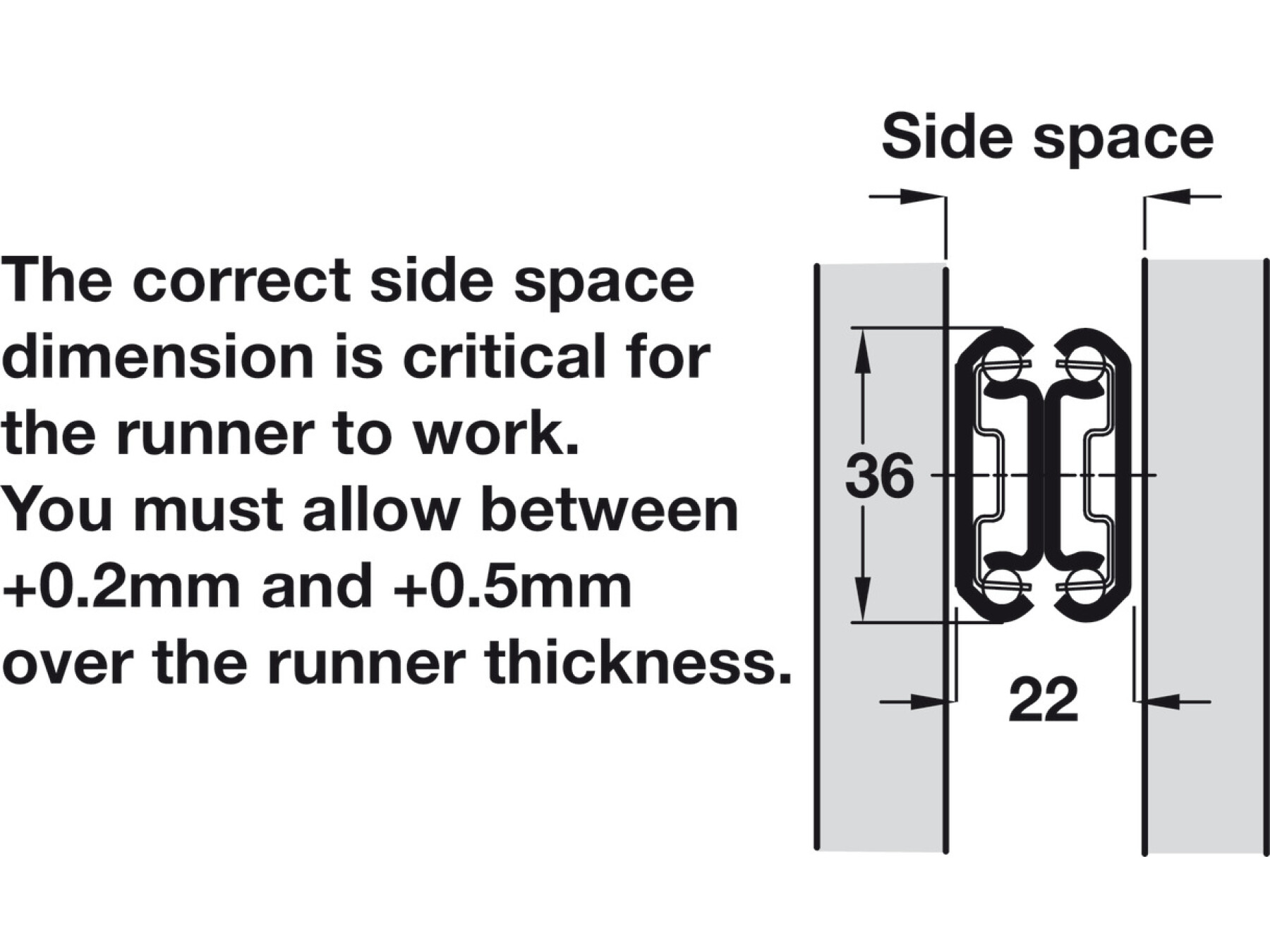

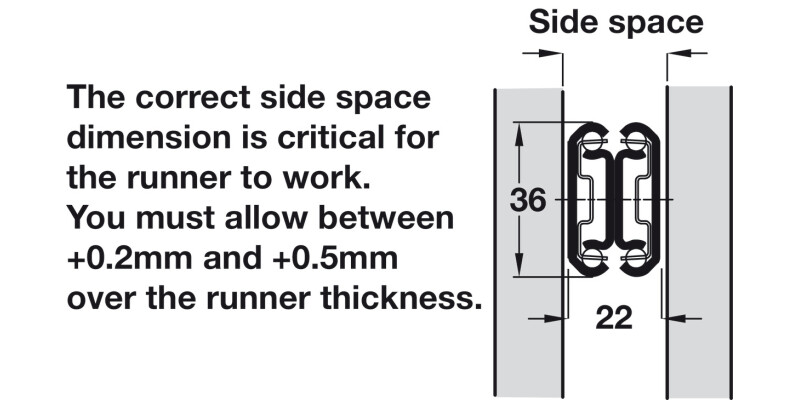

Width
144.00 mm

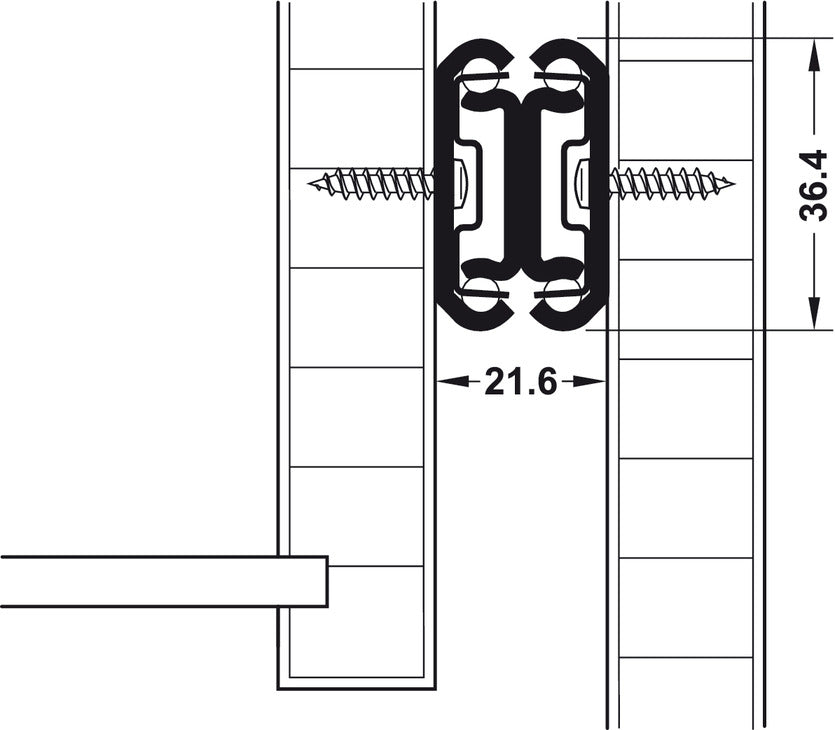

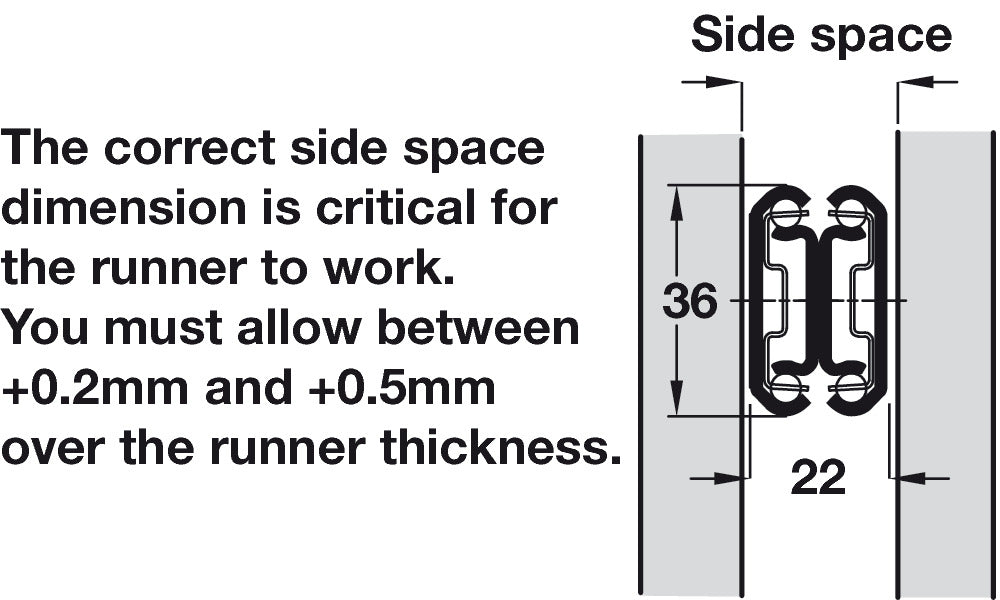

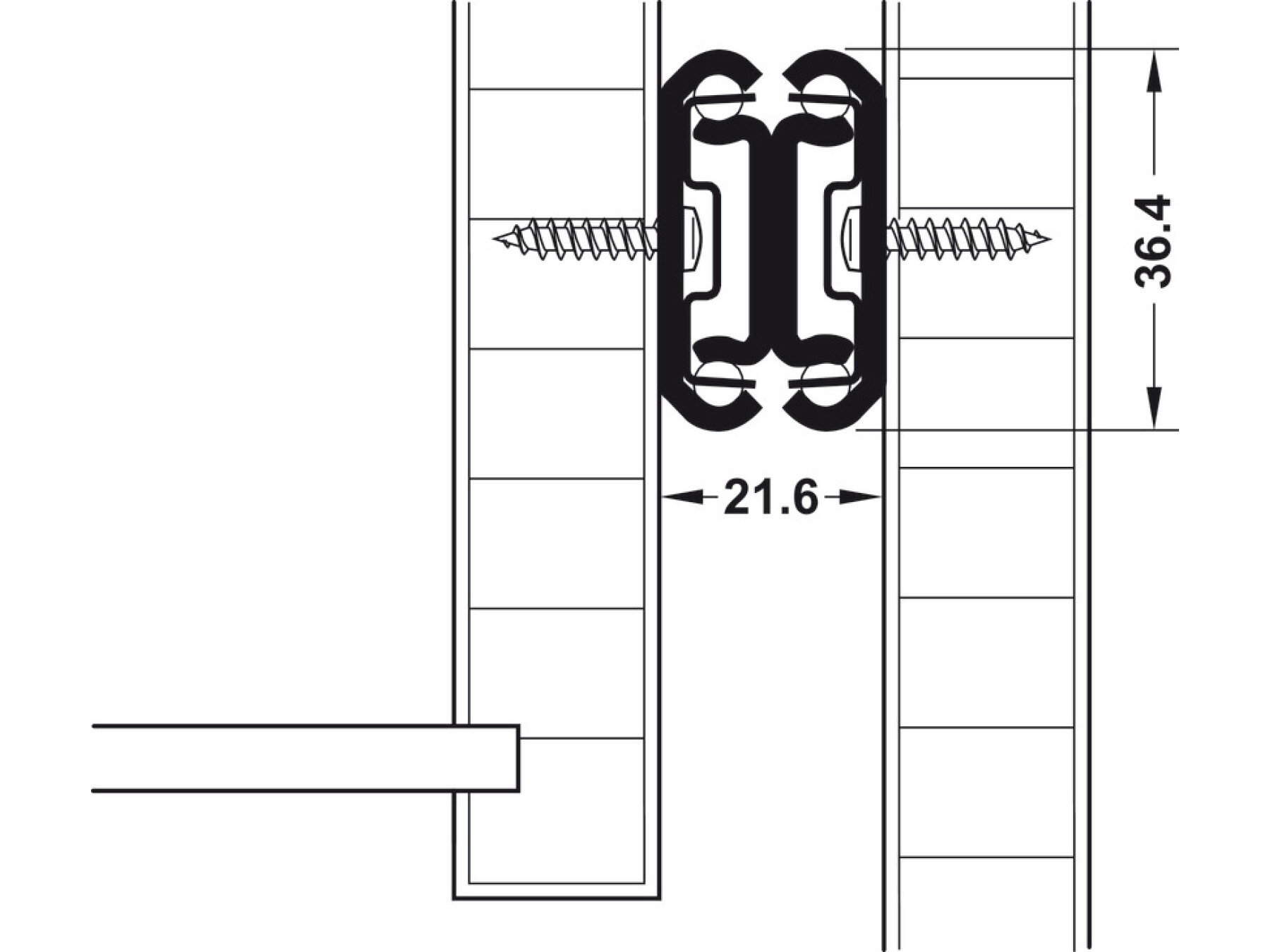

Installation
Side mounting
Order reference

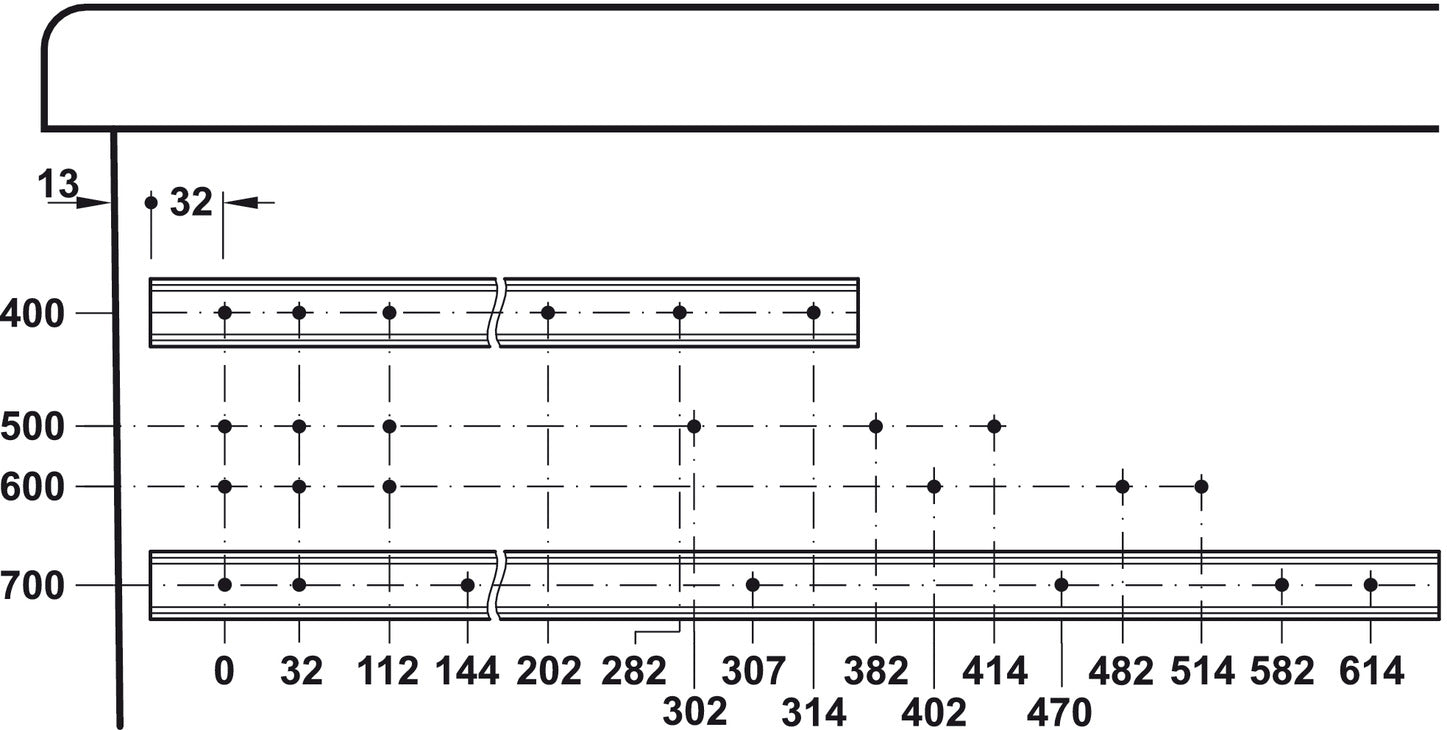

Order Hospa Ø 4.0 countersunk screws separately (max. head height 2.5 mm, Ø 9.6 mm)
