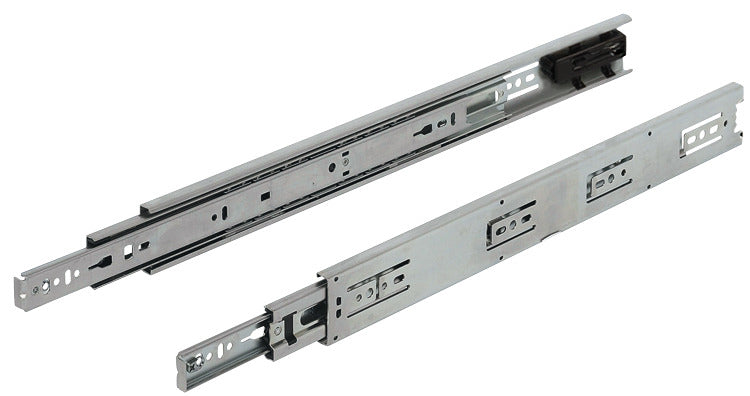

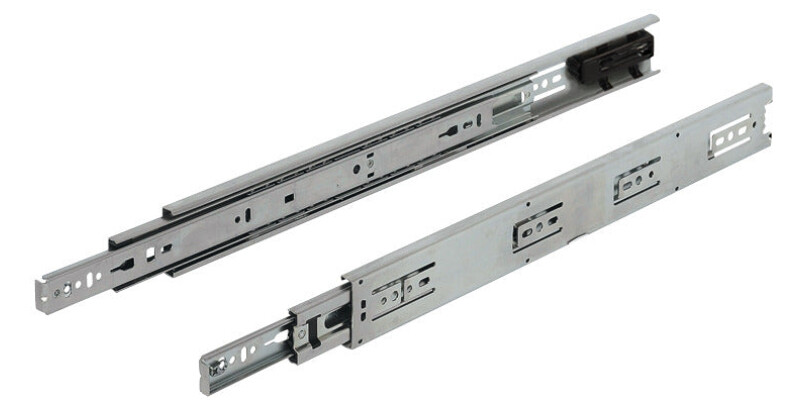

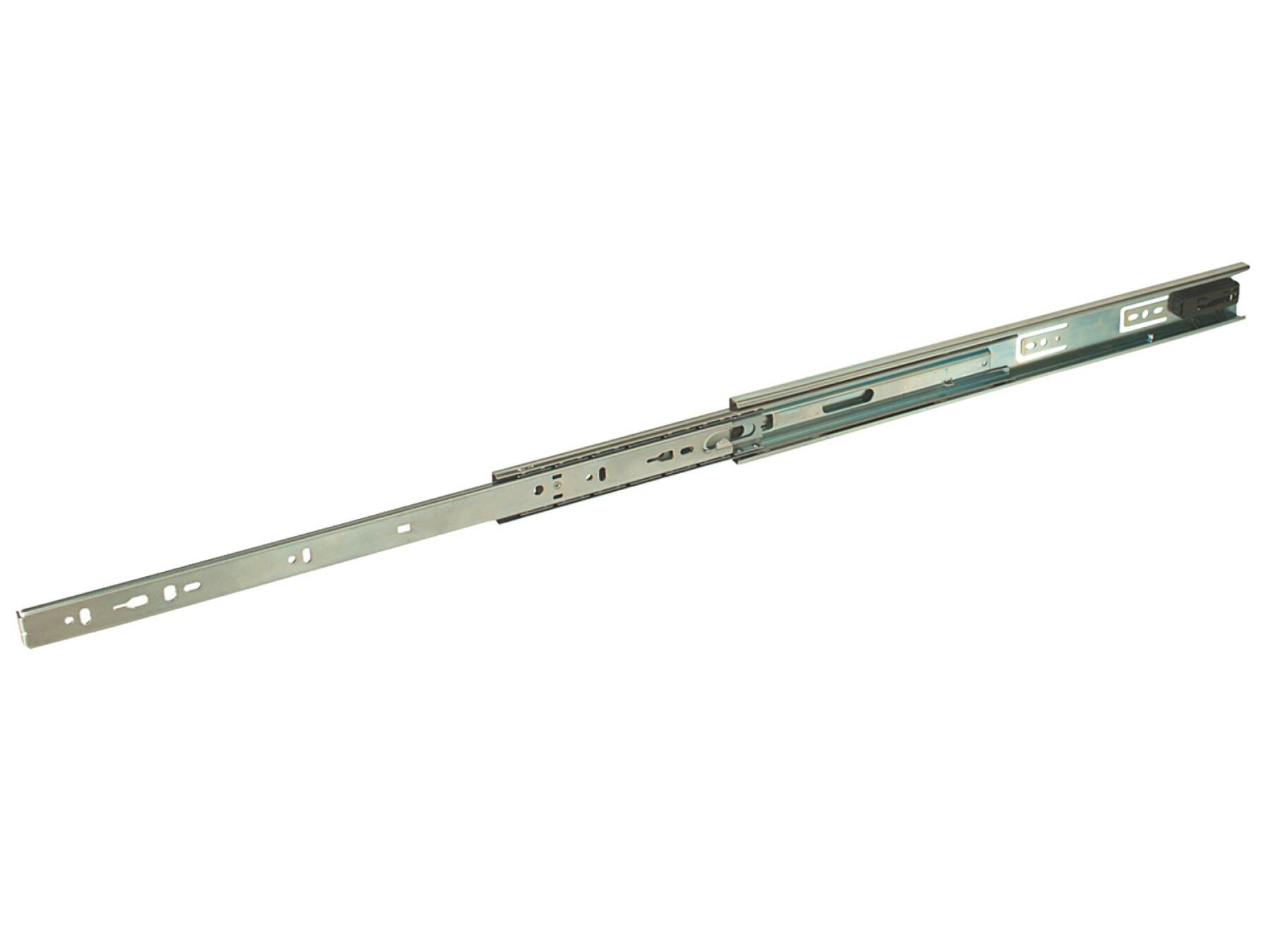

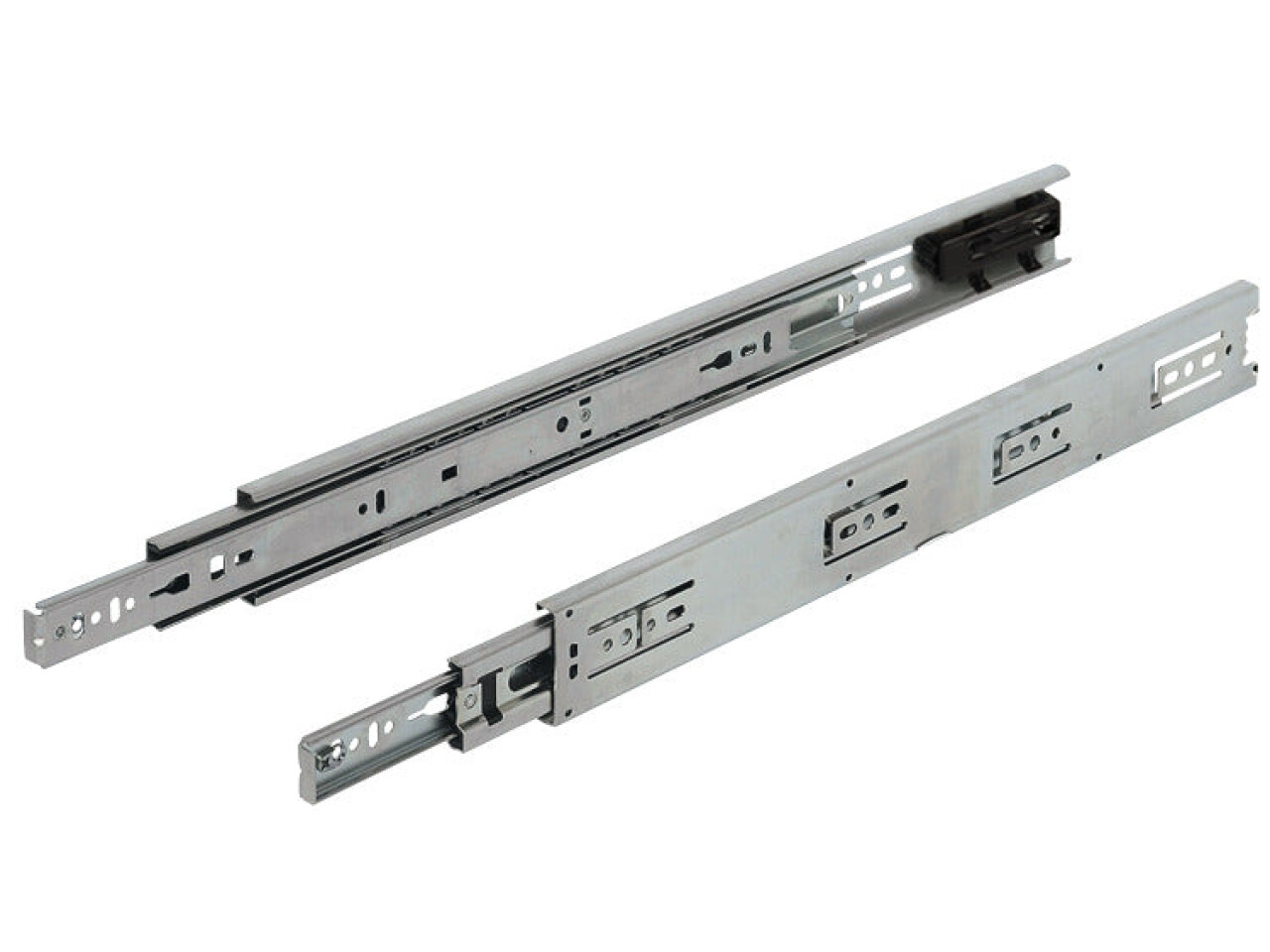

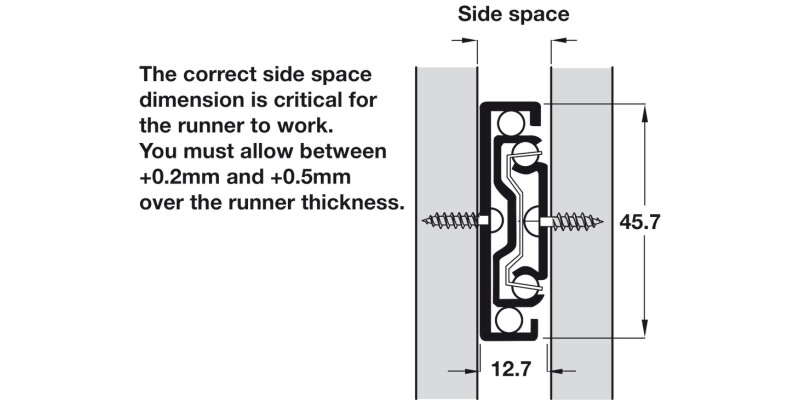

3832-SC BB Drawer Runner Full 45kg 450mm Blk
Part Number: 422.59.346

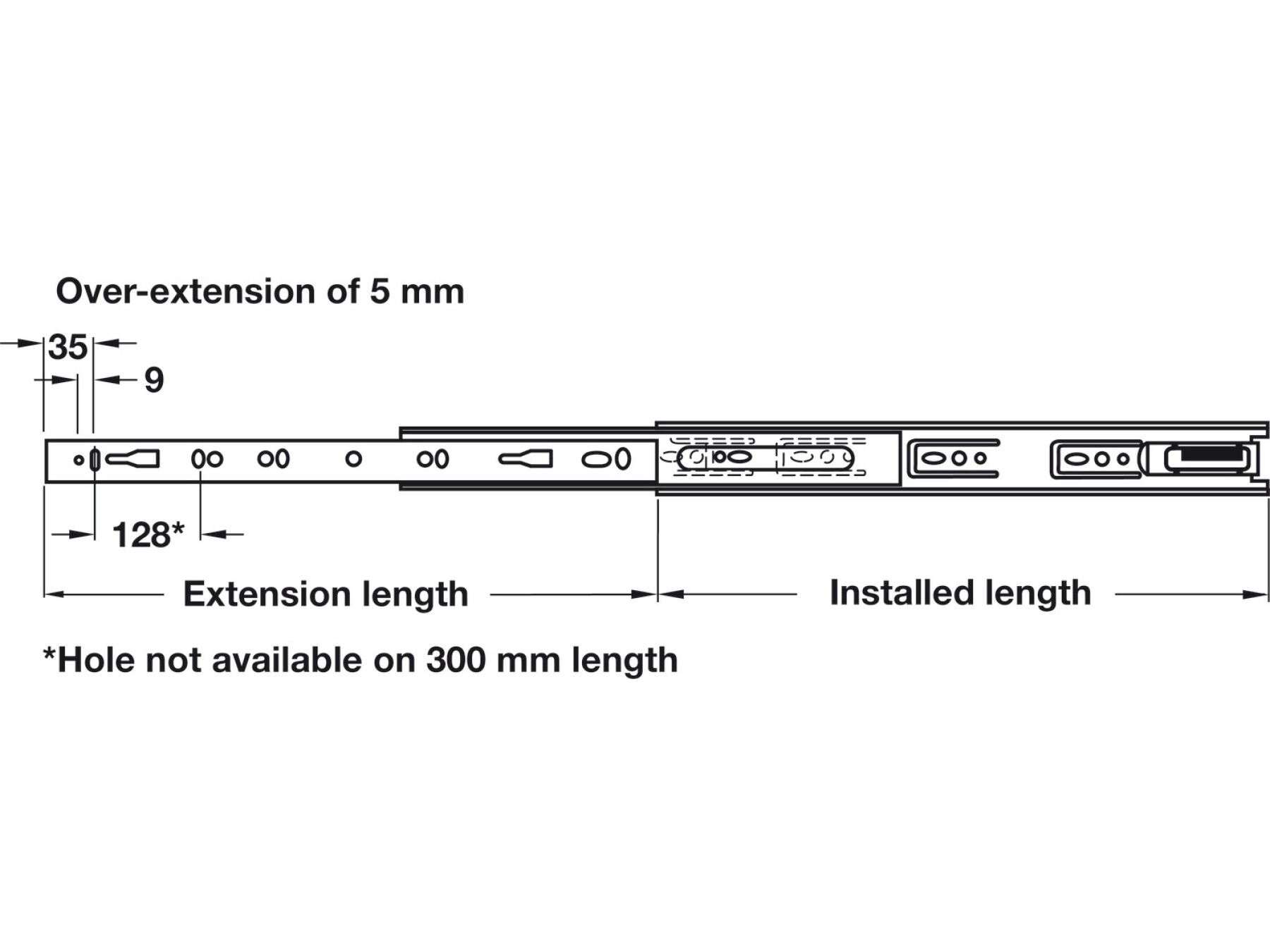

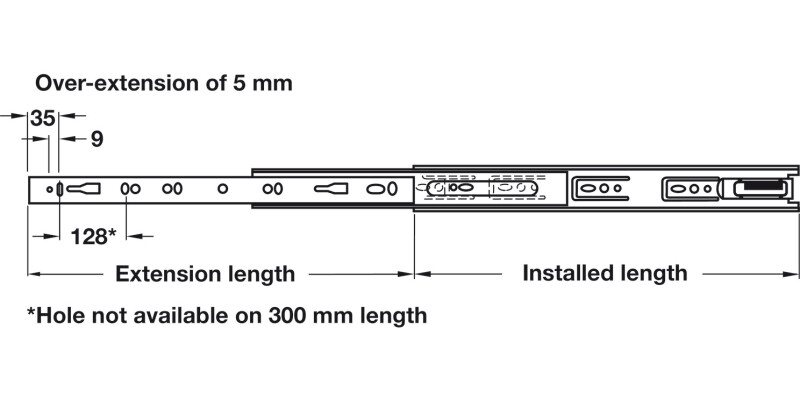

With front disconnect, Installed length 450 mm, load capacity 45 kg (50 kg), black
Price:
£31.06
Per Item
Order reference Heavy duty version available. Twice the stay close force on the standard self close. Ideal for... Read More
Product Information
Product Details
Order reference
Heavy duty version available. Twice the stay close force on the standard self close. Ideal for mobile applications
Optional mounting brackets for bottom or shelf mounting available
Order Varianta Ø 5 cylinder head and Hospa Ø 4.0 pan head screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.
Specifications

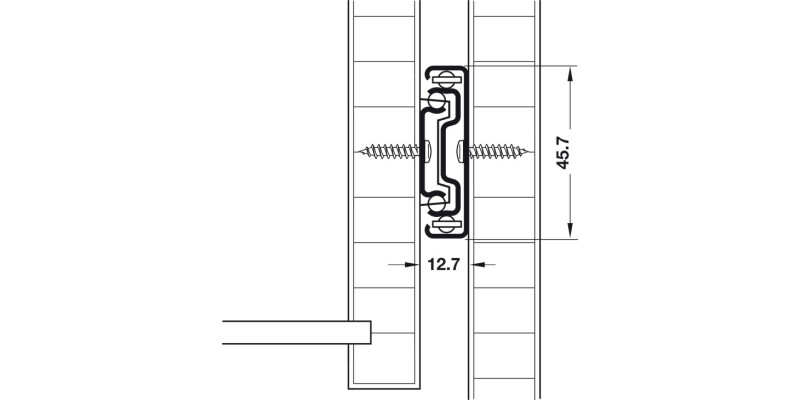

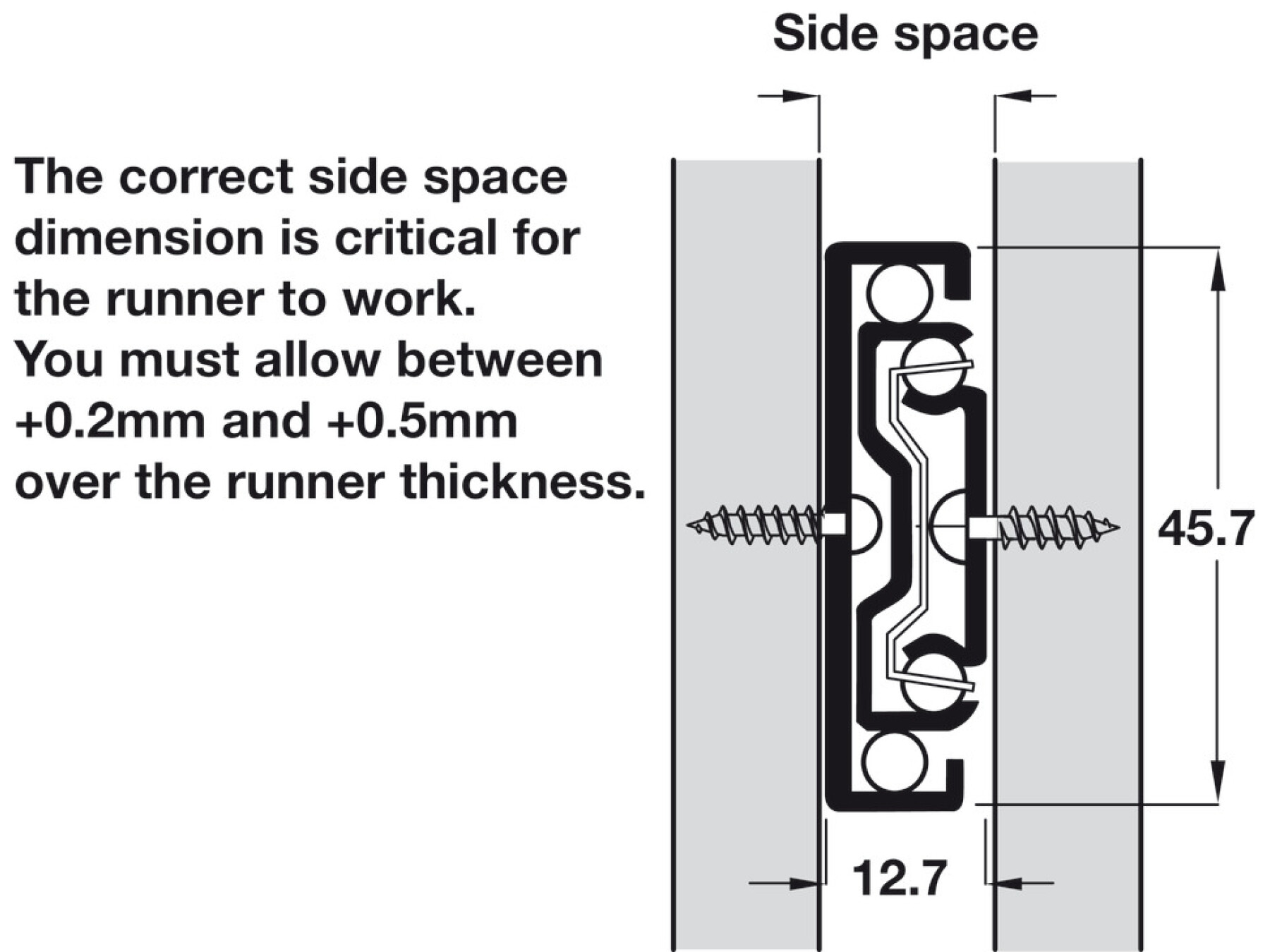

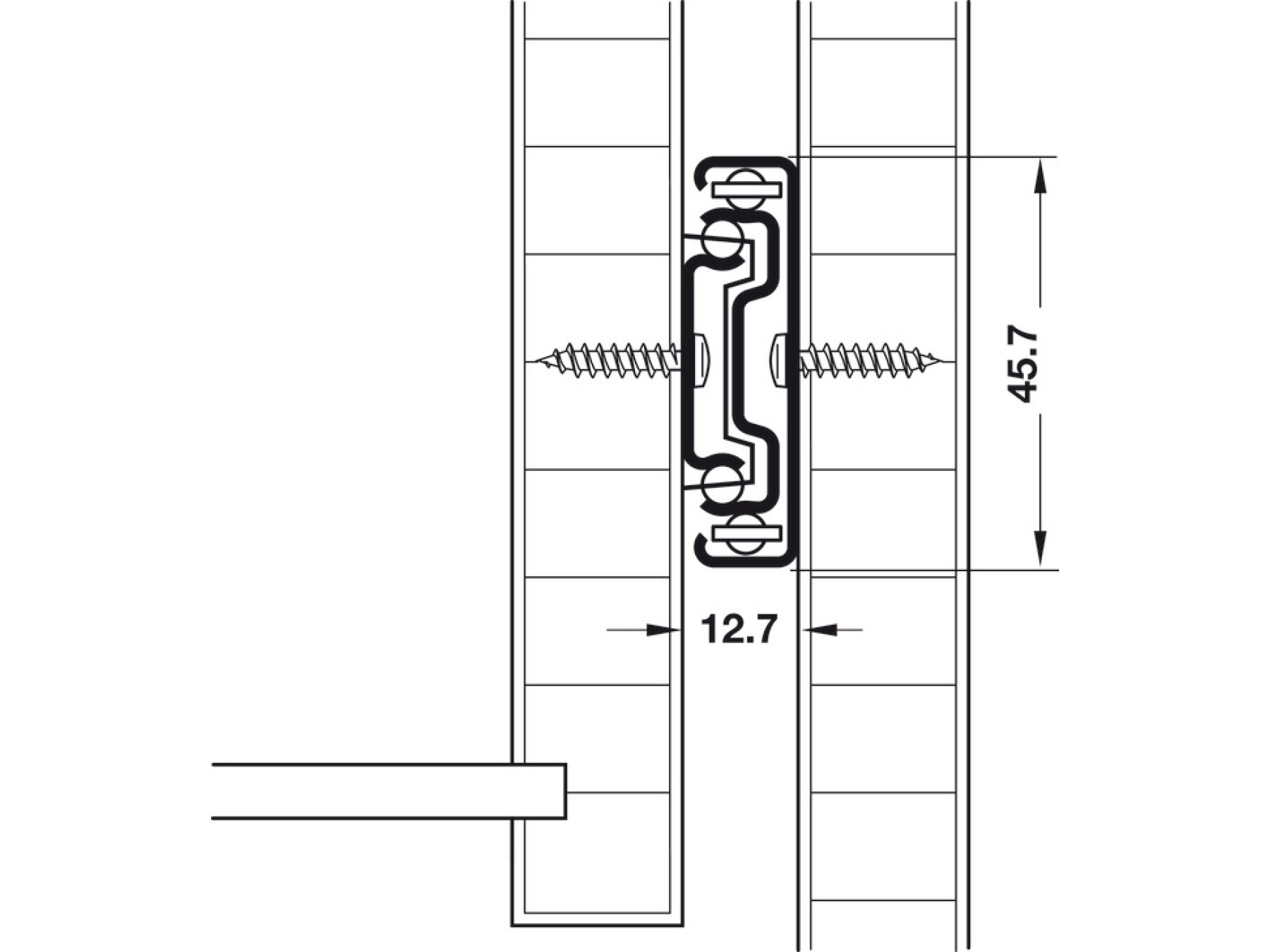

Mounting
Side mounting
Version
Tolerance absorption tabs
Model
3832SC
Type of pull out
Full extension
Area of application

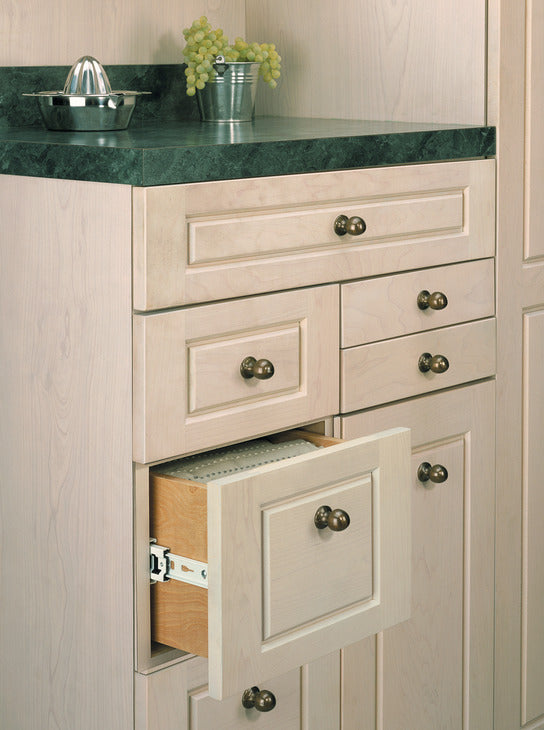

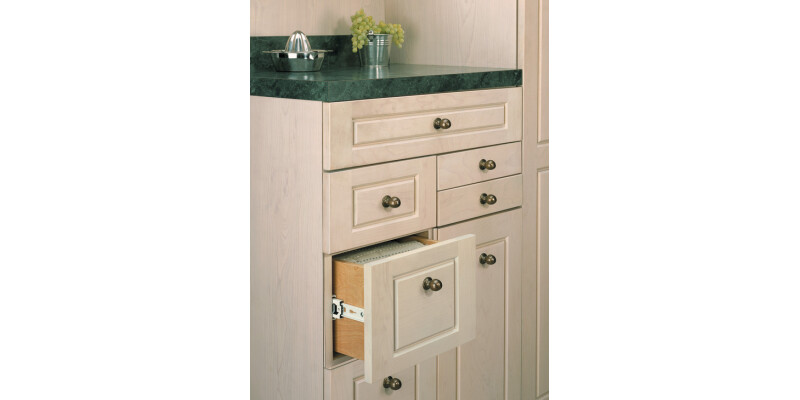

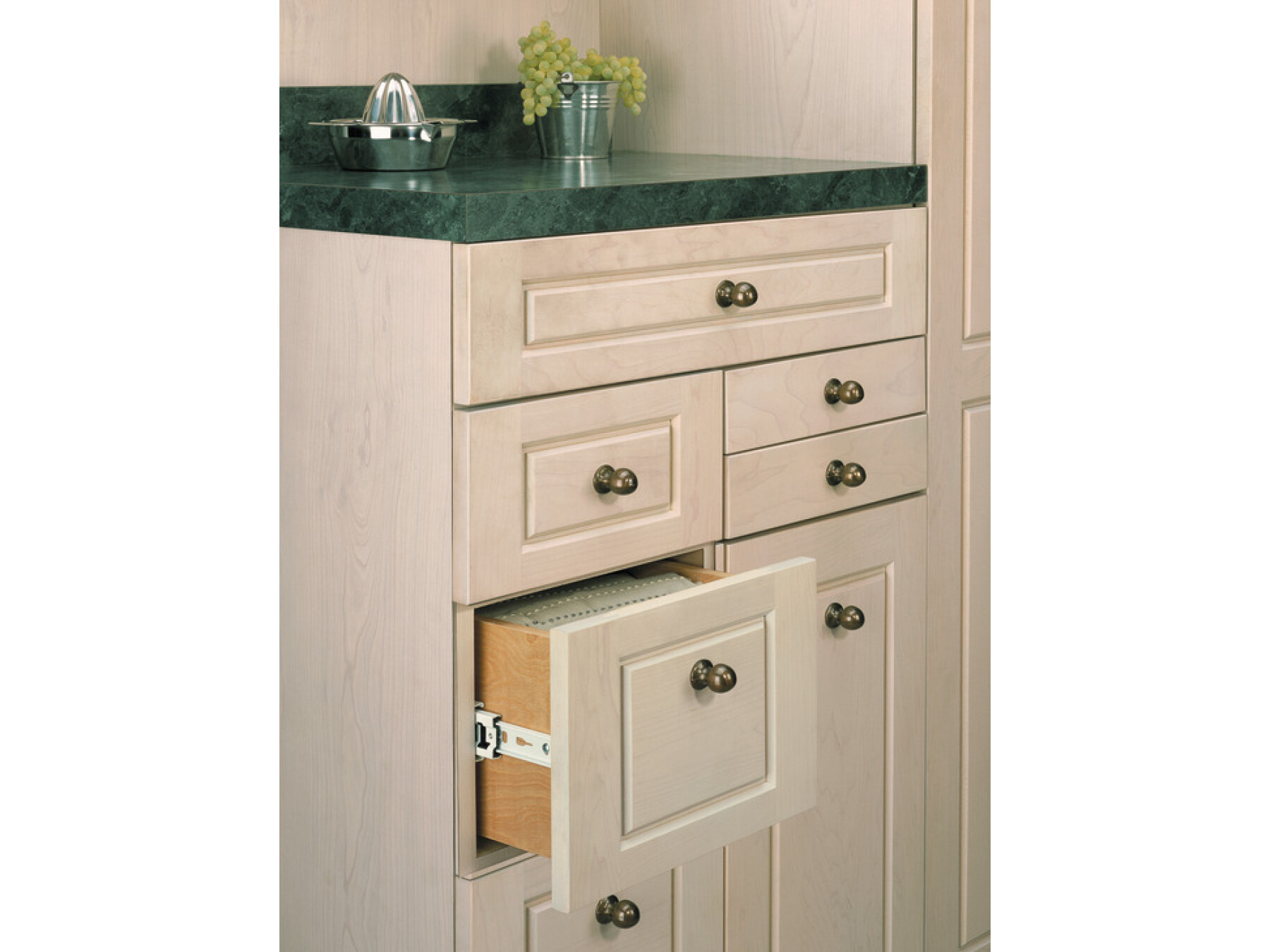

For use in applications such as filing cabinets, desk pedestals and general storage drawers

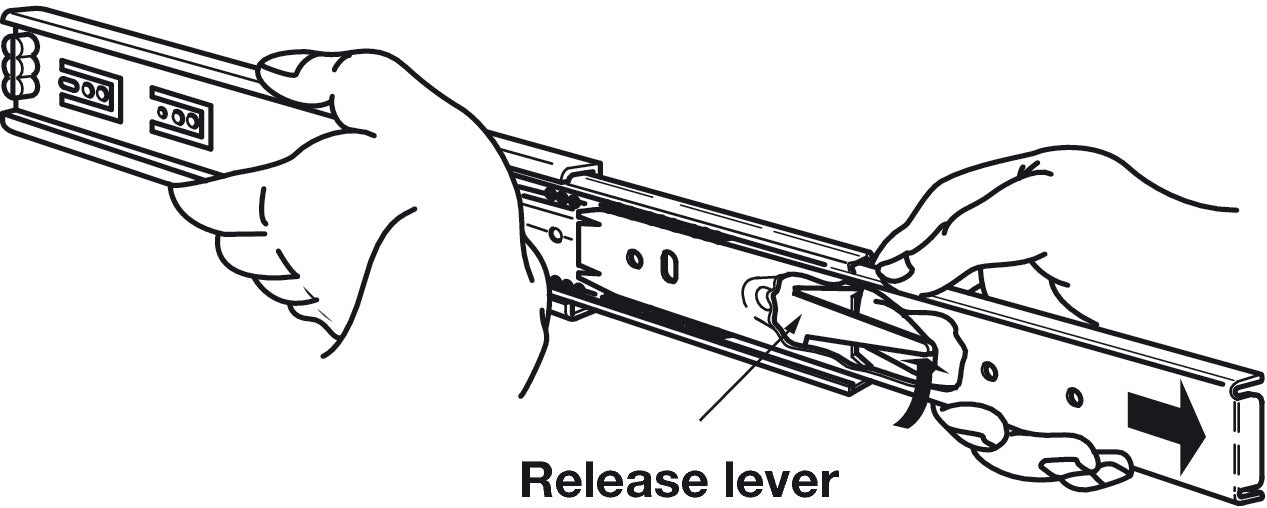

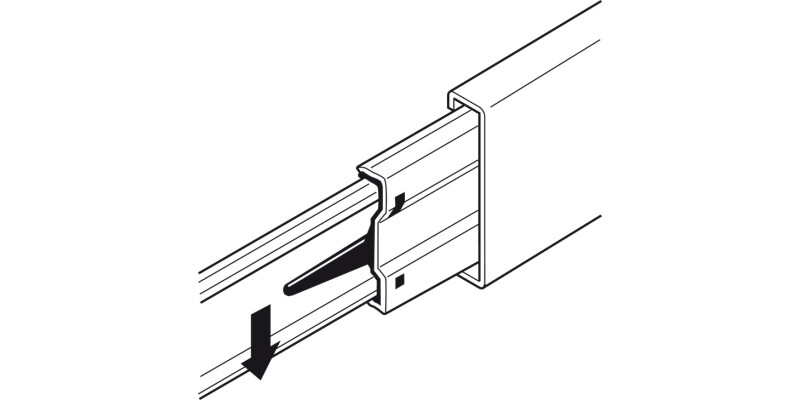

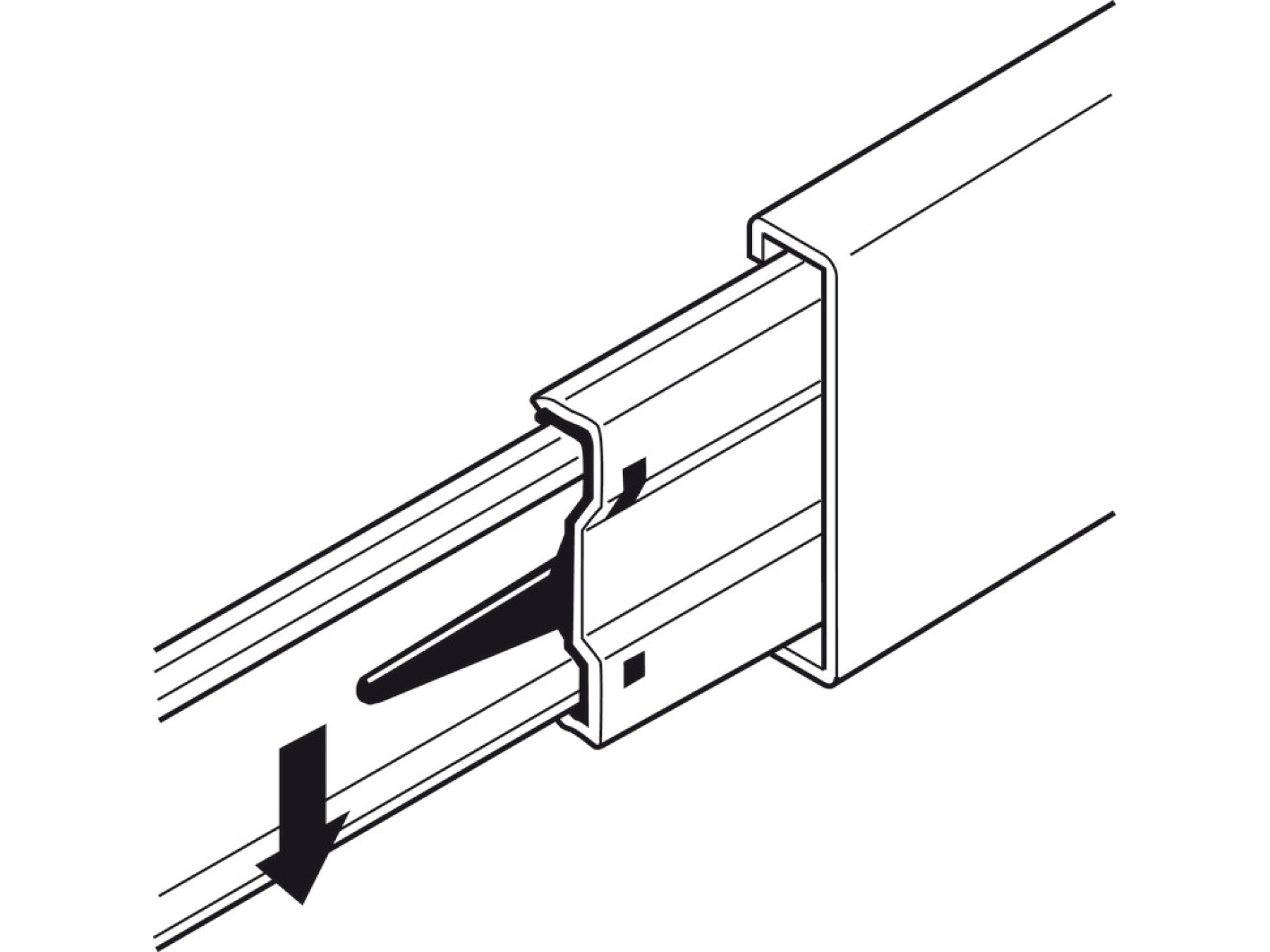

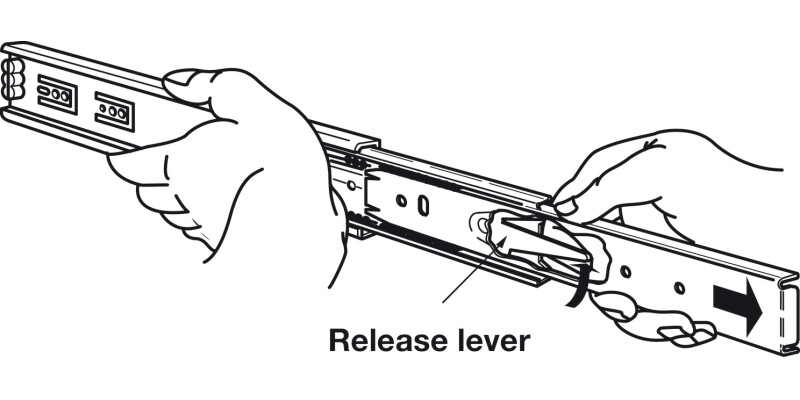

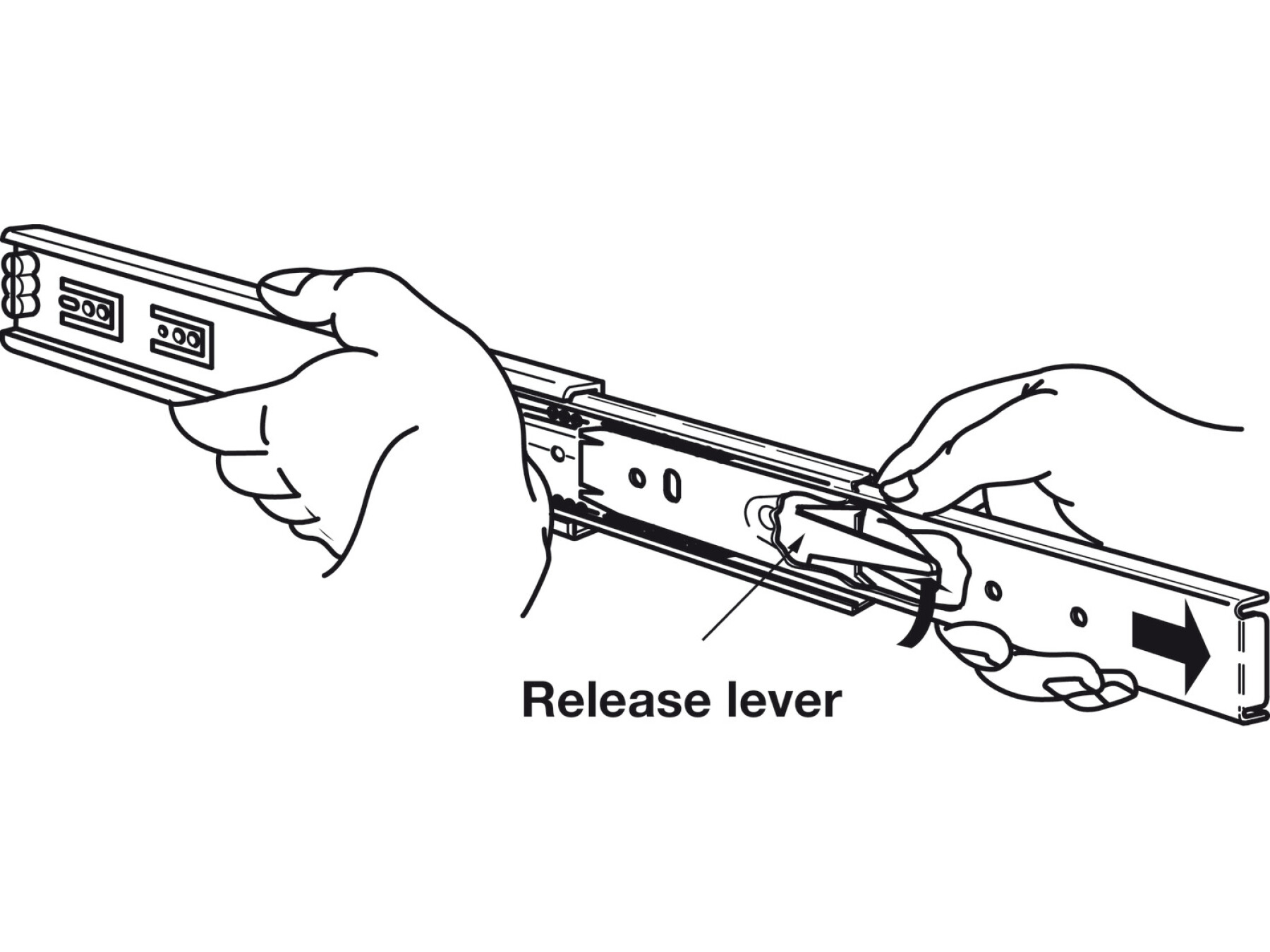

Drawer removal
With release lever
Material
Steel
Width
320.00 mm

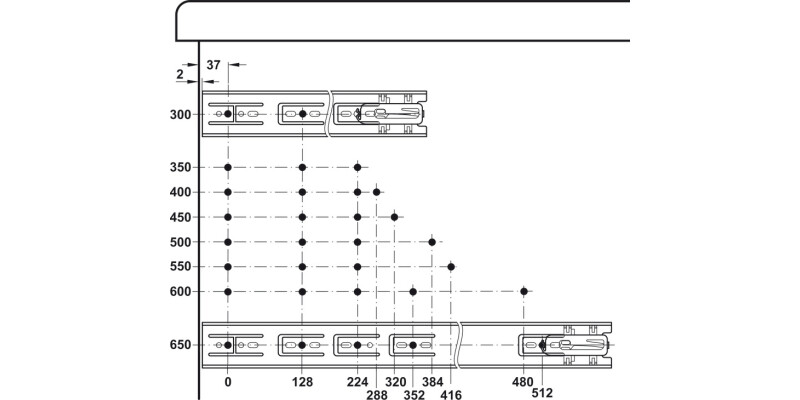

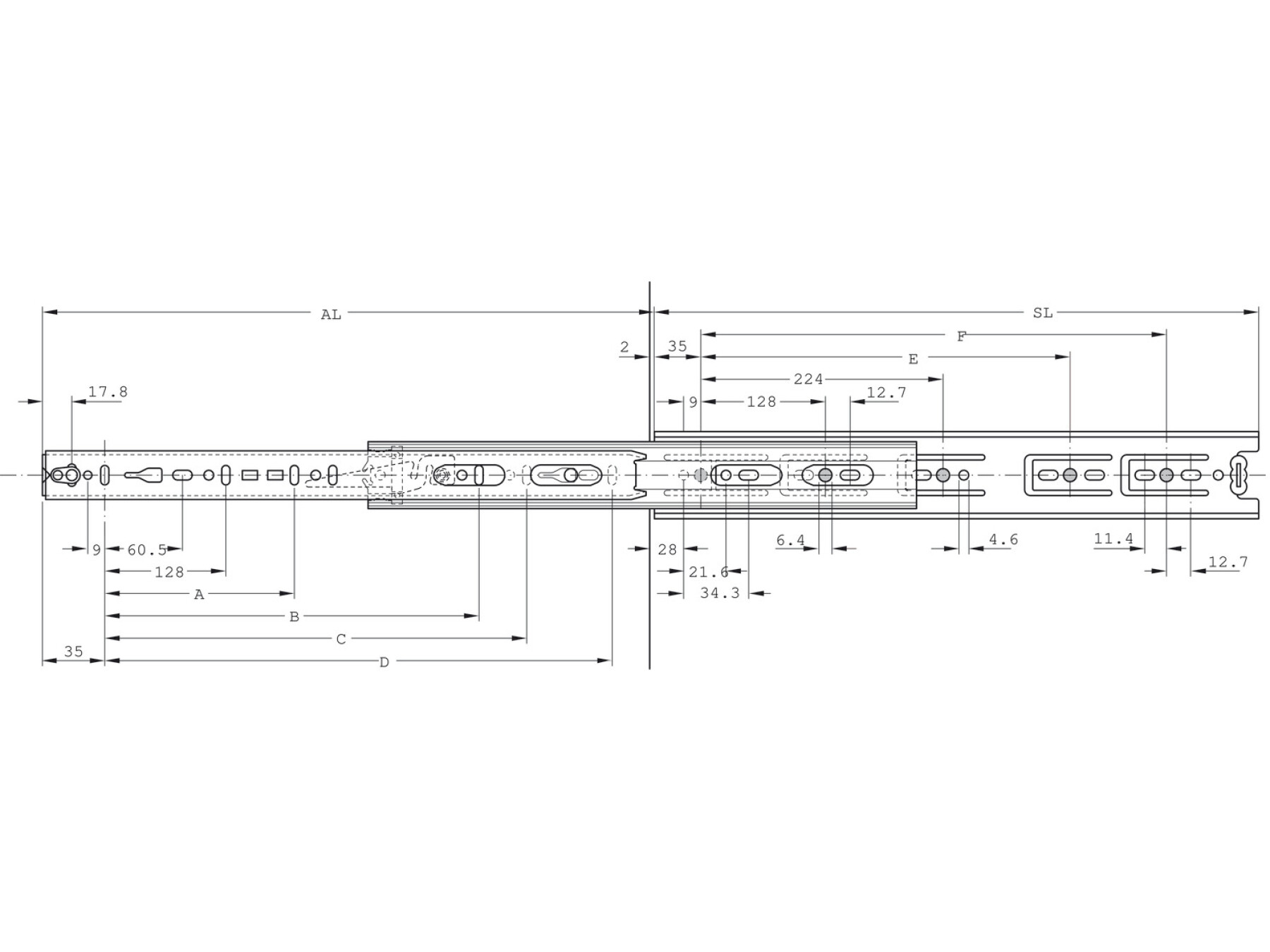

Installation

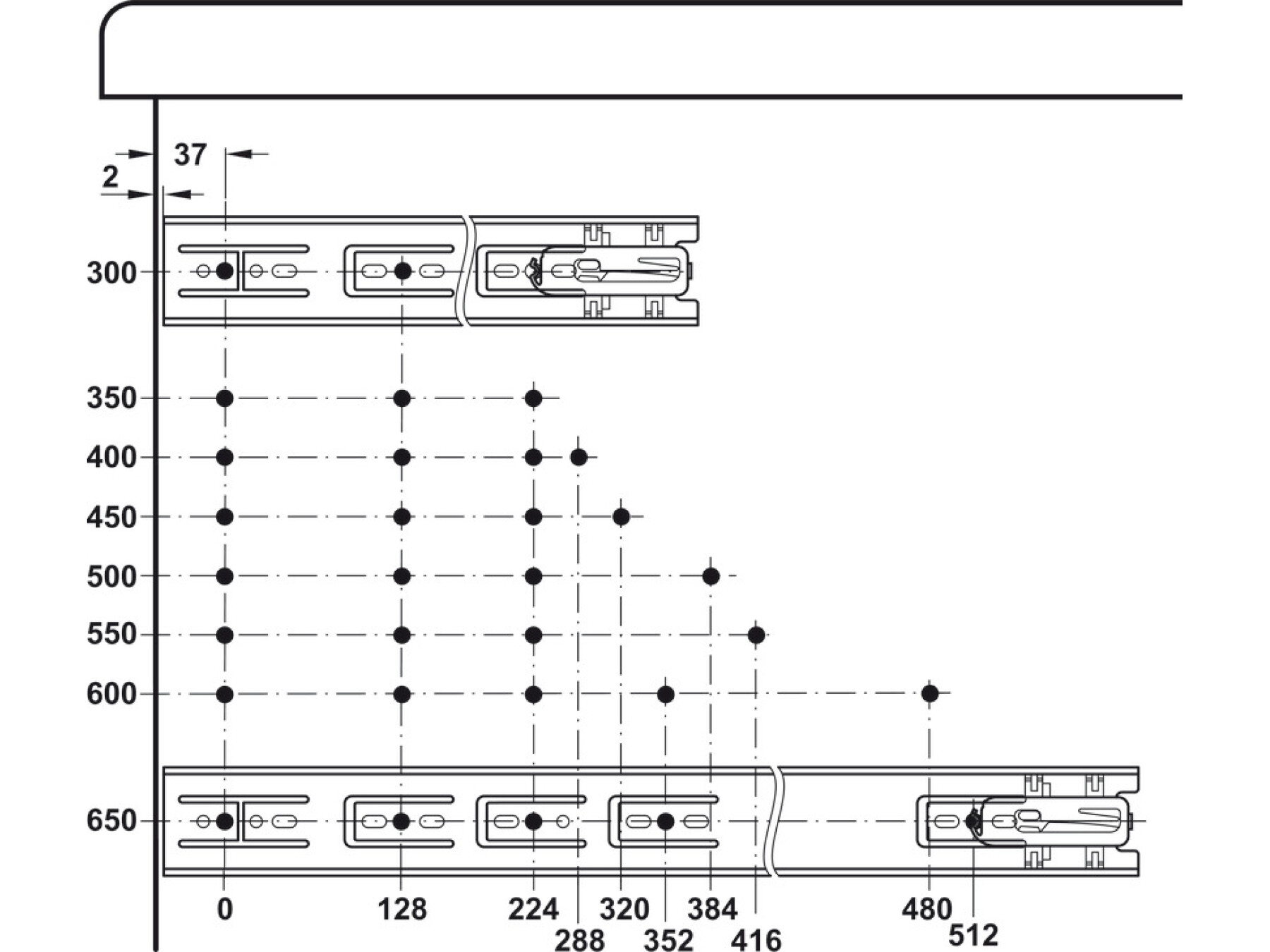

32 mm drilling pattern
