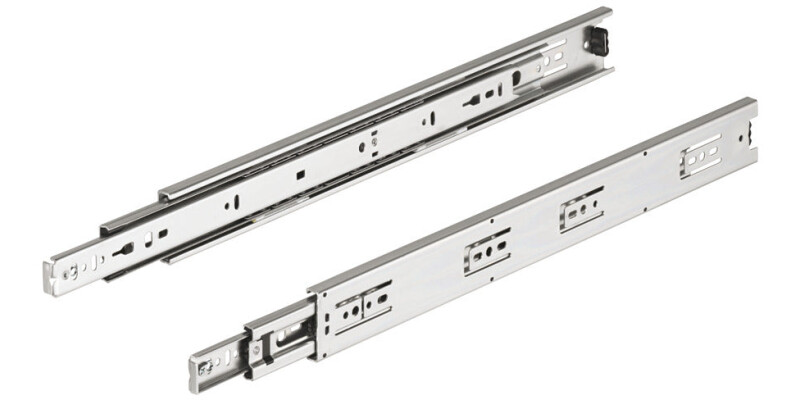

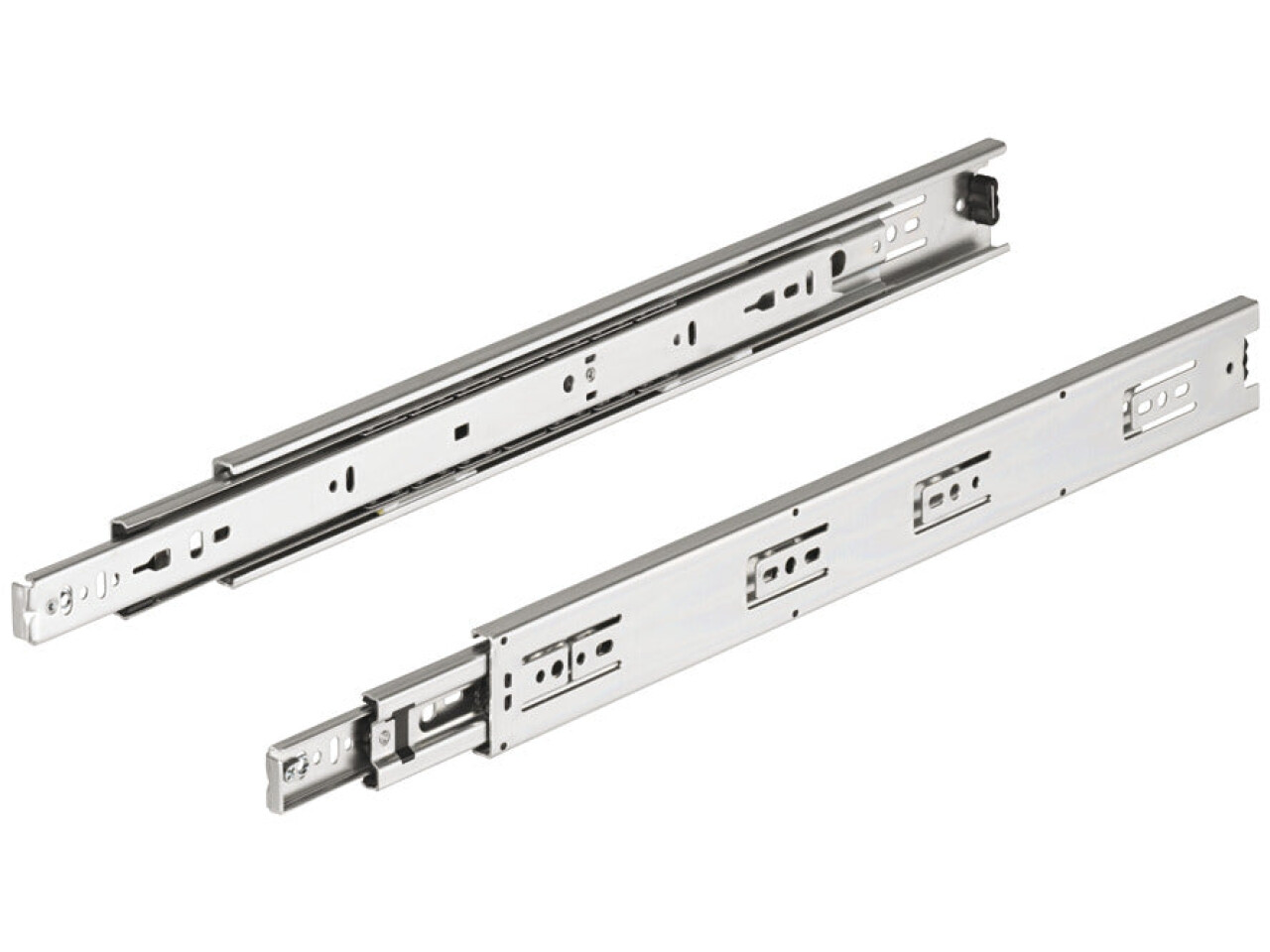

3832 BB Drawer Runner Full 50kg 500mm Cor
Part Number: 422.41.850
Corrosion resistant finish, front disconnect with hold-in feature, Installed length 500 mm, load capacity 50 kg
Price:
£44.41
Per Item
Corrosion resistant coating which has been tested up to 96 hours salt spray and 8 times more protection than... Read More
Product Information
Product Details
Corrosion resistant coating which has been tested up to 96 hours salt spray and 8 times more protection than regular zinc finish, stainless steel ball retainer, ball bearings and rivets
Hold-in feature holds the closed drawer in
Grooved cabinet member, for better movement

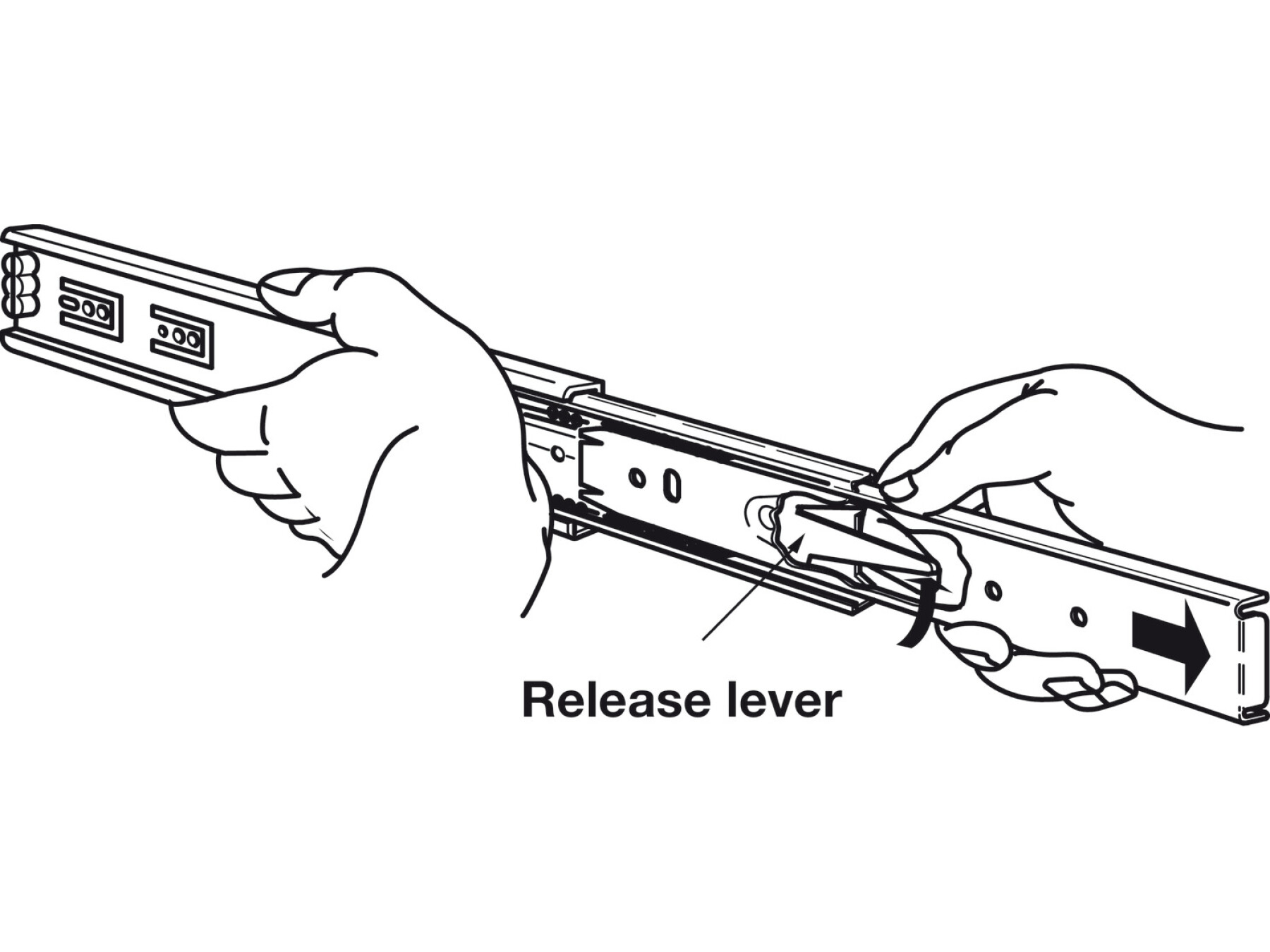

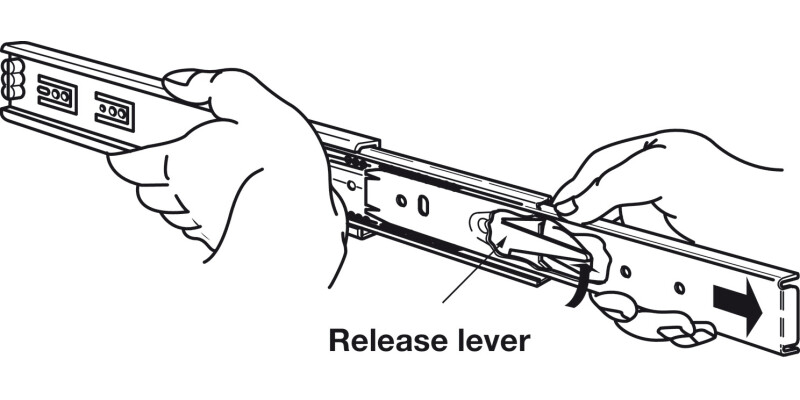

Front disconnect (by depressing lever) for drawer removal
Order reference
Optional brackets for bottom or shelf mounting of these runners are available
Standard hold-in and hold-out versions available
Order Varianta Ø 5 cylinder head and Hospa Ø 4.0 pan head screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Specifications
Version
Tolerance absorption tabs
Colour/finish
Corrosion resistant
Model
DH3832
Area of application
For applications such as filing cabinets, desk pedestals and general storage drawers
Holding function
Hold-in
Drawer removal
With release lever
Material
Steel
Bearing
Ball bearing
Width
442.00 mm
Installation
32 mm drilling pattern
