3832 BB Drawer RunnerFull 48kg 300mm Blk
Part Number: 422.41.330
Front disconnect with hold-in feature, Black, installed length 300 mm, load capacity 48 kg
Price:
£24.58
Per Item
Hold-in feature holds the closed drawer inGrooved cabinet member, for better movementFront disconnect (by... Read More
Product Information
Product Details
Hold-in feature holds the closed drawer in
Grooved cabinet member, for better movement

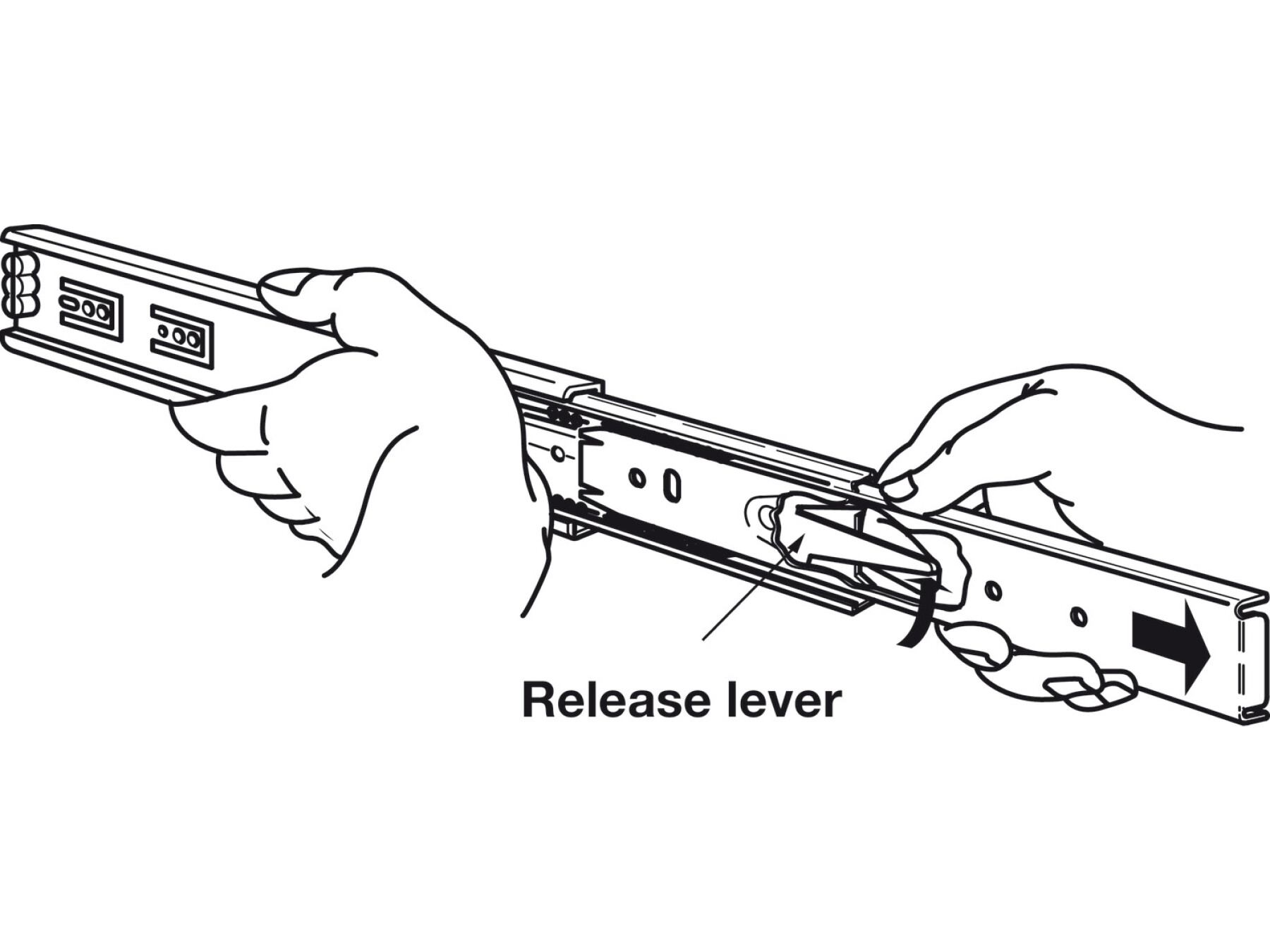

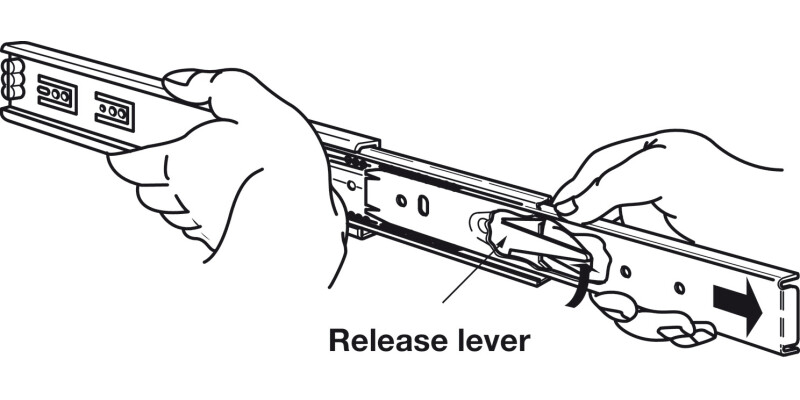

Front disconnect (by depressing lever) for drawer removal
Order reference
Optional brackets for bottom or shelf mounting of these runners are available
Corrosion resistant and hold-out versions available
Order Varianta Ø 5 cylinder head and Hospa Ø 4.0 pan head screws separately

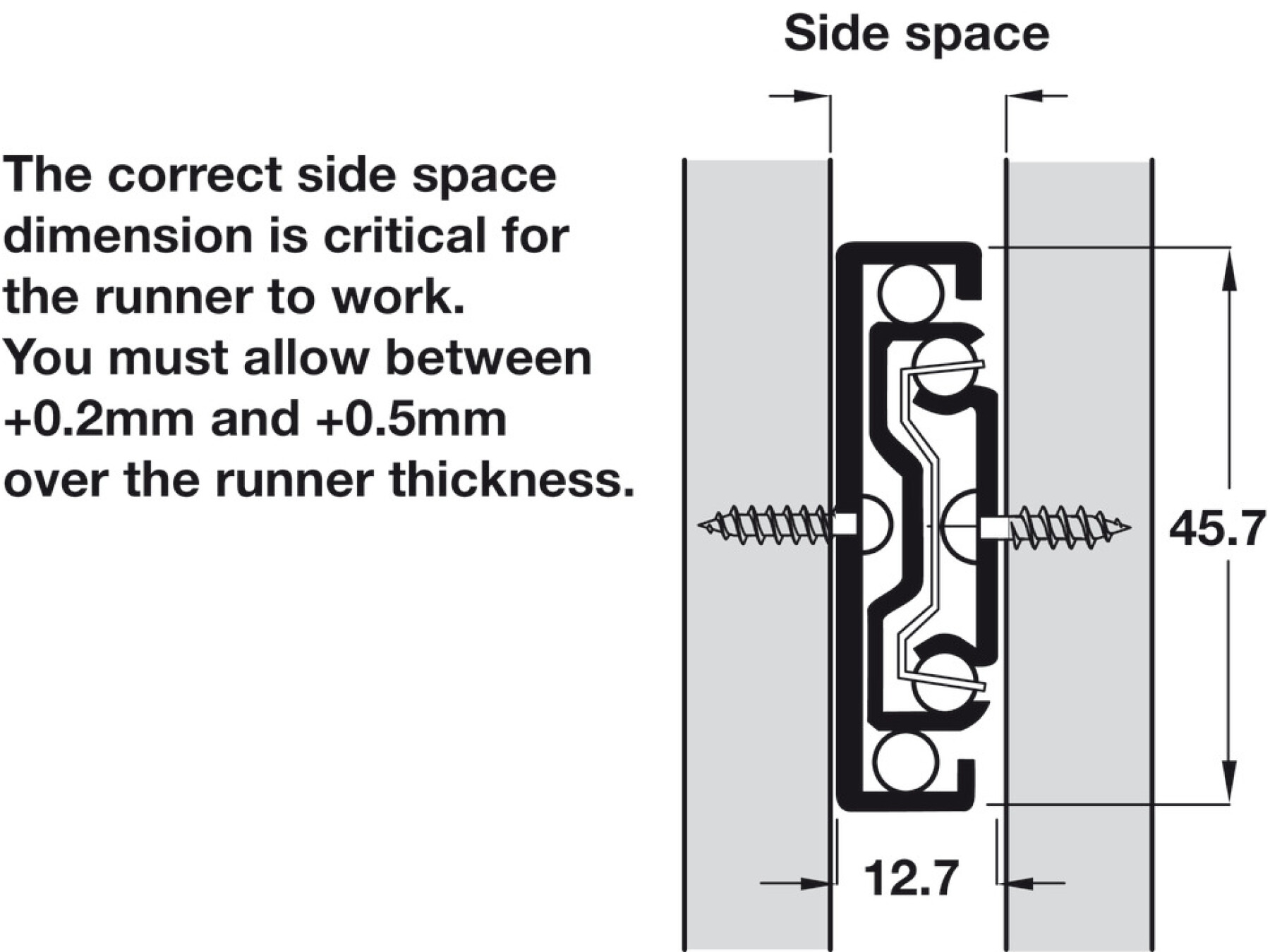

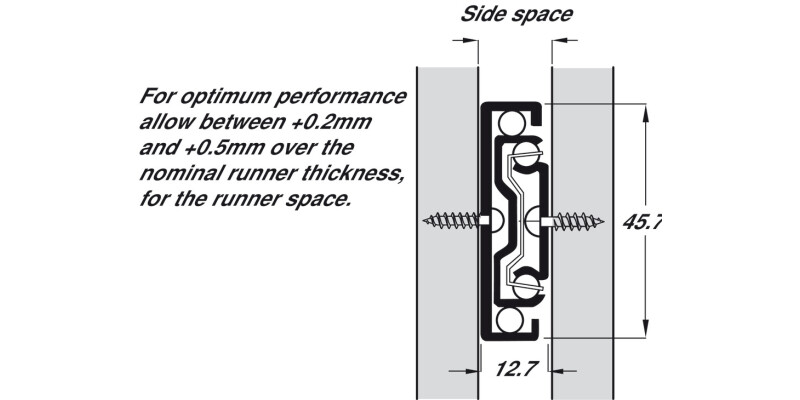

Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.
Specifications
Version
Tolerance absorption tabs
Model
3832
Type of pull out
Full extension
Area of application
For applications such as filing cabinets, desk pedestals and general storage drawers
Holding function
Hold-in
Drawer removal
With release lever
Material
Steel
Width
242.00 mm
Installation

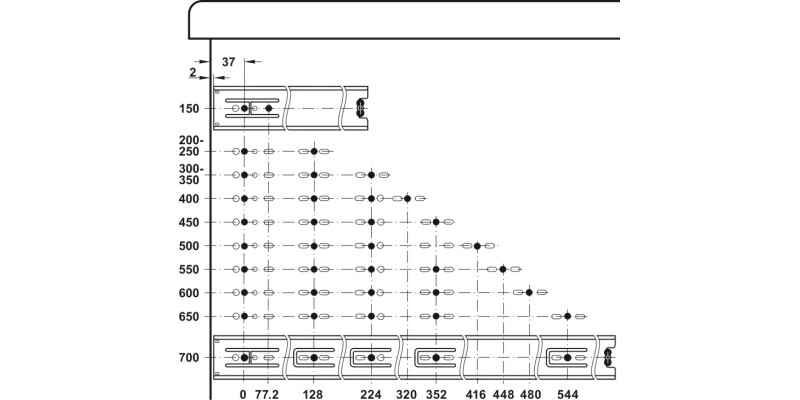

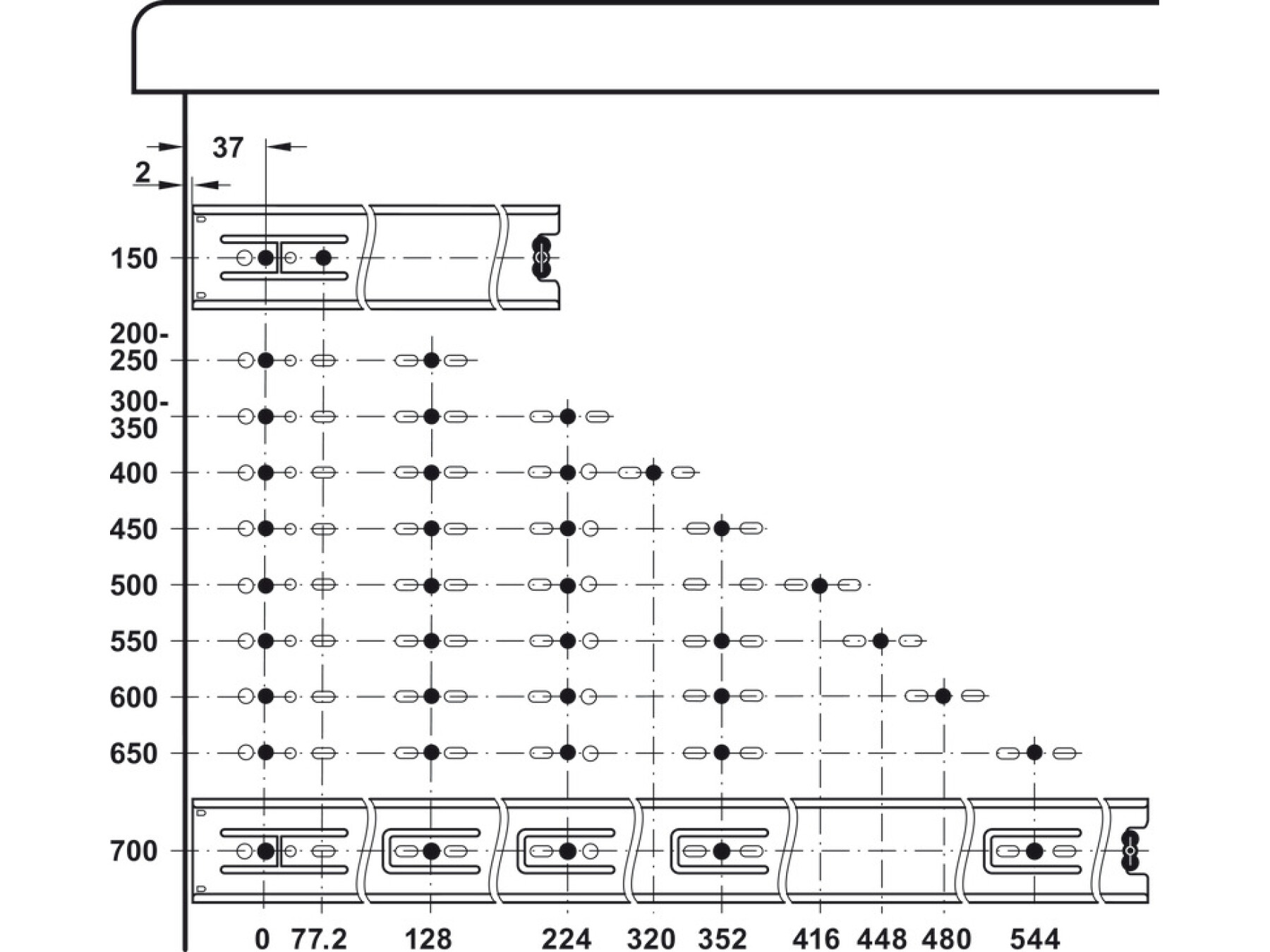

32 mm drilling pattern
