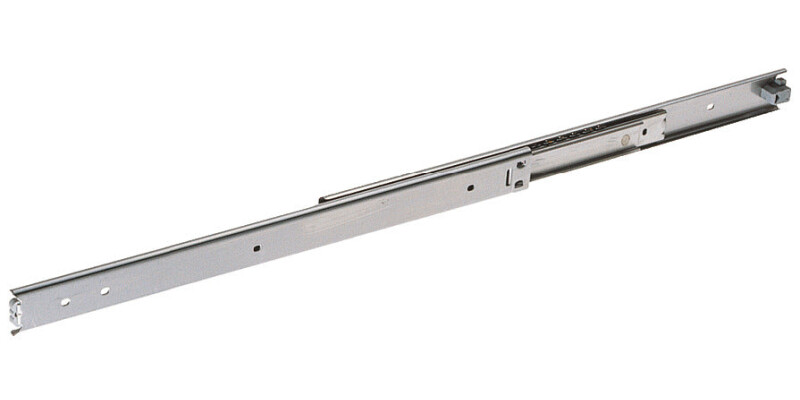

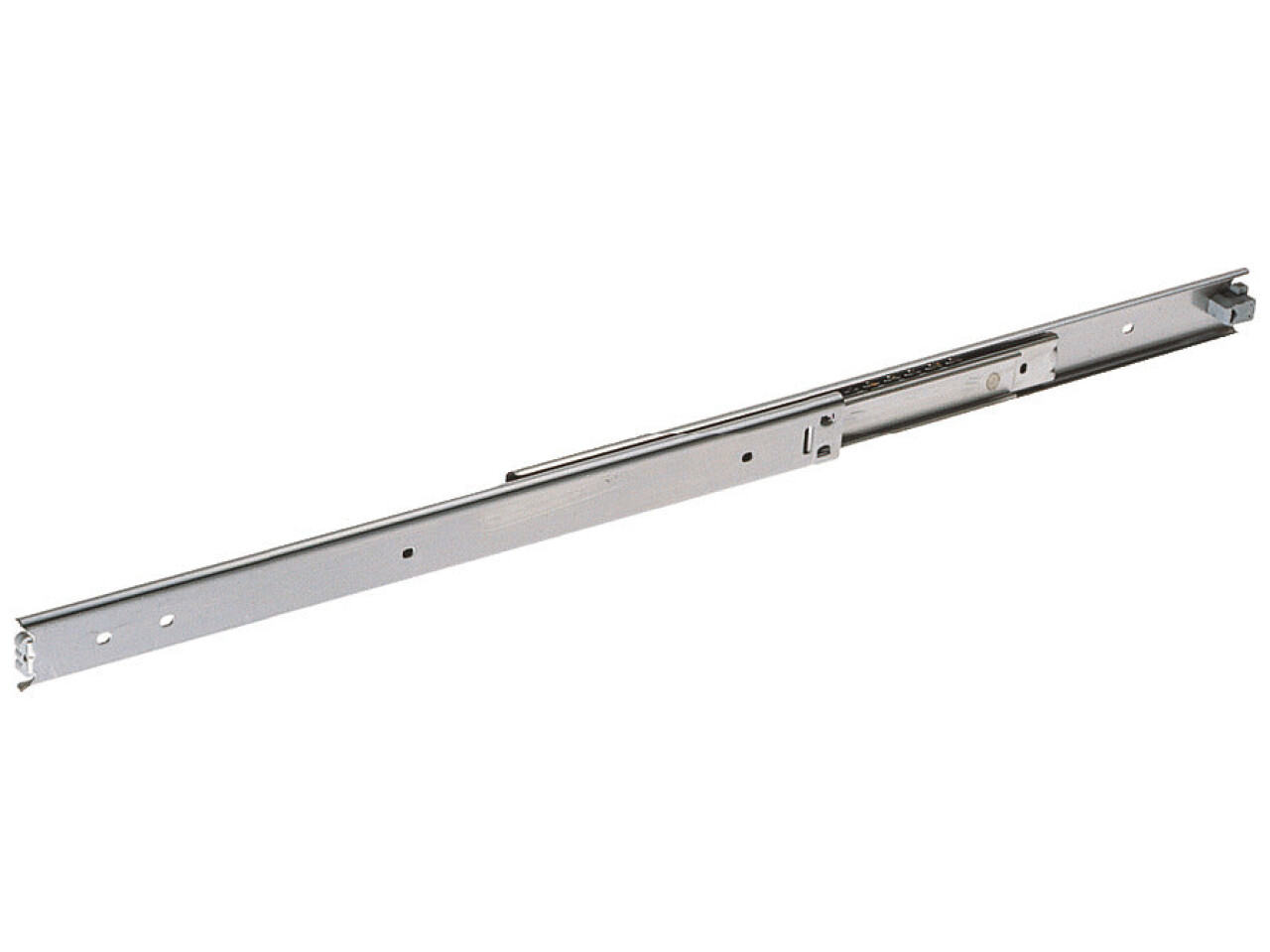

0330 SS BB Drawer Runner Full 50kg 300mm HGSS
Part Number: 422.39.030
Grade 304 stainless steel, Installed length 300 mm, load capacity 50 kg
Price:
£823.51
Per 5 Pack
Area of application Suitable for corrosive, external or environmentally sensitive applications such as... Read More
Product Information
Product Details
Area of application

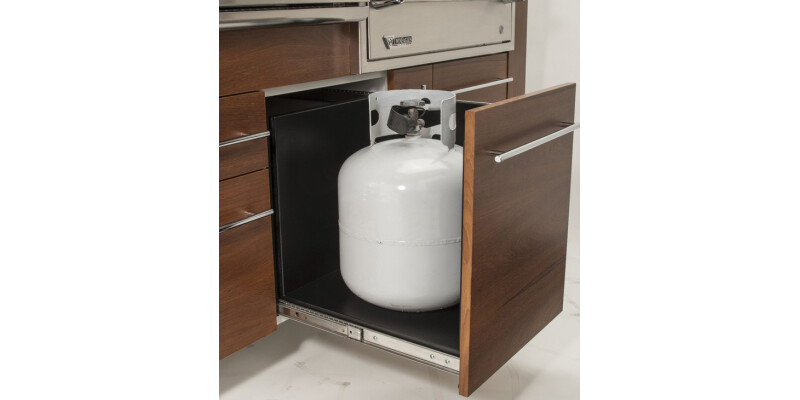

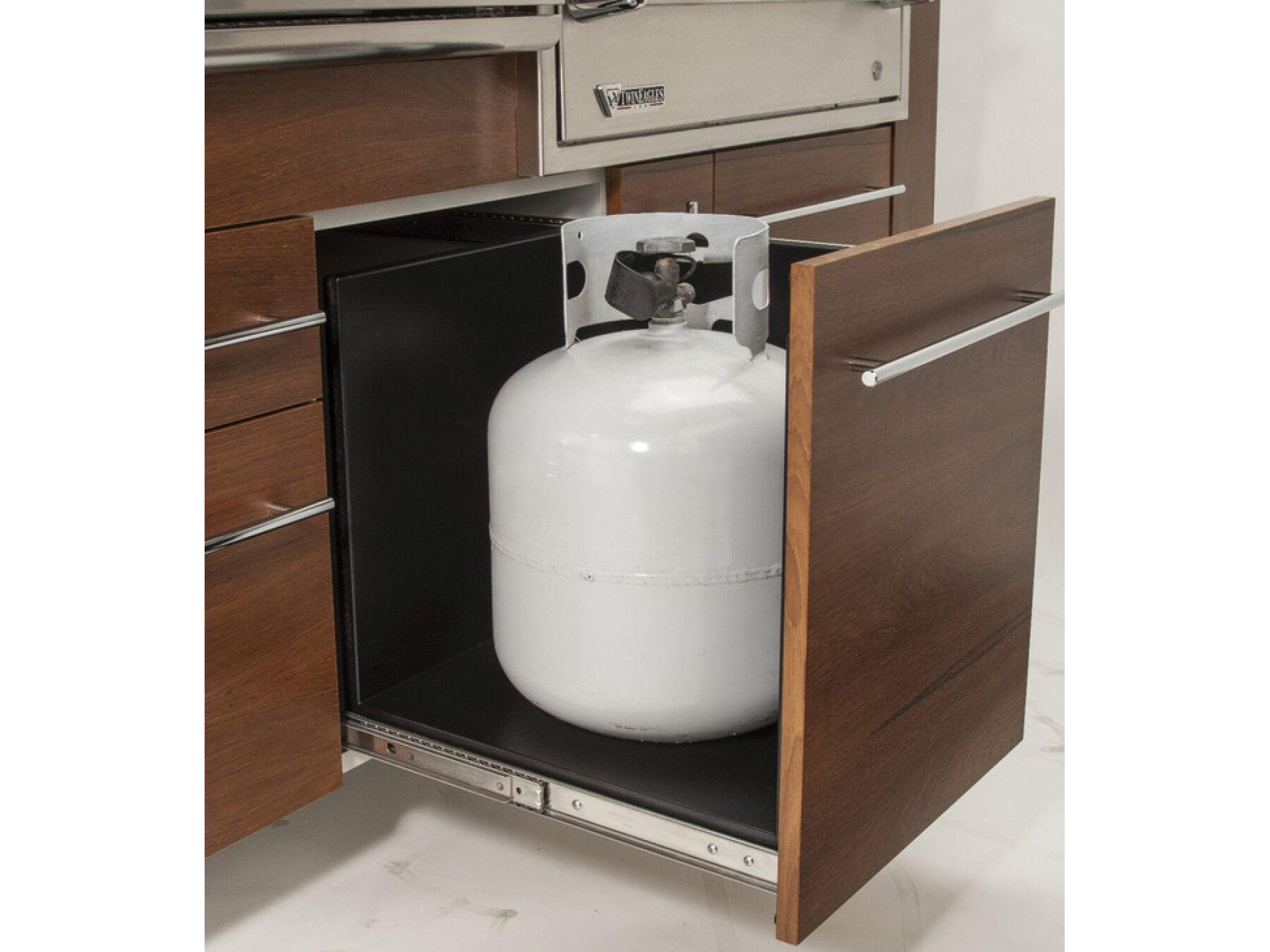

Suitable for corrosive, external or environmentally sensitive applications such as refrigeration, kitchens, boats and medical equipment

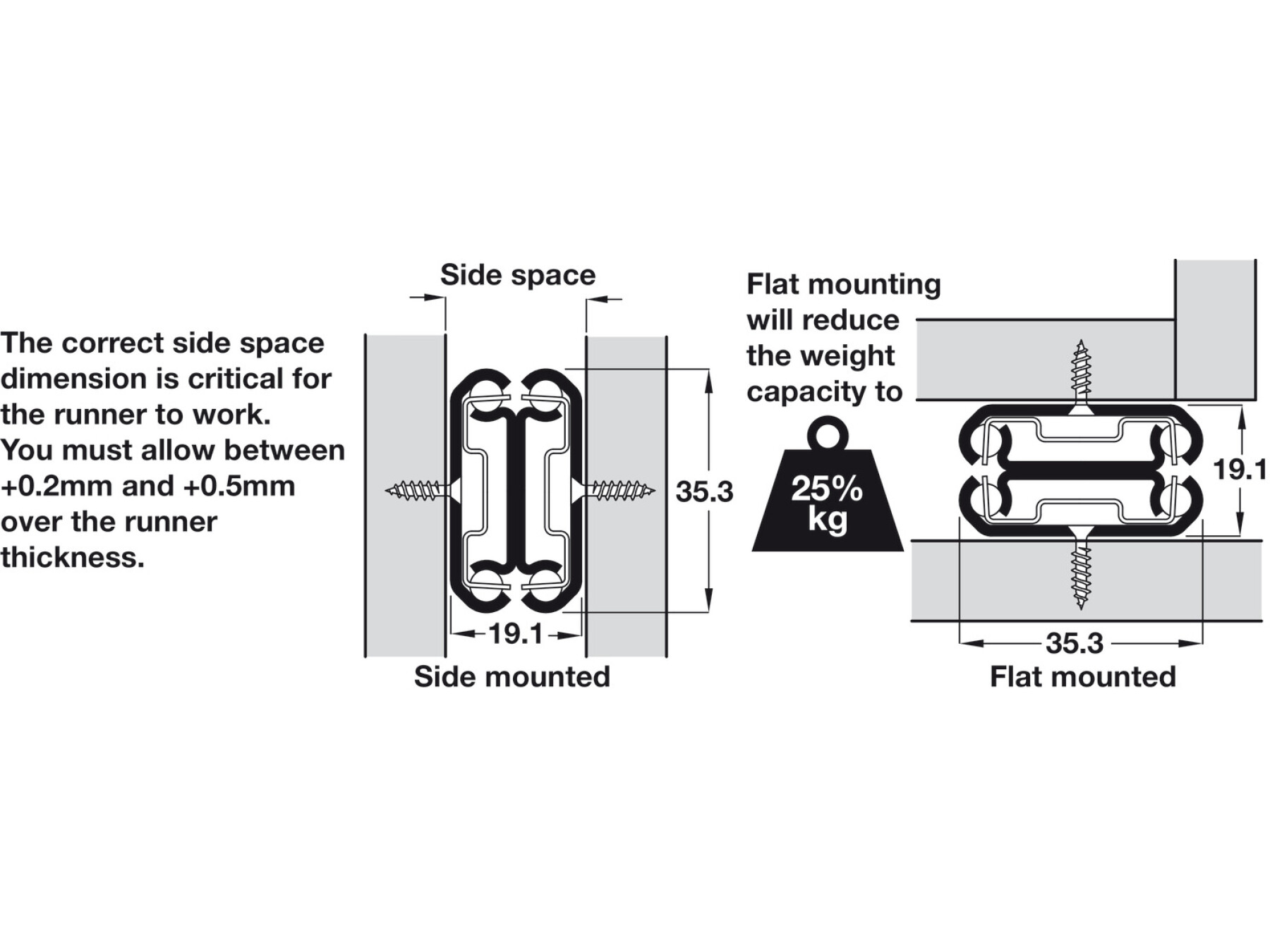

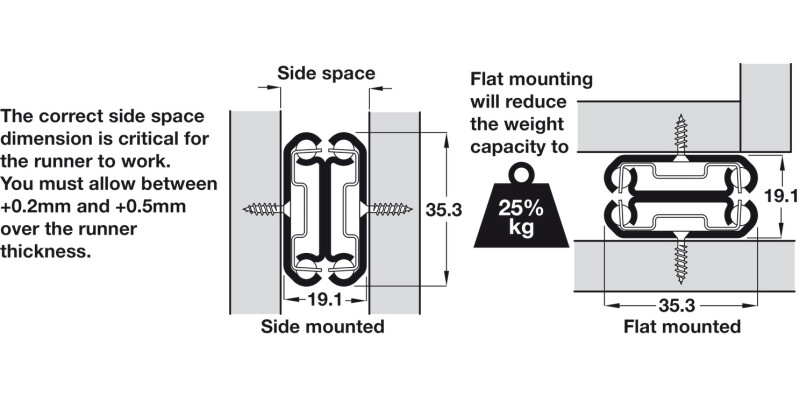

Weights limit per pair based on length, weight limits reduce by 75% if flat mounted
Specifications

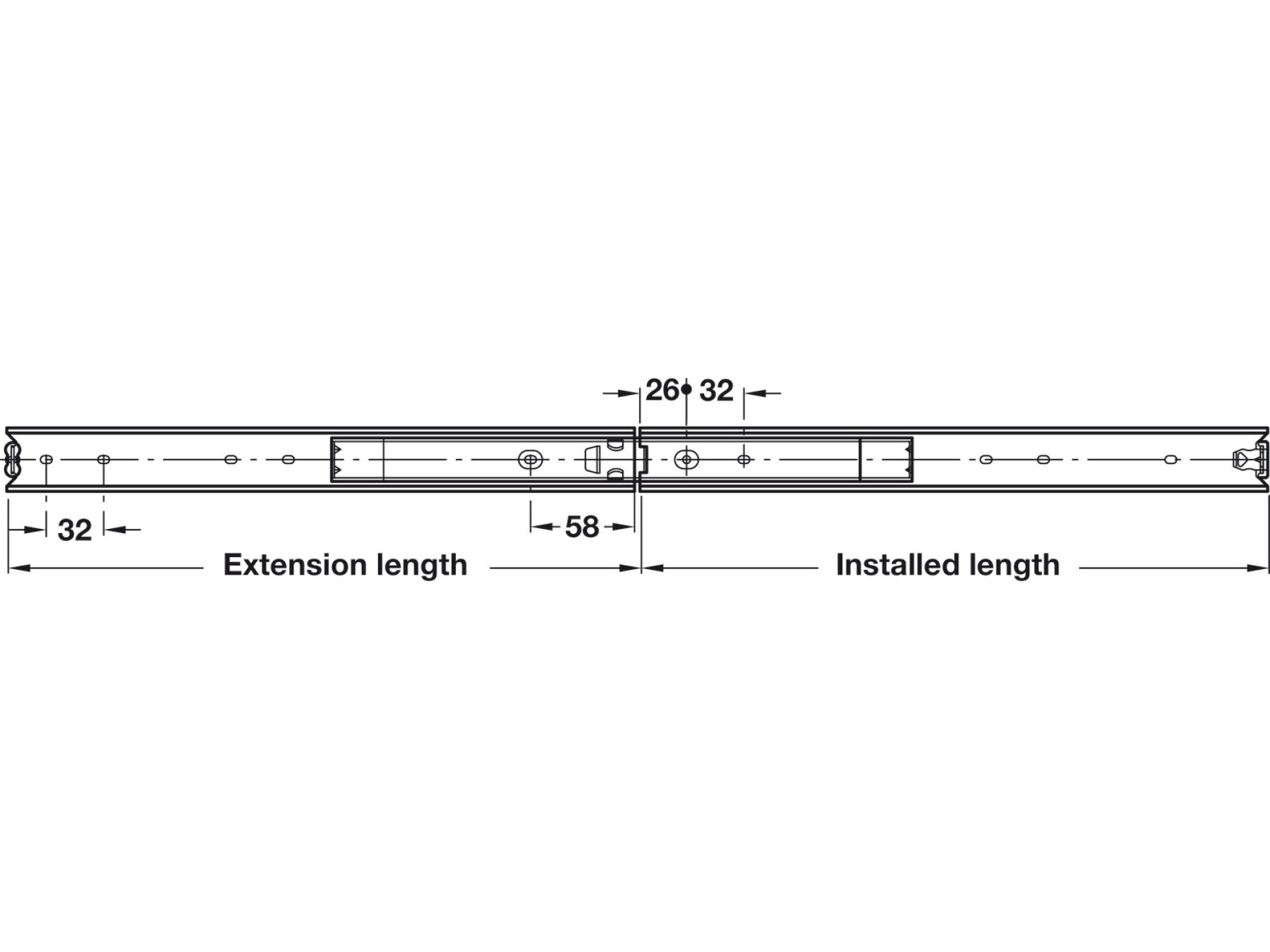

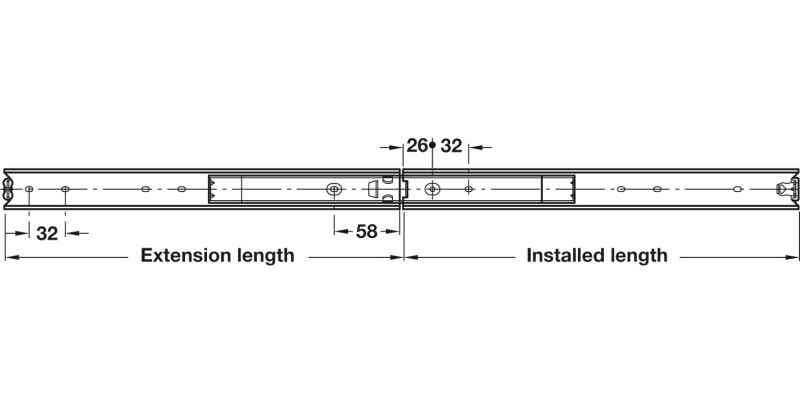

Installation length
300.00 mm
Extension length
305.00 mm
Load bearing capacity
50.00 kg
Version
Hold-in feature holds the closed drawer in
Colour/finish
Model
0330 SS
Type of pull out
Full extension
Holding function
Hold-in
Drawer removal
without release lever
Material
Grade 304 stainless steel (1.4301 x 5Cr Ni 1810)
Width
192.00 mm
Installation
Side or base mounted
32 mm drilling pattern
Order reference
Order Hospa Ø 4.0 countersunk screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
