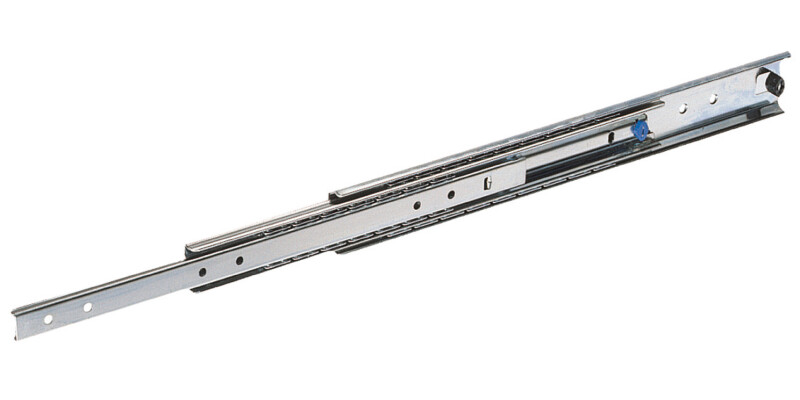

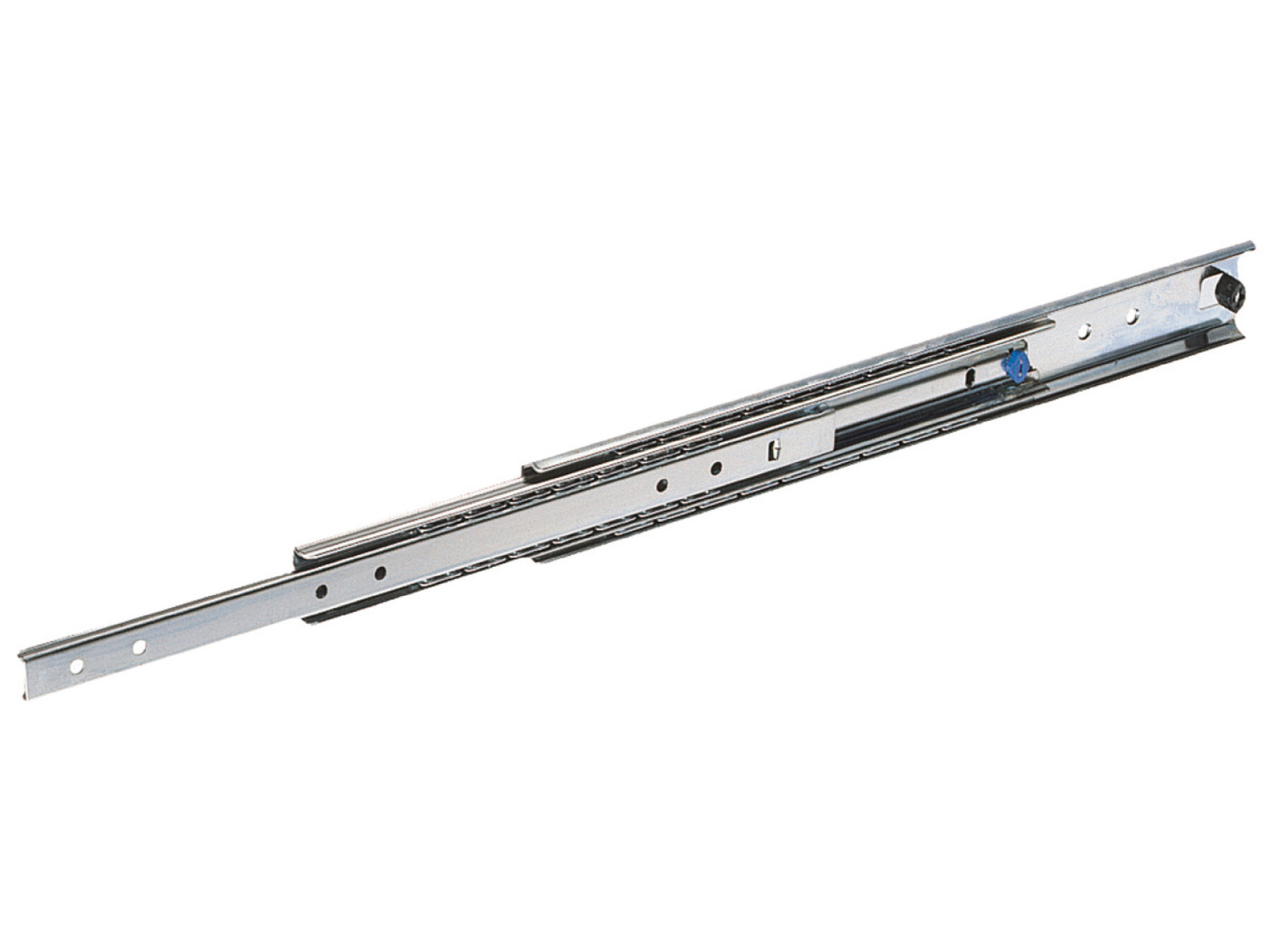

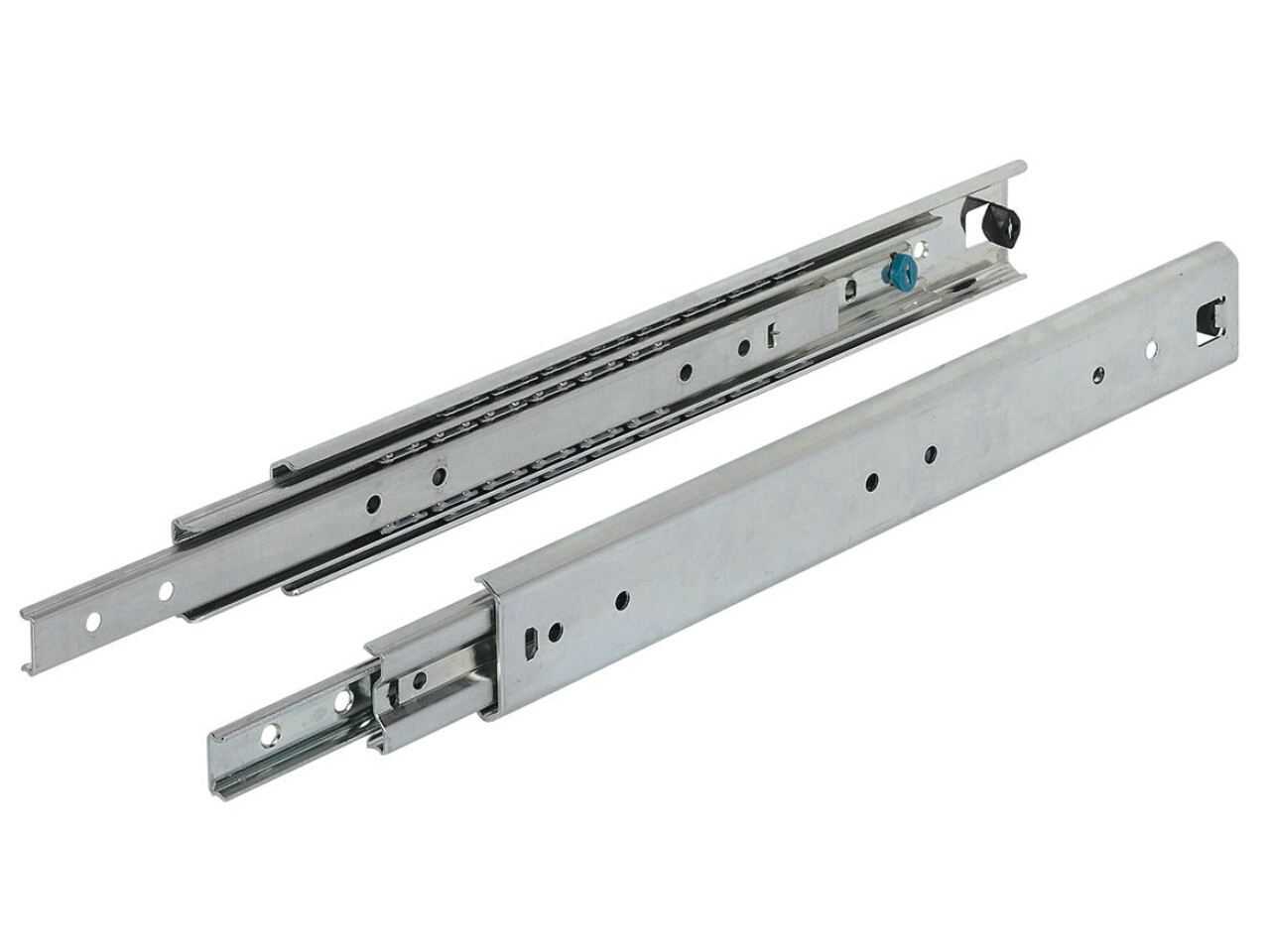

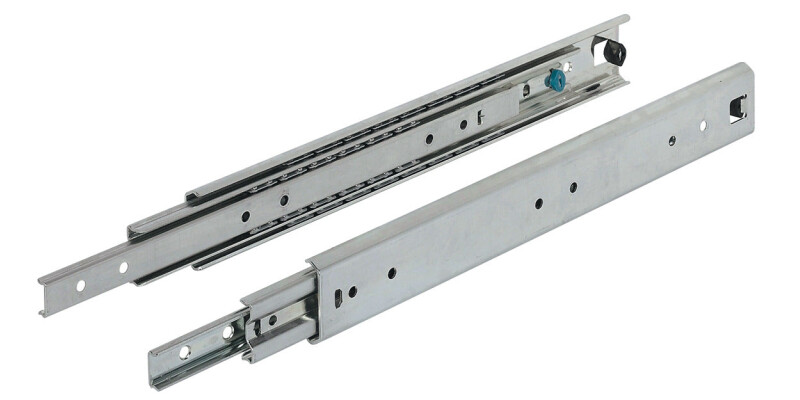

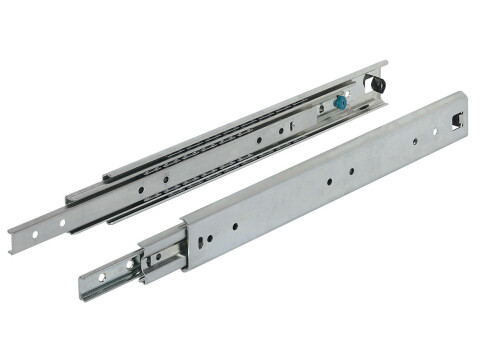

5321 BB Drawer RunnerFull 80kg 900mm BZP
Part Number: 422.22.900
With hold-in feature, Installed length 900 mm, load capacity 80 kg
Price:
£220.50
Per Item
For applications such as lateral filing cabinets, extra heavy duty storage drawersHold-in feature holds the... Read More
Product Information
Product Details

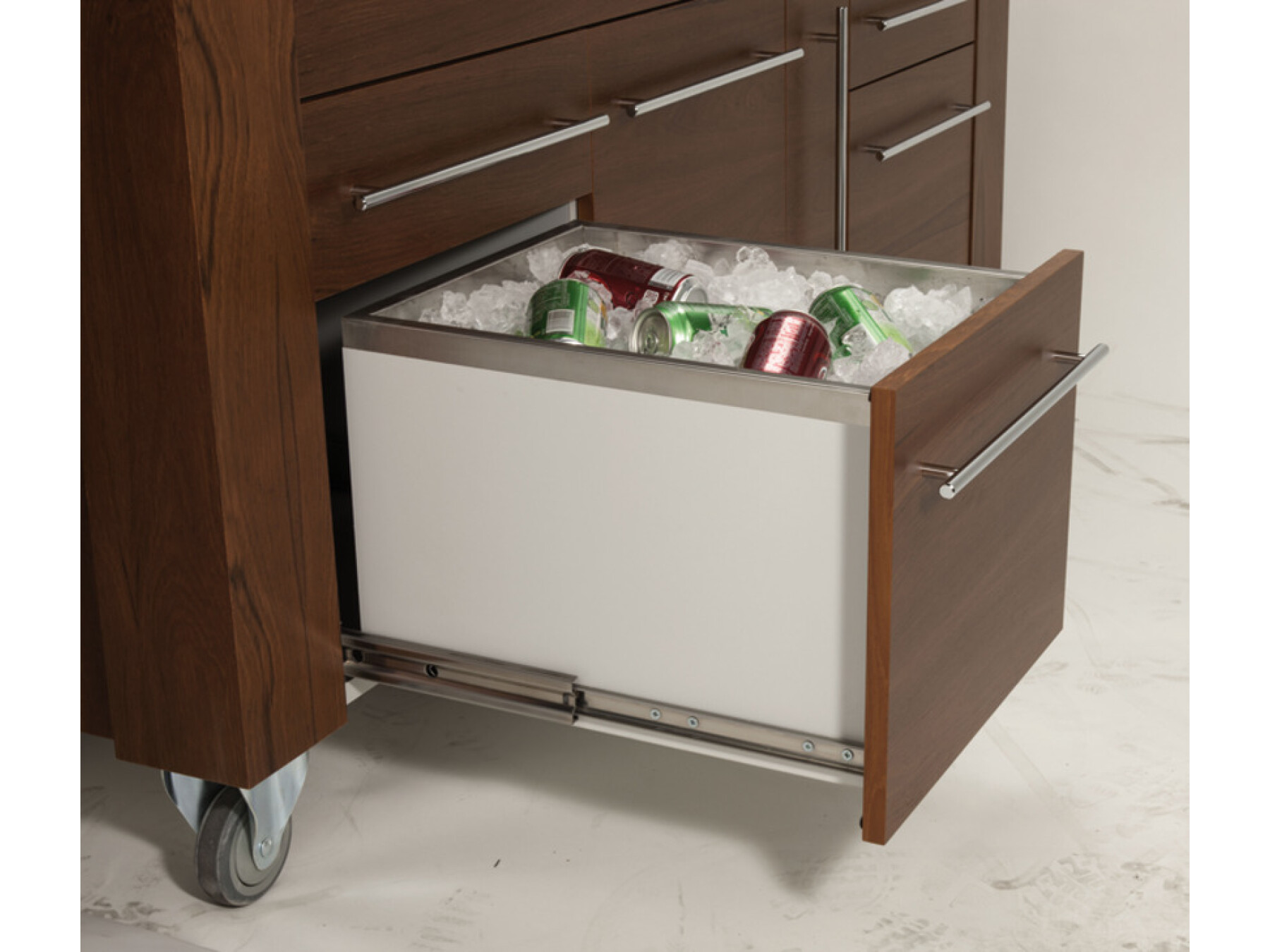

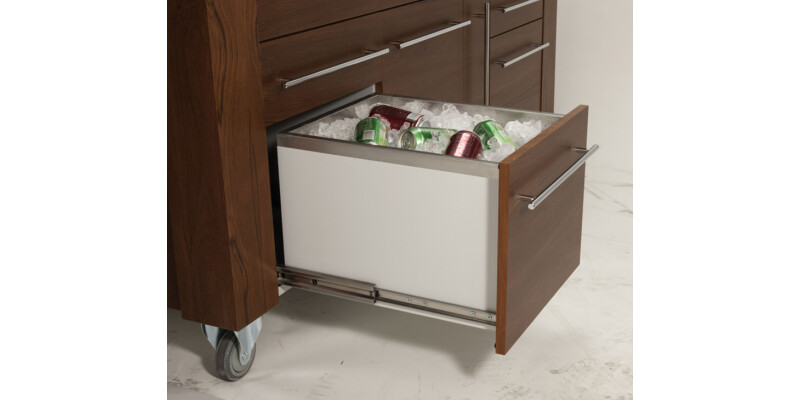

For applications such as lateral filing cabinets, extra heavy duty storage drawers
Hold-in feature holds the closed drawer in
Order reference
High grade stainless steel and self close versions available
Optional mounting brackets for bottom or shelf mounting available, please order separately
Order M5 countersunk screws separately
Ensure all fixing holes are used for heavier loads
Specifications
Mounting

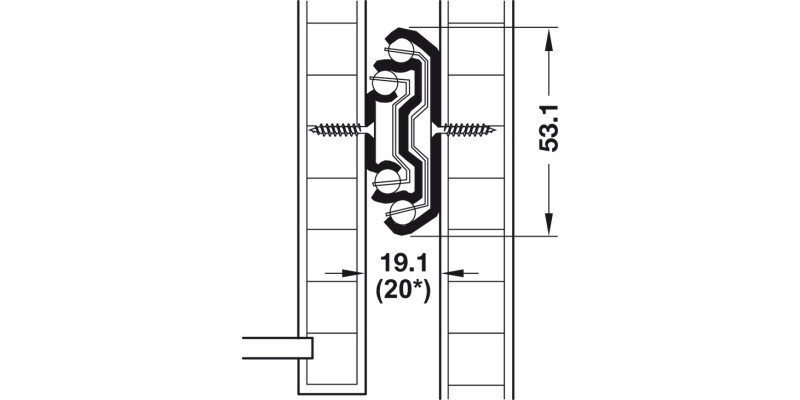

Side mounting
Version
With hold-in device for holding in closed position
Colour/finish
Zinc plated, Bright
Model
5321
Type of pull out

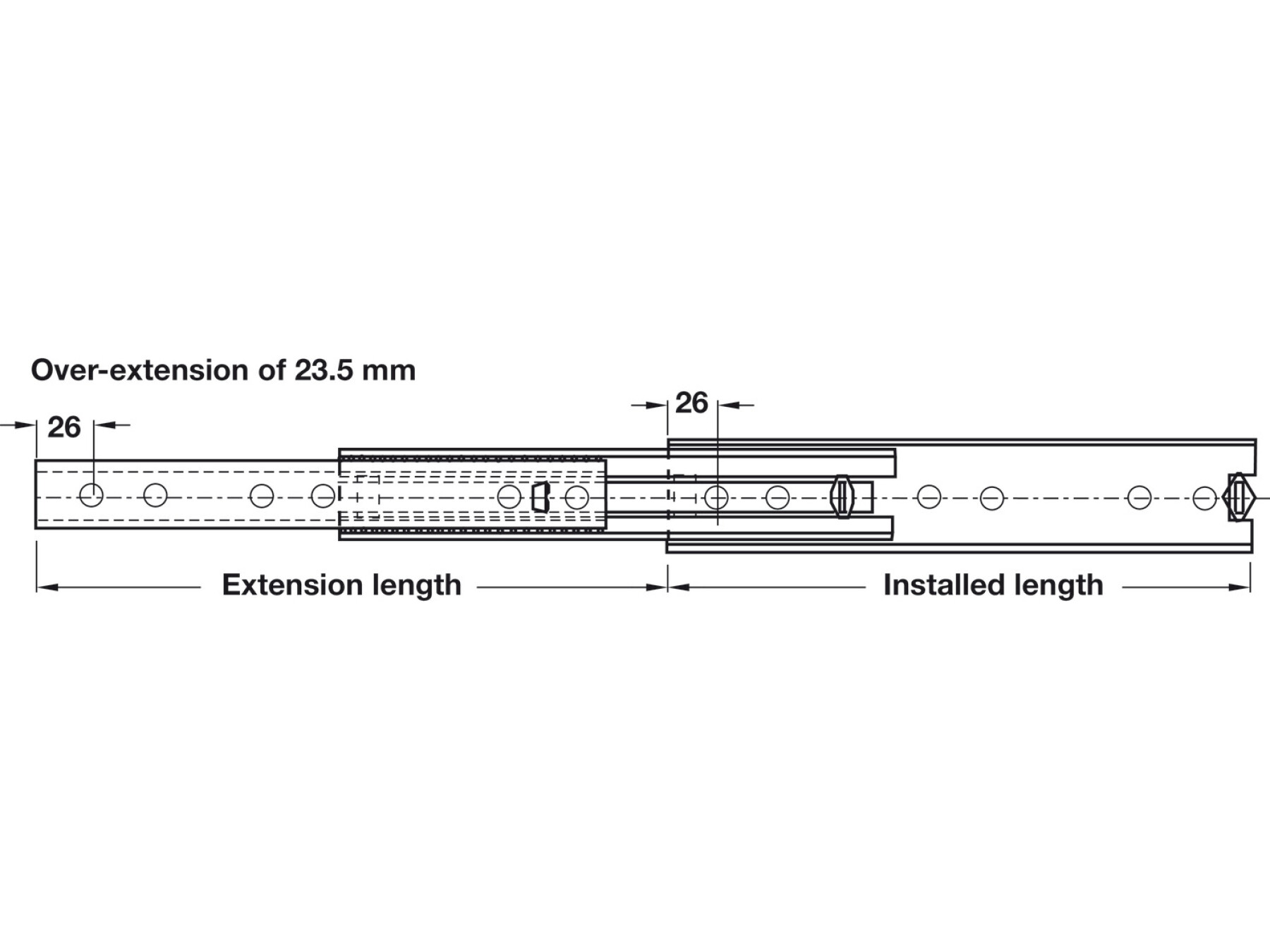

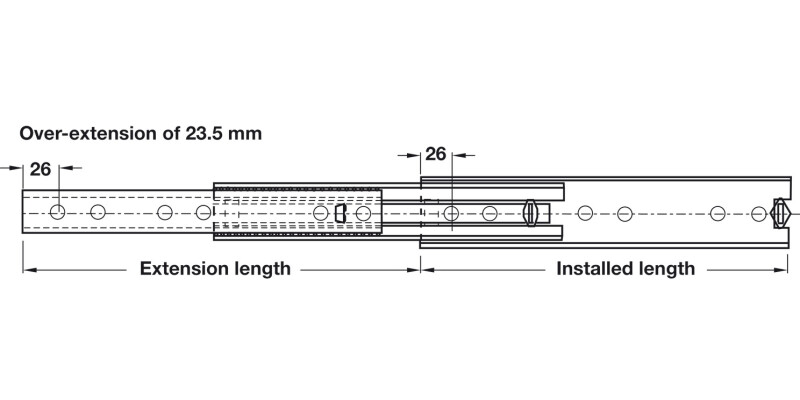

Full extension
Area of application
For applications such as lateral filing cabinets, extra heavy duty storage drawers
Holding function
Hold-in
Drawer removal
without release lever
Material
Steel
Width
480.00 mm
Installation

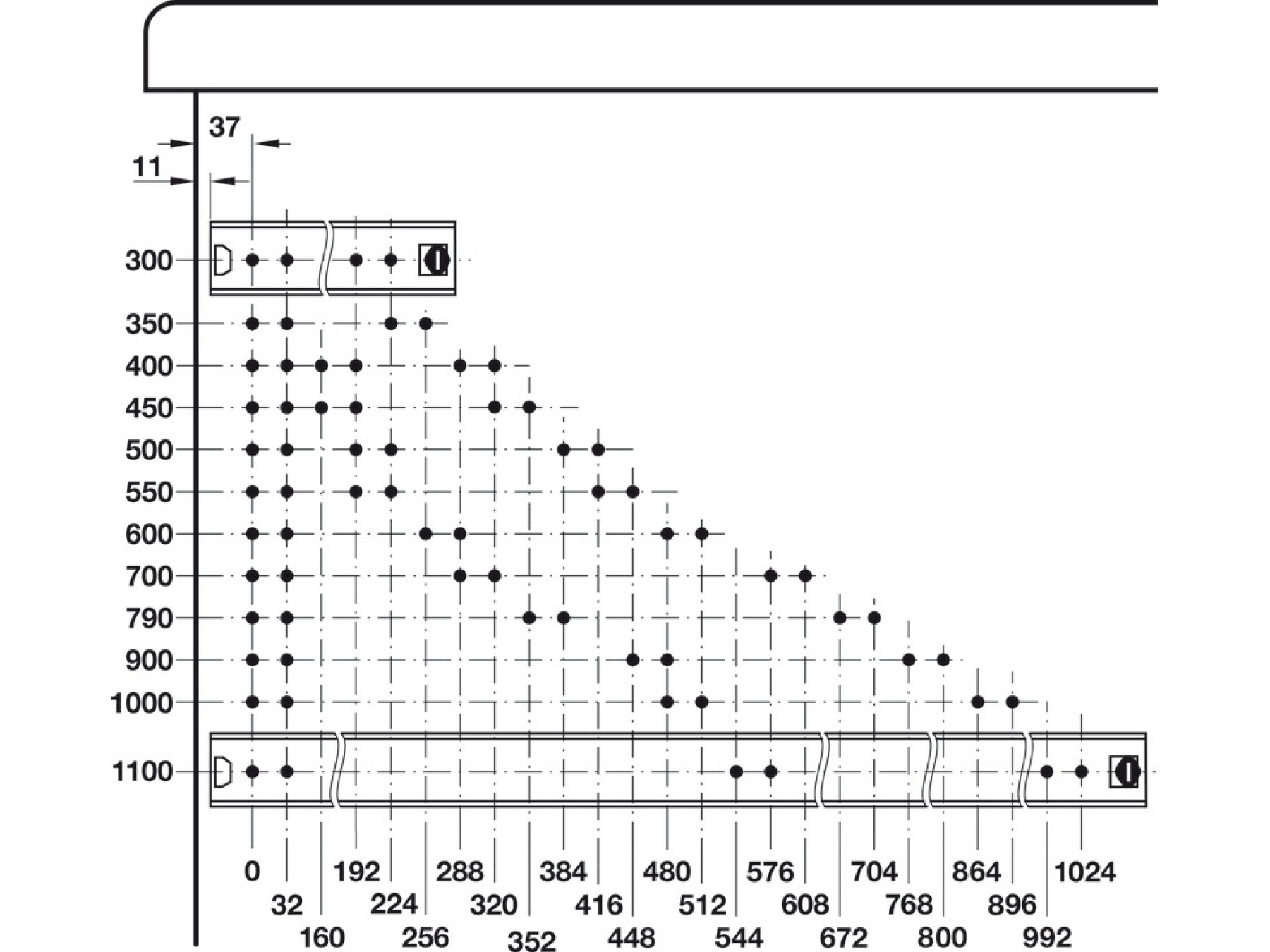

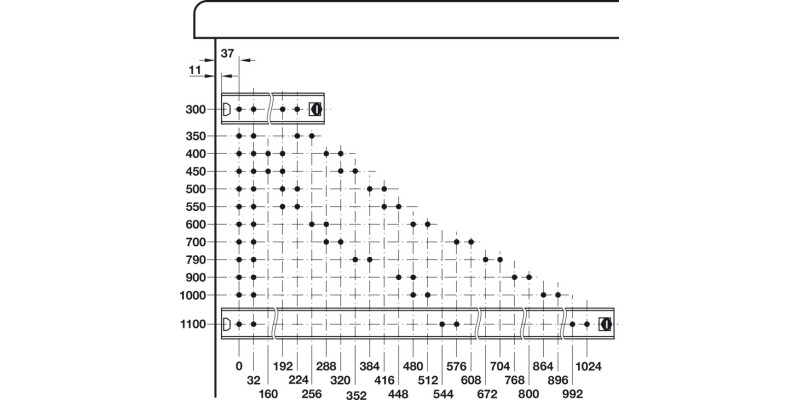

32 mm drilling pattern
