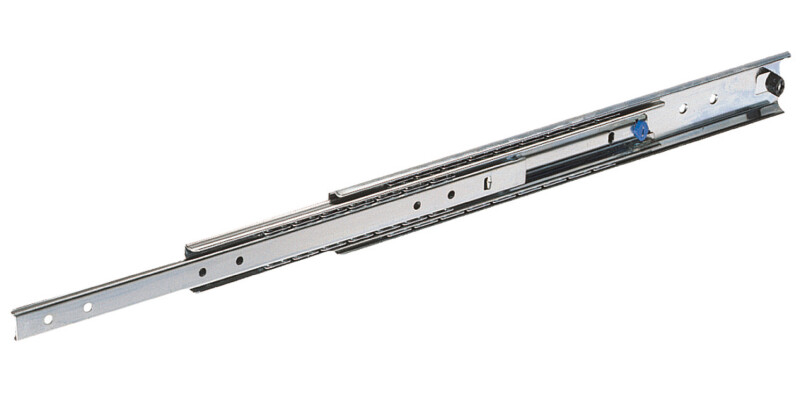

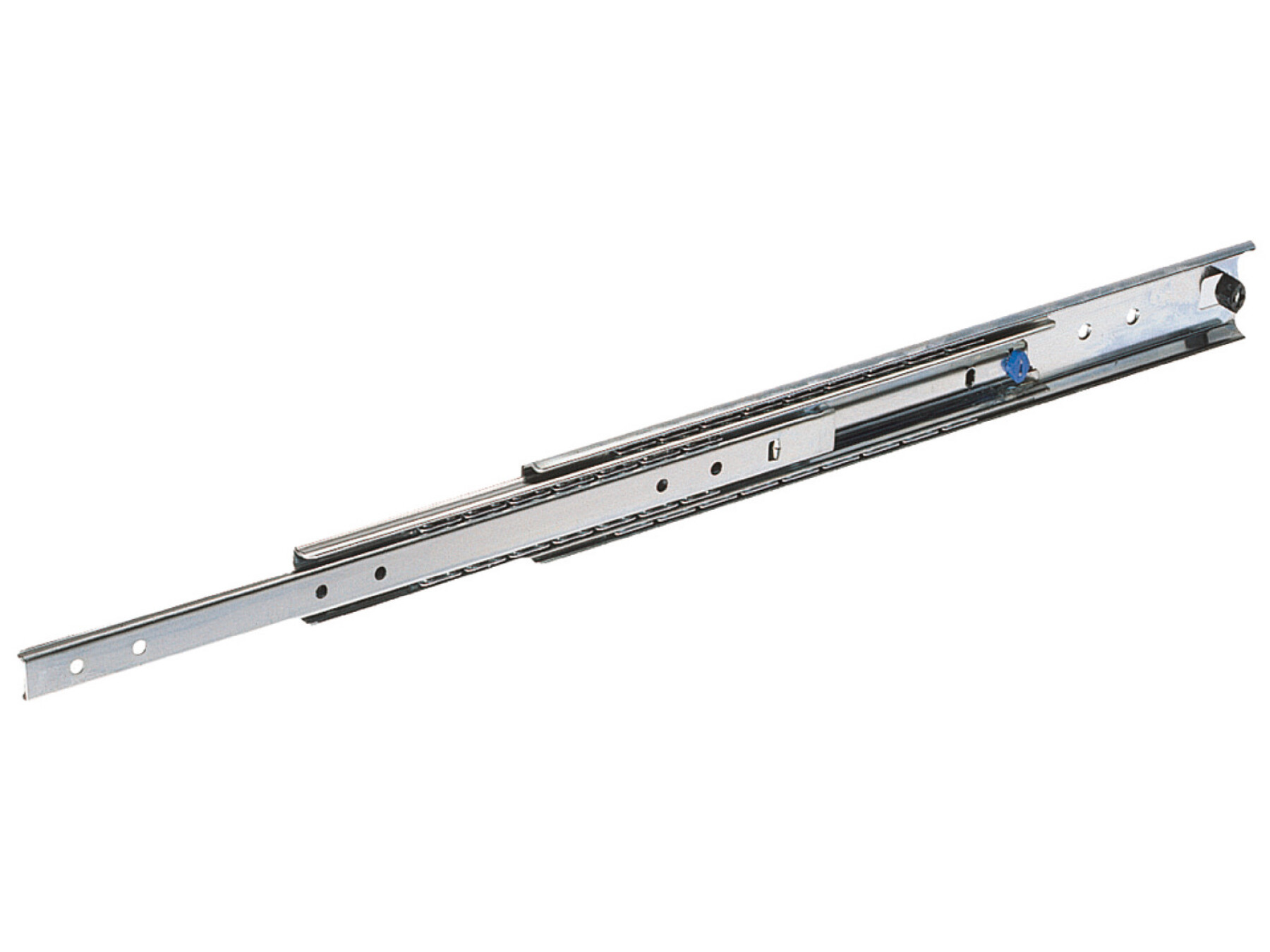

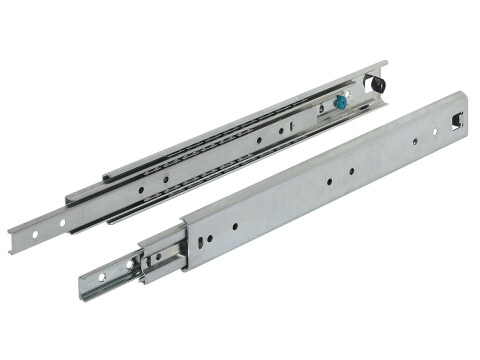

5321 BB Drawer Runner Full 130kg 600mm HGSS
Part Number: 422.22.060
High grade stainless steel, with hold-in feature, Installed length 600 mm, load capacity 130 kg
Price:
£187.35
Per Item
For applications such as lateral filing cabinets, extra heavy duty storage drawersStainless steel version... Read More
Product Information
Product Details
For applications such as lateral filing cabinets, extra heavy duty storage drawers

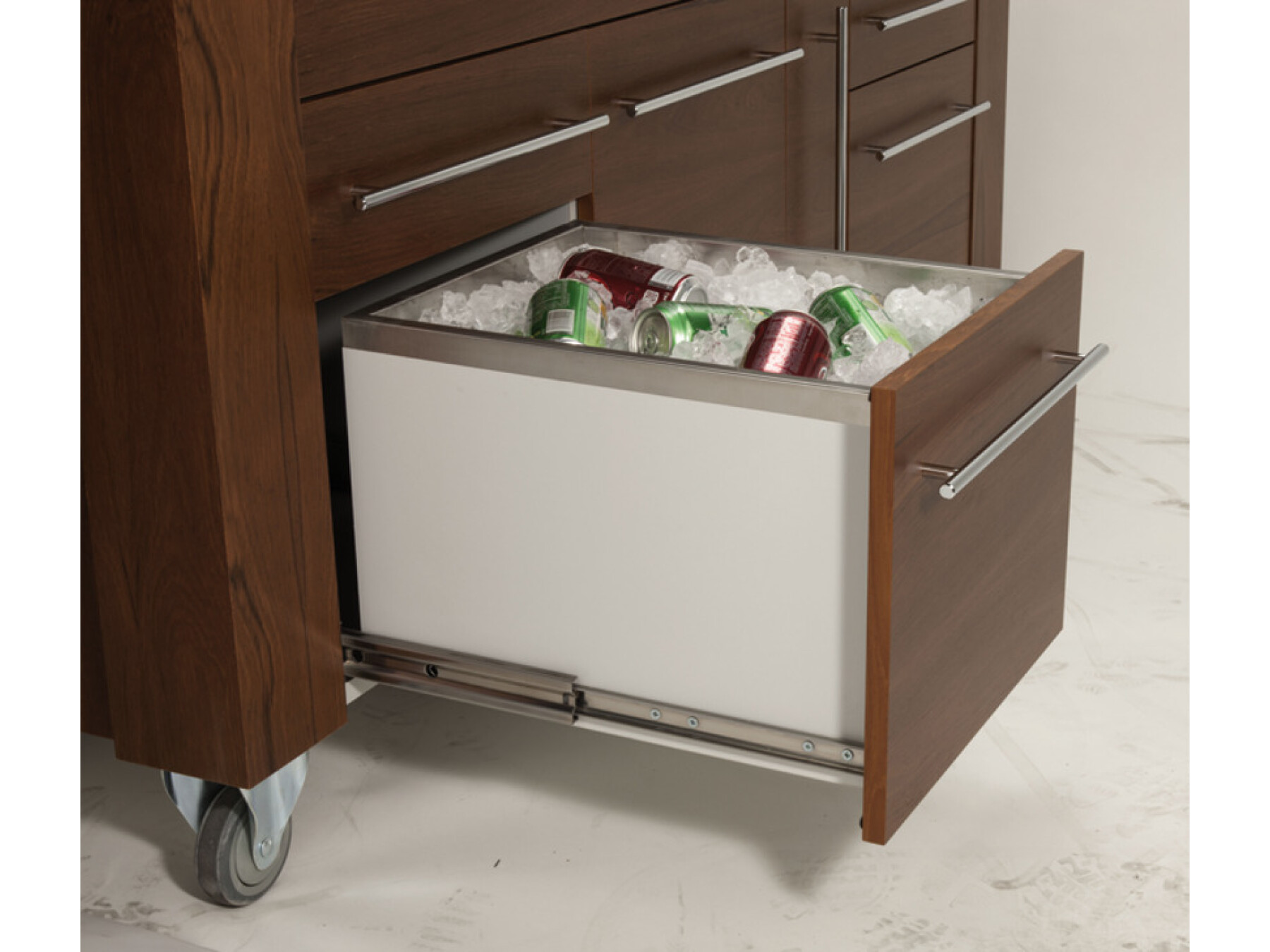

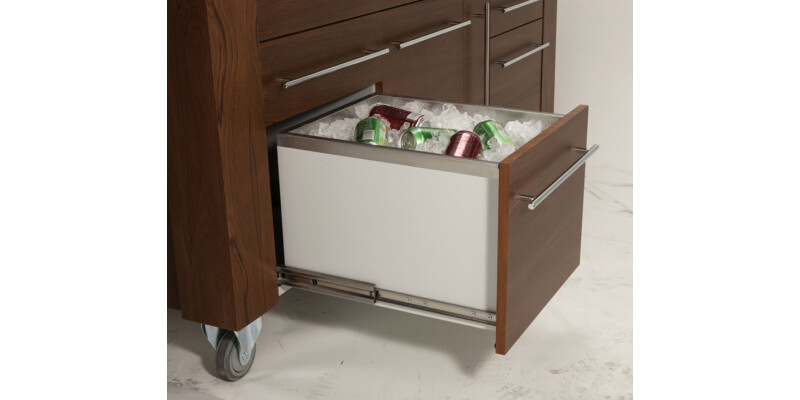

Stainless steel version suitable for corrosive, external or environmentally sensitive applications such as refrigeration, kitchens, boats and medical equipment
Hold-in feature holds the closed drawer in
Order reference
Standard steel and self closing versions available
Optional mounting brackets for bottom or shelf mounting available, please order separately
Order M5 countersunk screws separately
Ensure all fixing holes are used for heavier loads
Specifications
Mounting

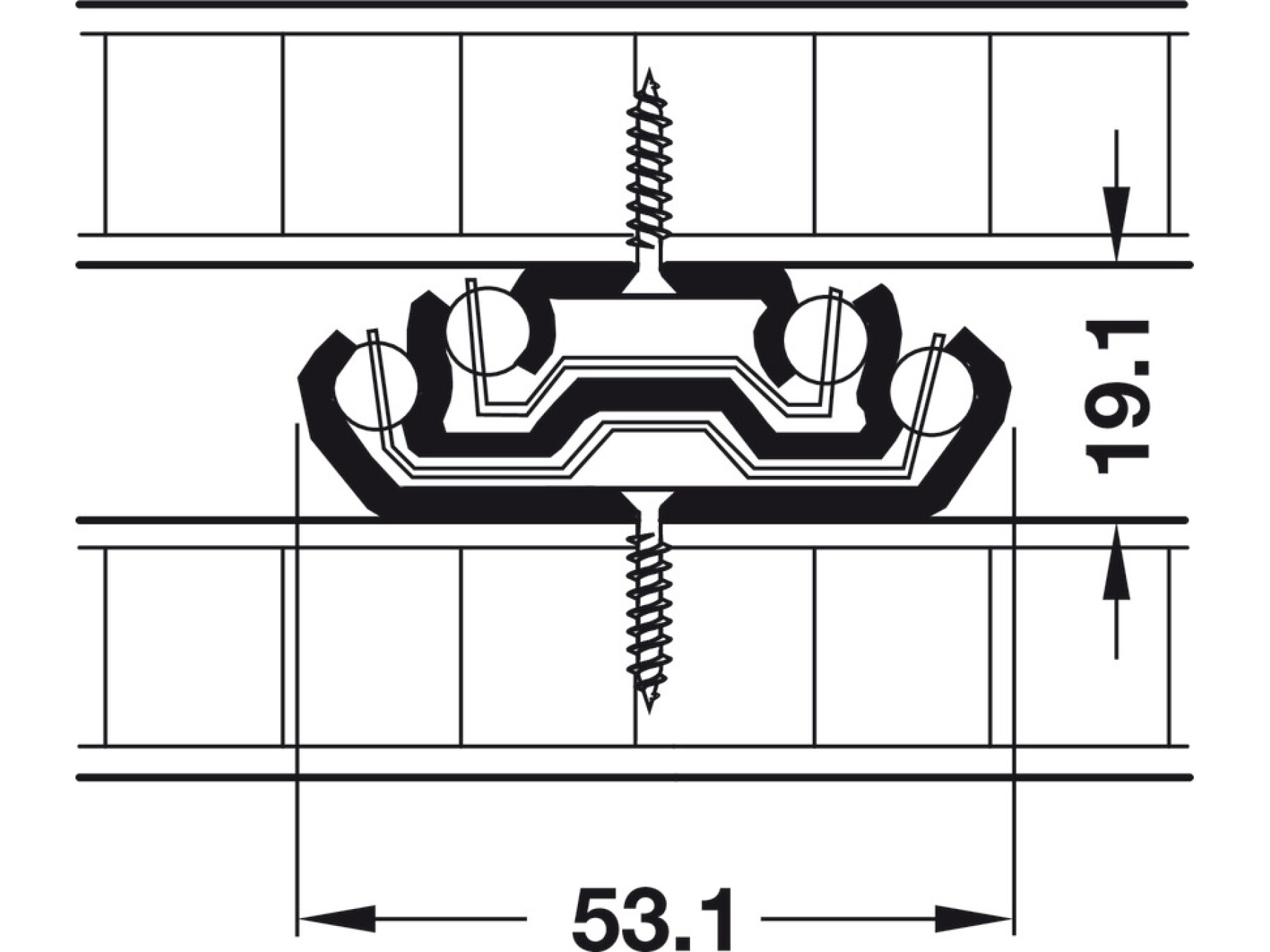

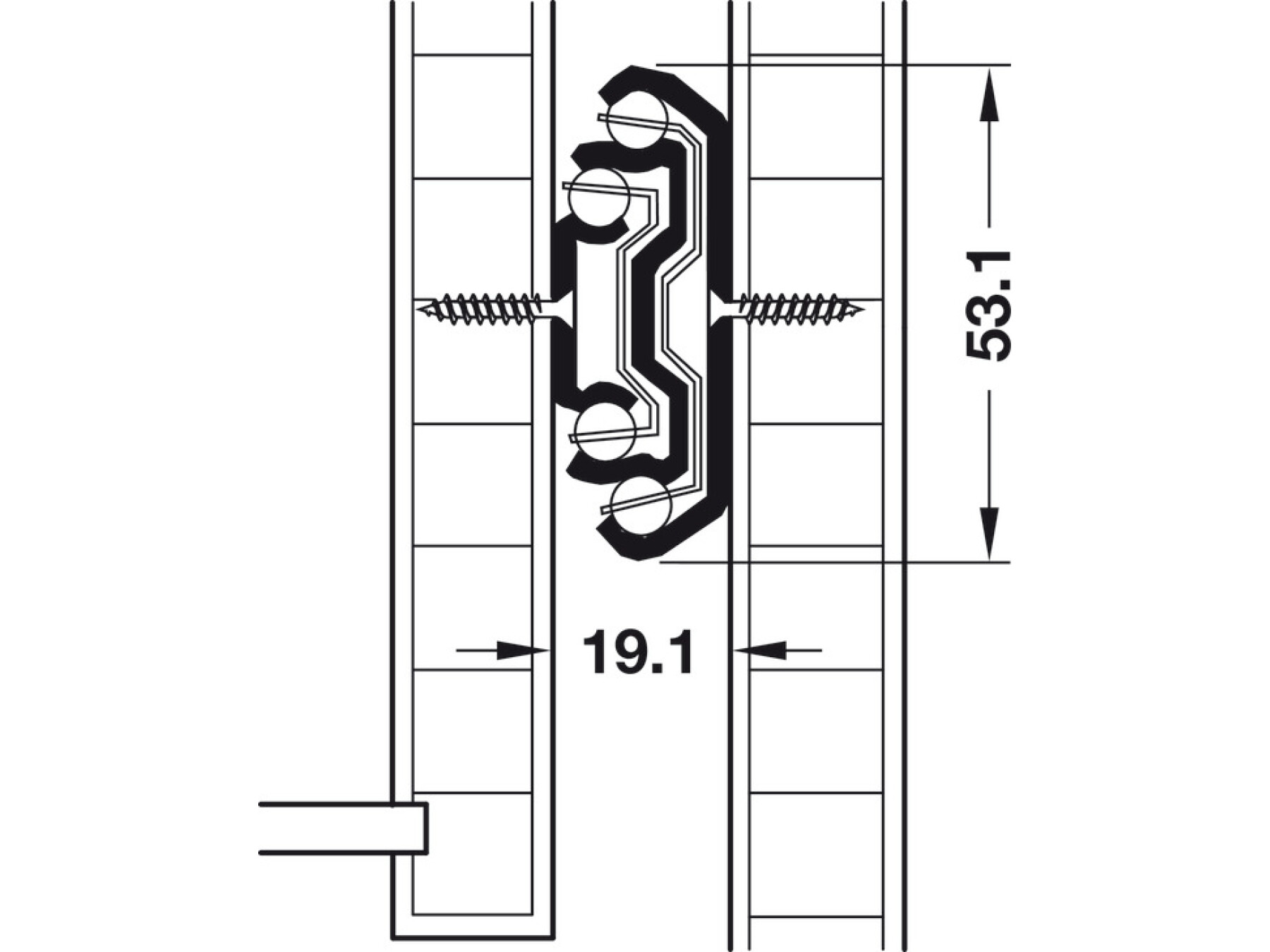

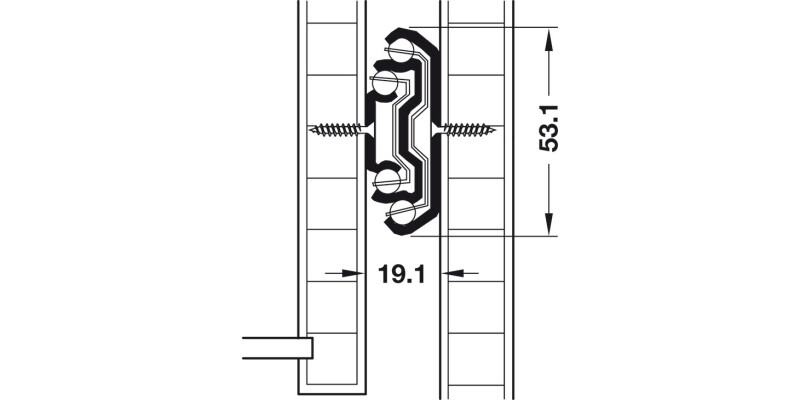

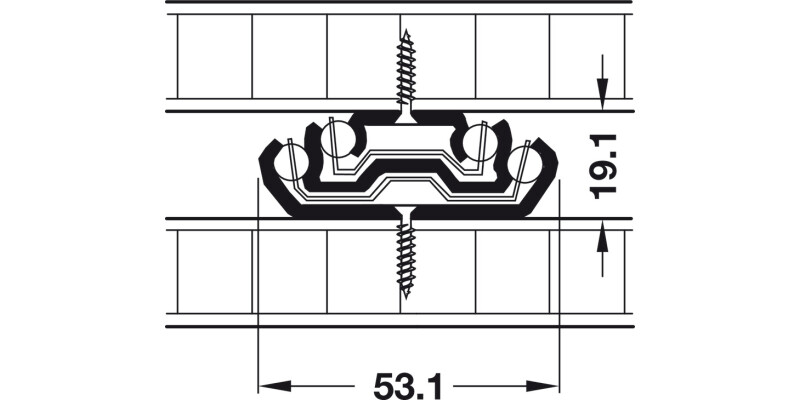

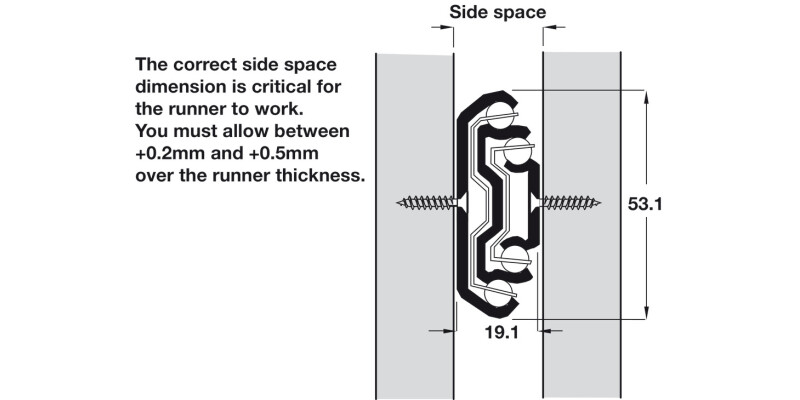

Side mounting
Version
With hold-in device for holding in closed position
Colour/finish
Model
5321DS
Type of pull out

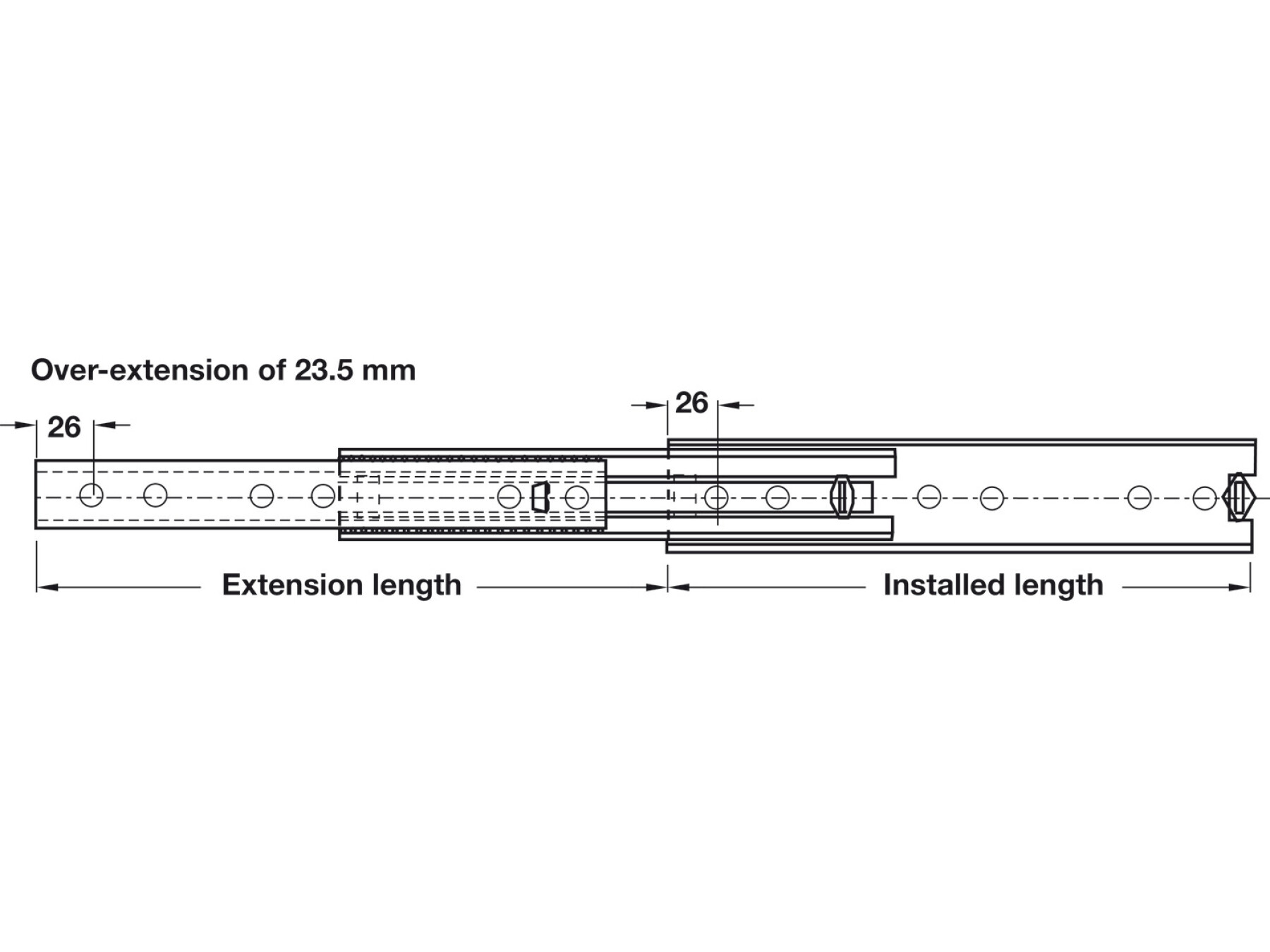

Full extension
Area of application
For applications such as lateral filing cabinets, extra heavy duty storage drawers
Holding function
Hold-in
Drawer removal
without release lever
Material
Grade 304 stainless steel
Width
288.00 mm
Installation
32 mm drilling pattern
