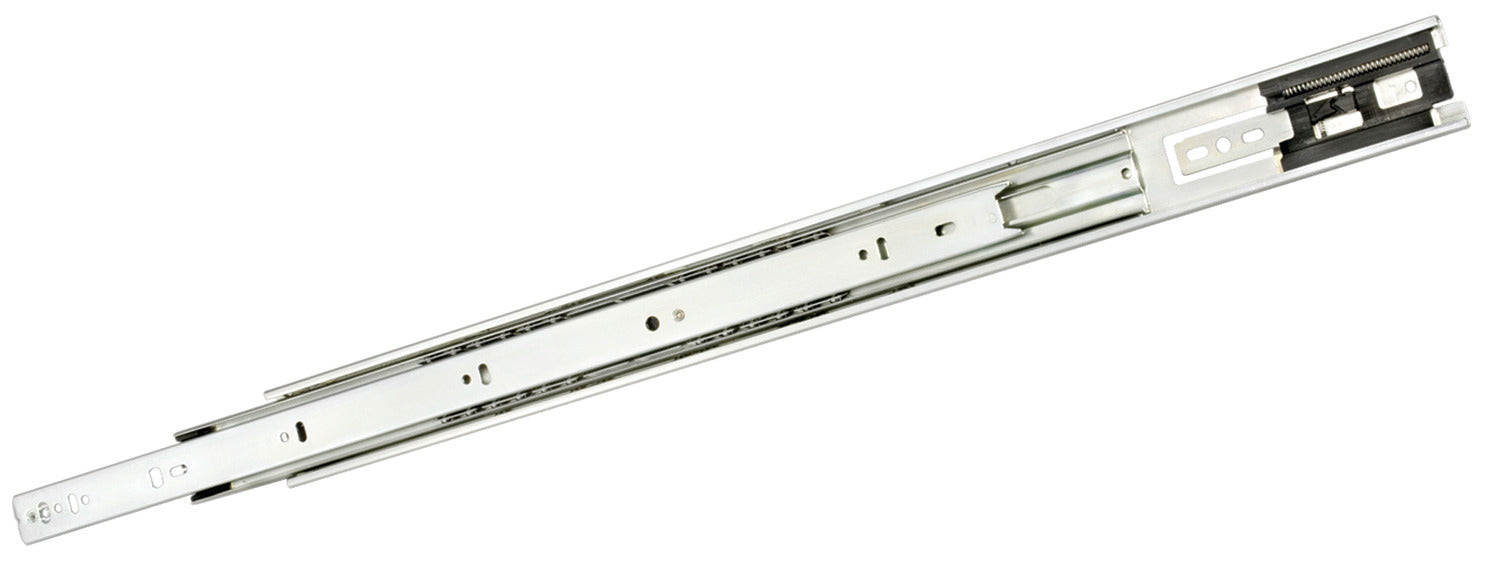

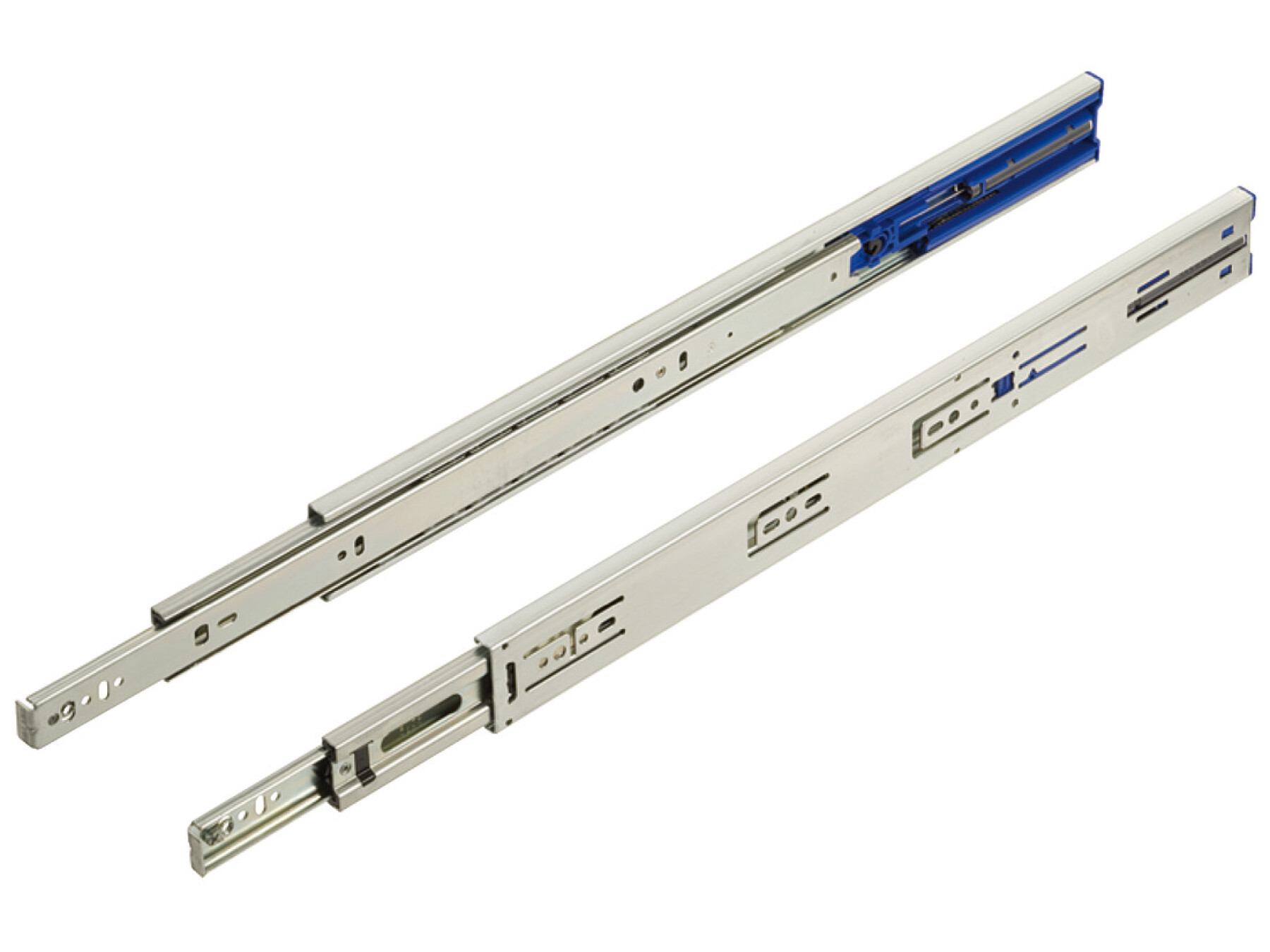

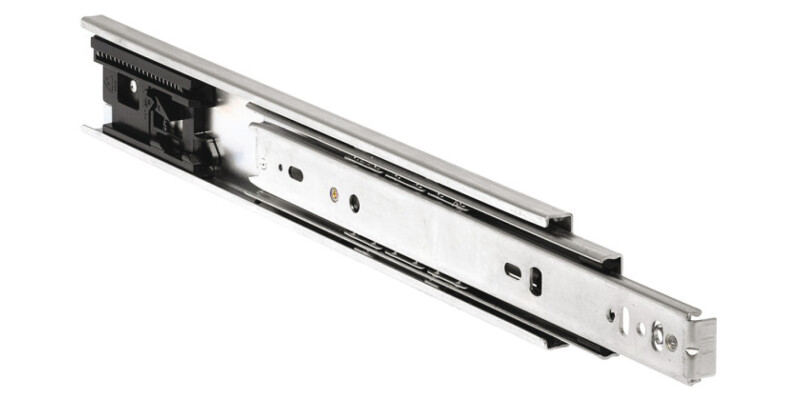

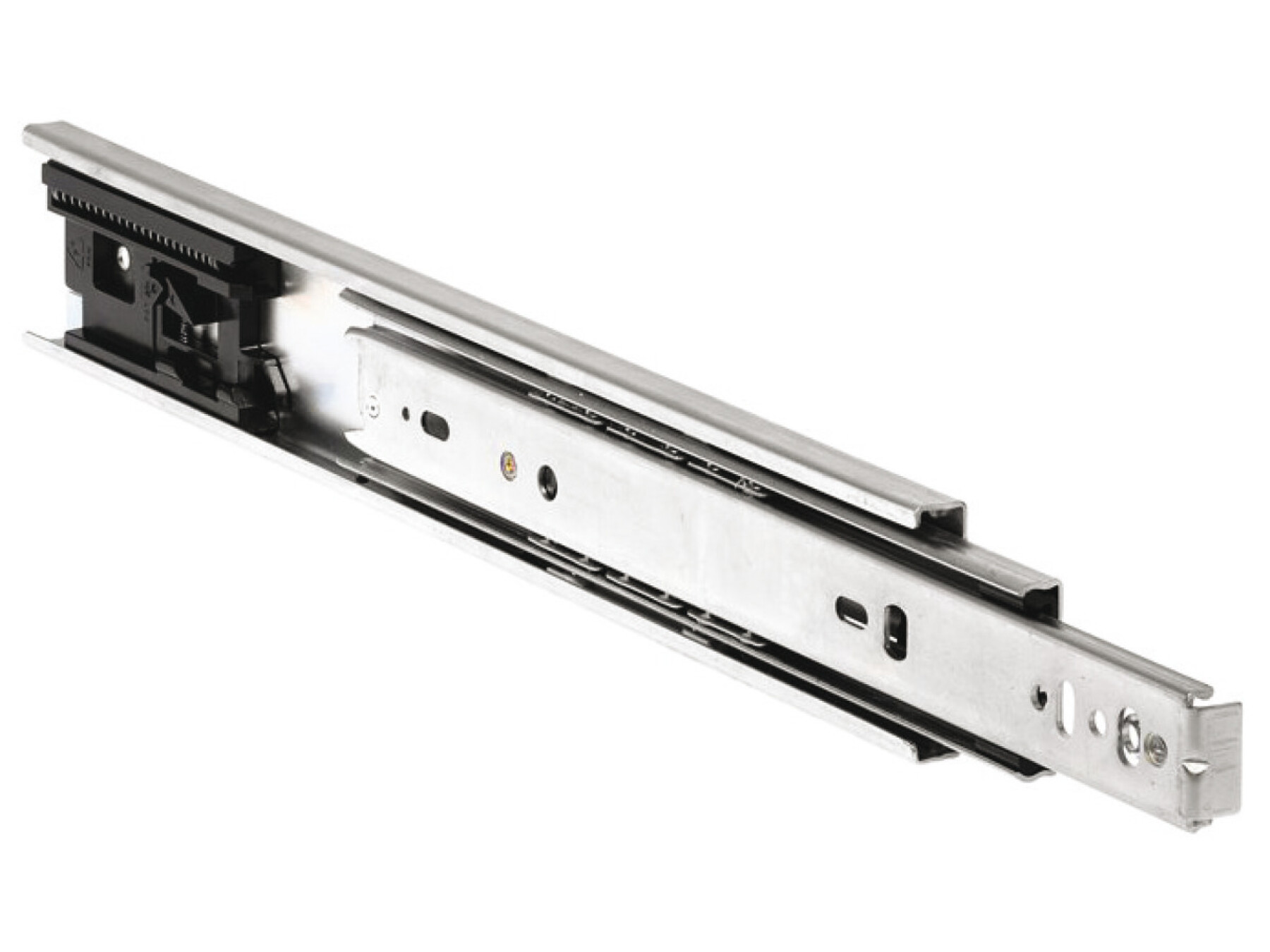

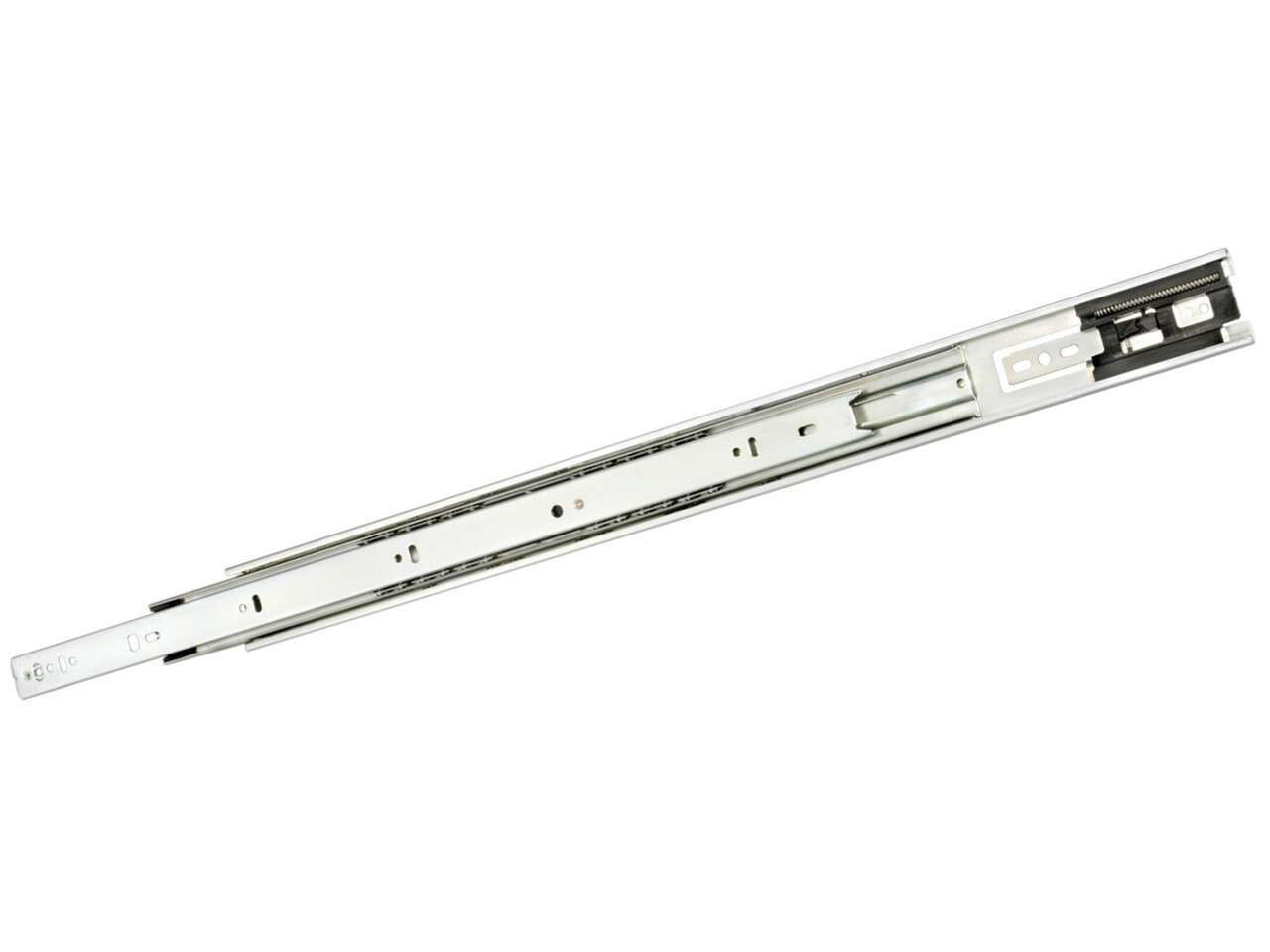

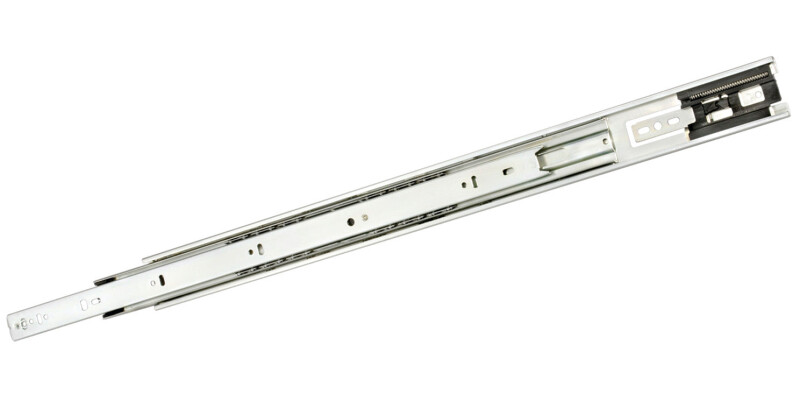

3832TR BB Drawer Runner Full 45kg 450mm BZP
Part Number: 422.04.485
Telescopic, side mounted, Installed length 450 mm, load capacity 45 kg
Price:
£29.20
Per Item
Full extension, telescopic, side mountedPush on the drawer front to open or close the drawerOpening mechanism... Read More
Product Information
Product Details
Full extension, telescopic, side mounted

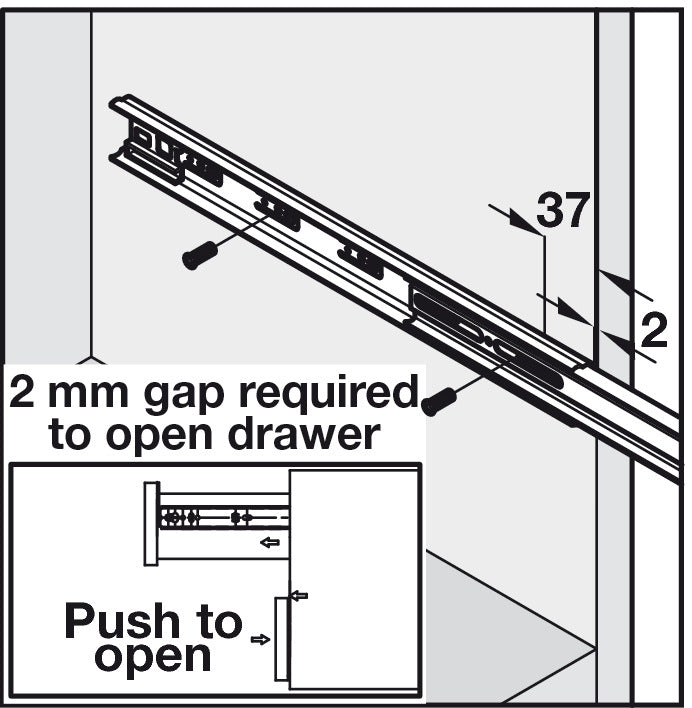

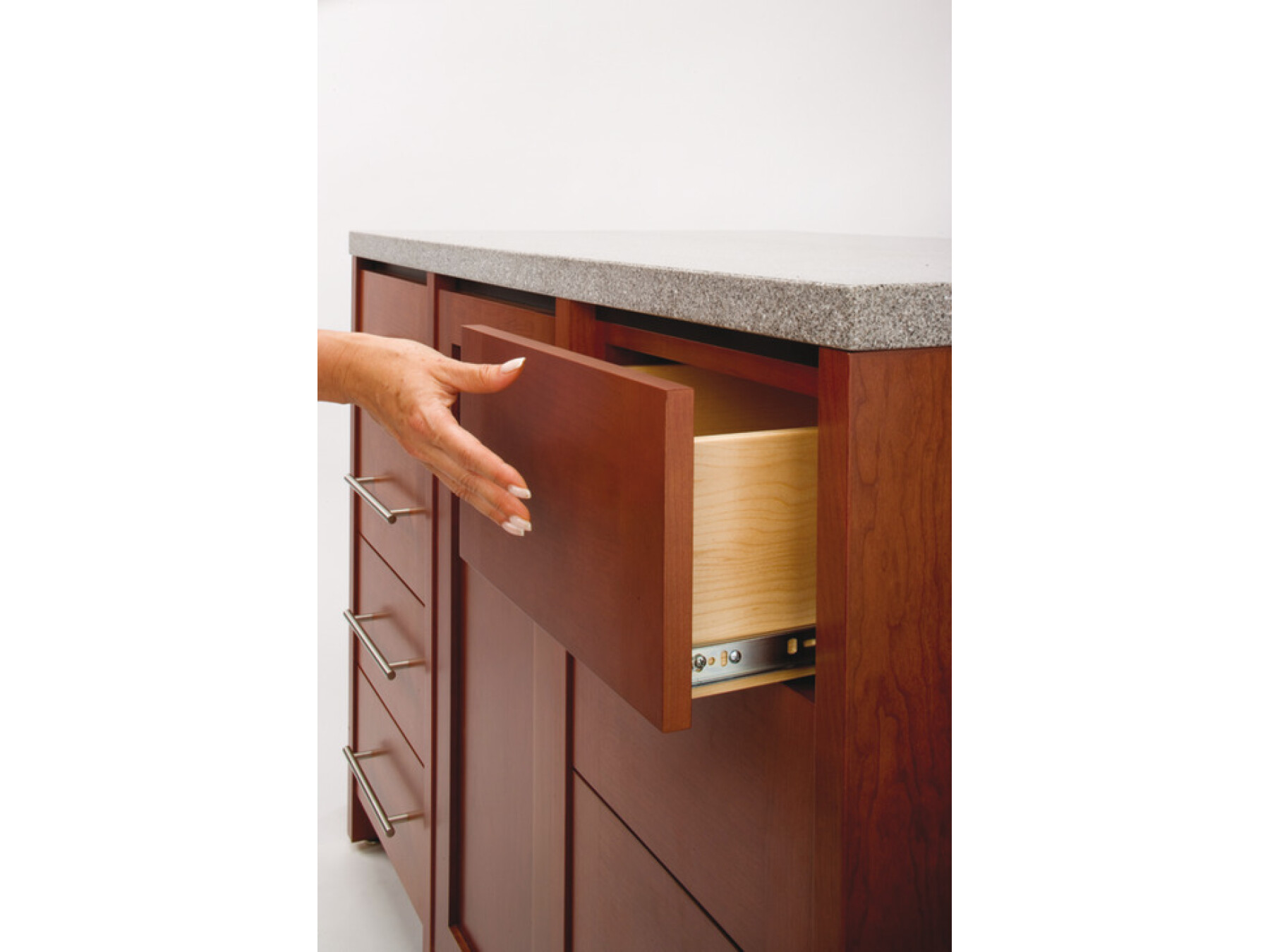

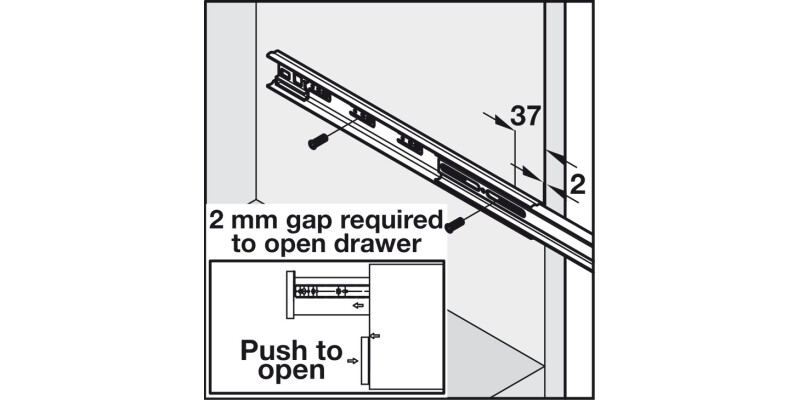

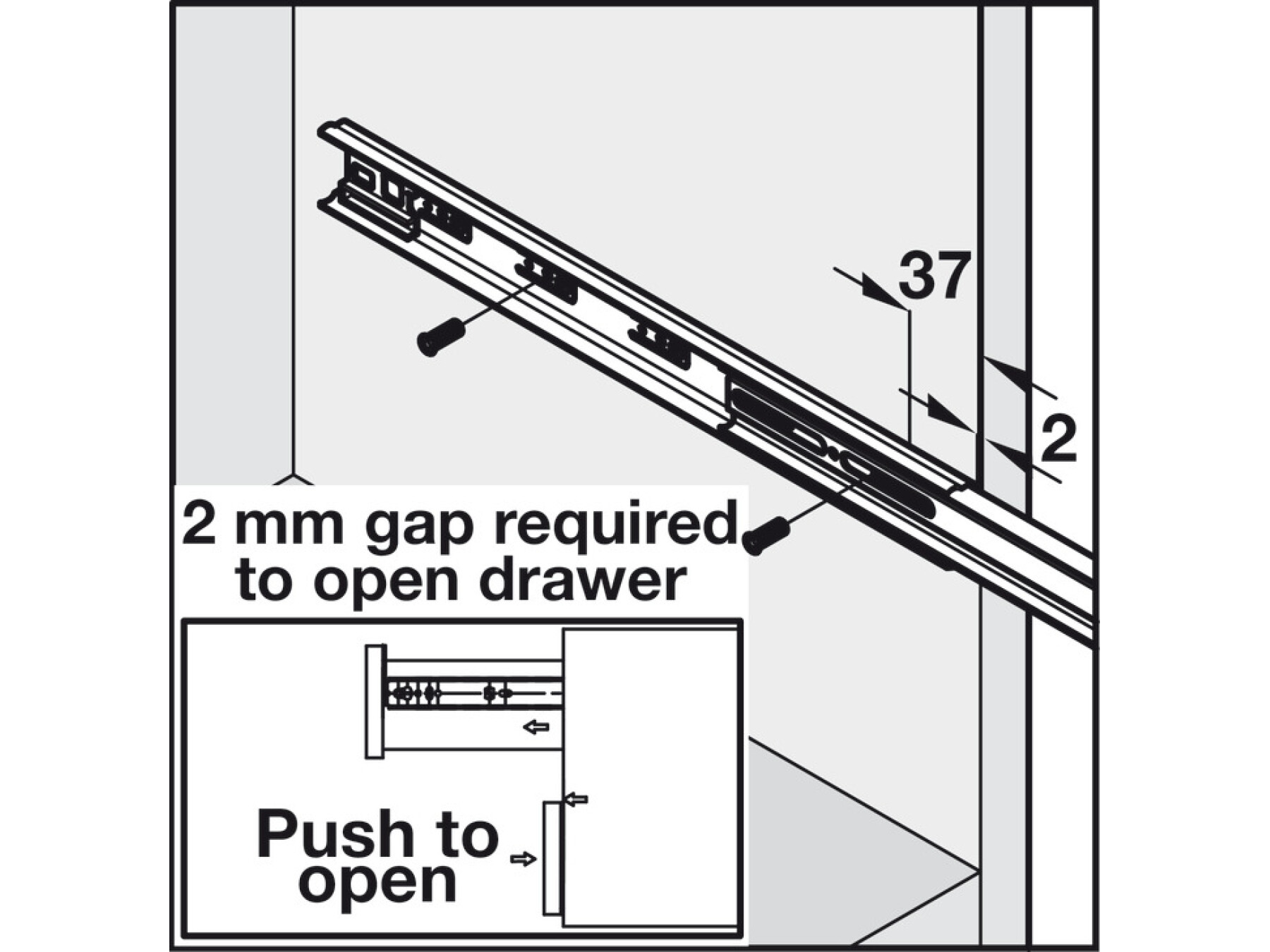

Push on the drawer front to open or close the drawer
Opening mechanism activated by travel inward
Propels drawers open approximately 50-125 mm from the closed position
Hold-in feature holds the closed drawer in

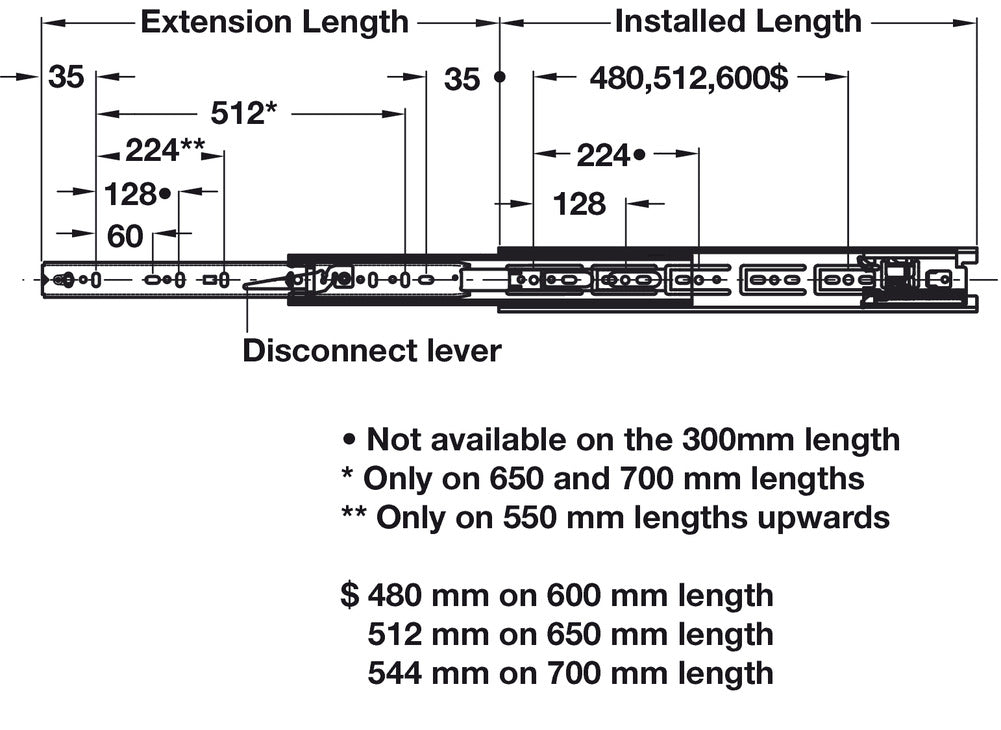

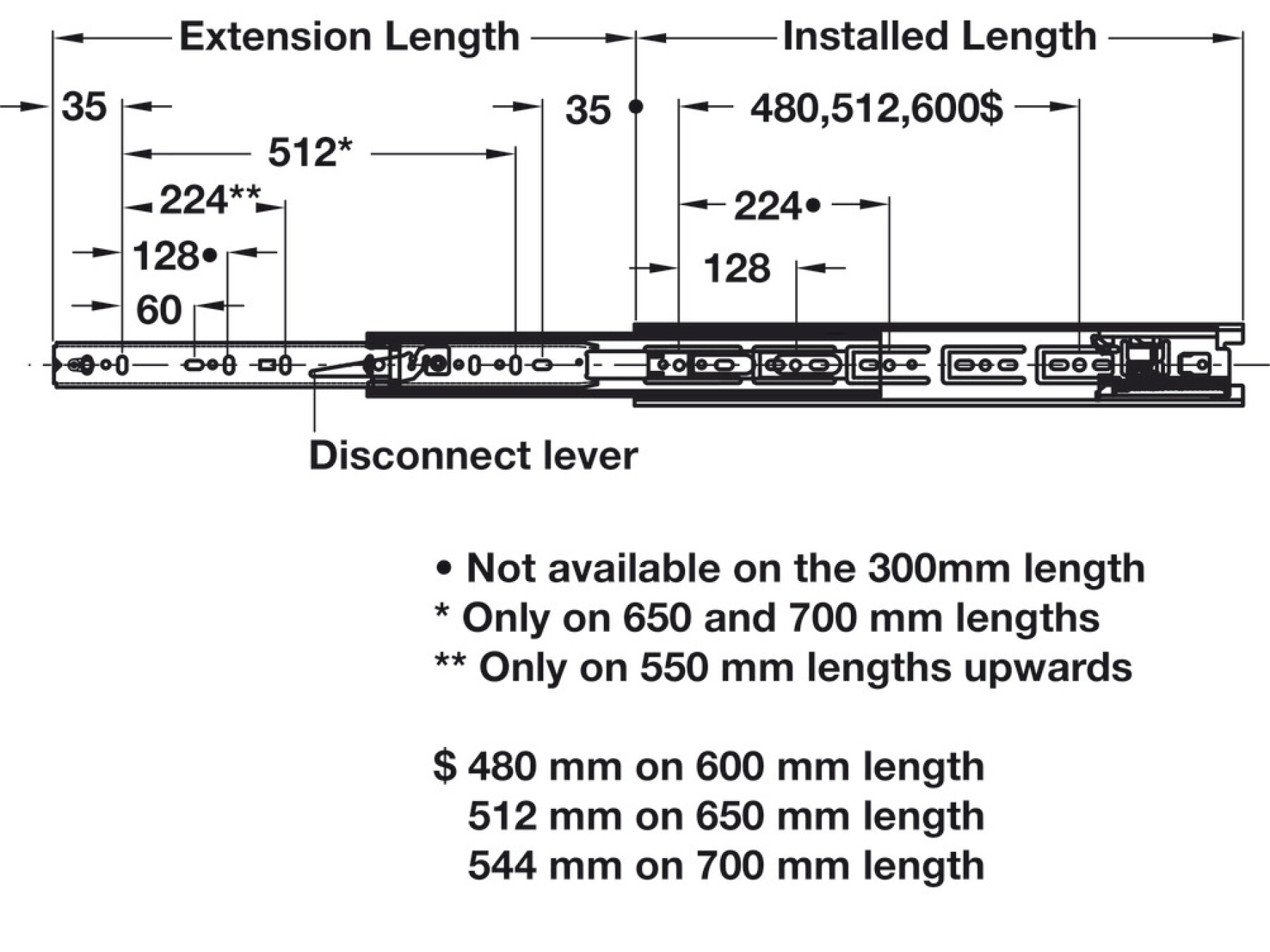

Front disconnect (by depressing lever) for drawer removal
Cam drawer adjust feature

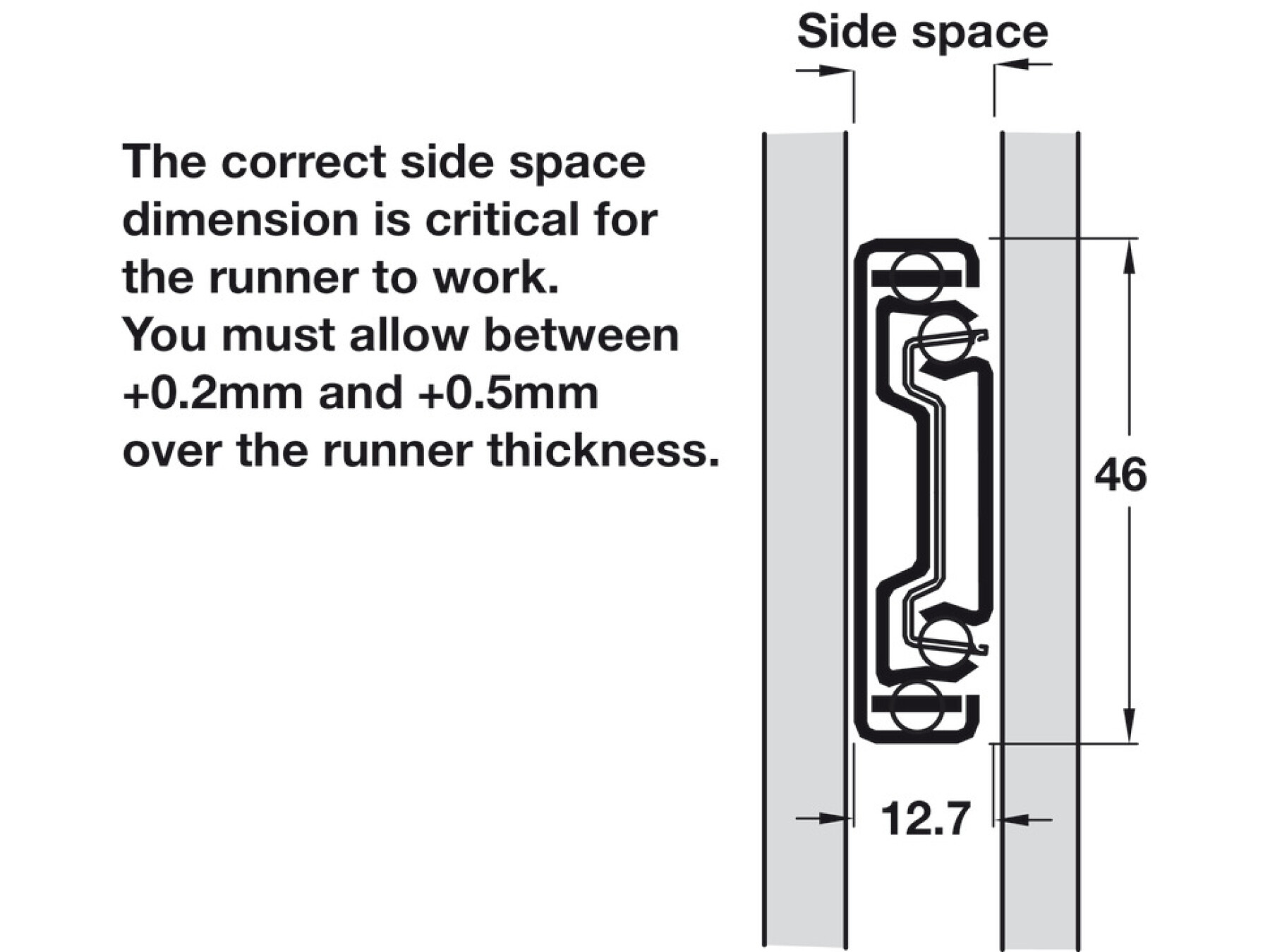

Please note maximum drawer width to be used
Not suitable for use with mounting brackets
Barrier-free, for people who have difficulty gripping handles and knobs
Also for use in cases where the furniture design requires drawer fronts without handles and knobs
Order reference

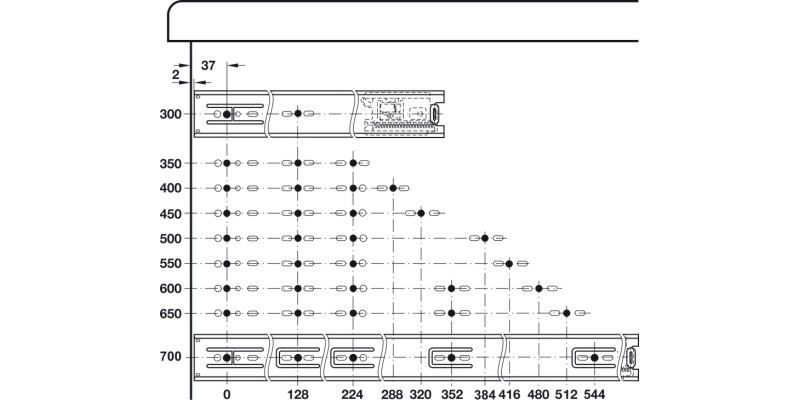

Order Hospa Ø 4.0 countersunk and Varianta Ø 5 cylinder head screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Please note maximum drawer width to be used

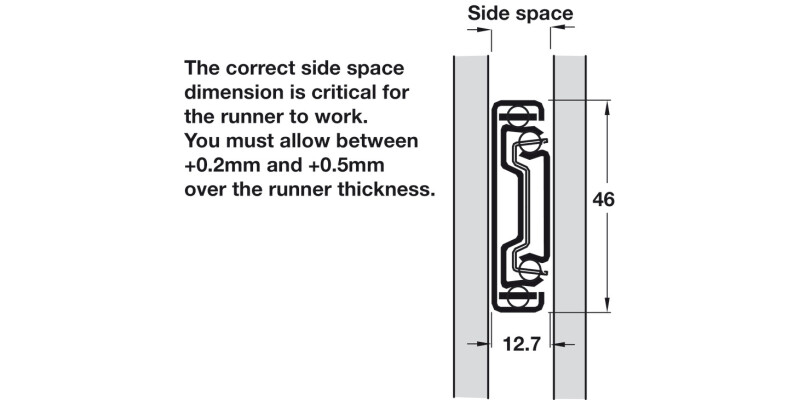

Specifications
Mounting
Side mounted
Version
Can be removed using release lever
Colour/finish
Zinc plated, Bright
Model
3832TR
Type of pull out
Full extension
Drawer removal
With release lever
Material
Steel
Adjustment facility
Cam drawer adjust feature

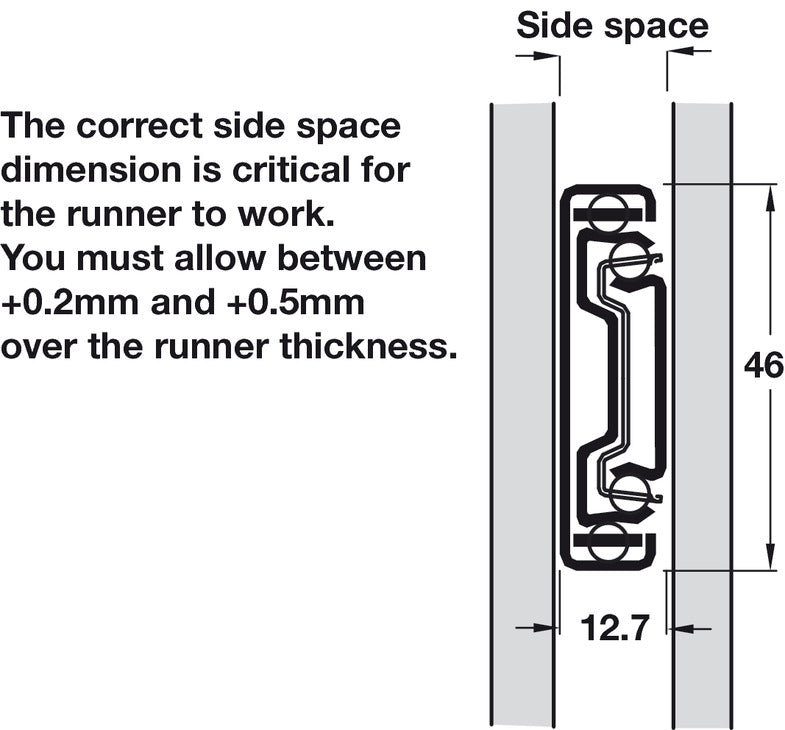

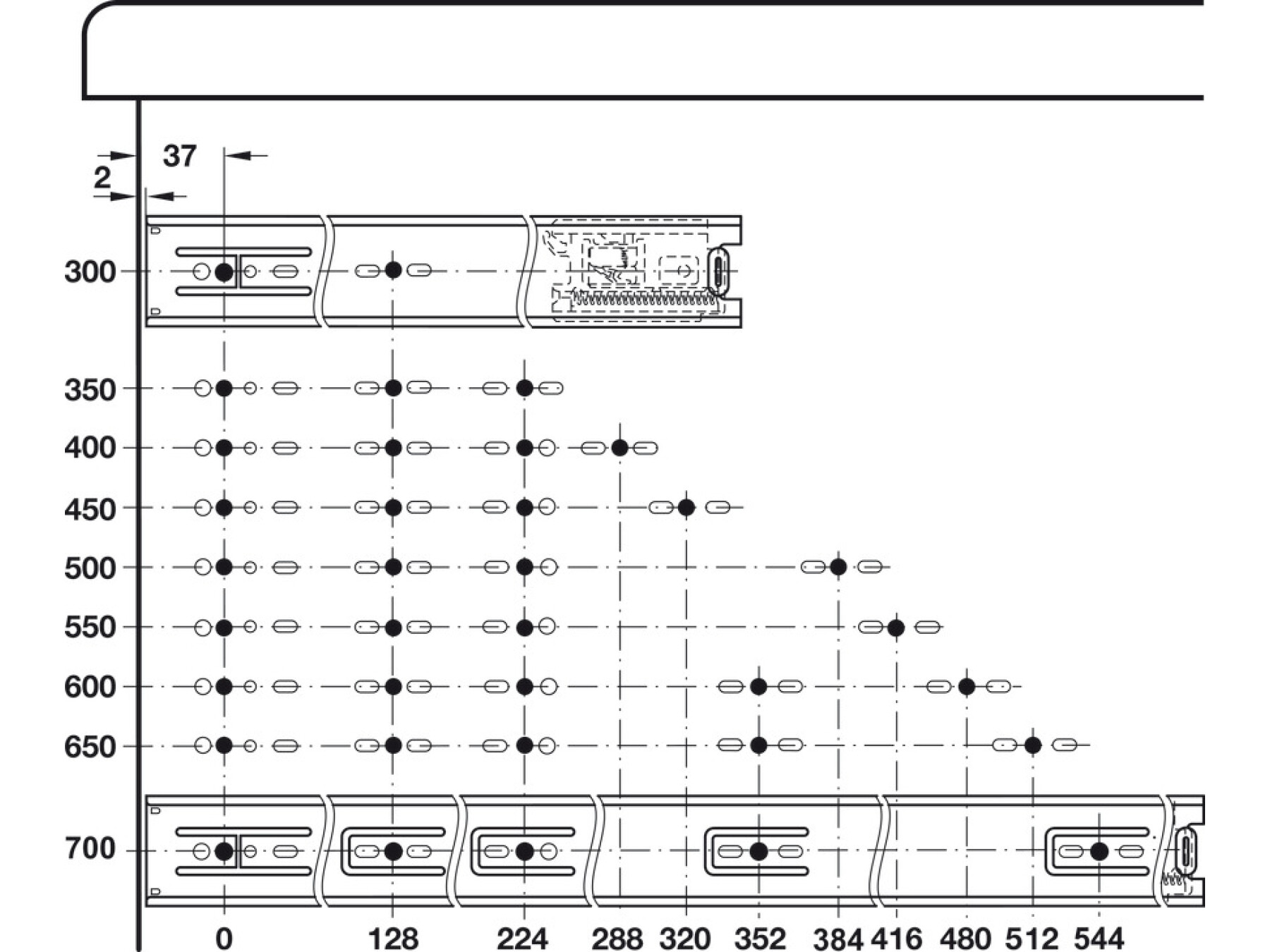

Installation
At drawer side
The Accuride 633 mounting bracket cannot be used
