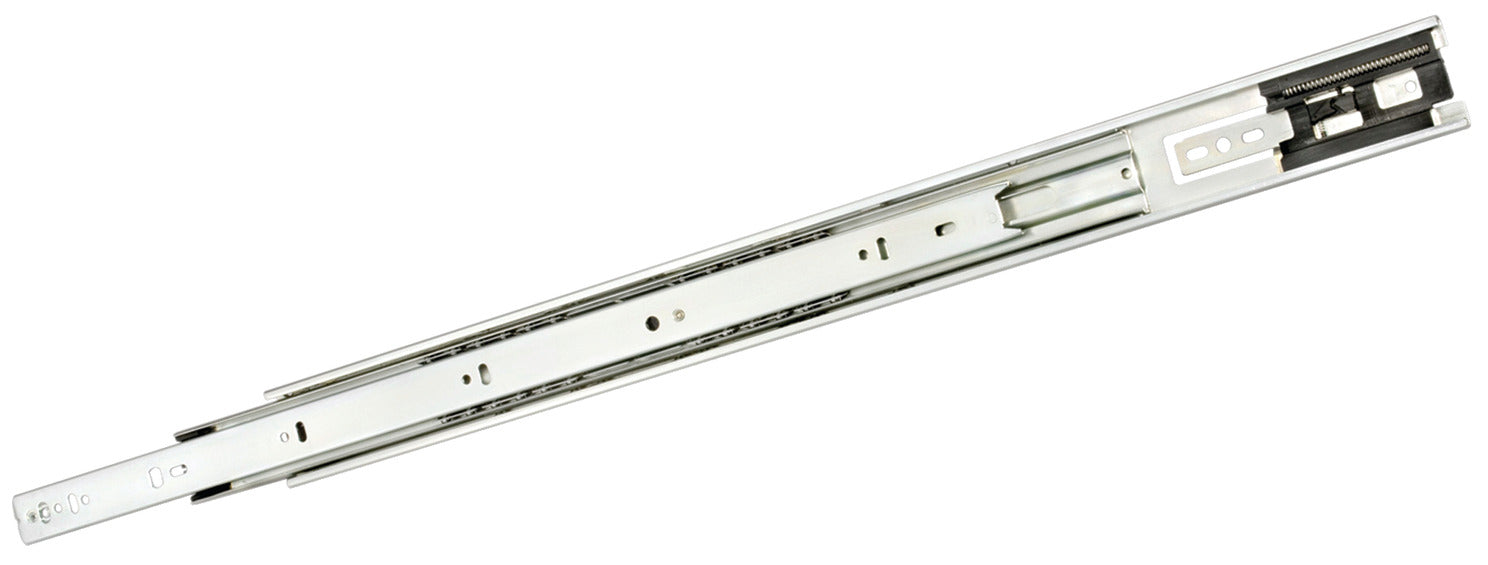

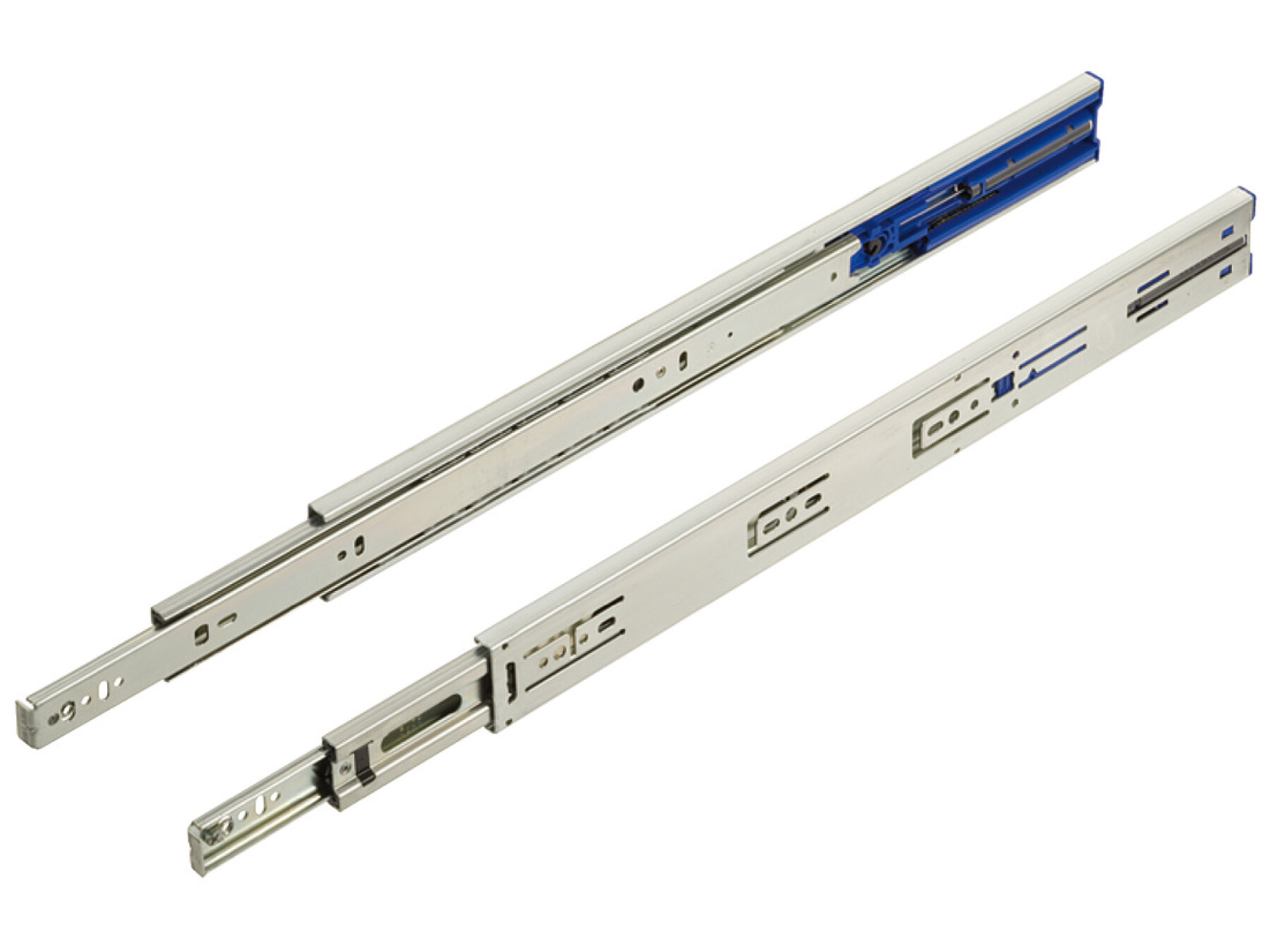

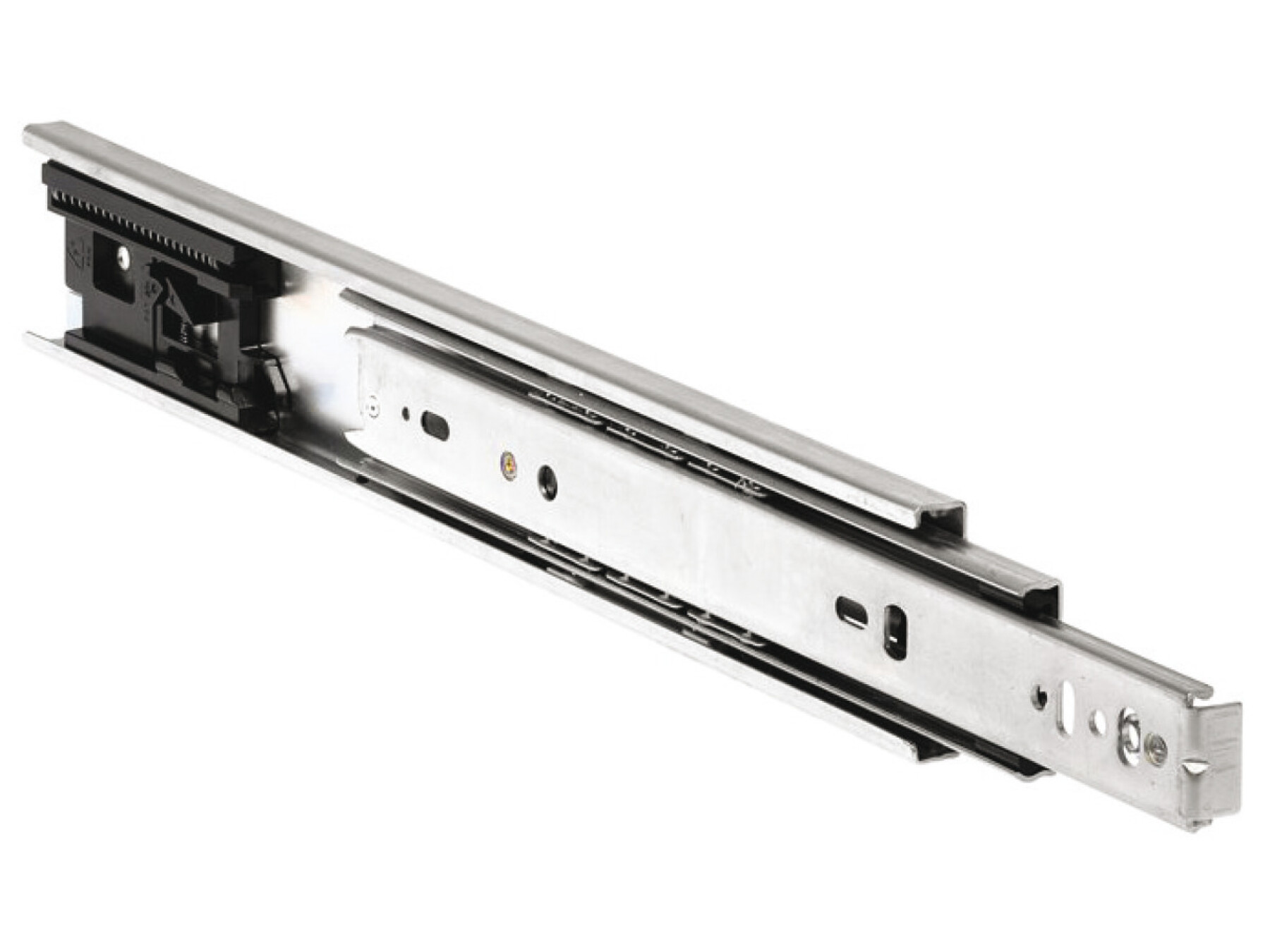

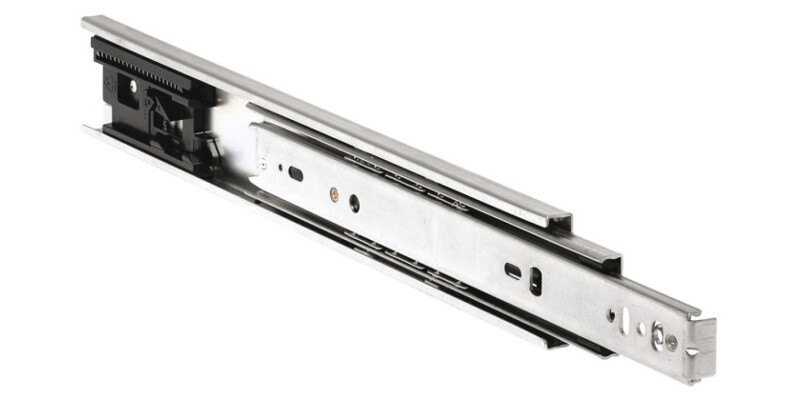

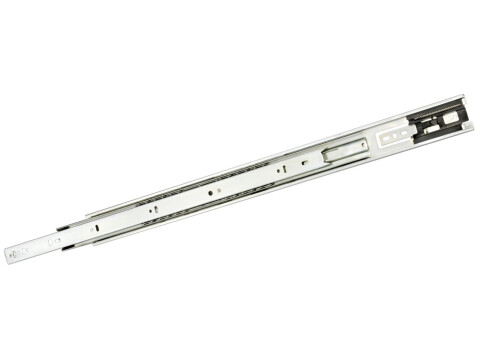

3832TR BB Drawer RunnerFull 43kg 350mm BZP
Full extension, telescopic, side mountedPush on the drawer front to open or close the drawerOpening mechanism... Read More
Product Details
Full extension, telescopic, side mounted

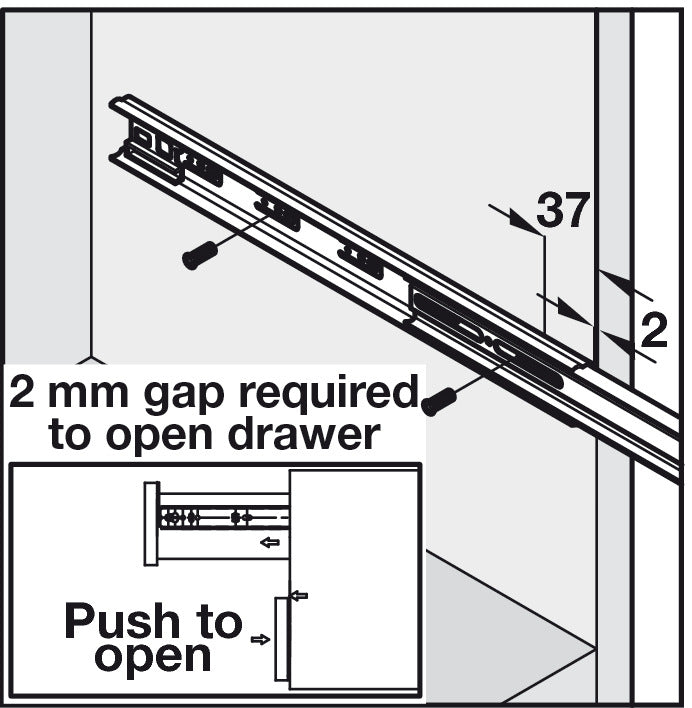

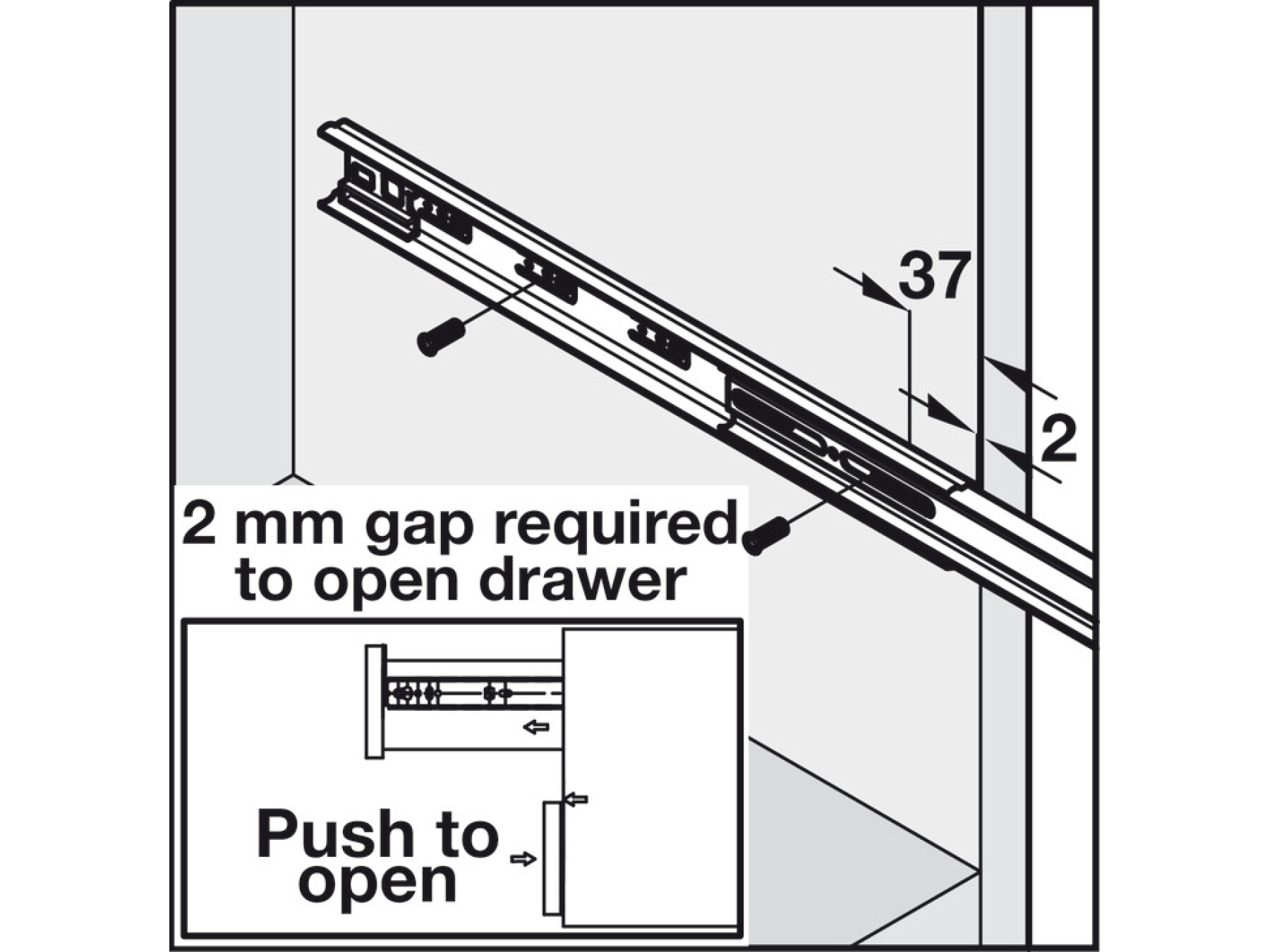

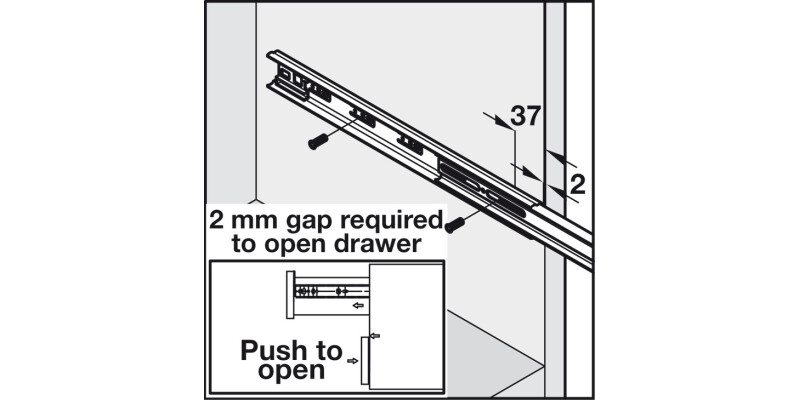

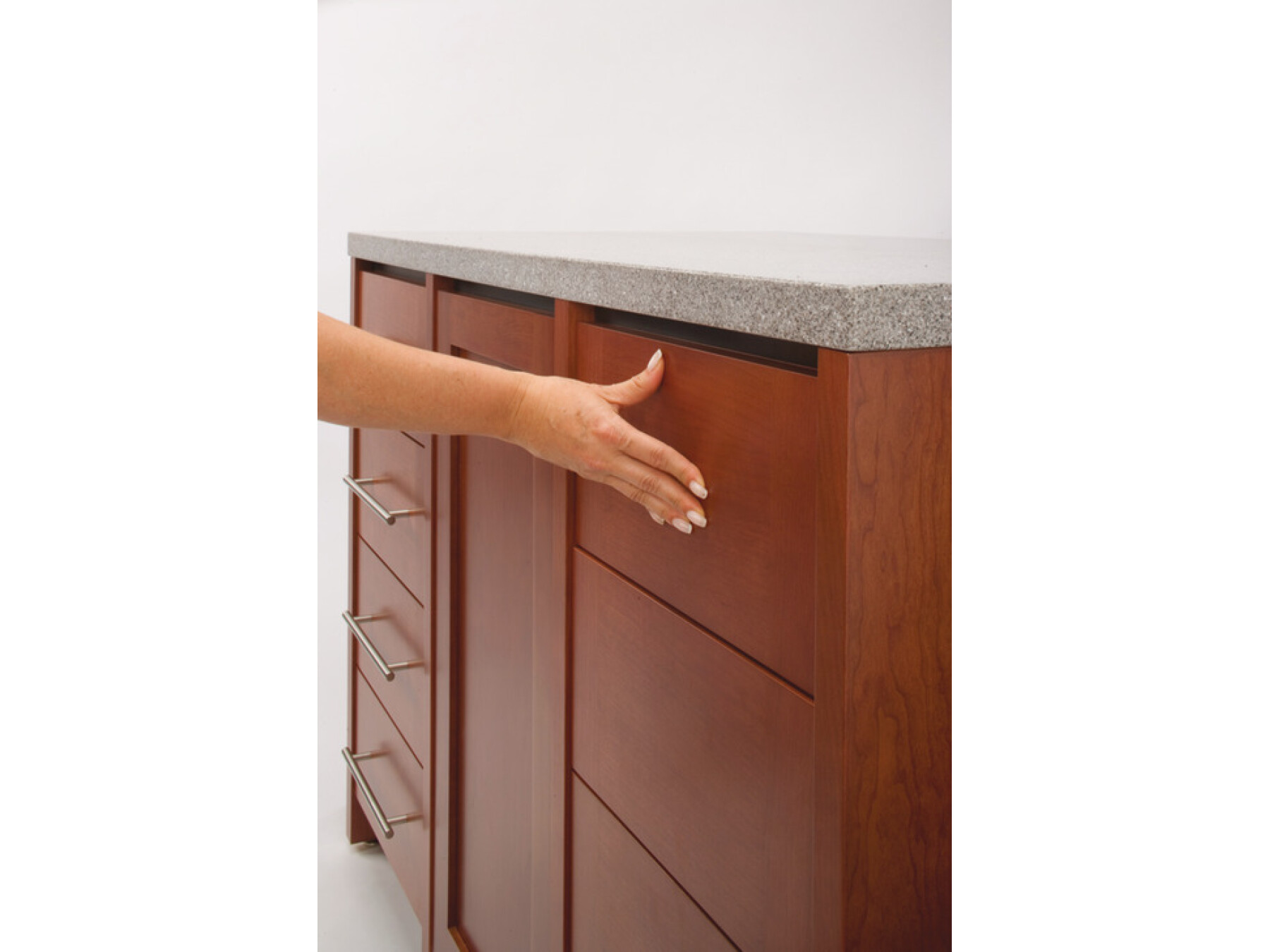

Push on the drawer front to open or close the drawer
Opening mechanism activated by travel inward

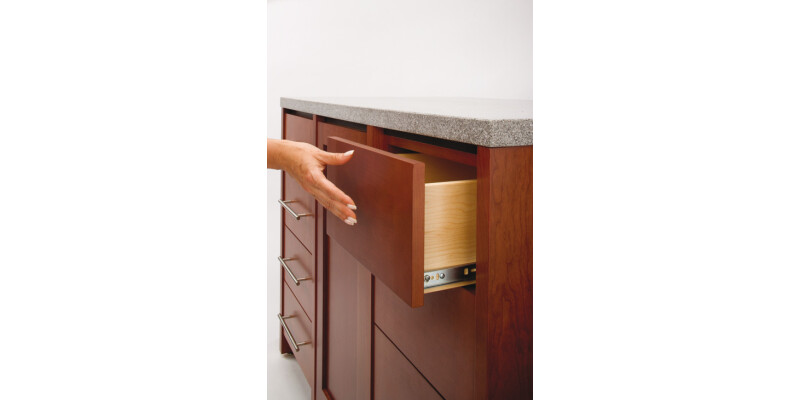

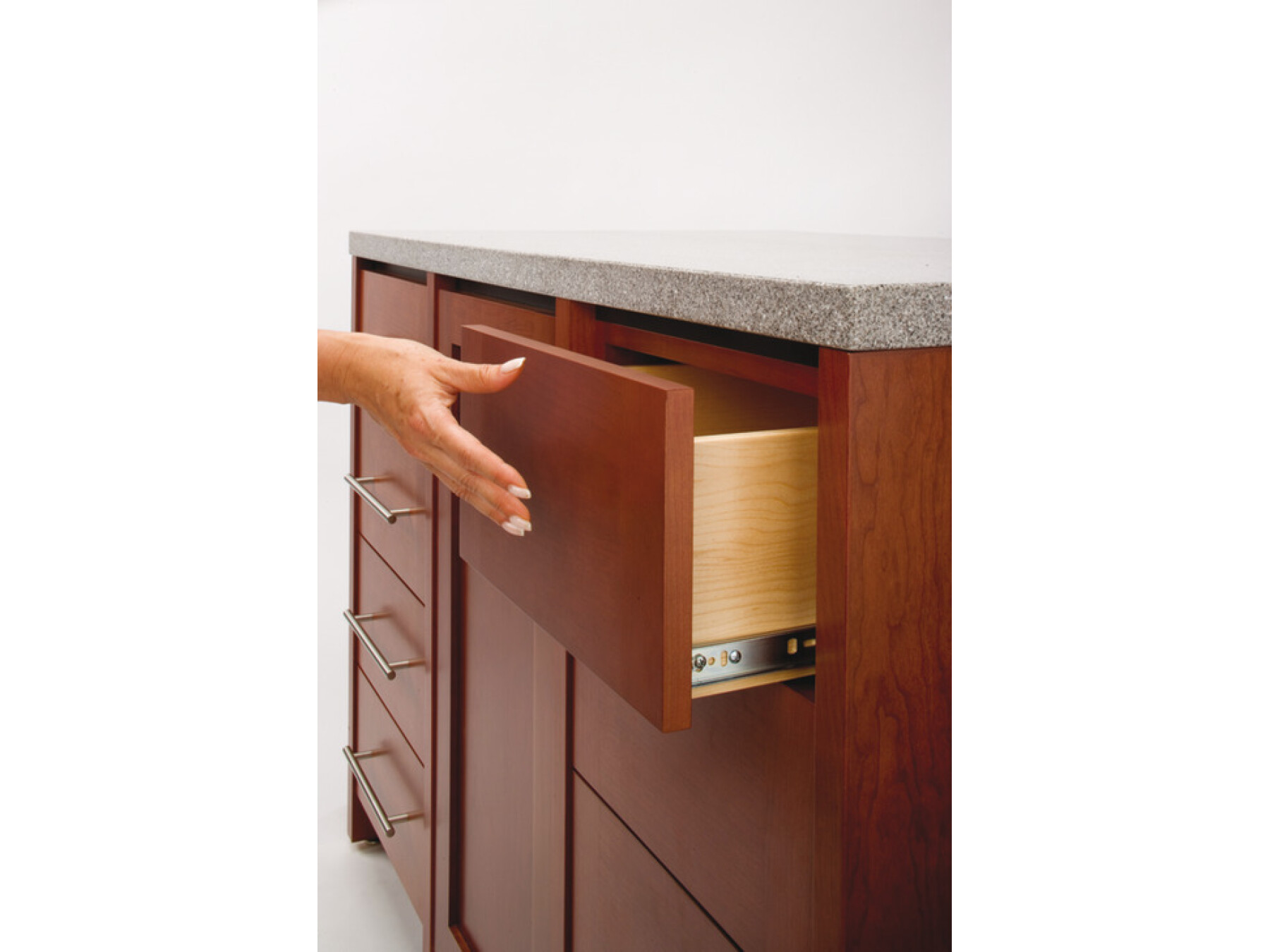

Propels drawers open approximately 50-125 mm from the closed position
Hold-in feature holds the closed drawer in

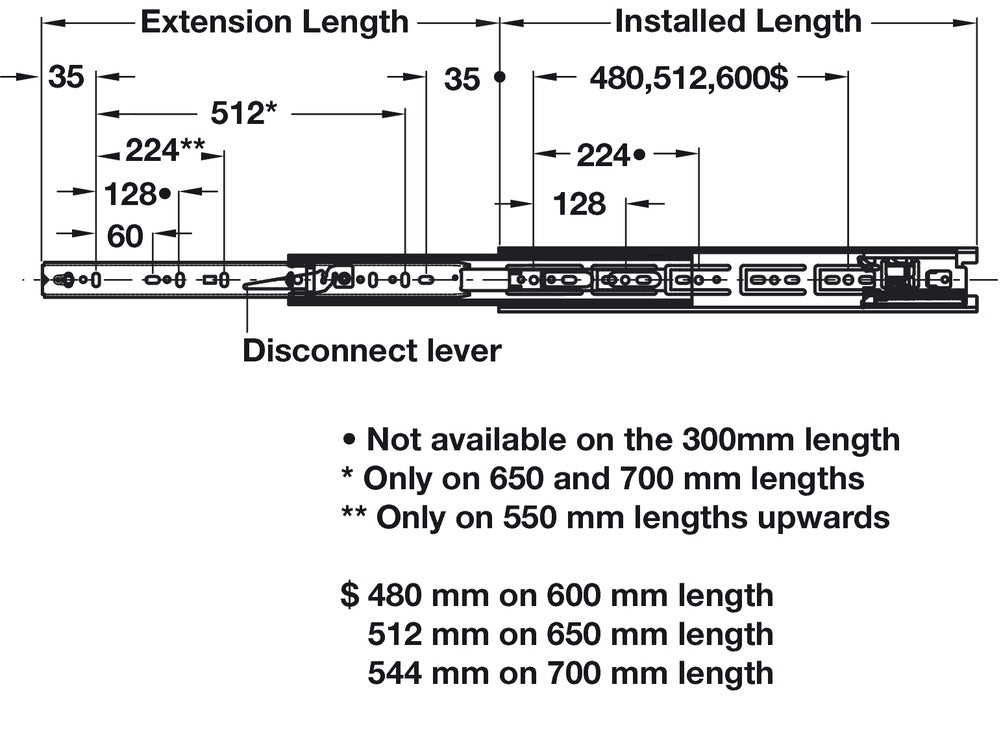

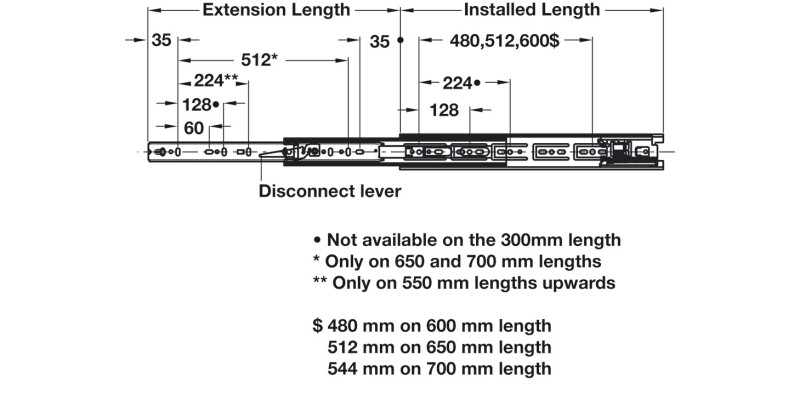

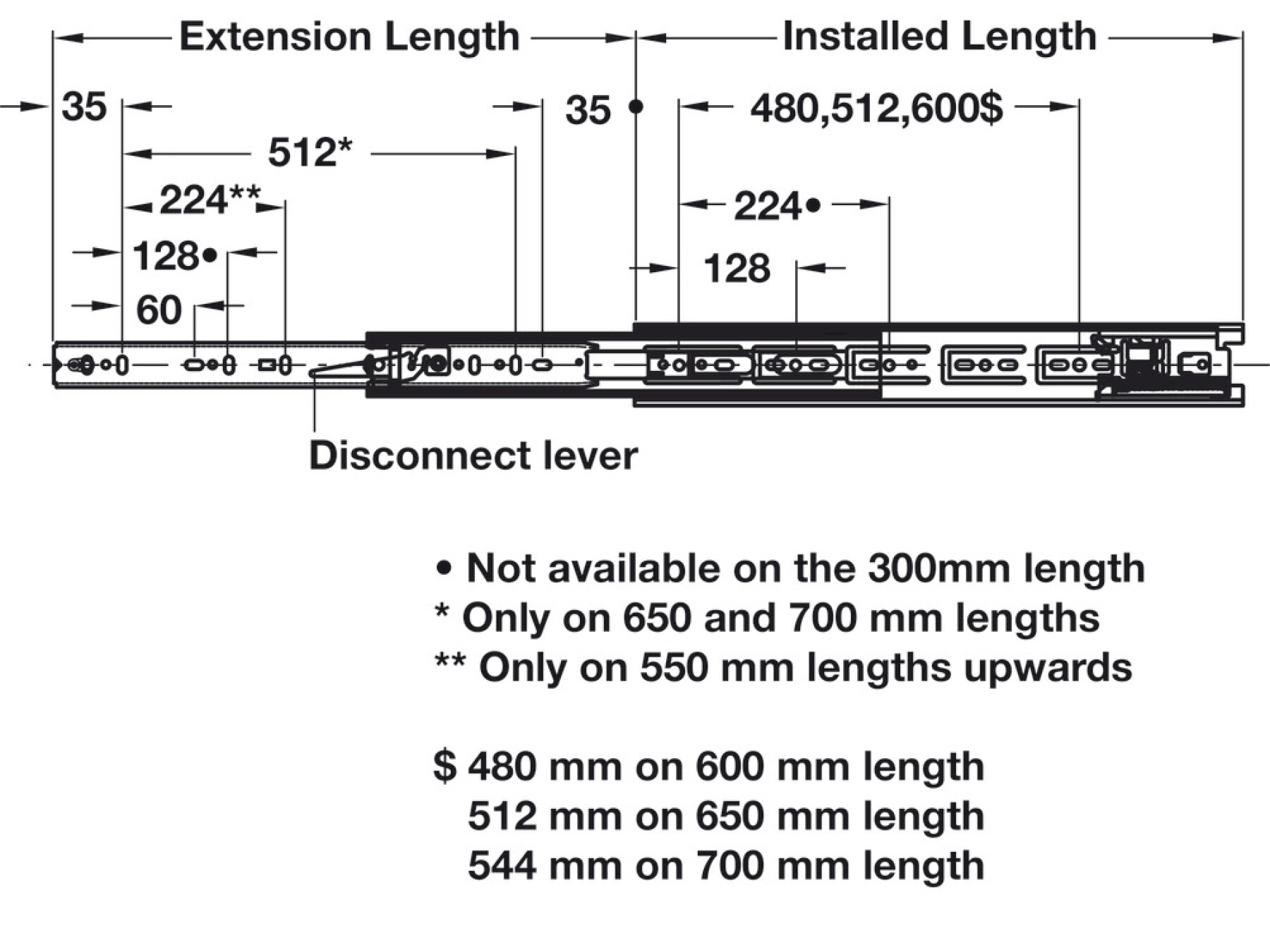

Front disconnect (by depressing lever) for drawer removal
Cam drawer adjust feature
Please note maximum drawer width to be used
Not suitable for use with mounting brackets

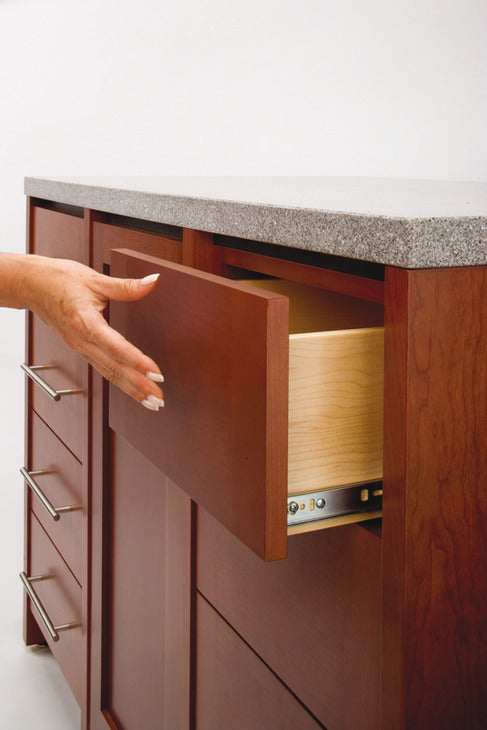

Barrier-free, for people who have difficulty gripping handles and knobs

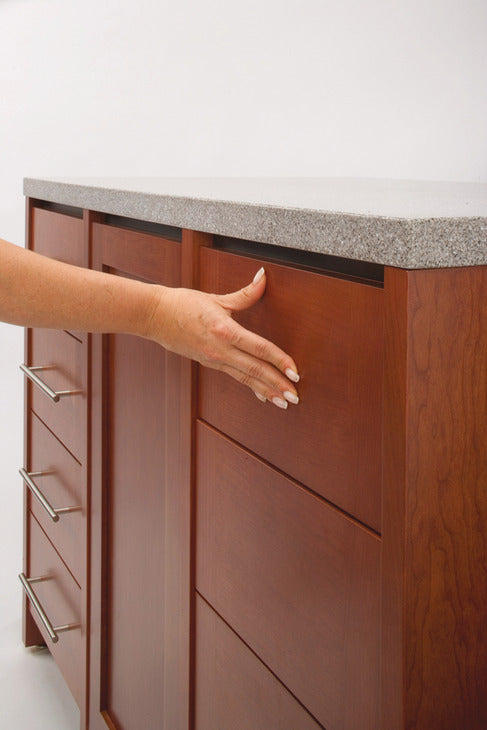

Also for use in cases where the furniture design requires drawer fronts without handles and knobs
Order reference

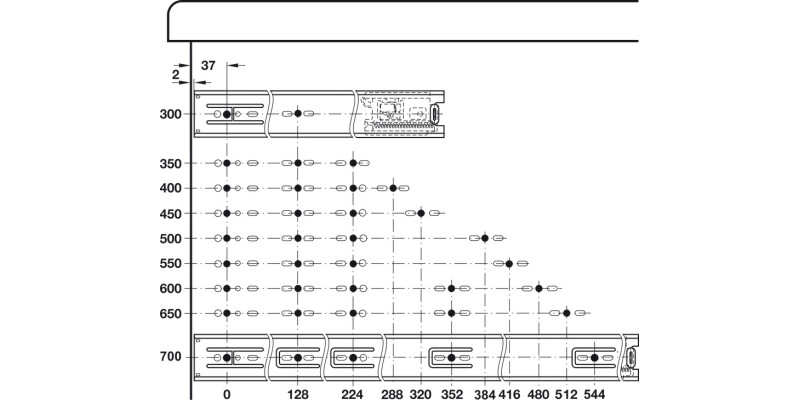

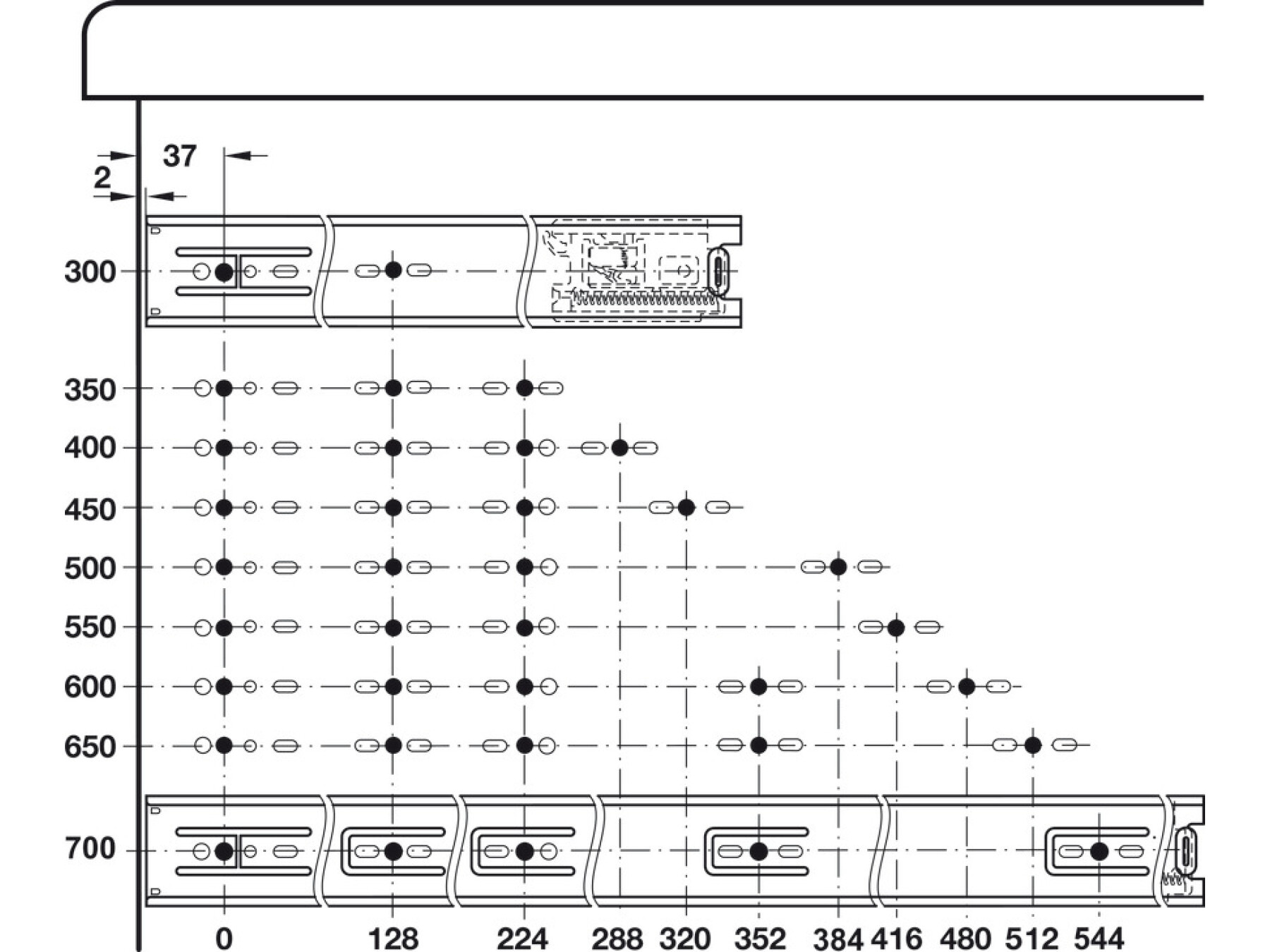

Order Hospa Ø 4.0 countersunk and Varianta Ø 5 cylinder head screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Please note maximum drawer width to be used
Specifications
Mounting
Side mounted
Version
Can be removed using release lever
Colour/finish
Zinc plated, Bright
Model
Type of pull out
Drawer removal
Material
Steel
Adjustment facility
Cam drawer adjust feature
Installation
At drawer side
The Accuride 633 mounting bracket cannot be used
