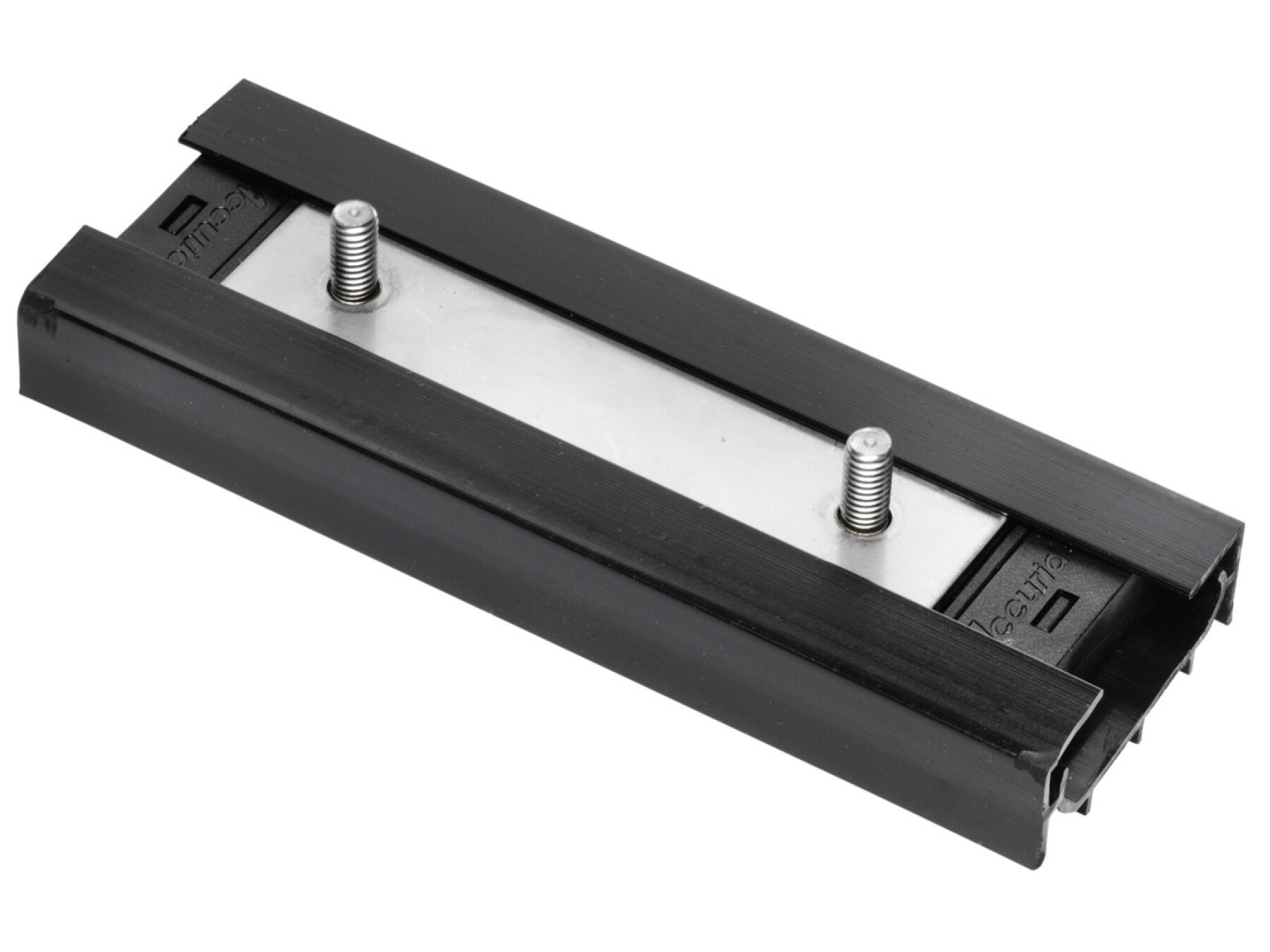

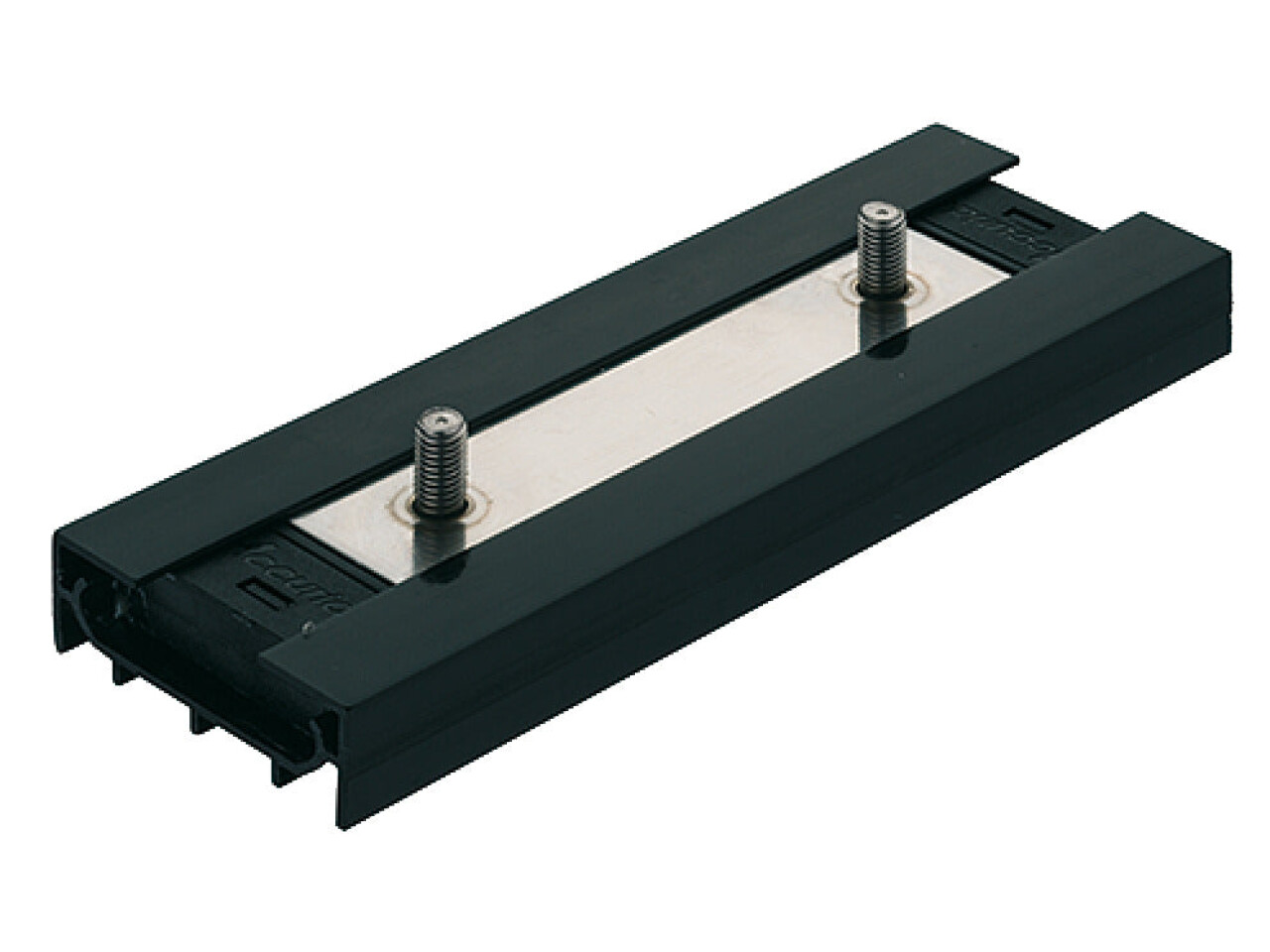

Accuride 0115RC Ball Carriage-BB St St

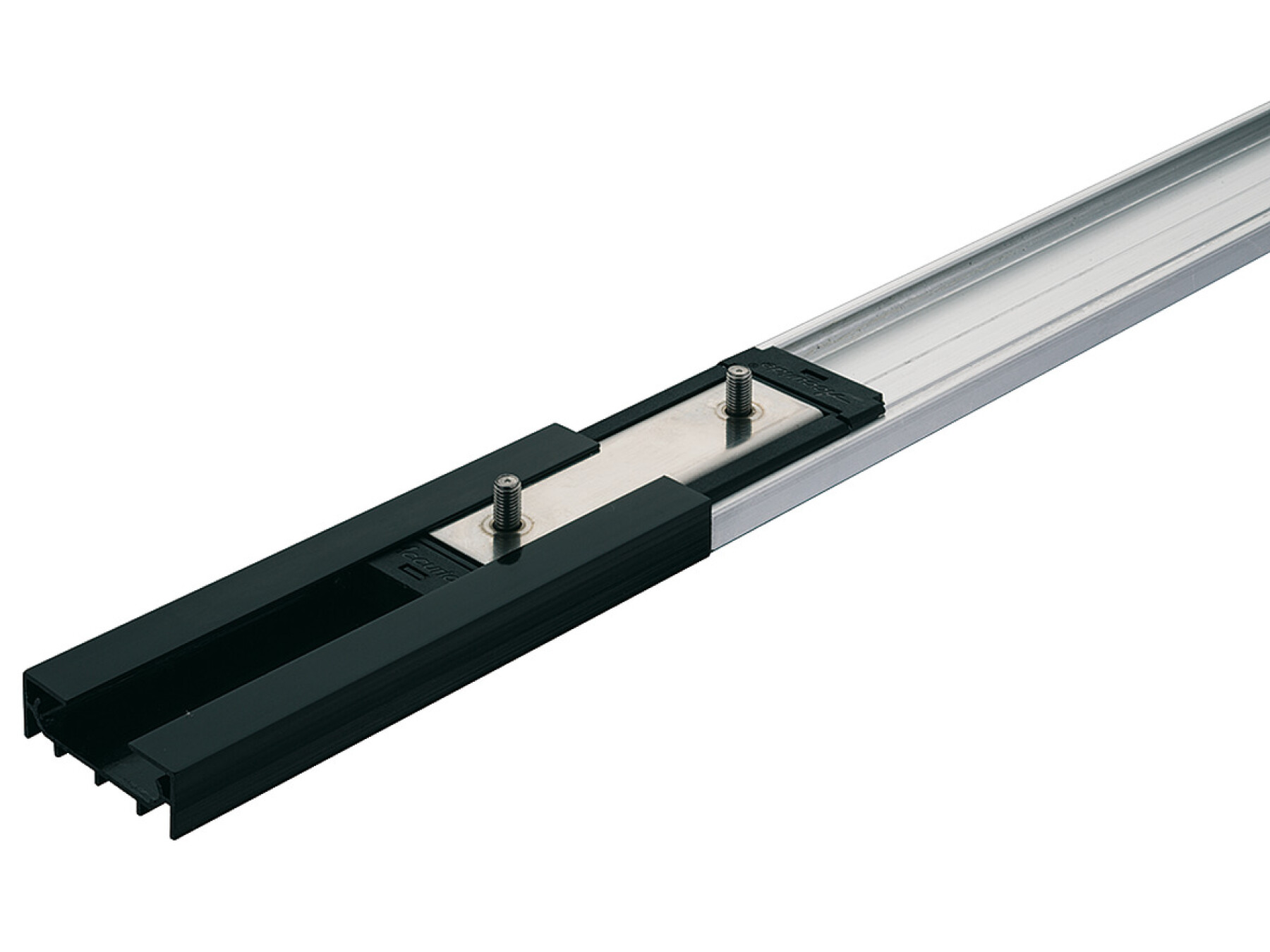

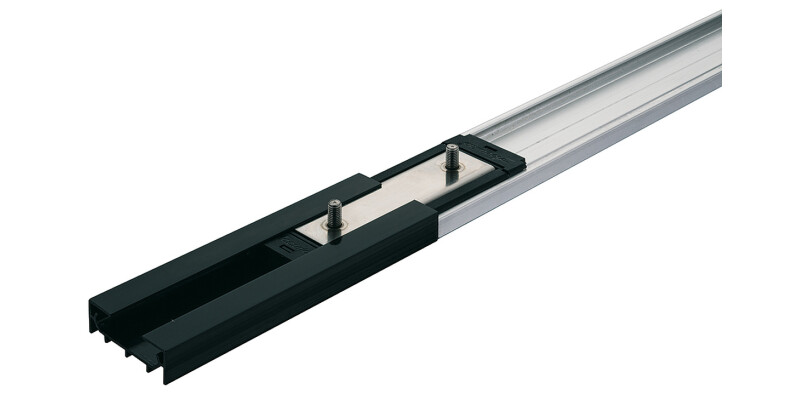

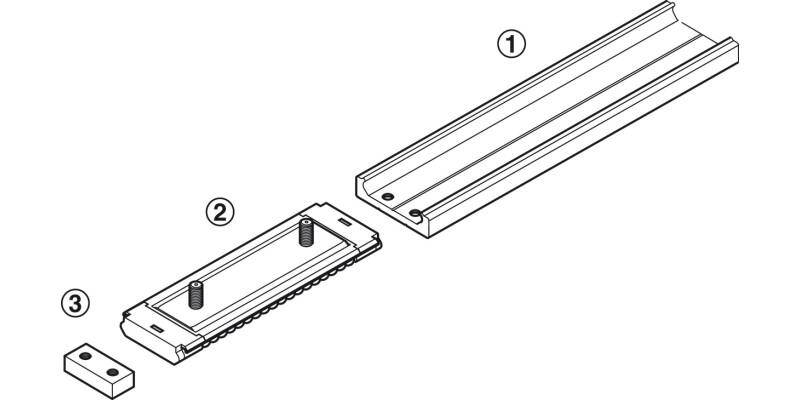

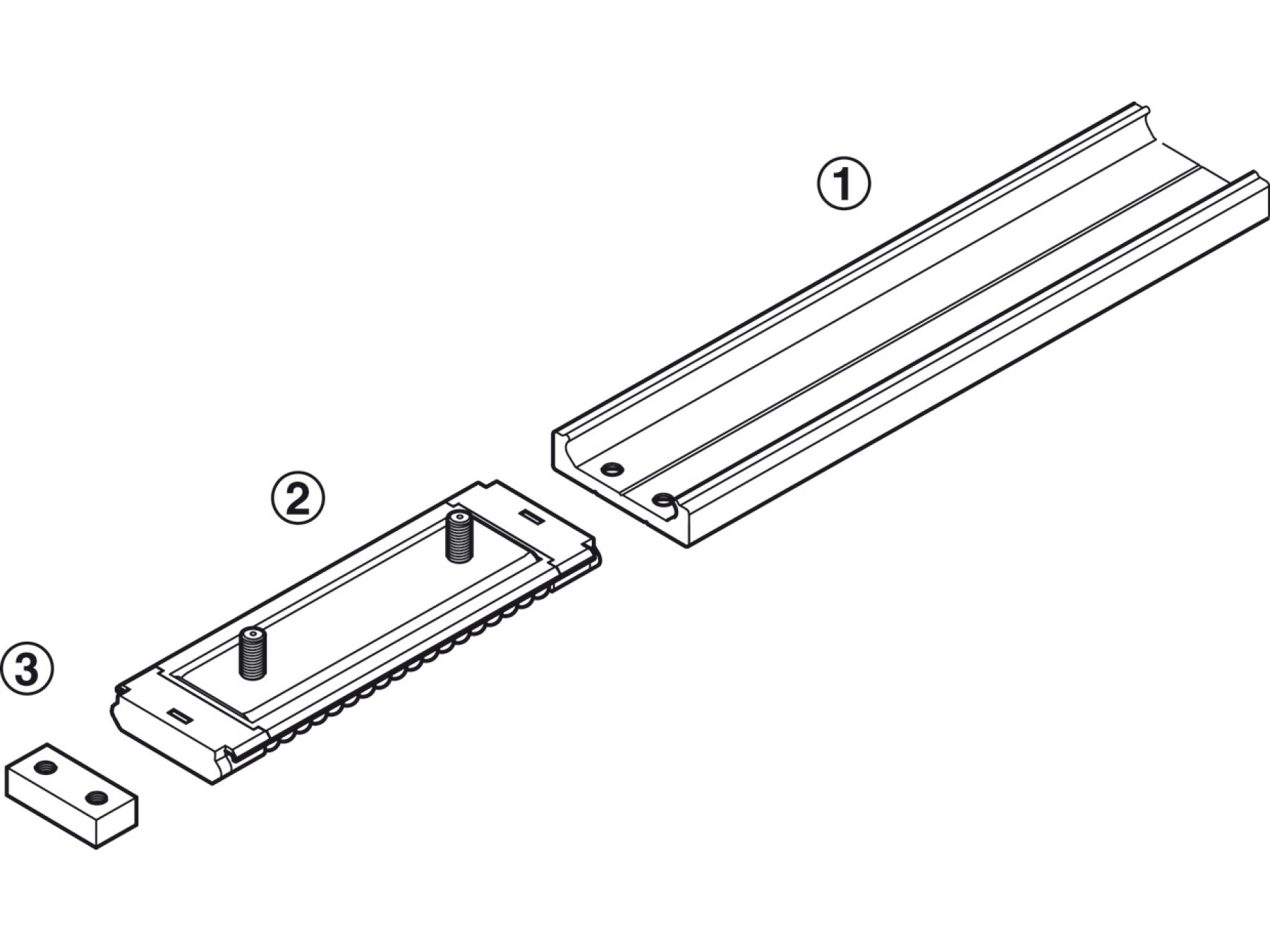

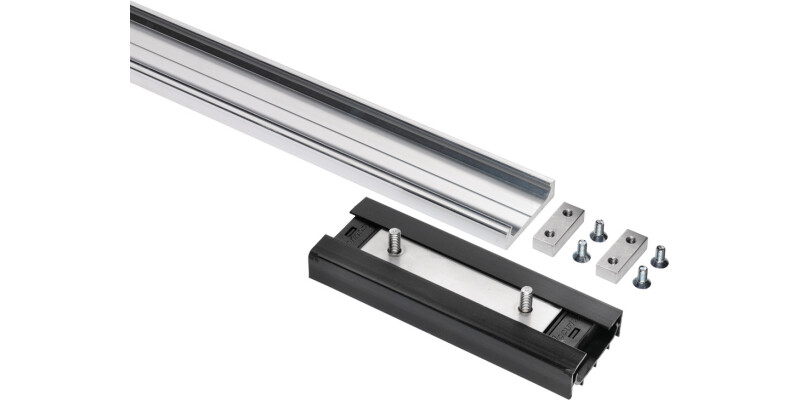

Grease free and smooth runningThread: 5 mmInstallation: The balls are loosely inserted into the re-circulating ball carriage therefore it is supplied packed in a plastic envelope. In order to avoid losing balls during the installation of the re-circulating ball carriage, the plastic envelope must be pressed against the aluminium track and the re-circulating ball carriage must be slid carefully into the aluminium track. Finally install end stops.

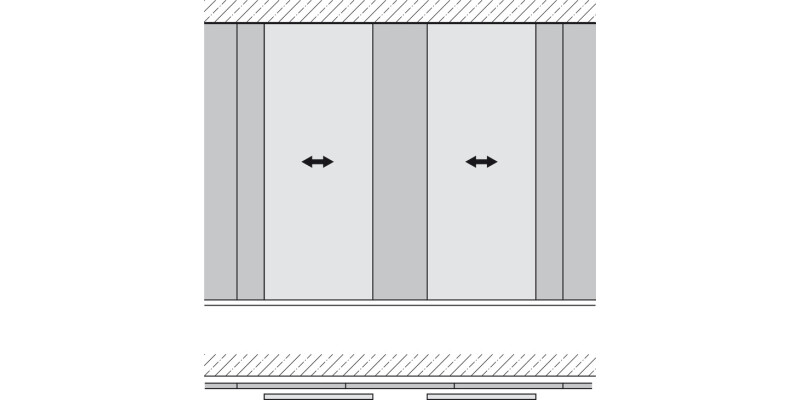

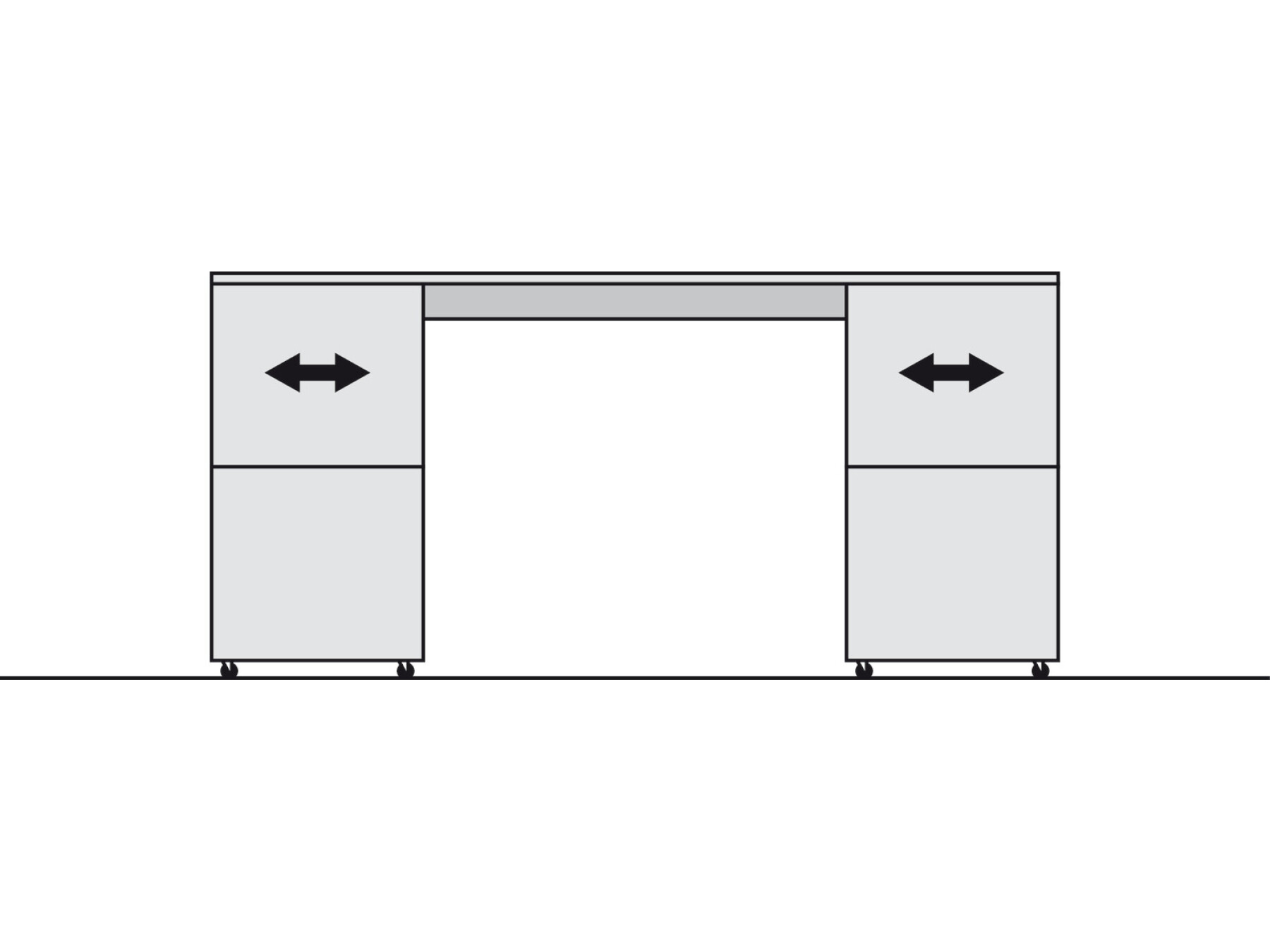

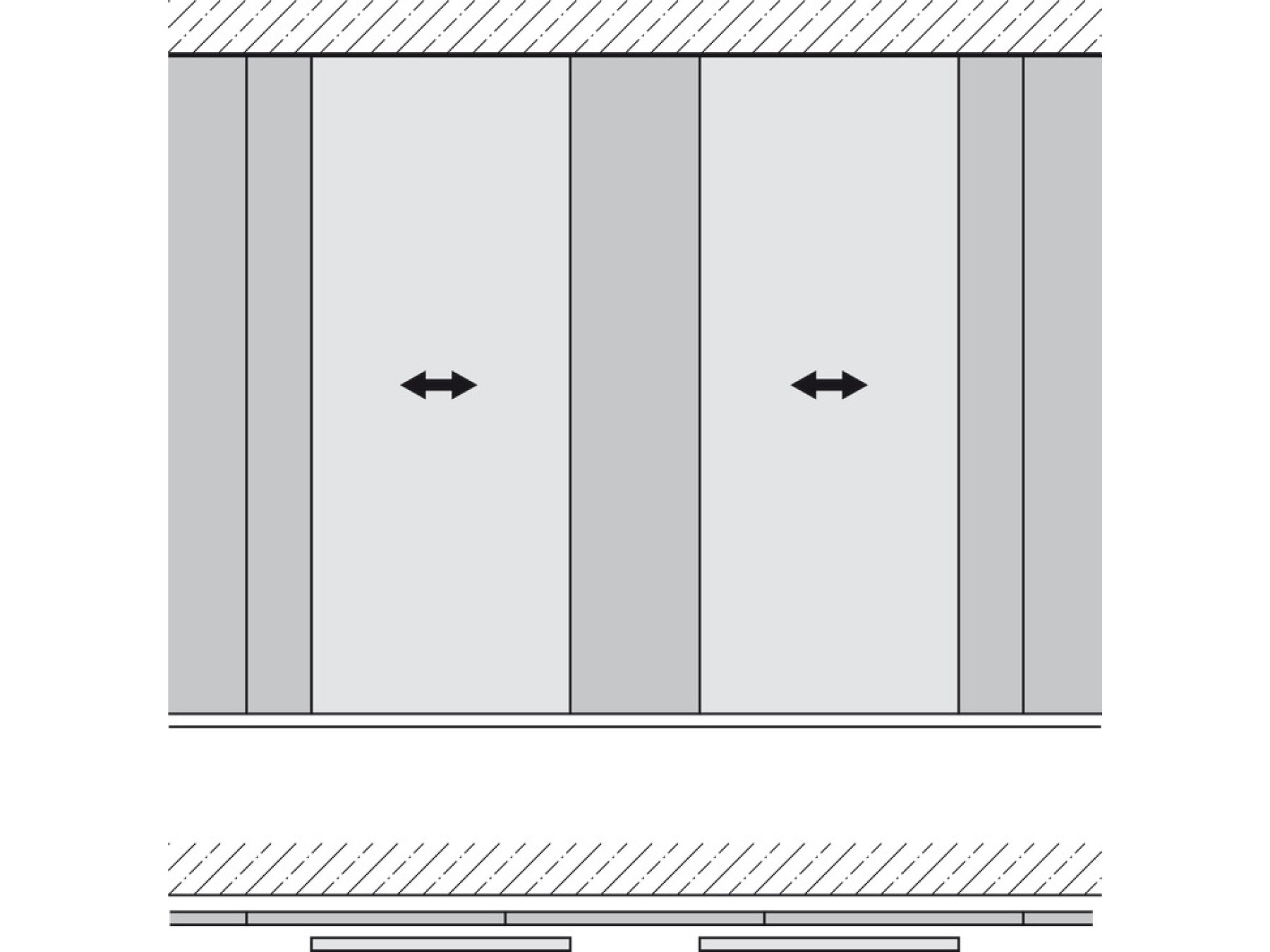

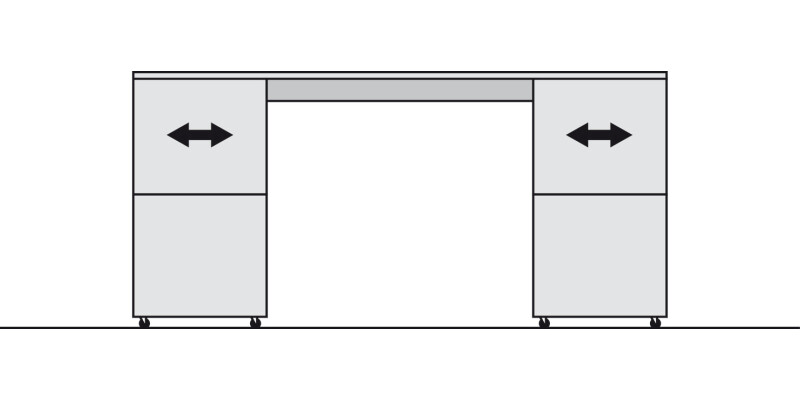

- Application: For sliding objects horizontally such as cabinets, claddings, display walls etc.
- Installation: Screw fixing

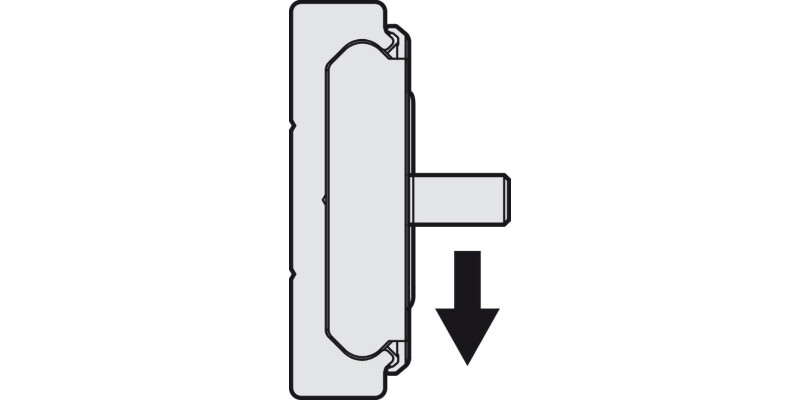

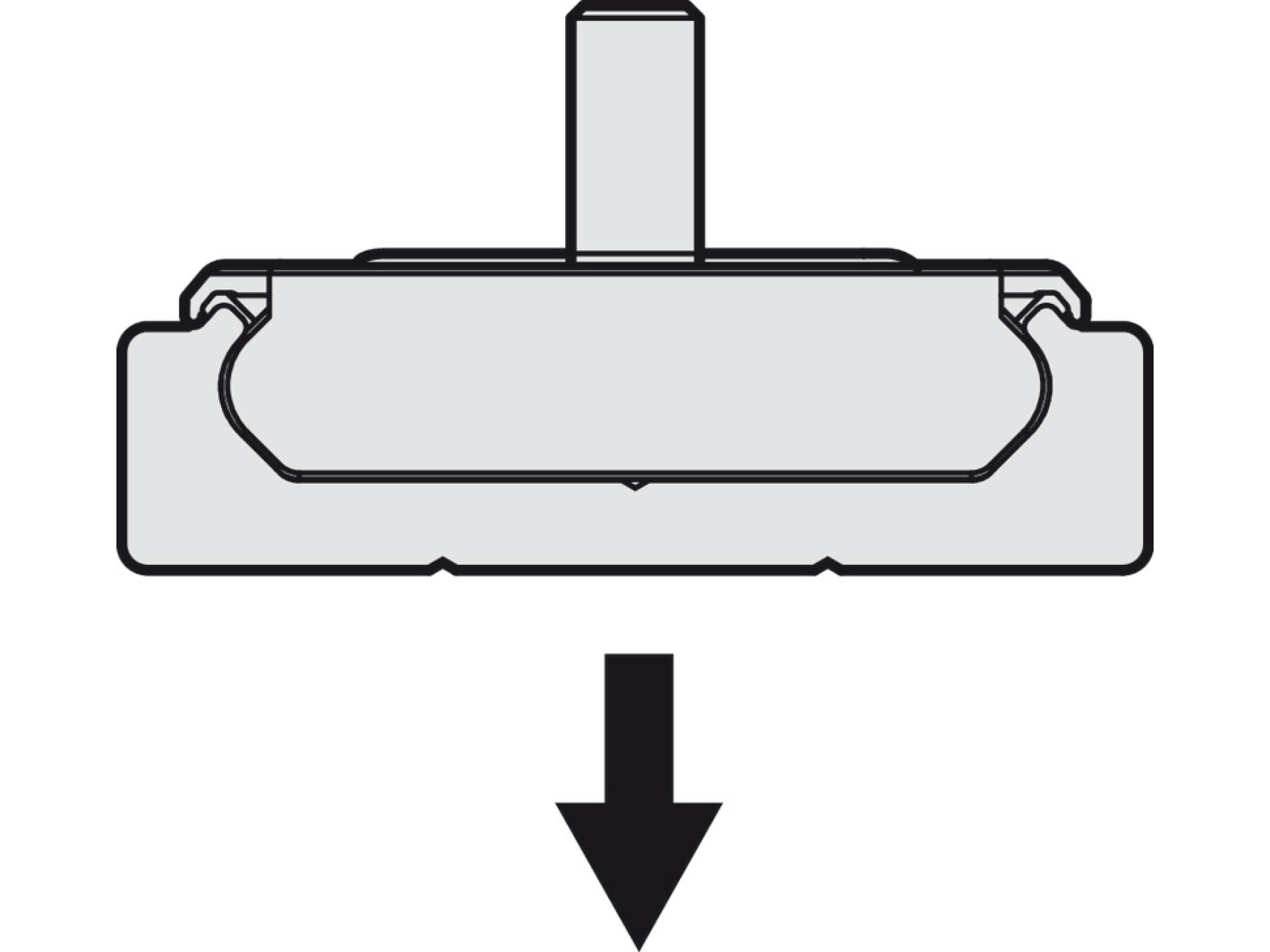

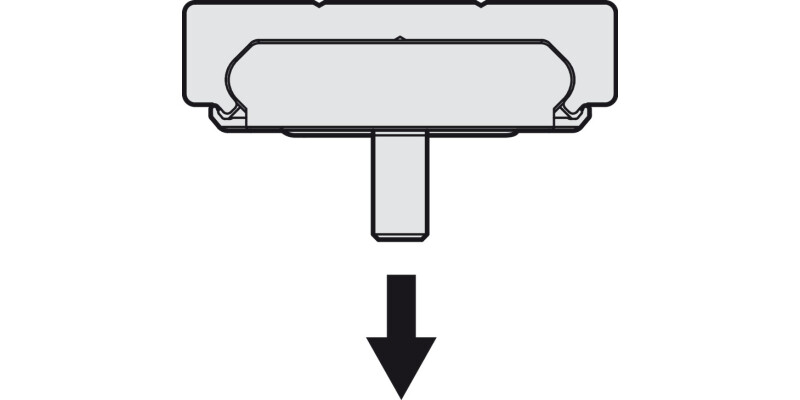

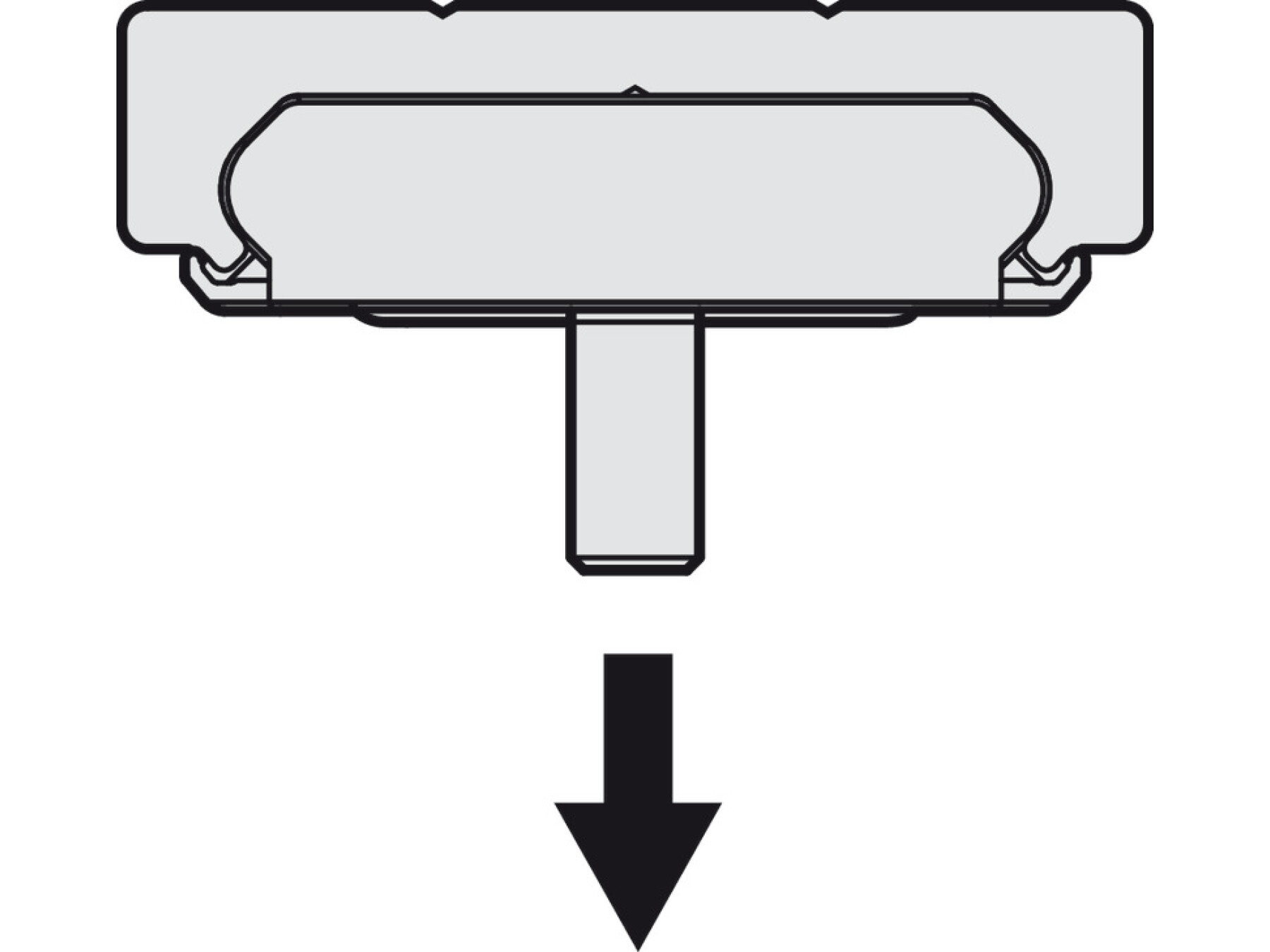

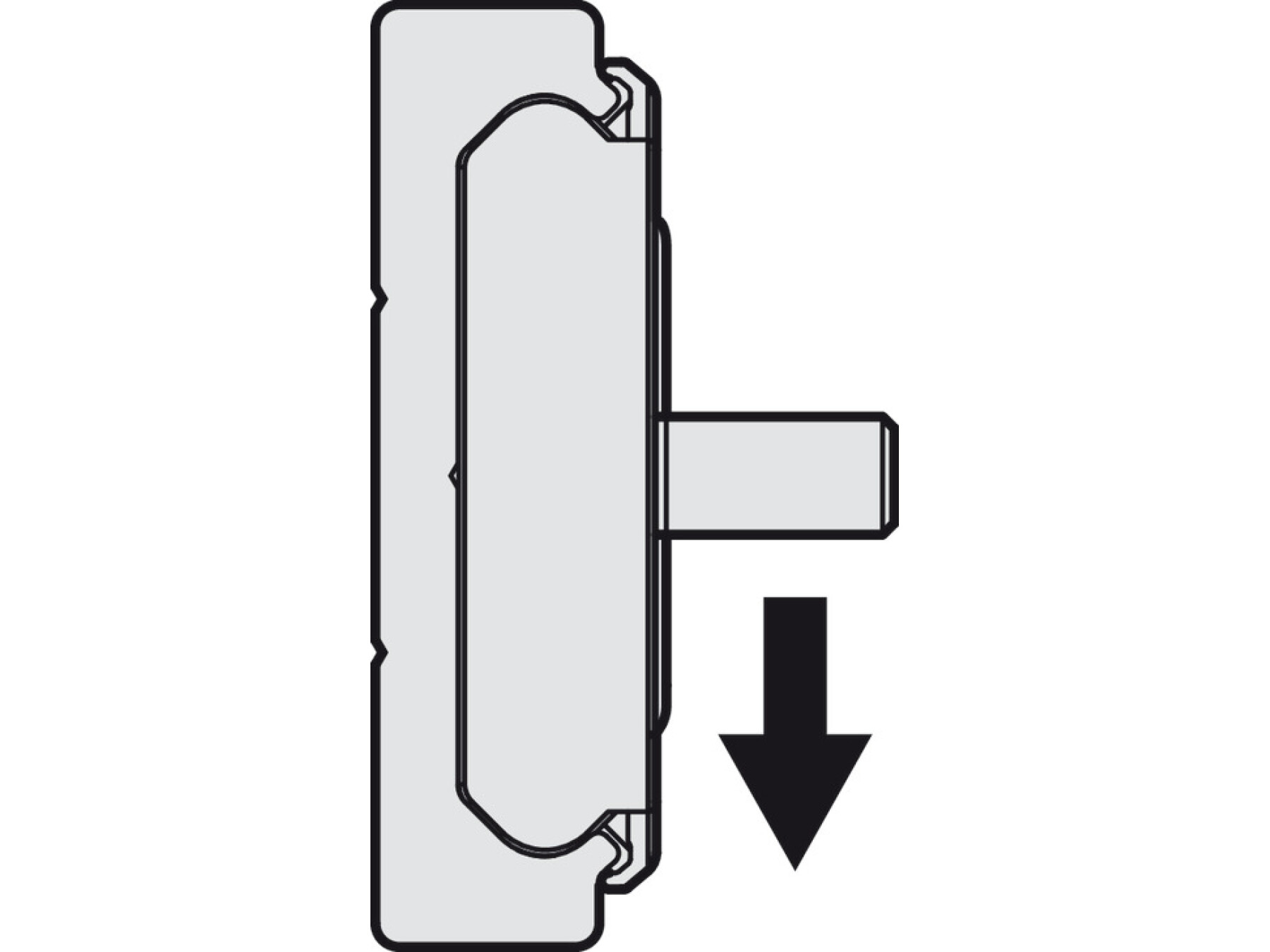

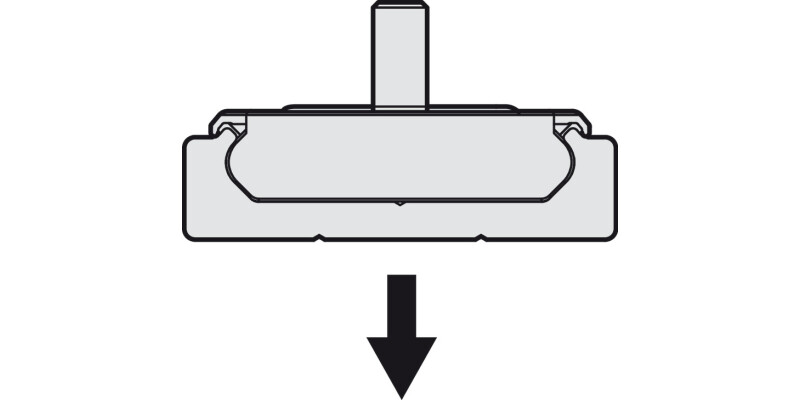

- Load bearing capacity: Max. 130 kg

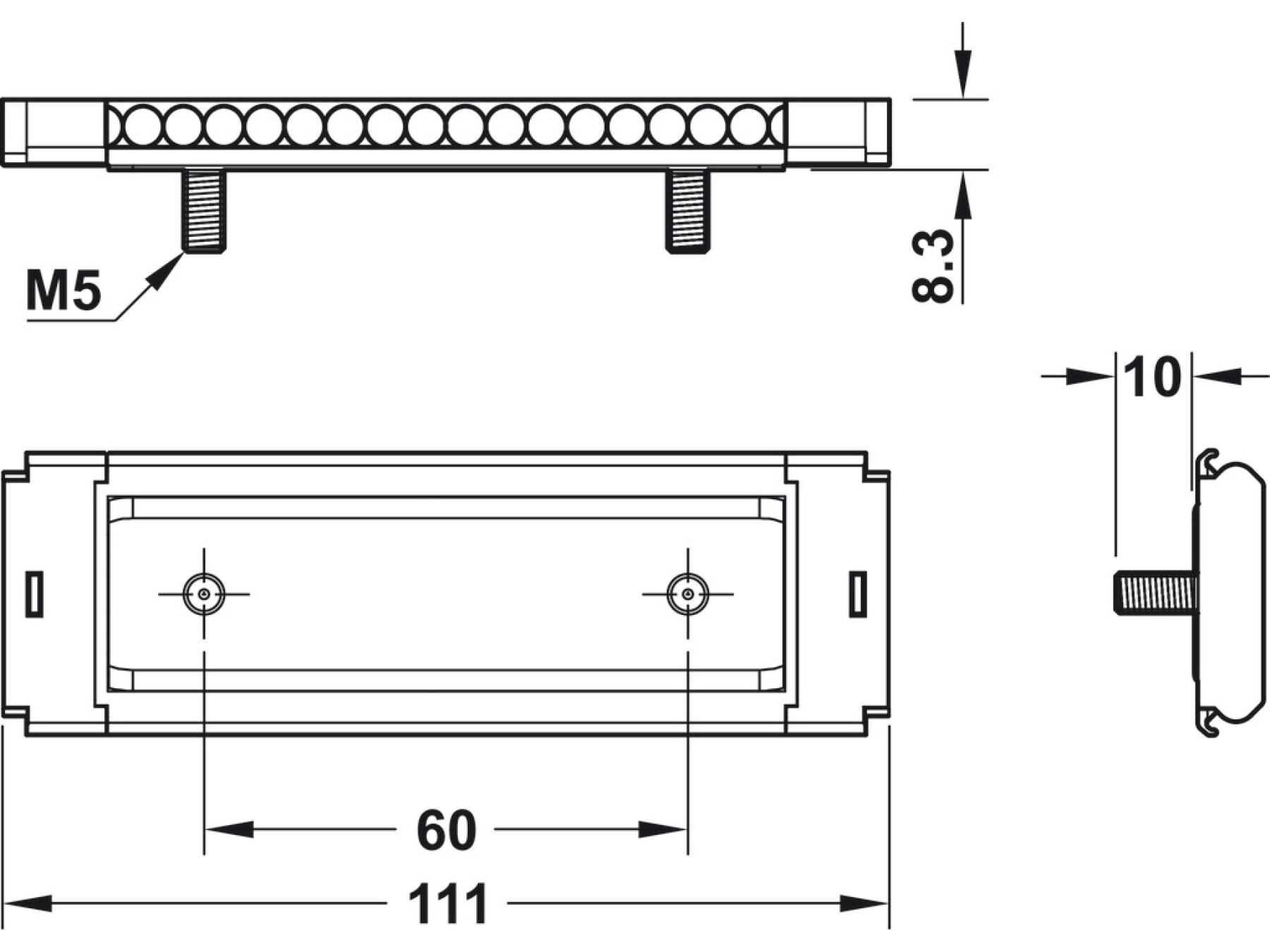

- Length: 111 mm
- Height: 18.3 mm
- Material: Stainless steel

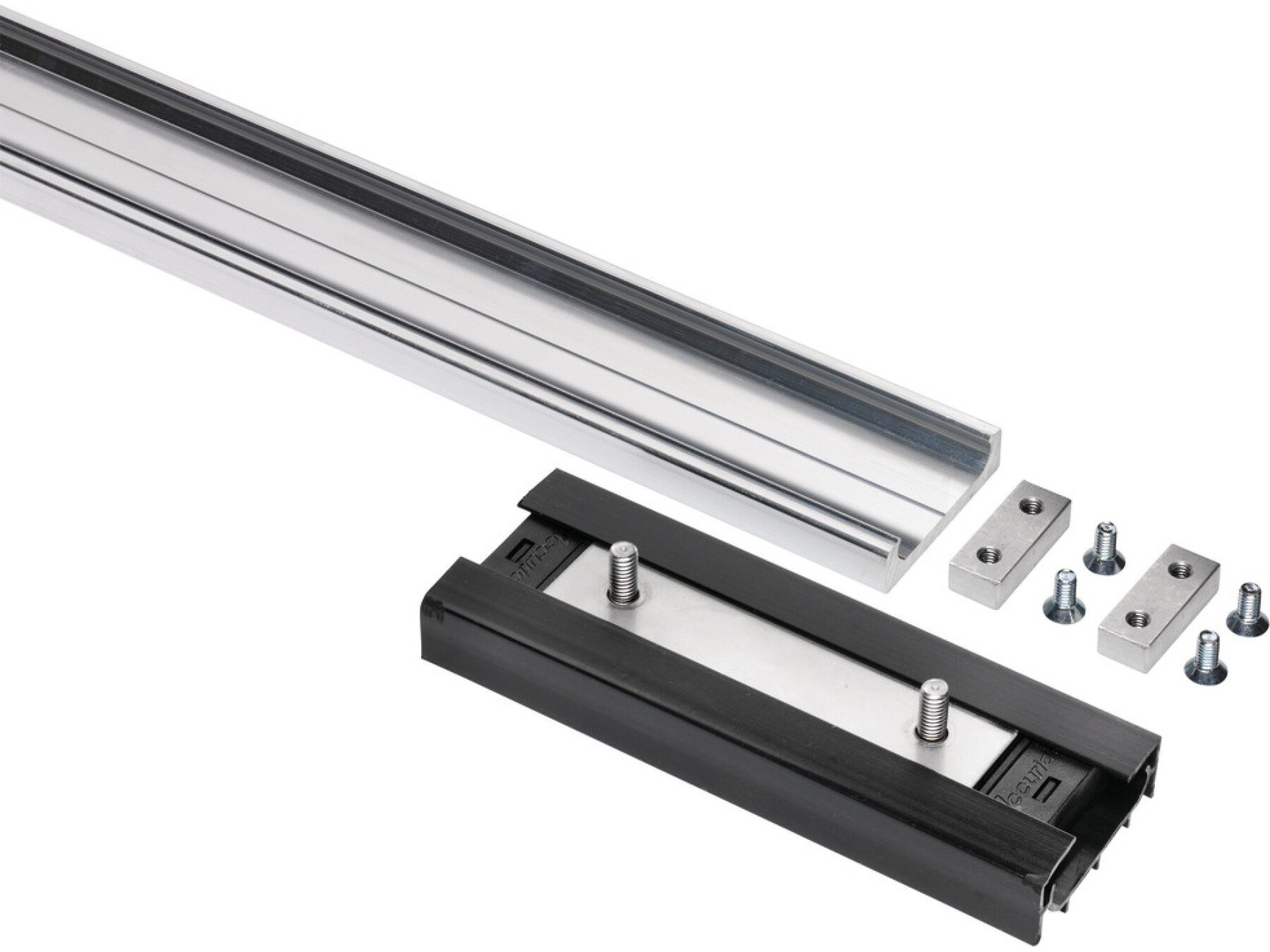

- Order reference: Tracks and accessories to be ordered separately
