Accuride 0116 Sld Track Sys 3600mm Alu
Rated 3.5/5 based on 11 customer reviews

Accuride 0116 Sld Track Sys 3600mm Alu

  • Product SKU: 421.59.112
  • Availability: In Stock

Price inc. VAT

Hurry! only 2 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

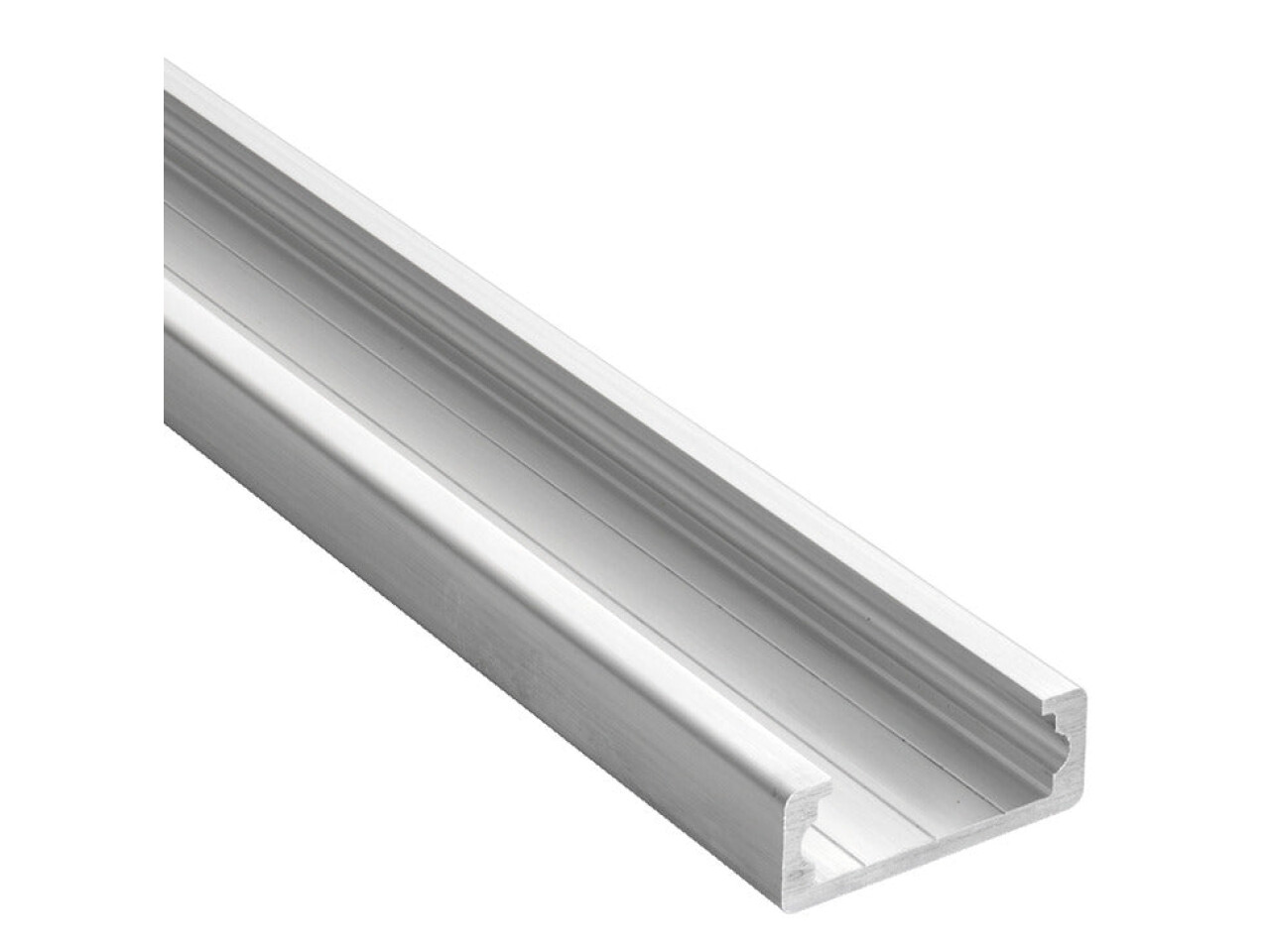

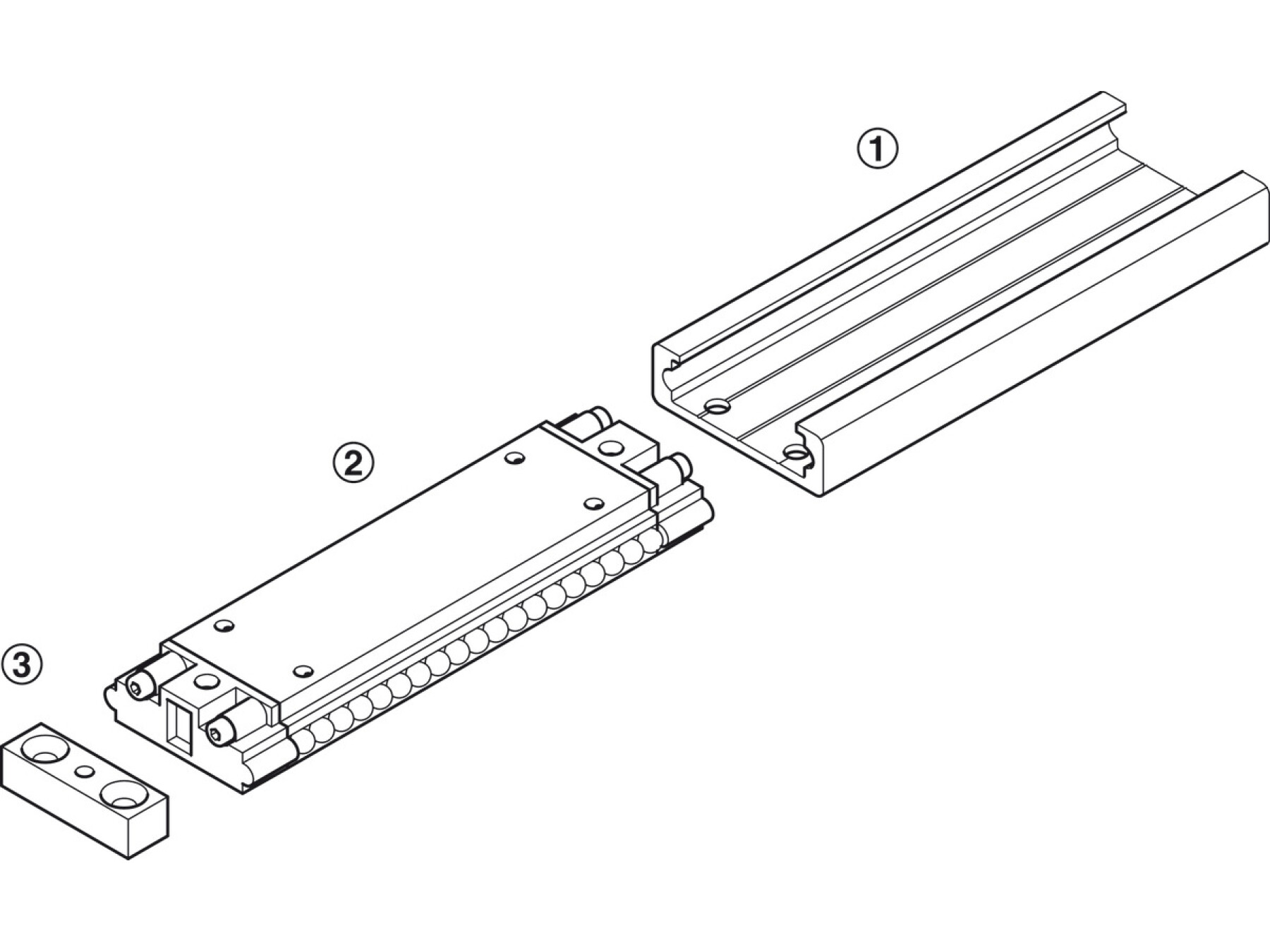

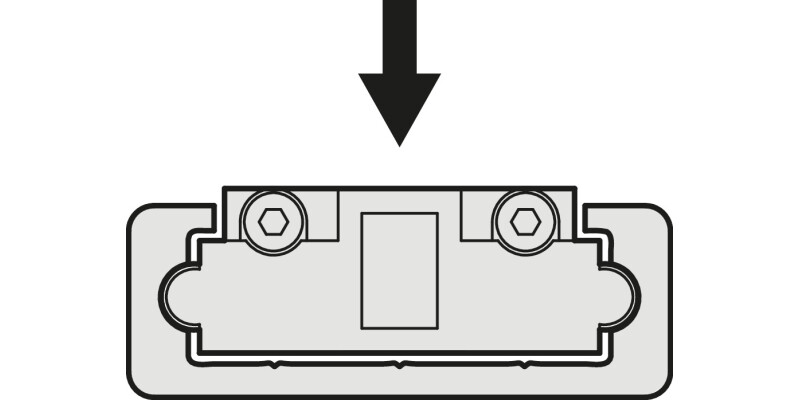

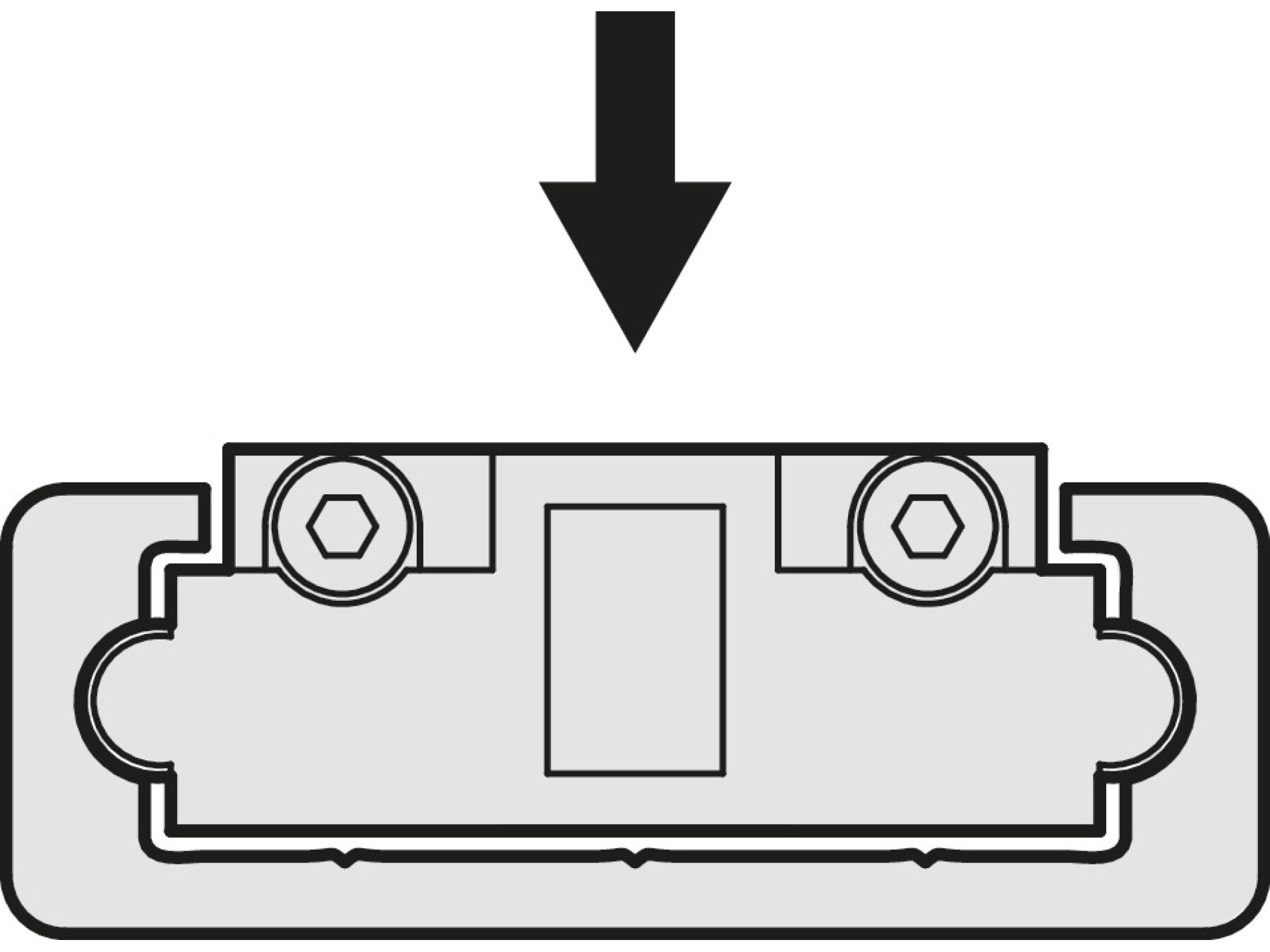

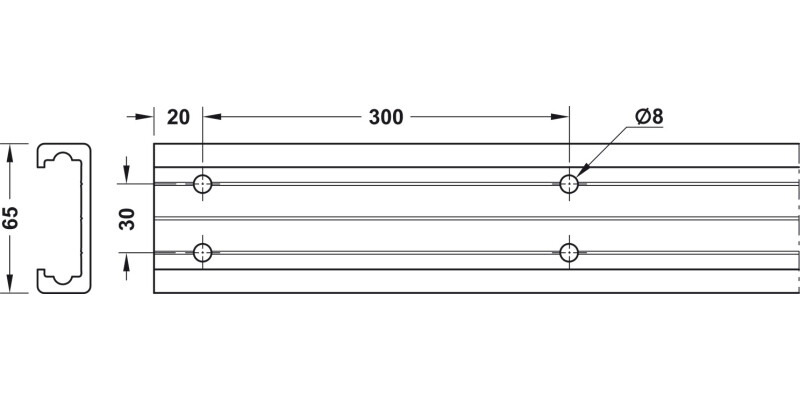

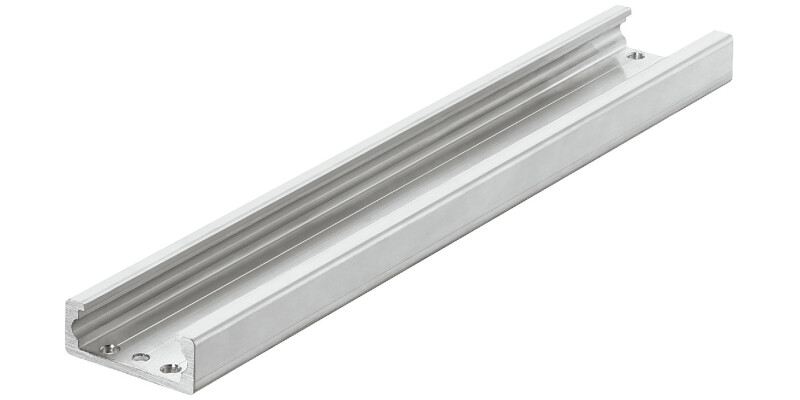

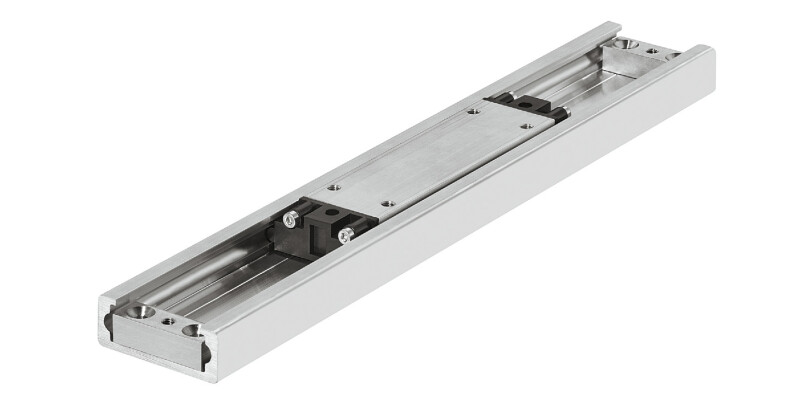

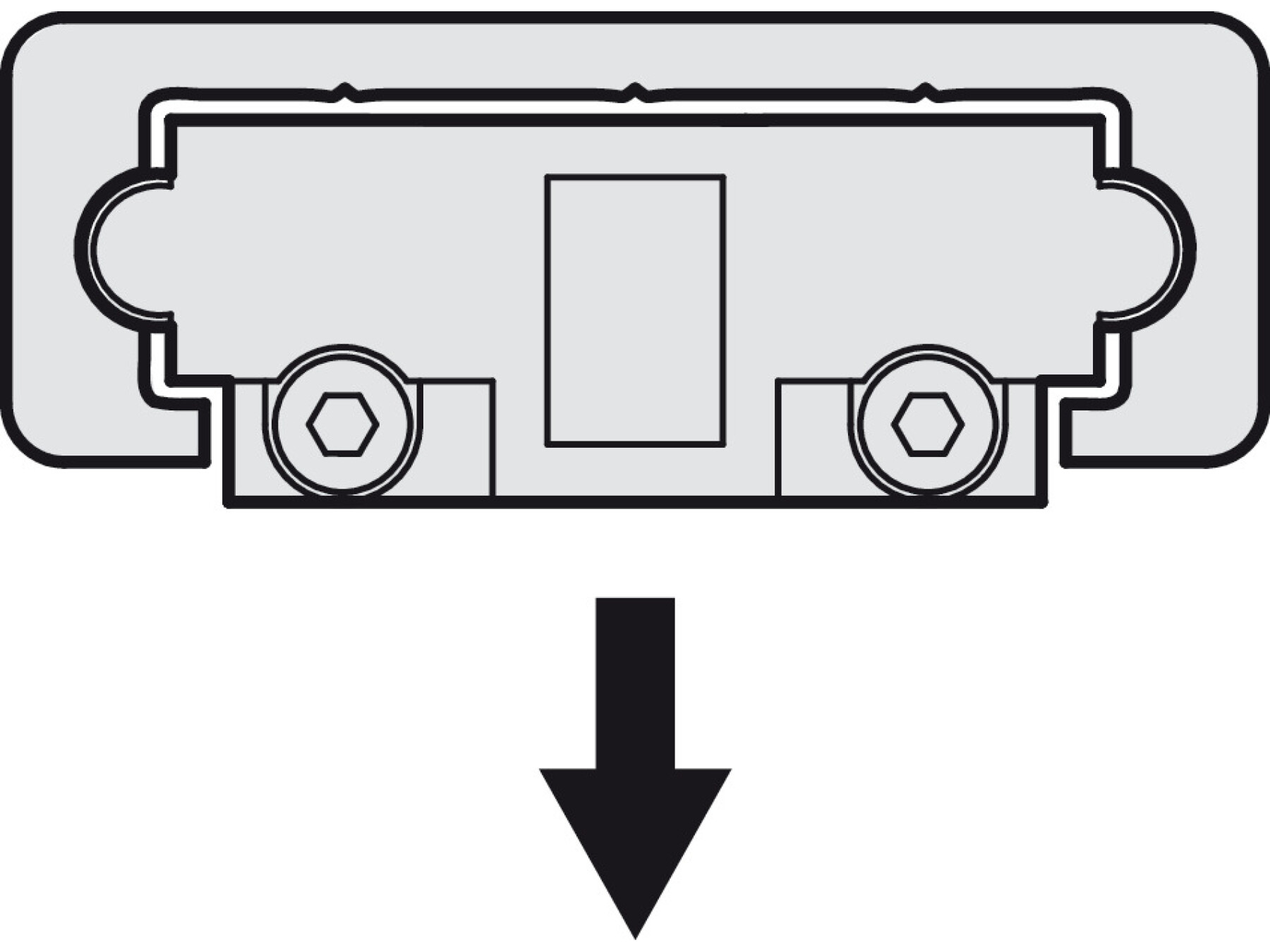

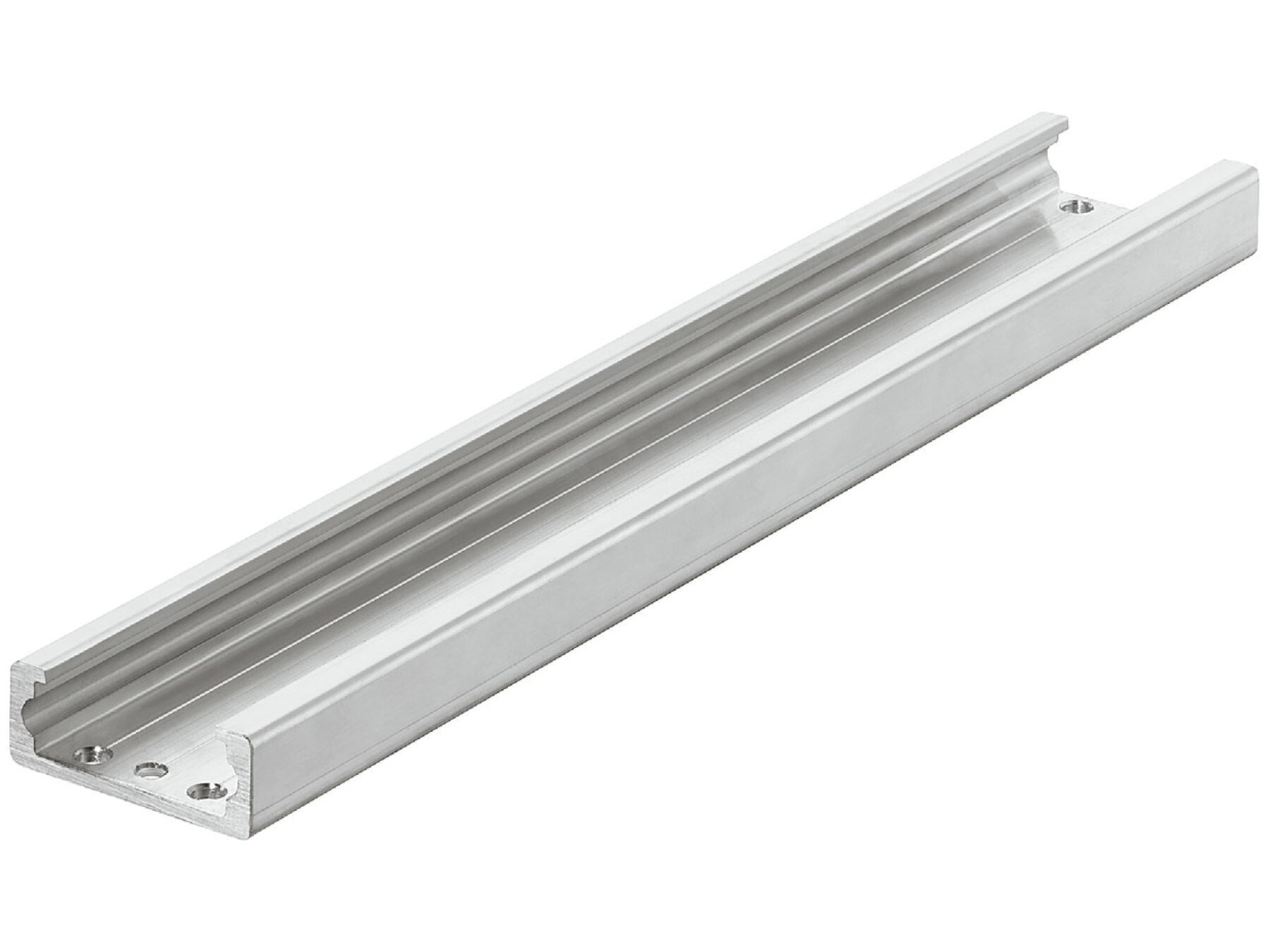

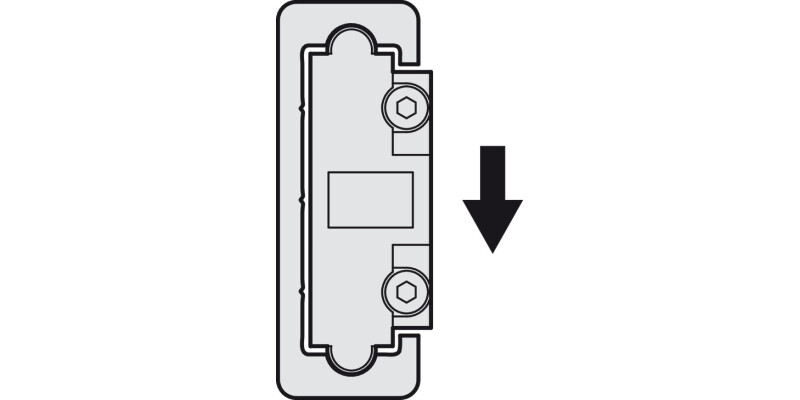

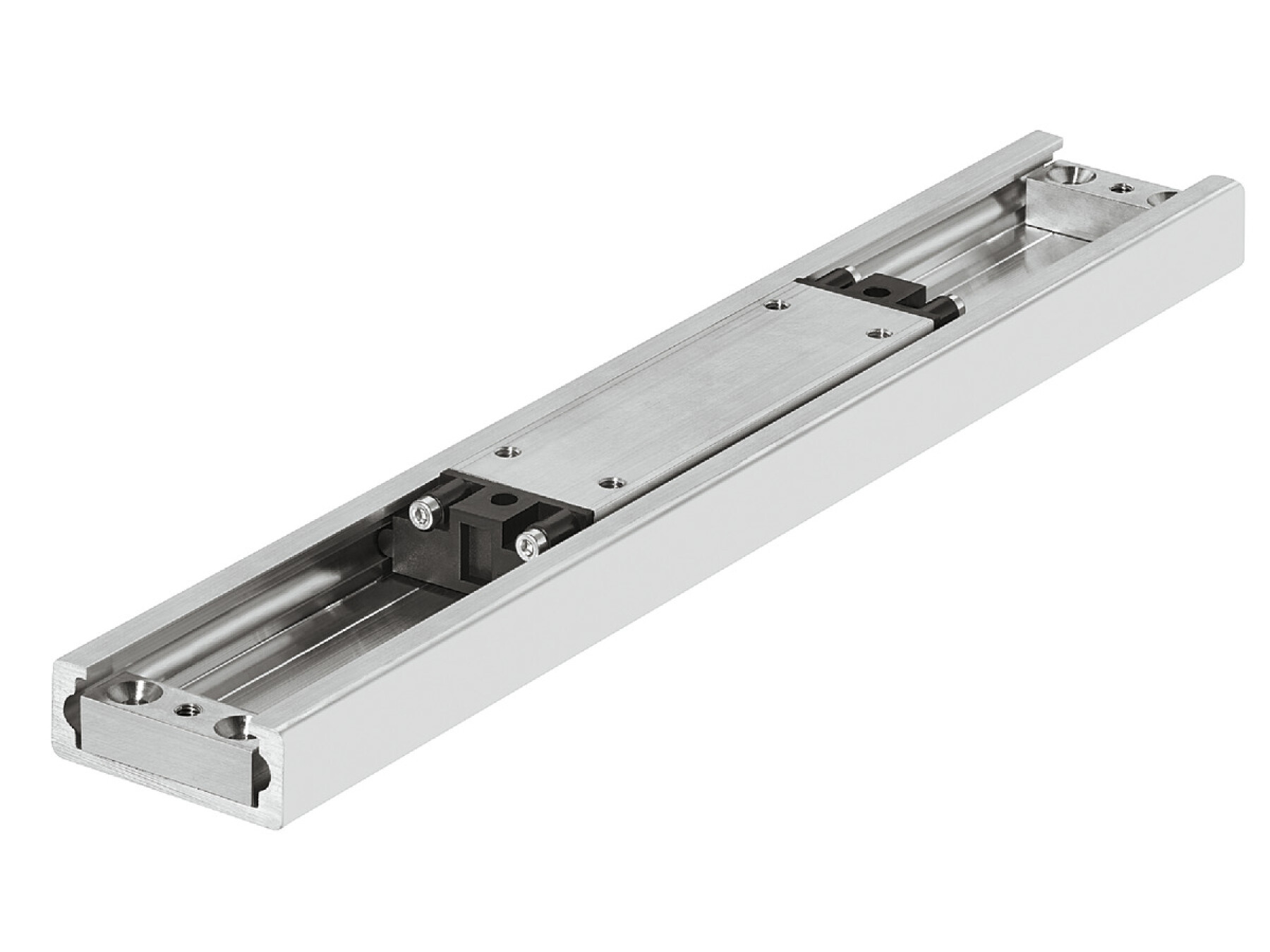

Track with ball bearing mounted carriage for sliding base units, table tops or display wallsLinear motion guide and ball bearing carriageCorrosion resistantLoad bearing capacity determined by mounting psotion and number of ball bearing carriages. Please see catalogue page for info.Weight must be evenly distributed over the rec-circulating ball carriagesThe specified values apply to performed test distance of 80,000 mFix track as recommended on rigid or flat surface\n\nNot drilledCan be cut to required length, butted together for infinite lengths if aligned accuratelyCorrosion resistant, dust and dirt repelling
  • Application: For sliding objects horizontally, such as cabinets, claddings, display walls etc.
  • Installation: Screw fixing
  • Load bearing capacity: Max. 360 kg

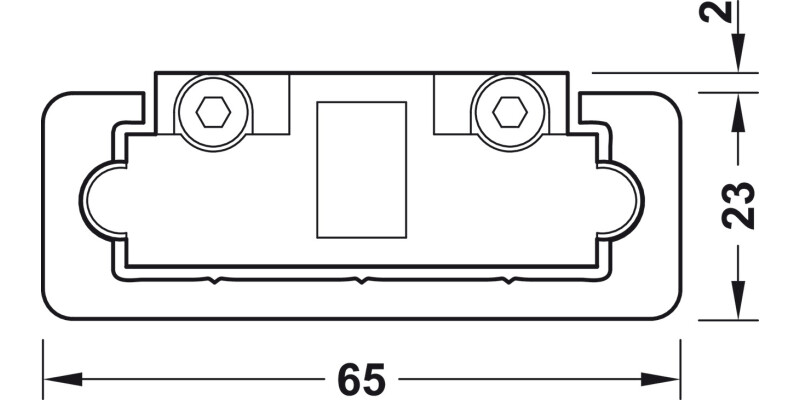

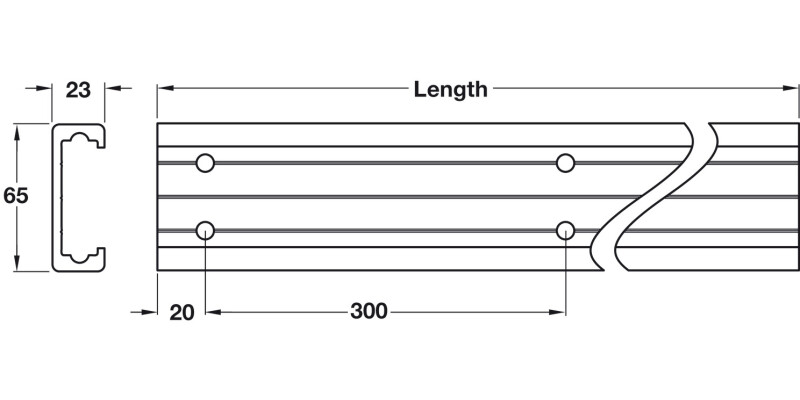

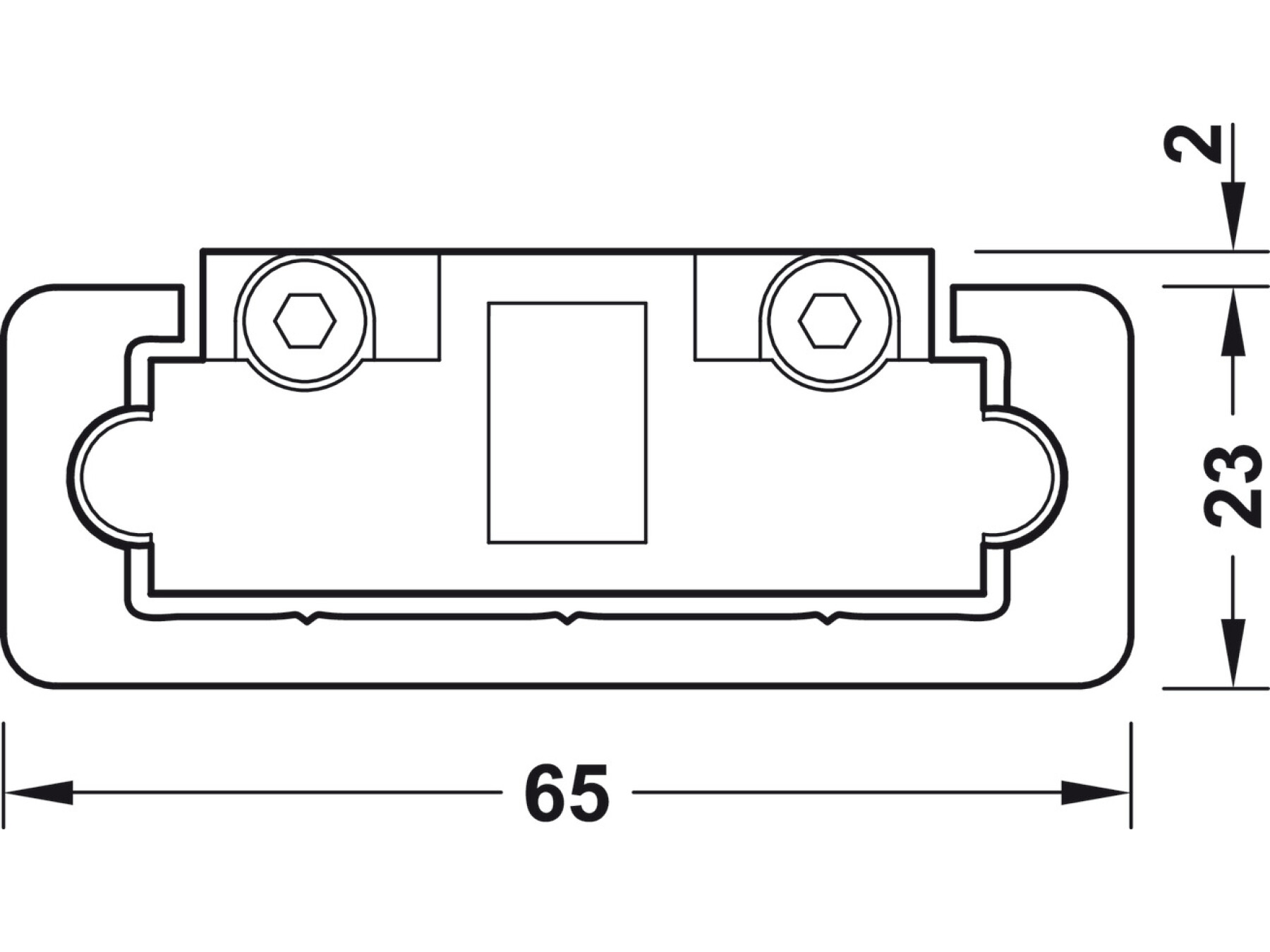

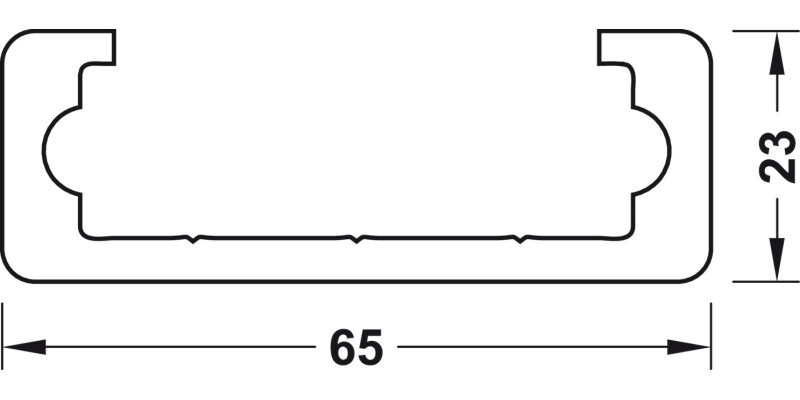

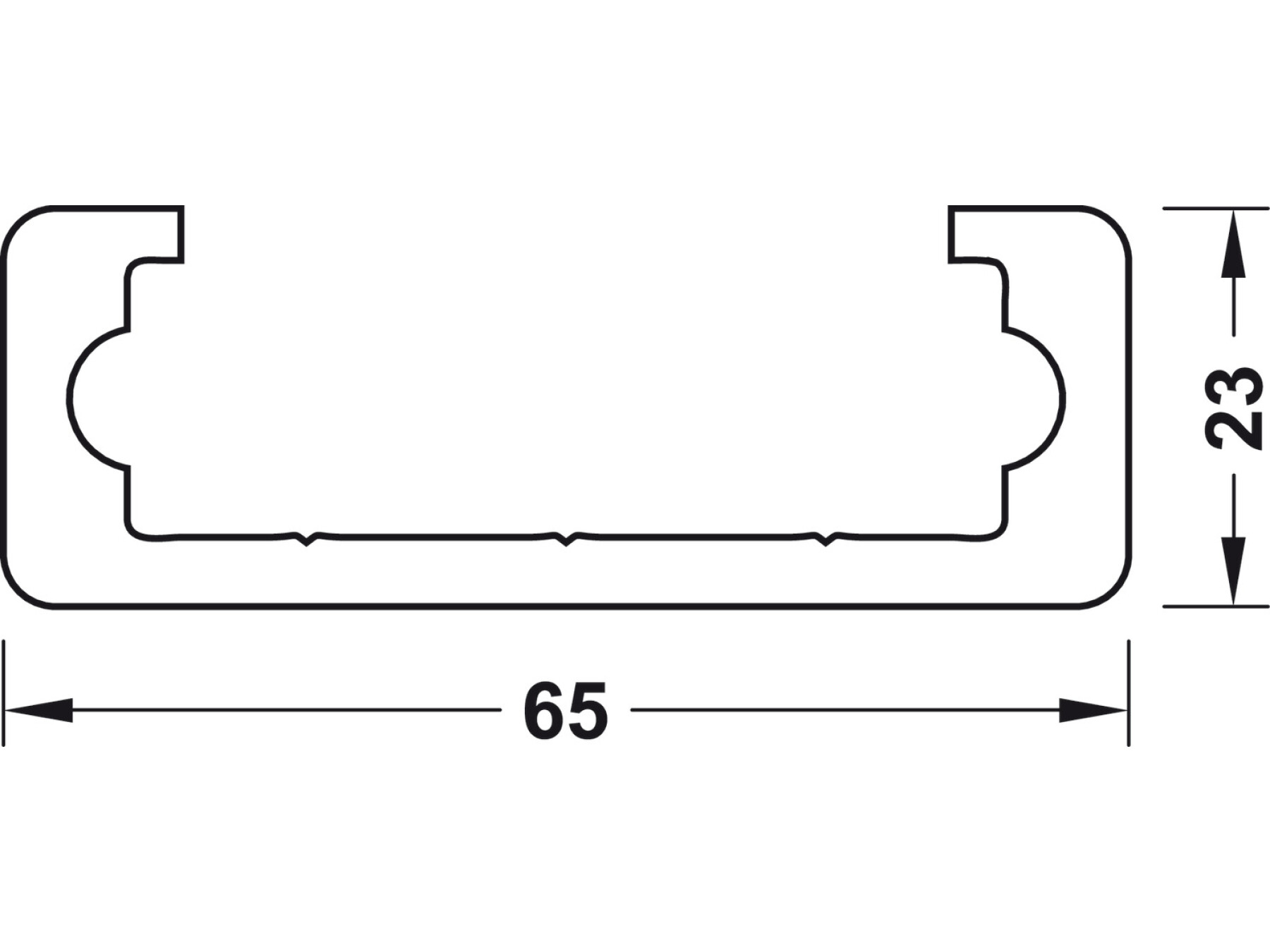

  • Height: 23 mm
  • Width: 65 mm
  • Material: Aluminium

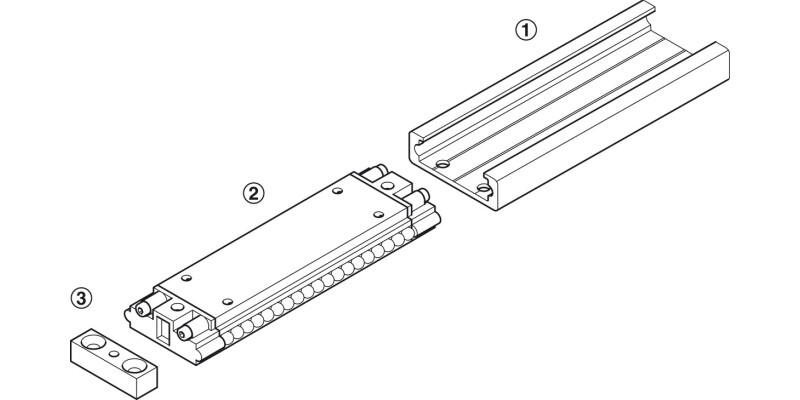

  • Order reference: Ball carriages, end stops, M6 fixing screws and accessories to be ordered separately
