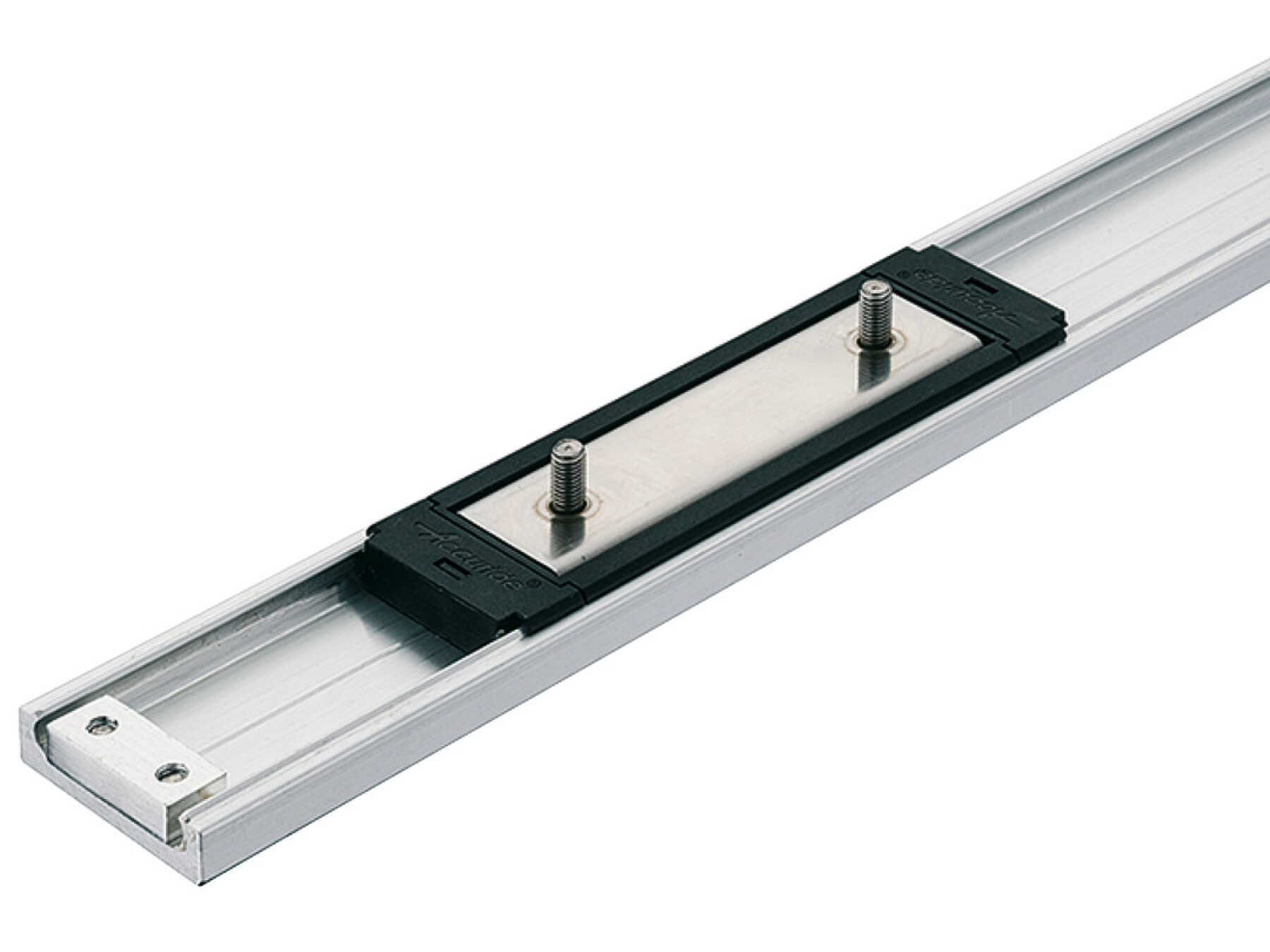

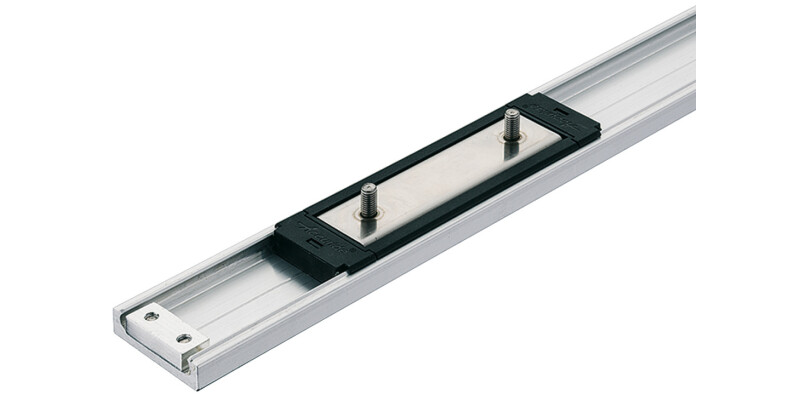

Accuride 0115RC Sld Track Sys 2400mm Alu
Rated 3.5/5 based on 11 customer reviews
Hafele

Accuride 0115RC Sld Track Sys 2400mm Alu

  • Product SKU: 421.59.101
  • Availability: In Stock
£49.67

Price inc. VAT

£49.67
Hurry! only 3 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
Not drilledCan be cut to required length, butted together for infinite lengths, or pinned together using √ò 3 mm pins (not included)Corrosion resistant, dust and dirt repelling

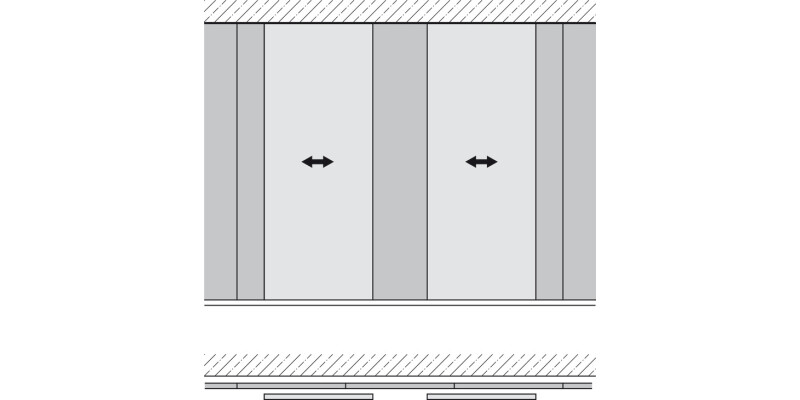

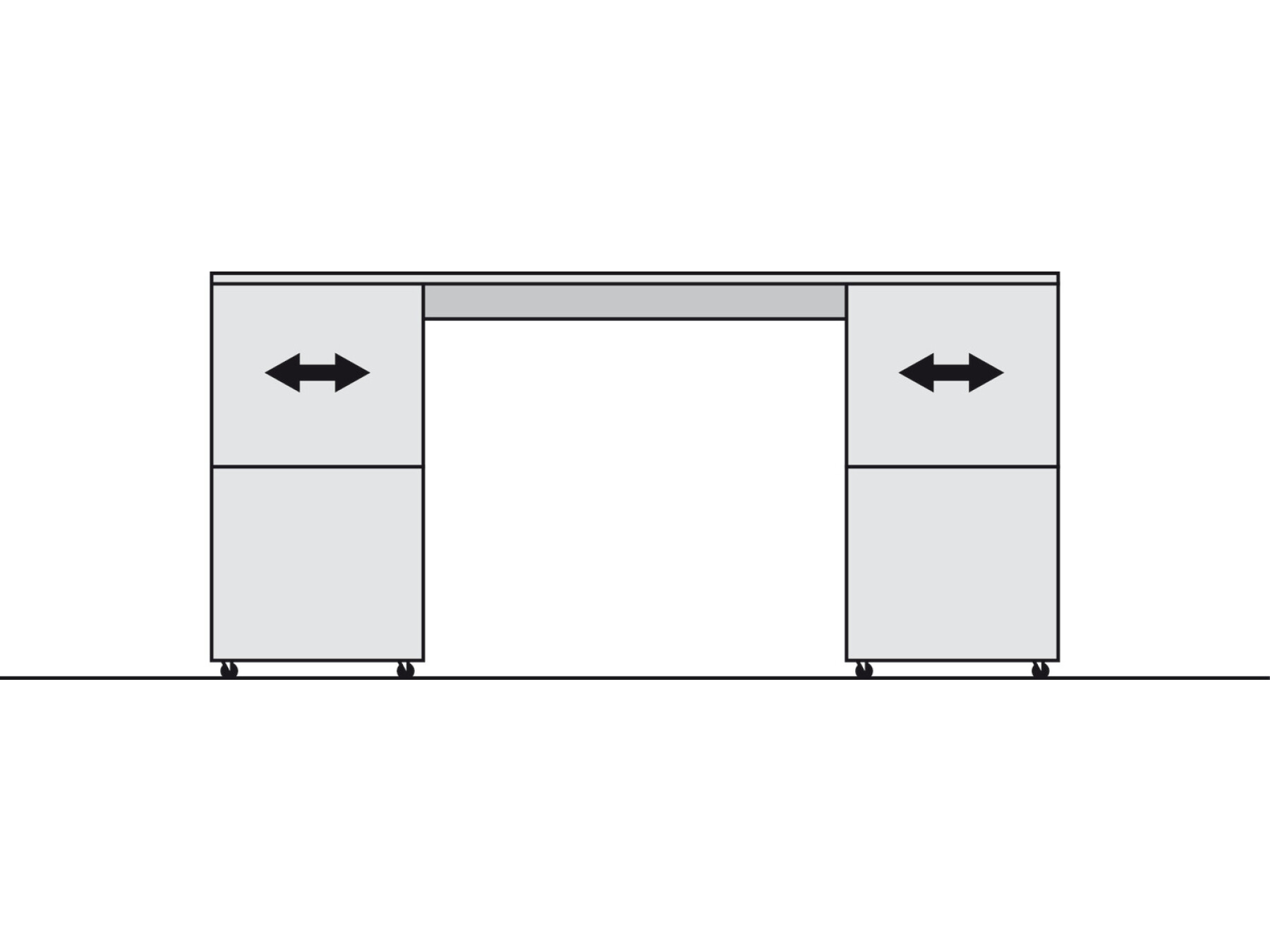

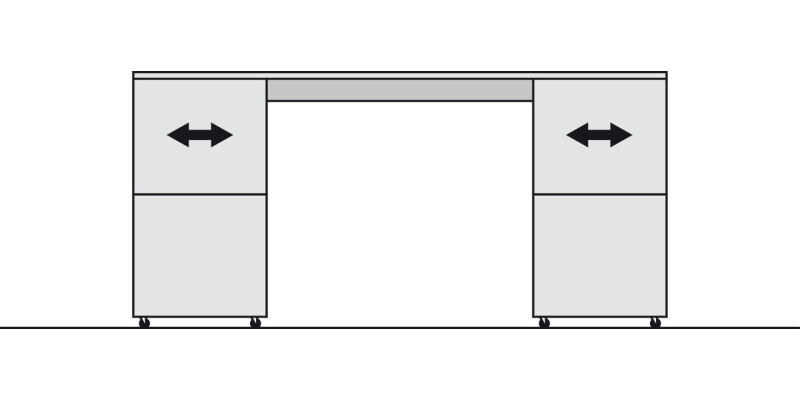

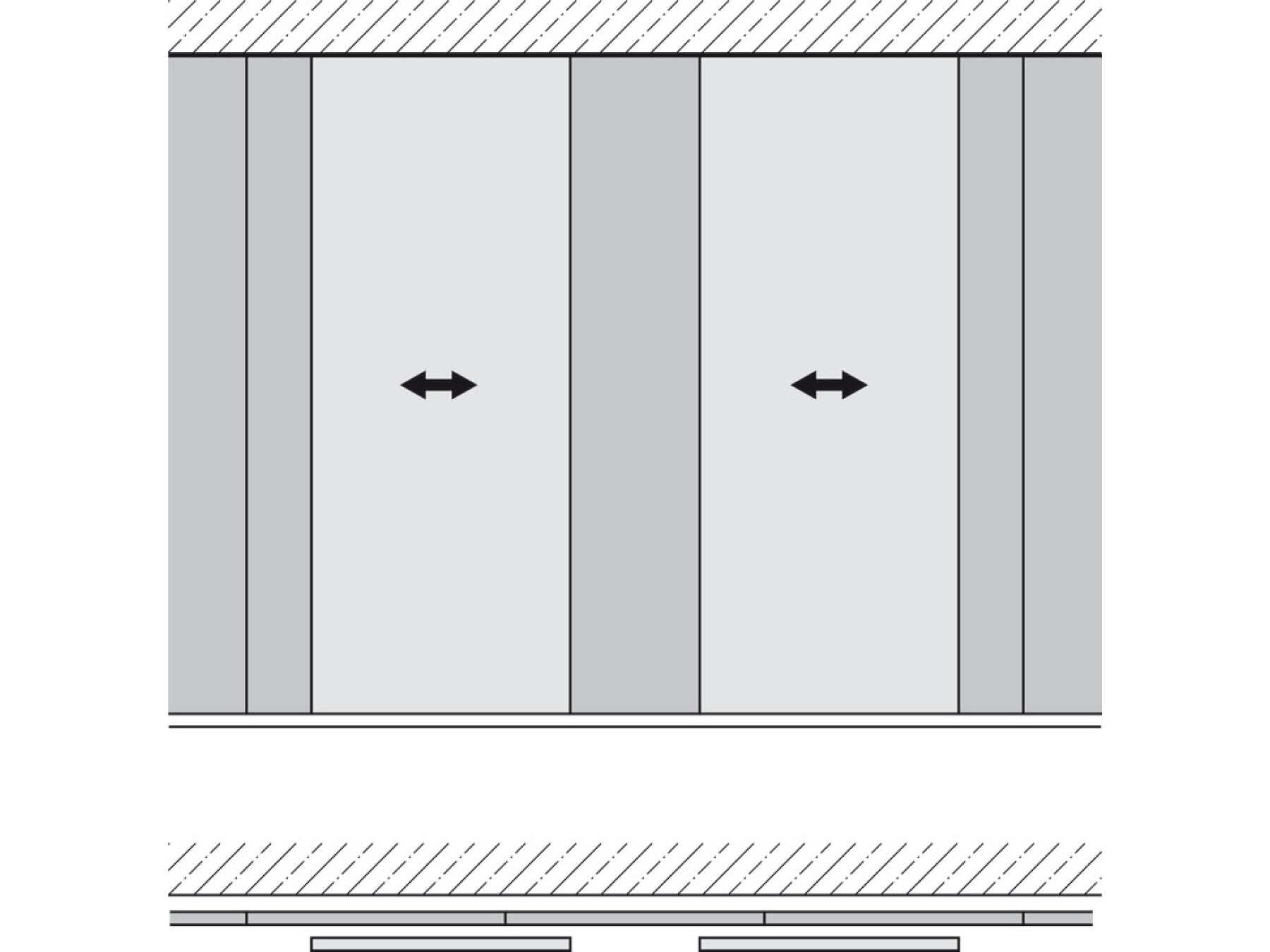

  • Application: For sliding objects horizontally such as cabinets, claddings, display walls etc.
  • Installation: Screw fixing

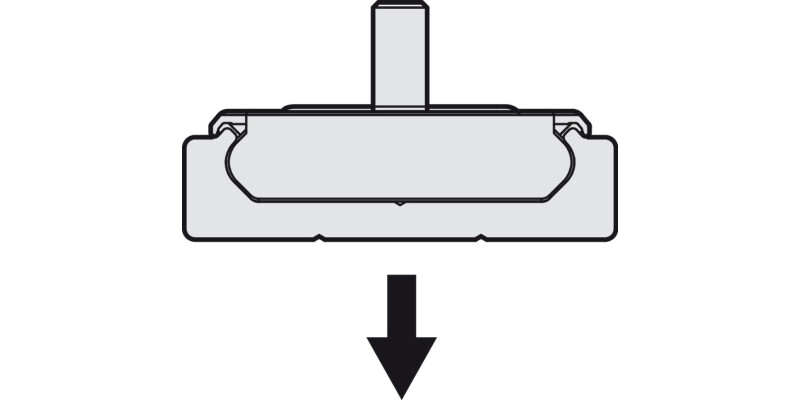

  • Load bearing capacity: Max. 130 kg

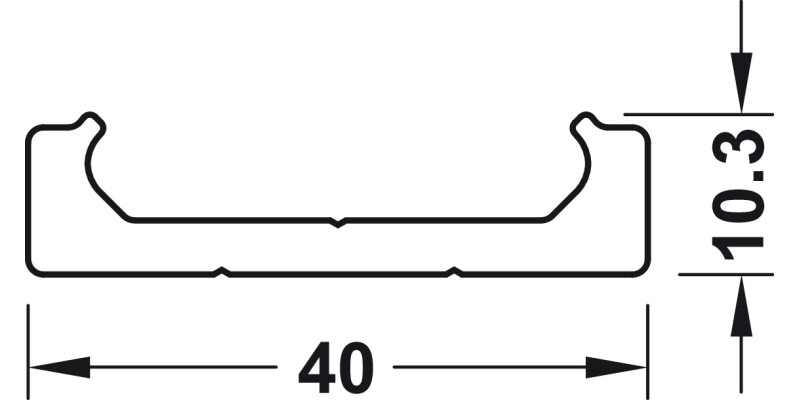

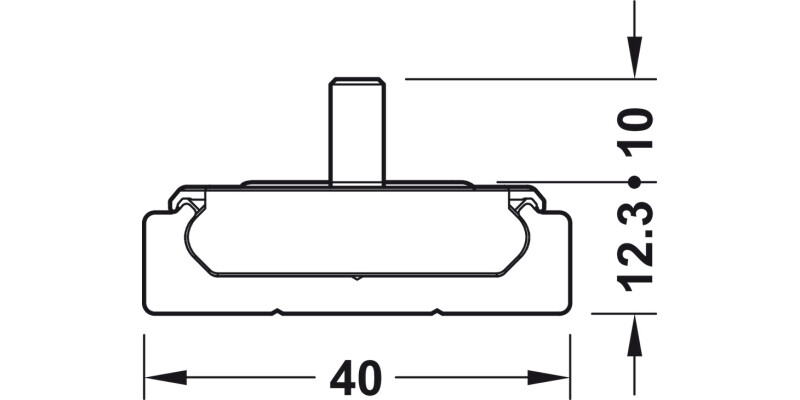

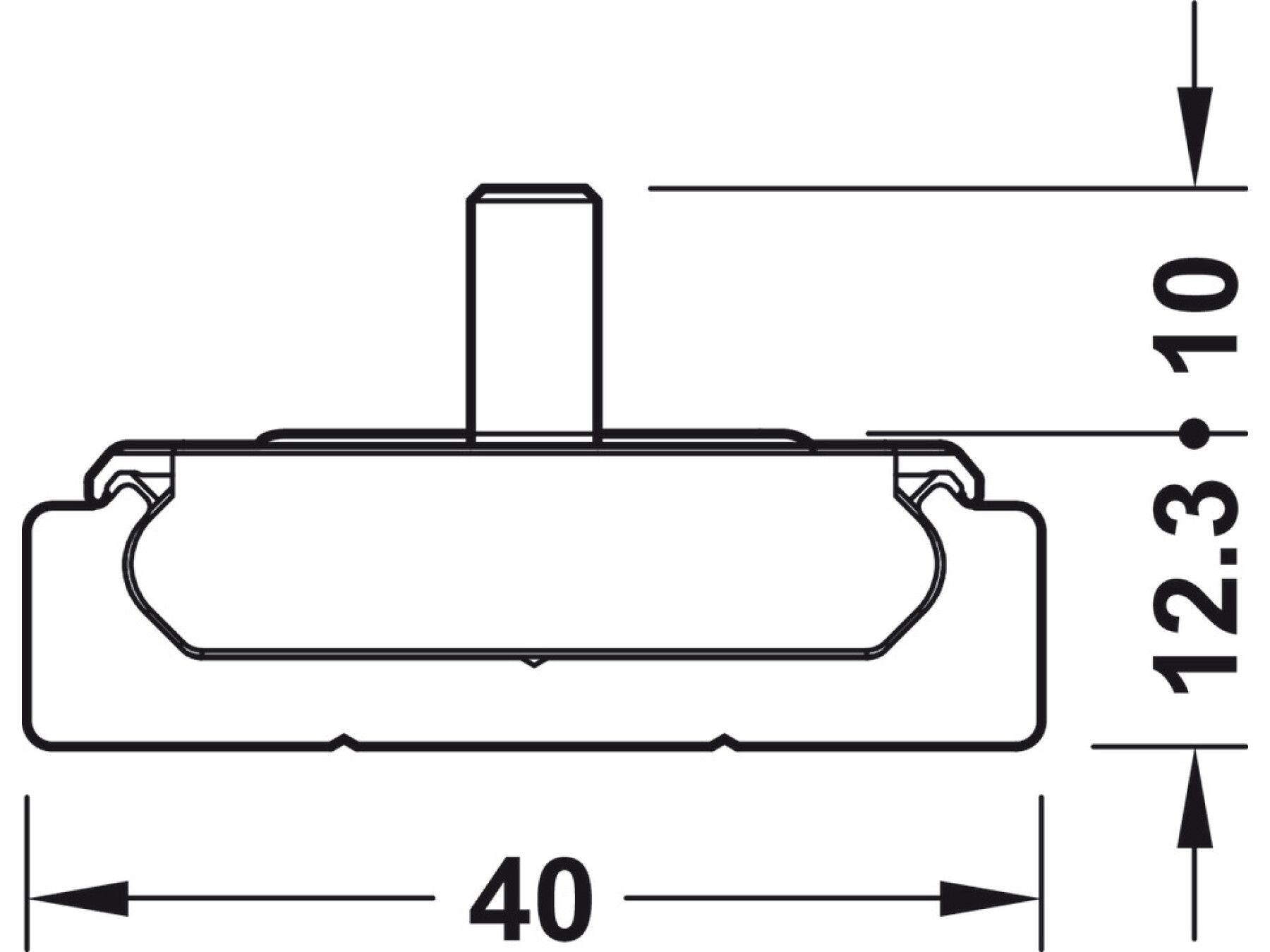

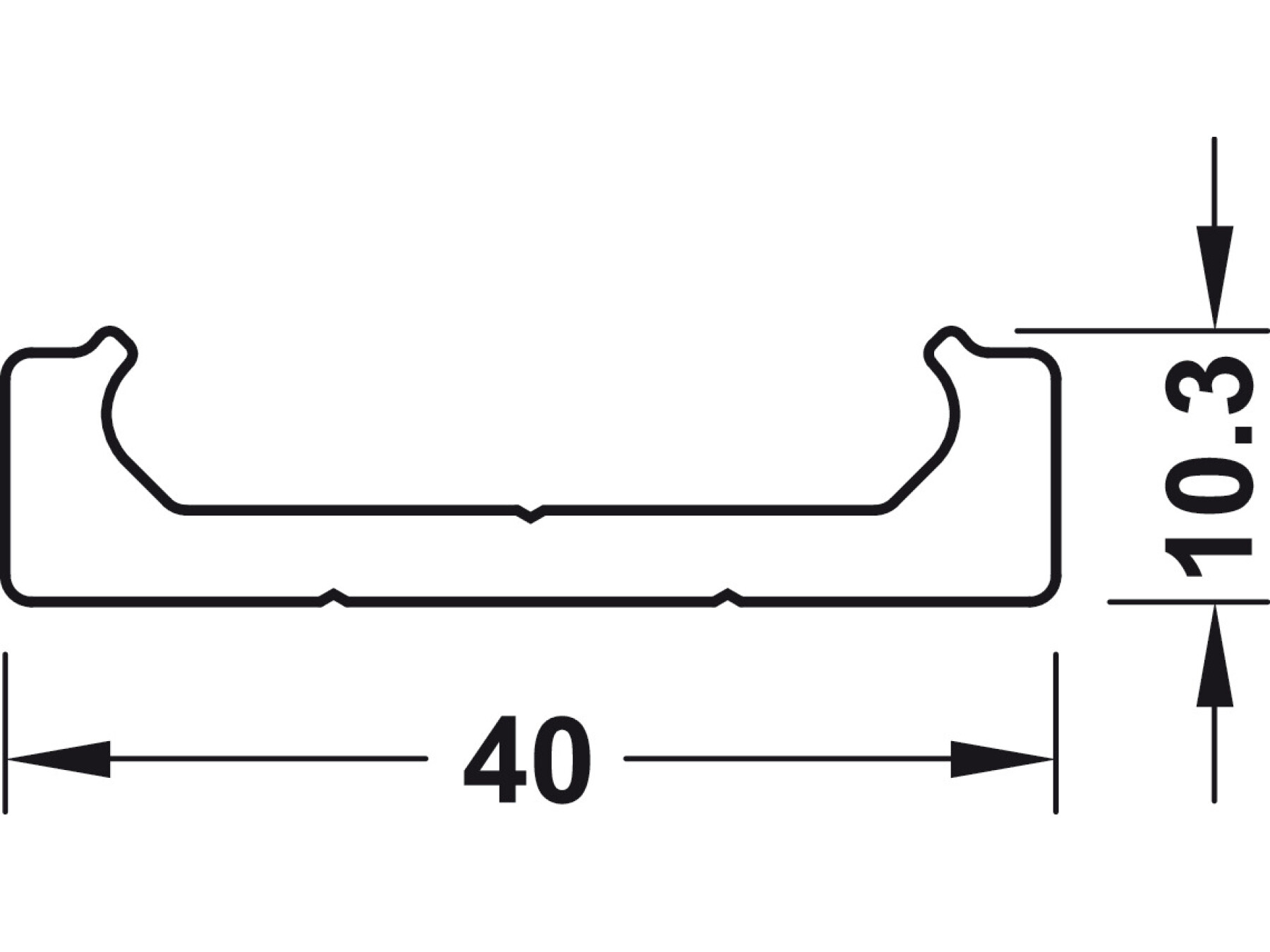

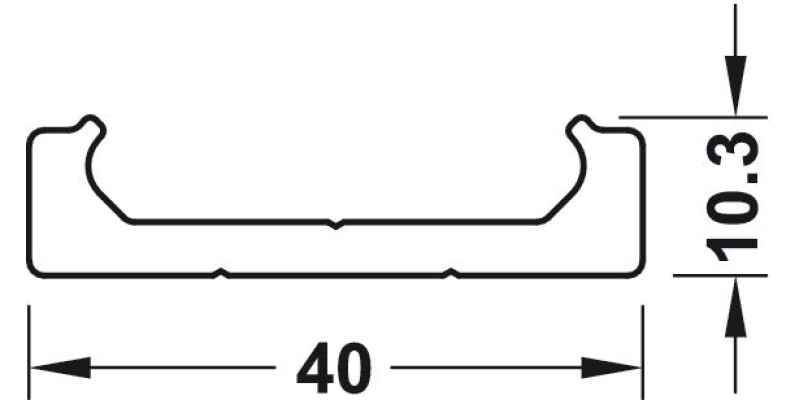

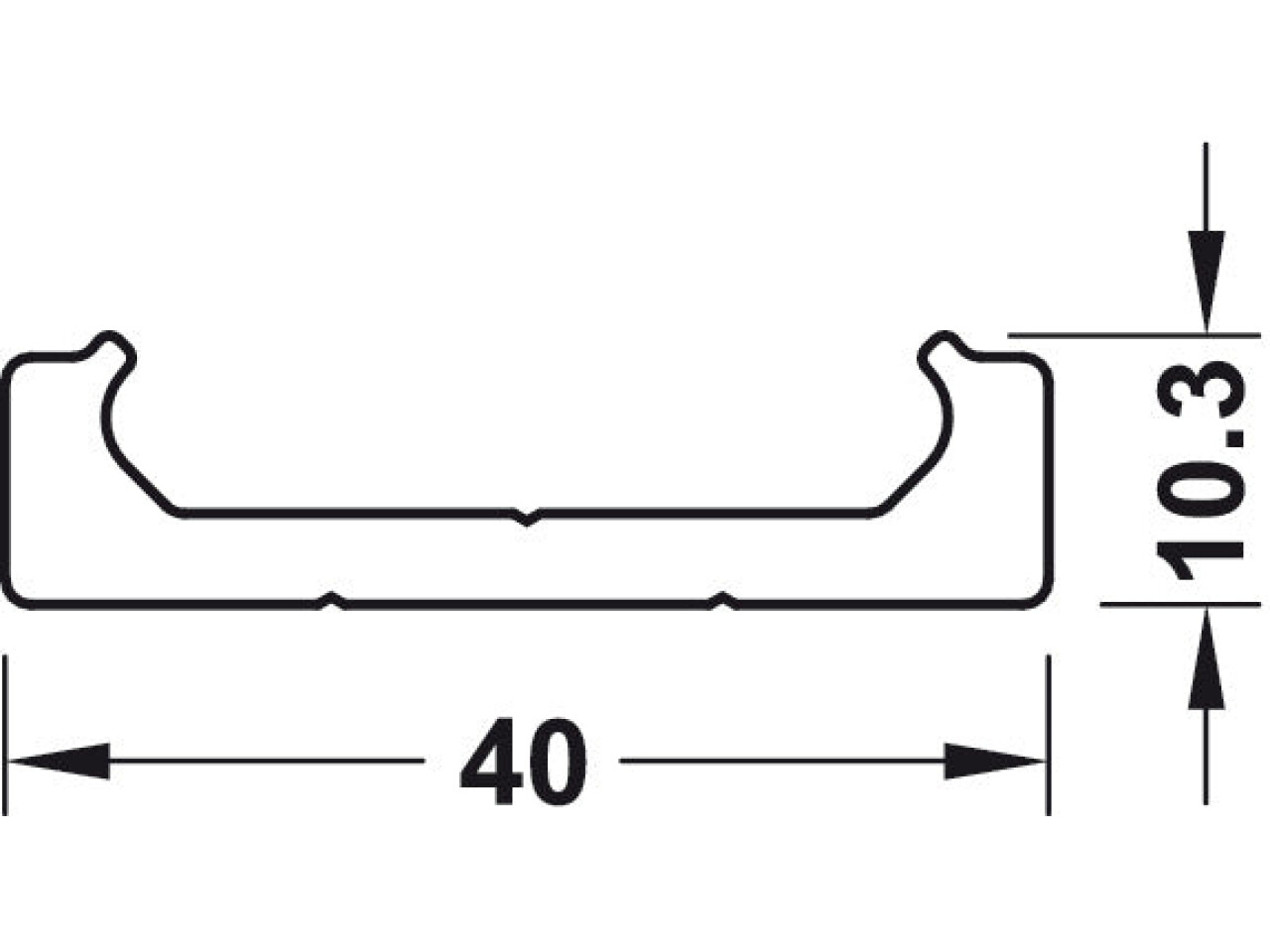

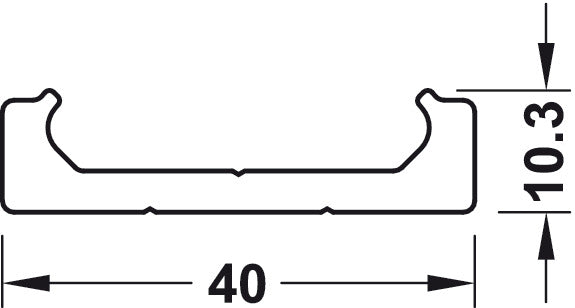

  • Height: 10.3 mm

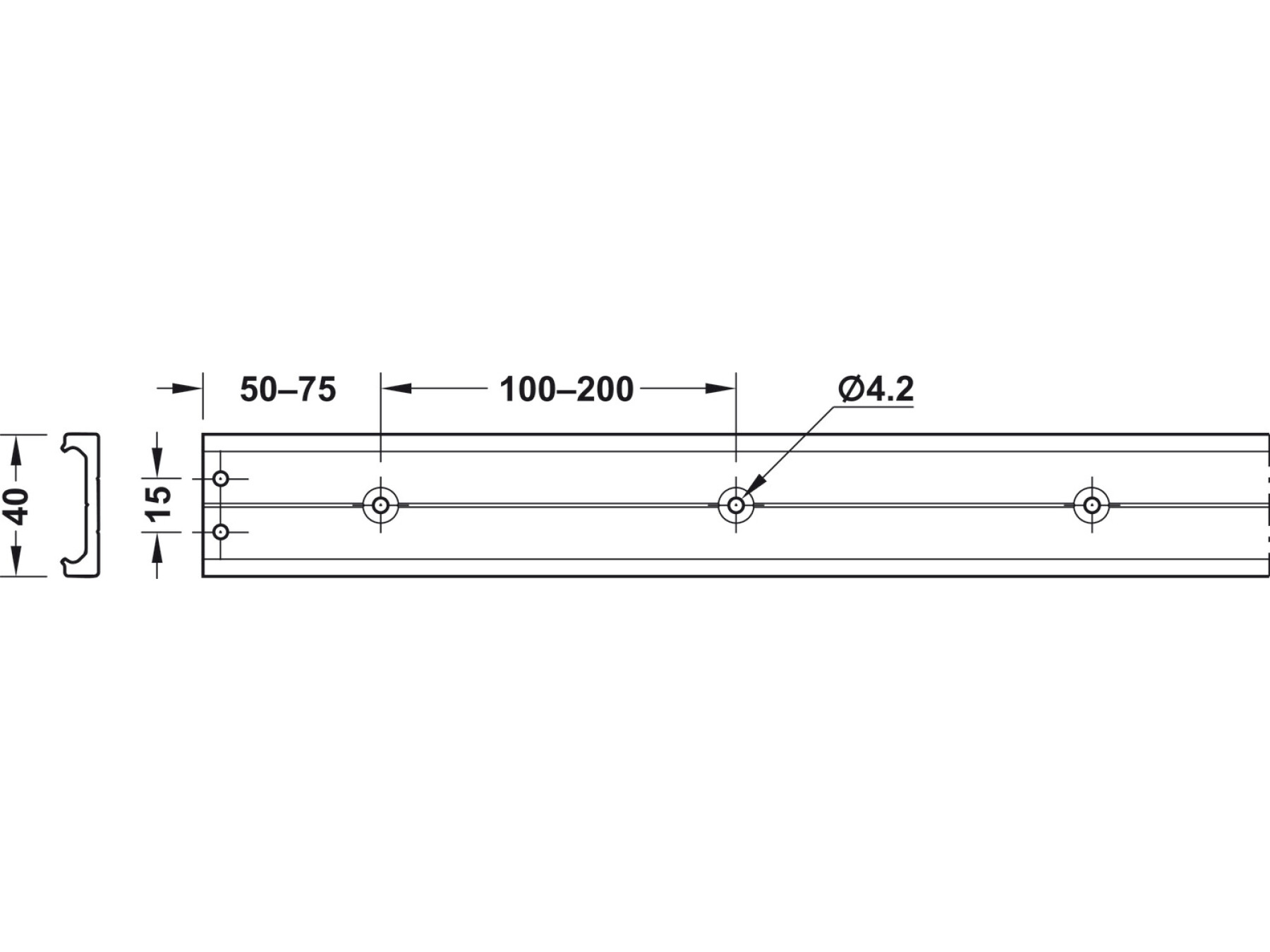

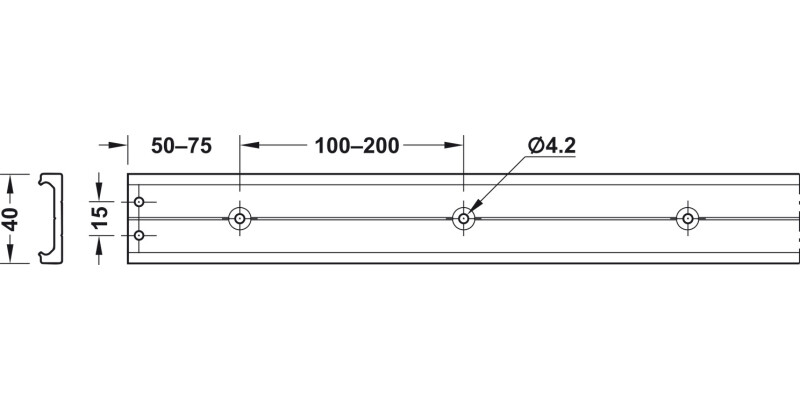

  • Width: 40 mm
  • Material: Aluminium

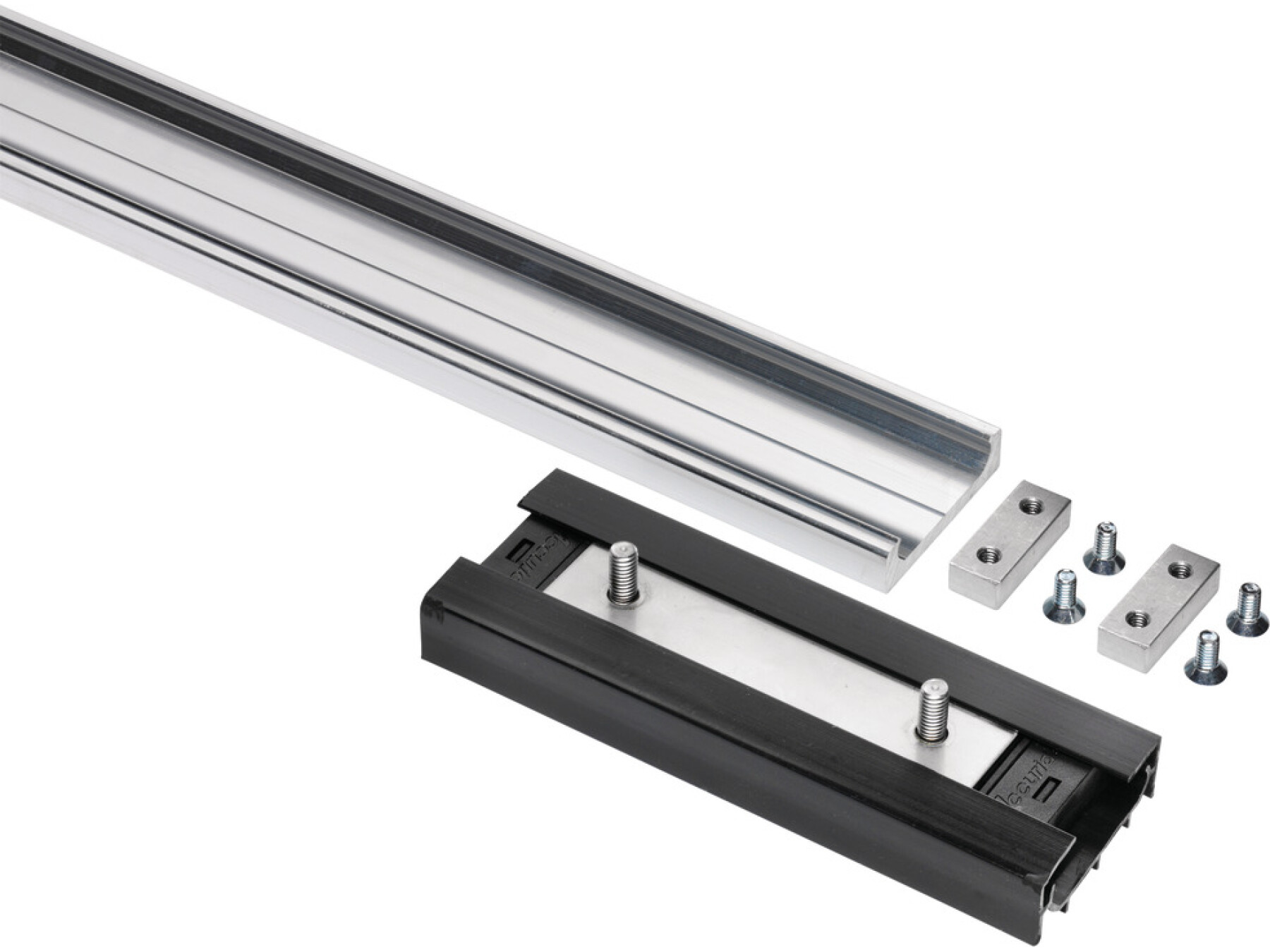

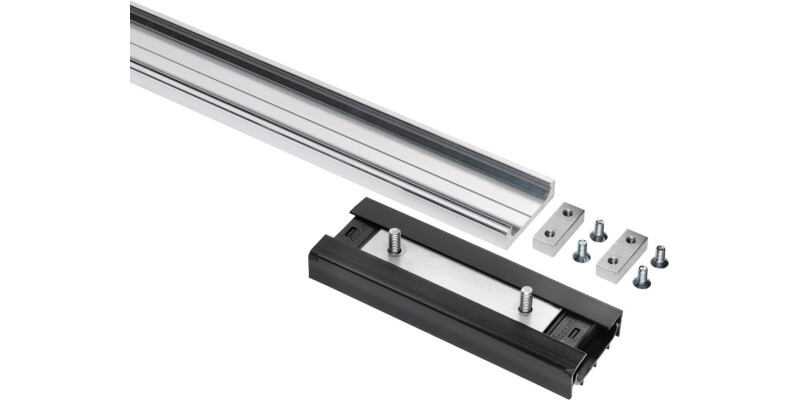

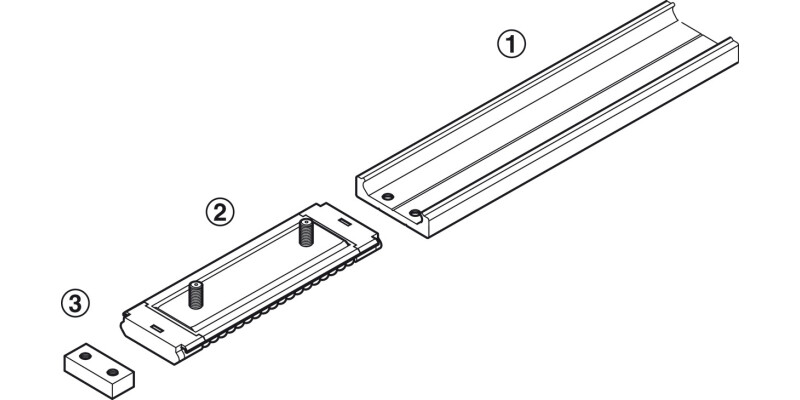

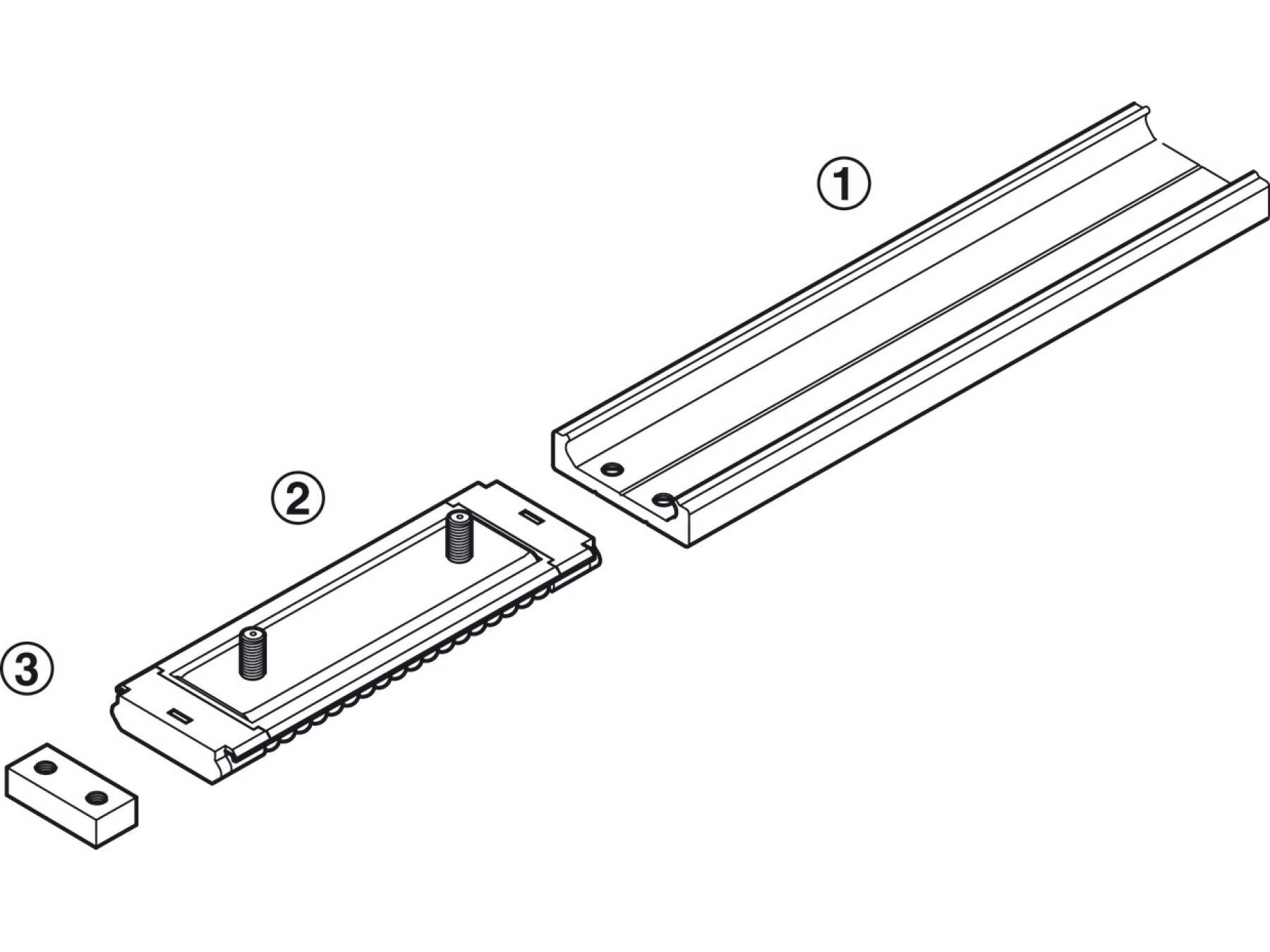

  • Installation: ¬¨¬®‚Äö√тĆ\n ¬¨¬®‚Äö√тĆ\n (1) Running track¬¨¬®‚Äö√тĆ\n (2) Re-circulating ball carriage¬¨¬®‚Äö√тĆ\n (3) End stopPlease note during installation of the linear motion track system that the re-circulating ball carriage is already pre-mounted when mounting the running track. This must be taken into consideration during the design of the furniture item.
  • Order reference: Ball bearing carriages, accessories and fixing screws to be ordered separately
