Hawa Multifold 30/W Fitting Set 2 Panels
Part Number: 409.52.050

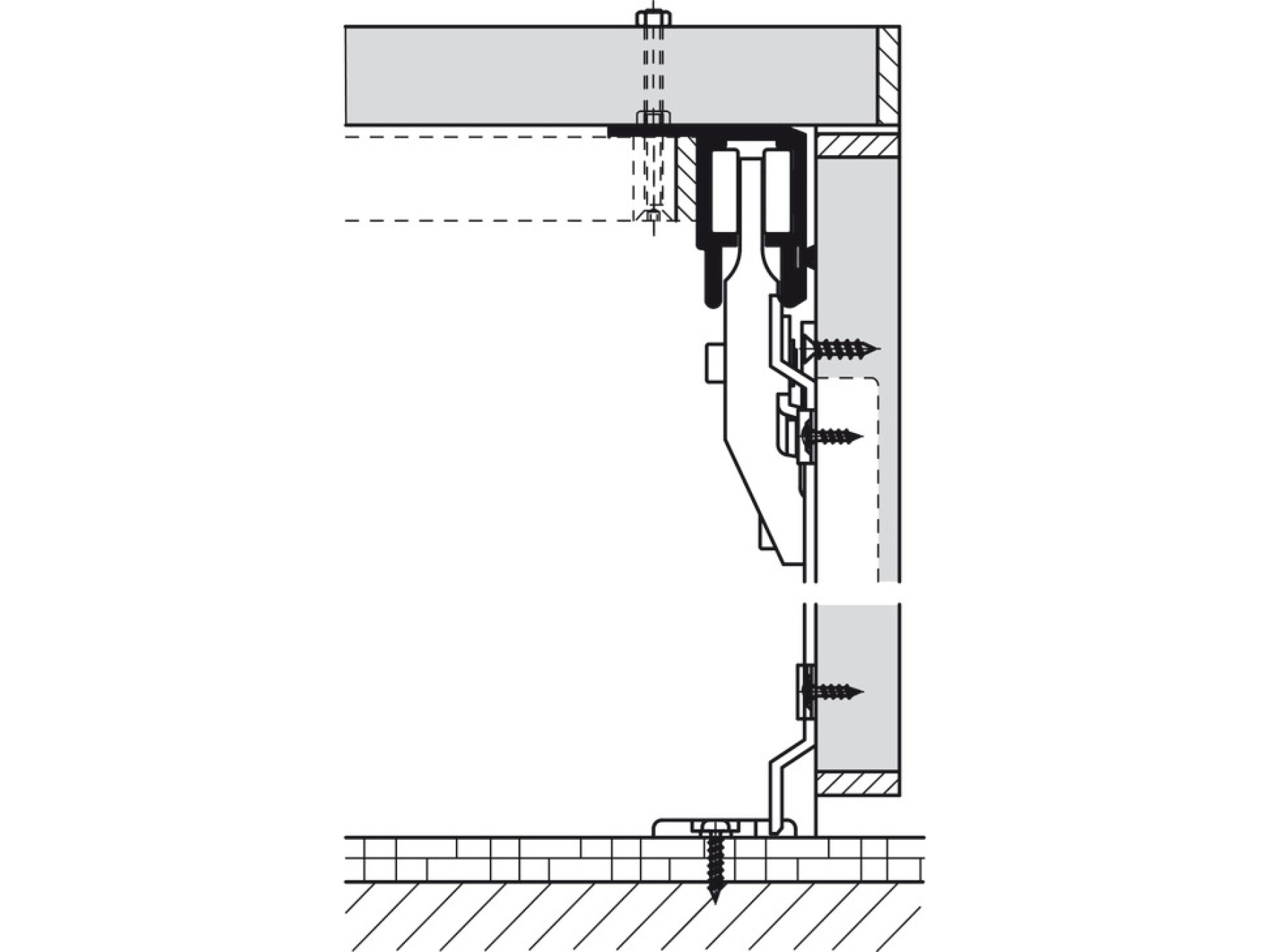

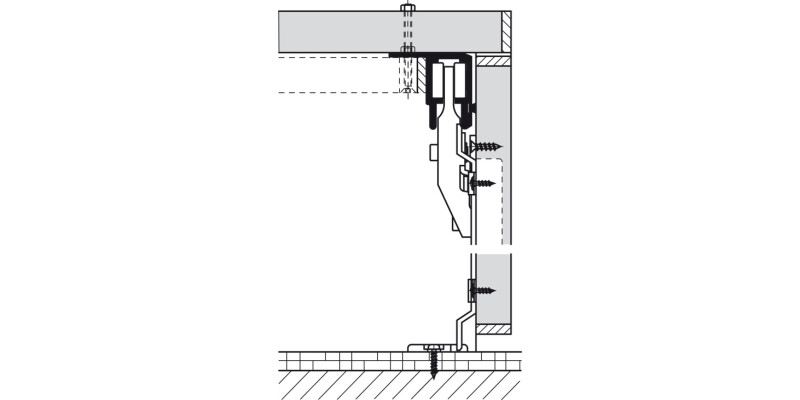

Top hung system, For 2 panels
Price:
£582.60
Per Item
For high quality top hung residential and commercial applications where clear threshold without floor channel is... Read More
Product Information
Product Details

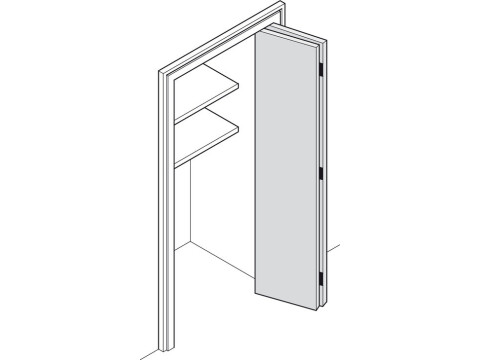

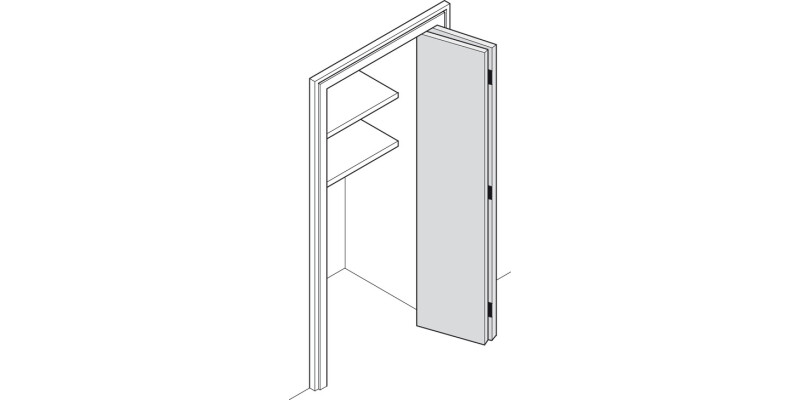

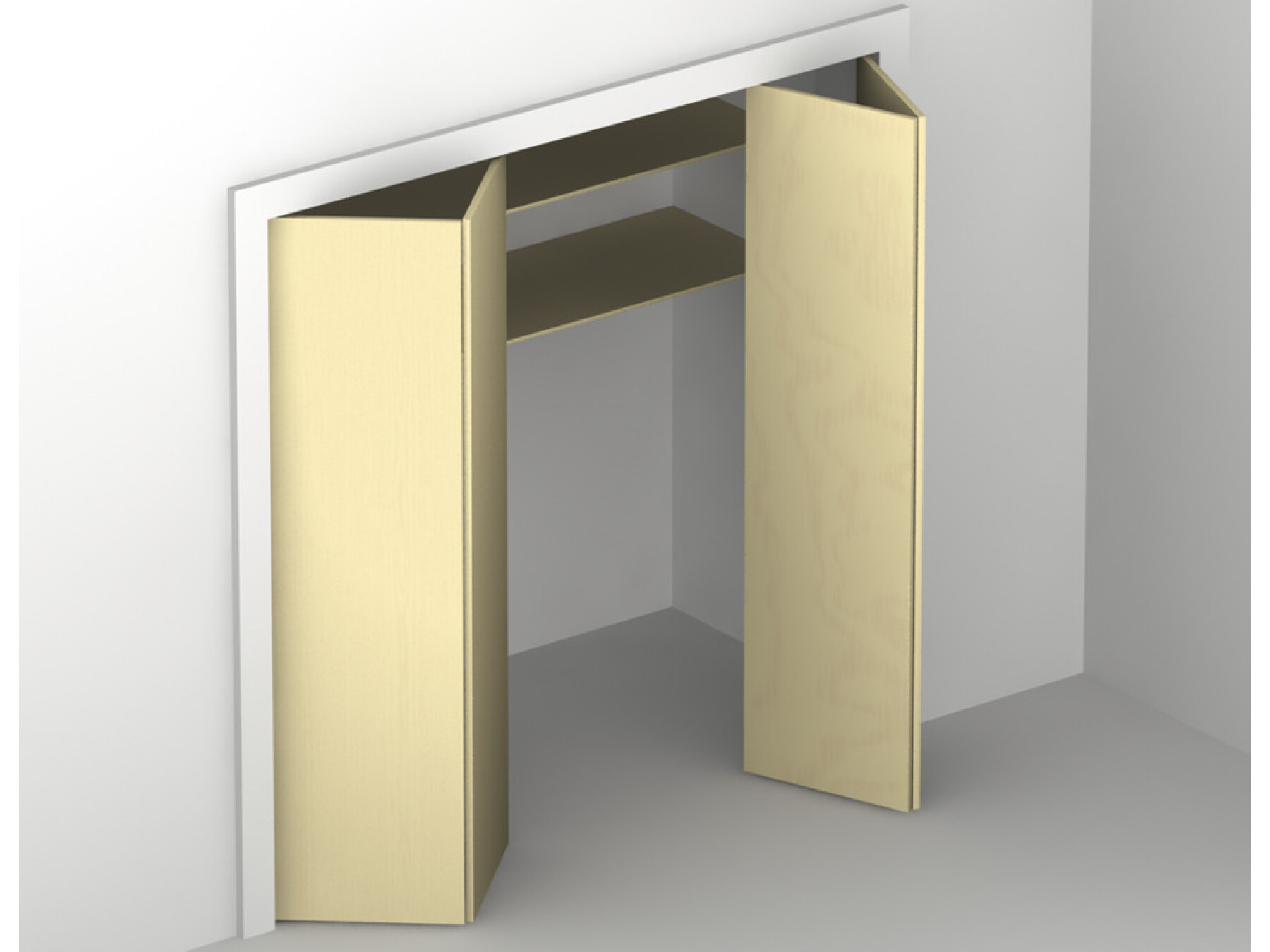

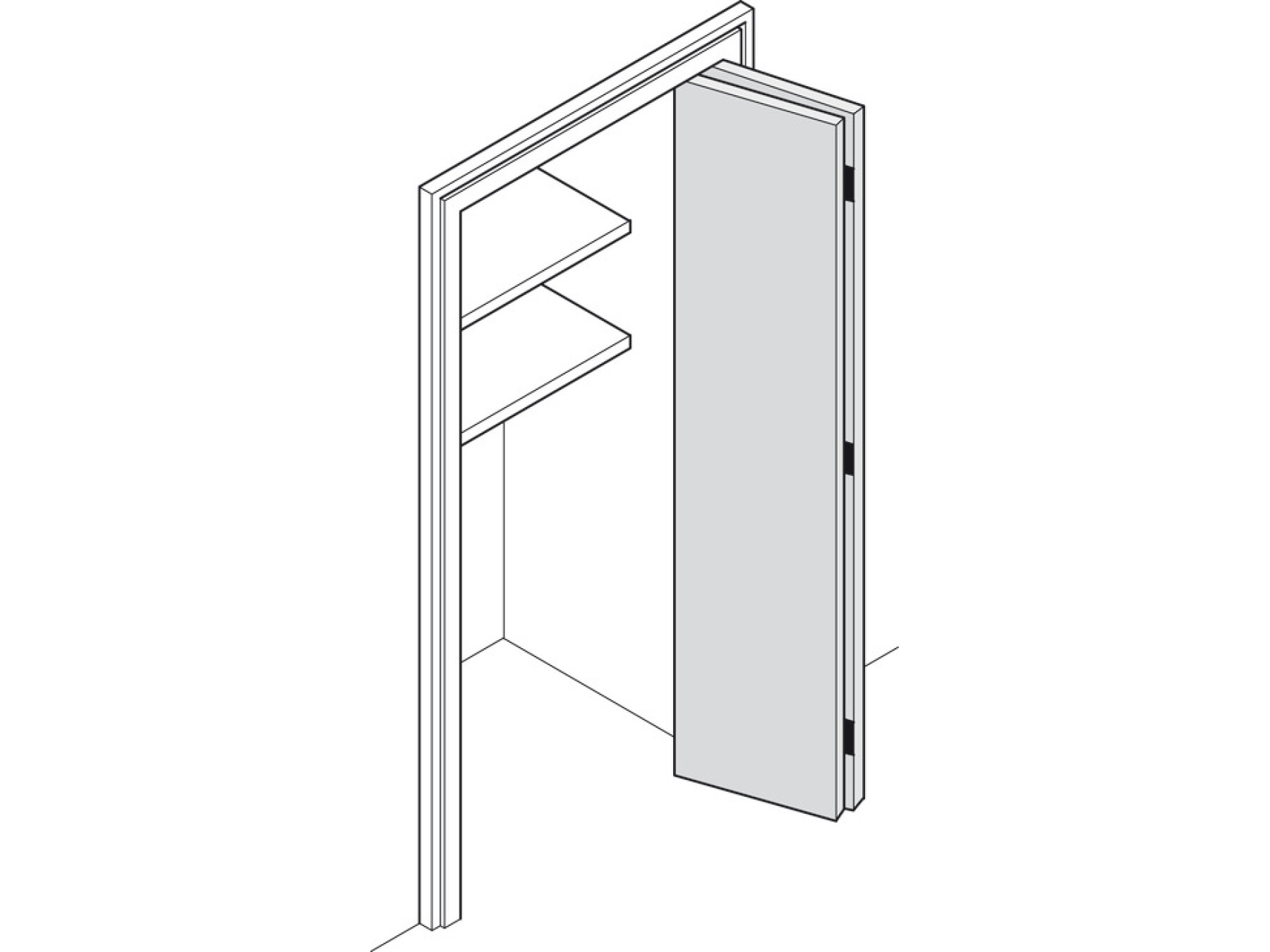

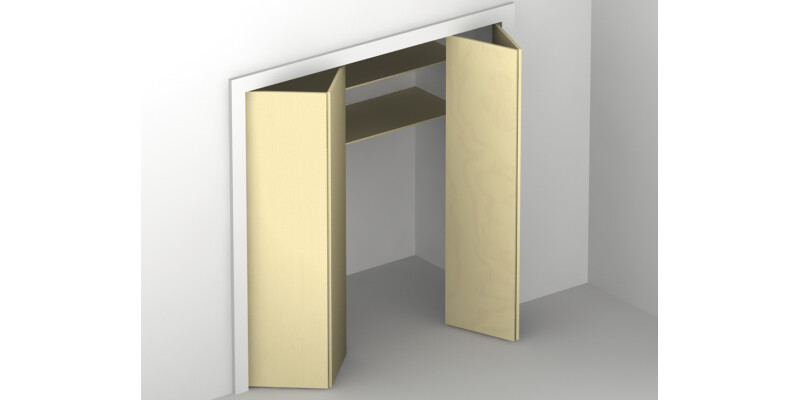

For high quality top hung residential and commercial applications where clear threshold without floor channel is essential, e.g. walk-in wardrobes
Suitable for pairs of doors only

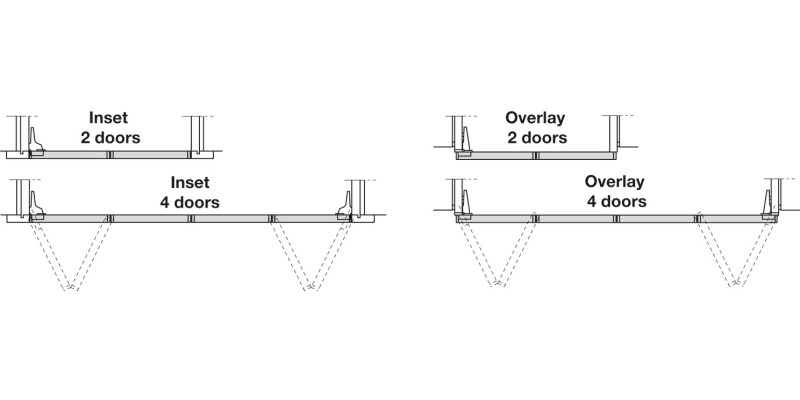

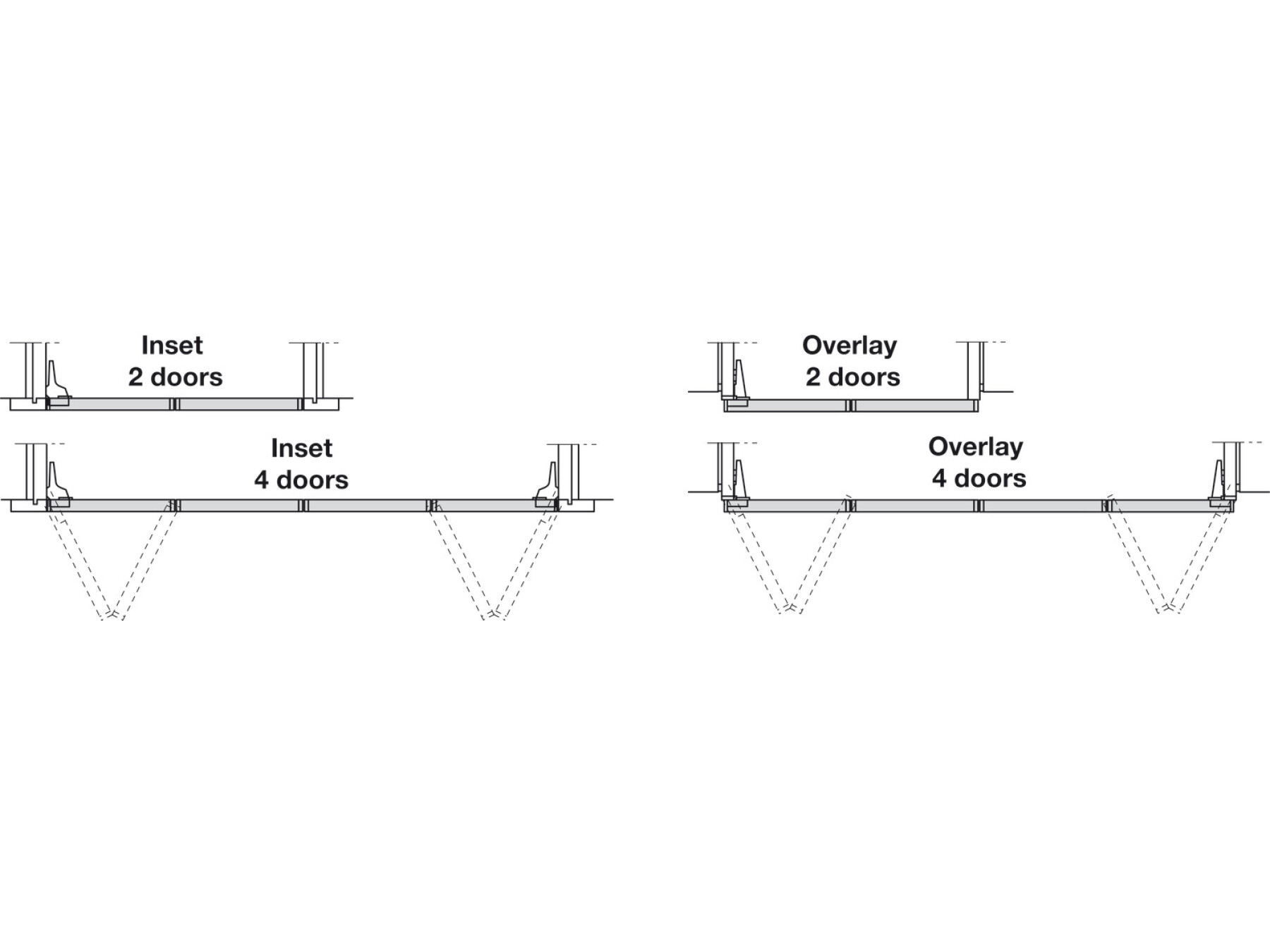

Components accommodate either overlay (Vorfront) or inset (Infront) pairs of doors
Order reference
Additional fittings, sealing profile strips, slide bolts and concealed hinges and mounting plates to be ordered separately

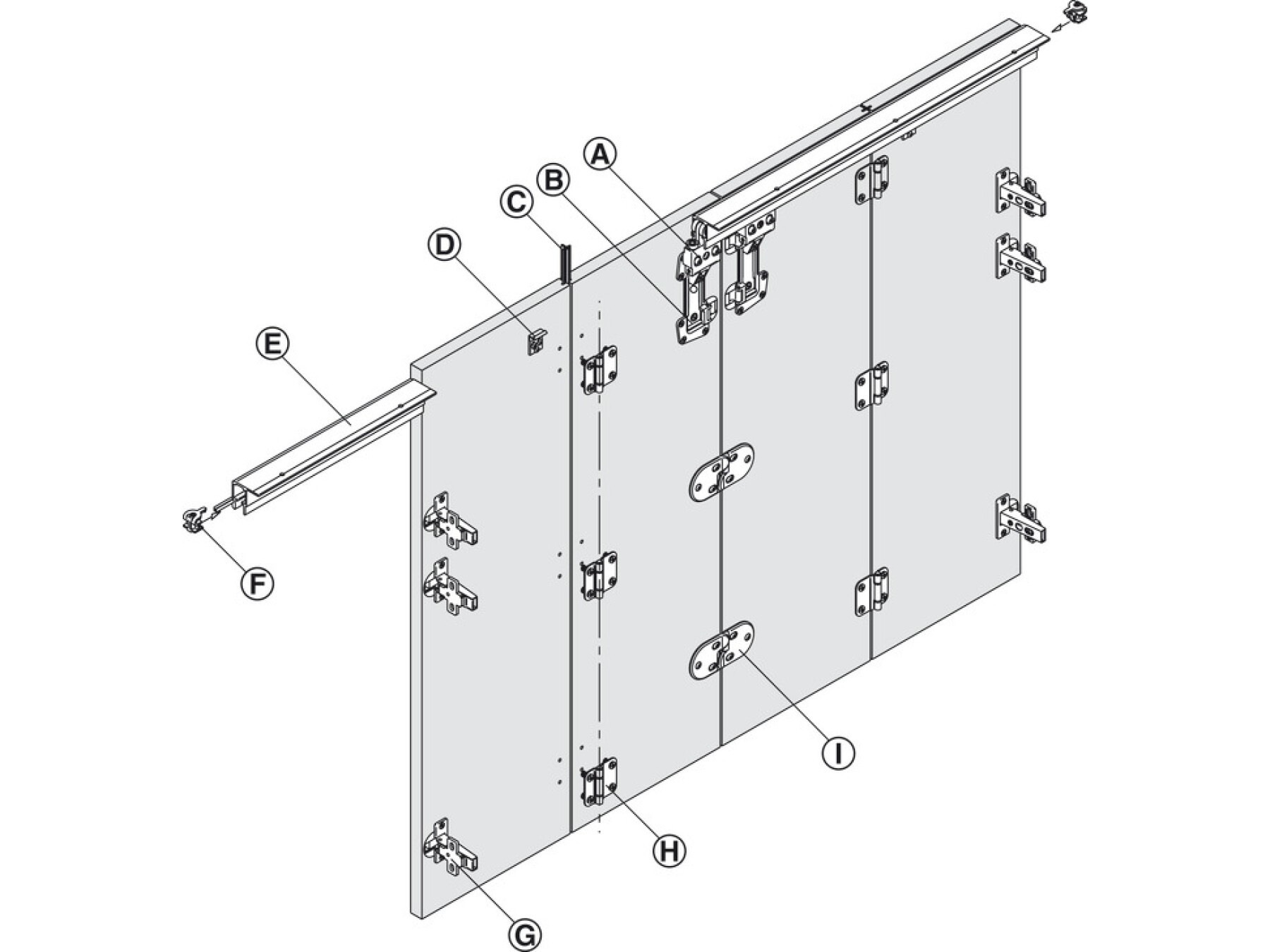

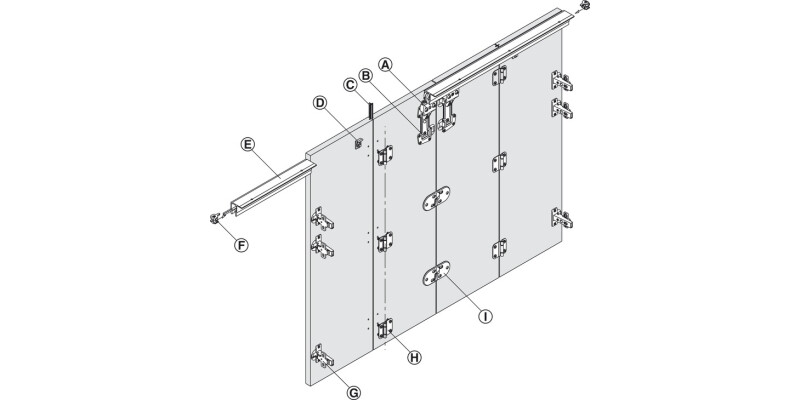

Supplied with
1 Running gear
1 Suspension fitting
1 Door stopper
1 Door catch
4 Panel to panel hinges
1 Panel interlocking fitting for 4 doors
1 Interlocking fitting
1 Running track, length 1100 mm
To prevent cabinet from toppling: Order securing bracket.
Specifications
Set
Set with tracks
For door weight
≤30 kg
For door height
≤2,600 mm
For door width
200 – 500 mm
Version
For 2 panels
Colour/finish
Area of application
Inset or overlay cabinet doors
For door material
Wood
For door thickness
19 – 25 mm
Note on door weight
60 kg per pair of doors
Material/finish
AluminiumSteelPlastic
Running gear guided by
Ball bearing
Adjustment facility
Height adjustment ± 2 mm
Door adjustment via
eccentric screw

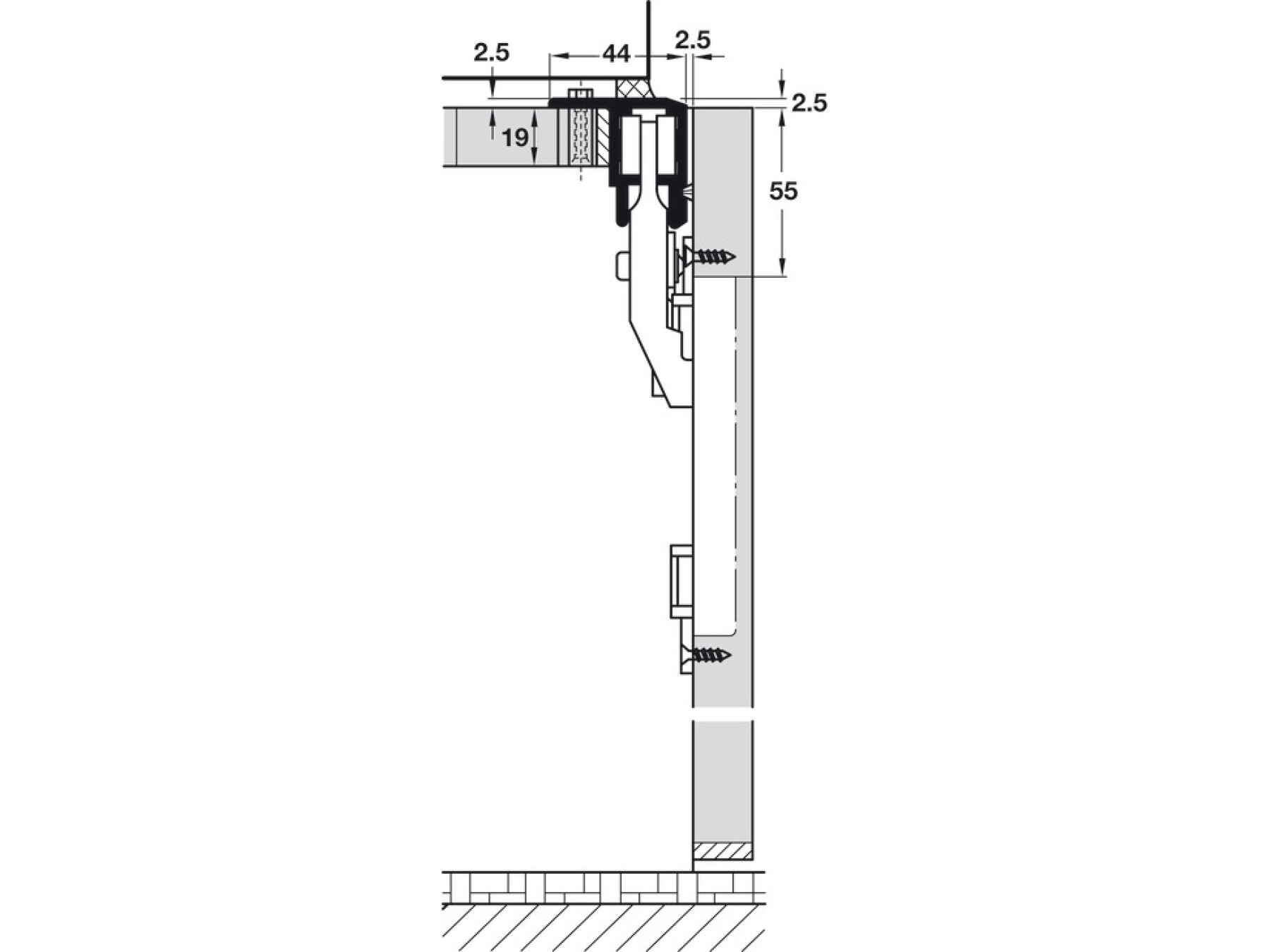

Installation
Screw and press fixing
Model series
Multifold 30/W
